PH694 - 6" x 9" PRO Full-Range Co-Ax Horn Speaker, Pair

$229.99
Availability: In stock
SKU
PH694

PH694 - 6" x 9" PRO Full-Range Co-Ax Horn Speaker

Features:

• 6 X 9” PRO Full-Range Co-Ax Horn Speaker, Pair • Ferrite Strontium High Temp Magnet Structure • Heavy Duty Stamped Steel Basket • Advanced Voice Coil Heat Sink Design for better heat dissipation • 1.5” Single Layer High Temp Voice Coil with Black CoatedVoice Coil former for Woofer • 1.0” Single Layer High Temp Voice Coil with Black CoatedVoice Coil former for Tweeter • 12dB 2nd Order Filter Crossover for better Protection of the Tweeter
More Information
Nominal Impedance (ohms) N/A
Frequency Response 80Hz -18Khz
Voice Coil Diameter (inch/mm) 1.5”
Power Handling (RMS/Peak) 160W RMS/320W MAX
Fs-Free Air Resonance (Hz) 76.5
Vas (Liter) 22.00
Qts 0.78
Sensitivity (1W/1M) 103dB
Xmax - Inch(mm) 1.0

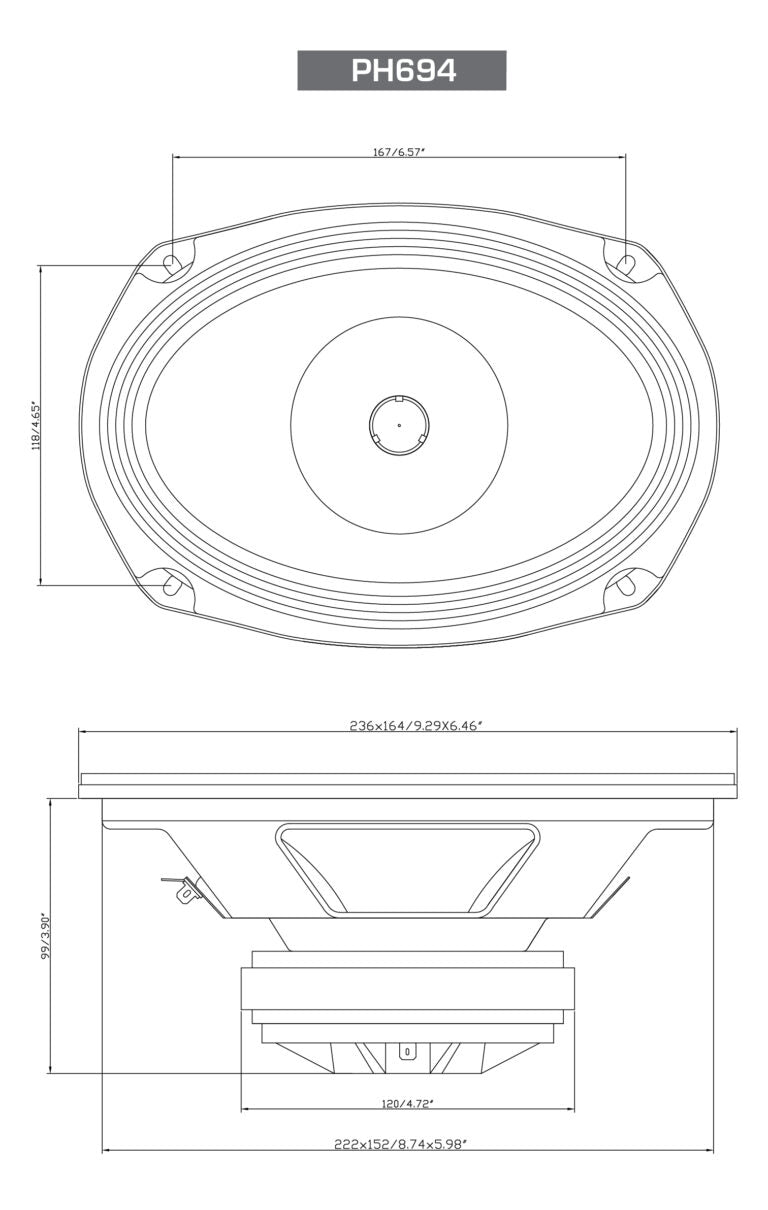

Mounting Diameter (inch/mm) 8.74 X 5.98 (222X152)
Mounting Depth 3.90 (99) in. (mm)
