When upgrading a car audio system, one of the most common questions I hear is: Should I wire my subwoofers in series or parallel? This question becomes especially important when installing dual voice coil (DVC) subwoofers or running multiple subwoofers in one system.
Many people focus only on how to get more bass output, but they overlook one of the most important factors: the final impedance load your amplifier sees. Choosing the wrong wiring configuration can cause your amplifier to overheat, enter protection mode, or even suffer permanent damage.
From my experience designing and tuning car audio systems, I’ve learned that series and parallel wiring are not about choosing which one “sounds better.” They are about controlling the system’s impedance, current demand, and amplifier performance. Once I understand how ohm loads work, I can build a system that delivers powerful bass while staying reliable.
What Is Subwoofer Impedance and Why Does It Matter?
In car audio, subwoofers commonly come in 2-ohm, 4-ohm, and 8-ohm configurations . This number represents how much resistance the speaker presents to the amplifier’s output.
Simply put, a lower impedance allows more current to flow, while a higher impedance reduces the workload on the amplifier.
For example, if my mono amplifier is rated at:
500 watts RMS @ 2 ohms
300 watts RMS @ 4 ohms
The amplifier can produce more power at a 2-ohm load, but it also needs to deliver more current and handle more heat.
This is where many installation mistakes happen. A lot of people choose a subwoofer based only on power ratings but forget to calculate the final impedance after wiring. If the final load is lower than what the amplifier can safely handle, the amp may shut down into protection mode or become damaged over time.

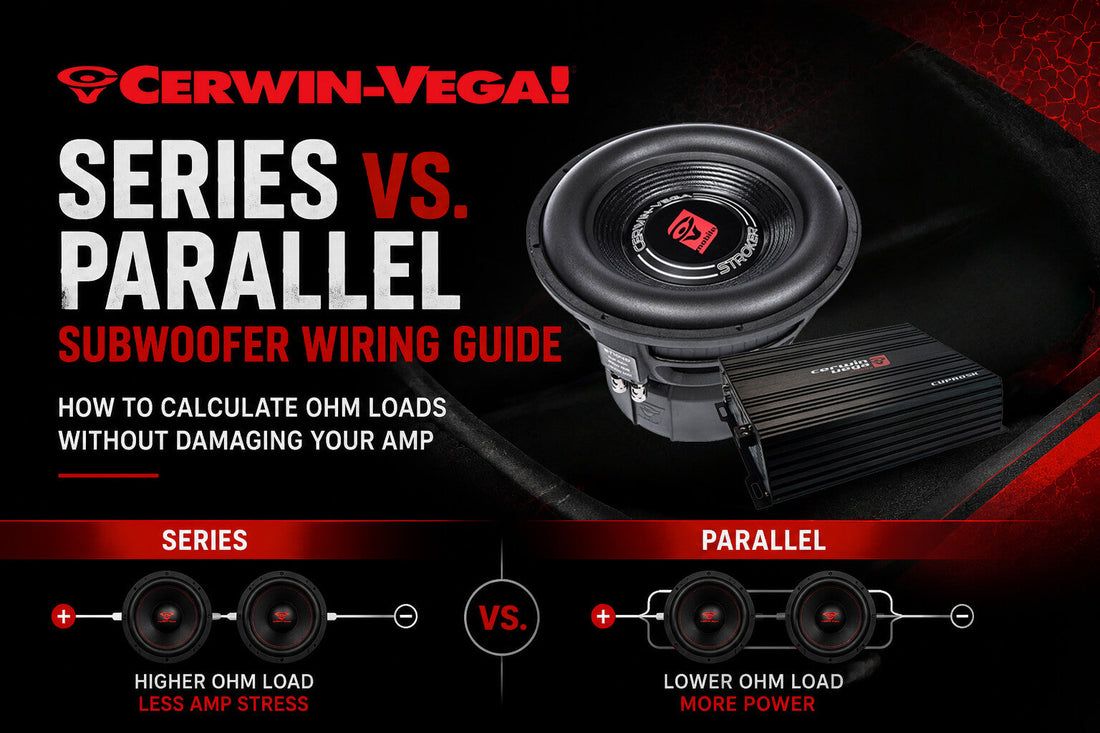

How Does Series Subwoofer Wiring Work?
Series wiring is the easier configuration to understand:
The impedance values are added together.
For example:
Two 4-ohm subwoofers wired in series:
4Ω + 4Ω = 8Ω
Two 8-ohm subwoofers wired in series:
8Ω + 8Ω = 16Ω
With series wiring, the amplifier sees a higher impedance load.
For a dual voice coil subwoofer, the same rule applies.
For example, a dual 4-ohm voice coil subwoofer:
Voice coils wired in series:
4Ω + 4Ω = 8Ω
The amplifier now sees an 8-ohm load.
The biggest advantage of series wiring is that it reduces the demand on the amplifier. Since the amplifier does not need to deliver as much current, the system usually runs cooler and more efficiently.
However, there is also a trade-off. A higher impedance load usually means lower amplifier output power.
For example, an amplifier may produce:
600 watts RMS @ 2 ohms
400 watts RMS @ 4 ohms
200 watts RMS @ 8 ohms
If I wire my subwoofer to an 8-ohm load, the system will be safe and stable, but I may not get the maximum bass output the amplifier is capable of producing.
Series wiring is usually a good choice when:
- My amplifier cannot handle low impedance loads
- I want to reduce amplifier stress
- I need a higher impedance to properly match my system
How Does Parallel Subwoofer Wiring Work?
Parallel wiring works in the opposite way:
The total impedance decreases.
For two identical subwoofers:
Two 8-ohm subwoofers wired in parallel:
8Ω ÷ 2 = 4Ω
Two 4-ohm subwoofers wired in parallel:
4Ω ÷ 2 = 2Ω
Two 2-ohm subwoofers wired in parallel:
2Ω ÷ 2 = 1Ω
Parallel wiring is extremely common in high-output car audio systems because lowering the impedance allows the amplifier to deliver more power.
For example, a dual 4-ohm voice coil subwoofer:
Voice coils wired in parallel:
4Ω ÷ 2 = 2Ω
If my mono amplifier is stable at 2 ohms, this configuration allows it to produce more output and deliver stronger bass performance.
However, lower impedance also means higher current demand.
When impedance decreases:
- The amplifier works harder
- Heat increases
- The electrical system experiences more stress
If my amplifier is only designed for a minimum 4-ohm load and I connect two 4-ohm subwoofers in parallel, the final 2-ohm load may overload the amplifier.
Instead of getting louder bass, I may end up with an amplifier that constantly shuts down or overheats.
Does Series or Parallel Wiring Change Sound Quality?
This is one of the biggest misconceptions in car audio.
The truth is:
Series and parallel wiring do not directly determine sound quality.
The actual performance depends on:
- Amplifier power output
- Subwoofer design
- Enclosure type
- Electrical supply
- Proper impedance matching
A properly designed system can sound excellent with either wiring method.
That said, parallel wiring is more common in high-performance car audio because many modern mono amplifiers are designed to deliver higher output at lower impedance loads such as 2 ohms or 1 ohm.
For example, a powerful amplifier paired with a dual 4-ohm subwoofer can often achieve a 2-ohm final load through parallel wiring, allowing the amplifier to operate closer to its maximum output capability.
Series wiring, on the other hand, is often preferred when reliability and amplifier protection are the priority.
Why Shouldn’t I Always Choose the Lowest Impedance?
A common mistake I see is:
“Lower ohms means more power, so I should always wire for the lowest possible load.”
That is not always true.
An amplifier is not designed to provide unlimited current.
When impedance becomes too low:
- Current demand increases
- Internal temperatures rise
- Components experience more stress
The amplifier may:
- Enter protection mode
- Produce distortion
- Overheat
- Experience long-term damage
Before wiring my subwoofer system, I always check three things:
The final impedance after wiring
The minimum impedance rating of the amplifier
The amplifier’s RMS power output at that impedance
These three factors determine whether the system will perform properly.
How Should I Wire Multiple Subwoofers?
Let’s say I have two 4-ohm subwoofers.
Series wiring:
4Ω + 4Ω = 8Ω
Advantages:
- Lower amplifier stress
- Improved stability
Disadvantage:
- Reduced power output
Parallel wiring:
4Ω ÷ 2 = 2Ω
Advantages:
- Higher amplifier output
- Stronger bass performance
Disadvantage:
- Requires an amplifier that supports 2-ohm operation
If my amplifier is designed to run safely at 2 ohms and my electrical system can support it, I would typically choose parallel wiring to get more output.
If my amplifier has limited capability or my vehicle’s charging system has not been upgraded, series wiring may be the safer option.
Final Thoughts: Proper Impedance Matching Matters More Than Chasing Lower Ohms
There is no universal winner between series and parallel subwoofer wiring.
The right choice depends on the relationship between the subwoofer and the amplifier.
Remember:
Series wiring increases impedance and reduces amplifier stress.
Parallel wiring decreases impedance and allows higher power output.
Lower impedance does not automatically mean better performance.
The final impedance must always stay within the amplifier’s safe operating range.
When upgrading a car audio system, proper impedance matching is more important than simply chasing the highest power number. Whether I’m installing a Cerwin-Vega subwoofer or building another high-performance bass system, calculating the ohm load first ensures stronger bass, better reliability, and a system that performs the way it was SS
