HED 1 Channel 1000W Class-D Monoblock Amplifier
SKU:H1000.1D
Couldn't load pickup availability
Overview
H1000.1D - Class-D Digital Monoblock Amplifier
Description:
Cerwin Vega HED series amplifiers are known for their advanced technology to deliver high performance. The use of aluminum in the construction of the amplifier chassis helps in heat dissipation and reduces weight, contributing to both efficiency and durability. These amplifiers are designed to produce a significant amount of power, making them suitable for demanding audio setups. HED series amplifiers are built with cutting-edge technology to ensure reliability and long-lasting performance. This includes high-quality components and meticulous engineering. HED series amplifiers utilize Class D amplifier technology, which is known for its high efficiency and ability to produce lots of power without generating excessive heat.
Specifications
1 Channel Monobloc Digital Amplifier
450W x 1CH @ 4Ω RMS Power Output
700W x 1CH @ 2Ω RMS Power Output
1000W x 1CH @ 1Ω RMS Power Output
Input Sensitivity: 0.2-10 Volt
Crossover Filter : 50-250Hz (LPF), 24dB Per Octave Slope
Frequency Response: 20-500Hz
Signal to Noise Ratio: > 90dB
Overall Operation Efficiency: >85%
Selectable REM / VOX / DC Turn On Modes
Variable Phase Adjustment
Remote Bass Knob Included
Dimensions: 11.0” x 6.3” x 1.9” (279.5 x 160 x 48.3 mm)
Product Manuals

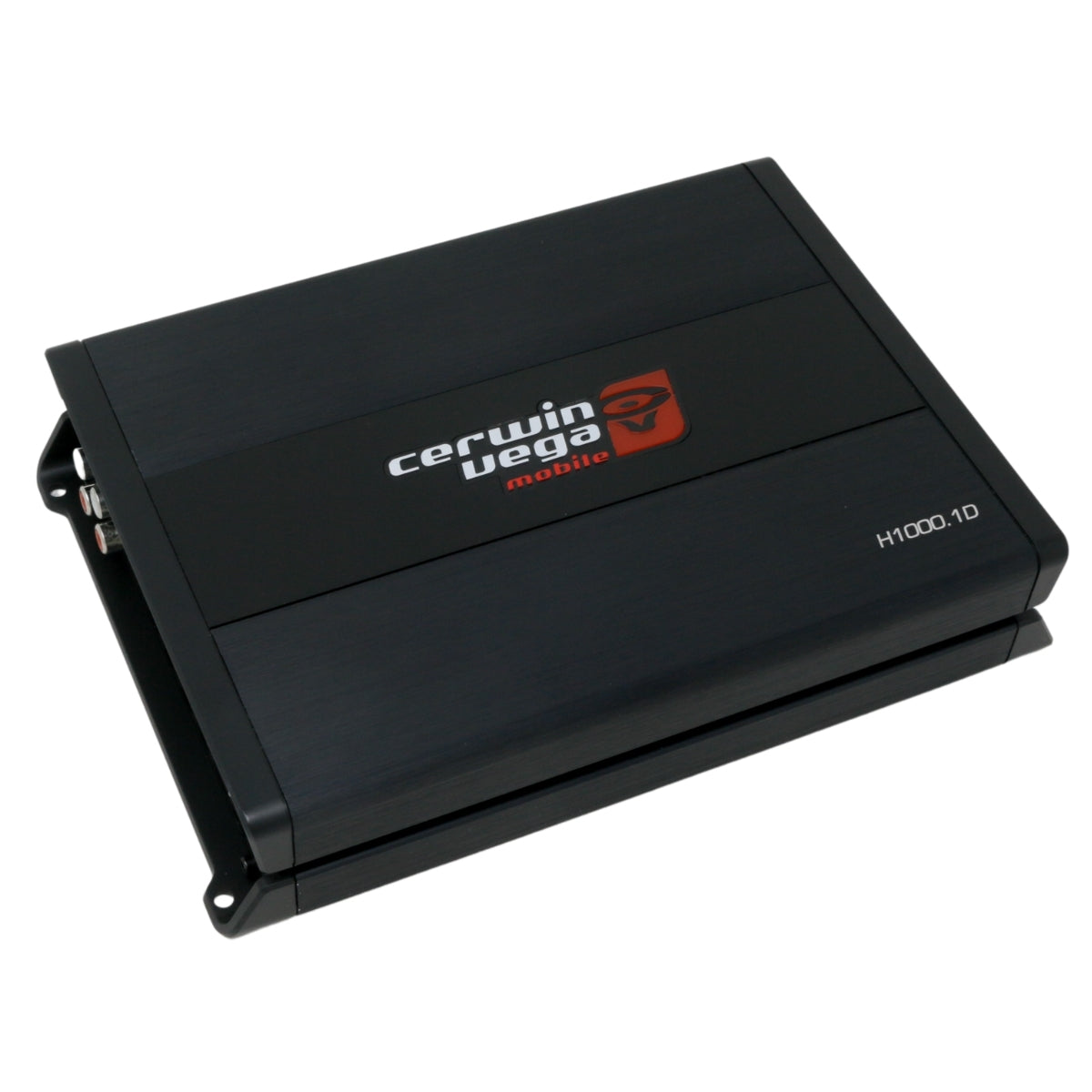

![1000W Monoblock Class D Amplifier](http://cerwinvega.com/cdn/shop/files/3_13.jpg?v=1715245974&width=1445)

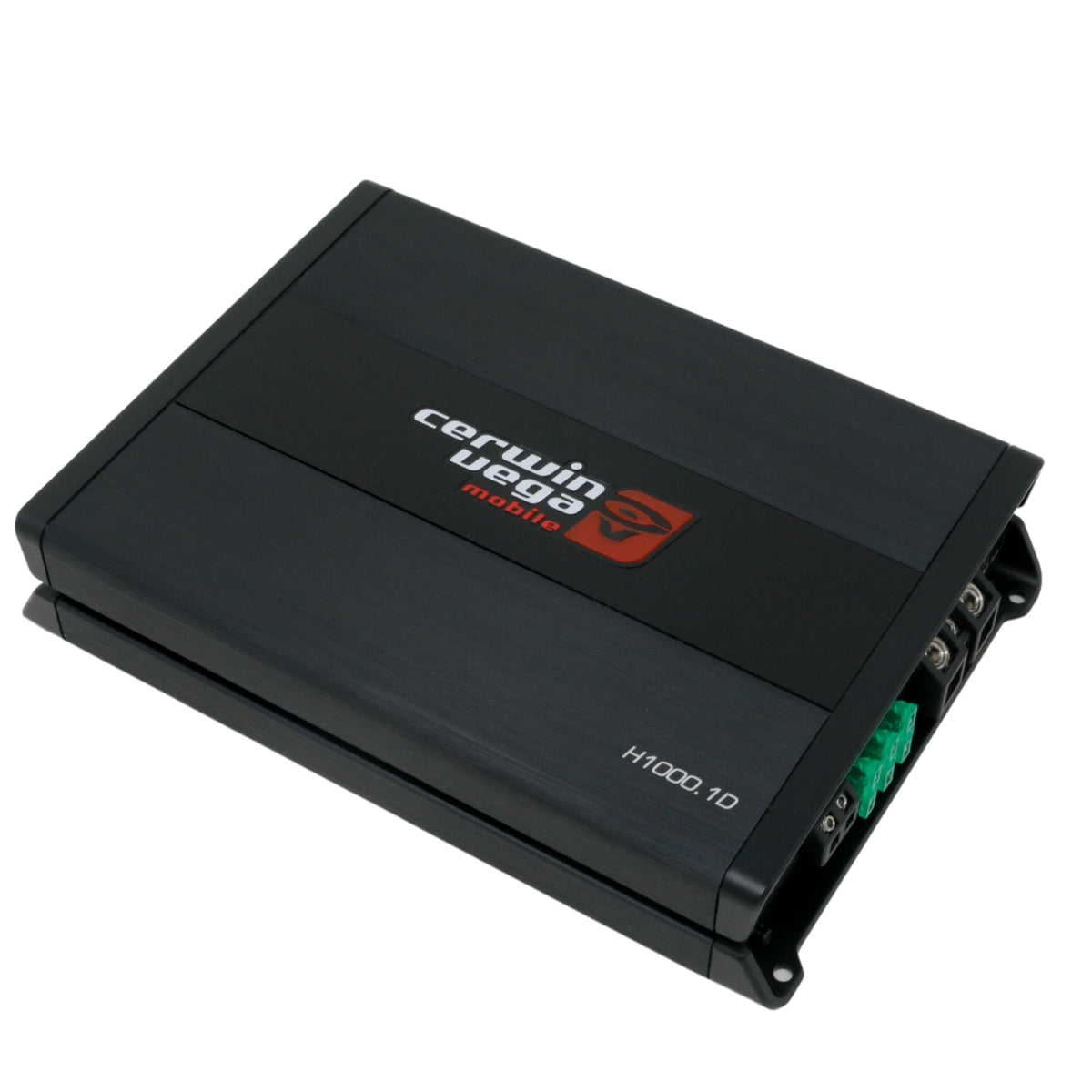

![monoblock amplifier](http://cerwinvega.com/cdn/shop/files/1_25.jpg?v=1715245974&width=1445)

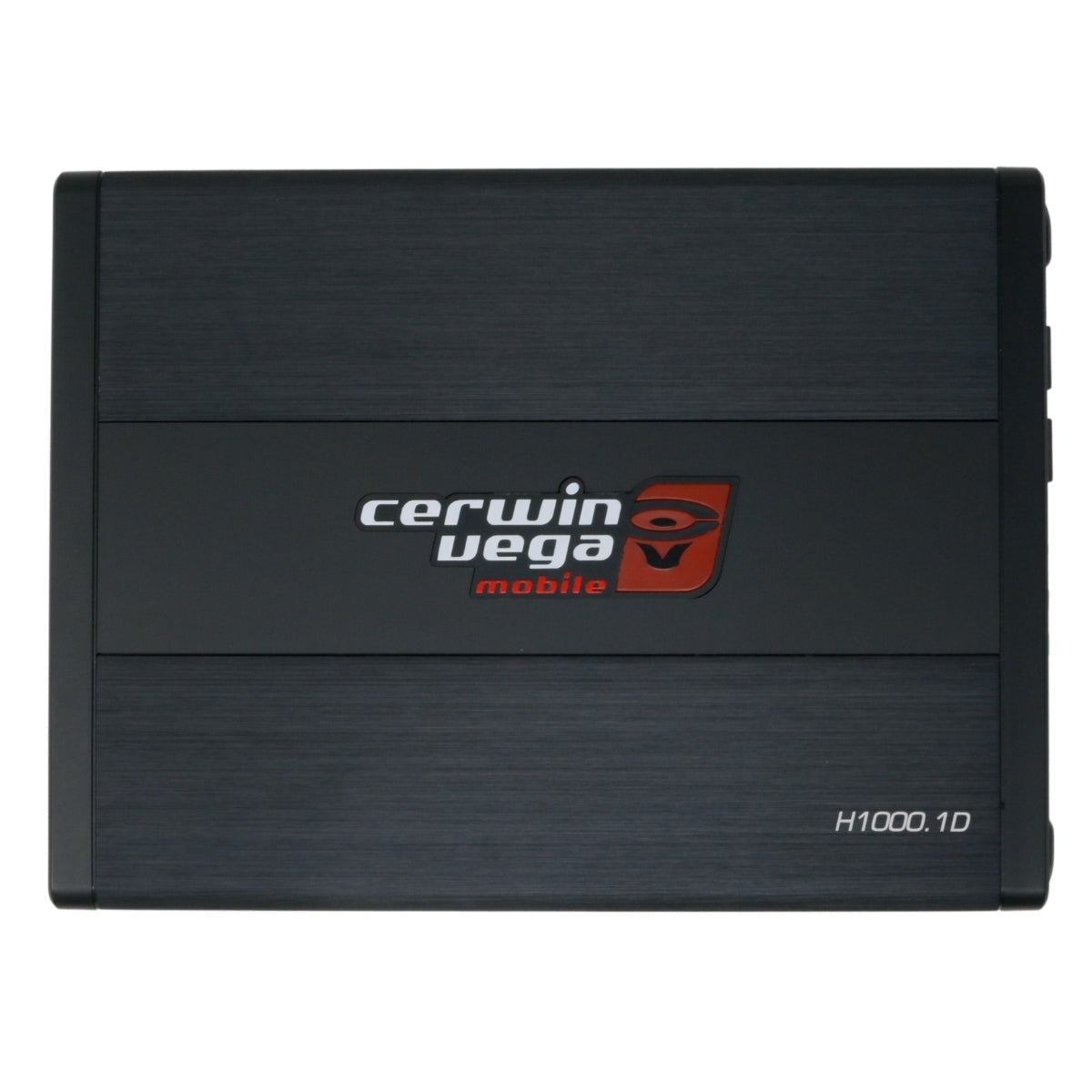

![The image shows a Cerwin Vega Inc. HED 1000W RMS Class-D Mono Digital Amplifier. It has a sleek, rectangular design with a dark metallic finish. The Cerwin Vega Inc. logo is prominently displayed in the center with the text "mobile" underneath and the model number "H1000.1D" in the bottom right corner, showcasing its 1 Channel Digital Monobloc Amplifier.](http://cerwinvega.com/cdn/shop/files/2_25.jpg?v=1715245974&width=1445)
![A black, Cerwin Vega Inc. HED 1000W RMS Class-D Mono Digital Amplifier with various connectors and terminals on one side. It features three green fuses labeled 35A, 35A, and 20A. Terminals are designated for +12V, REM, and GND alongside other input/output ports. The model number "H1000.1D" is printed in white near the bottom right.](http://cerwinvega.com/cdn/shop/files/4_10.jpg?v=1715245974&width=1445)

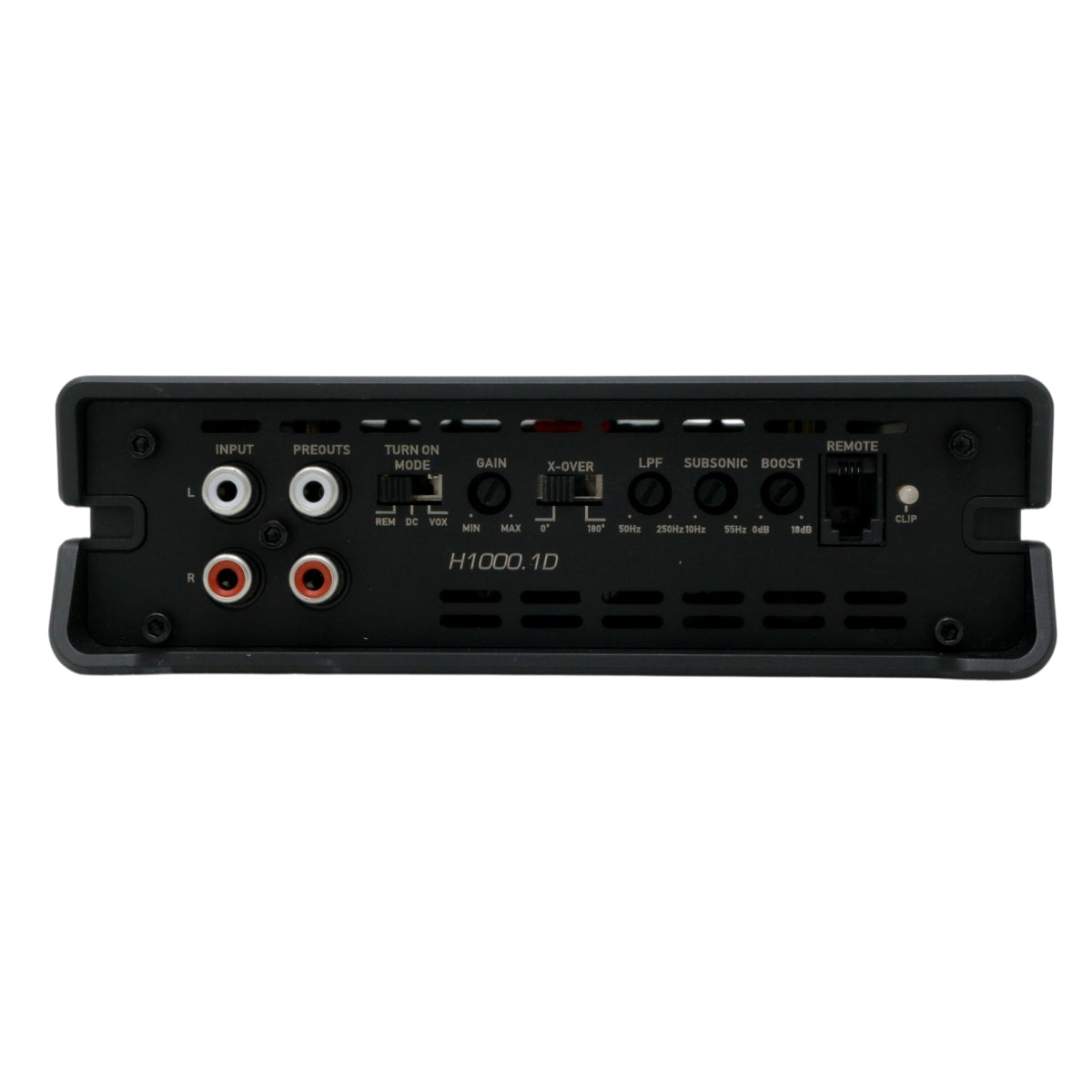

![Back view of the Cerwin Vega Inc. HED 1000W RMS Class-D Mono Digital Amplifier showcasing various input/output ports and control knobs. Ports include RCA inputs and outputs. Controls feature switches for mode, gain, crossover, and LPF, along with dials for subsonic and bass boost. Also includes connectors for remote control and power.](http://cerwinvega.com/cdn/shop/files/5_9.jpg?v=1715245974&width=1445)

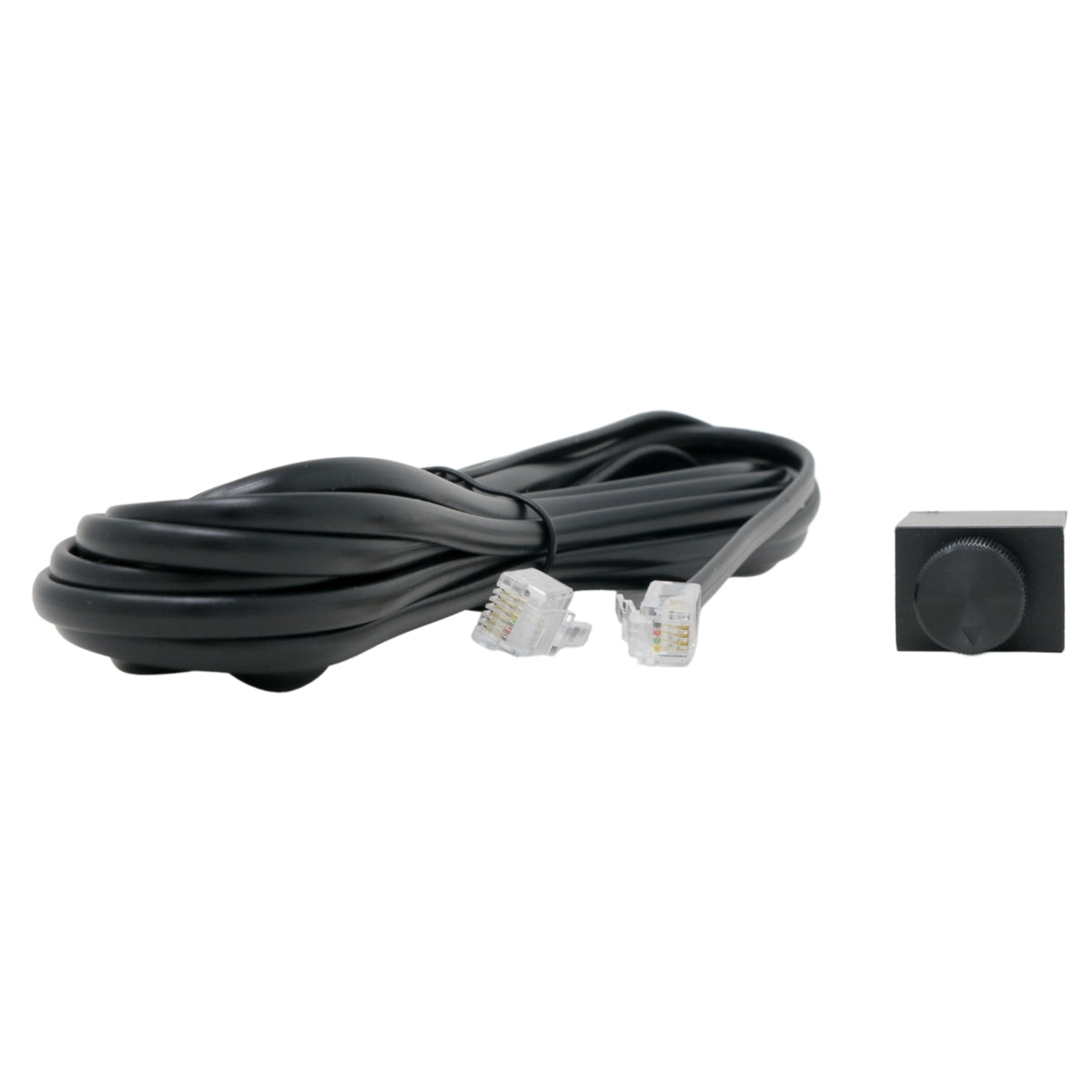

![A coiled black cable with two clear RJ12 connectors is placed next to a small black rectangular device with a single round knob on its face. The cable's connectors display visible wiring, suggesting its use for communication or control purposes. The device appears to be part of a Cerwin Vega Inc. HED 1000W RMS Class-D Mono Digital Amplifier system.](http://cerwinvega.com/cdn/shop/files/6_6.jpg?v=1715245974&width=1445)
