VEGA Series 2-Channel Full Range Class-D Amplifier - VCU82
Couldn't load pickup availability
Overview
VCU82 - VEGA Series 2-Channel Full Range Class-D Amplifier
Cerwin-Vega Vega Series Amplifiers – Compact Design, Monstrous Power
The Vega Series Amplifiers have solidified their place as the backbone of the Cerwin-Vega Mobile brand, delivering unrivaled performance in a sleek, compact package. Don’t be deceived by their streamlined design—these amplifiers pack a punch with monstrous power output to drive your system to its fullest potential.
Innovation Meets Power
- Updated High-Efficiency Full Range Digital Topology: Experience exceptional sound clarity with maximum energy efficiency.
- Enhanced Power IR Digital Chipset: Engineered for stability and precision, ensuring consistent performance under any condition.
Engineered for Durability
- Conformal-Coated 4-Layer PCB: Protected against moisture and environmental wear for long-lasting reliability.
- Water-Resistant Design: Built to withstand the rigors of the road, wherever your journey takes you.
Unmatched Versatility
- Remote Turn-On Configurator (REM/DC/VOX): Simplifies integration with any audio system.
- Accepts Hi and Lo-Level Inputs Up to 12V: Seamlessly connects to your existing setup, no matter the source.
- Boosted RFI Rejection: Keeps your sound crystal-clear, free from interference.
Compact Design, Big Impact
The matching heatsink platform dimensions ensure a consistent, stylish look while optimizing thermal management for uninterrupted performance.
Why Choose Vega?
Whether you’re a seasoned audio enthusiast or just starting to elevate your system, the Vega Series Amplifiers offer a balance of design, durability, and performance that’s hard to beat. From pounding bass to crystal-clear highs, these amps are the powerhouse your system deserves.
The Vega Legacy
With Cerwin-Vega’s unmatched legacy of audio innovation and more than 65 years of expertise, the Vega Series Amplifiers continue to define what’s possible in mobile sound systems.
Compact. Powerful. Reliable. Elevate your audio experience with Vega Series Amplifiers.
Specifications
POWER RATING
FREQUENCY RESPONSE (HZ): 40HZ - 400HZ
RMS POWER PER CHANNEL 4Ω 150W X 2
RMS POWER PER CHANNEL 2Ω 250W X 2
RMS POWER PER 2 CHANNELS BRIDGED 4Ω 500W X 1
POWER SUPPLY
- Power Supply: Full PWM
- Power Supply Threshold: 10.0V-17.0V (DC)
- Idle Current: (0.7A)
DISTORTION
- THD 4 (1KHz @4Ω): 0.05%
- S/N Ratio (A weighted @1W): -85 dBA
- S/N Ratio (A weighted @FP): -101.1 dBA
INPUT SENSITIVITY
- Low Input Level: 200mV-10.0V
- High Input Level: 200mV-10.0V
INPUT IMPEDANCE
- Low Input Level: 20 KΩ
- High Input Level: 20 KΩ
OUTPUT STAGE
- Output Impedance: 0.0297Ω
- Damping Factor (50Hz @ 4Ω): >250
- Bandwidth (-3dB): 10Hz-35KHz
CROSSOVER (-12/-24 dB/Oct)
- Variable High-Pass: 40Hz-400Hz
- Variable Low-Pass: 40Hz-400Hz
- Variable Sub-Sonic:
FUSE RATINGS
- ATC: 25A

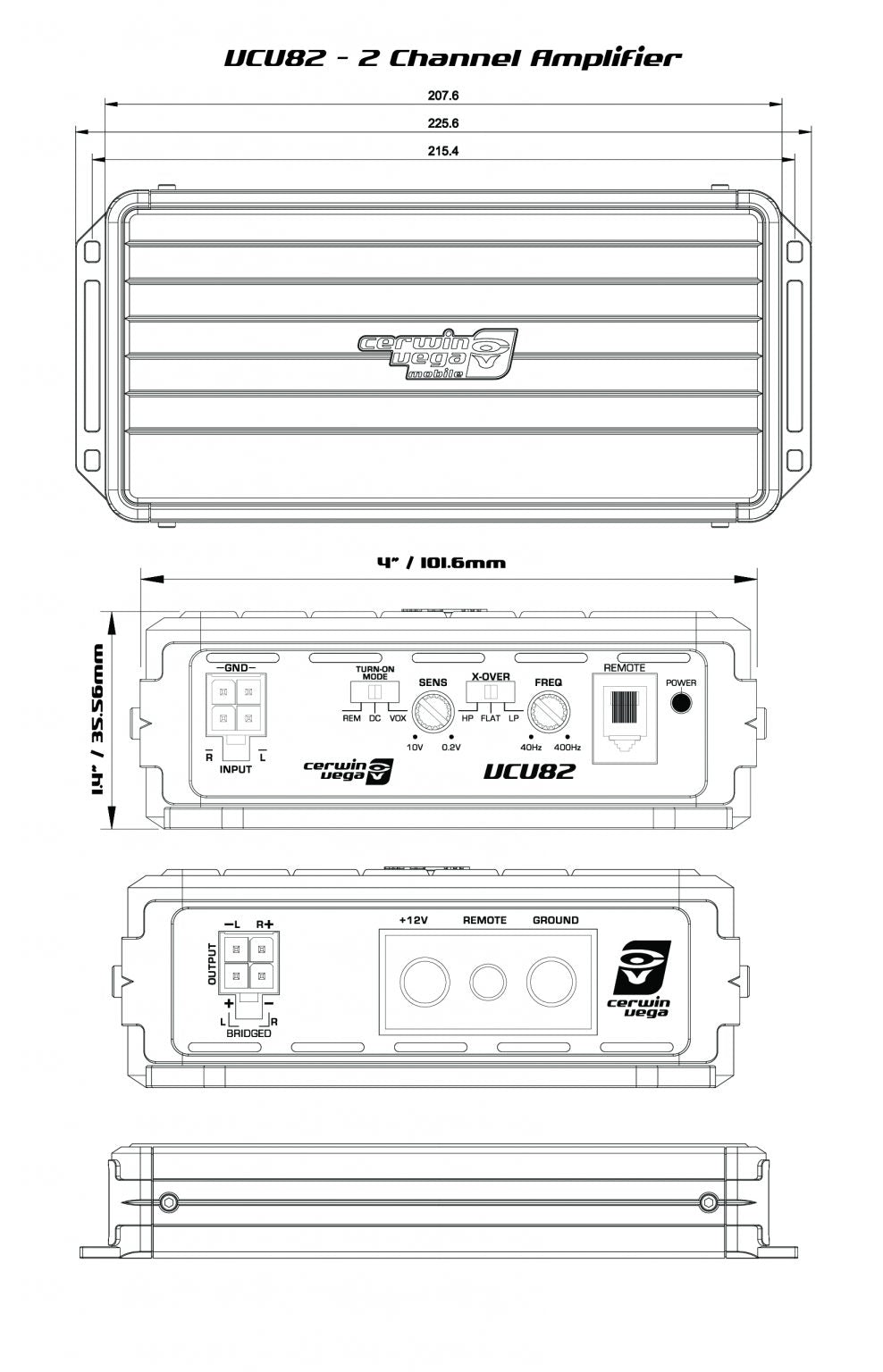

DIMENSIONS
- L x W x H: 7.7”x 4.02”x 1.4” (195.6mm x 102mm x 36mm)
FEATURES
- Full Range Class D IR Chipset
- DirectFET Power Mosfet Output Stage
- SMD Technology on 4-Layer PCB Board
- Water Resistant Conformal PCB Board Coating
- 1-year Manufacturer's Warranty
- MFR #: VCU82
- Marine Grade Certified
- RMS Power Handling:
- 300W x 2 @ 2 Ohms
- 200W x 2 @ 4 Ohms
- Bridged: 600W x 1 @ 4 Ohms
- High-Power Full-Range Digital Class D Advanced Technology IR Chipset
- Surface Mount Component Technology
- Conformal-Coated IPX Certified 4-Layer Black PCB
- Remote REM/DC/VOX Turn On Trigger
- Variable/Switchable Crossovers On Multi-Channel Models
- Uniform Heatsink Chassis Size/Dimensions
- Compact Universal All-Weather Application

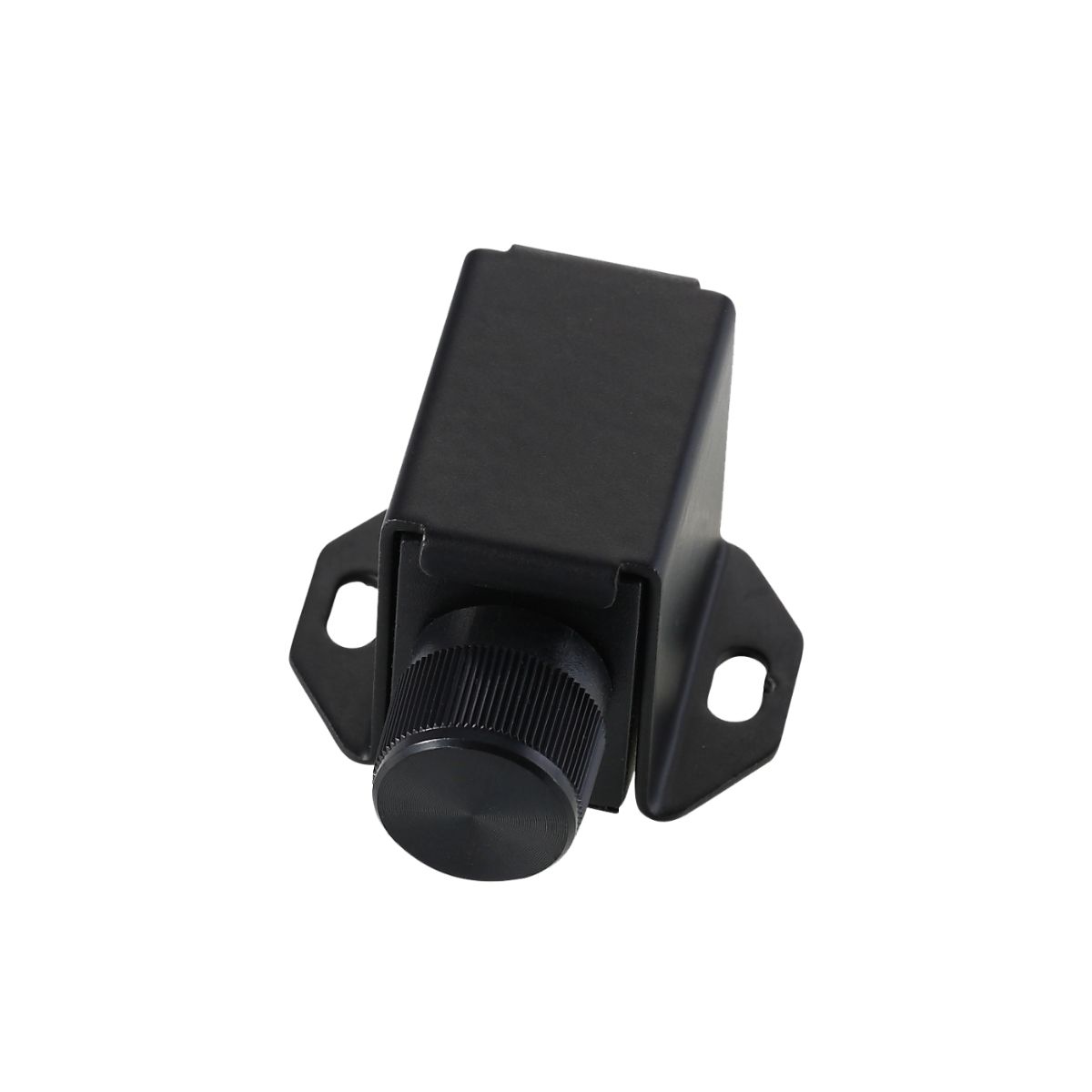

- Remote Level Control Included
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
