RPM Stroker 4 Channel Class-D Digital Amplifier-SRPM700.4D
SKU:SRPM700.4D
Couldn't load pickup availability
Overview

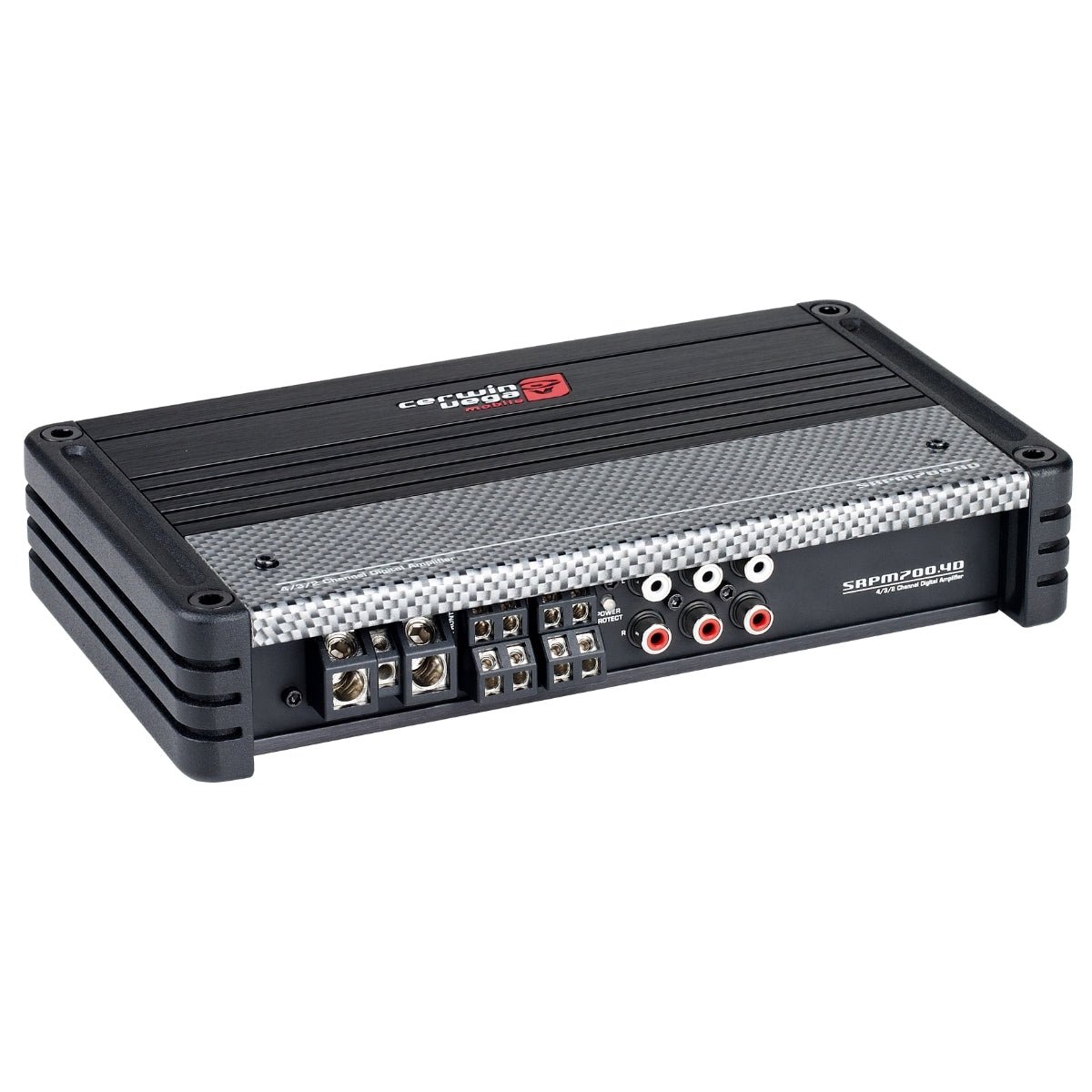

SRPM700.4D - RPM Stroker 4 Channel Class-D Digital Amplifier
Description:
RPM Stroker Series amplifiers have HUGE “dynamic” headroom capability and ALWAYS sound more powerful then rated. Latest High Efficiency Full Range Digital Topology. Surface Mount Component Technology with 4-Layer PCB. Common Compact Size with Single Sided Connections and Top Mount Controls. Handles HI and LO level input up to 12V. Switched Speaker Level Turn On Option (VOX/DC Offset/REM). Input configuration switch on 4 and 5 channel amplifiers. Fully Variable 35Hz - 350Hz 12dB per Octave Crossovers. Bass remote can be disassembled and installed in-dash. Variable Phase adjustment on ALL RPM Stroker Series.
Specifications
4 Channel Full Range Digital Amplifier
150W x 4 @ 2Ω RMS Power Output
100W x 4 @ 4Ω RMS Power Output
300W x 2CH @ 4Ω Bridged RMS Power Output
Input Sensitivity: 0.2-10 Volt
Frequency Response: 10-33KHz
Waterproof and Salt Resistant.
Total power output: 700 watts
Conformal coated PCB to protect against dust, vibration, and moisture
Top-mounted controls allow for fast, accurate adjustments
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Soft start turn-on
4/3/2 channel operation
Speaker-level (high-level) inputs
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy-duty aluminum alloy heat-sink
Advanced rollback heat protection
Dimensions: 9.45” x 5.28” x 1.75” (240 x 134 x 44.5 mm)
