10" HED Series 1200W Max Powered Vented Subwoofer Enclosure with Remote Bass Knob - H6TE10SV

$299.99 USD
$299.99 USD
Sale Sold out
Size: 10"
  • Secure Checkout
  • 100% Authentic Products100% Authentic
  • Enjoy Free Shipping!Free Shipping
  • Live Chat SupportLive Support

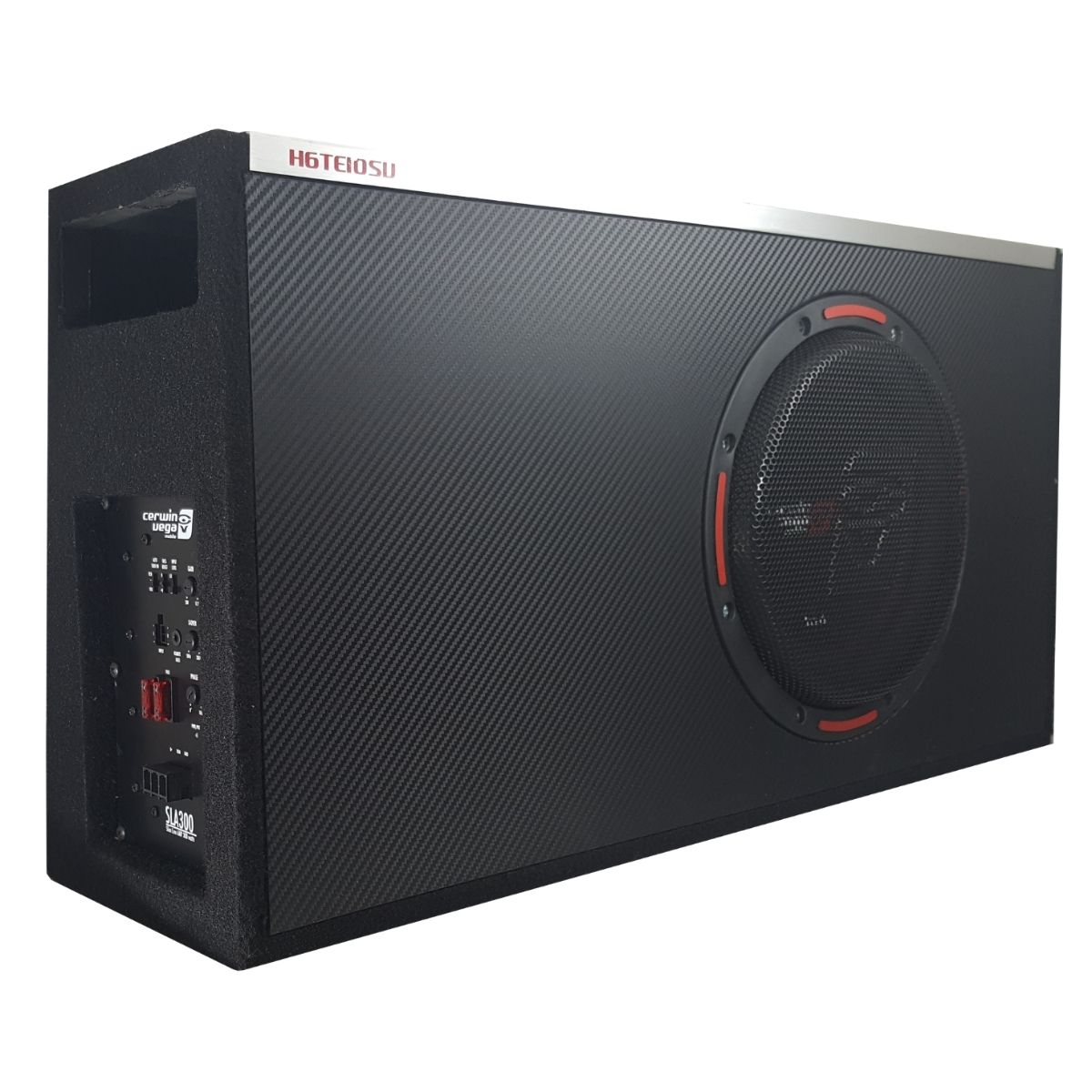

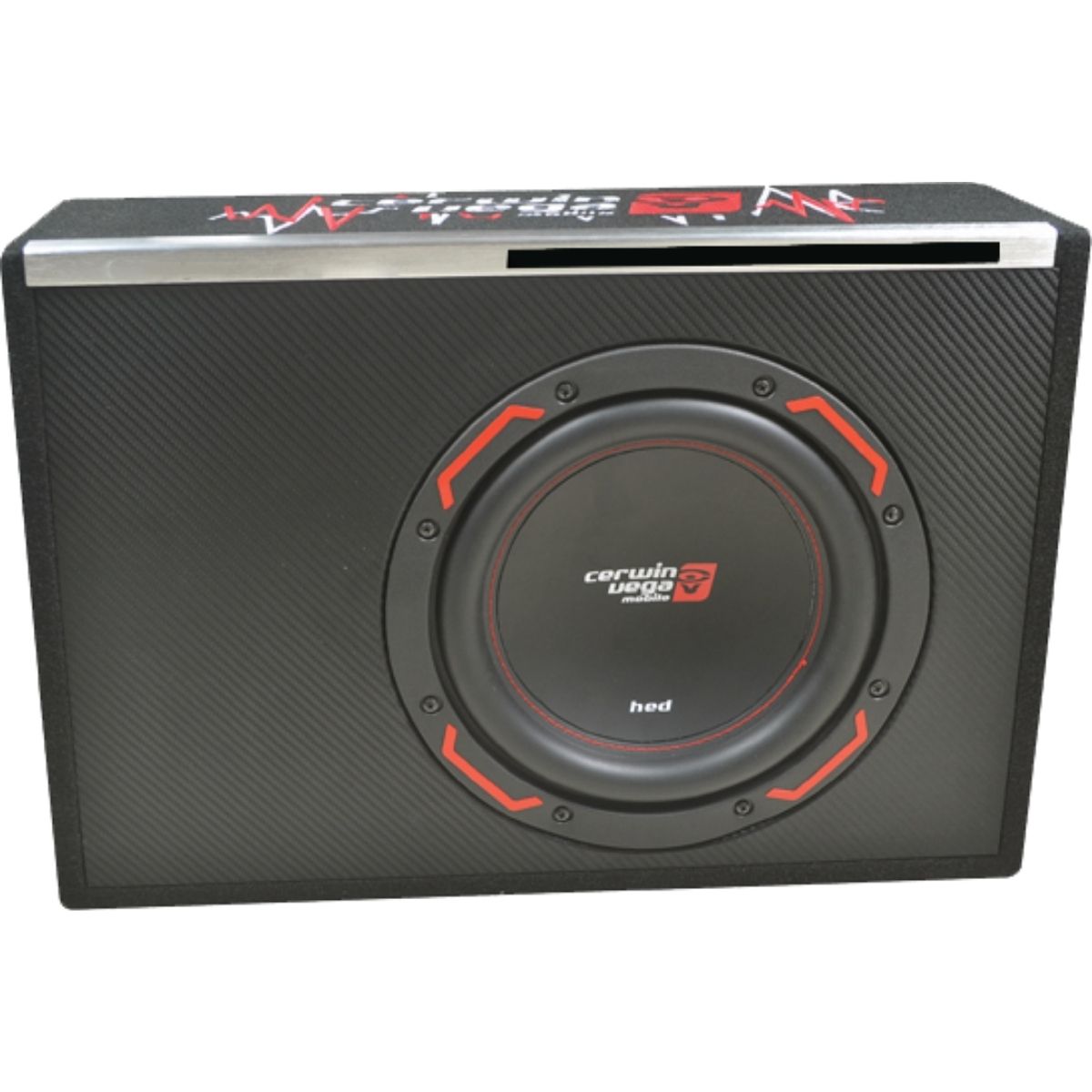

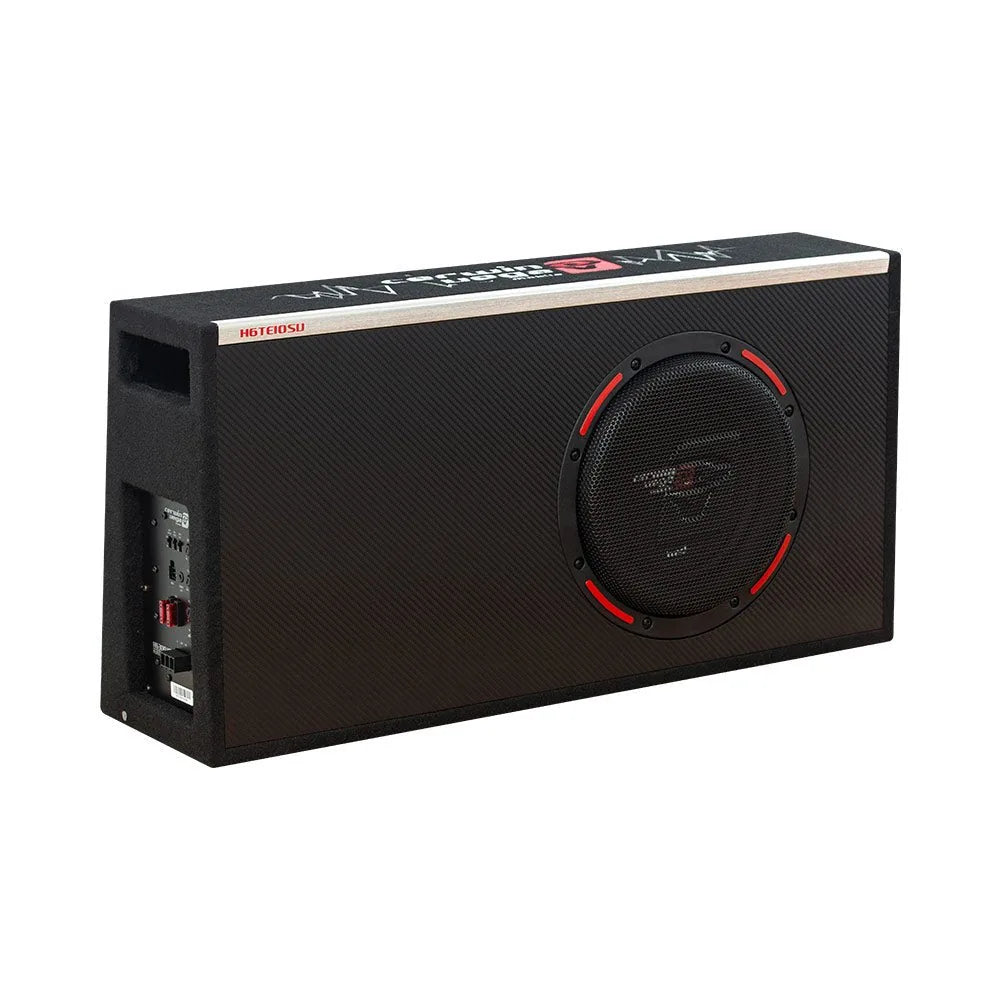

10" HED Series 1200W Max Powered Vented Subwoofer Enclosure

Get deep, hard-hitting bass from a single box with the Cerwin-Vega H6TE10SV 10" powered subwoofer enclosure. A HED Series 10" subwoofer, a factory-tuned vented enclosure and a built-in amplifier come matched from the factory, so there is no separate amp or box to source — just the high-output low end Cerwin-Vega is known for.

The onboard amplifier delivers 150W RMS @ 2 Ohm @ 100Hz (400W max). Tune the bass to your vehicle with a 50–150Hz low-pass filter, 0–180° variable phase, 0/+6dB/+9dB Twin-T bass boost (narrow Q) and 0.2V–20V adjustable input sensitivity. A PWM MOSFET power supply with a thermal protection circuit adds protection during long, loud listening sessions.

The vented enclosure lets the 10" HED woofer move more air for stronger low-end output, and the woofer is built to handle it: an optimized high-power single-stacked motor structure, a parabolic one-piece stamped carbon fiber poly cone, a vented motor structure for optimal heat dissipation, a poly-cotton spider with woven-in tinsel leads, a Unimount gasket surround and Cerwin-Vega's proprietary HED basket frame with stamped Vega basket design.

At just 7.68" deep, this slim powered subwoofer fits where space is tight, such as behind a rear seat or in a trunk. RCA and high-level inputs connect it to factory or aftermarket head units, while delayed soft remote turn-on and a plug-in power terminal simplify wiring. The 3/4" MDF enclosure (27.99" x 7.68" x 14.13") wears a factory-embroidered Cerwin-Vega Mobile logo and includes a mesh grille, and a remote bass knob lets you adjust bass level on the fly.

ENCLOSURE

  • HED Single 10" Subwoofer in Factory-Tuned Vented Enclosure
  • 150W RMS / 400W MAX
  • 3/4" MDF Construction
  • Factory-Embroidered Cerwin-Vega Mobile Logo
  • Dimensions: 27.99" x 7.68" x 14.13" (L x W x H) / 711 x 195 x 359 mm (L x W x H)
  • Mesh Grille Included

SUBWOOFER

  • Proprietary HED Basket Frame
  • Optimized High-Power Single-Stacked Motor Structure
  • Parabolic One-Piece Stamped Carbon Fiber Poly Cone
  • Vented Motor Structure for Optimal Heat Dissipation
  • Poly-Cotton Spider with Woven-In Tinsel Leads
  • Unimount Gasket Surround
  • Proprietary Stamped Vega Basket Design

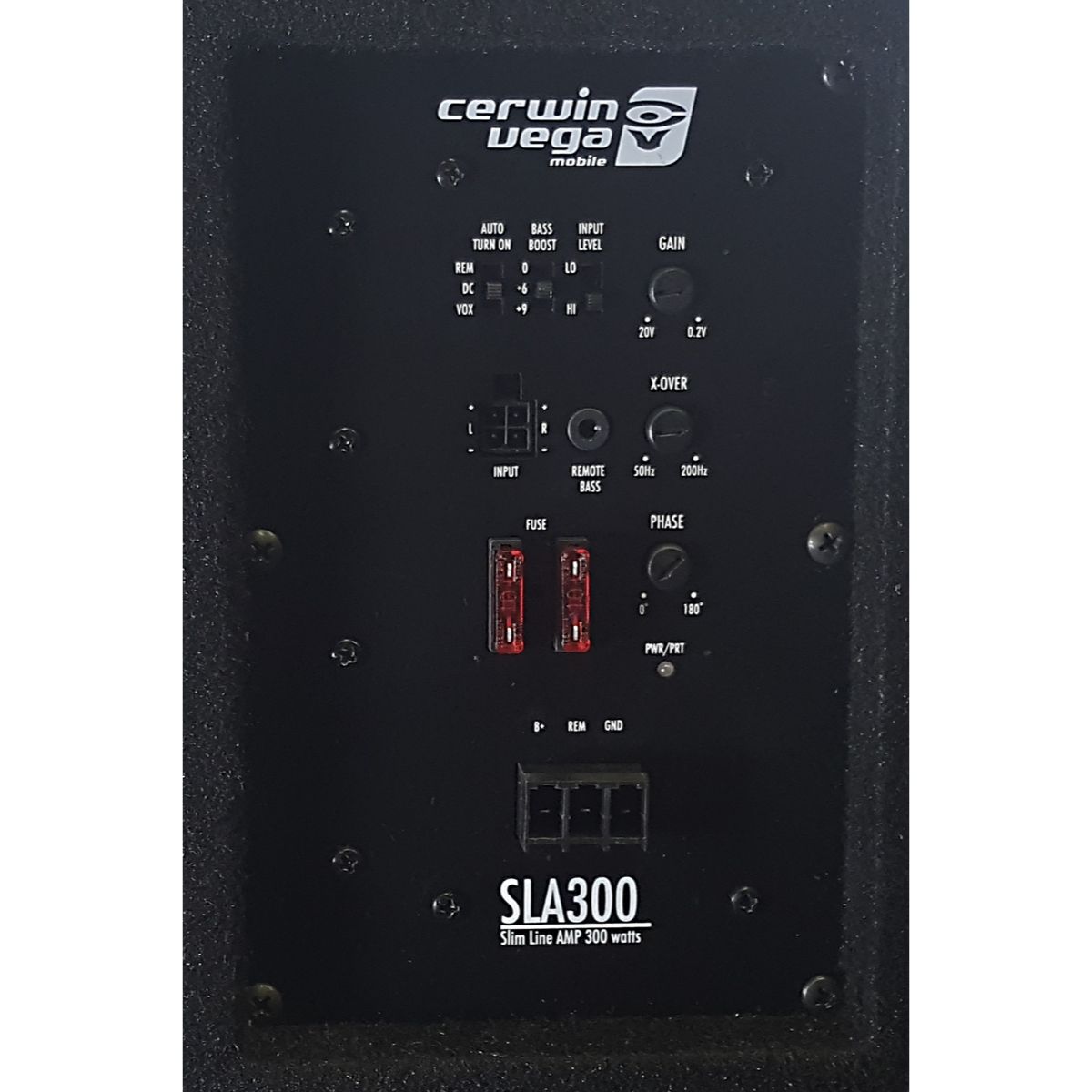

AMPLIFIER

  • Power: 150W RMS @ 2Ω @ 100Hz, 400W MAX
  • Bass Boost: 0/+6dB/+9dB Twin-T Filter (Narrow Q)
  • Low-Pass Filter: 50–150Hz
  • Phase: Variable from 0 to 180 Degrees
  • PWM MOSFET Power Supply with Thermal Protection Circuit
  • Adjustable Input Sensitivity: 0.2V – 20V
  • RCA and High-Level Inputs
  • Delayed Soft Remote Turn-On
  • Plug-In Power Terminal for Easy Installation
  • Remote Bass Knob Included

View Product Details

Beloved by Enthusiasts!

Renowned for producing high-quality subwoofers, Cerwin Vega has won the hearts of car audio enthusiasts. Praised for their durability, power handling, and exceptional sound performance, these subwoofers deliver an unparalleled audio experience.

Engineered for Excellence!

Combining advanced engineering with high-quality materials, these subwoofers deliver powerful and reliable bass performance. Favored by car audio enthusiasts, they are the top choice for those looking to elevate their audio experience.

Q1: What form‑factors are in Cerwin‑Vega Powered sub series and vehicle fitment?
A: Forms include under‑seat slim, spare‑tire well round, passive‑radiator and vented enclosure. Sizes:6×8,8,10,12 inch. Built‑in amplifier; no external amp required. Ideal for sedans, SUVs and space‑limited vehicles for easy bass upgrade.

Q2: Difference between passive‑radiator and standard sealed powered subs?
A: Passive‑radiator models use a passive cone to extend low‑end without a port, allowing a slimmer cabinet. Standard sealed is simpler; vented variants deliver more bass output with deeper cabinet depth.

Q3: What is special about VPAS821 / VPAS841 with 2CH /4CH speaker outputs?
A: Besides subwoofer output, they supply an amplified signal to drive door speakers. Accept high‑level input from factory head‑unit for full‑system upgrade without extra amplifiers.

Q4: Available input options & compatible head‑units?
A: Supports RCA low‑level and high‑level speaker‑level input. Units without RCA pre‑outs can connect directly to factory speaker wires.

Q5: Installation, tuning & basic troubleshooting tips?
A: Secure enclosure firmly to eliminate rattle. Set LPF 80‑120Hz; avoid excessive gain to prevent clipping distortion. If protection mode triggers, check ground, power and speaker‑wire short‑circuits first.
