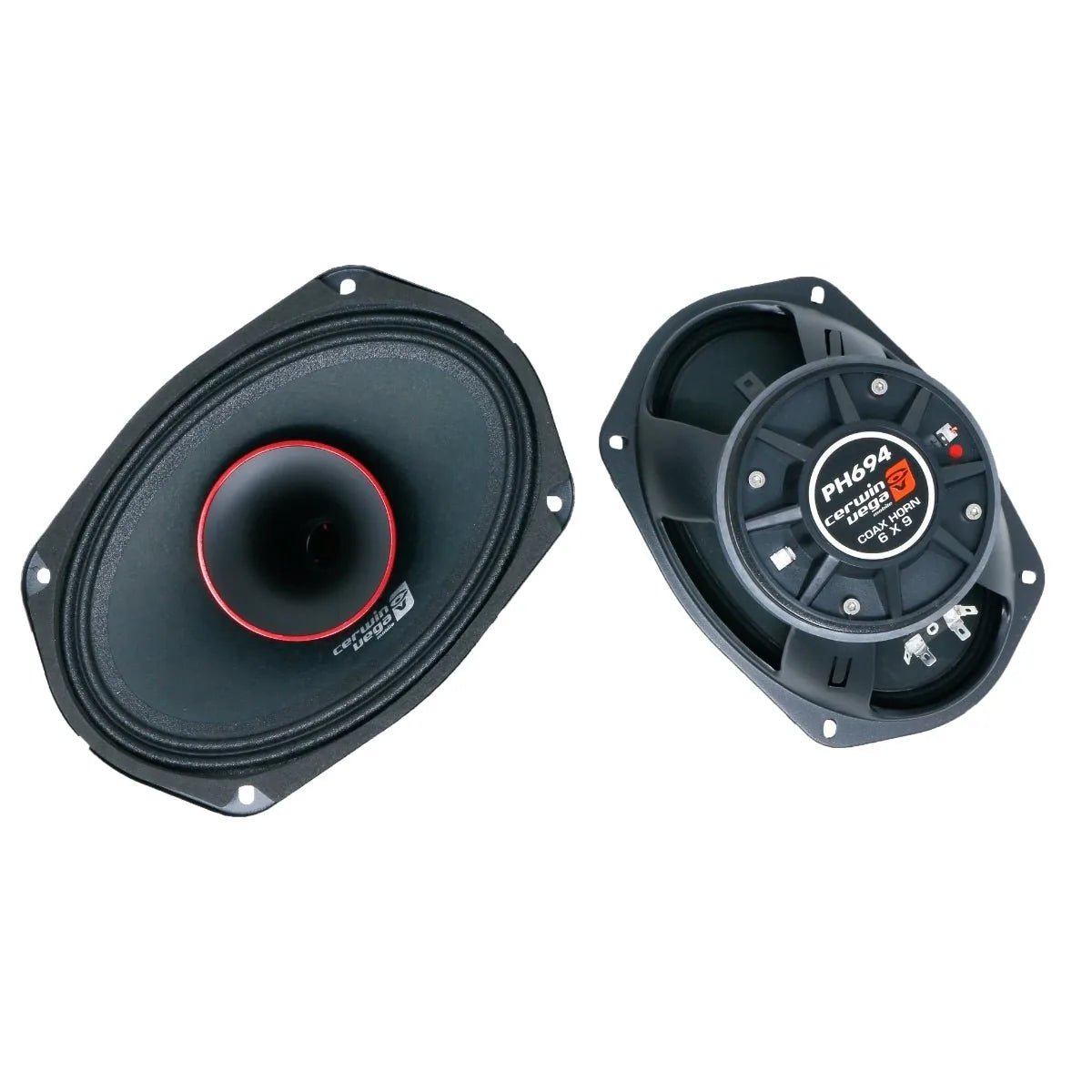

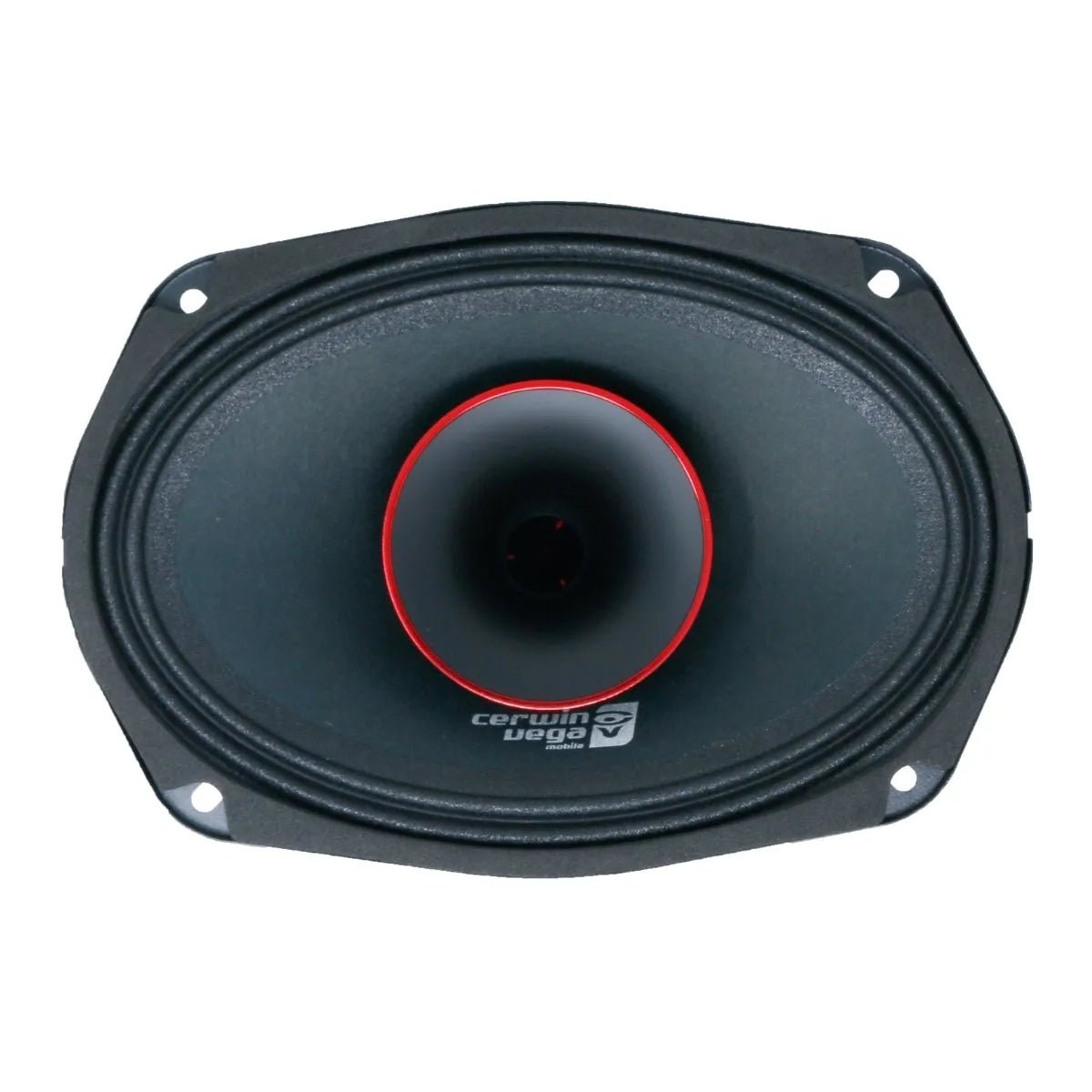

  • The 6"x9" 2-Way Pro Full-Range Coax Horn Speaker, PH694 by Cerwin-Vega, is shown against a white background. Its black, inverted cone design features a wide ribbed base, narrow central cylinder, and an upper section with angular fins for immersive audio in coaxial setups.

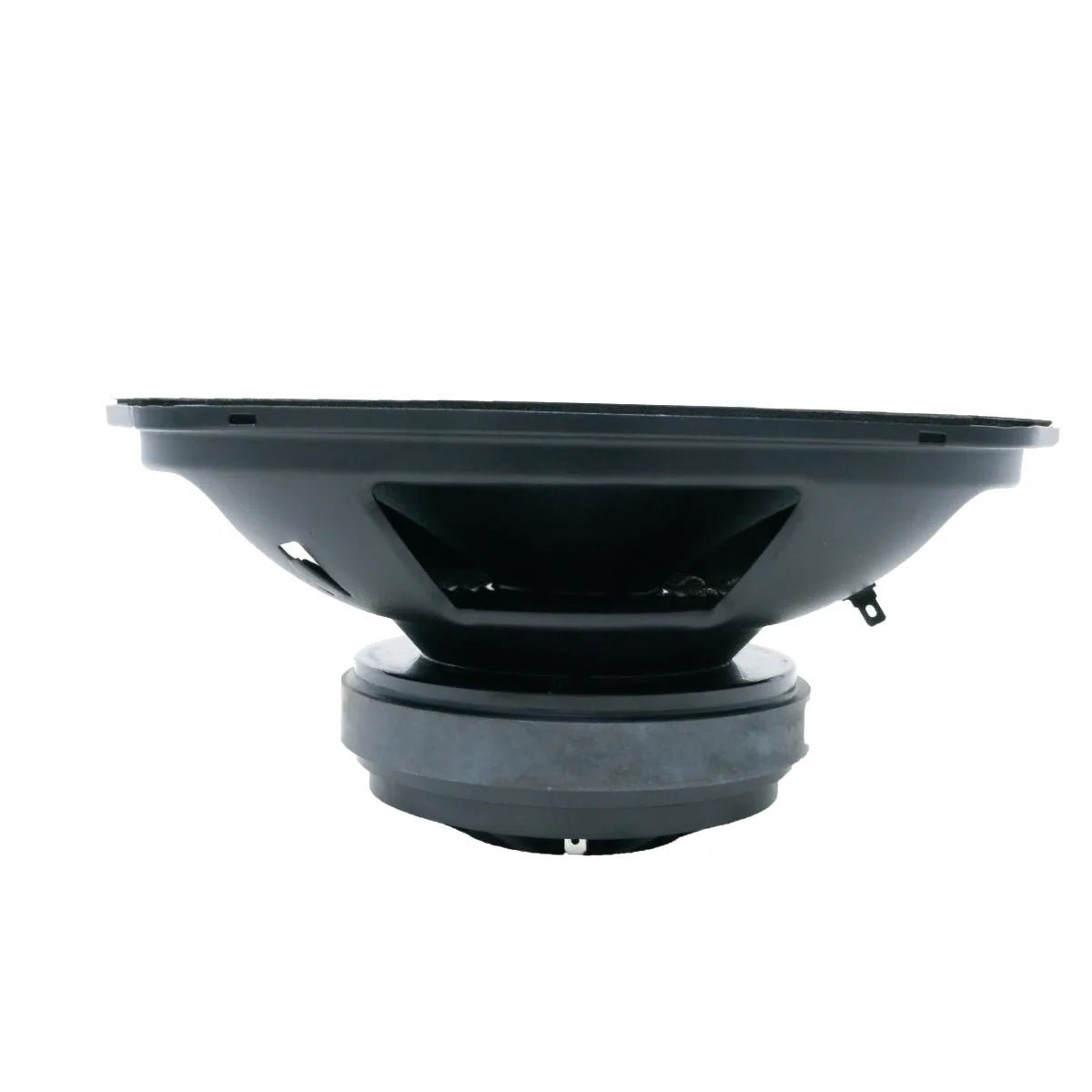

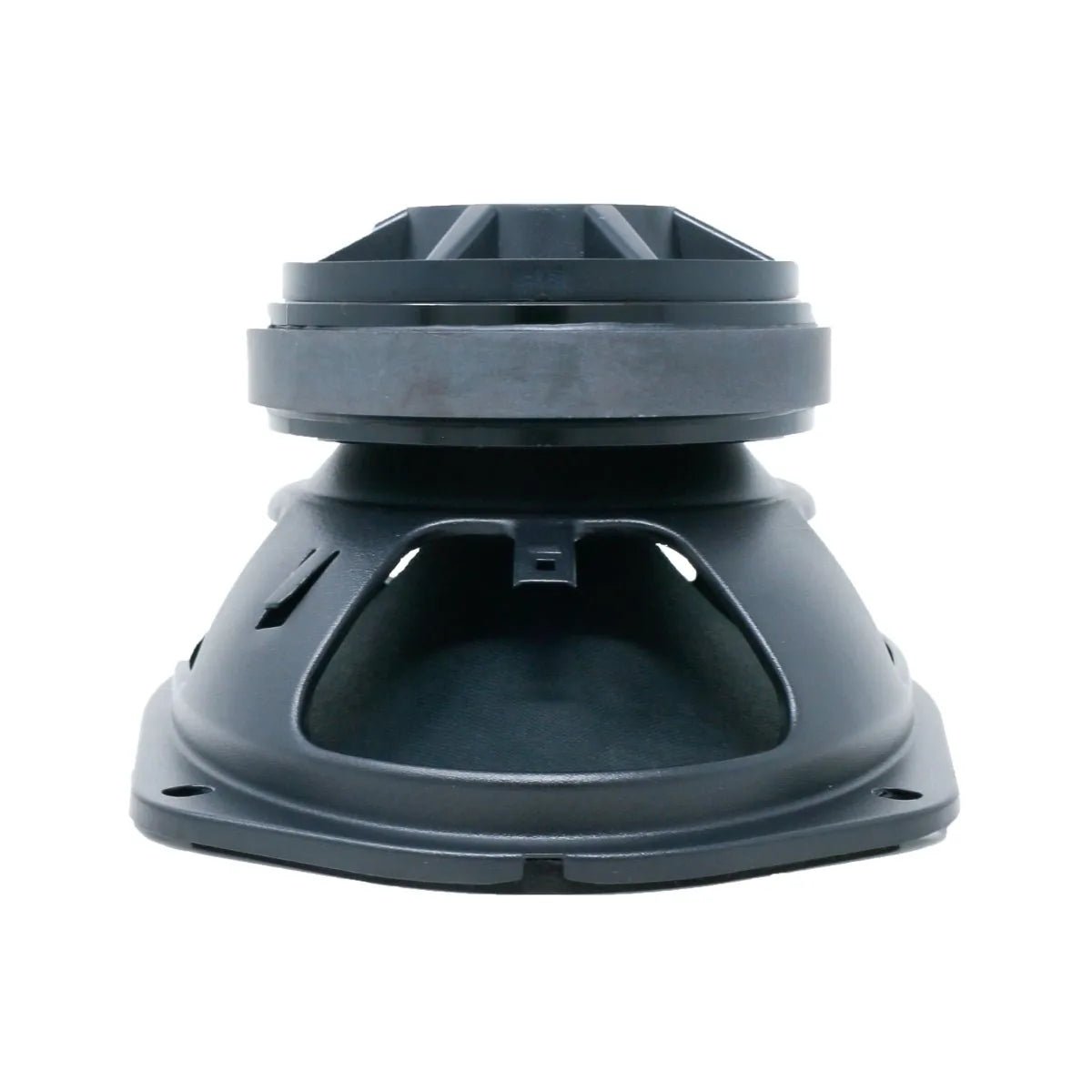

  • Side view of a black Cerwin-Vega PH694 speaker displays its cone, basket, and magnet assembly. Its slightly concave cone with a rubber edge enhances immersion. The vented basket shows internal parts, while the cylindrical magnet ensures stability.

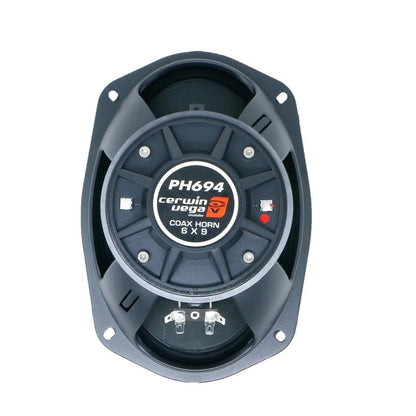

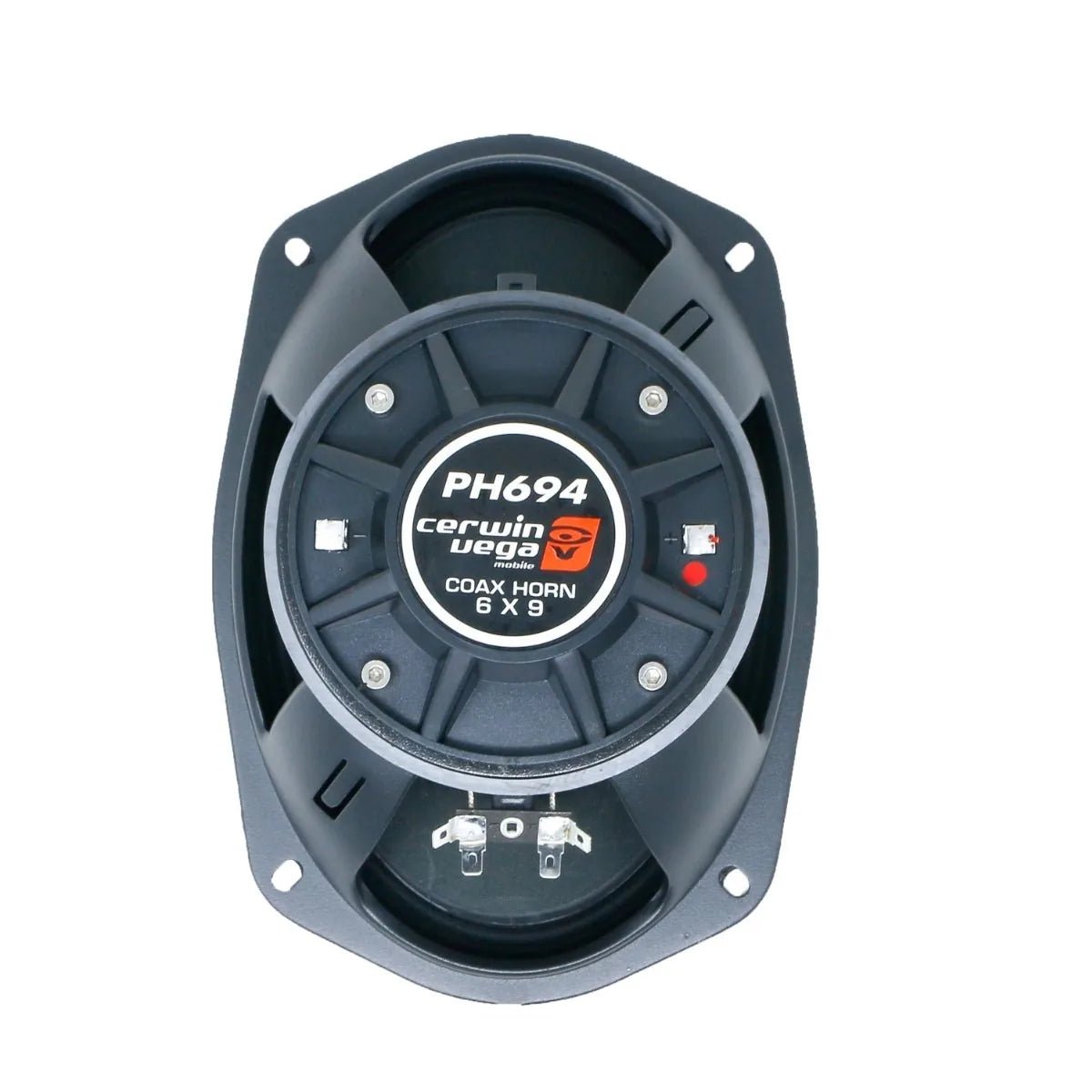

  • The image features a Cerwin Vega 6"x9" 2-Way Pro Full-Range Coax Horn Speaker, model PH694, with an oval shape from the Cerwin-Vega PH Pro Series. It offers immersive sound with a black casing accented in red, displaying the brand name and model details in white text, and visible terminals at the bottom.

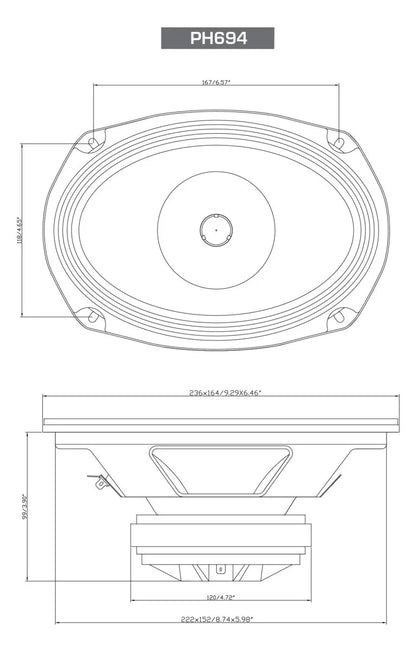

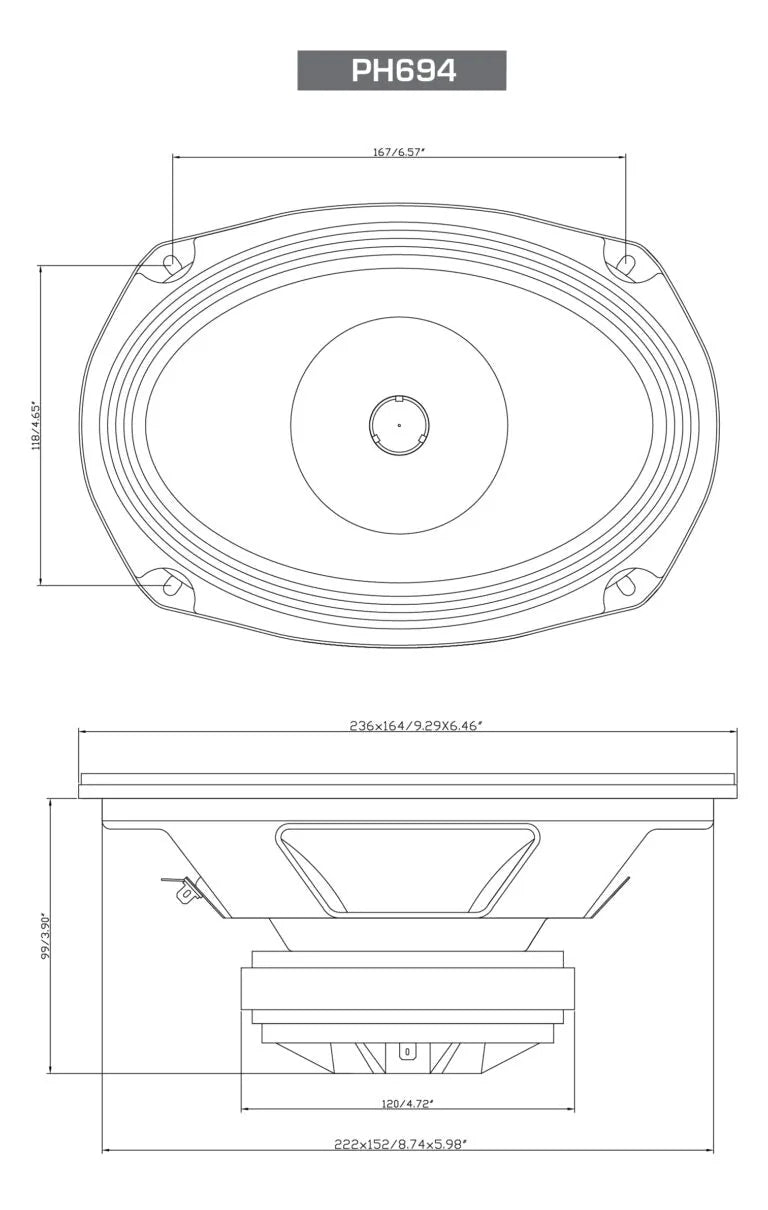

  • Technical diagram of the 6"x9" 2-Way Pro Full-Range Coax Horn Speakers, model PH694, shows an oval top view measuring 167x237mm. The side view reveals an 82mm depth and a circular base labeled 122mm. Measurements are in black on a white background for clarity and detail.
1 6

PRO Series 6"x9" 2-Way Full-Range Coax Horn Speakers - PH694

PH694

$179.99 USD
$179.99 USD
Sale Sold out
Shipping calculated at checkout.
Size: 6" x 9"

PH694 - PRO Series 6"x9" 2-Way Full-Range Coax Horn Speakers

Cerwin-Vega PH Pro Series – Experience Sound That Moves You

When it comes to pure power and jaw-dropping performance, the Cerwin-Vega PH Pro Series coaxial speakers are in a league of their own. Available in 8", 6.5", and 6x9" sizes, these speakers draw from Cerwin-Vega’s legendary Pro Audio heritage, delivering insane SPL levels that ignite every sense and elevate every drive.

Pro Audio Performance, Right in Your Car

  • Unmatched SPL Levels: These midrange coaxials reproduce sound with such intensity, it feels like a live concert on wheels.
  • Immersive Listening Experience: Transform your car into a personal concert hall, packed with clarity, punchy mids, and dynamic highs.

Tailored for the True Audio Enthusiast

The PH Pro Series is not just about sound – it’s about creating an experience. Combine these speakers with Cerwin-Vega’s high-output Pro Series tweeters to build a custom, high-performance soundstage that’s uniquely yours.

Built for Serious Audio Performance

  • Designed for high output and distortion-free sound even at extreme volumes.
  • Engineered with the ruggedness to handle the most demanding audio enthusiasts.

Why Choose Cerwin-Vega PH Pro Series?

  • Inspired by Pro Audio technology for concert-grade sound in your vehicle.
  • Customizable with other Cerwin-Vega Pro Series components for ultimate soundstage flexibility.
  • The perfect balance of power, precision, and performance for those who demand nothing less.

Turn Up the Volume, Turn Up the Fun

With the Cerwin-Vega PH Pro Series, every drive becomes an event. Whether you’re cruising the city streets or hitting the highway, experience the ultimate fusion of clarity, power, and bass that only Cerwin-Vega can deliver.

Unleash the sound. Feel the intensity. Choose the Cerwin-Vega PH Pro Series.

THIELE/SMALL PARAMETERS

  • Power: 160W RMS/320W MAX
  • MidBass SPL(dB): 92.5
  • Tweeter SPL(dB): 107
  • Re(Ω): 3.2
  • Qms: 9.2
  • Qes: 0.85
  • Qts: 0.78
  • Fs(Hz): 76.5
  • Vas(L): 22.0
  • Cms(mm/N): 0.30
  • Mms(g): 14.5
  • Sd(cm²): 229.7
  • BL(T*M): 5.1
  • Xmax(mm): 1.0

DIMENSIONS

  • Diameter: 9.29"(236mm) x 6.46"(164mm)
  • Mounting Diameter: 8.74"(222mm) x 5.98"(152mm)
  • Mounting Depth: 4.26"(108.3mm)
  • Magnet Diameter: 4.72"(120mm)

FEATURES

  • Ferrite Strontium High Temp Magnet Structure
  • Heavy Duty Stamped Steel Basket
  • 1.5" Single Layer High-Temp Black Coated Woofer Voice Coil
  • 1" Single Layer High-Temp Tweeter Voice Coil
  • Included: 12dB 2nd Order Cross Over Filter @ 150 Hz
  • Included: (2) 4W Resistors That Will Attenuate The Tweeter About 3dB
  • MFR #: PH694
  • 1-year Manufacturer's Warranty
