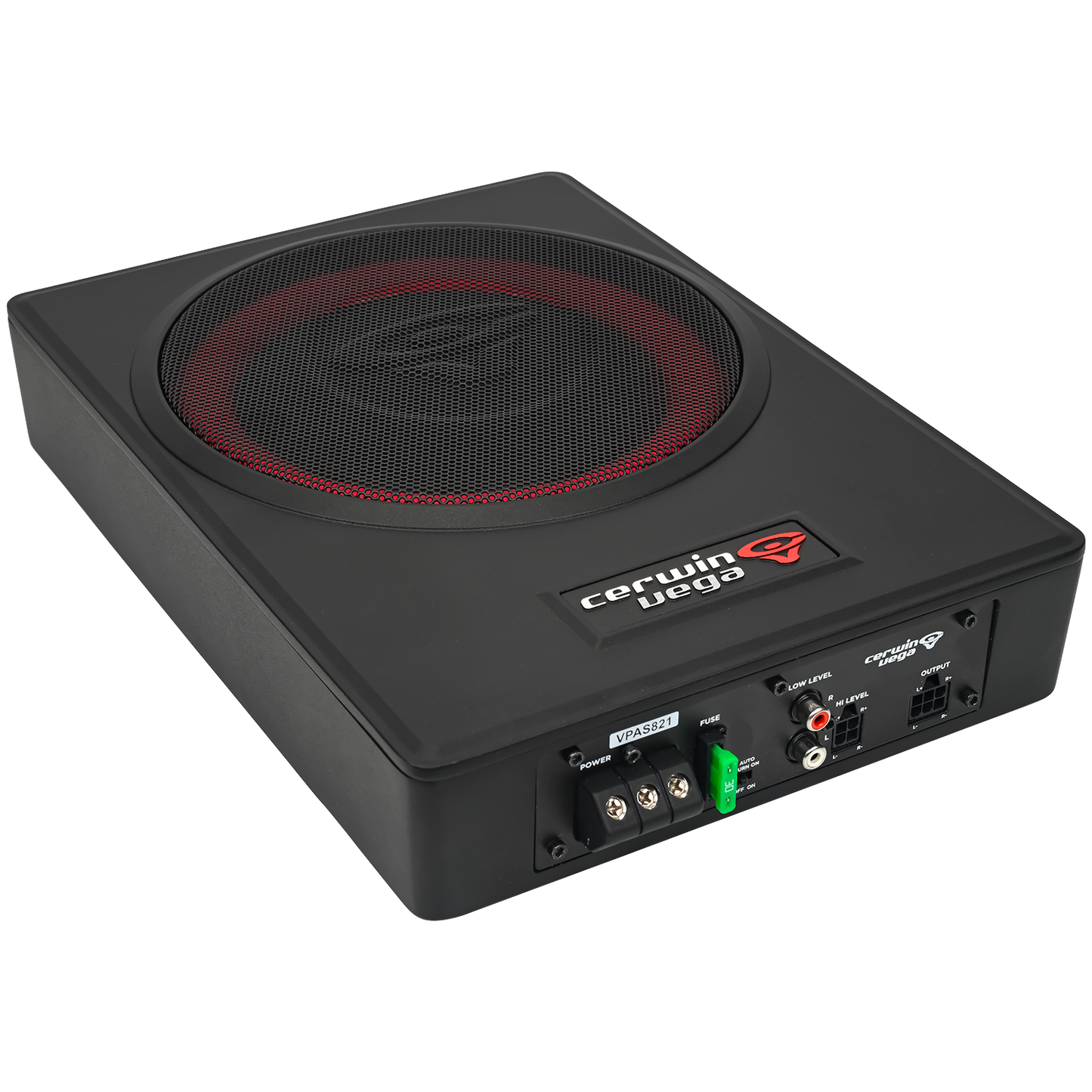

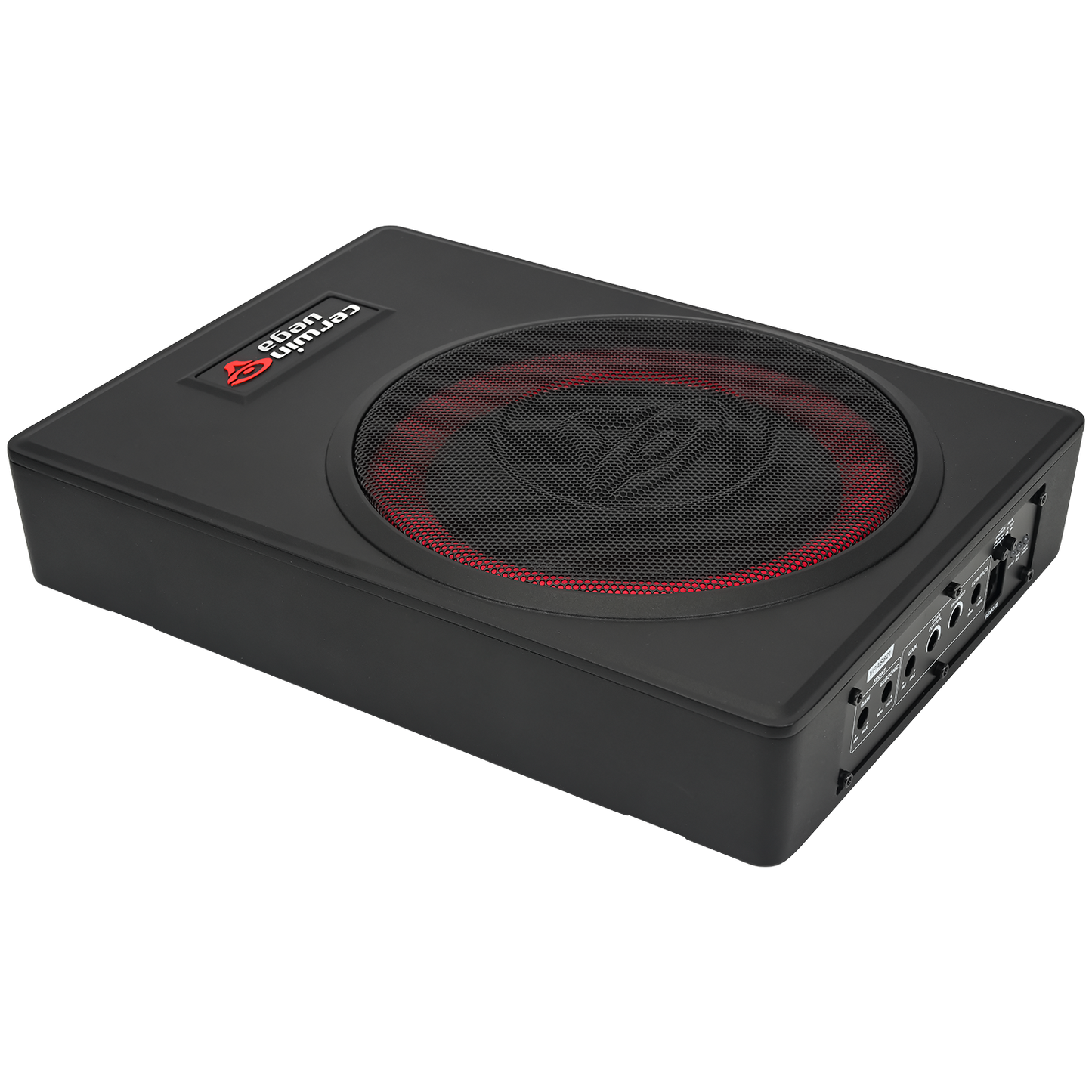

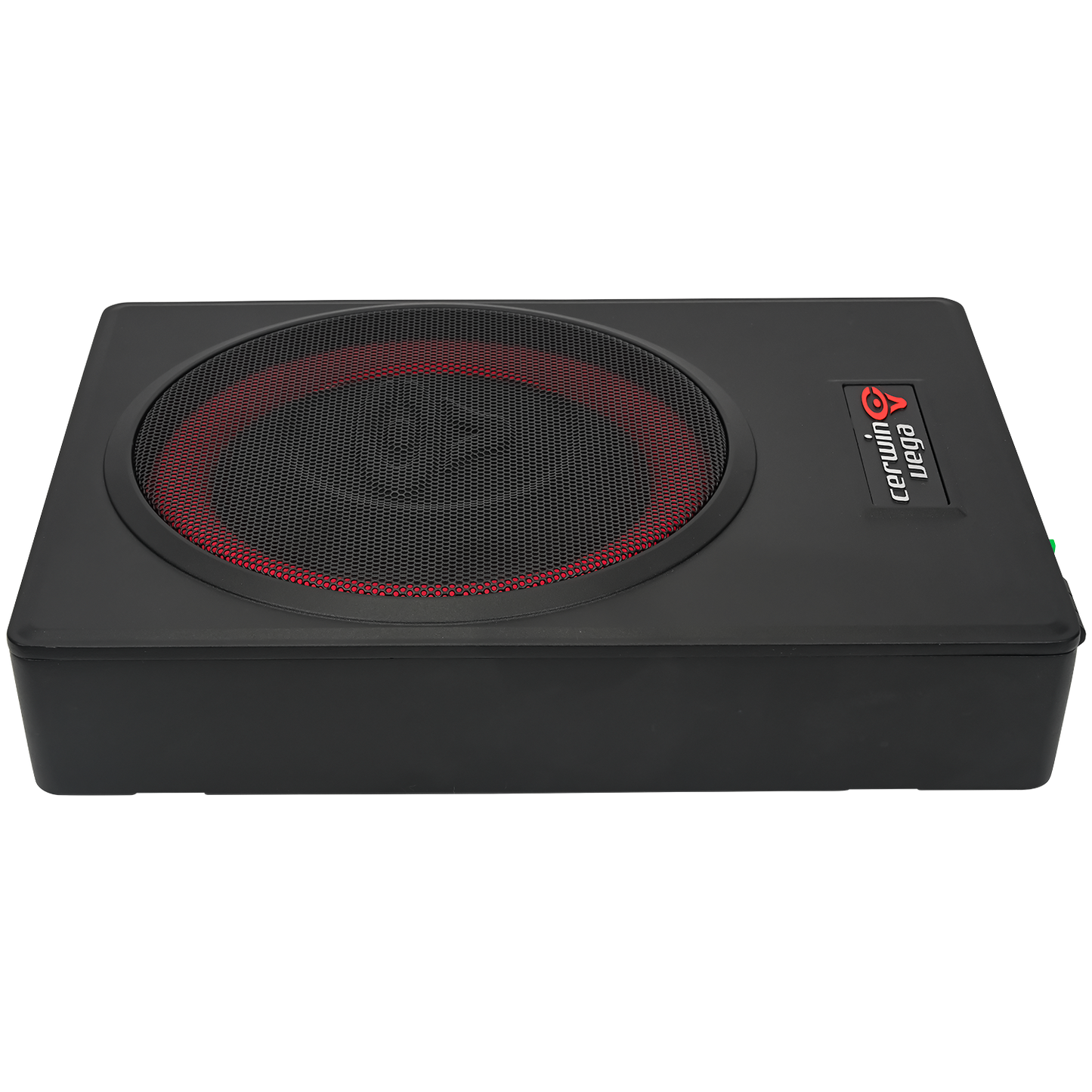

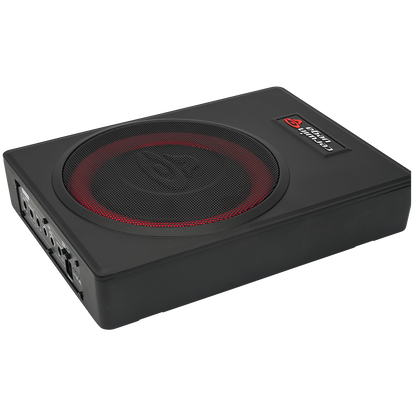

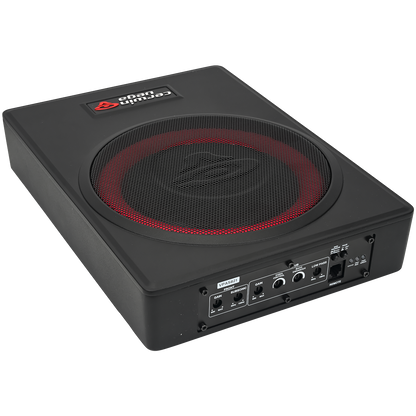

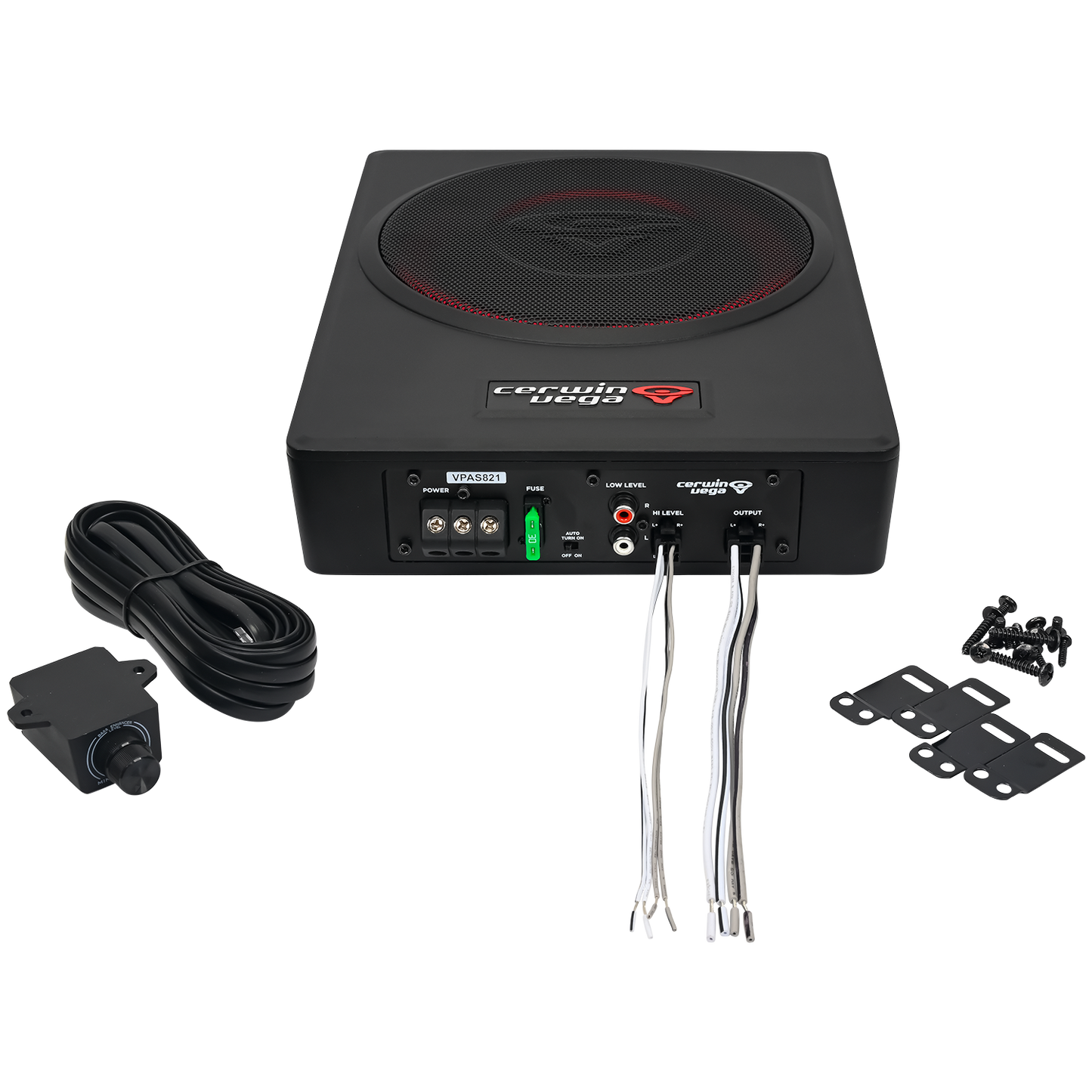

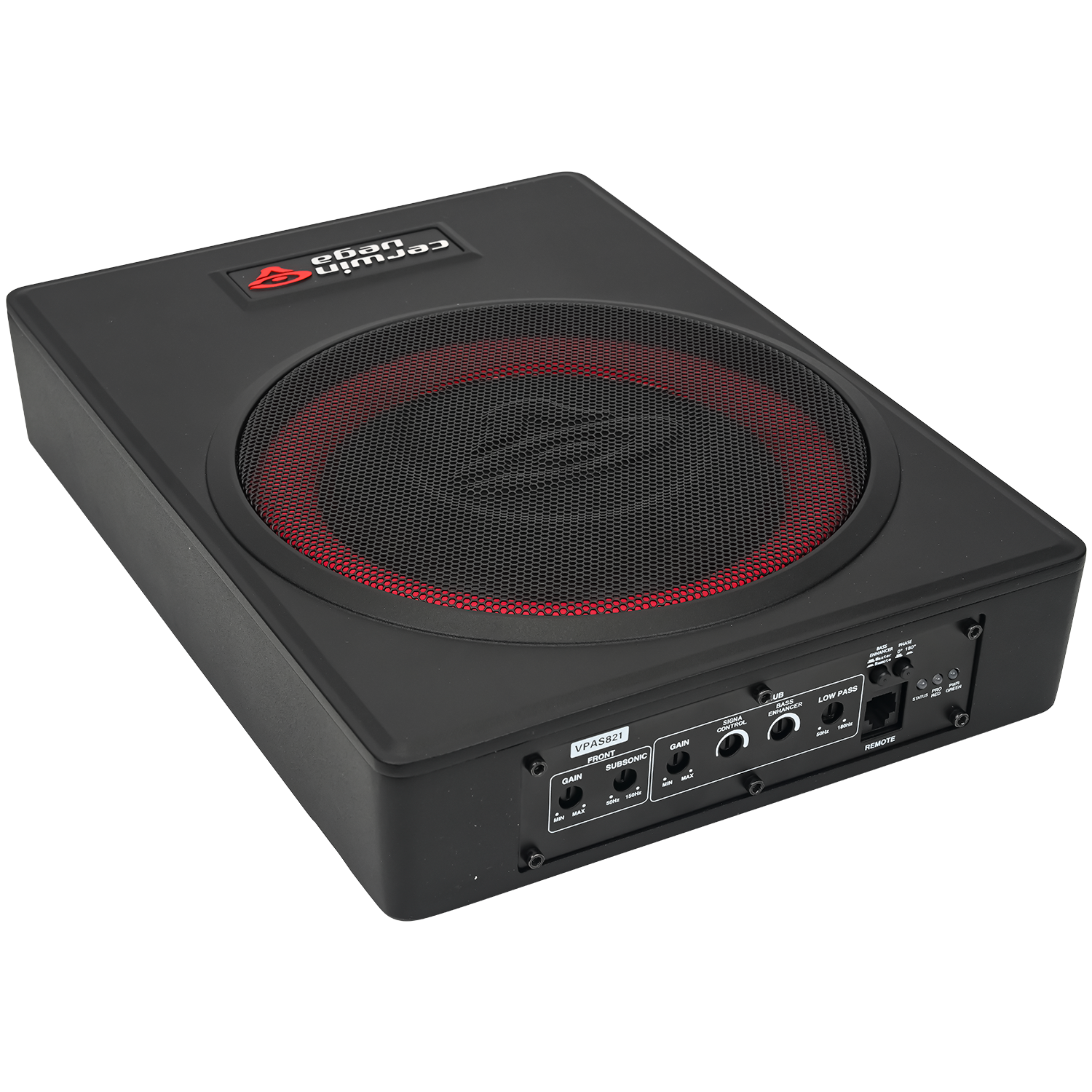

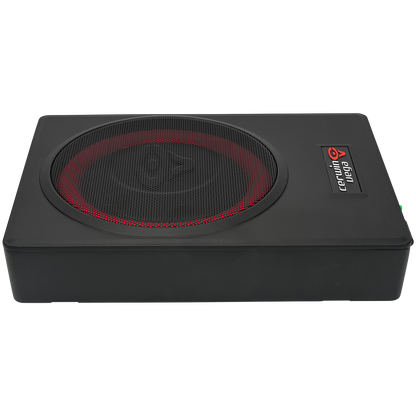

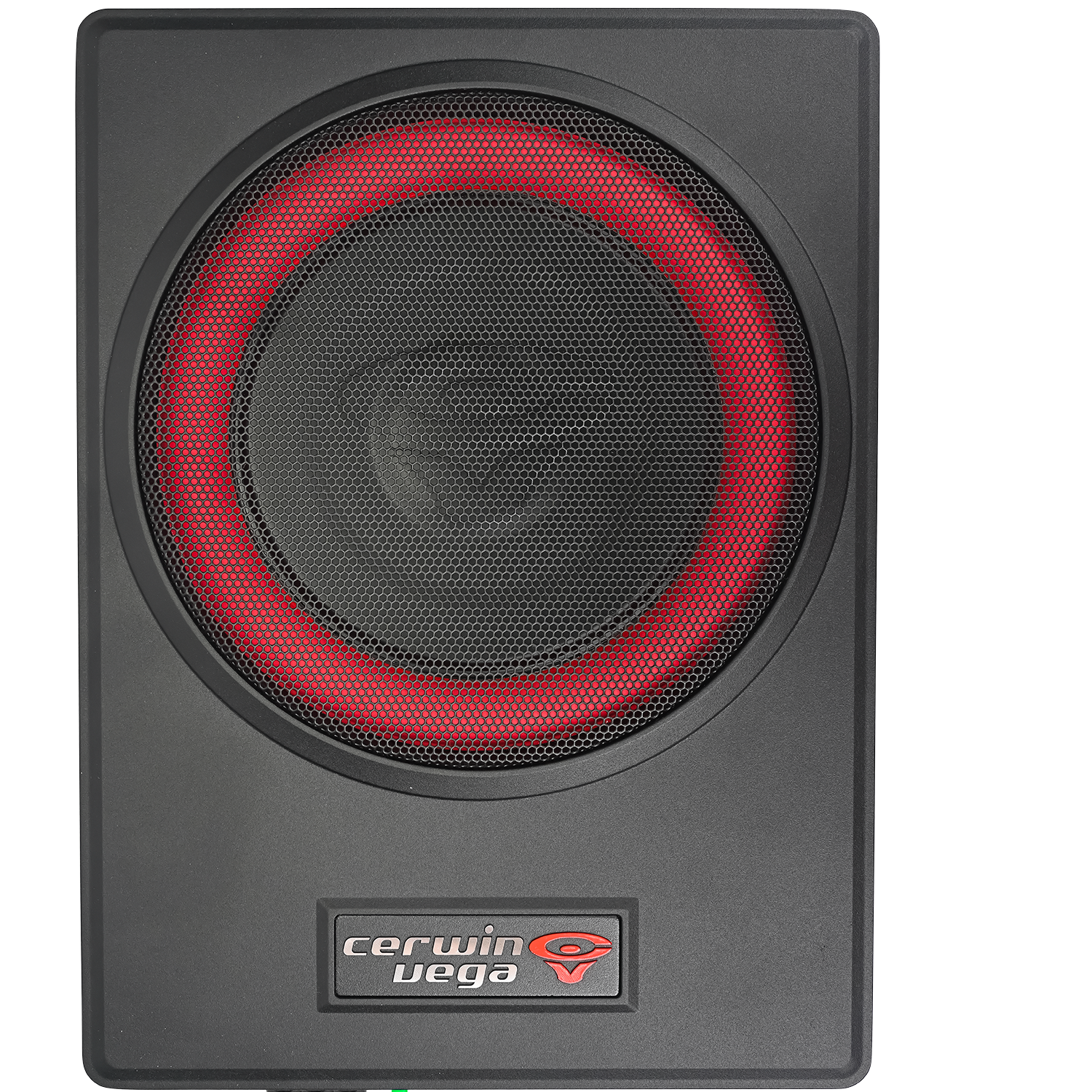

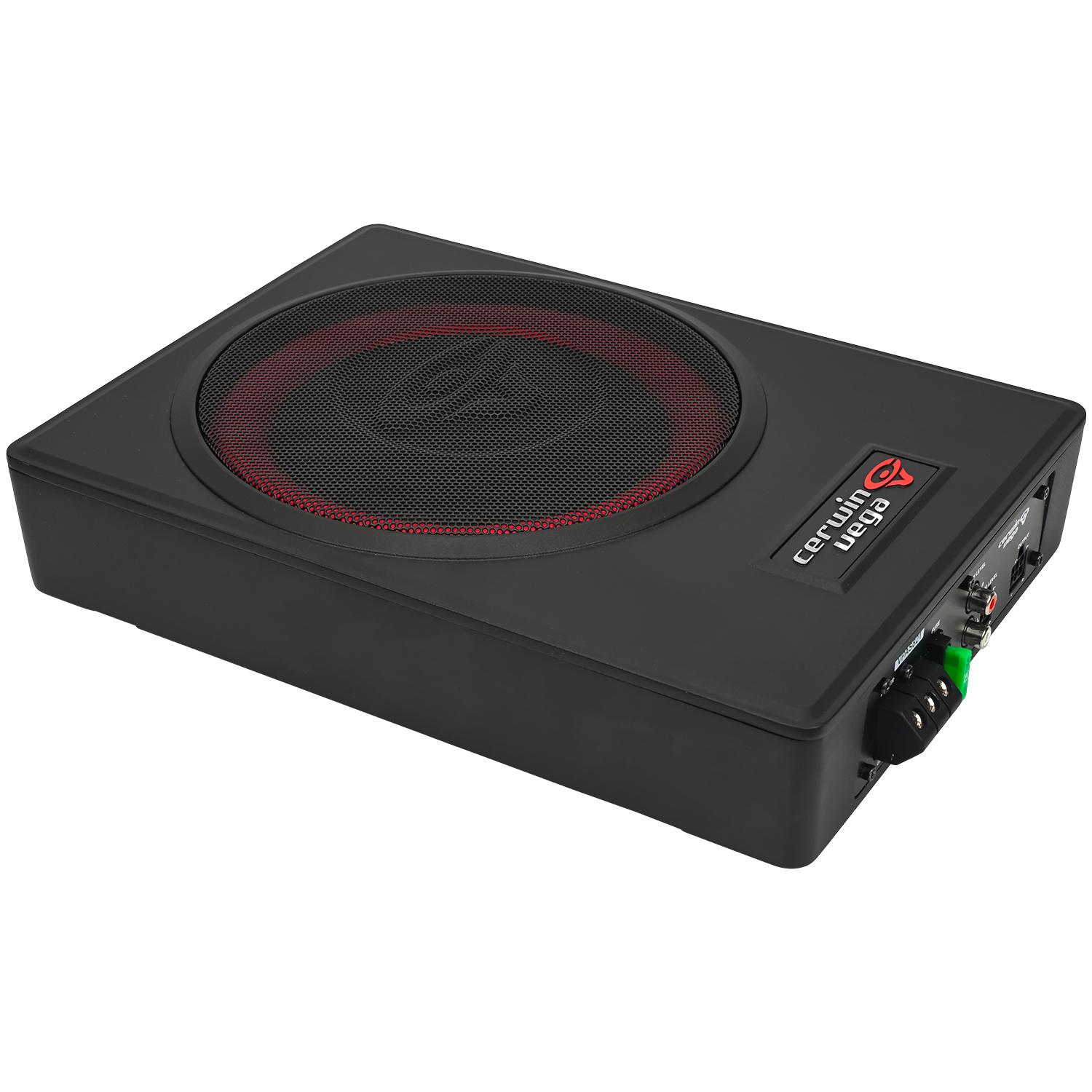

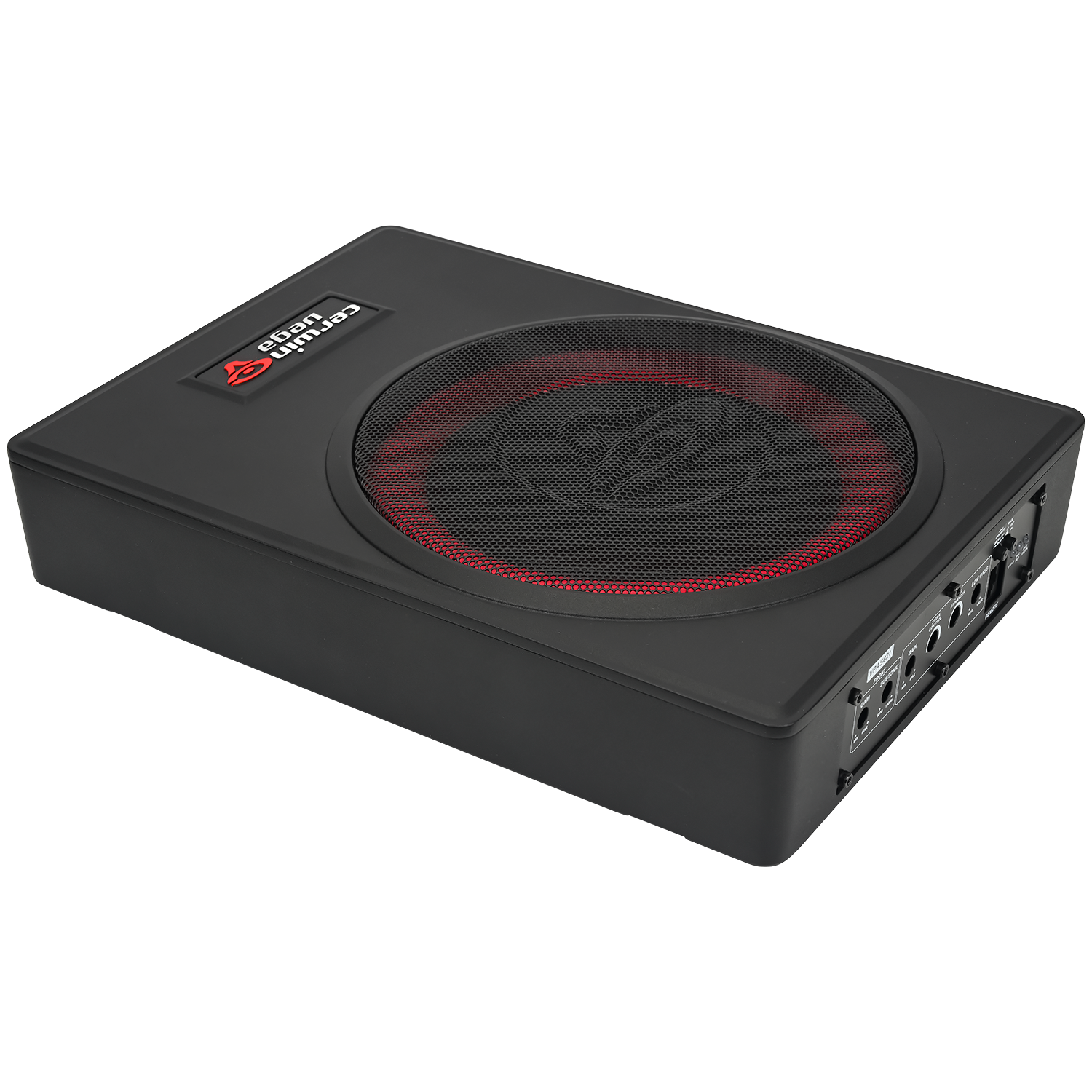

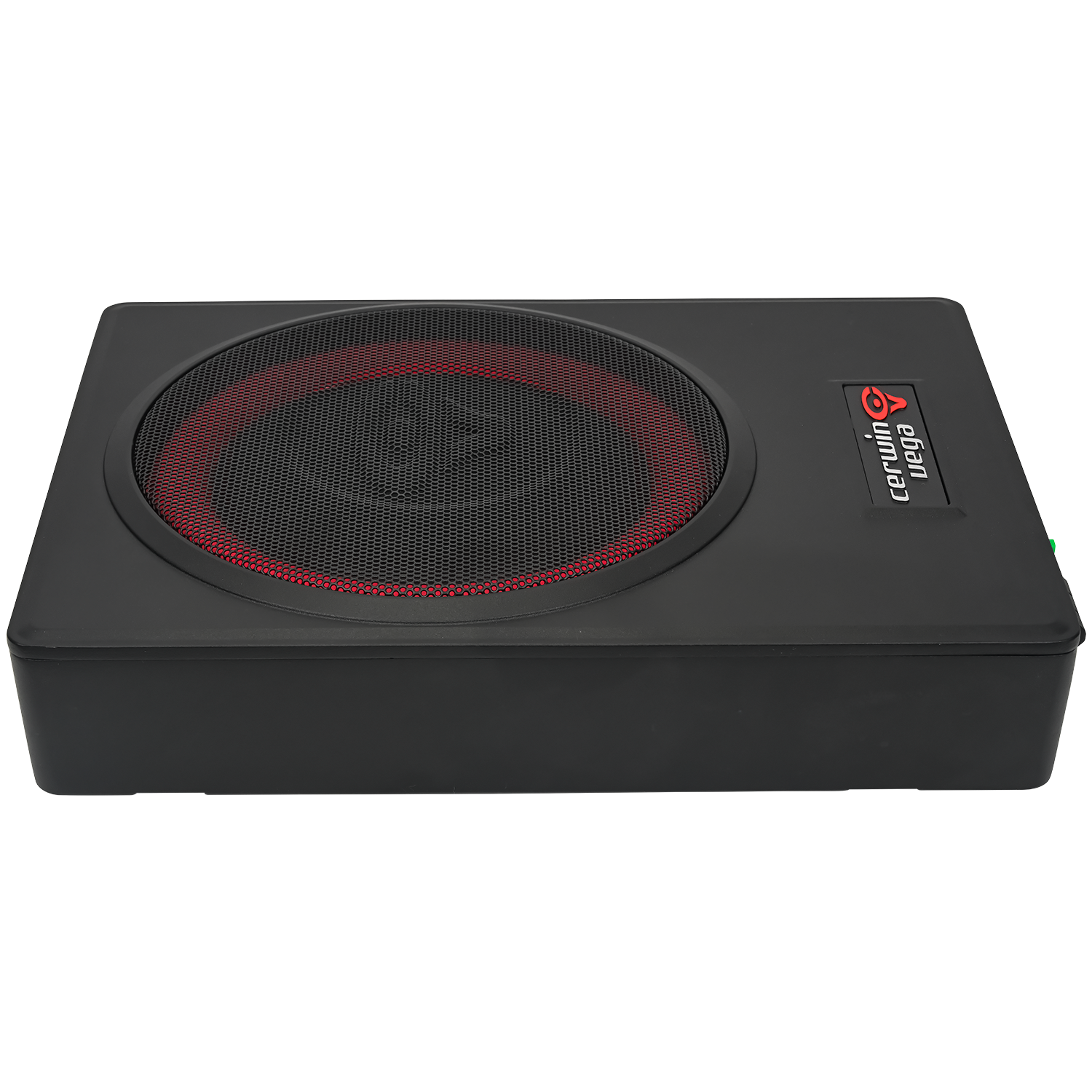

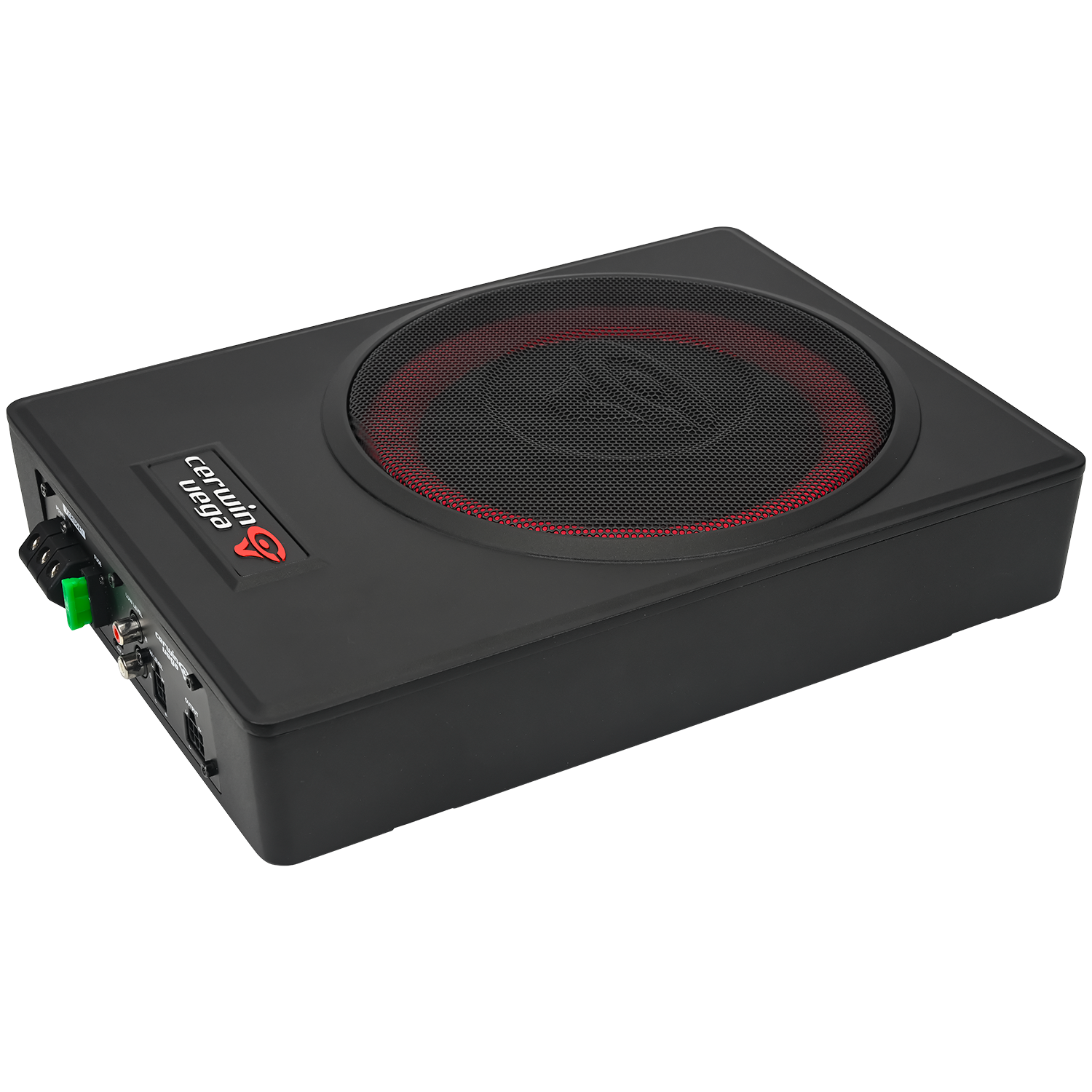

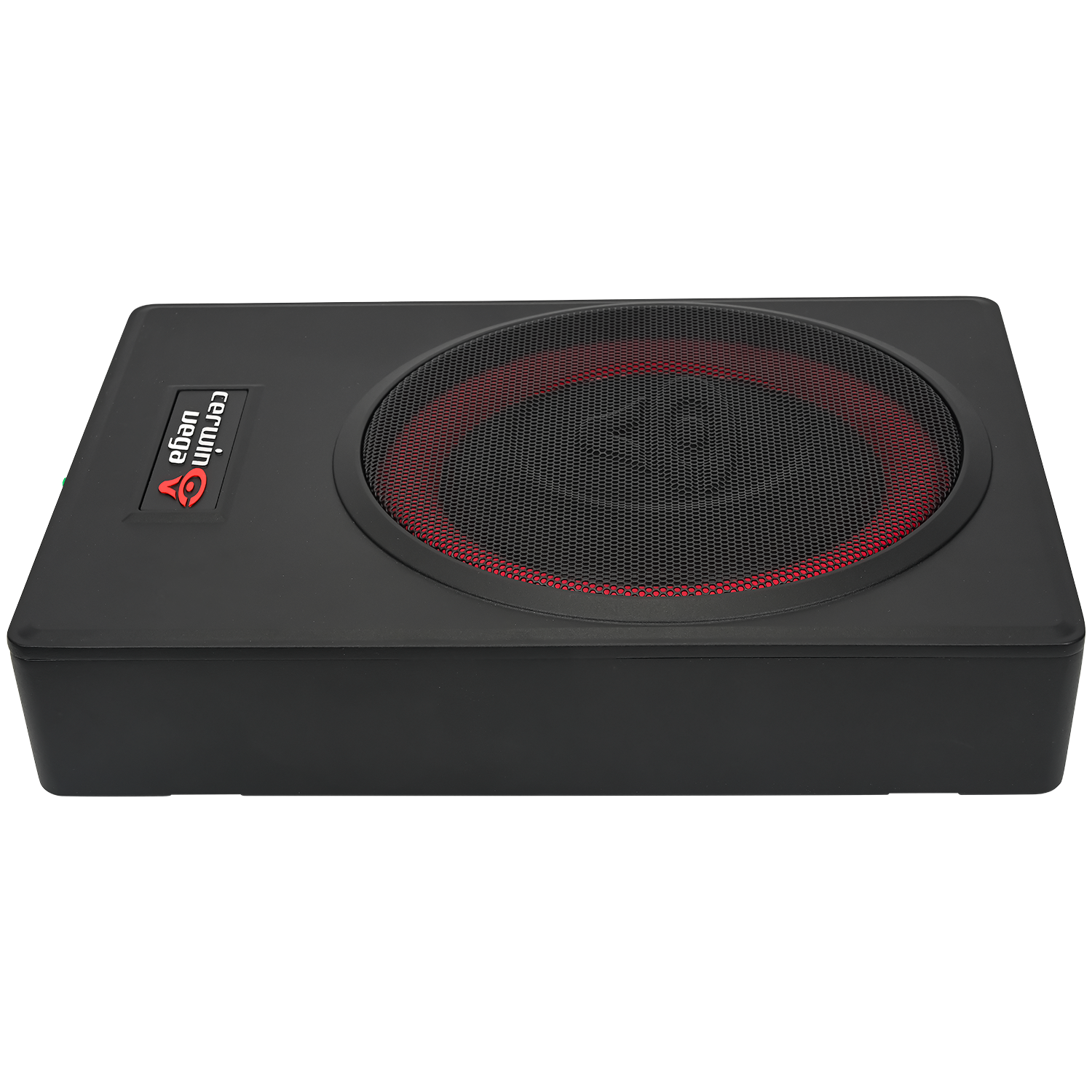

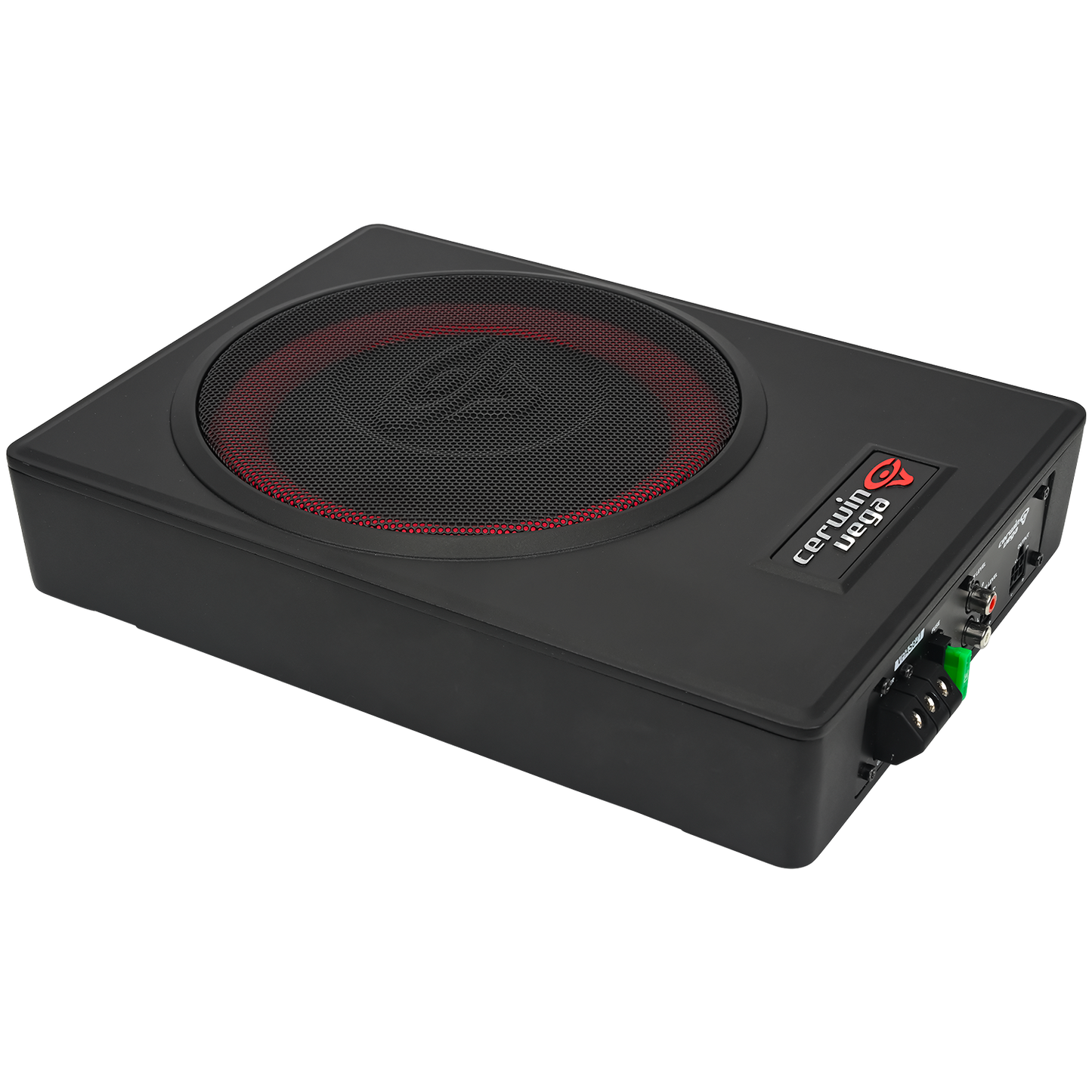

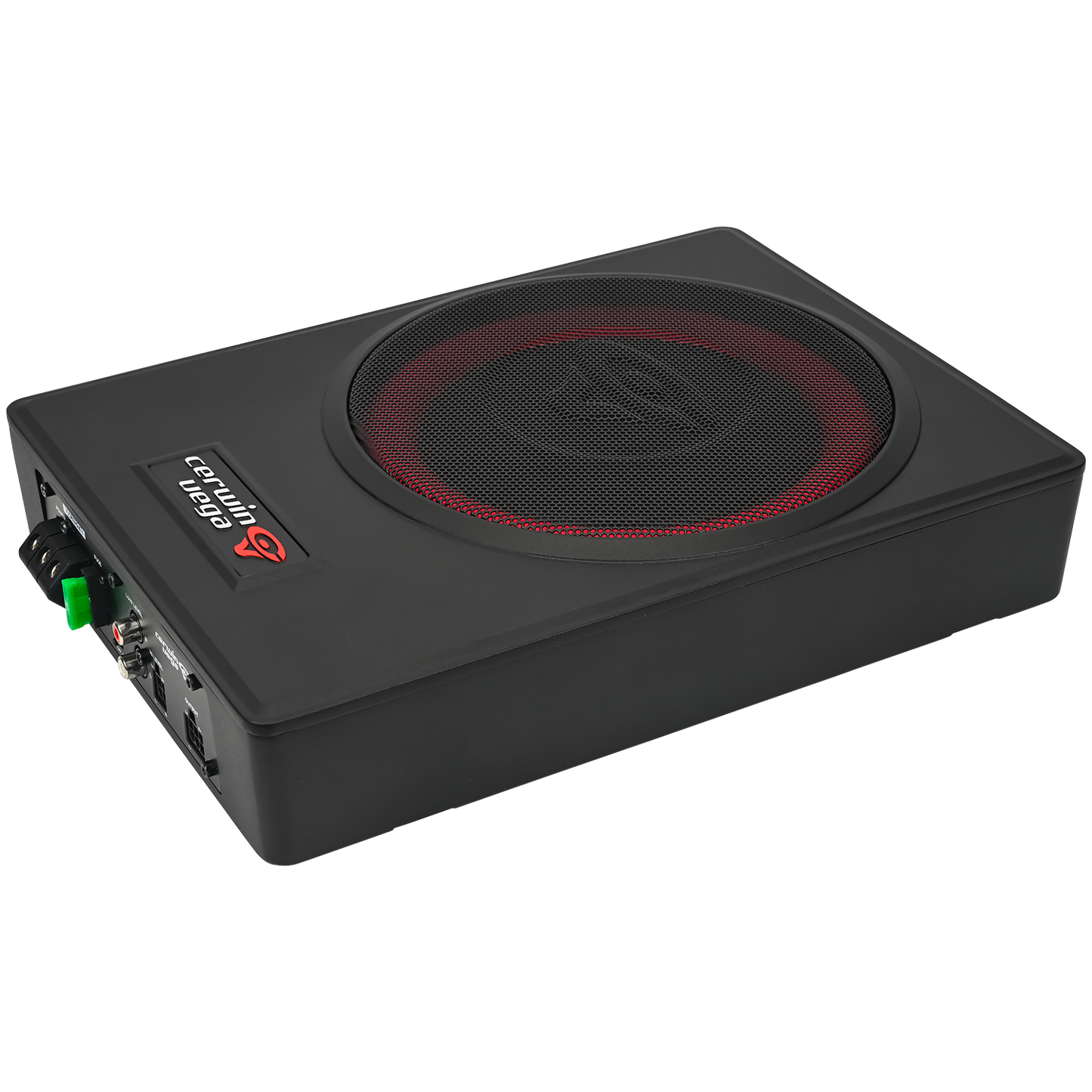

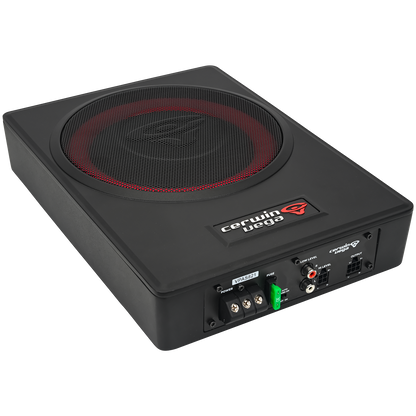

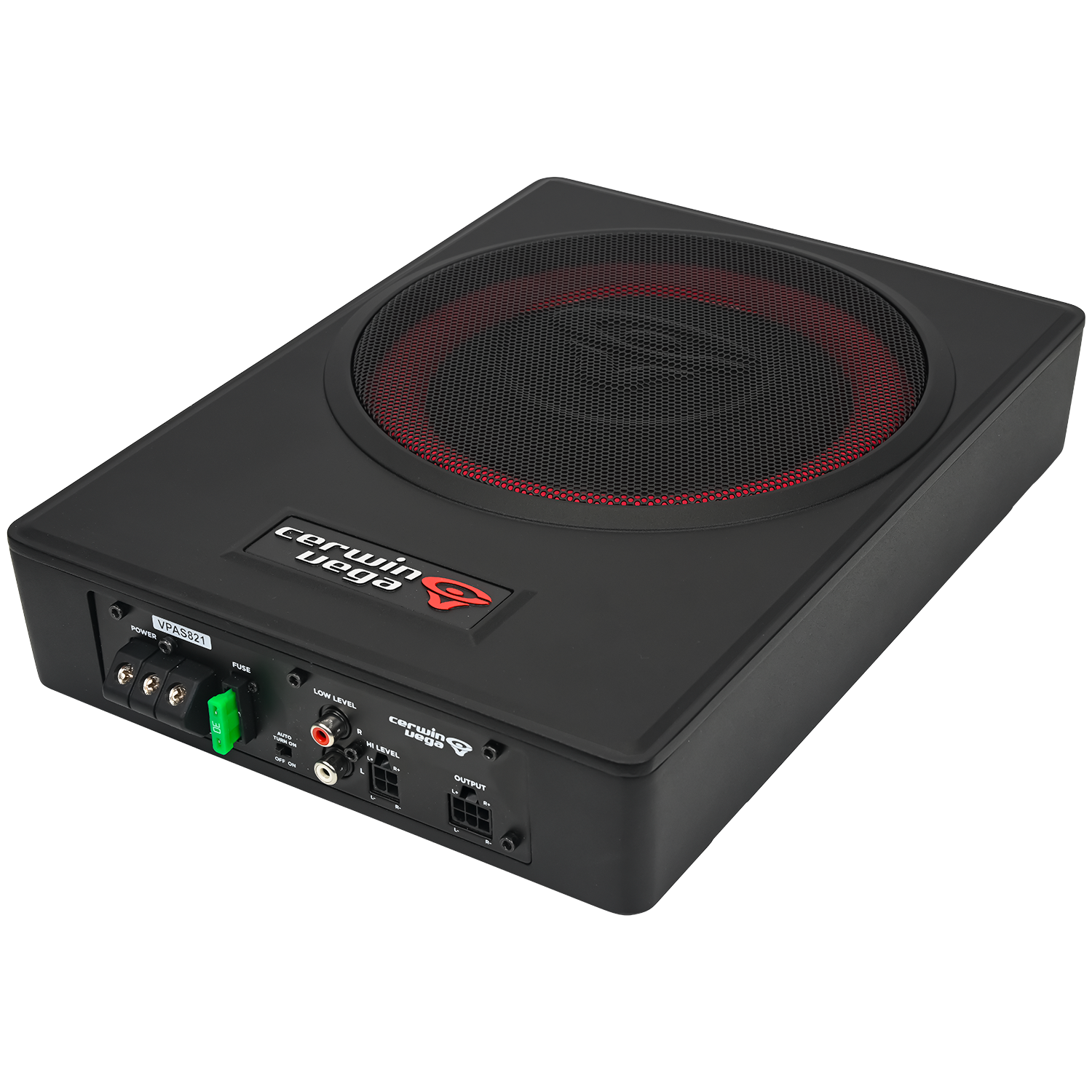

8" UNDER-SEAT BASS SOLUTION WITH VEGA BASS + 2 CHANNEL OUTPUT FOR ADDTIONAL SPEAKERS - VPAS821
Couldn't load pickup availability
Overview
The VPAS821 is the ultimate mobile audio upgrade, offering a compact yet powerful solution to elevate your vehicle's sound system. Designed with innovative features
for seamless installation and optimized performance, this under-seat enclosure is perfect for cars, trucks, golf carts, and other vehicle applications.
With four full-range output channels and a dedicated subwoofer channel, the VPAS821 is a true all-in-one audio solution. The integrated outputs allow you to drive
additional speakers, providing rich, full-range sound throughout your vehicle. Whether upgrading your factory audio or starting from scratch, the VPAS821 ensures a
dynamic and immersive listening experience.

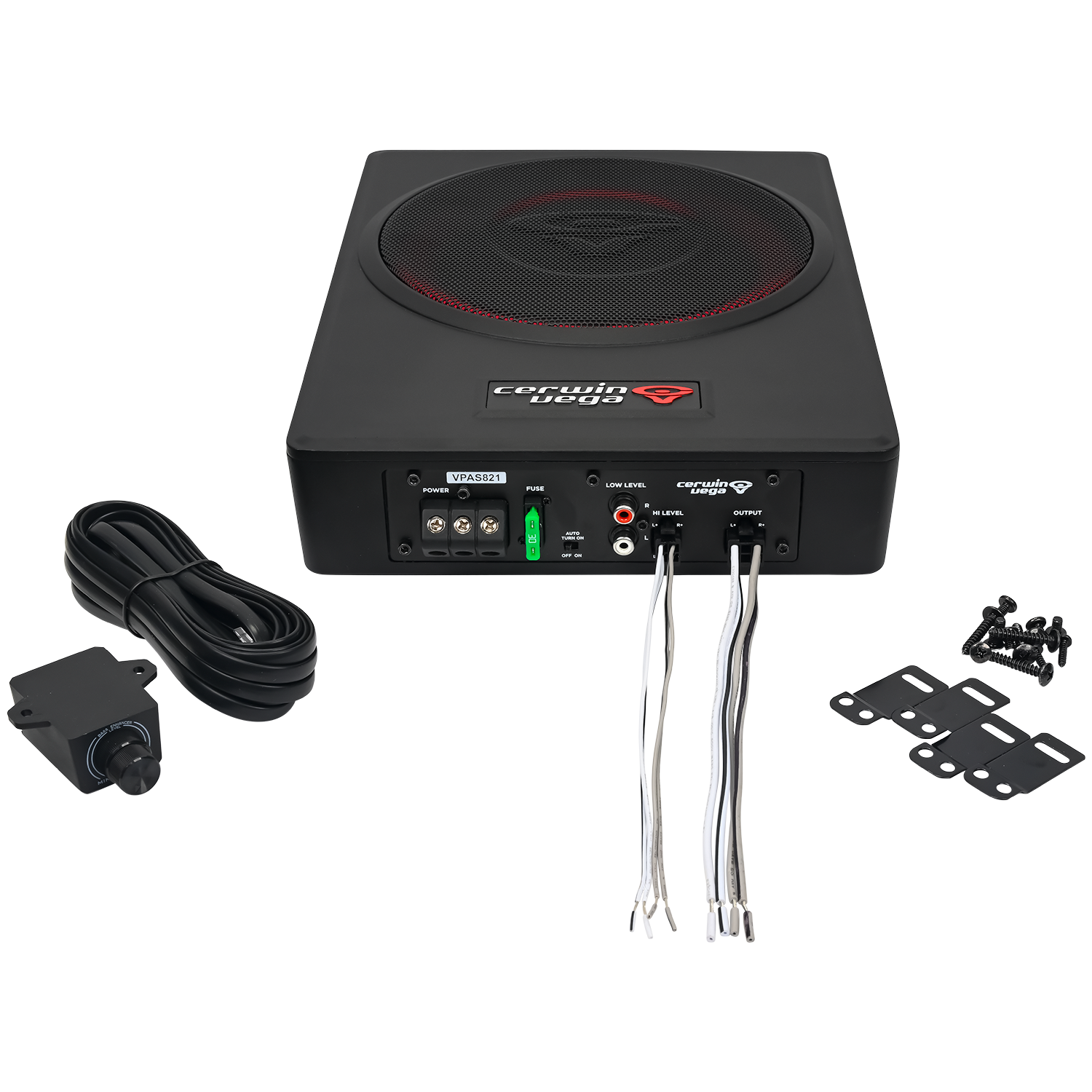

The VPAS821 is engineered for easy OEM integration, featuring 20V line-level inputs, auto turn-on circuits, and an ultra-compact design for hassle-free installation in
almost any vehicle. To address challenges with OEM audio signals and enhance overall sound quality, the VPAS821 includes:

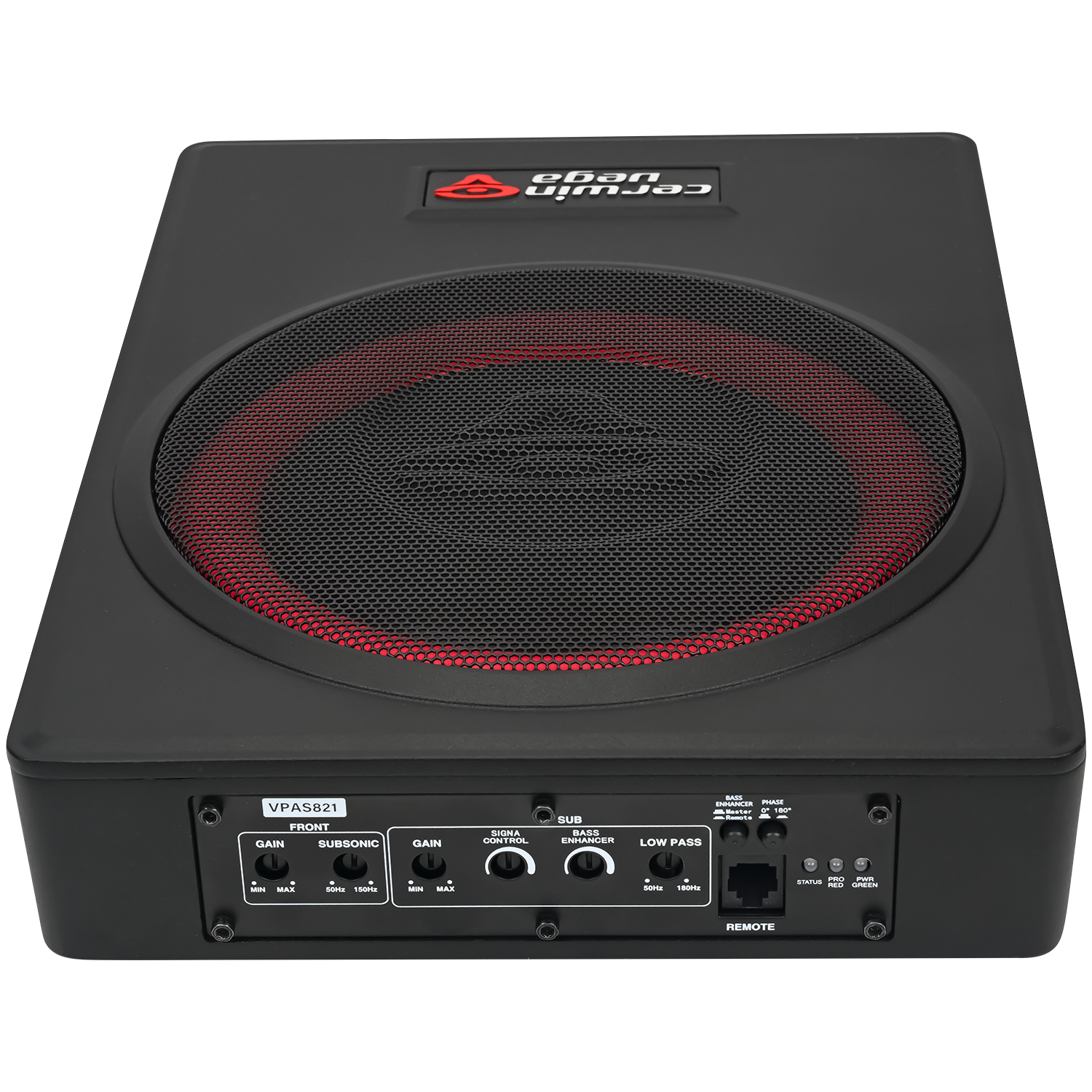

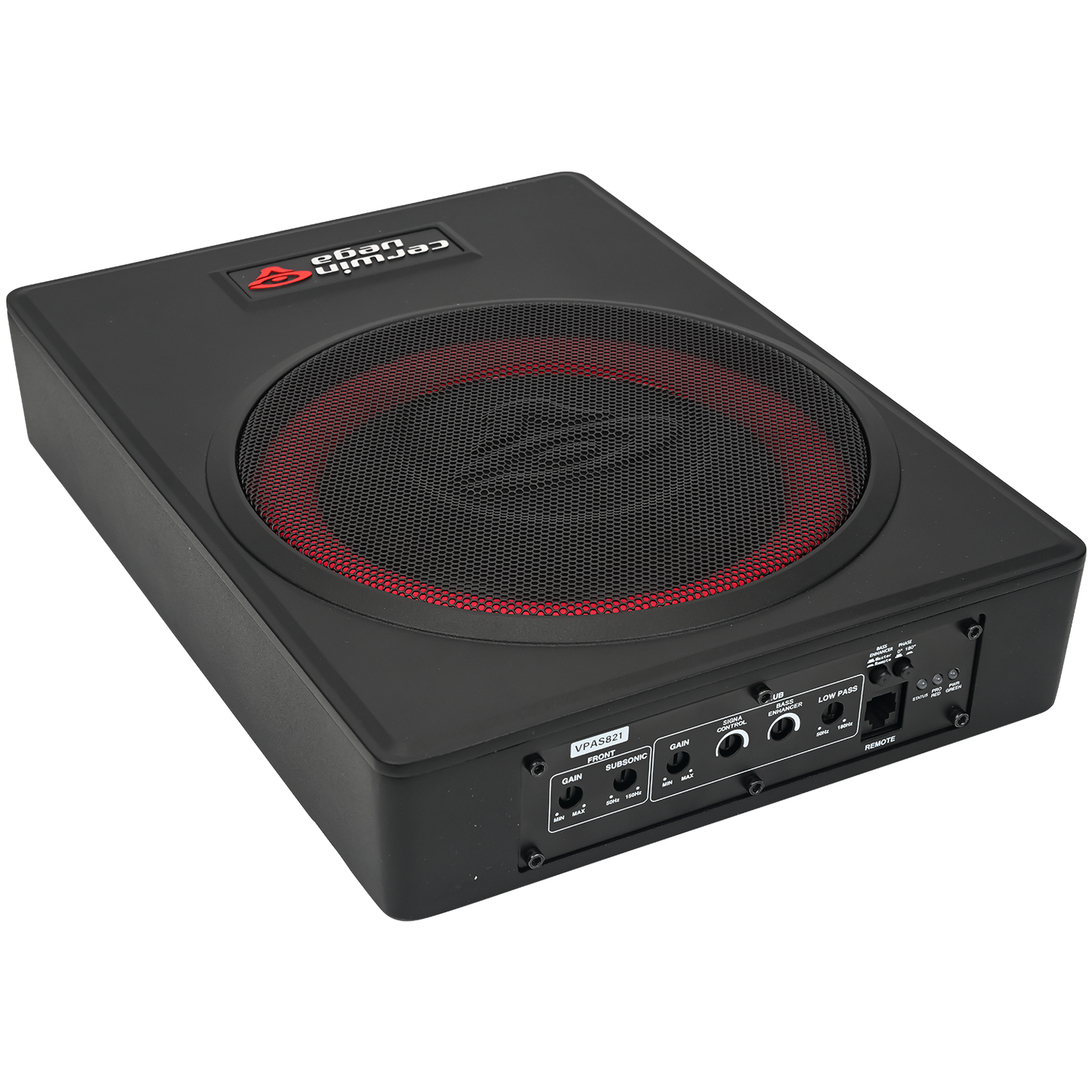

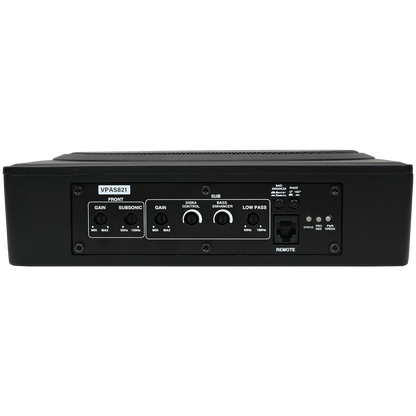

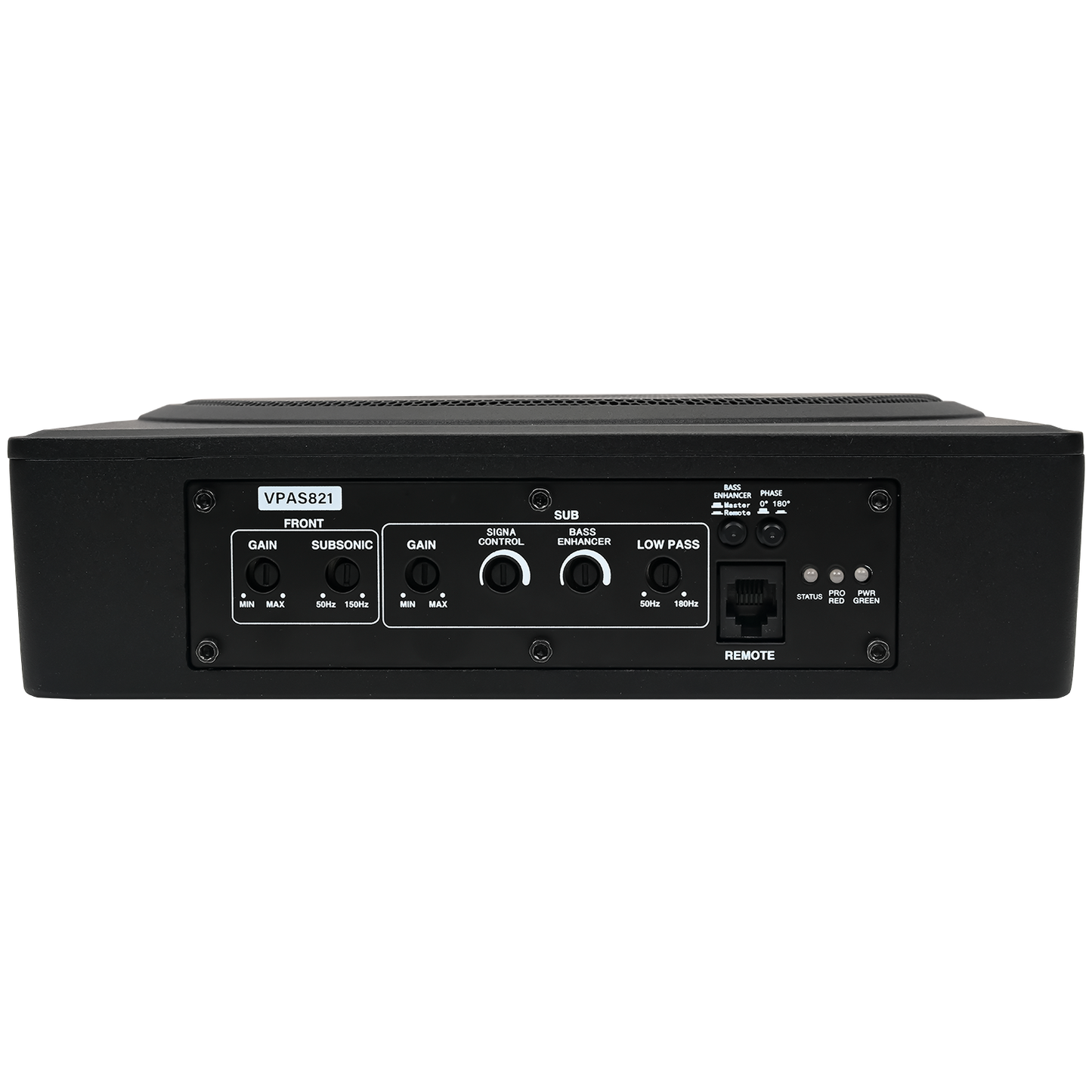

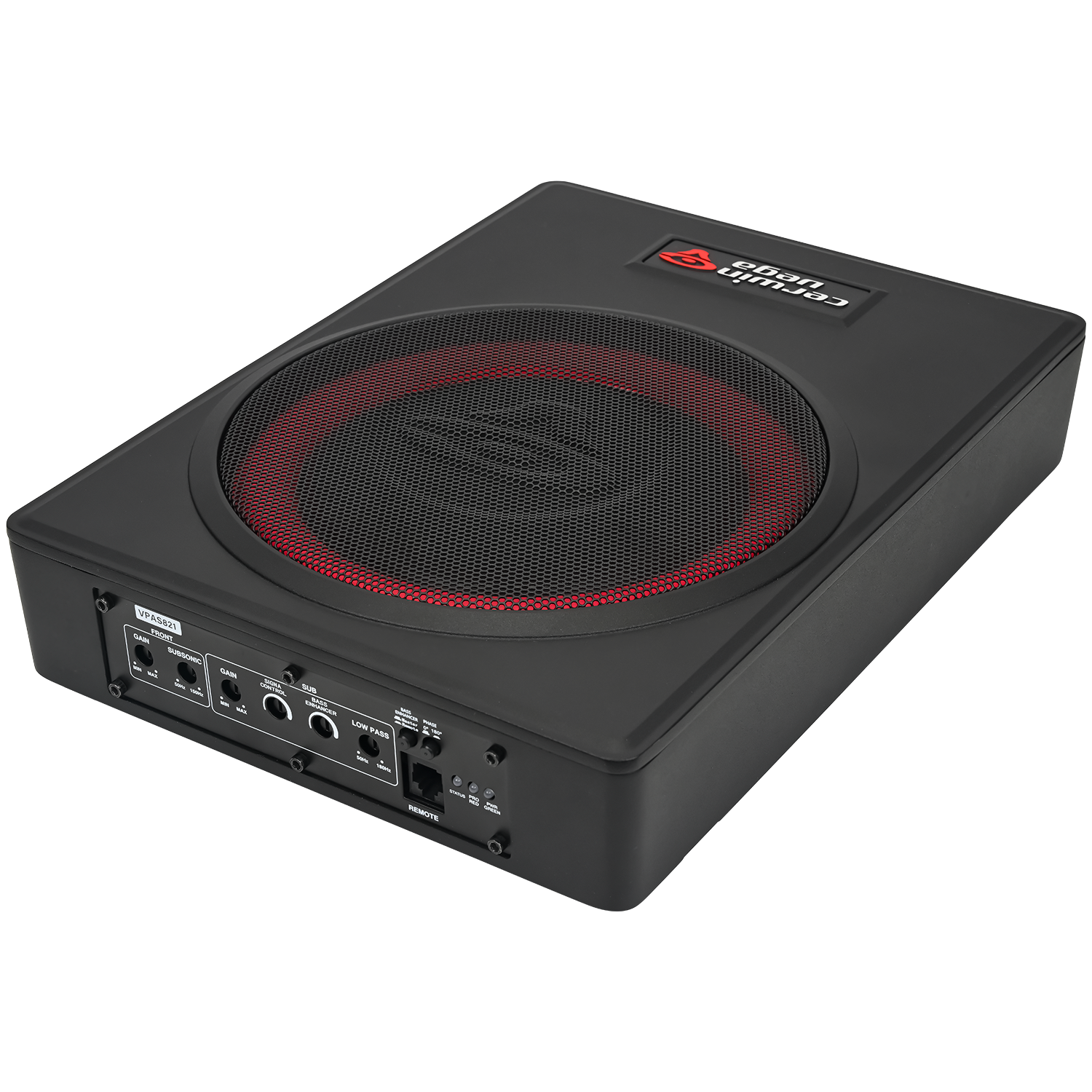

Dual Bass Controls:
One is for precise level adjustment, and the other is powered by Cerwin Vega's exclusive VEGA BASS, bass enhancement circuit for deeper and richer bass.
Advanced Filters: Standard low-pass and subsonic filters ensure optimal frequency control.
Phase Adjustments: For seamless blending of subwoofer and full-range speakers.

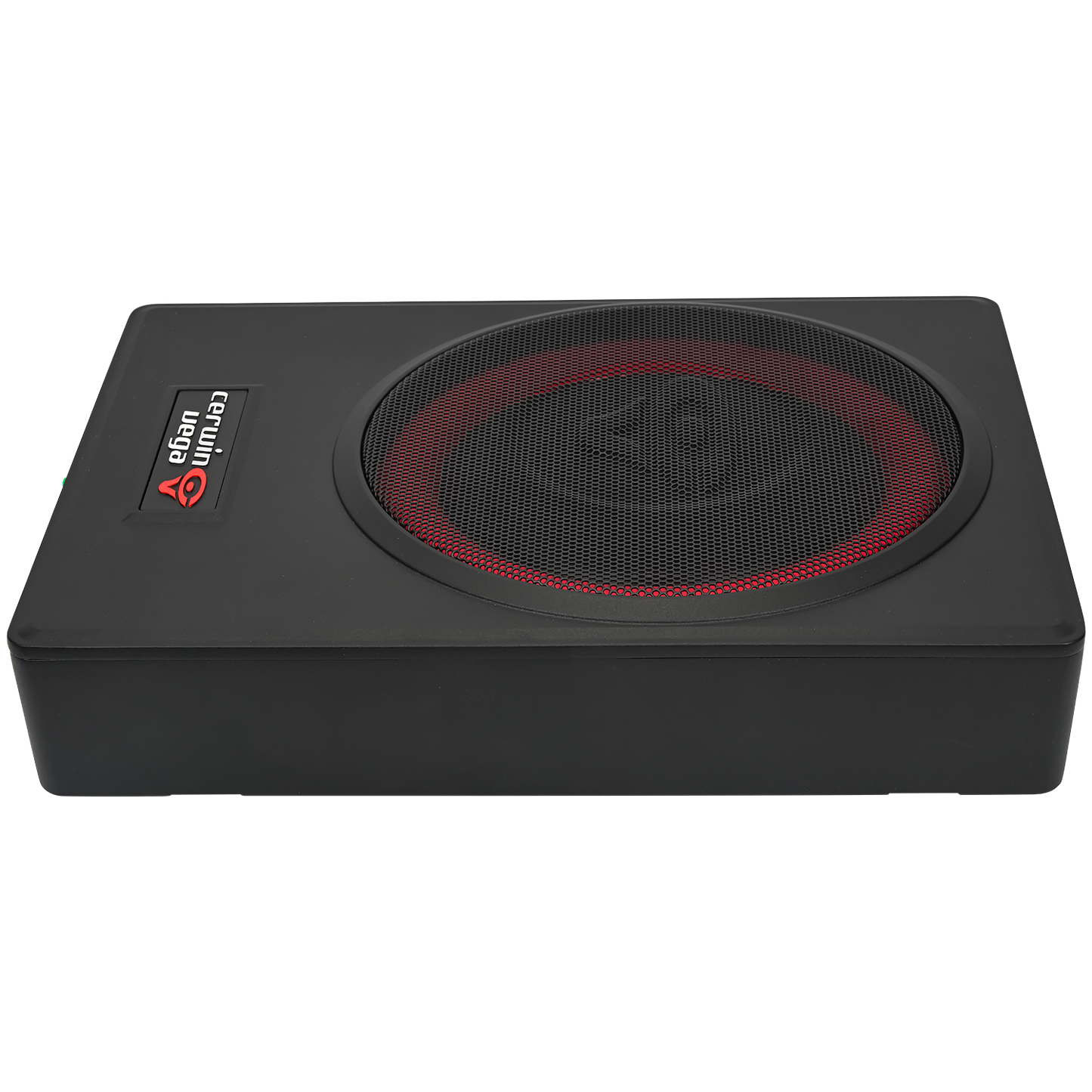

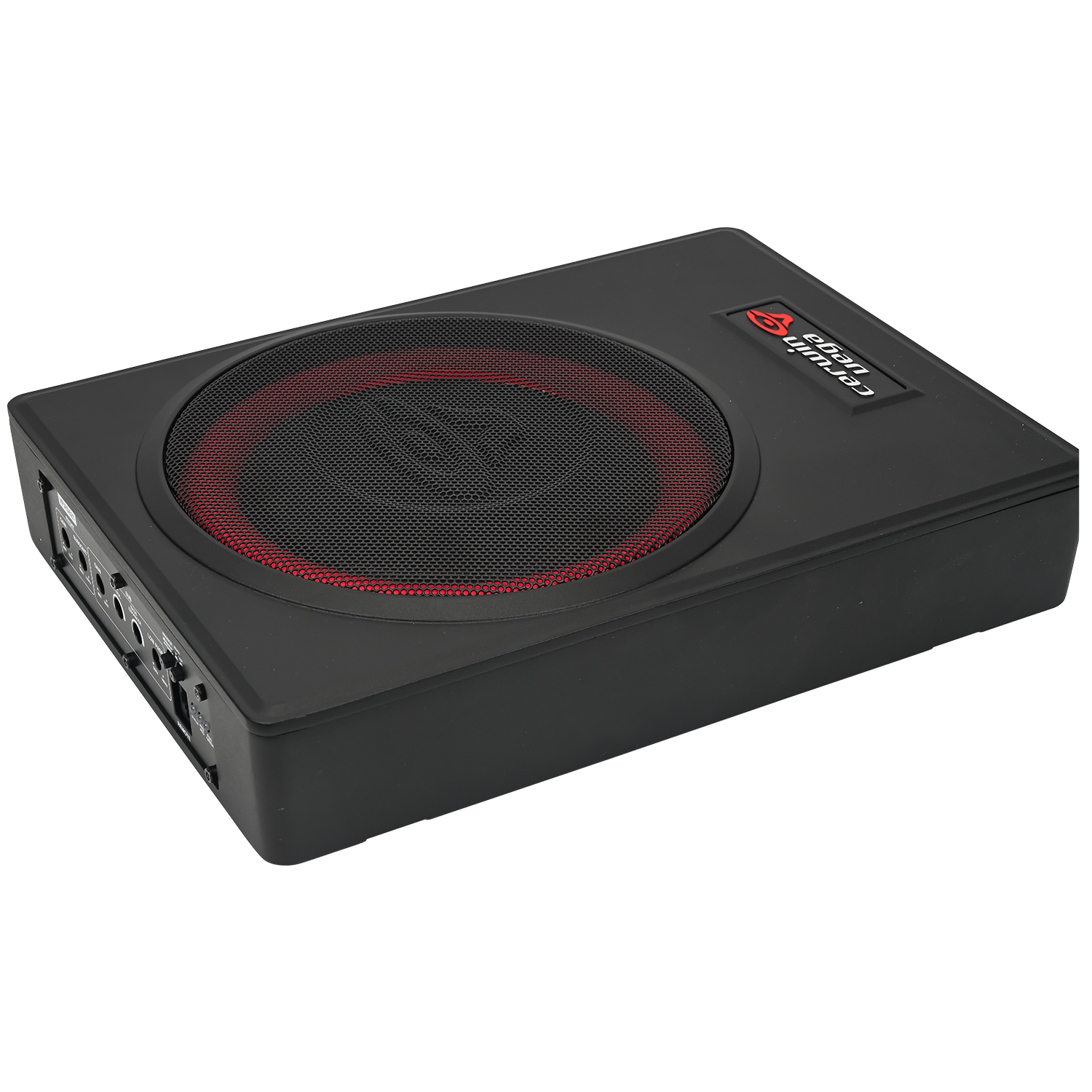

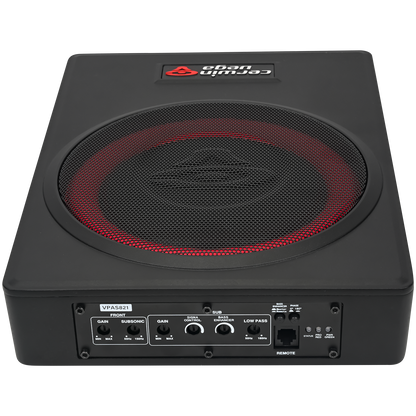

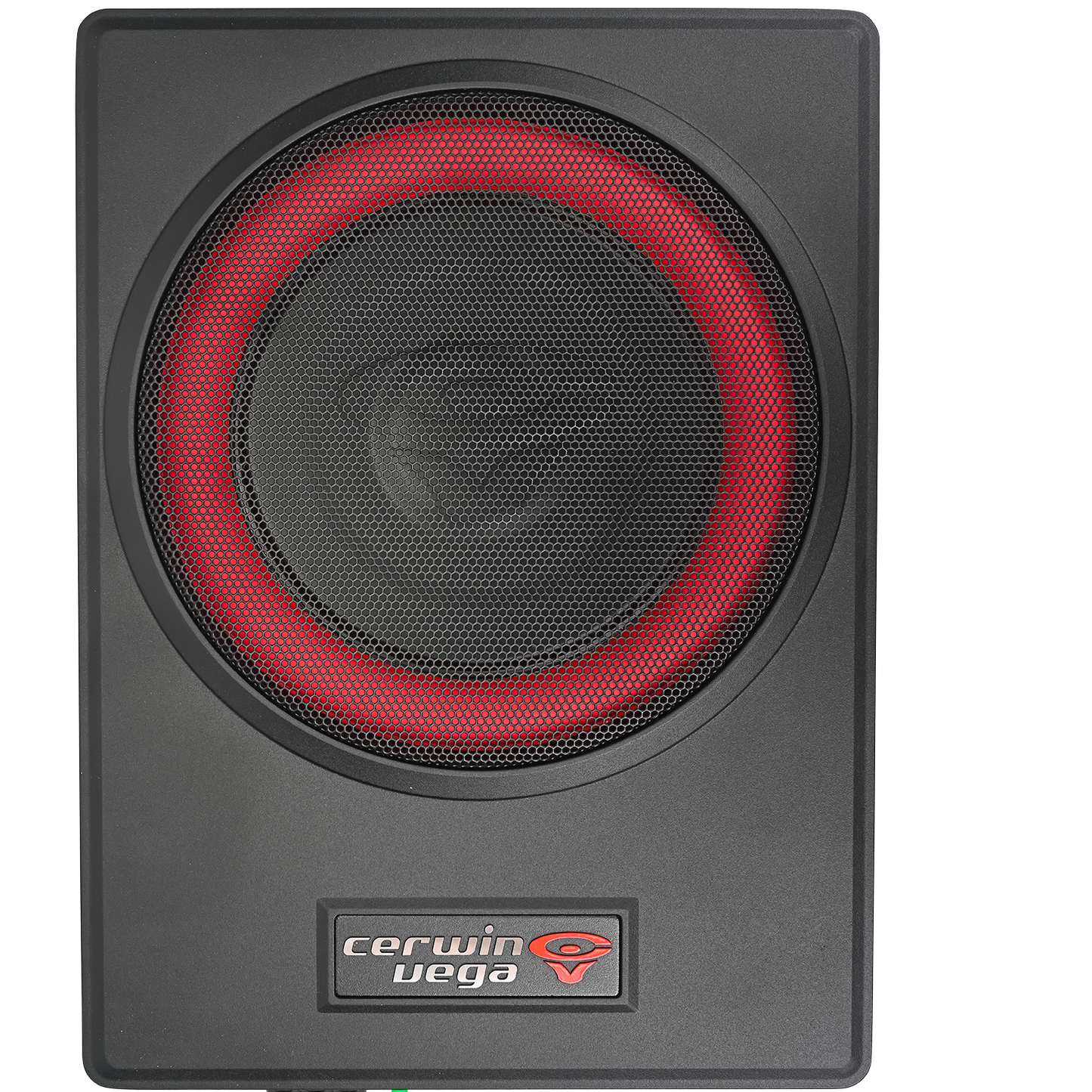

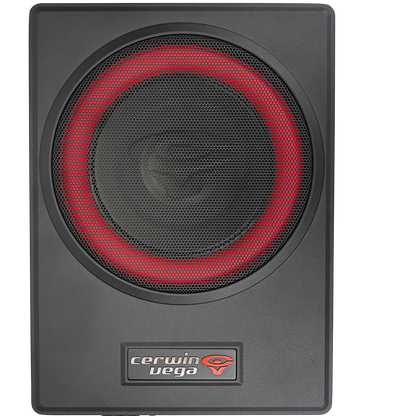

Built around an 8" subwoofer with 450W MAX power the VPAS821 delivers robust bass performance in a space-saving enclosure. Its ability to power additional speakers
through the full-range outputs makes it the ideal choice for creating a cohesive, high-quality audio system without the need for multiple components.
Transform your vehicle's sound system with the VPAS821—your all-in-one solution for deep bass, clear highs, and full-range audio excellence.
Specifications
- 2.1 System: Subwoofer and 4 Channel Outputs
- Super Slim Design
- Adjustable Input Sensitivity

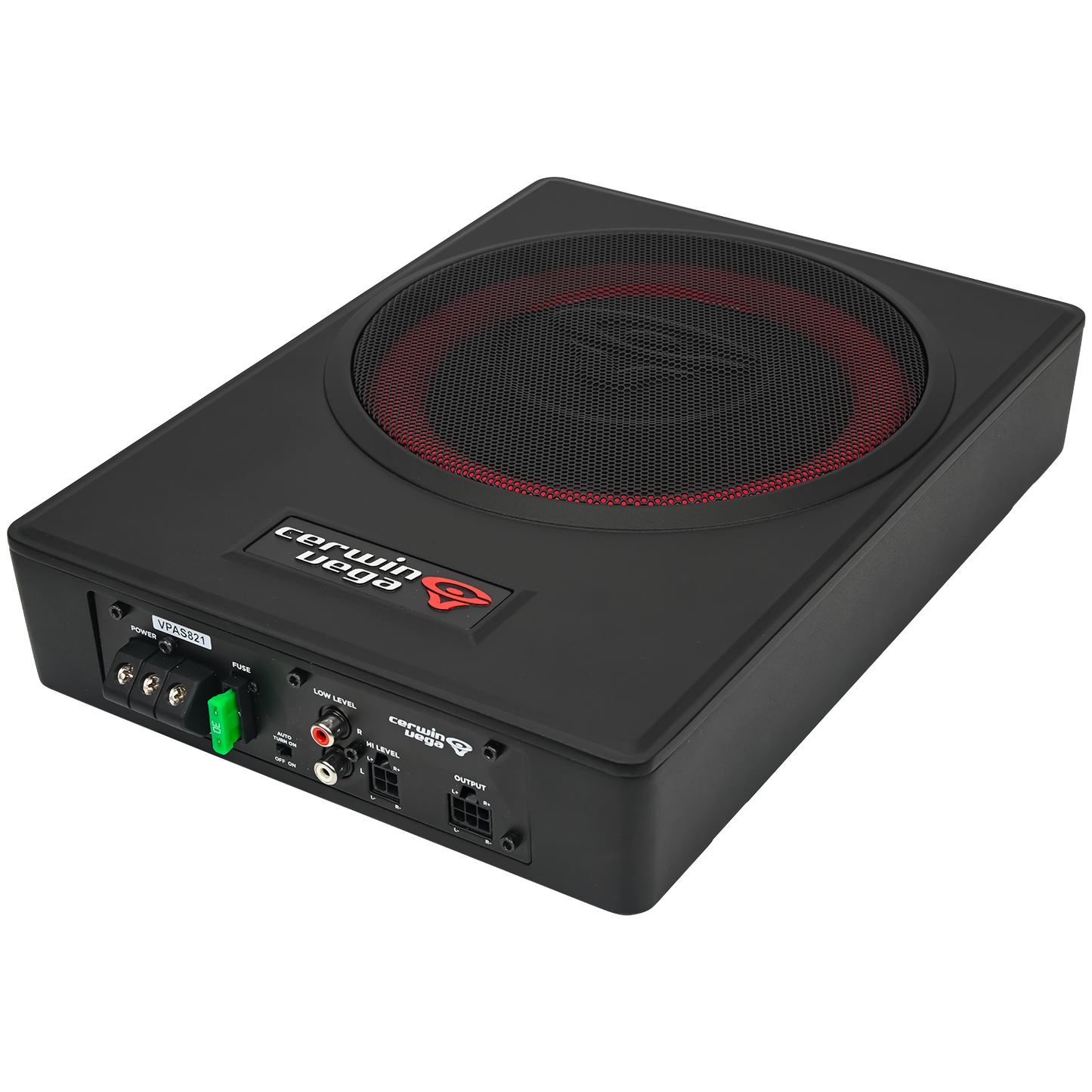

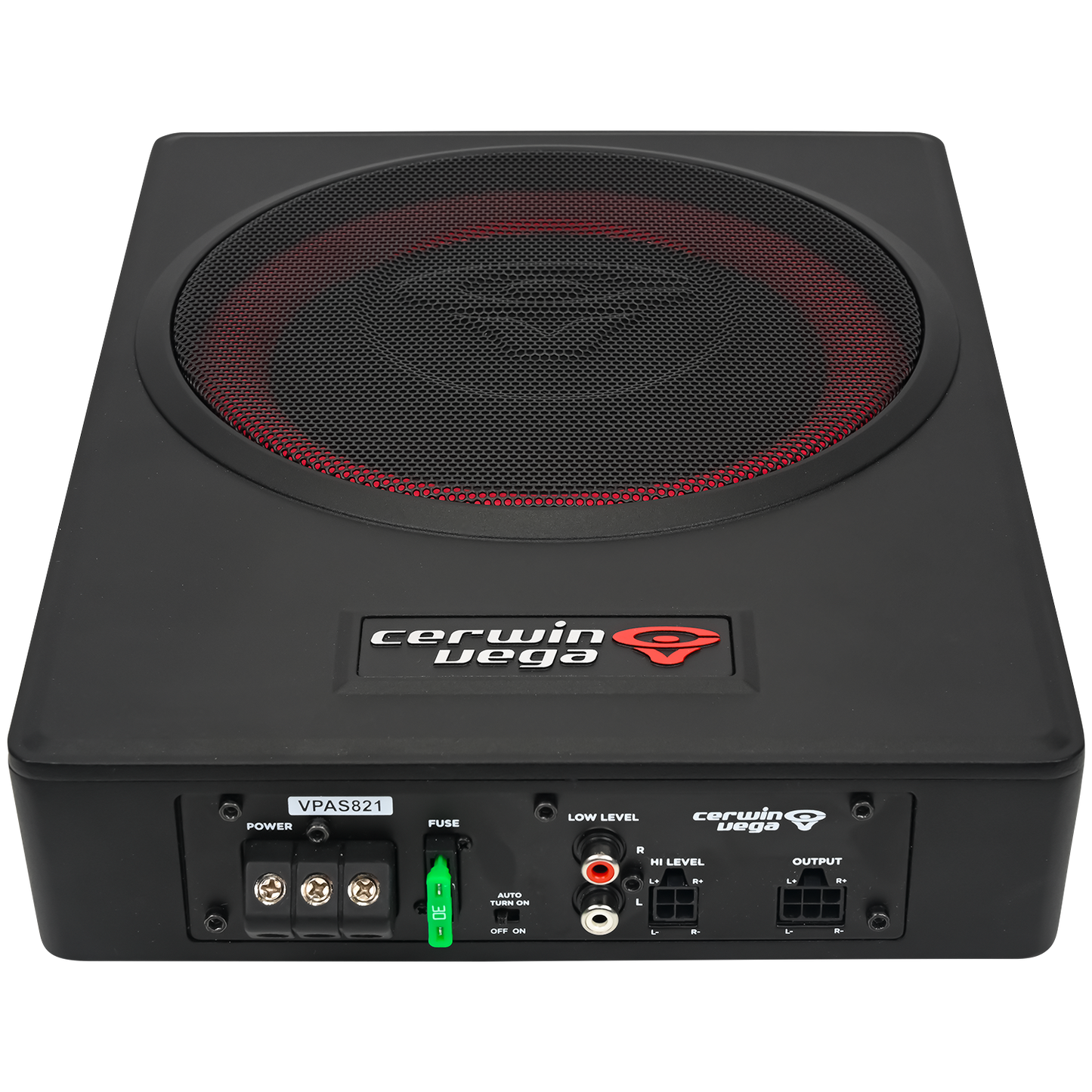

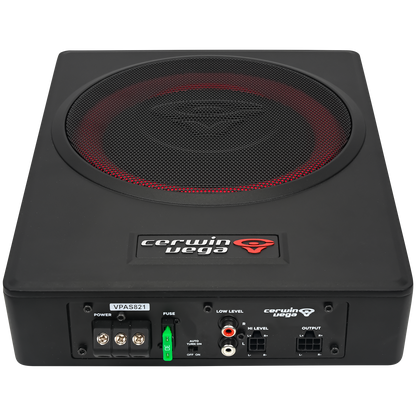

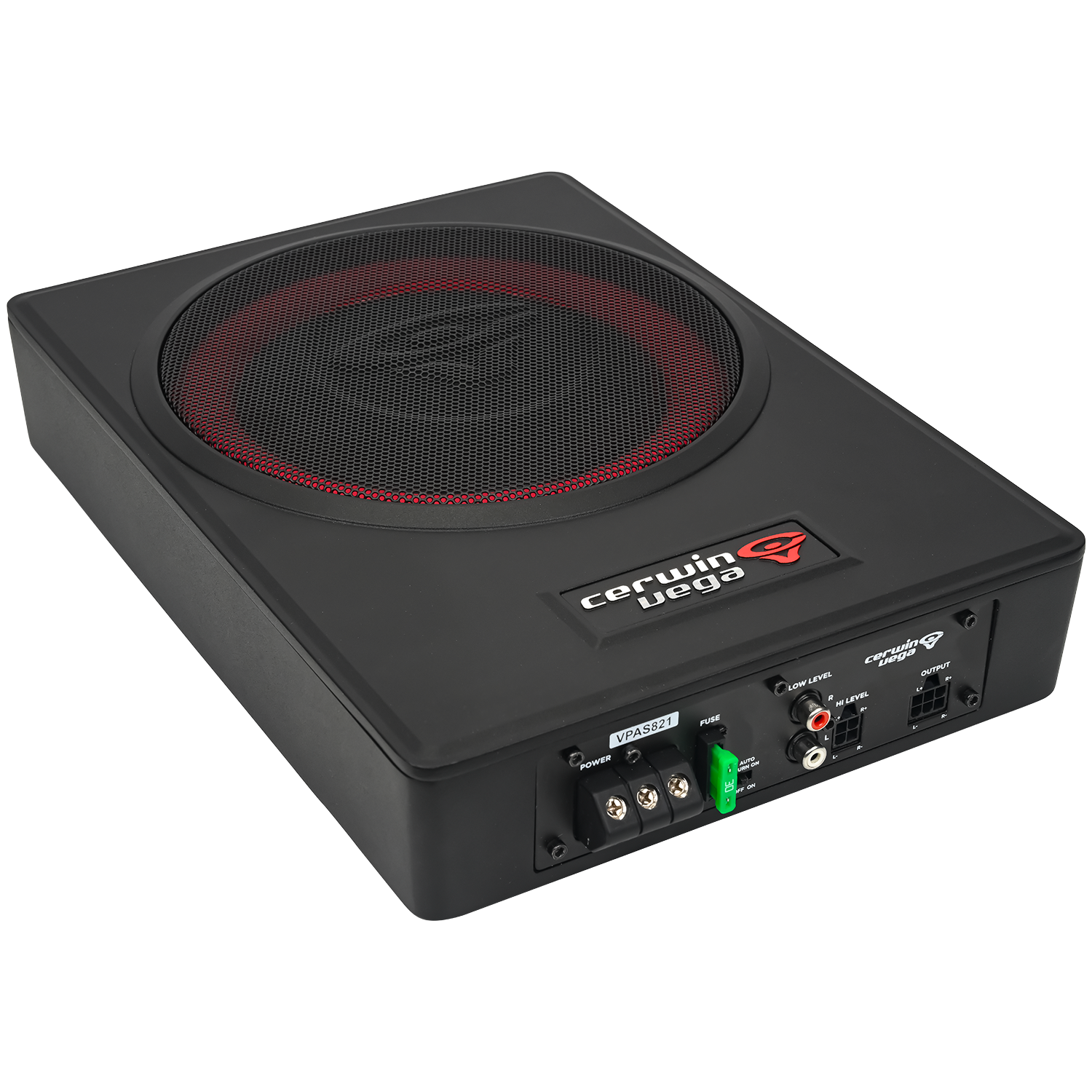

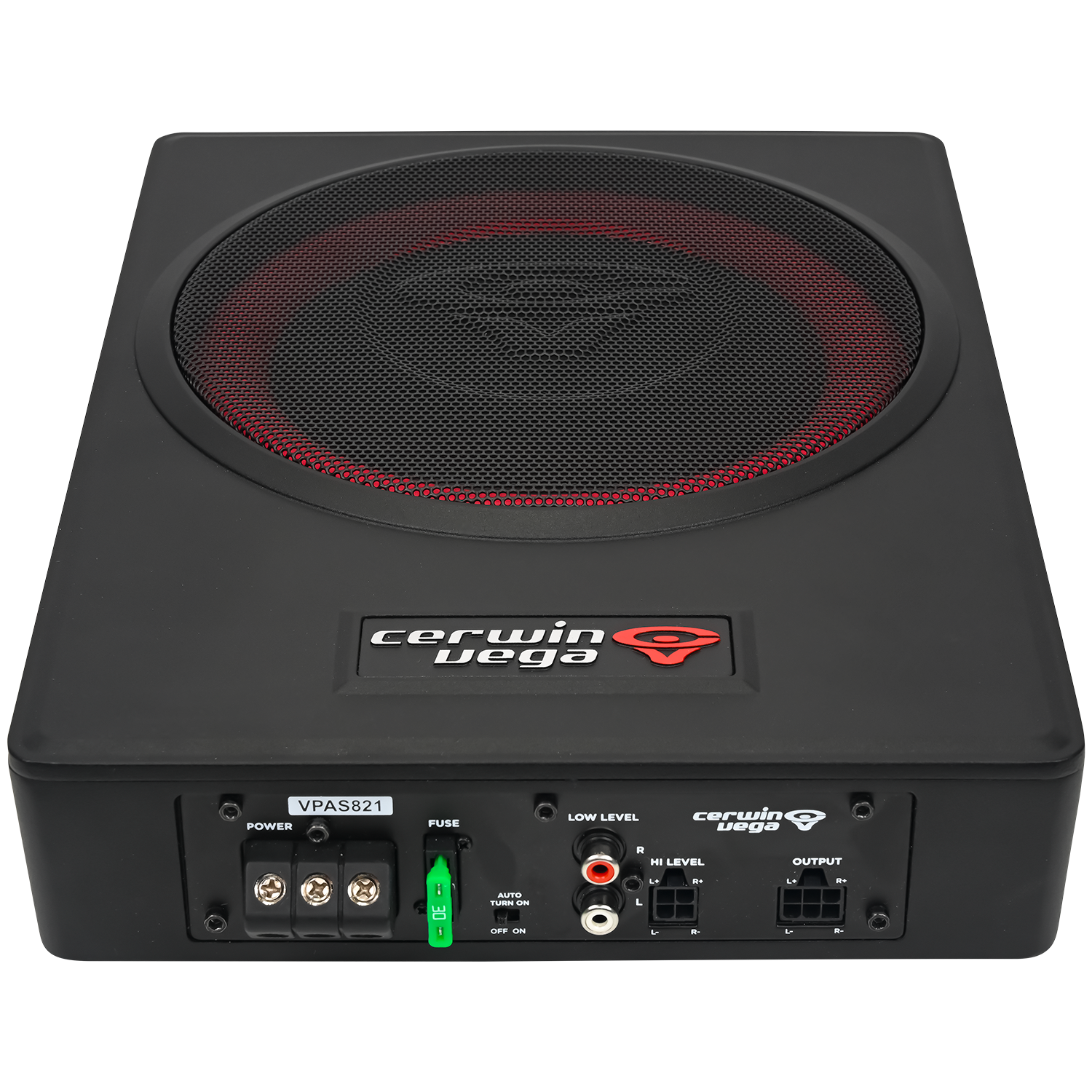

- Inputs: Low-level and 20V High-level
- Sub Sonic Filter: 20Hz (fixed)
- VEGA BASS - Bass Enhancer:
- Trigger signal control, 0-16dB adjustment range
- Low Pass Filter (LPF): Adjustable from 50Hz to 180Hz
- Auto Turn On: On/Off
- LED Indicators: Power, Protect, and Status

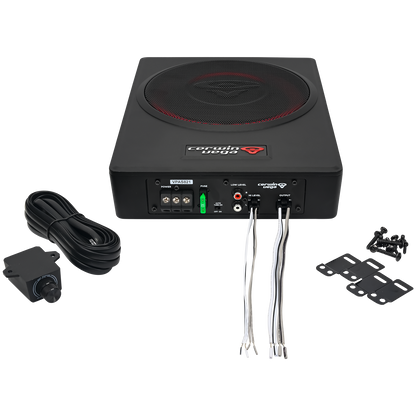

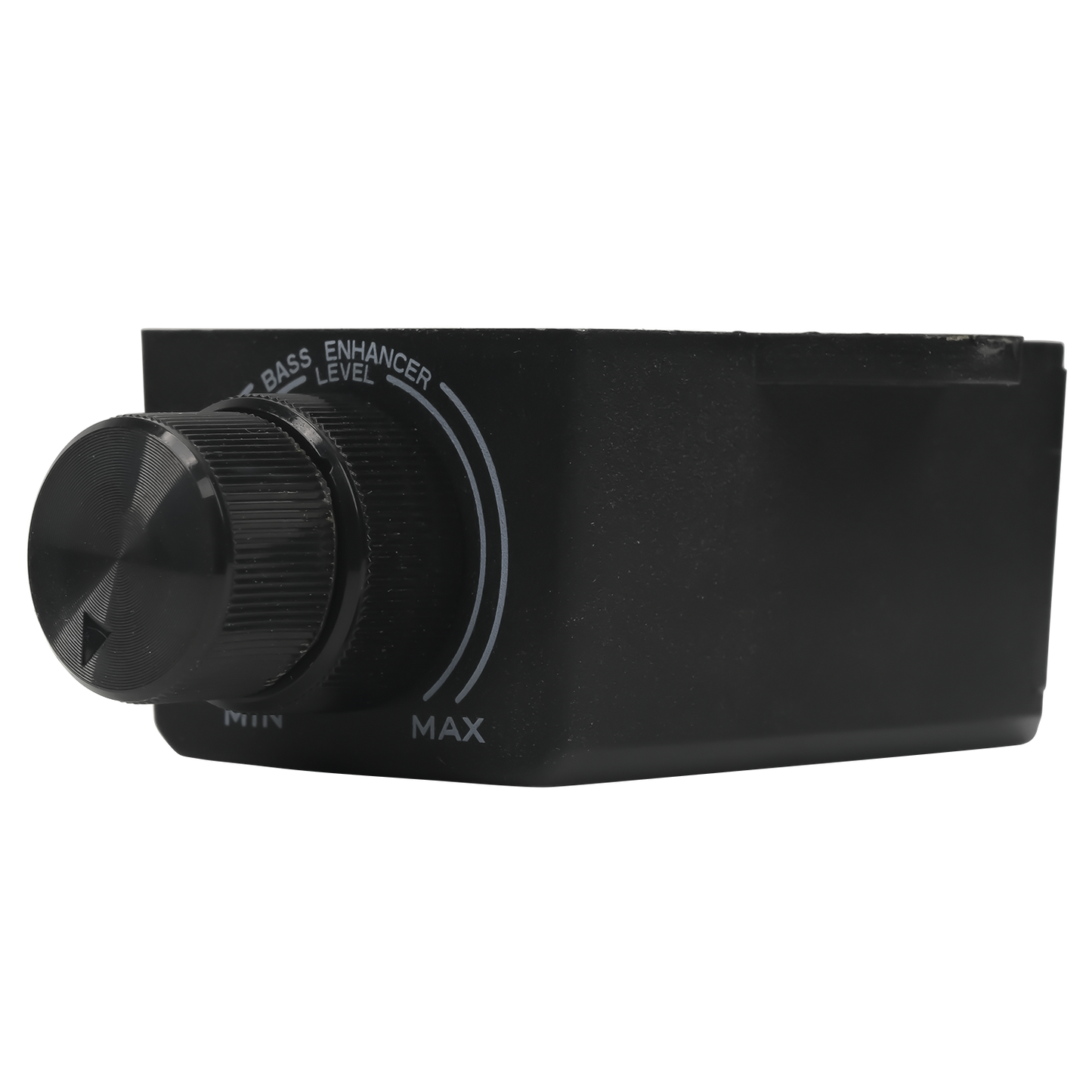

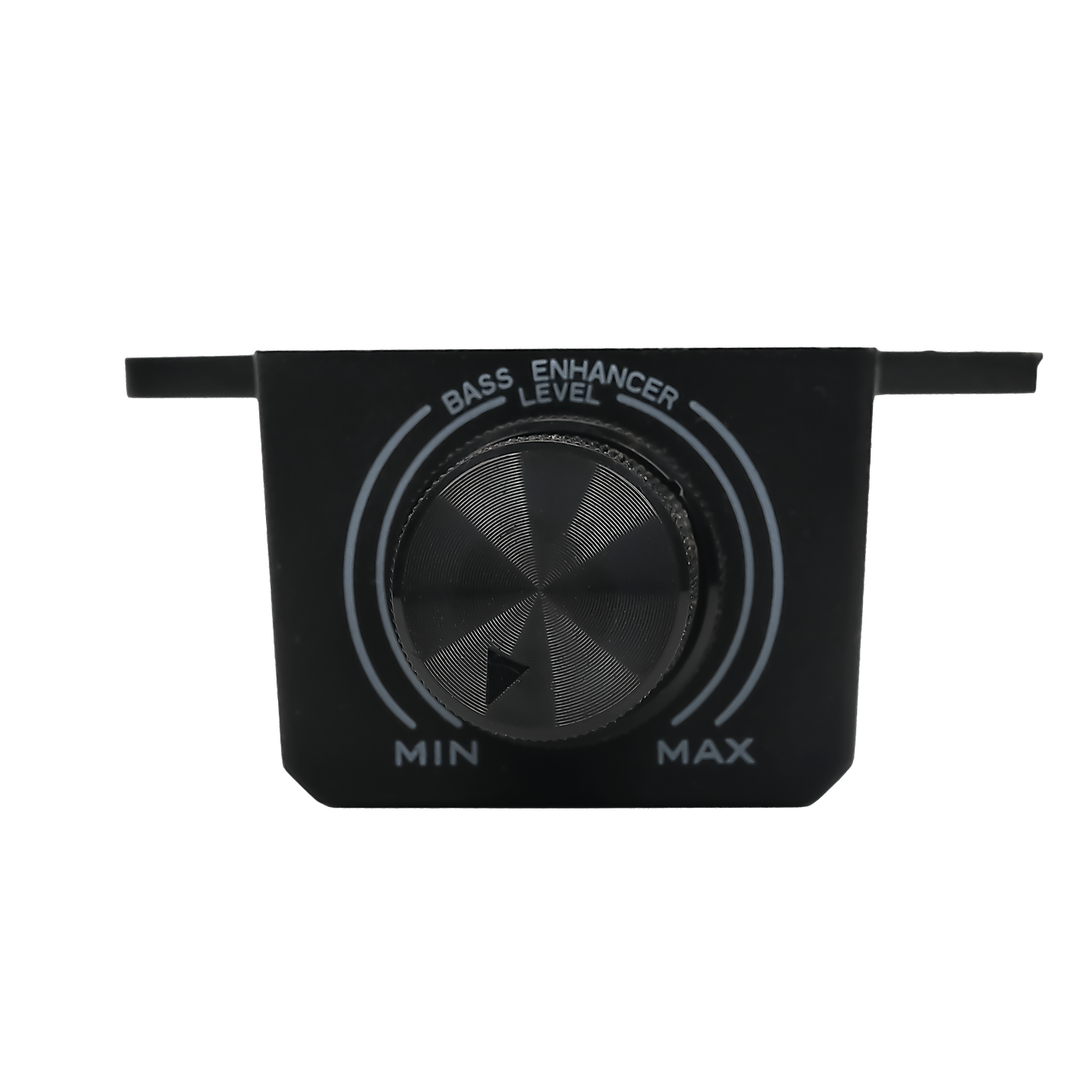

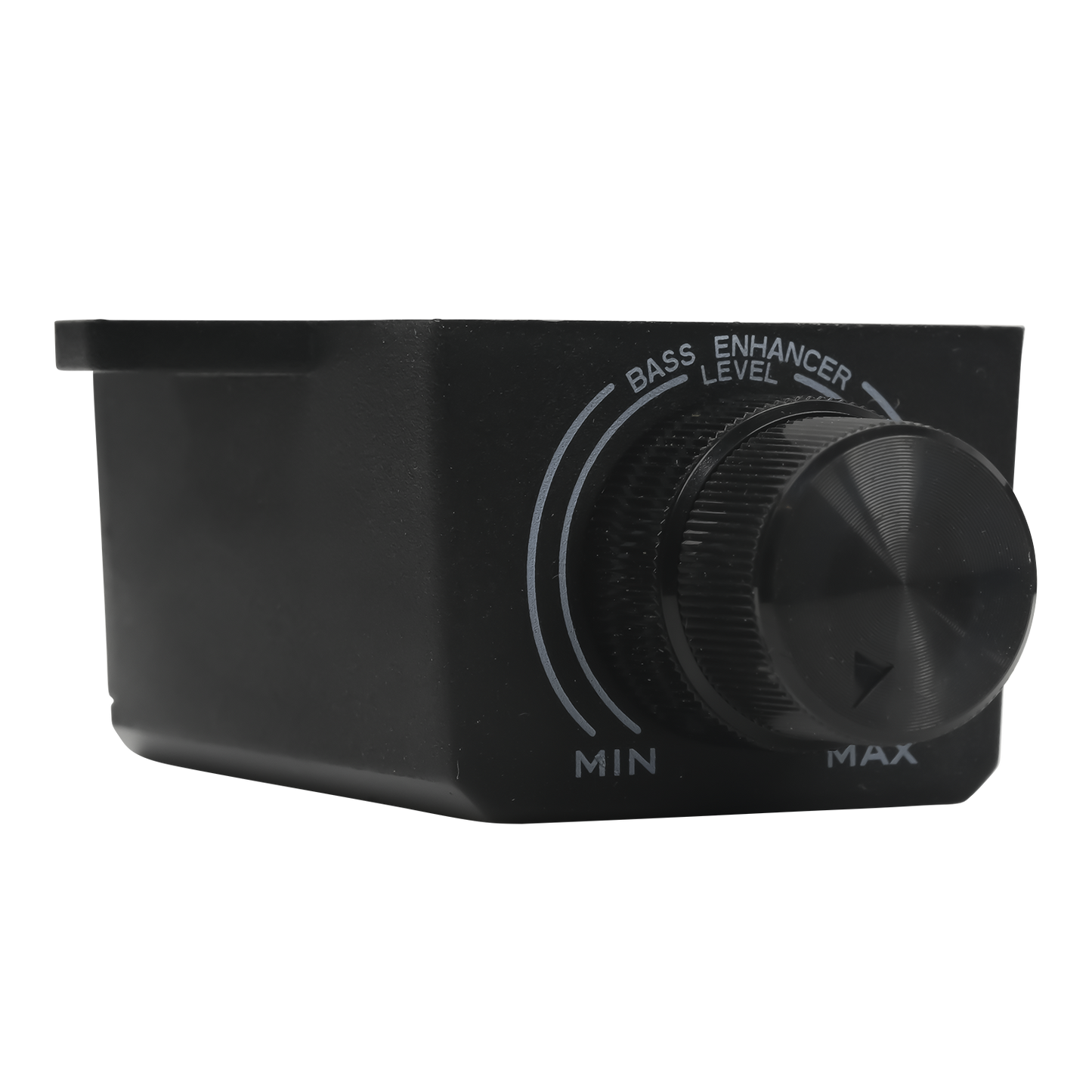

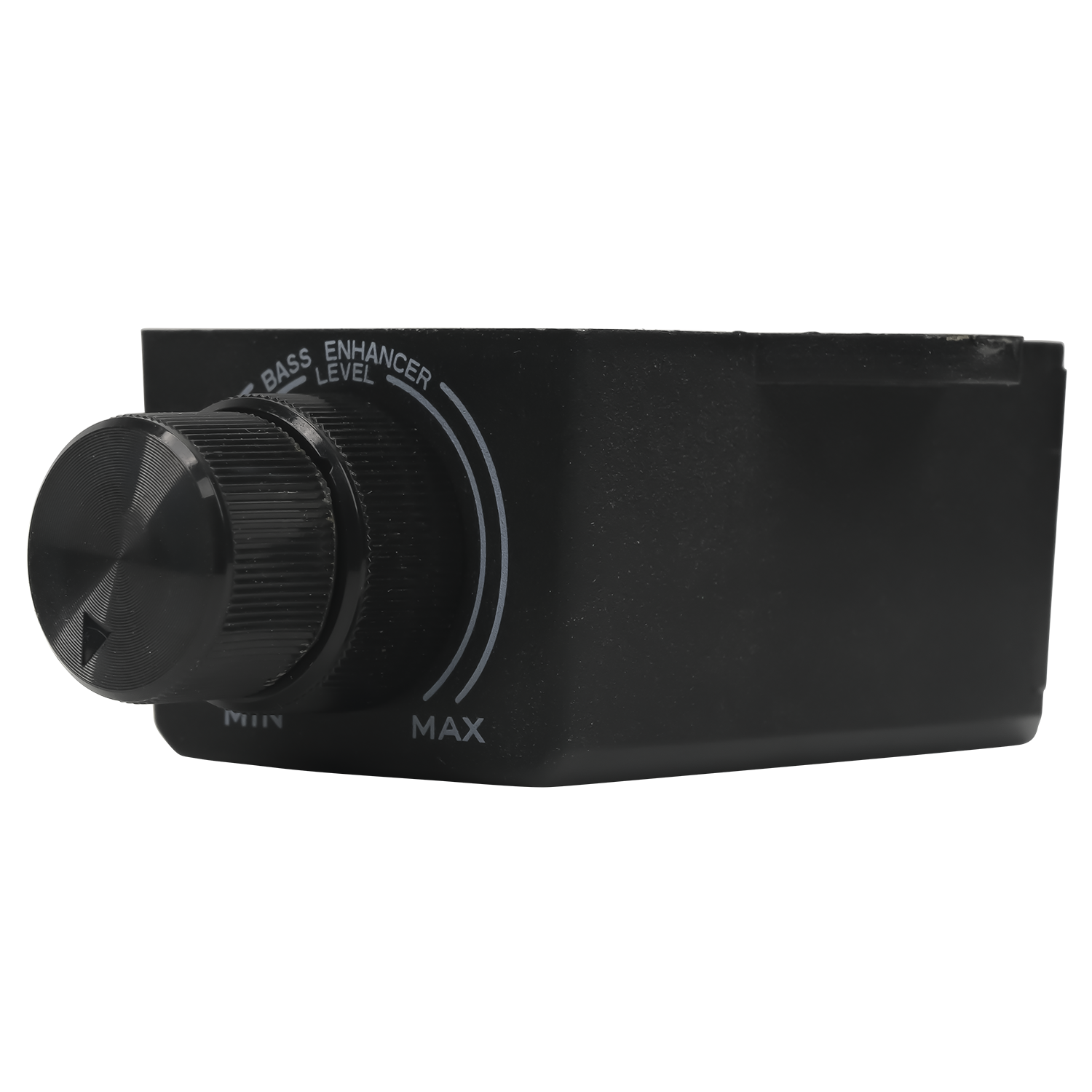

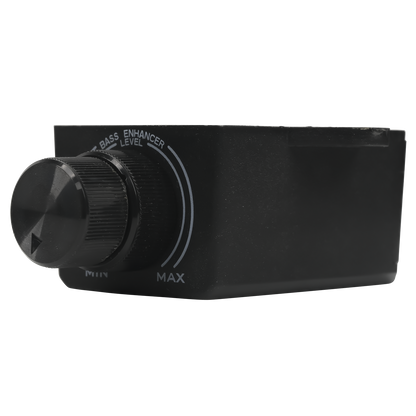

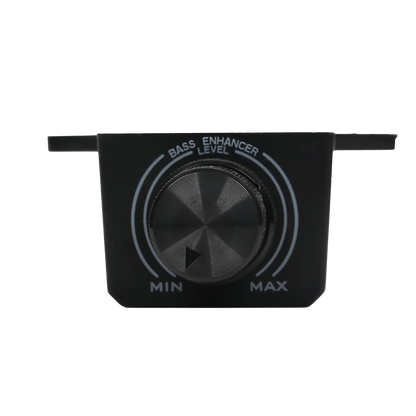

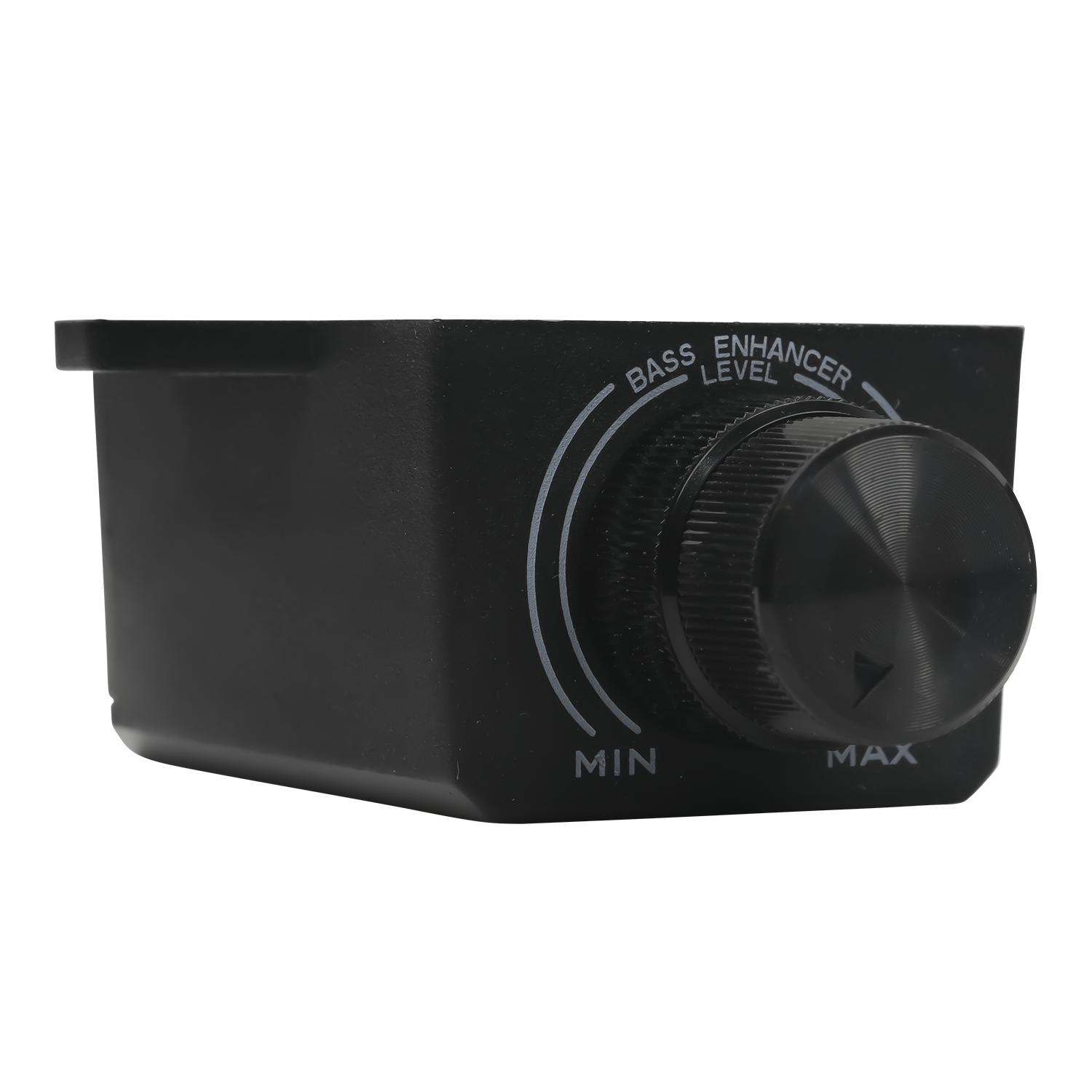

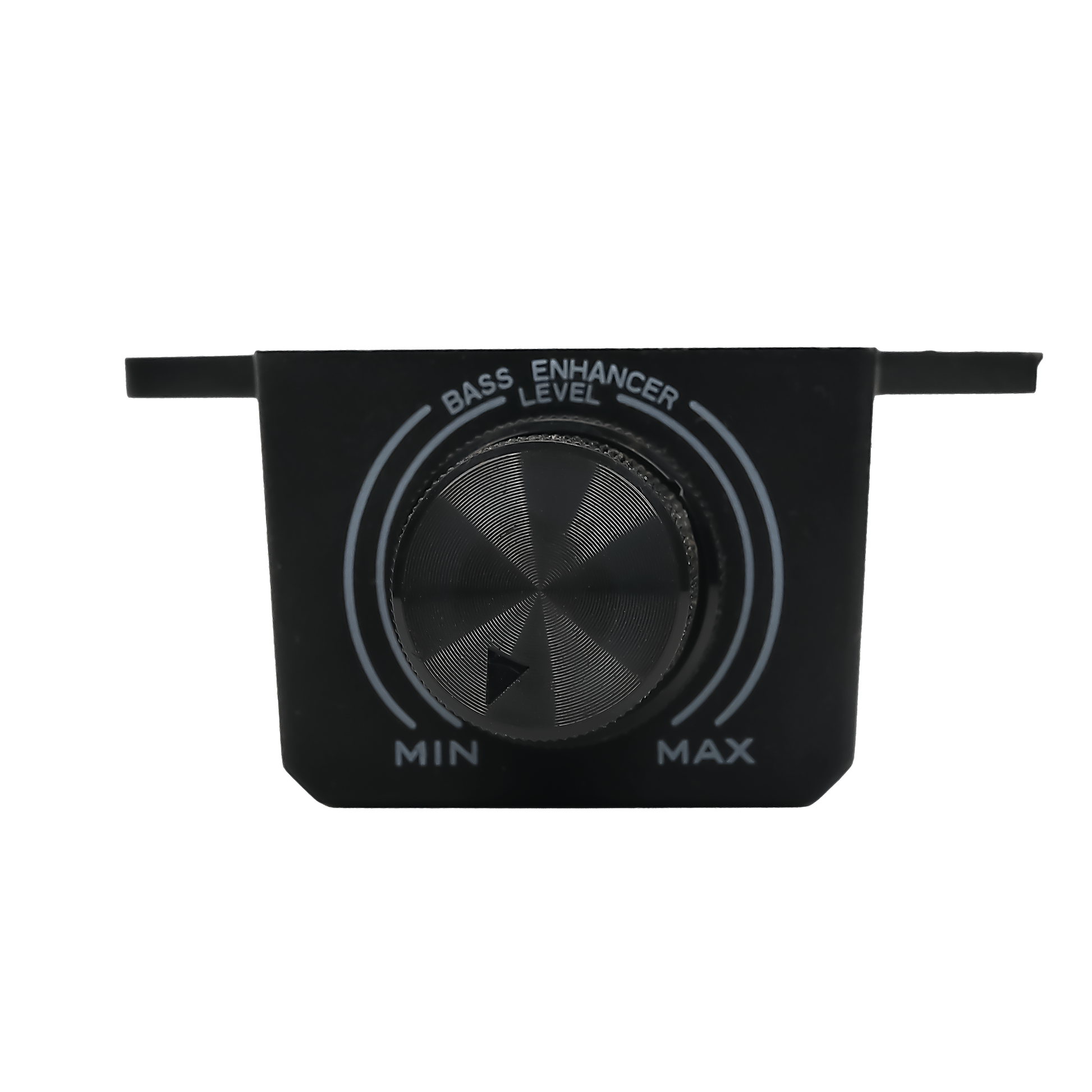

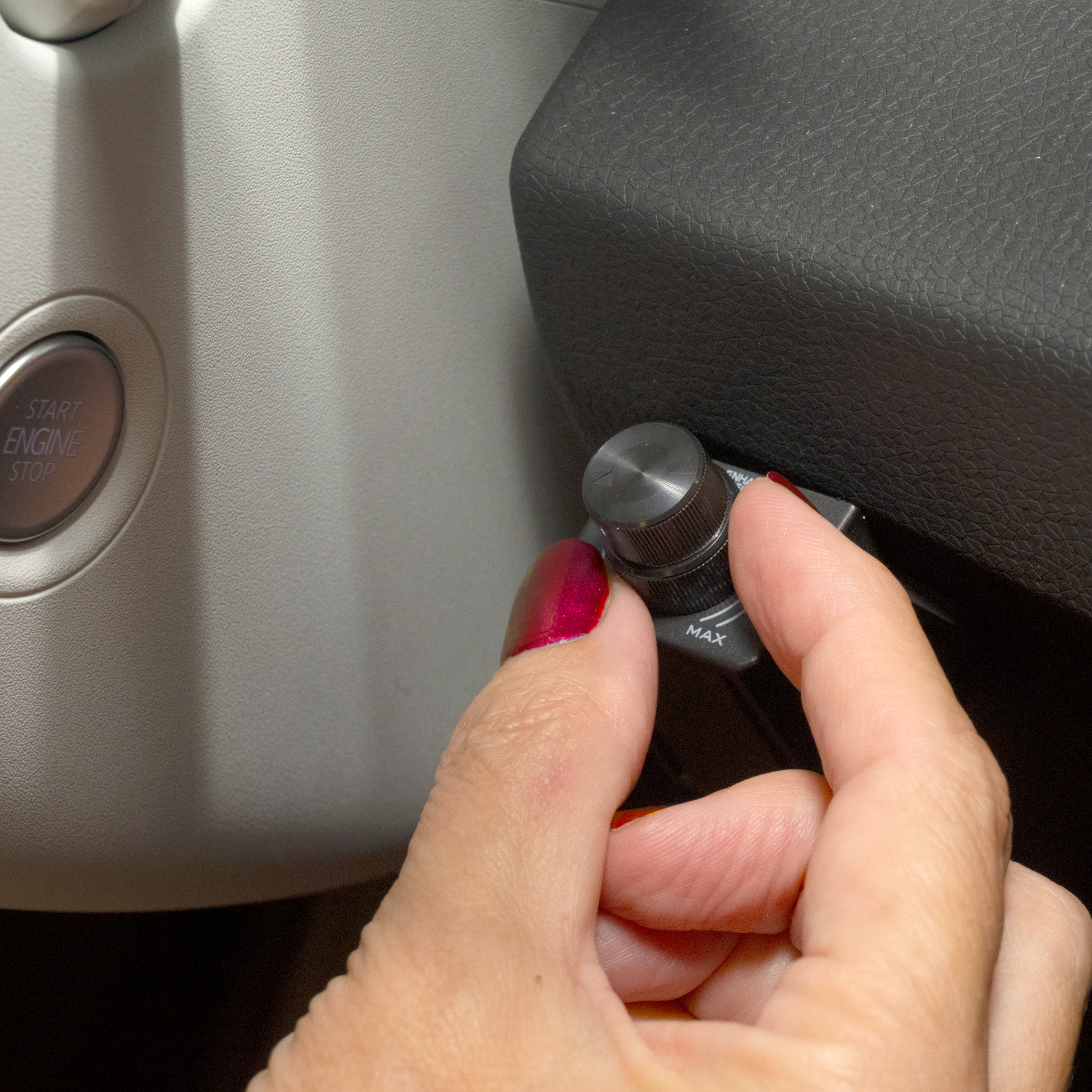

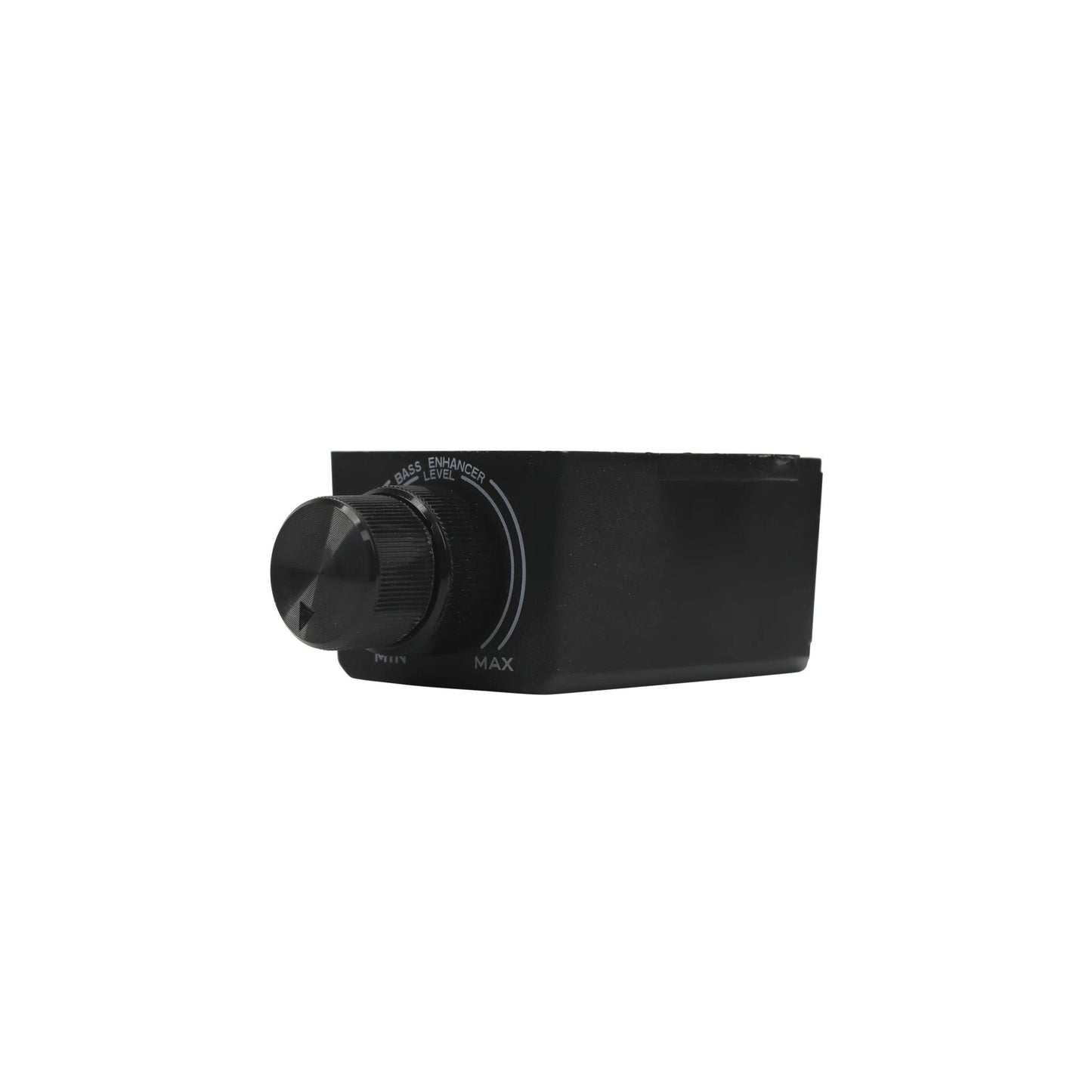

- Dual Remote Control Included:
for Subwoofer Level and Bass Enhancement
- Protection Circuits:
- Thermal, Short, and Overload Protection
- Power Output:
870W MAX - 450x1 + 210x2
290W RMS - 150x1 + 70x2
- Woofer Size: 8 inches
- Dimensions: (LxWxH)
12.40 x 9.06 x 2.52(315 x 230 x 64 mm)
