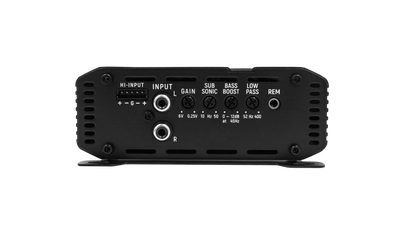

CVP2400.1 - CVP PERFORMANCE 2400W MAX 1-CH SMALL CHASSIS AMPLIFIER
Weight: 5.0 lb
Couldn't load pickup availability
Overview

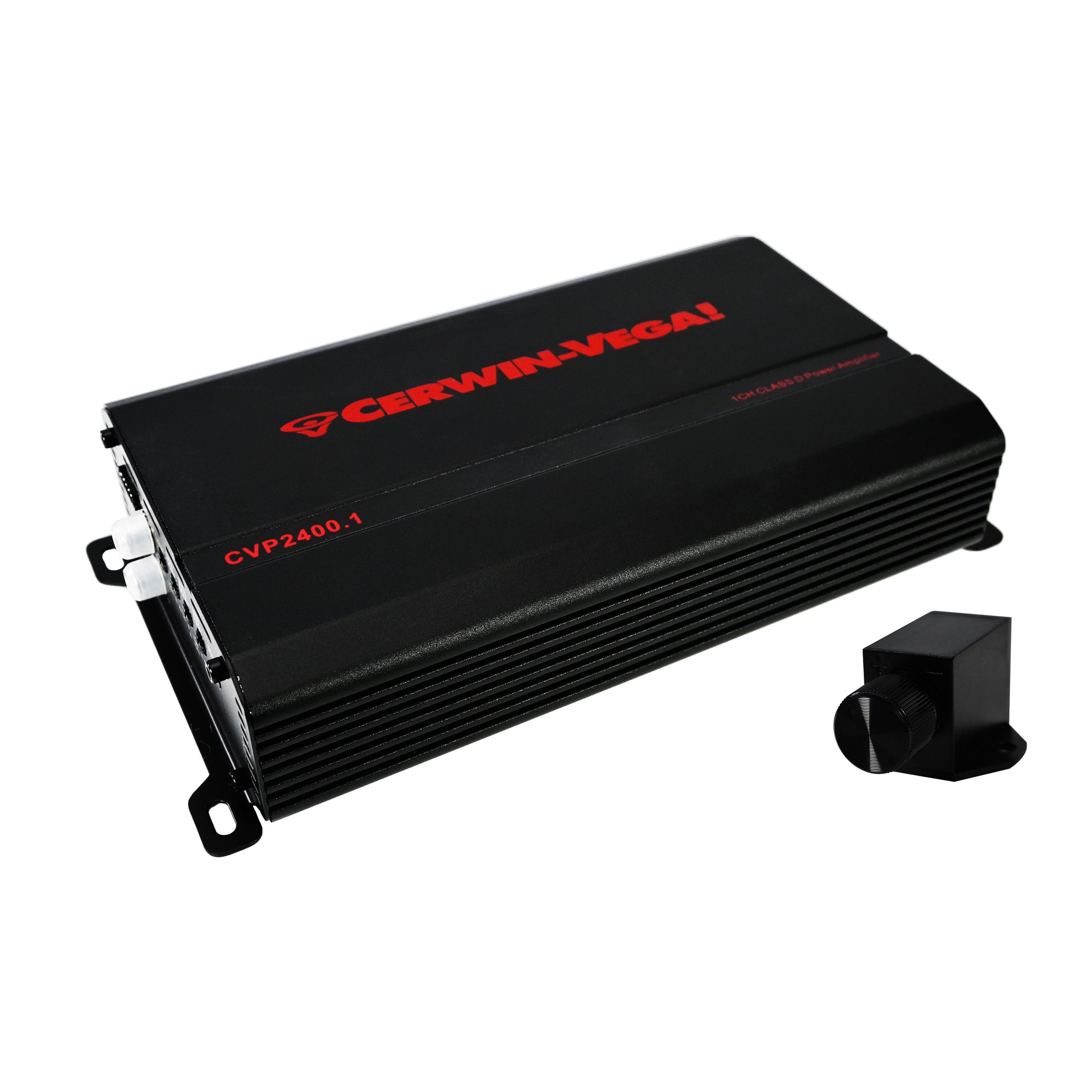

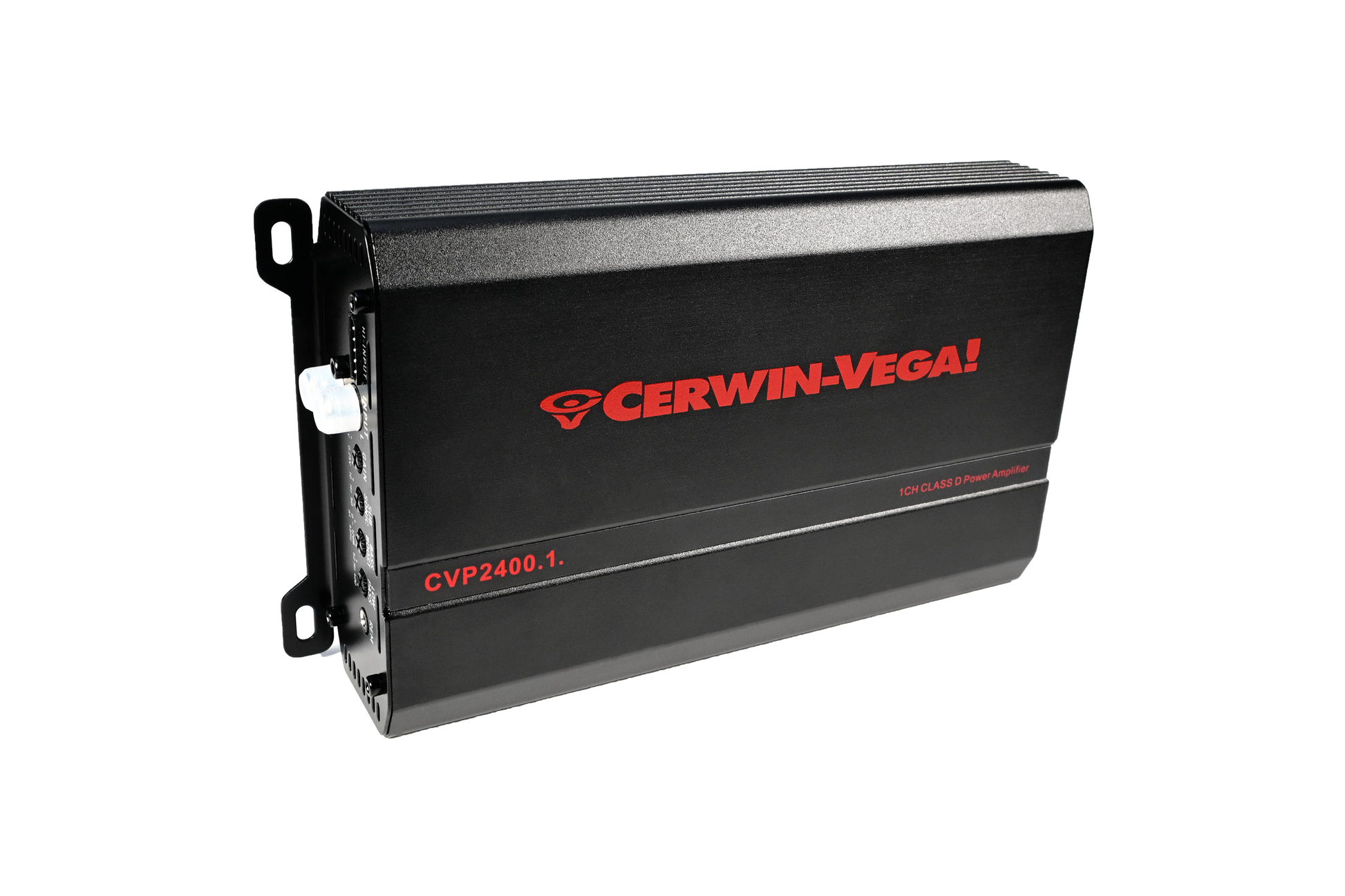

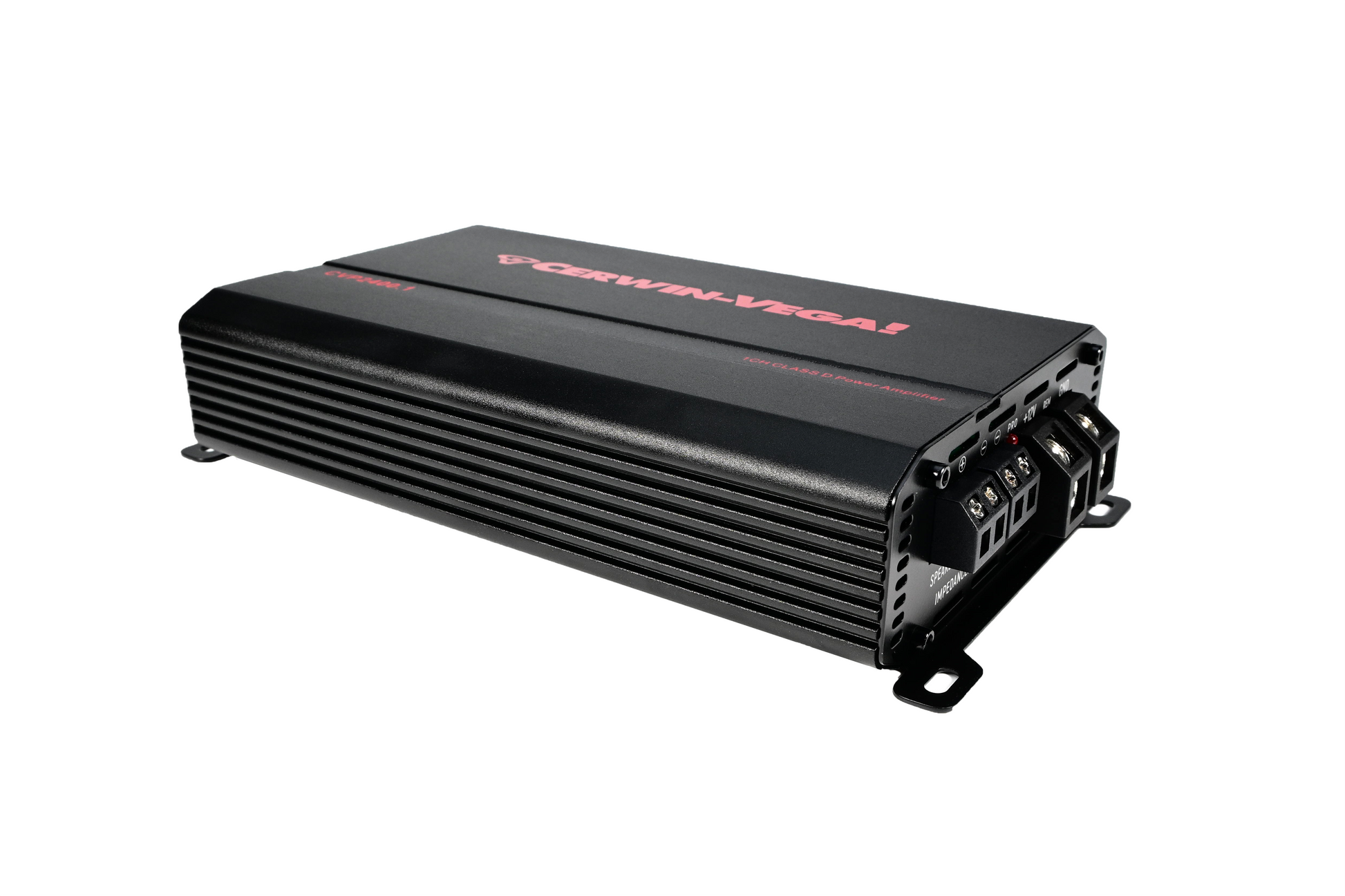

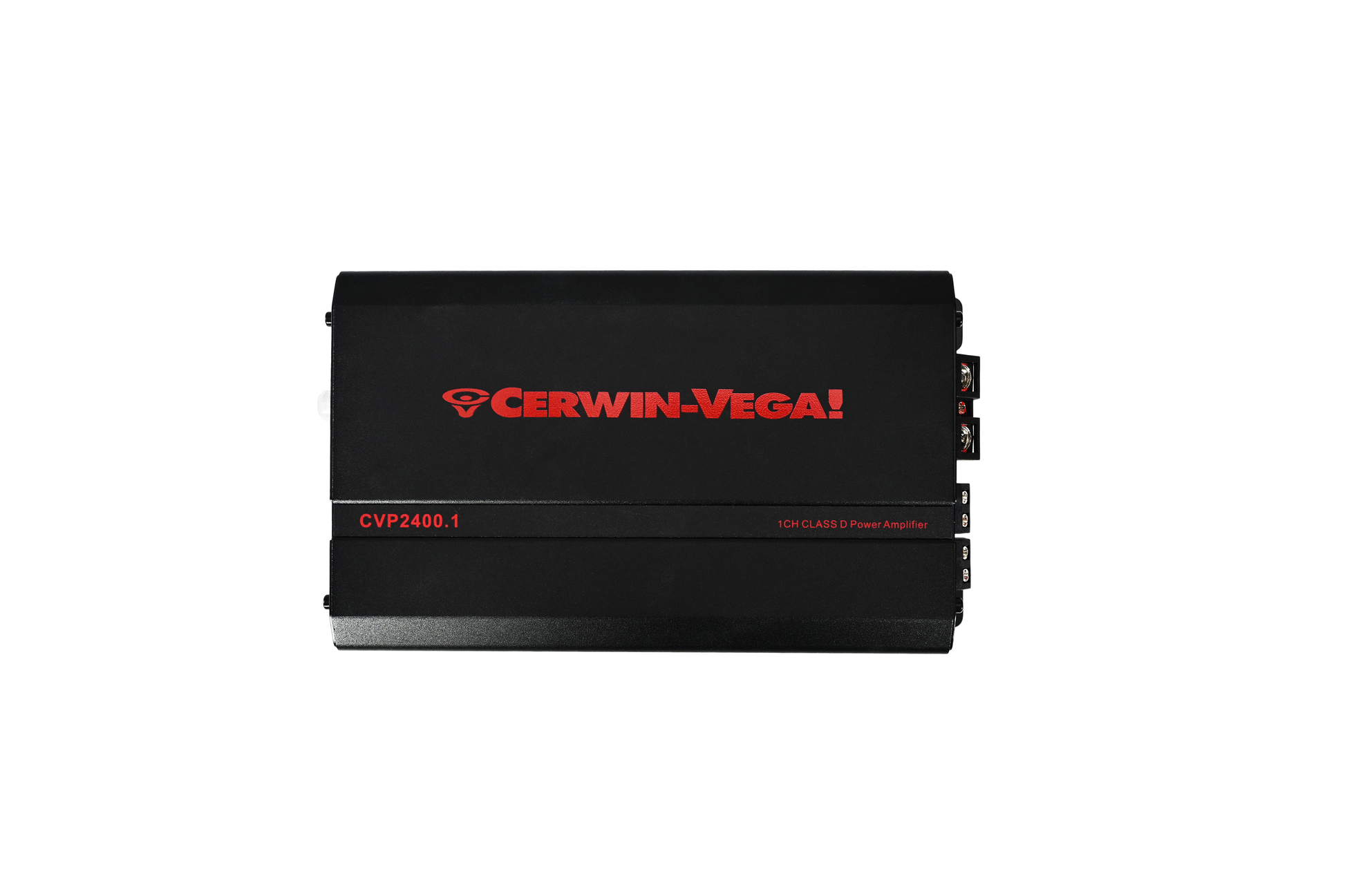

Cerwin-Vega CVP2400.1 – CVP Performance 2400W Max 1-Channel Small Chassis Amplifier
The Cerwin-Vega CVP2400.1 CVP Performance 1-Channel Amplifier is built for serious bass enthusiasts who demand powerful output in a compact, installation-friendly design. Rated at 2400 watts max power, this small chassis mono amplifier delivers the punch, depth, and authority your subwoofer system needs—without taking up valuable space in your vehicle.
Part of the newly redesigned CVP Series Amplifiers, the CVP2400.1 represents Cerwin-Vega’s commitment to combining power, performance, and affordability. Engineered with a compact footprint, this amplifier is ideal for cars, trucks, and SUVs where installation space is limited. Its impressive power-to-size ratio ensures maximum performance while maintaining a streamlined design that fits easily under seats, behind panels, or in tight trunk areas.
Designed specifically for subwoofer applications, the CVP2400.1 mono car amplifier delivers strong, controlled bass output that enhances low-frequency response and overall system impact. Whether you’re upgrading a factory audio system or building a high-performance aftermarket setup, this amplifier provides the clean power needed to drive your subwoofers with clarity and consistency.
The inclusion of high-level inputs allows seamless integration with both factory and aftermarket head units, making installation simple and flexible. This versatility ensures compatibility across a wide range of vehicle audio systems without the need for complex modifications.
Built with durability and efficiency in mind, the Cerwin-Vega CVP2400.1 is engineered to handle daily driving demands while delivering dependable performance. If you’re searching for a compact mono amplifier that offers massive output, easy installation, and trusted Cerwin-Vega sound quality, the CVP2400.1 is the ideal solution.
Small chassis. Massive bass. Legendary Cerwin-Vega performance.
Specifications

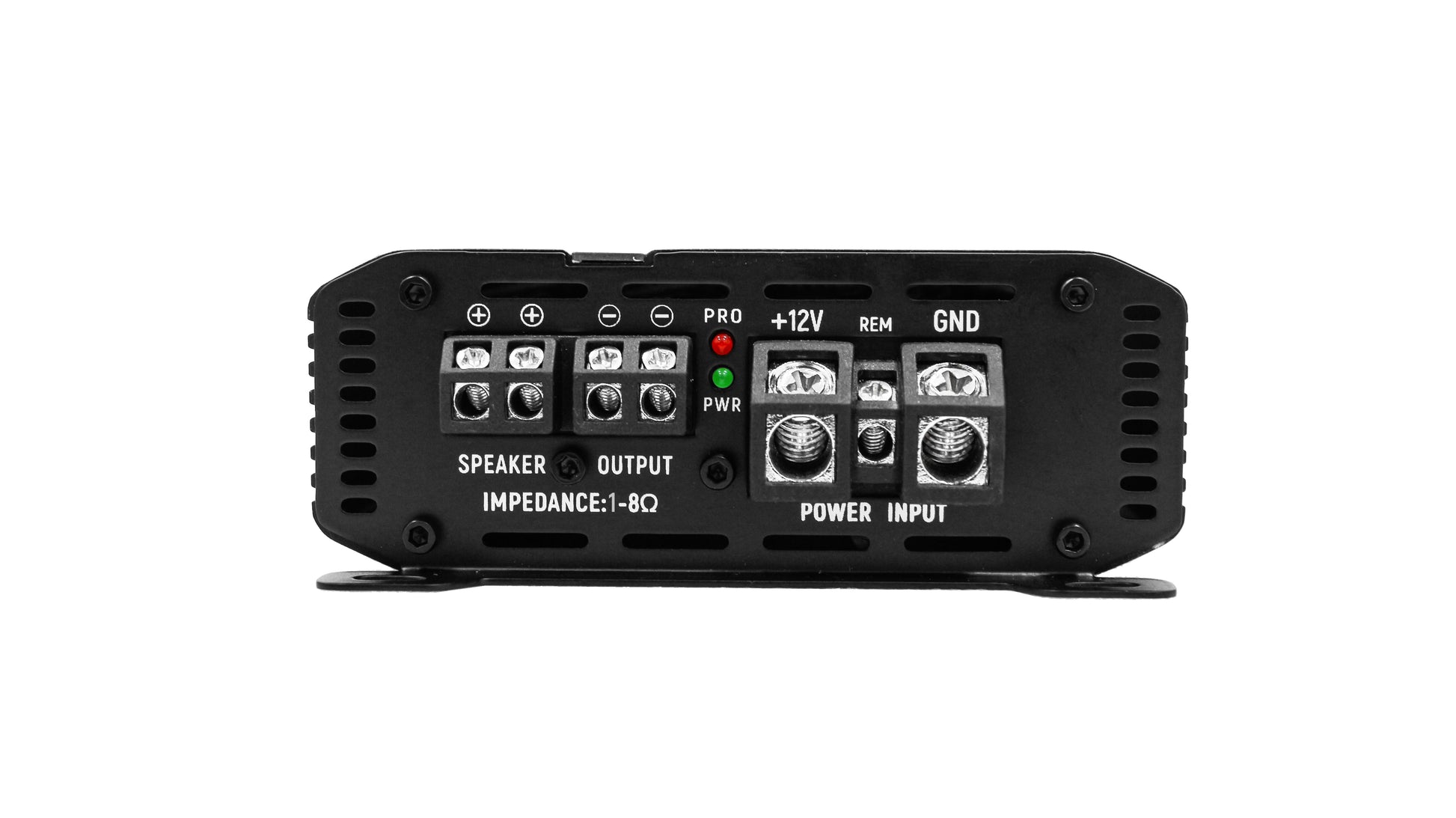

- RMS Power Ratings @ 4Ω: 370W x1
- RMS Power Ratings @ 2Ω: 660W x1
- RMS Power Ratings @ 1Ω: 900W x1
- Channel Separation: >60dB
- Frequency Response(+/-3bB): 10Hz-400Hz
- S/N Ratio @ A/W 30k: ≥90dB
- Sensitivity: 250mV-6V
- High Pass Filter(-6dB)/Subsonic: 10Hz-50Hz
- Low Pass Filter(-12dB): 52Hz-400Hz
- Bass Boost: 12dB
- Power Protection Indicator
- Short Circuit And Thermal Protection

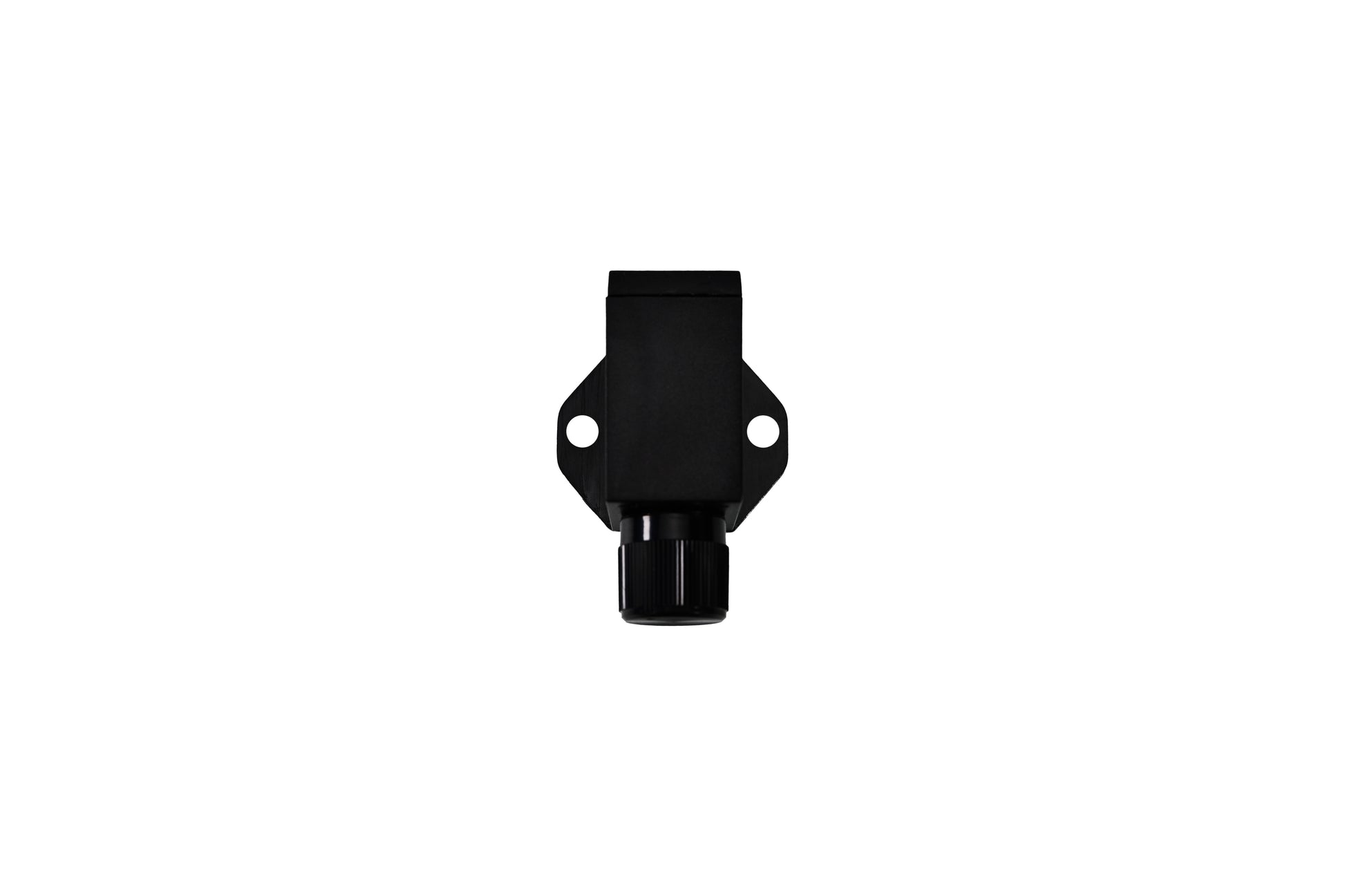

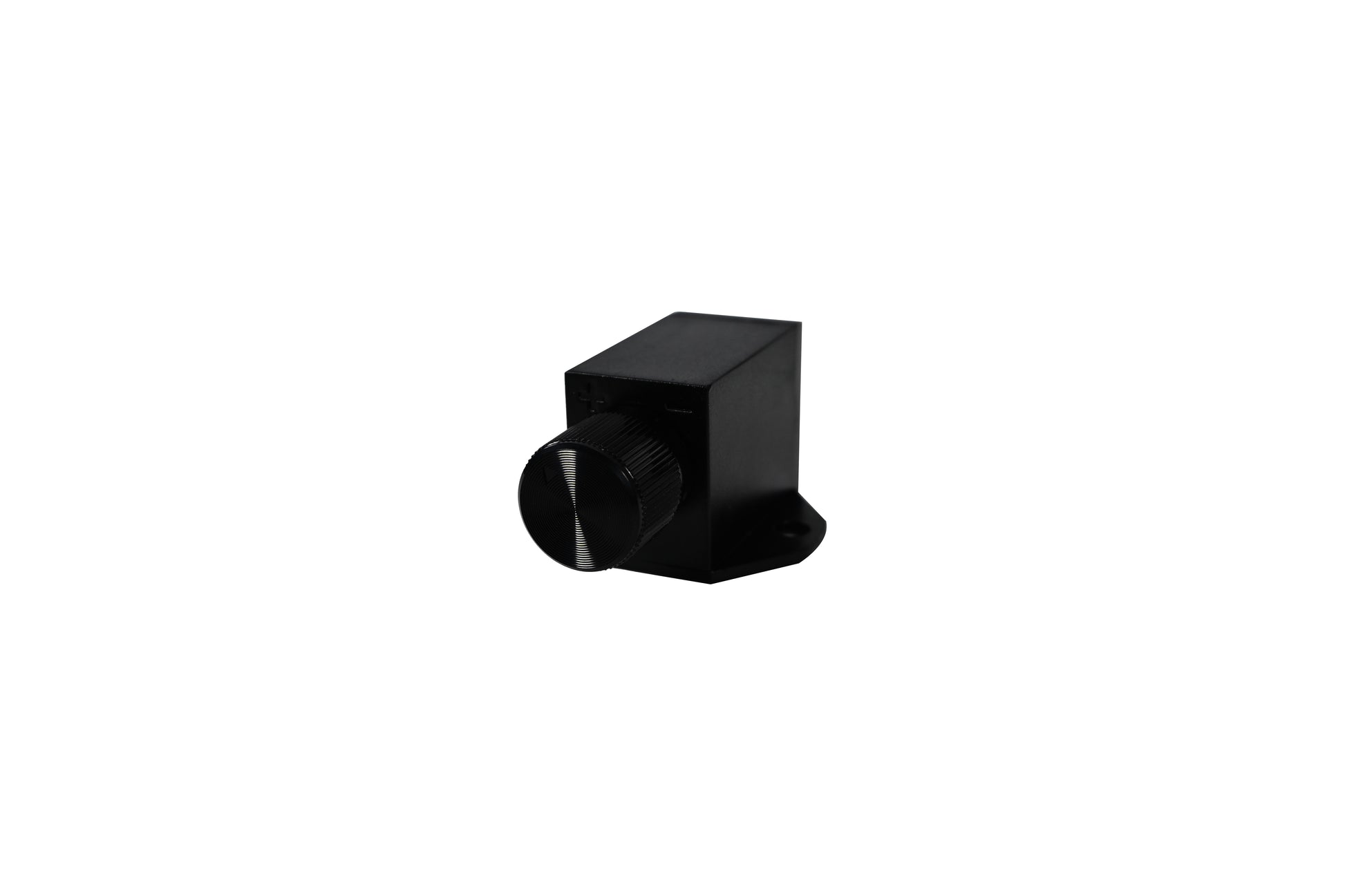

- Subwoofer Level Remote Control Included
- Fuse: 35A x 3
- Dimensions (LxWxH): 8.86" x 4.92" x 1.93" (225mm x 125mm x 49mm)
FEATURES

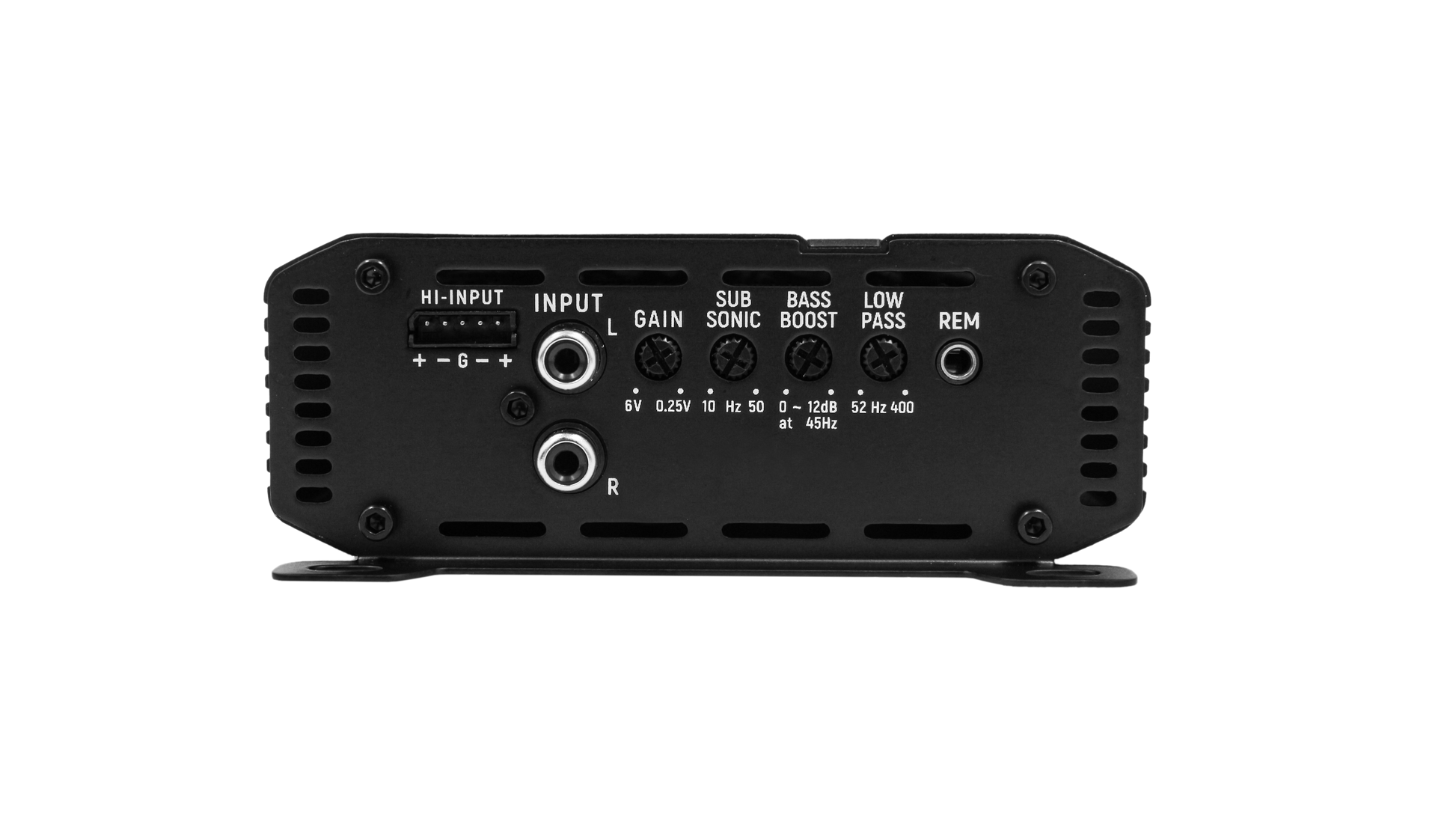

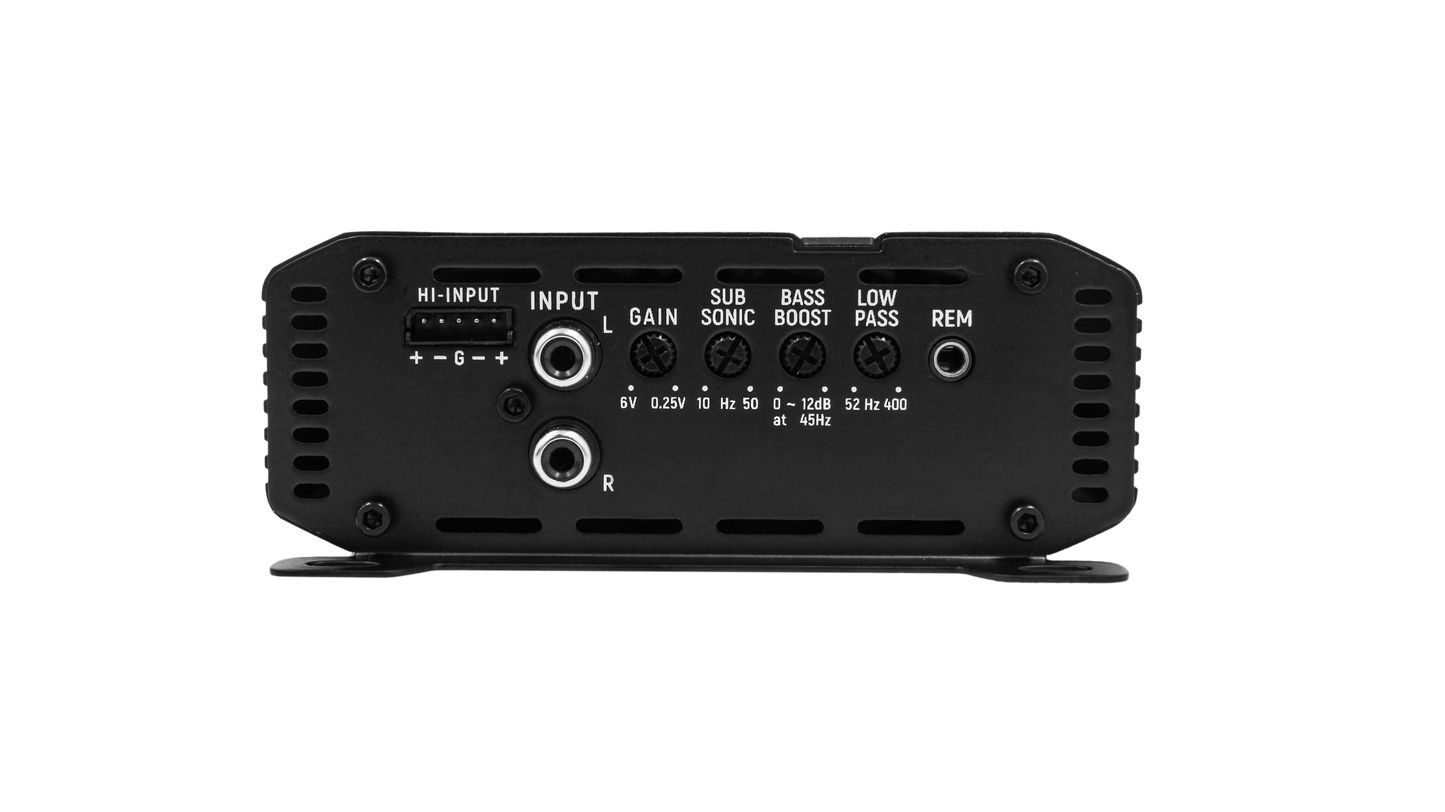

- High-Level Inputs with Auto Turn On (4v-8v)
- Full MOSFET DC-DC PWM Power Supply
- Double Sided 2-Layer PC Board
- SMD Technology
- Adjustable Low-Pass and Hi-Pass Filters
- Short Circuit Protection
- Low Impedance Protection
- Reverse Polarity Protection
- Over Heating Protection
