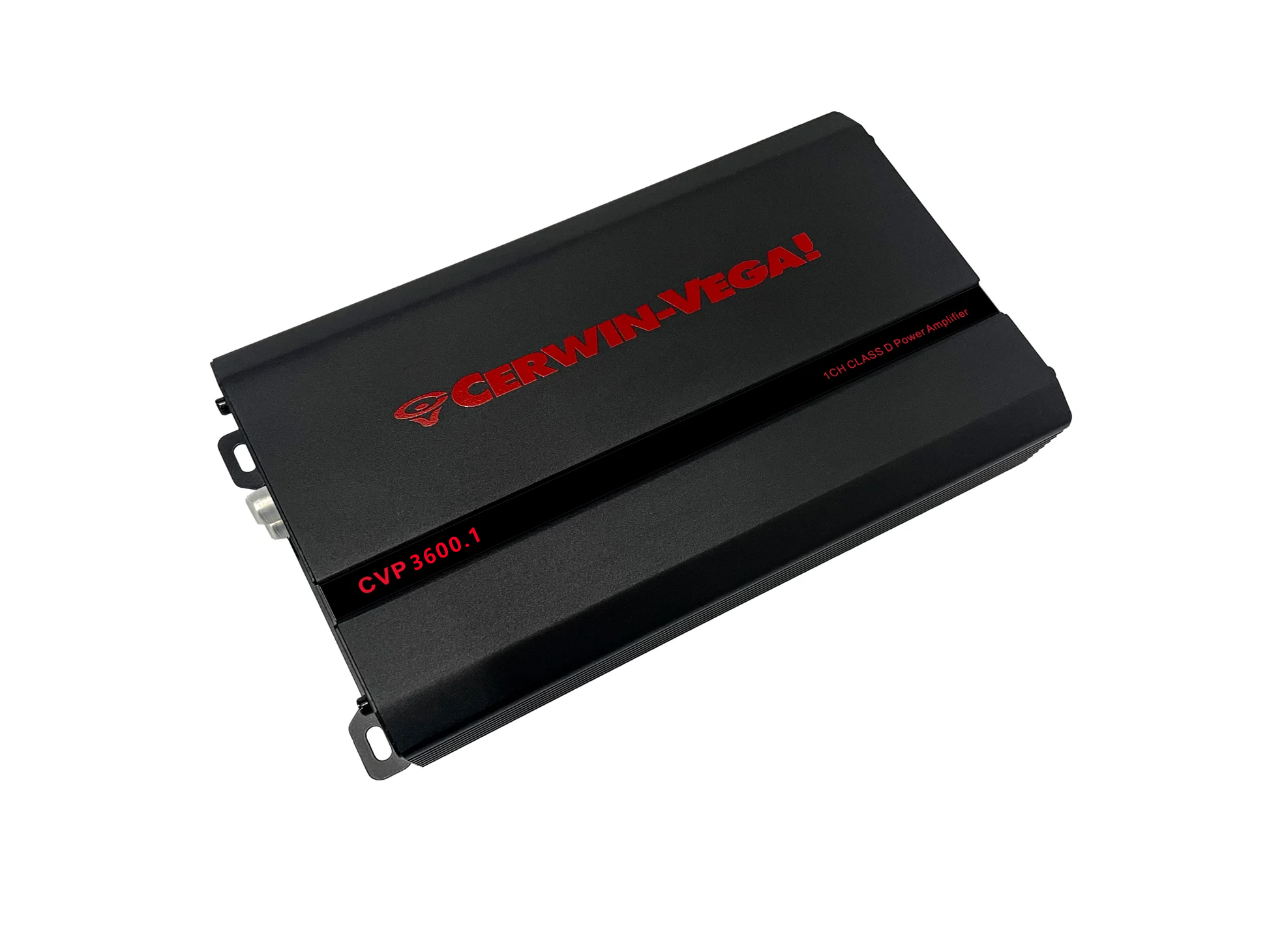

CVP3600.1 - CVP PERFORMANCE 3600W MAX 1-CH SMALL CHASSIS AMPLIFIER
No reviews
$249.99 USD
$249.99 USD
Sale
Sold out
Couldn't load pickup availability
Overview
CERWIN-VEGA is proud to introduce the new, totally redesigned CVP Series Amplifiers. An exceptional fusion of power, performance and affordability. Engineered with a compact footprint the New CVP Series Amplifiers deliver premium sound quality with a punch at an affordable price. The HI-Level Inputs allow you to connect The New CVP Series Amplifiers to Factory and Aftermarket Radios. Whether its a Car, Truck or SUV the new compact design allows for easy installation and will not take up a lot of space. The Power to Size ratio will surpass your expectations.
Specifications
- RMS Power Ratings @ 4Ω: 500W
- RMS Power Ratings @ 2Ω: 900W
- Channel Separation: >60dB
- Frequency Response(+/-3bB): 10Hz-400Hz
- S/N Ratio @ A/W 30k: ≥90dB
- Sensitivity: 250mV-6V
- High Pass Filter(-6dB)/Subsonic: 10Hz-50Hz
- Low Pass Filter(-12dB): 52Hz-400Hz
- Bass Boost: 12dB
- Power Protection Indicator
- Short Circuit And Thermal Protection

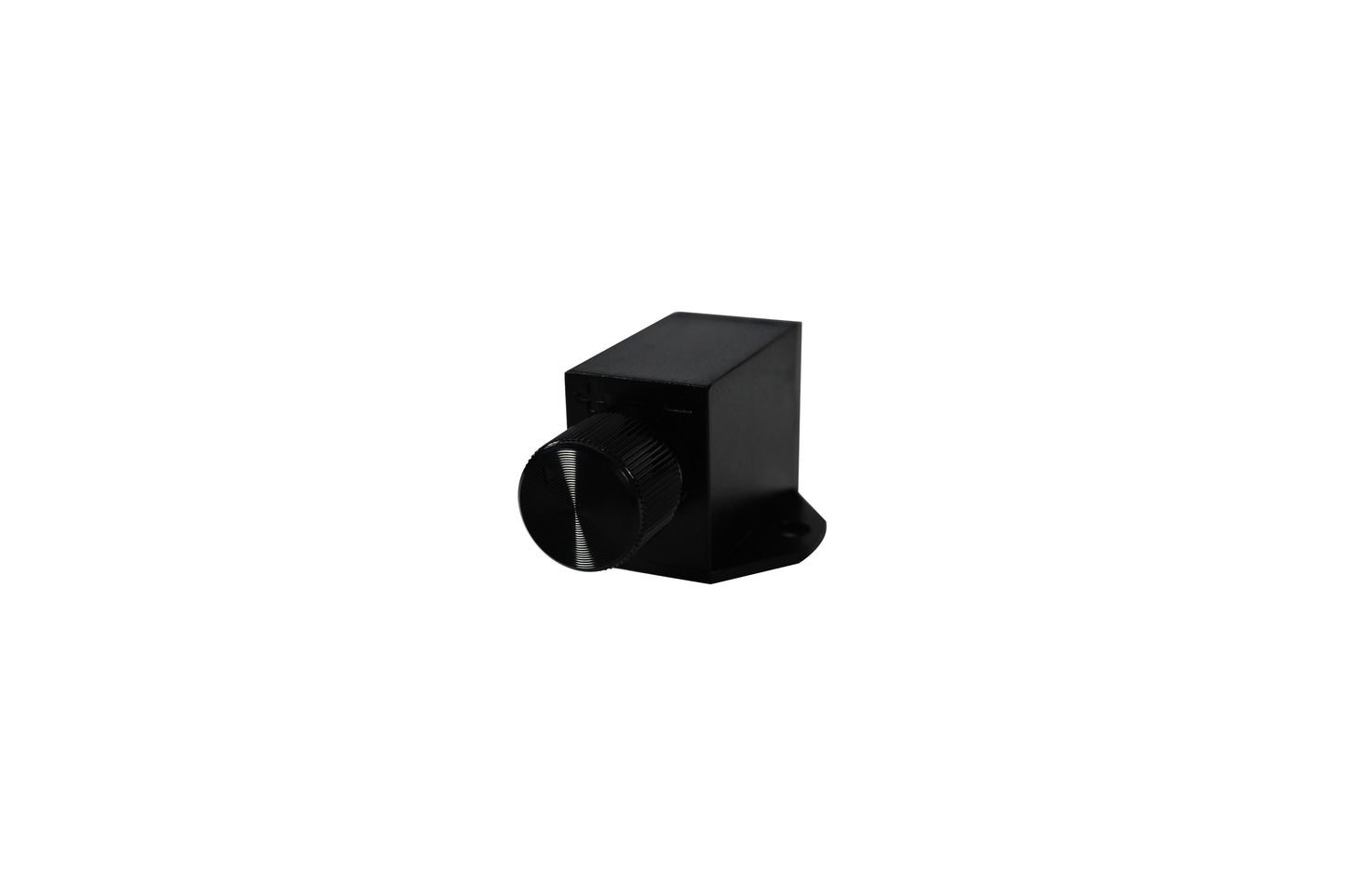

- Subwoofer Level Remote Control Included
- Fuse: 25A x 4
- Dimensions (LxWxH): 9.65" x 4.92" x 1.93" (245mm x 125mm x 49mm)
FEATURES
- High-Level Inputs with Auto Turn On (4v-8v)
- Full MOSFET DC-DC PWM Power Supply
- Double Sided 2-Layer PC Board
- SMD Technology
- Adjustable Low-Pass and Hi-Pass Filters
- Short Circuit Protection
- Low Impedance Protection
- Reverse Polarity Protection
- Over Heating Protection
Weight:
