Stealth Bomber Class-D 4 Channel Digital Amplifier
SKU:B54
Couldn't load pickup availability
Overview
B54- Stealth Bomber Class-D Digital 4 Channel Amplifier
Description:
Stealth Bomber series amplifiers have been the staple of the Cerwin-Vega Mobile brand. It’s sleek and compact design makes installation seamless but don’t let its dimensions fool you as Stealth Bomber series amplifiers generate monstrous power output. Updated High-Efficiency Full Range Digital Topology. Ultra Compact High-Density Aluminum Alloy Chassis. Advanced Rollback Power/Thermal Protection. Class D IR Chipset with Direct-FET Power Mosfet Output. Switchable 12dB HP/FLAT/LP Crossovers and VEGA Bass Boost. Remote Turn On Configurator - REM/DC/VOX.
Specifications
4 Channel Full Range Digital Amplifier
80W x 4CH @ 4Ω RMS Power Output
150W x 4CH @ 2Ω RMS Power Output
300W x 2CH @ 4Ω Bridge RMS Power Output
Input Sensitivity: 0.2-10 Volt
Crossover Filter : 40-400Hz, 12dB Per Octave Slope
Frequency Response: 10-33KHz
Selectable REM / VOX / DC Turn On Modes
Selectable X-Over: LPF / FLAT / HPF
Selectable 2CH / 4CH Input Modes
Disconnected RCA Input & Speaker Output Harness Kits Included
Dimensions: 8.88” x 4.0” x 1.4” (225.6 x 102 x 36 mm)
Product Manuals

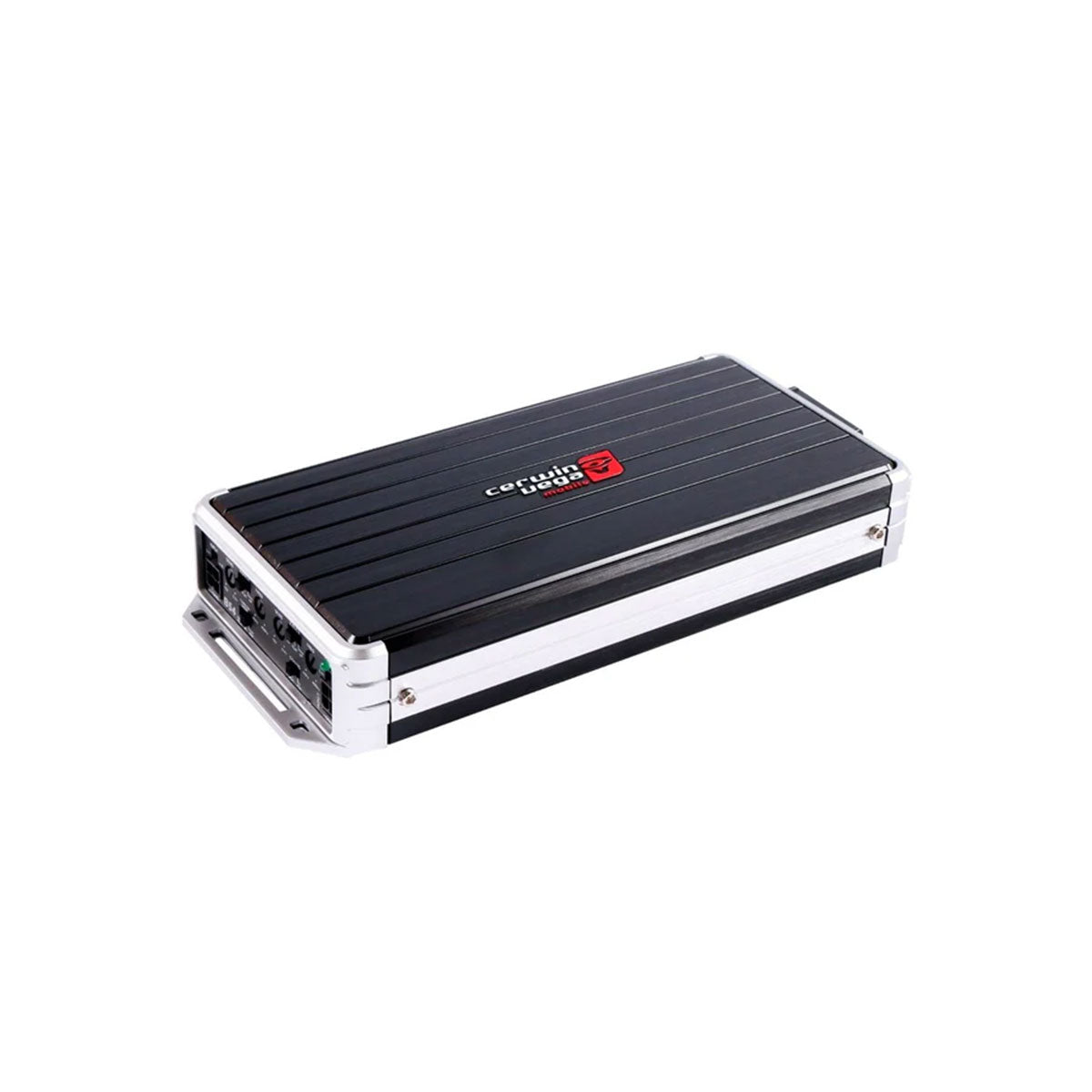

![4 Channels Stealth Bomber Class D Amplifier](http://cerwinvega.com/cdn/shop/files/b54_02.jpg?v=1715227996&width=1445)

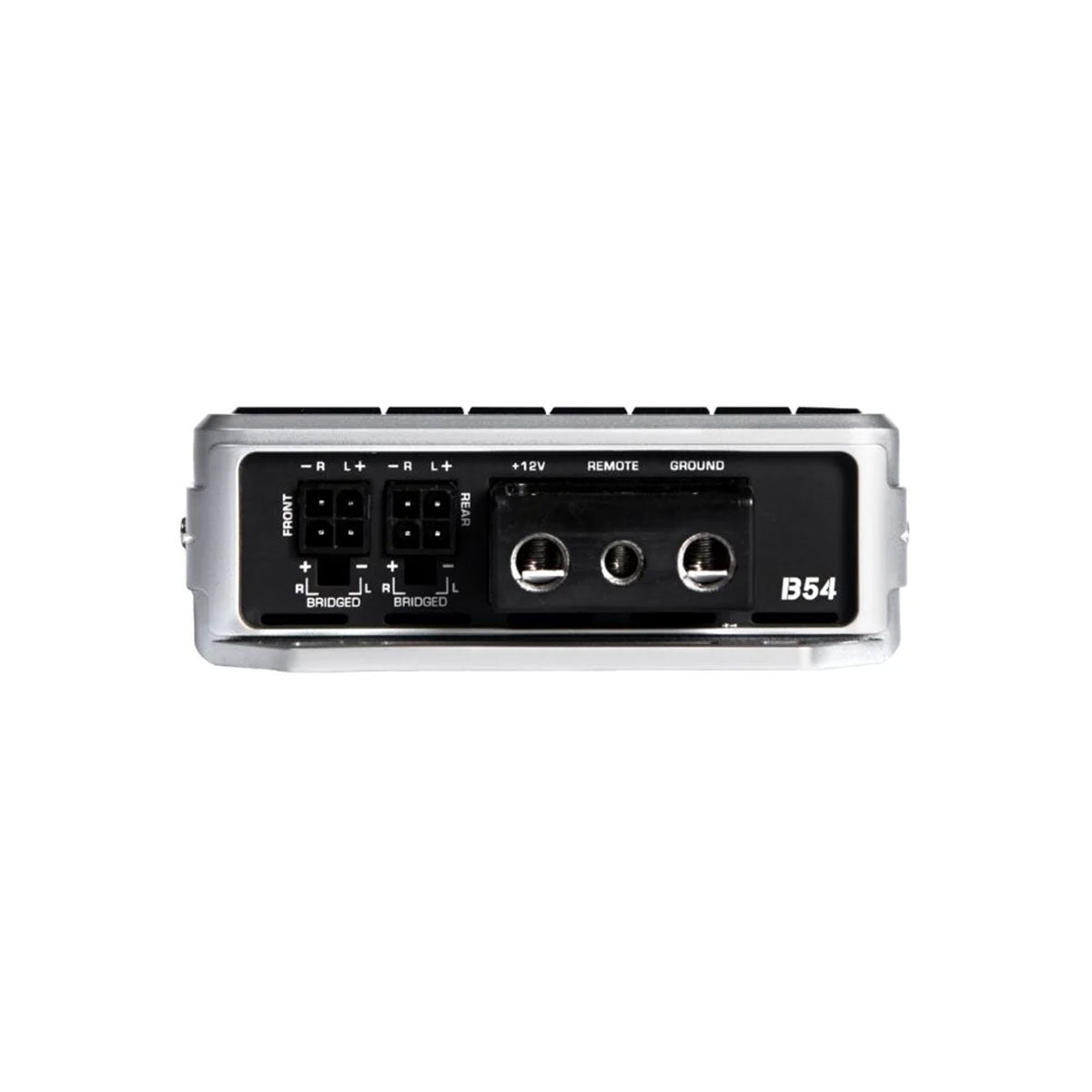

![Side Part of Class D Amplifier](http://cerwinvega.com/cdn/shop/files/b54_05_1.jpg?v=1715227996&width=1445)

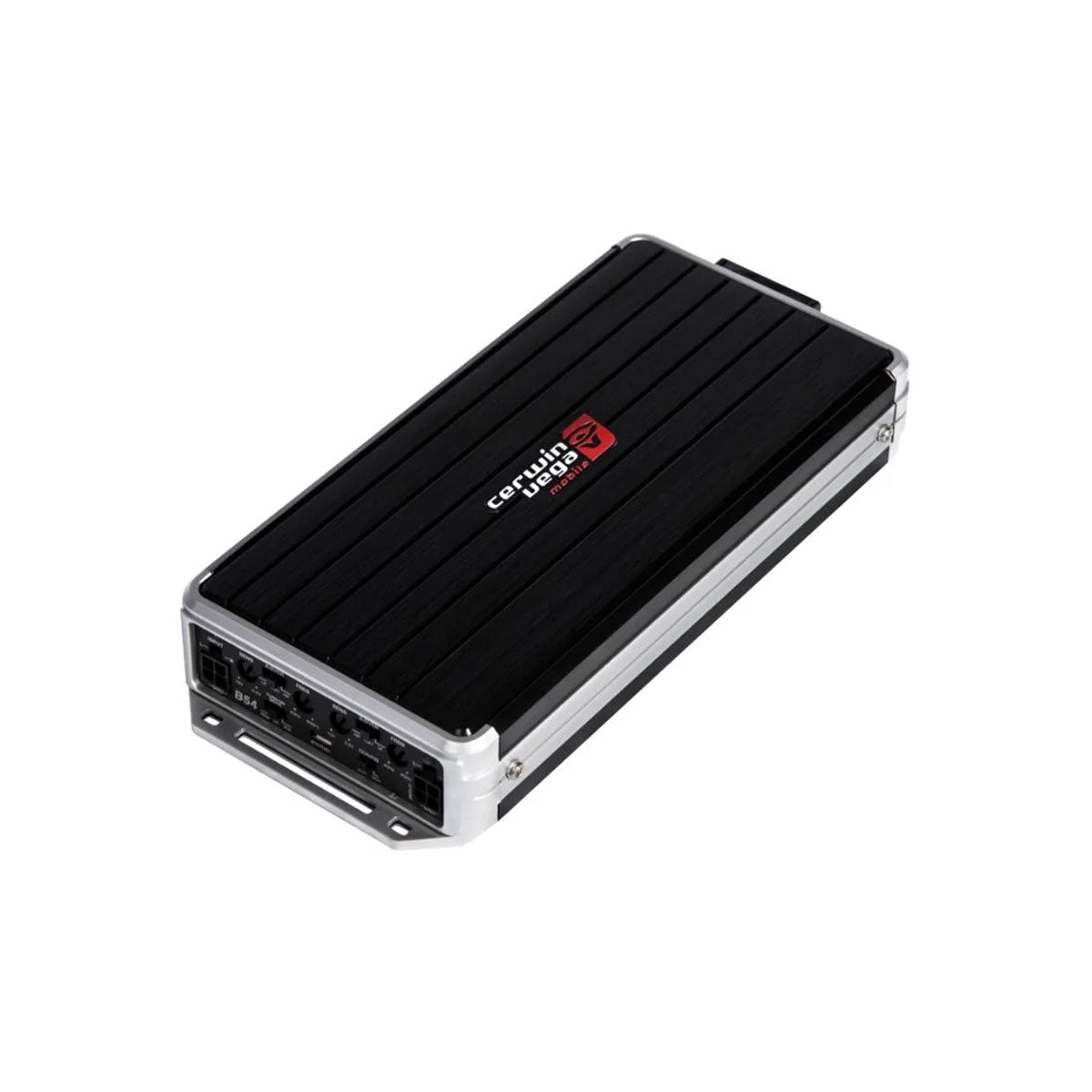

![Stealth Bomber Class-D 4 Channel Digital Amplifier](http://cerwinvega.com/cdn/shop/files/b54_04.jpg?v=1715227996&width=1445)

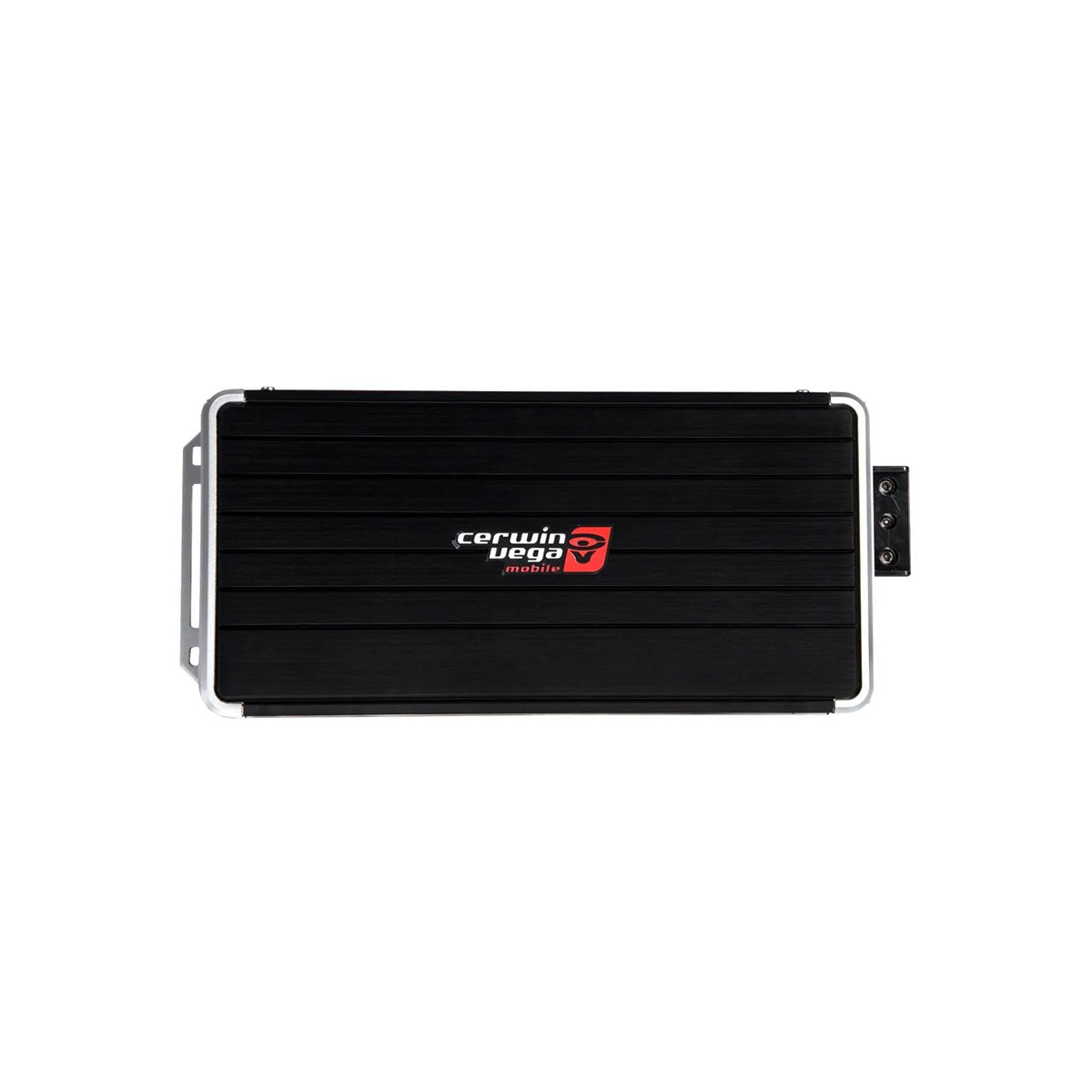

![Stealth Bomber Class-D 4 Channel Digital Amplifier](http://cerwinvega.com/cdn/shop/files/b54_01.jpg?v=1715227996&width=1445)

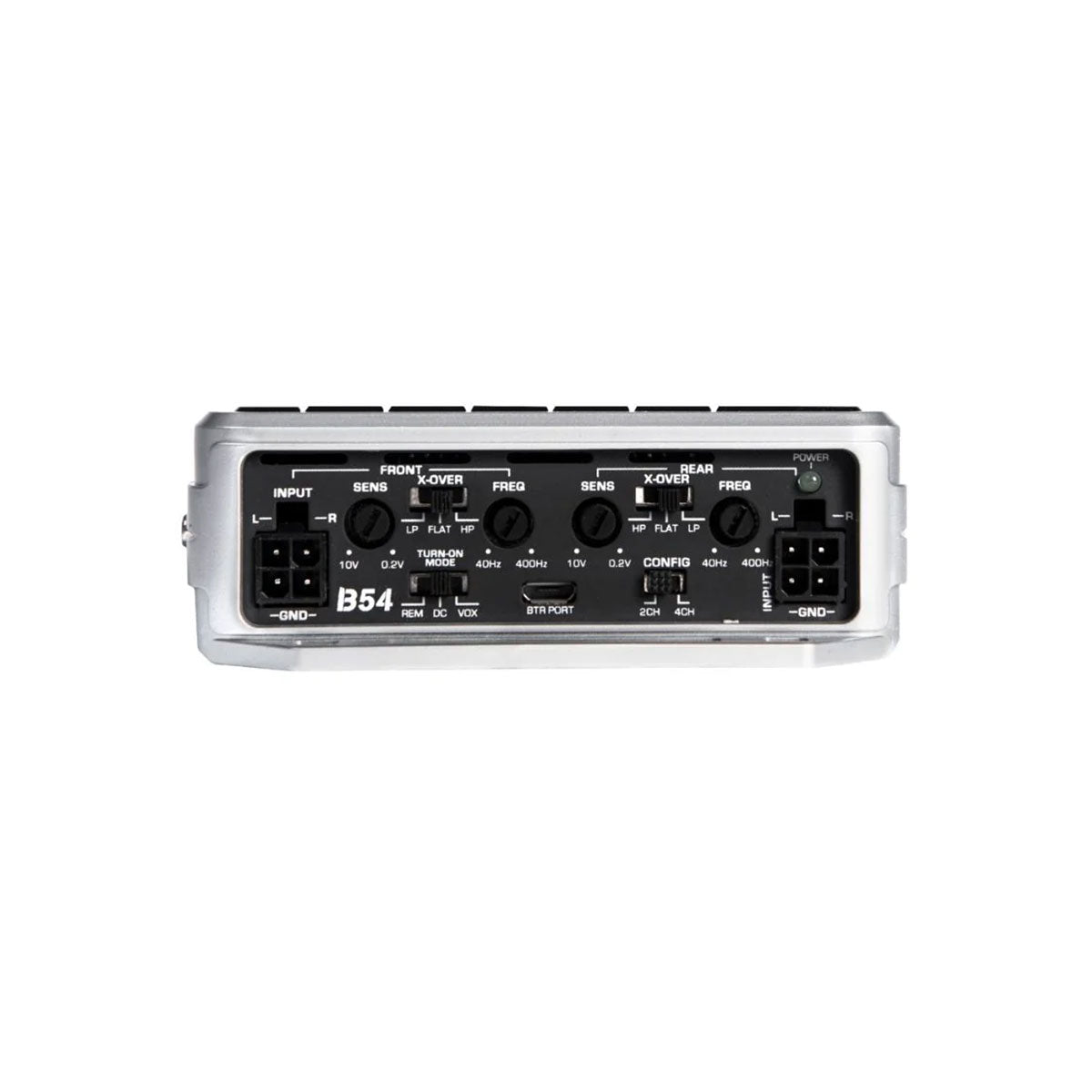

![Stealth Bomber Class-D 4 Channel Digital Amplifier](http://cerwinvega.com/cdn/shop/files/b54_03.jpg?v=1715227996&width=1445)

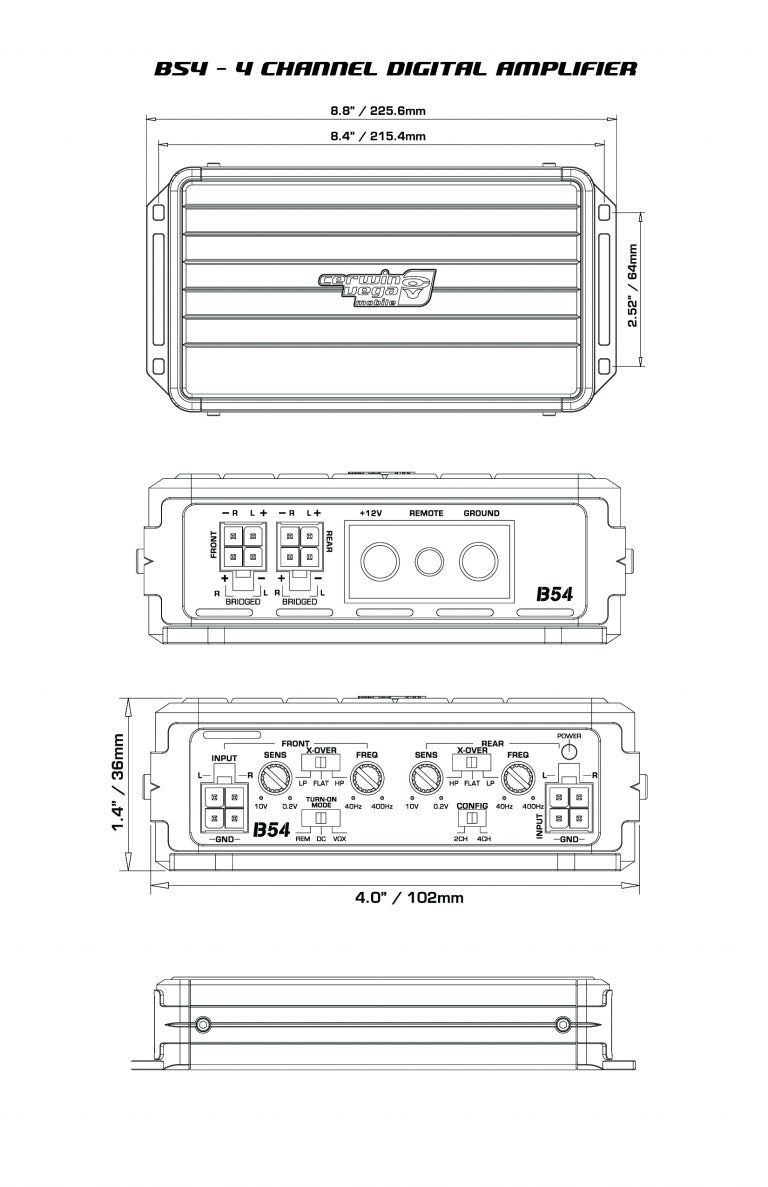

![Stealth Bomber Class-D 4 Channel Digital Amplifier](http://cerwinvega.com/cdn/shop/files/b54-dimension_e5fdbcf9-d2c3-4f4c-aae5-273c69df1b3f.jpg?v=1715782696&width=1445)
