Stealth Bomber Class-D 5 Channel Digital Amplifier-B55
SKU:B55
Couldn't load pickup availability
Overview

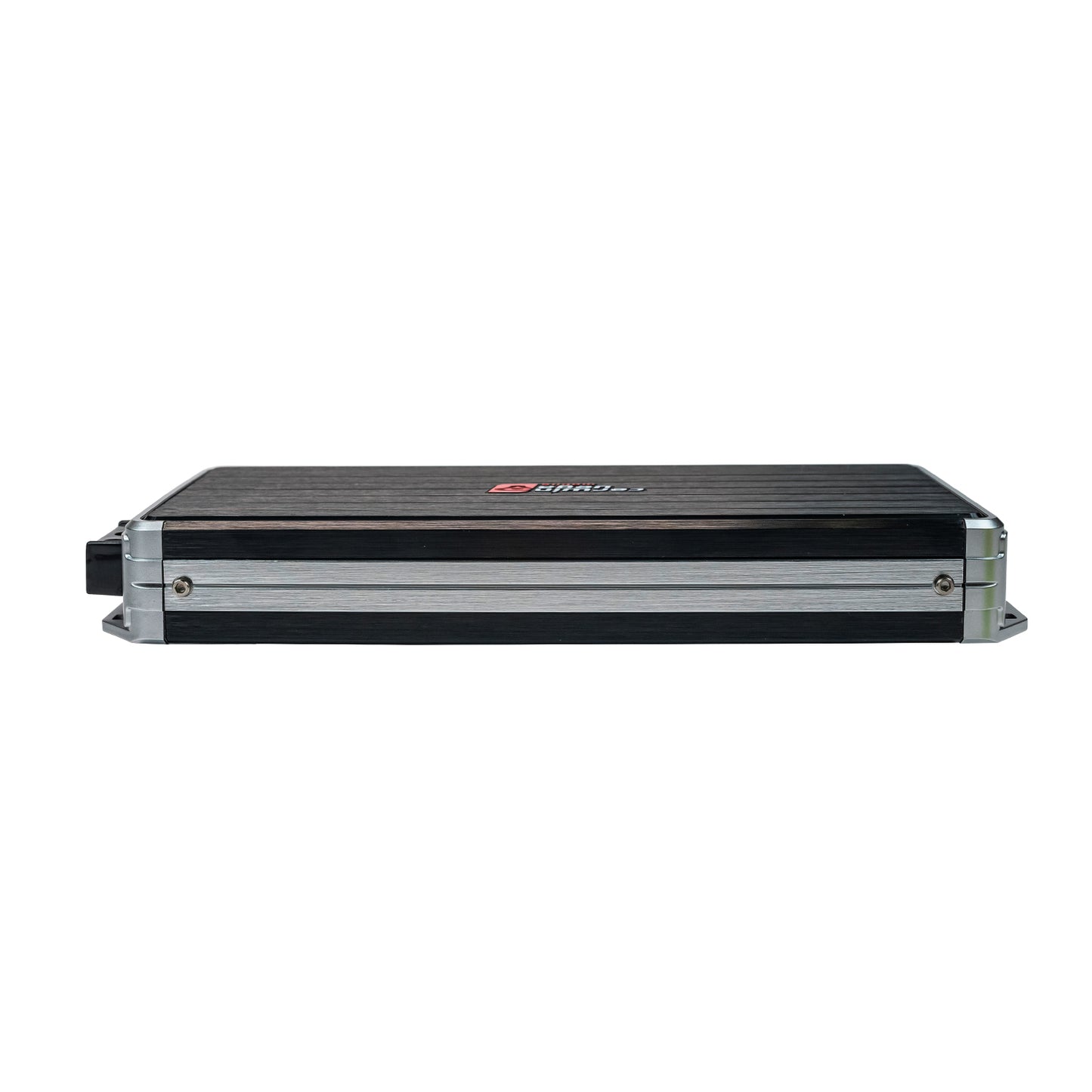

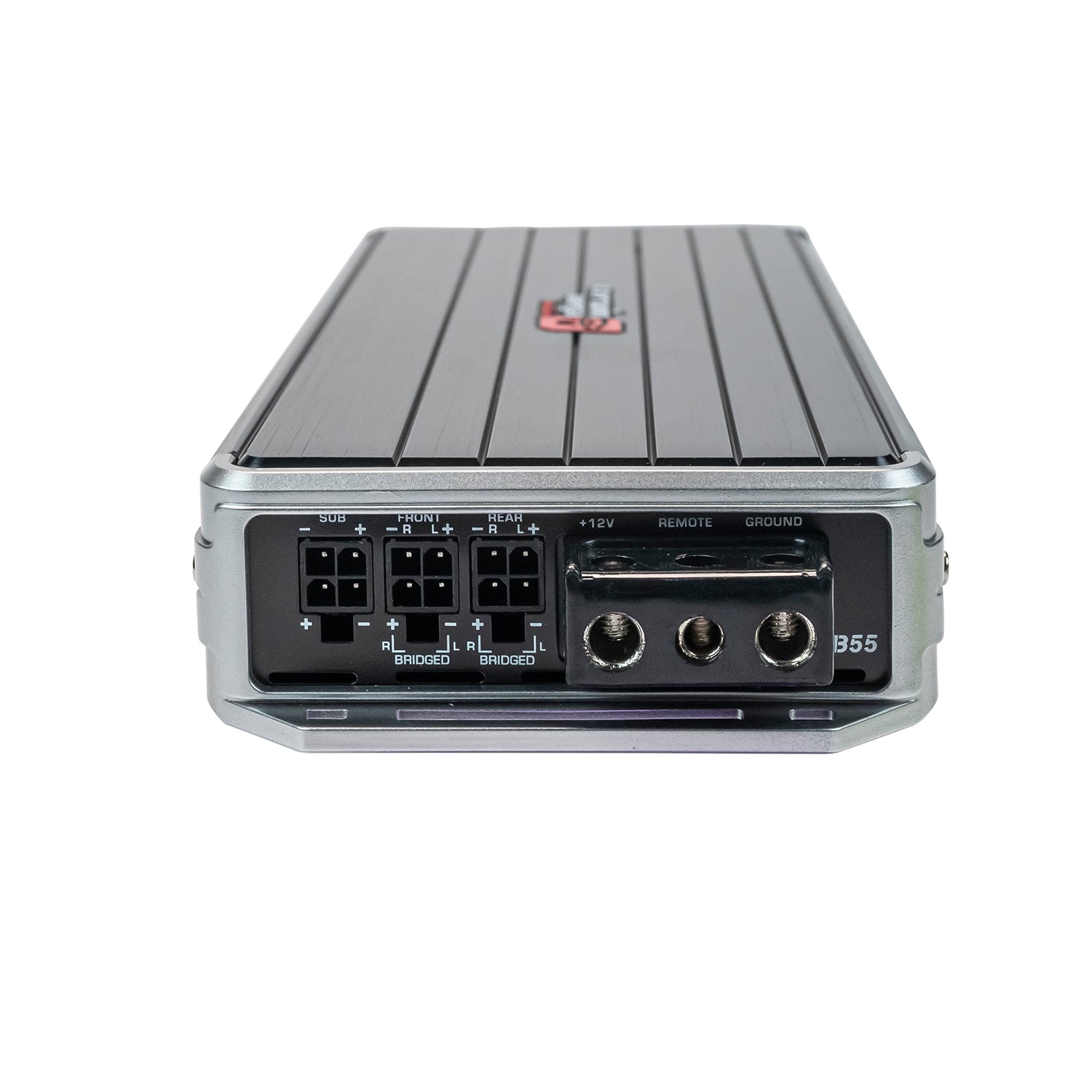

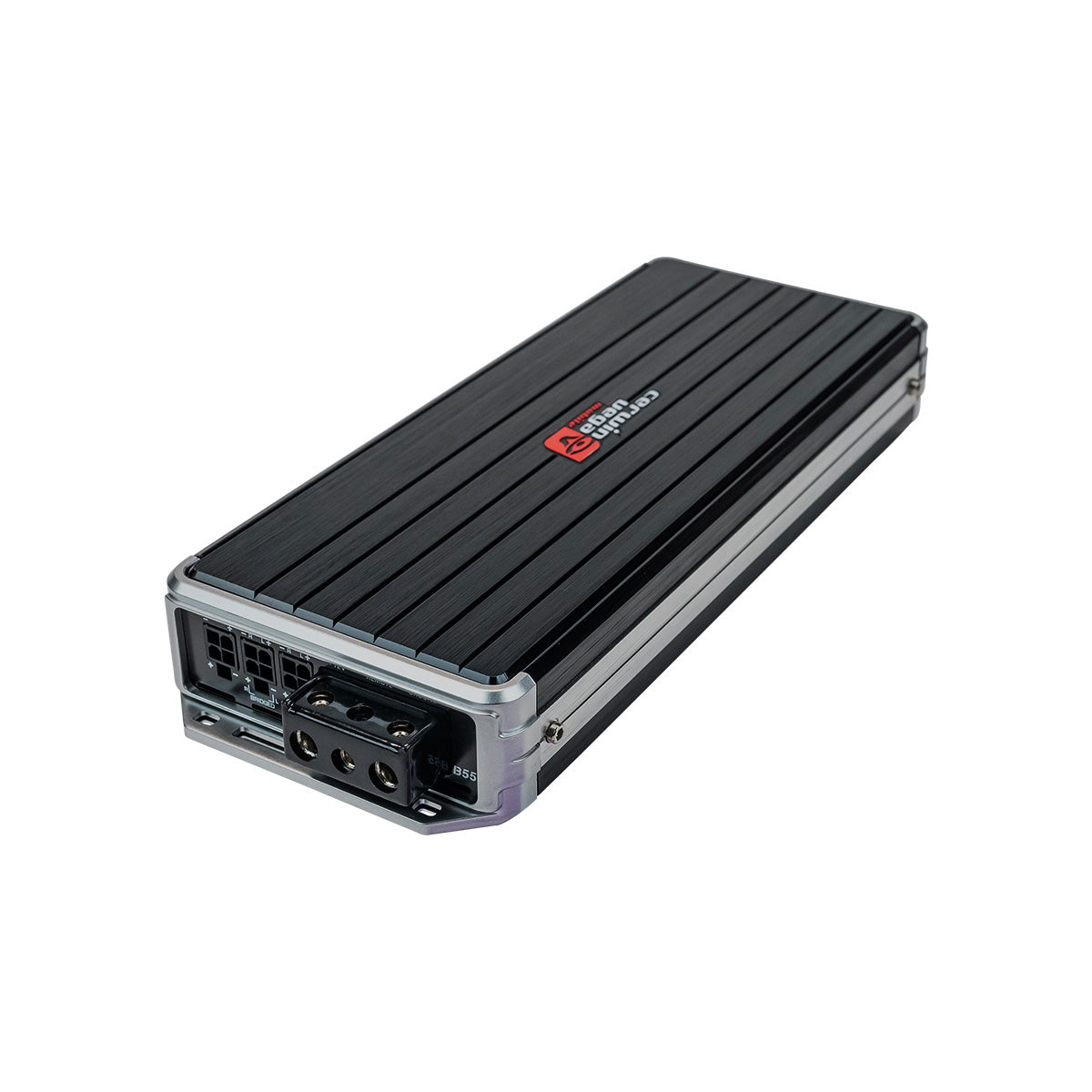

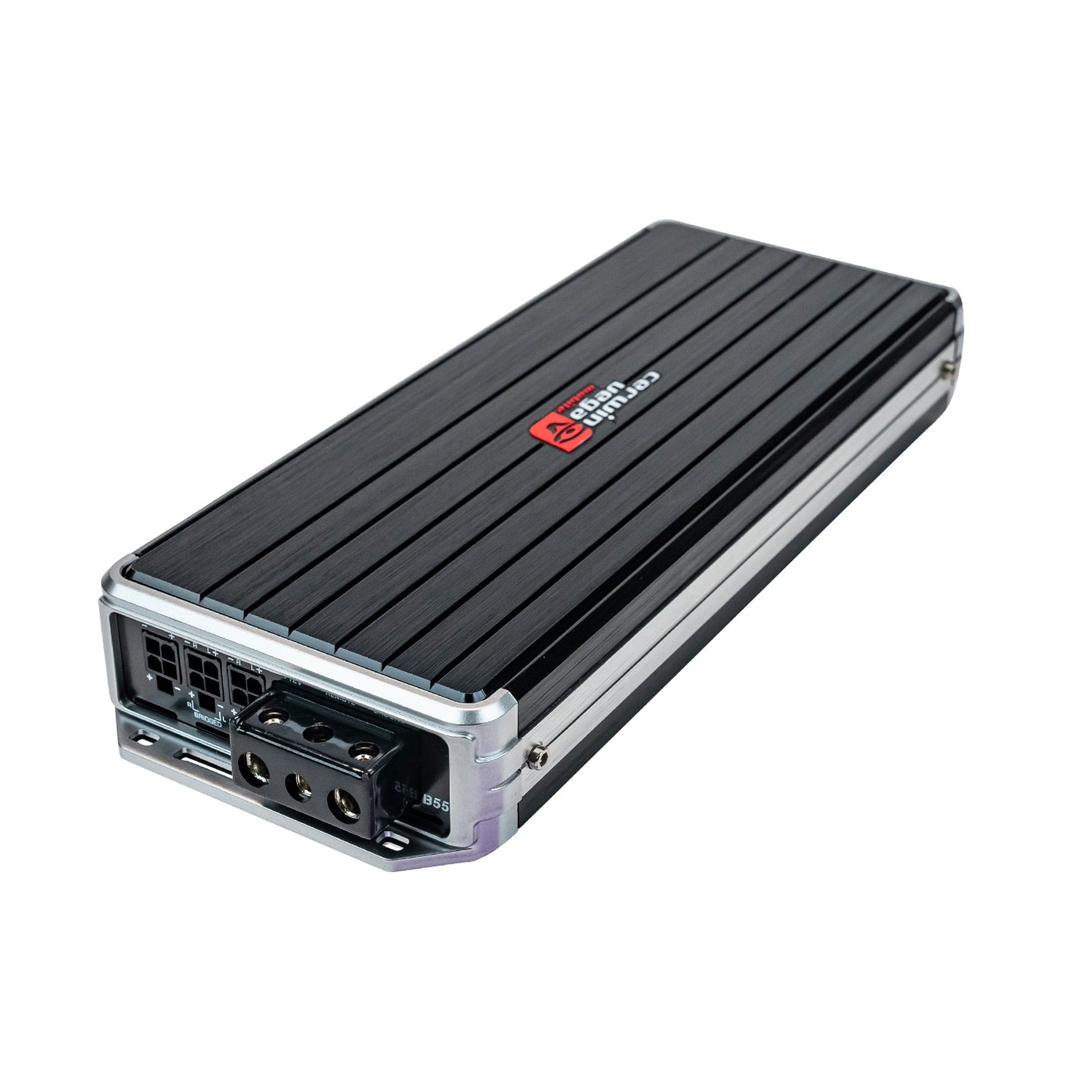

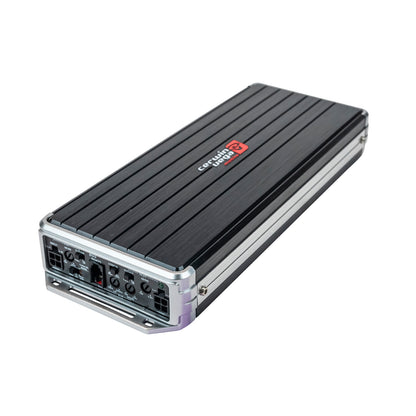

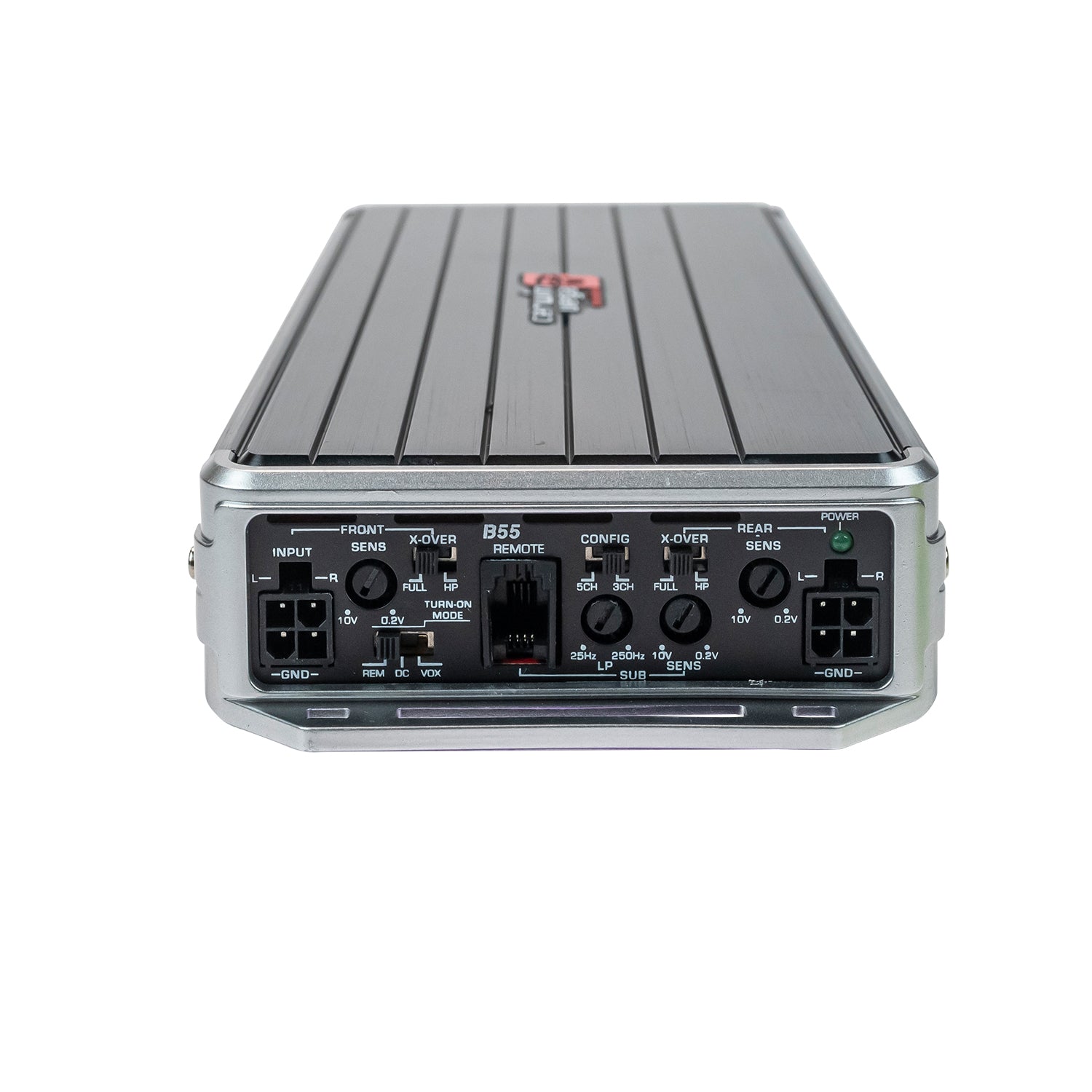

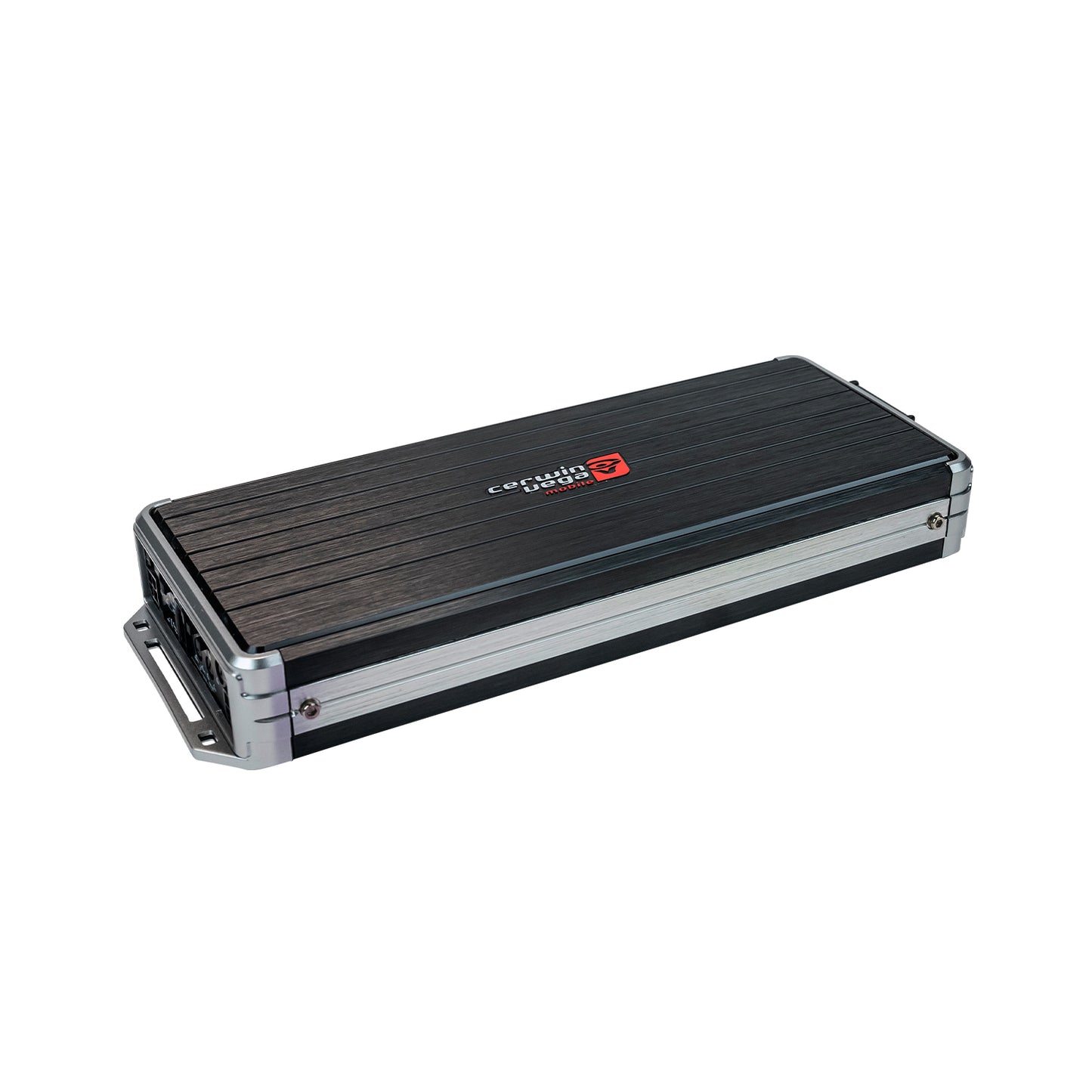

B55 - Stealth Bomber Class-D 5 Channel Digital Amplifier
Description:
Stealth Bomber series amplifiers have been the staple of the Cerwin-Vega Mobile brand. It’s sleek and compact design makes installation seamless but don’t let its dimensions fool you as Stealth Bomber series amplifiers generate monstrous power output. Updated High-Efficiency Full Range Digital Topology. Ultra Compact High-Density Aluminum Alloy Chassis. Advanced Rollback Power/Thermal Protection. Class D IR Chipset with Direct-FET Power Mosfet Output. Switchable 12dB HP/FLAT/LP Crossovers and VEGA Bass Boost. Remote Turn On Configurator - REM/DC/VOX.
Specifications
5 Channel Full Range Digital Amplifier
80W x 4CH + 200W x 1CH@ 4Ω RMS Power Output
150W x 4CH + 350W x 1CH@ 2Ω RMS Power Output
300W x 2CH @ 4Ω (Front & Rear Bridged) + 200W x 1CH@ 4ΩRMS Power Output
Input Sensitivity: 0.2-10 Volt
Crossover Filter :
Fixed 75Hz (HPF), 12dB Per Octave Slope (Front & Rear)
25-250Hz (LPF), 24dB Per Octave Slope (Sub)
Frequency Response: 10-33KHz
Selectable REM / VOX / DC Turn On Modes
Selectable 3CH / 5CH Input Modes

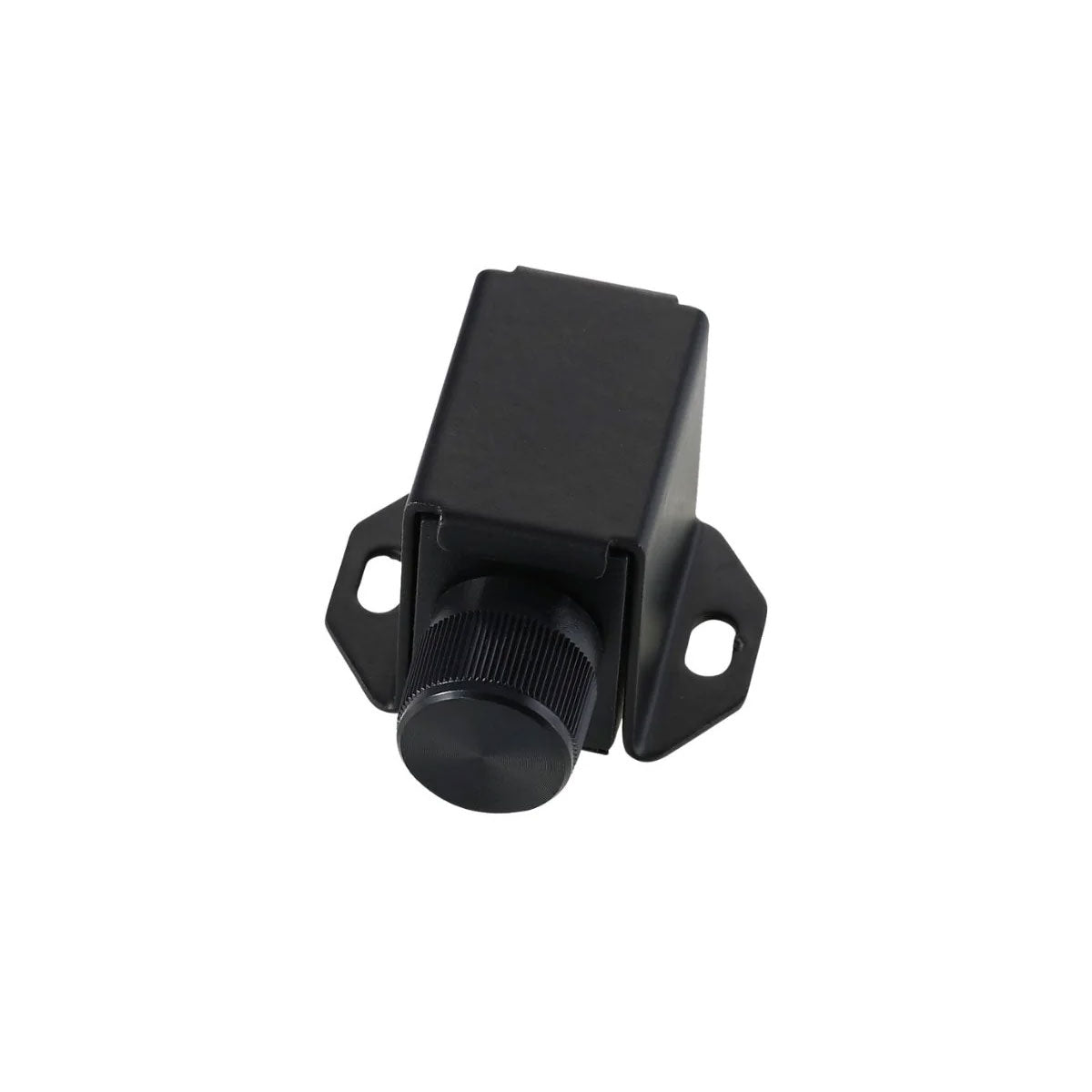

Remote Bass Knob Included
Disconnected RCA Input & Speaker Output Harness Kits Included
Dimensions: 10.46” x 4.0” x 1.4” (265.6 x 102 x 36 mm)
