Bass Package W/ Mono Amplifier & Single 10" Subwoofer Loaded Vented Enclosure -XEDBP10
SKU:XEDBP10
Couldn't load pickup availability
Overview

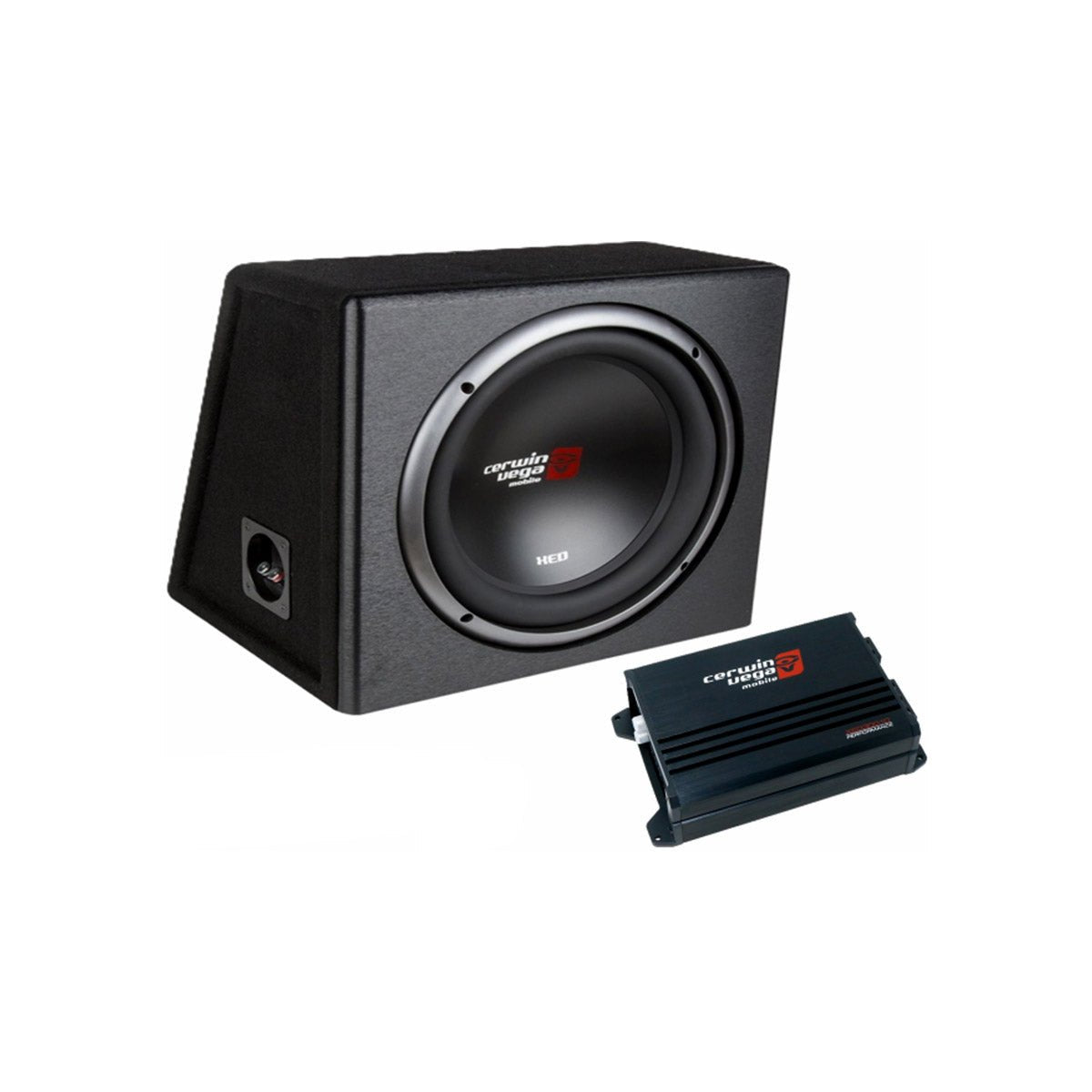

XEDBP10 - Bass Package W/ Mono Amplifier & Single 10" Subwoofer Loaded Vented Enclosure
XED3001D - XED Series Amplifier & XE10SV - 10" Single Loaded Vented Enclosure
Latest High-Efficiency Class D Topology. Compact Size with Ambient backlit logo. RCA “Pass Thru” output for easy system expansion. Fully Variable Crossovers (12dB per octave). Handles HI and LO level input to 12V. 2 Ω Stable. Proprietary Vega Bass Boost EQ Up To 12dB.
Specifications
Features:
400W MAX Power
1 Channel Amplifier
300W x 1 @ 2Ω RMS
200W X 1 @ 4Ω RMS
Crossover: 35Hz~250Hz (LP)
Sub-Sonic: 10Hz~30KHz
Dimensions: 6.3”x4.7”x1.8” ( 160.02mm x 119.38mm x 45.72mm )
XE10SV 10" Single Loaded Vented Enclosure:
Dual 10” Subwoofers
225W RMS/800W MAX
3/4” MDF Vented Enclosure
Dimensions: 15.7” x 12.3” x 14.3” (L x W x H) 400 x 313 x 363 mm (L x W x H)
10" XED Subwoofer
Power Rating (RMS/PEAK): 225W/800W
Nominal Impedance: 2 ohm
Voice Coil: 2.0" (4-Layer)
Proprietary XED Basket Frame
Optimized High Power Single-Stacked Motor Structure
Polypropylene (PP) Cone
Vented Motor Structure for Optimal Thermal Heat Dissipation
Poly-Cotton Spider With Spaced Woven in Tinsel Wires
Uni-mount Gasket Surround
Proprietary Stamped Cast Vega Basket Design
