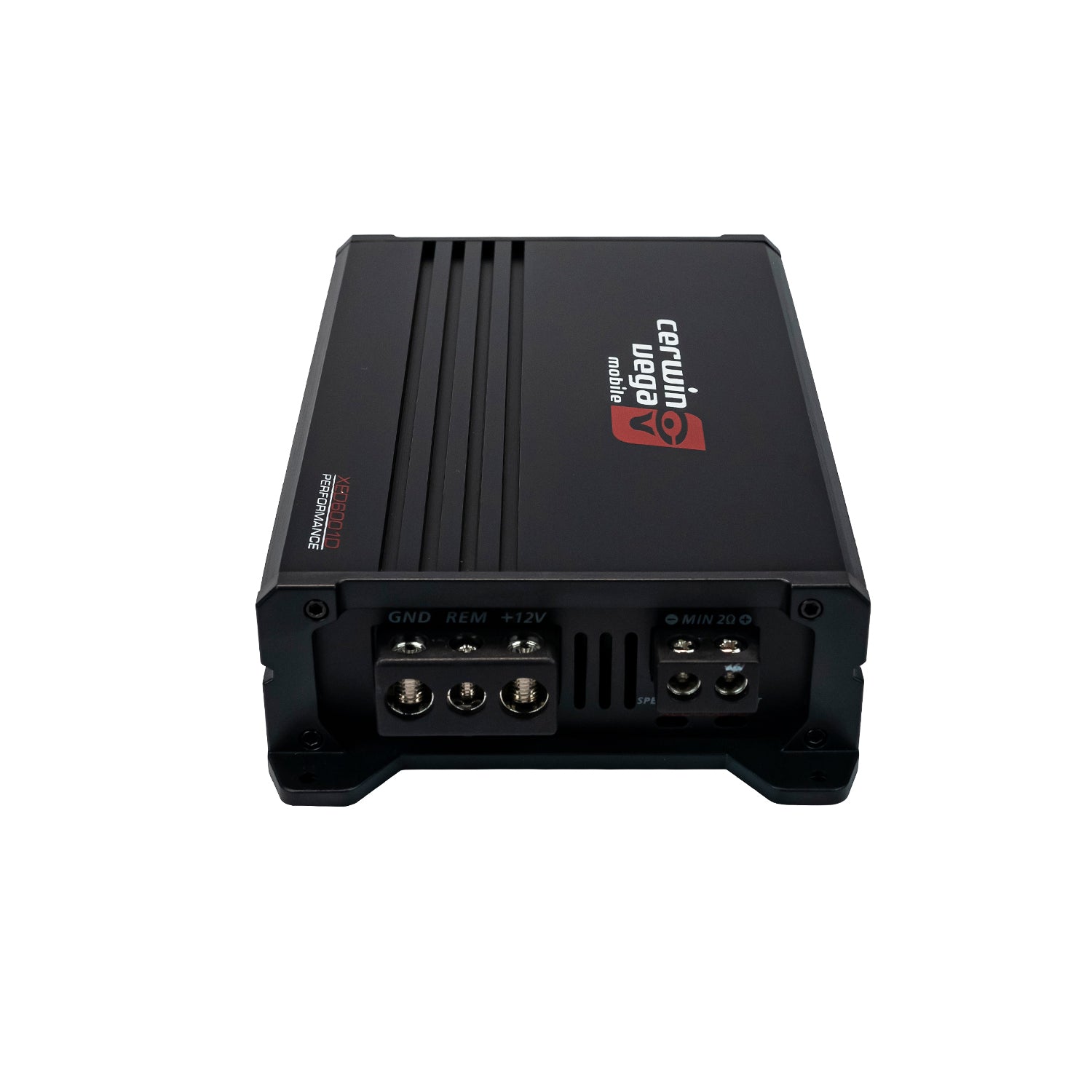

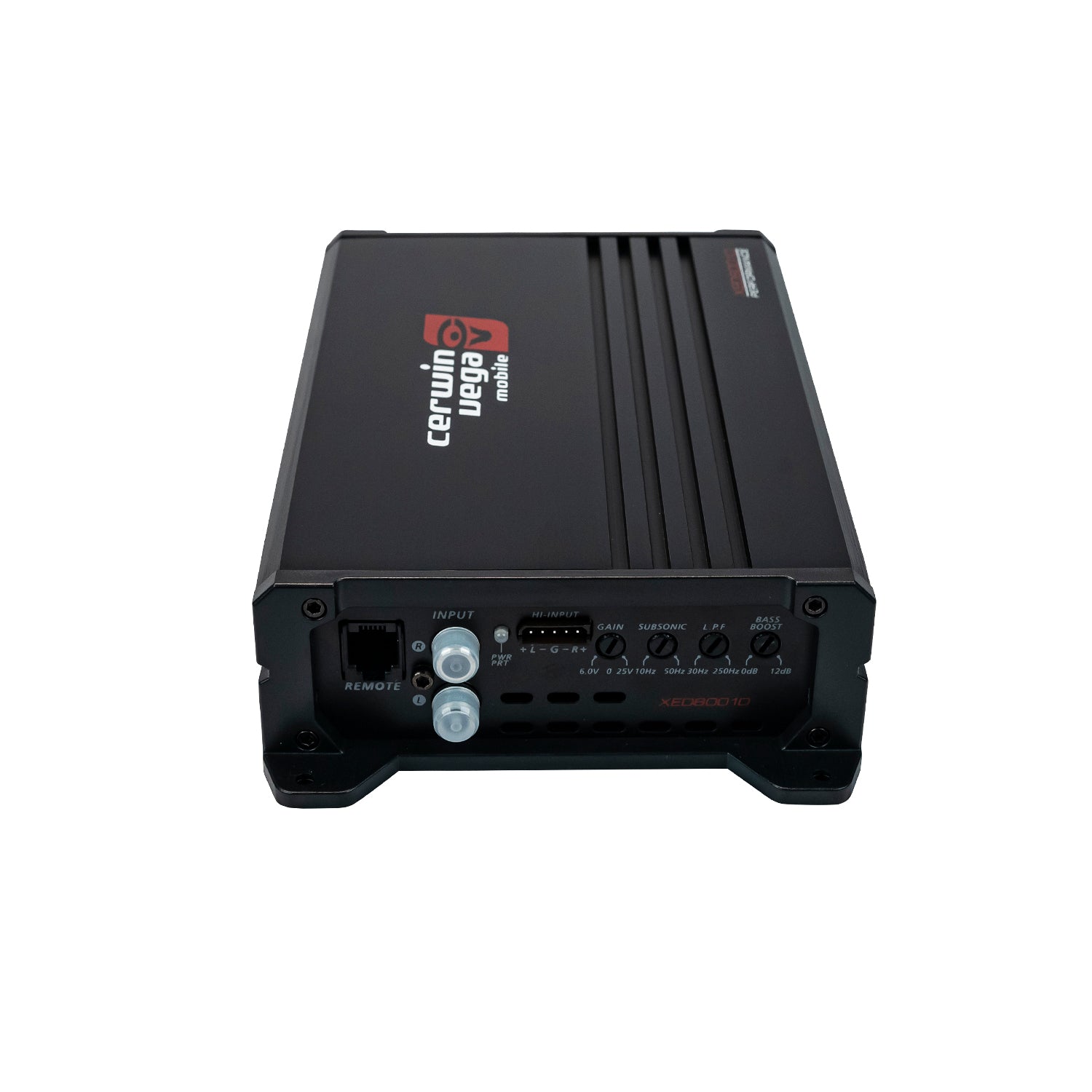

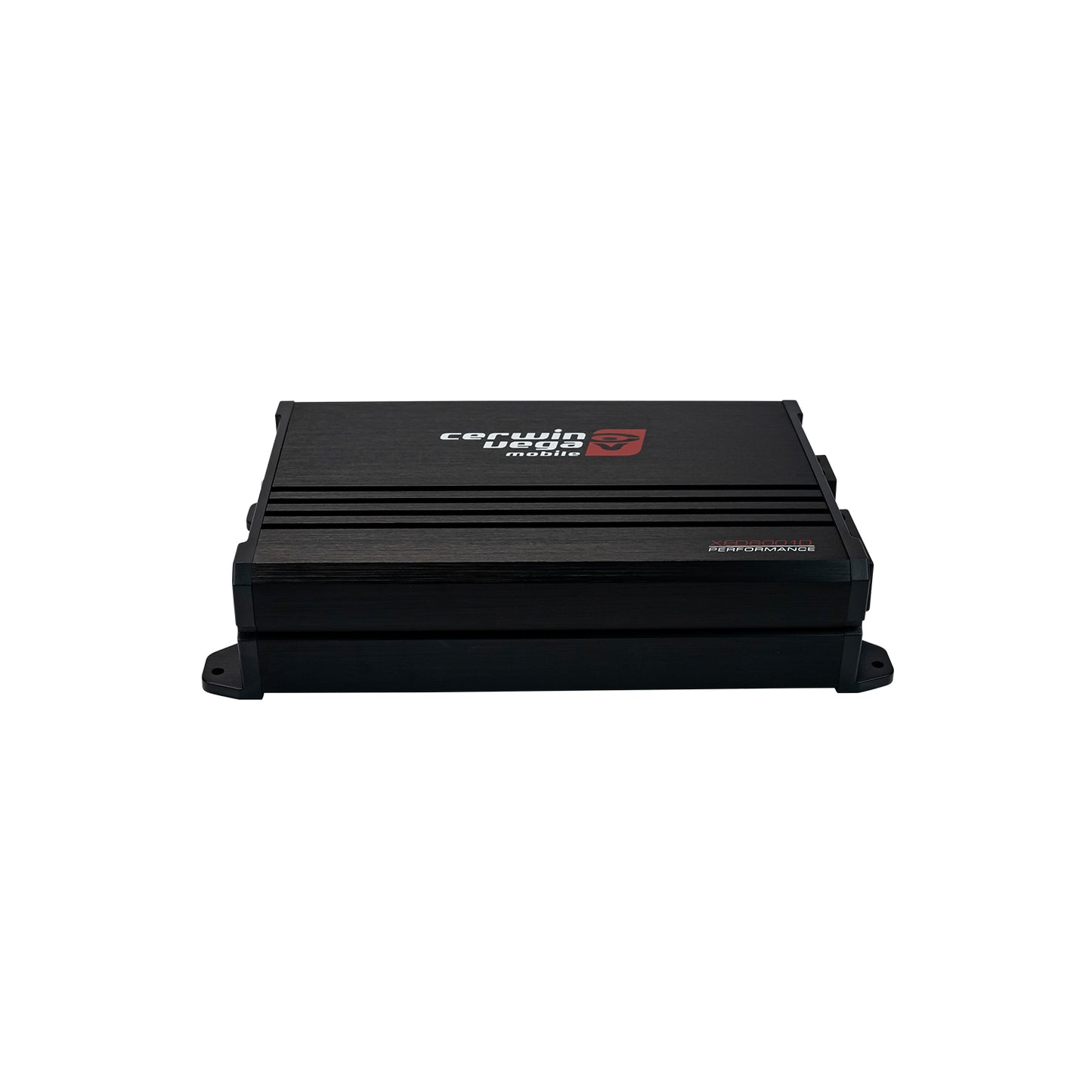

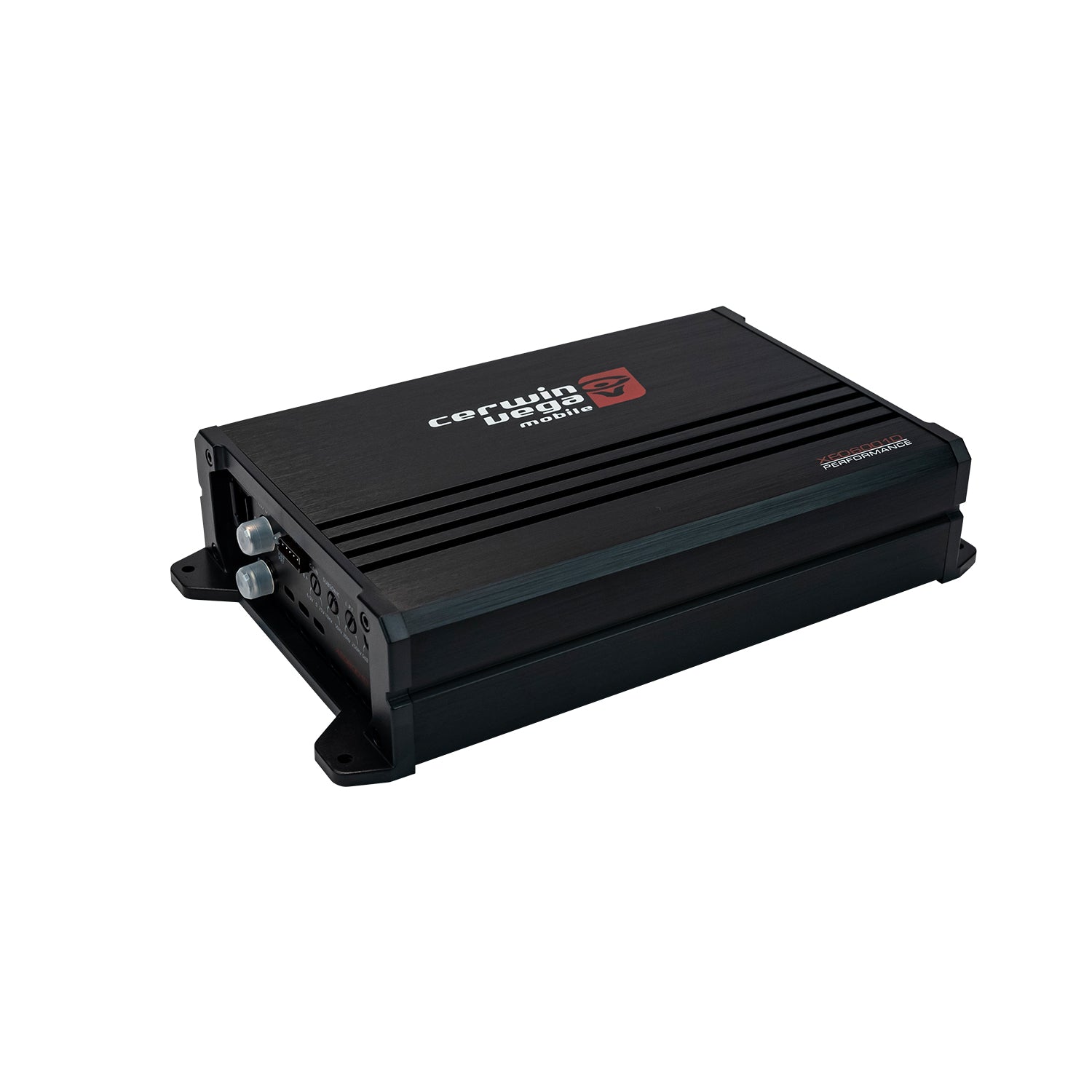

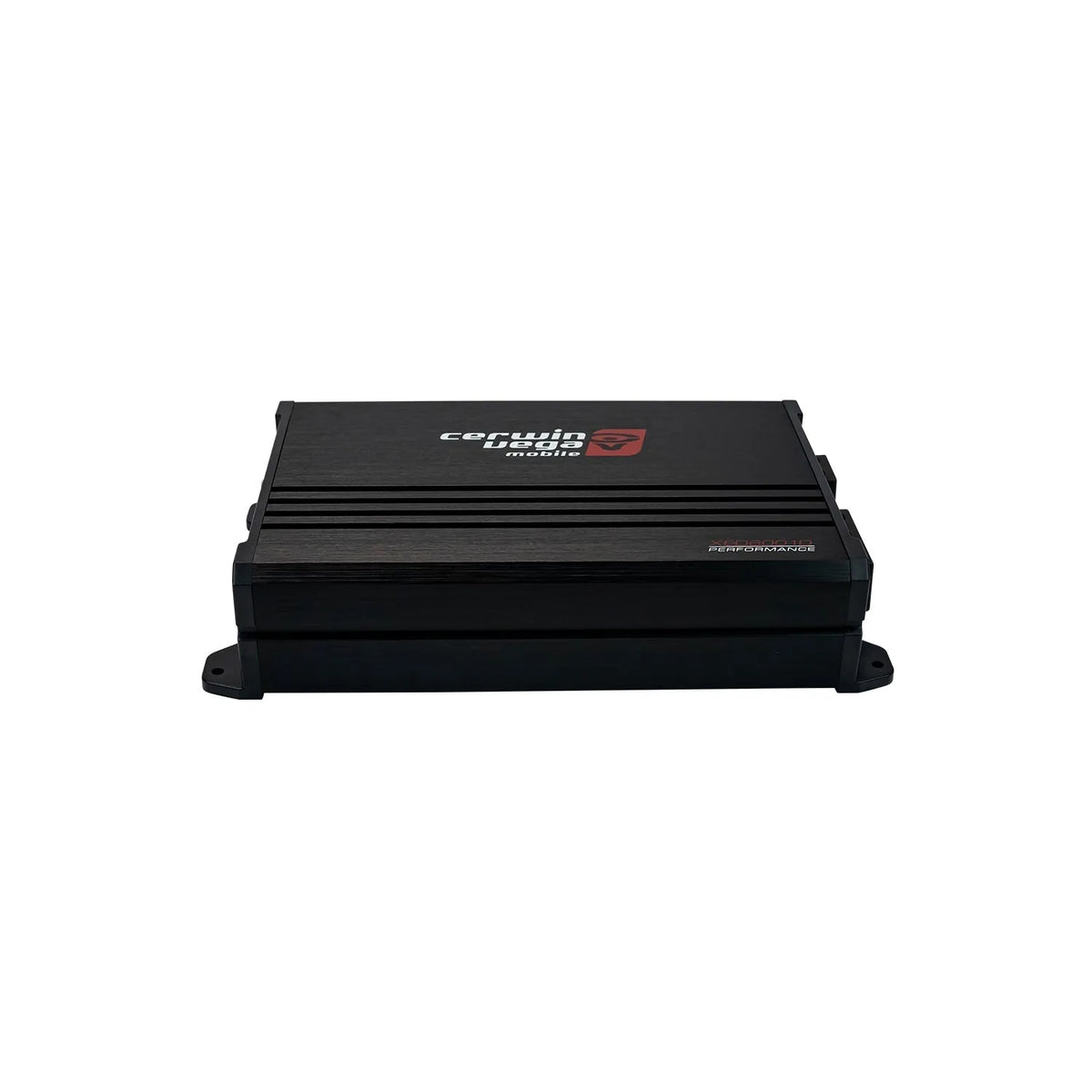

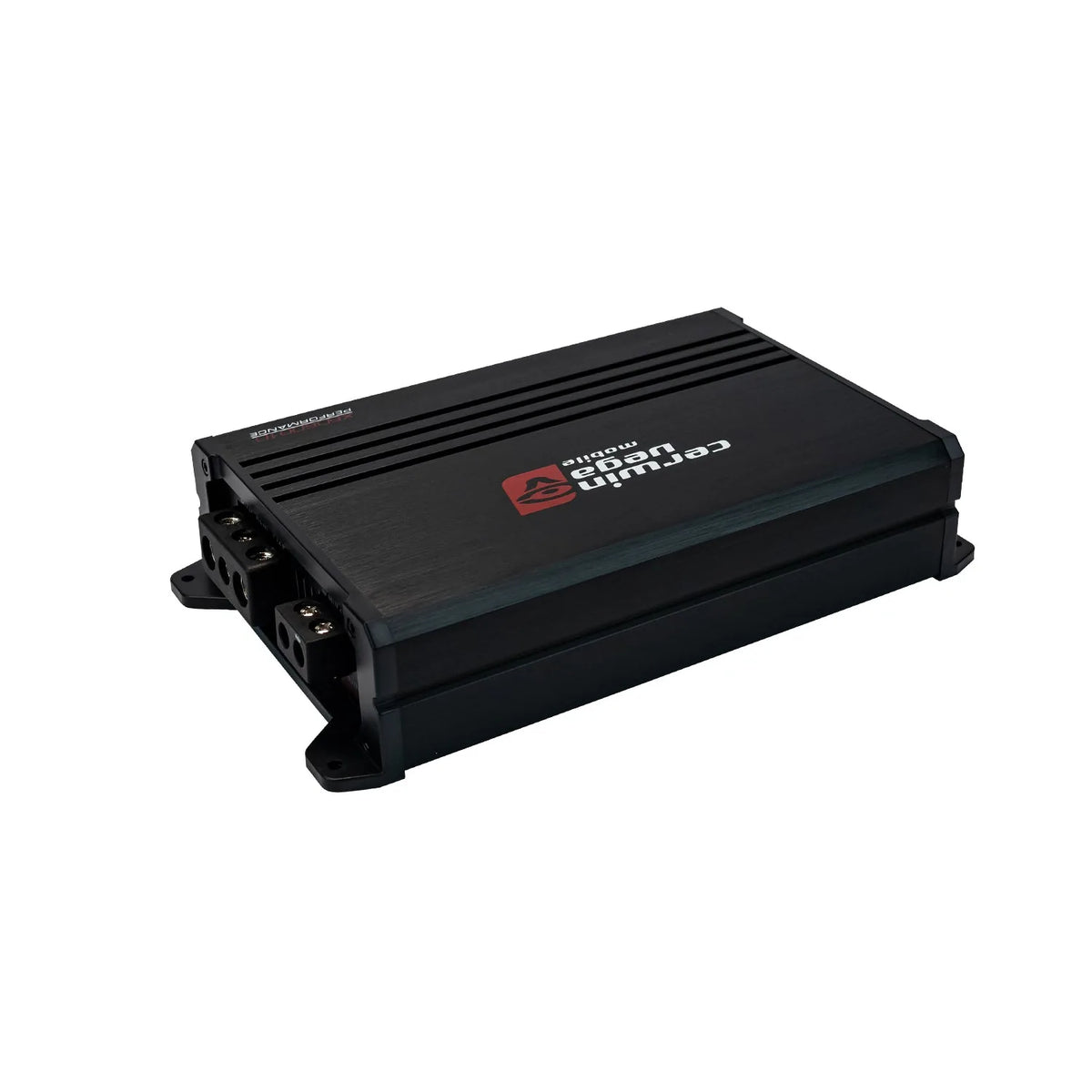

XED Series Class-D Mono Amplifier 600W Max - XED6001D
SKU:XED6001D
Couldn't load pickup availability
Overview
XED6001D-1 Channel Class-D Amplifier
Description:
Cerwin Vega XED (Xtreme Energy Design) series amplifiers are known for their advanced technology to deliver high performance. The use of aluminum in the construction of the amplifier chassis helps in heat dissipation and reduces weight, contributing to both efficiency and durability. These amplifiers are designed to produce a significant amount of power, making them suitable for demanding audio setups. XED series amplifiers are built with cutting-edge technology to ensure reliability and long-lasting performance. This includes high-quality components and meticulous engineering. XED series amplifiers utilize Class D amplifier technology, which is known for its high efficiency and ability to produce lots of power without generating excessive heat.
Specifications
- XED Series Class D 2 ohms Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohms: 320 watts x 1 channel
- 2 ohms: 600 watts x 1 channel
- Total power output: 600 watts
- LED Power/Protect Light

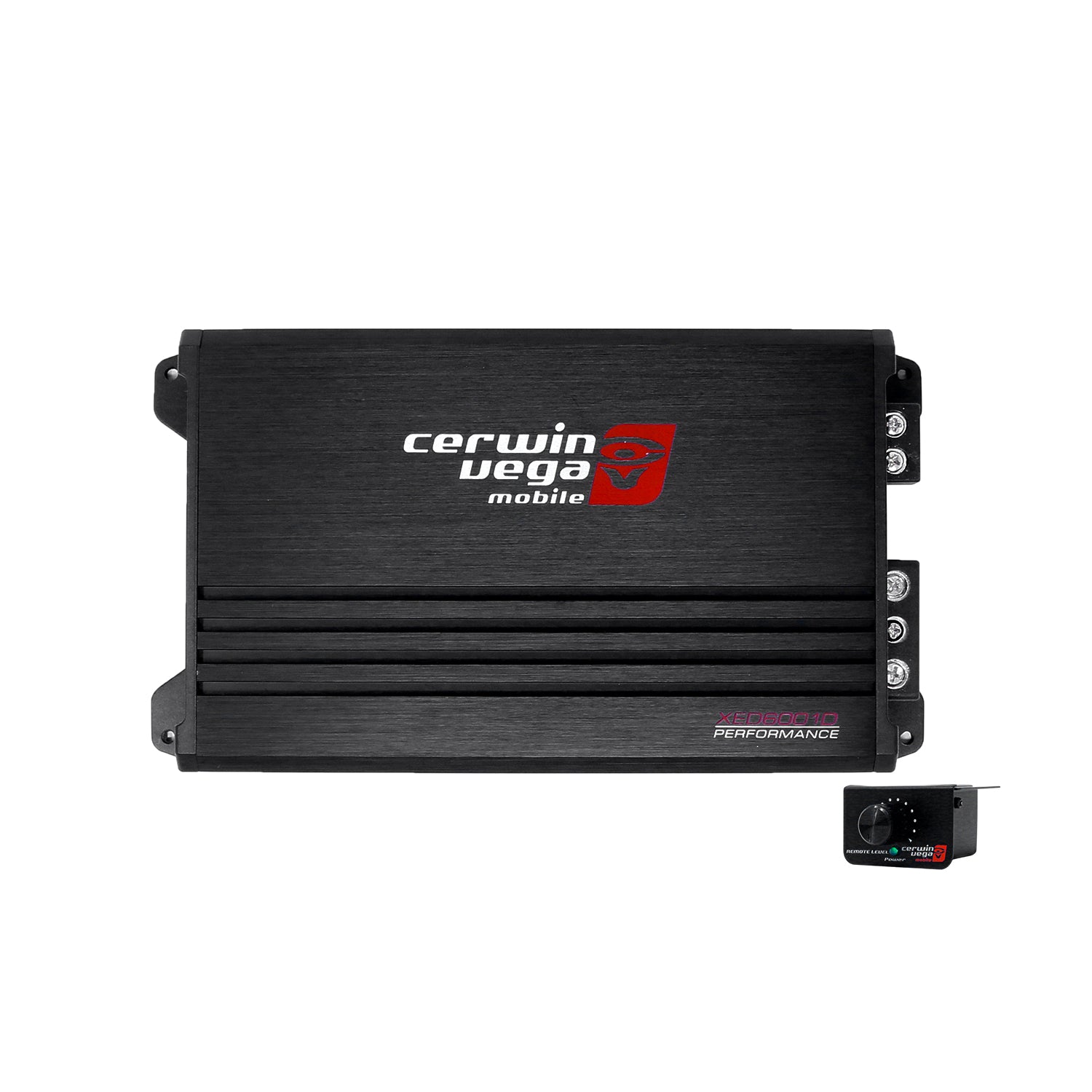

- Wired bass level remote control included
- Speaker-level (high-level) inputs
- Signal sensing remote turn-on
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Aluminum chassis
- Compact size with Ambient backlit logo
- Input sensitivity:
- Low level: 250mV - 6.0 volts
- High level: 1.1 - 20.0 volts
- Frequency Response: 10 - 250 Hz
- Total Harmonic Distortion (THD): <0.1%
- Signal to Noise Ratio: -101.1 dB
- Variable low-pass filter: 35 - 250 Hz
- Subsonic filter: 10 - 50 Hz
- Variable Bass Boost: 0 - 12 dB
- Fuse Rating: 60A
- 4 AWG gauge amplifier wiring kit is recommended for installation
- Dimensions: 7.1" L x 4.7" W x 1.8" H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
- MFR #: XED6001D
