XED Series 1-Channel Mono Block Class-D Amplifier - XED6001D
Weight: 4.14 lb
Couldn't load pickup availability
Overview

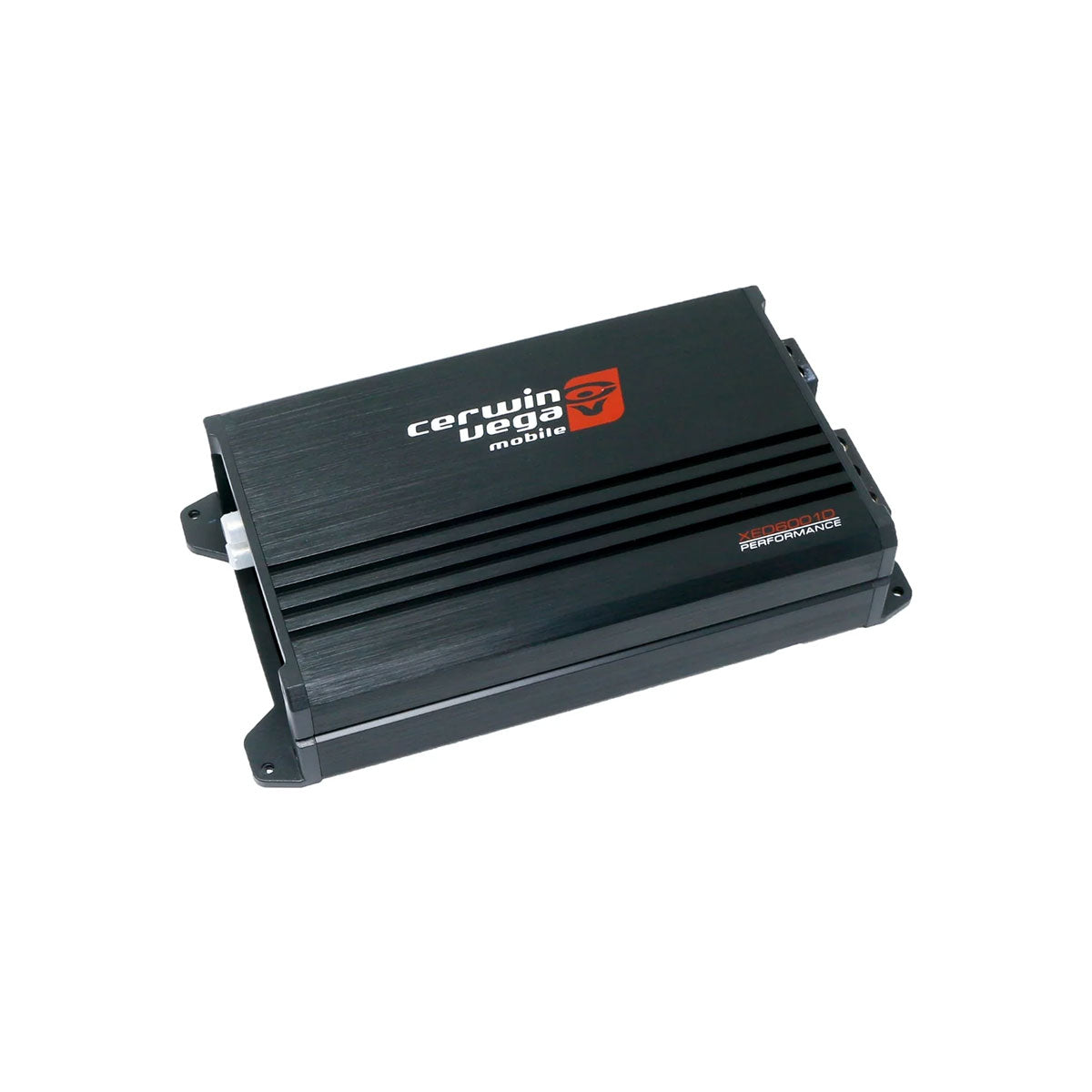

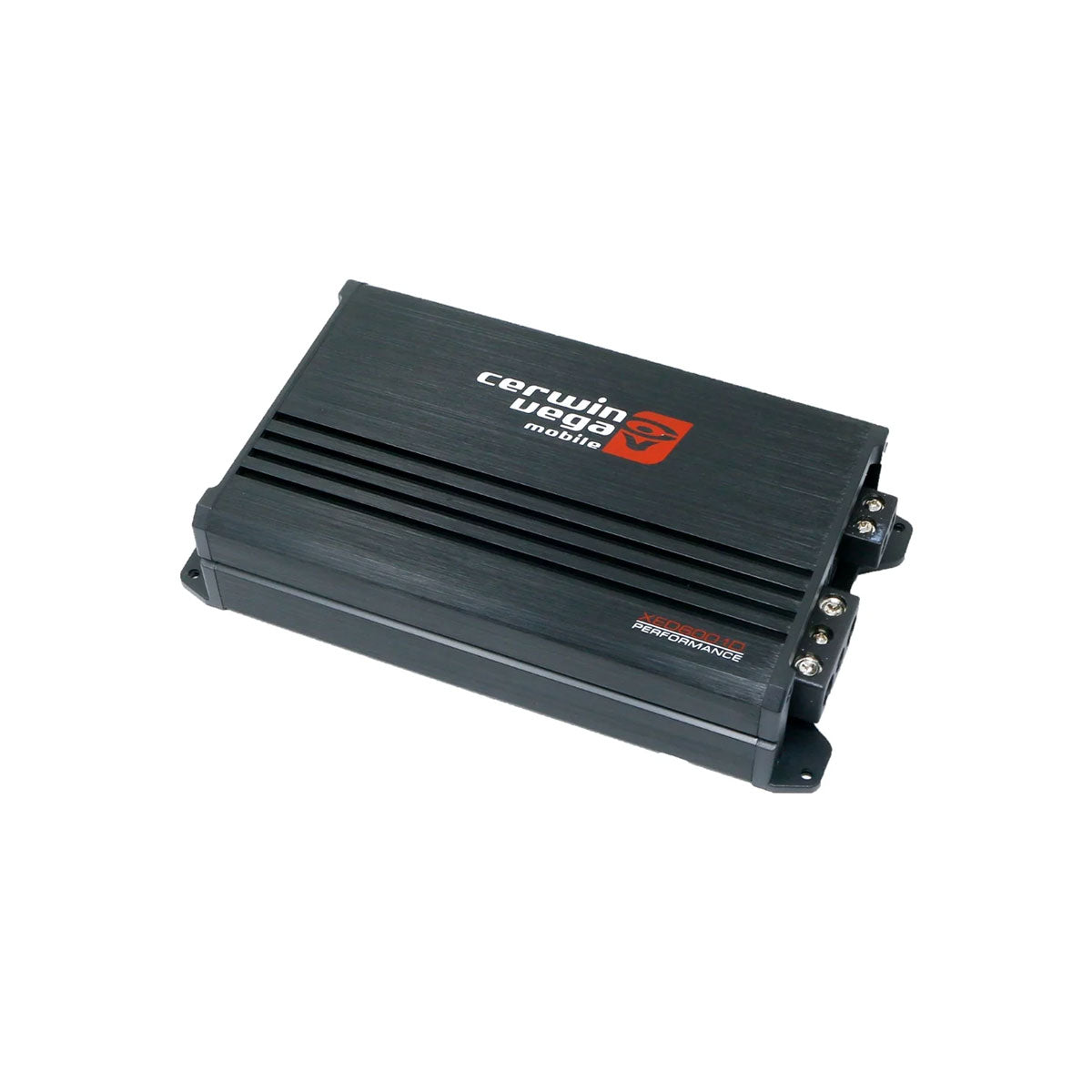

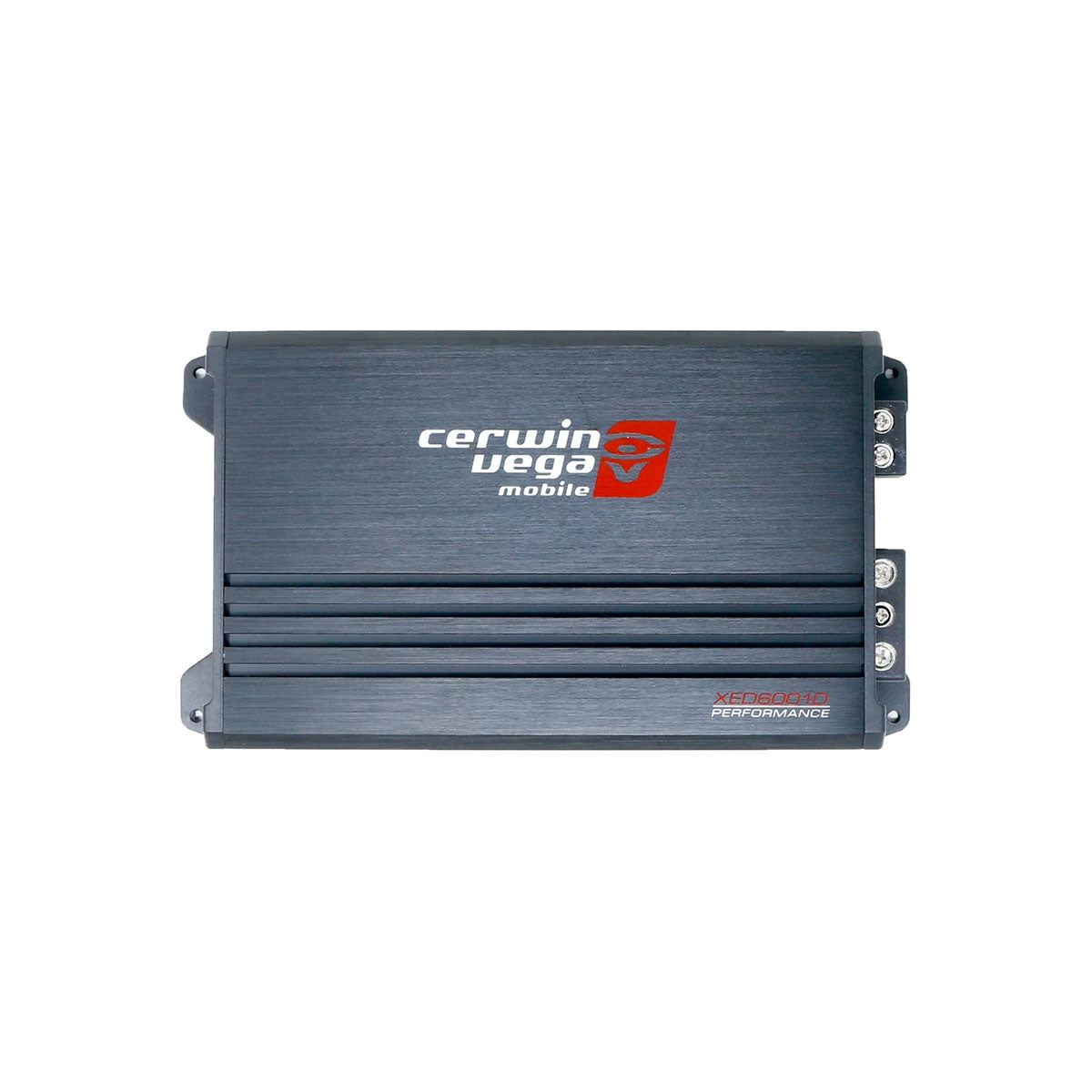

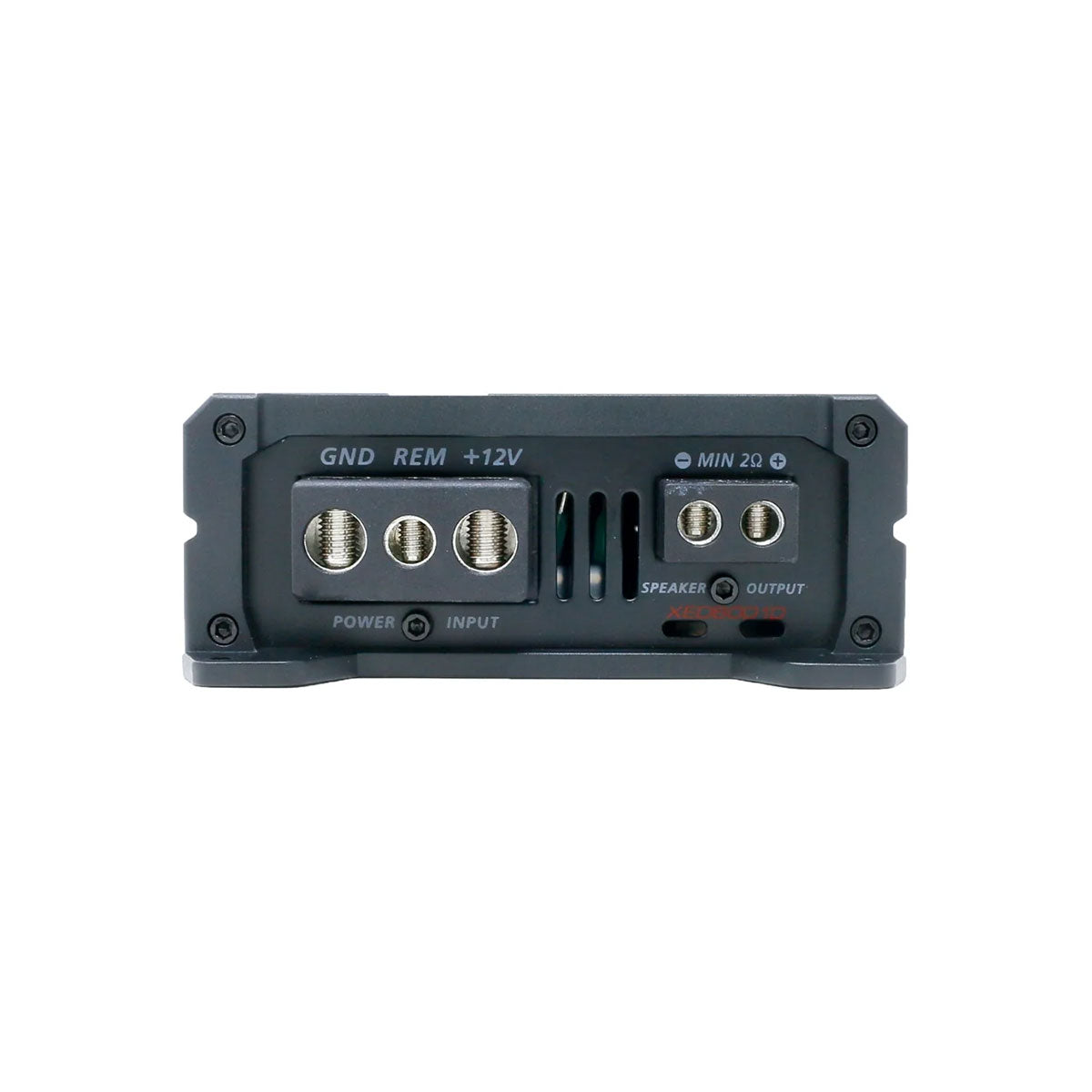

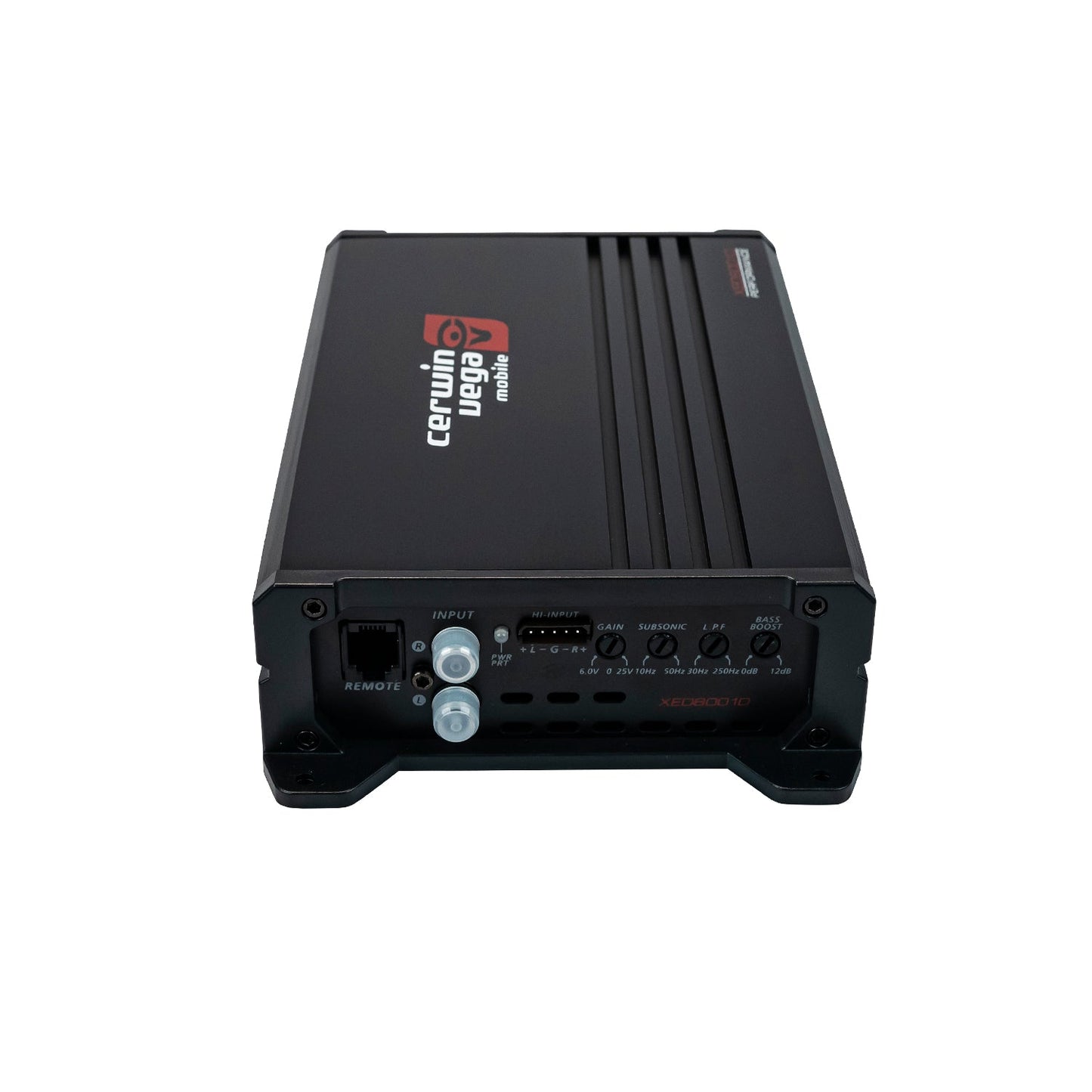

XED6001D - XED Series 1-Channel Mono Block Class-D Amplifier
Upgrade your vehicle’s bass performance with the Cerwin-Vega XED6001D XED Series 1-Channel Monoblock Class-D Amplifier, a powerful and efficient amplifier engineered to deliver deep, impactful bass with the reliability and performance that Cerwin-Vega is known for. Designed with Cerwin-Vega’s Xtreme Energy Design, the XED6001D is built to drive subwoofers with authority while maintaining clean, distortion-free sound.
The XED6001D monoblock amplifier is specifically designed for subwoofer applications, delivering focused power to maximize low-frequency output and overall system performance. Whether you're upgrading a factory audio system or building a custom high-performance car audio setup, this amplifier provides the power and control needed to bring your music to life with strong, dynamic bass.
Utilizing advanced Class-D amplifier technology, the XED6001D provides high power efficiency while minimizing heat generation and electrical load. This efficient design ensures that the amplifier operates cooler and more reliably during extended listening sessions, allowing your audio system to maintain powerful output without sacrificing sound quality.
The amplifier features a lightweight aluminum chassis that serves as an effective heat sink, helping dissipate heat and maintain stable operating temperatures even under demanding conditions. This rugged construction ensures long-term durability while keeping the amplifier compact enough for flexible installation in a variety of vehicles.
Engineered with precision components and Cerwin-Vega’s commitment to performance, the XED Series amplifiers are built to handle high-output audio systems with ease. The XED6001D delivers tight, controlled bass response and clean signal reproduction, allowing your subwoofers to perform at their full potential.
Key Features:
• 1-channel monoblock Class-D car audio amplifier
• Designed for powerful subwoofer performance
• High-efficiency amplifier technology for strong output
• Lightweight aluminum chassis for effective heat dissipation
• Clean, distortion-free bass reproduction
• Ideal for aftermarket subwoofer system upgrades
The Cerwin-Vega XED6001D amplifier unleashes powerful bass energy, delivering the legendary Cerwin-Vega sound performance that transforms every drive into an immersive listening experience.
Specifications
XED Series 1-Channel Mono Block Amplifier
Power Rating (RMS)
FREQUENCY RESPONSE (HZ): 35HZ - 350HZ
RMS POWER PER CHANNEL 4Ω 320W X 1
RMS POWER PER CHANNEL 2Ω 600W X 1
Power Supply
- Power Supply: Full WPM
- Power Supply Threshold: 10.0V-16.0V (DC)
- Idle Current: (0.7A)
Distortion
- THD 4 (100HZ @4Ω): 0.1%
- S/N RATIO (A WEIGHTED @1W): -85dBA
- S/N RATIO (A WEIGHTED @FP): -101.1dBA
Input Sensitivity
- Low Level Input: 250mV-6.0V
- High Level Input: 1.1V~>20.0V
Input Impedance
- Low Level Input: 20KΩ
- High Level Input: 100KΩ
Output Stage
- Output Impedance: 2Ω
- Damping Factor (50Hz@4Ω): >70
- Bandwidth (-3db): 10Hz-250Hz
Crossover (1-12dB/Oct)
- Variable High-Pass:
- Variable low-Pass: 35Hz-250Hz
- Variable Sub-Sonic: 10Hz-50HZ
Fuse Rating
- 2x30A (Inside)
Dimensions
- Length x Width x Height: 7.1”x4.7”x1.8” (180mm x 120mm x 46.5mm)
FEATURES
- Bass Boost: 0dB-12dB
- LED Power/Protect Light Indicator

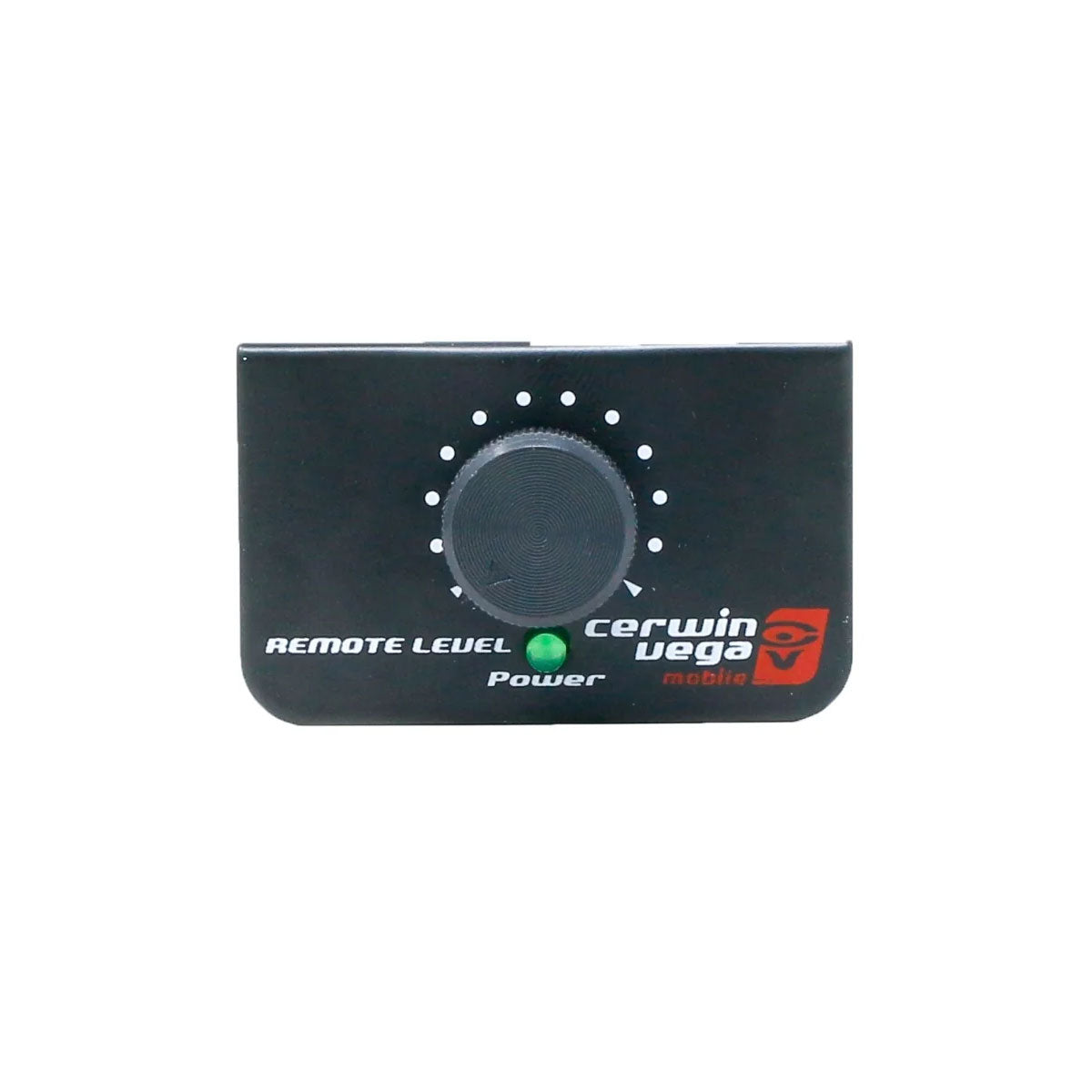

- Bass Control Included
- MFR #: XED6001D
Product Manuals

Xtreme Power, Ultimate Precision
The XED6001D 1-Channel Class-D Amplifier delivers high-efficiency power and clean sound. With advanced Class D technology and a lightweight aluminum chassis, it ensures reliable performance while driving subwoofers and speakers with ease.
Built for High-Performance Systems
Crafted with premium components and robust construction, the XED6001D handles demanding setups effortlessly. Experience deep bass, crisp highs, and seamless mids for an immersive car audio experience.
