HED 1 Channel 1500W Class-D Monoblock Amplifier
SKU:H1500.1D
Couldn't load pickup availability
Overview
H1500.1D - Class-D Digital Monoblock Amplifier
Description:
Cerwin Vega HED series amplifiers are known for their advanced technology to deliver high performance. The use of aluminum in the construction of the amplifier chassis helps in heat dissipation and reduces weight, contributing to both efficiency and durability. These amplifiers are designed to produce a significant amount of power, making them suitable for demanding audio setups. HED series amplifiers are built with cutting-edge technology to ensure reliability and long-lasting performance. This includes high-quality components and meticulous engineering. HED series amplifiers utilize Class D amplifier technology, which is known for its high efficiency and ability to produce lots of power without generating excessive heat.
Specifications
1 Channel Monobloc Digital Amplifier
600W x 1CH @ 4Ω RMS Power Output
1000W x 1CH @ 2Ω RMS Power Output
1500W x 1CH @ 1Ω RMS Power Output
Input Sensitivity: 0.2-10 Volt
Crossover Filter : 50-250Hz (LPF), 24dB Per Octave Slope
Frequency Response: 20-500Hz
Signal to Noise Ratio: > 90dB
Overall Operation Efficiency: >85%
Selectable REM / VOX / DC Turn On Modes
Variable Phase Adjustment
Remote Bass Knob Included
Dimensions: 11.0” x 6.3” x 1.9” (279.5 x 160 x 48.3 mm)
Product Manuals

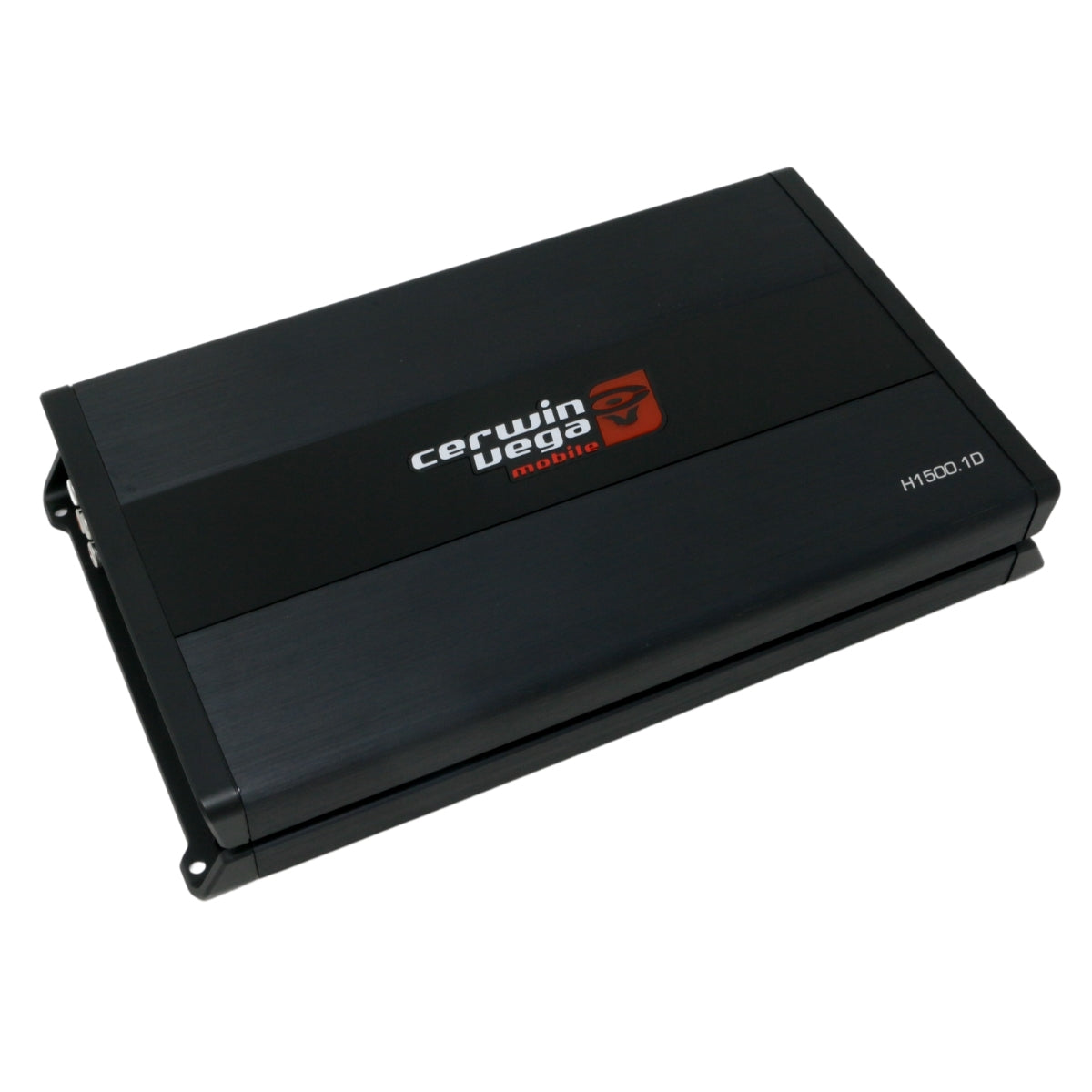

![HED Series Monoblock Class D Amplifier](http://cerwinvega.com/cdn/shop/files/1_26.jpg?v=1715246029&width=1445)

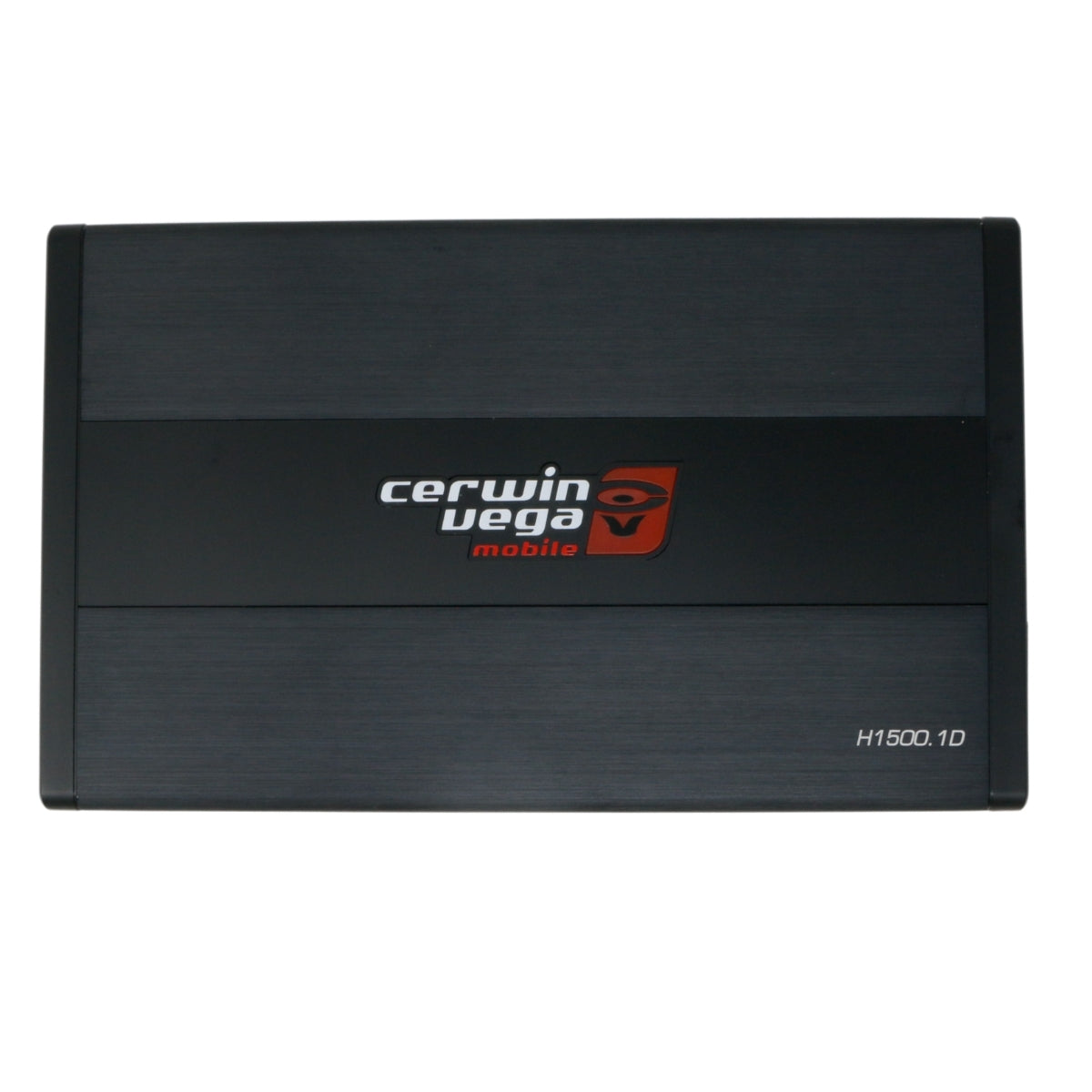

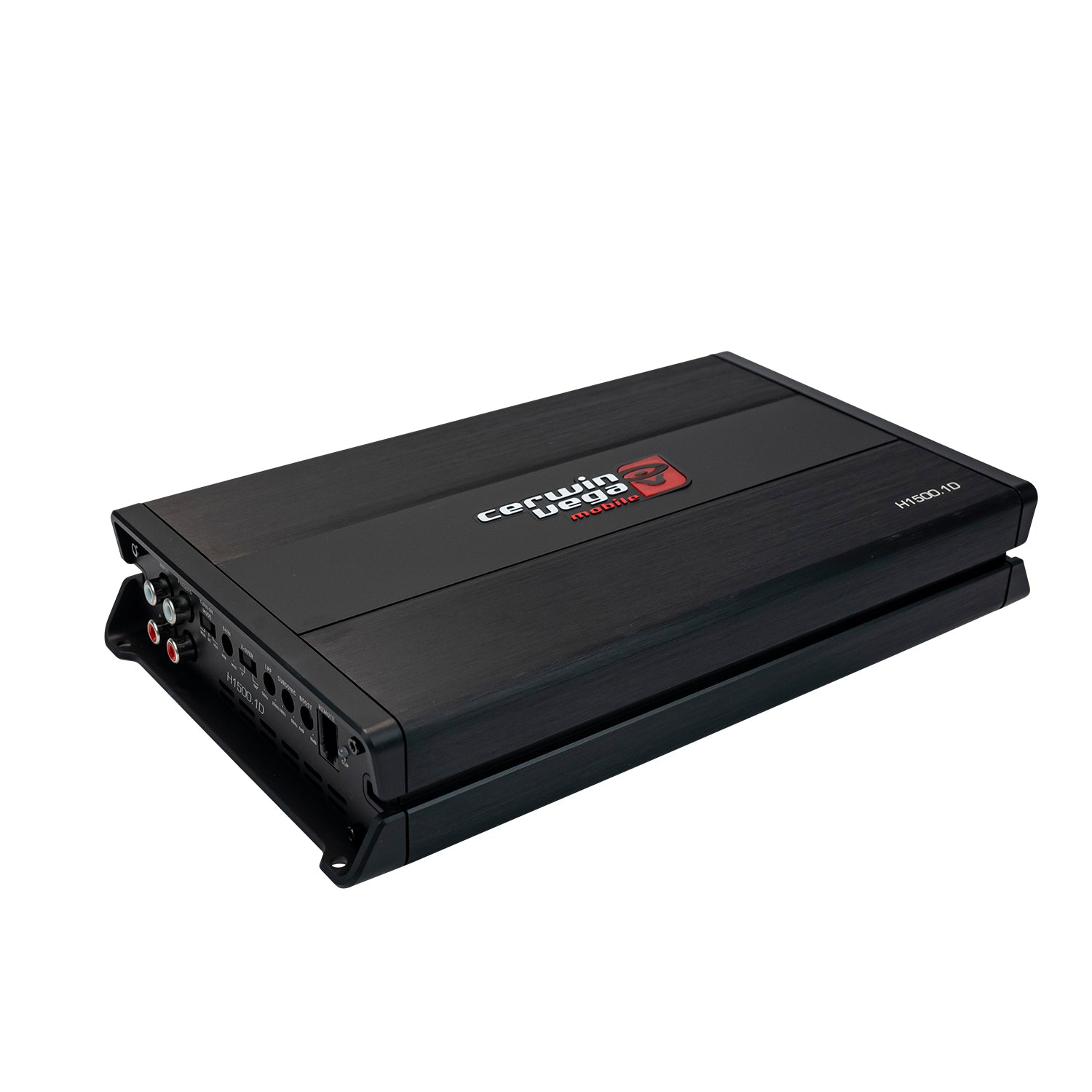

![HED Series 1500W Monoblock Amplifier](http://cerwinvega.com/cdn/shop/files/2_26.jpg?v=1715246029&width=1445)

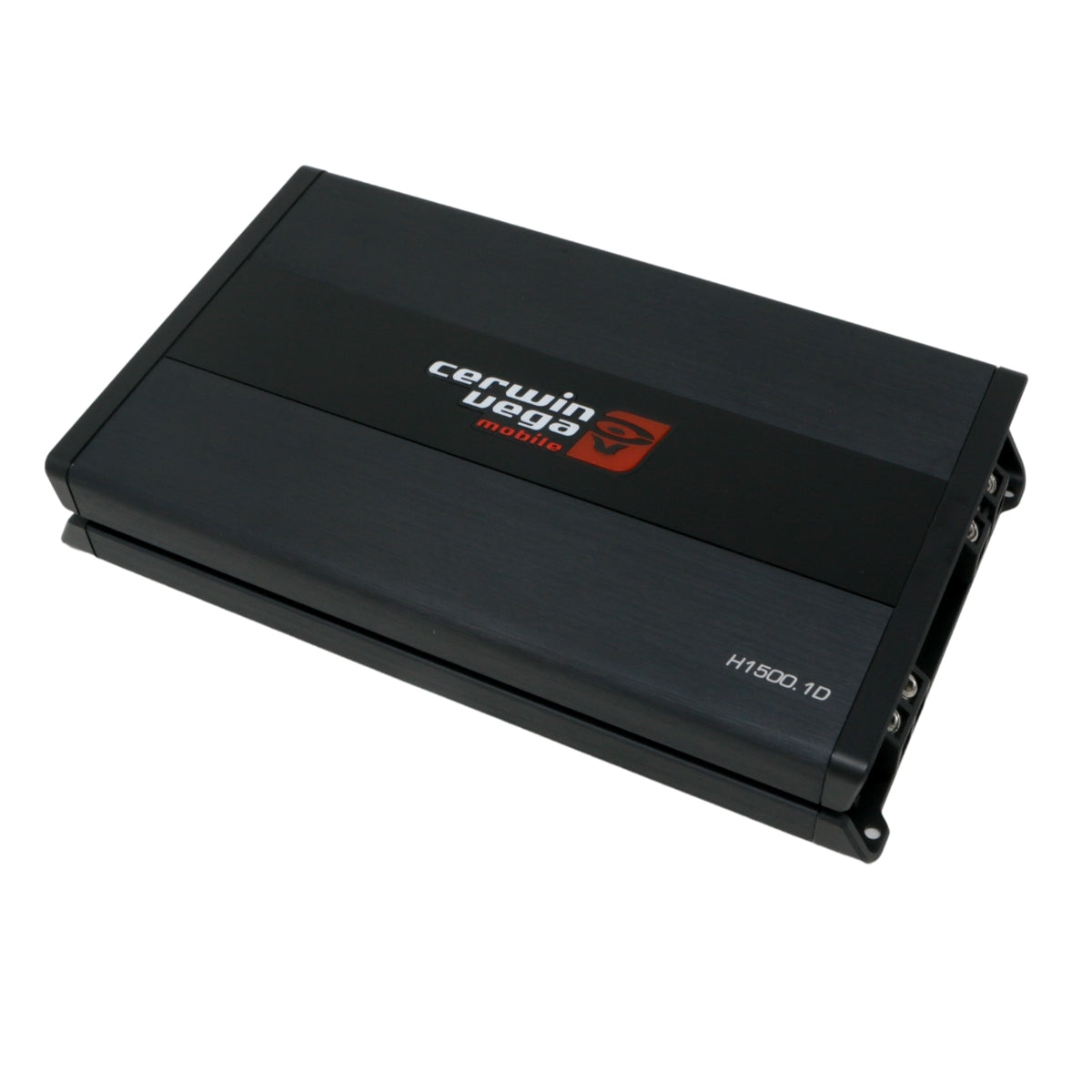

![A black Cerwin Vega Inc. HED 1500W RMS Full Range Class-D Mono Digital Amplifier, featuring high performance Class D amplifier technology and a sleek rectangular design with rounded edges. The brand name and logo are prominently displayed in white and red on the top surface, with connectors on the side, isolated on a white background.](http://cerwinvega.com/cdn/shop/files/3_14.jpg?v=1715246029&width=1445)

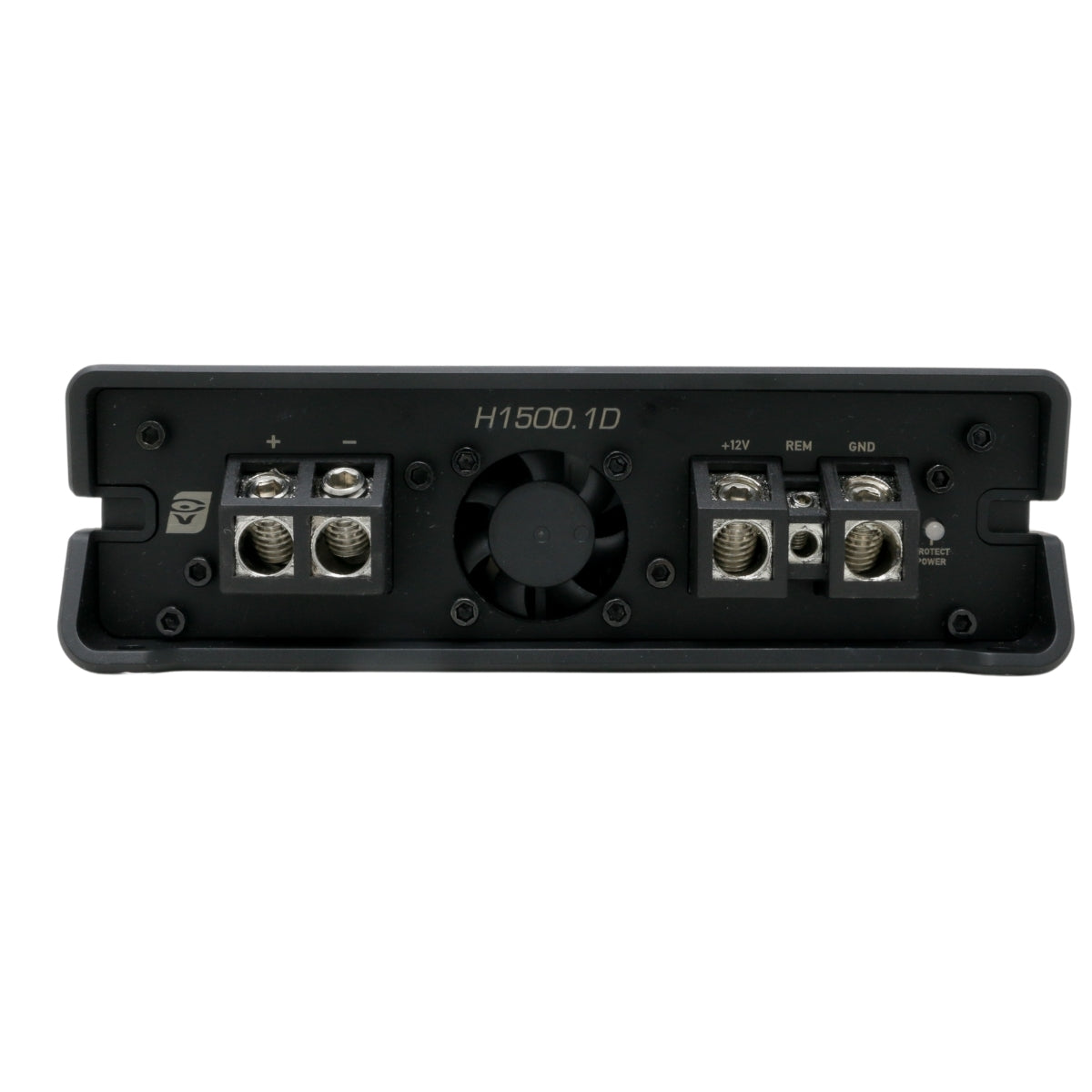

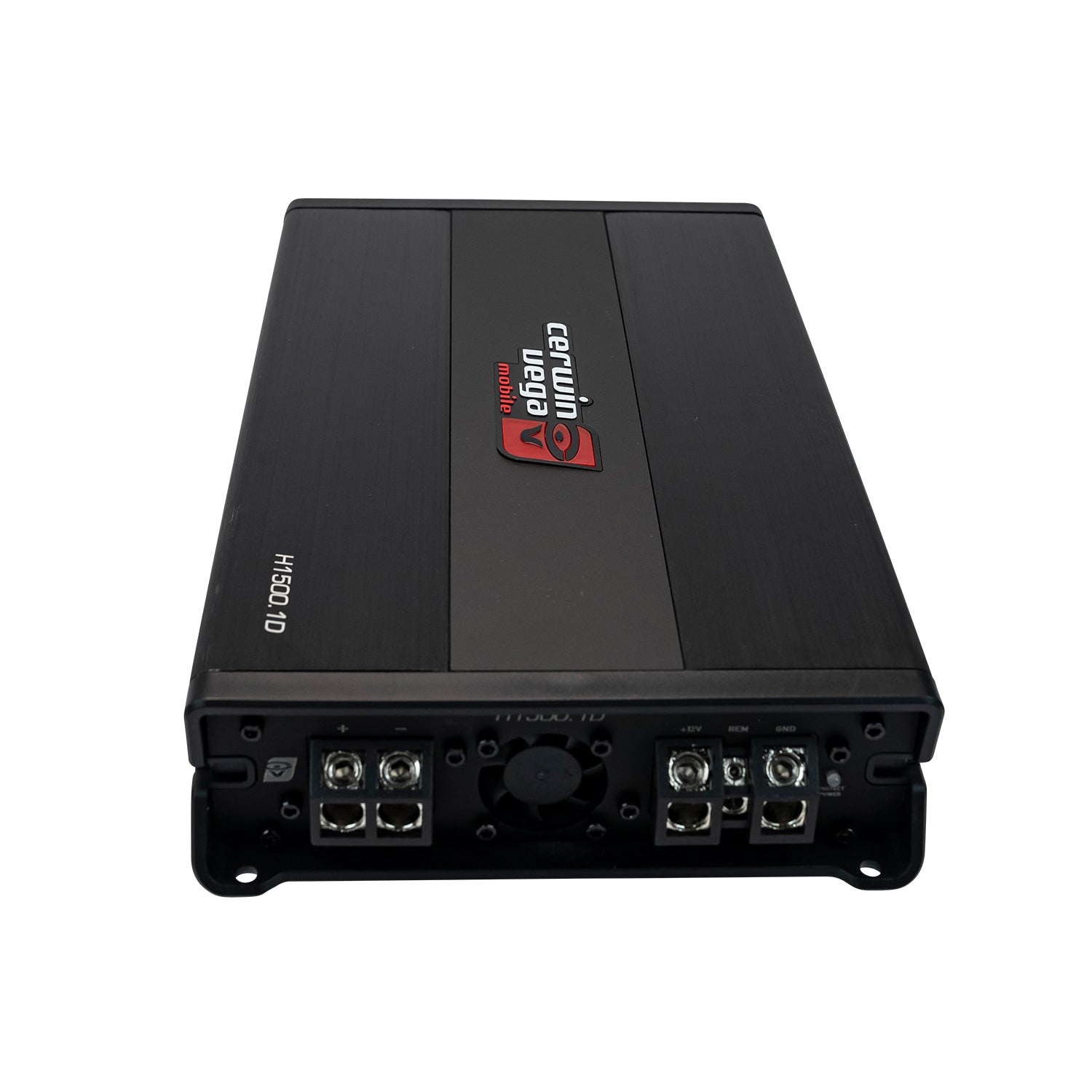

![Close-up view of a rectangular black car audio amplifier labeled "HED 1500W RMS Full Range Class-D Mono Digital Amplifier." The panel features multiple silver screw terminals for connecting wires, labeled from left to right with -12V, REM, +12V, and GND. This high-performance Cerwin Vega Inc. product boasts Class D amplifier technology and has a large central knob with a protective transparent cover.](http://cerwinvega.com/cdn/shop/files/4_11.jpg?v=1715246029&width=1445)

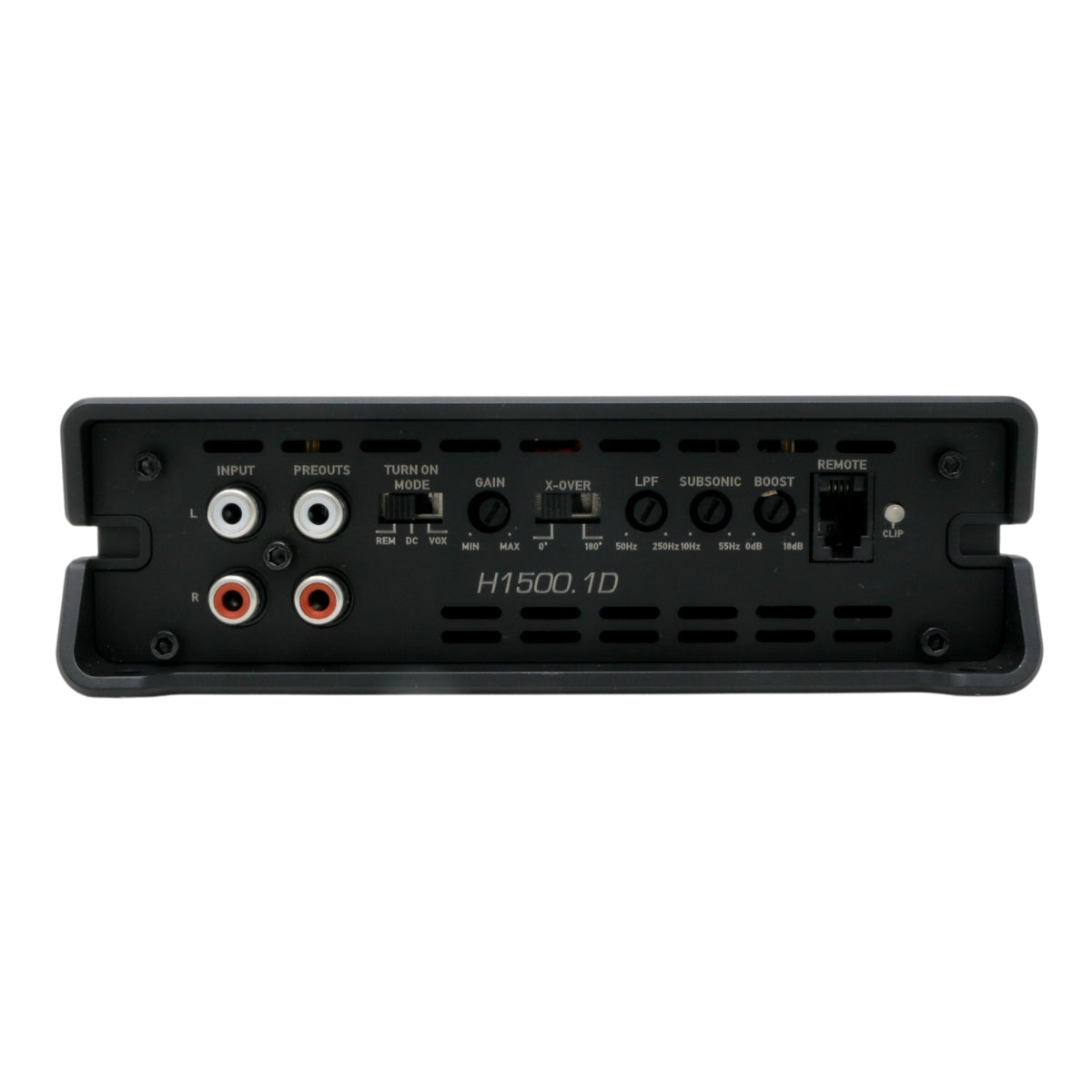

![A close-up view of a high-performance car audio amplifier's rear panel. It displays various input and output ports, including RCA inputs, preouts, gain control, crossover switch, LPF, subsonic and boost controls, and a remote input. The Cerwin Vega Inc. HED 1500W RMS Full Range Class-D Mono Digital Amplifier with Class D amplifier technology is centered below the ports.](http://cerwinvega.com/cdn/shop/files/5_10.jpg?v=1715246029&width=1445)
