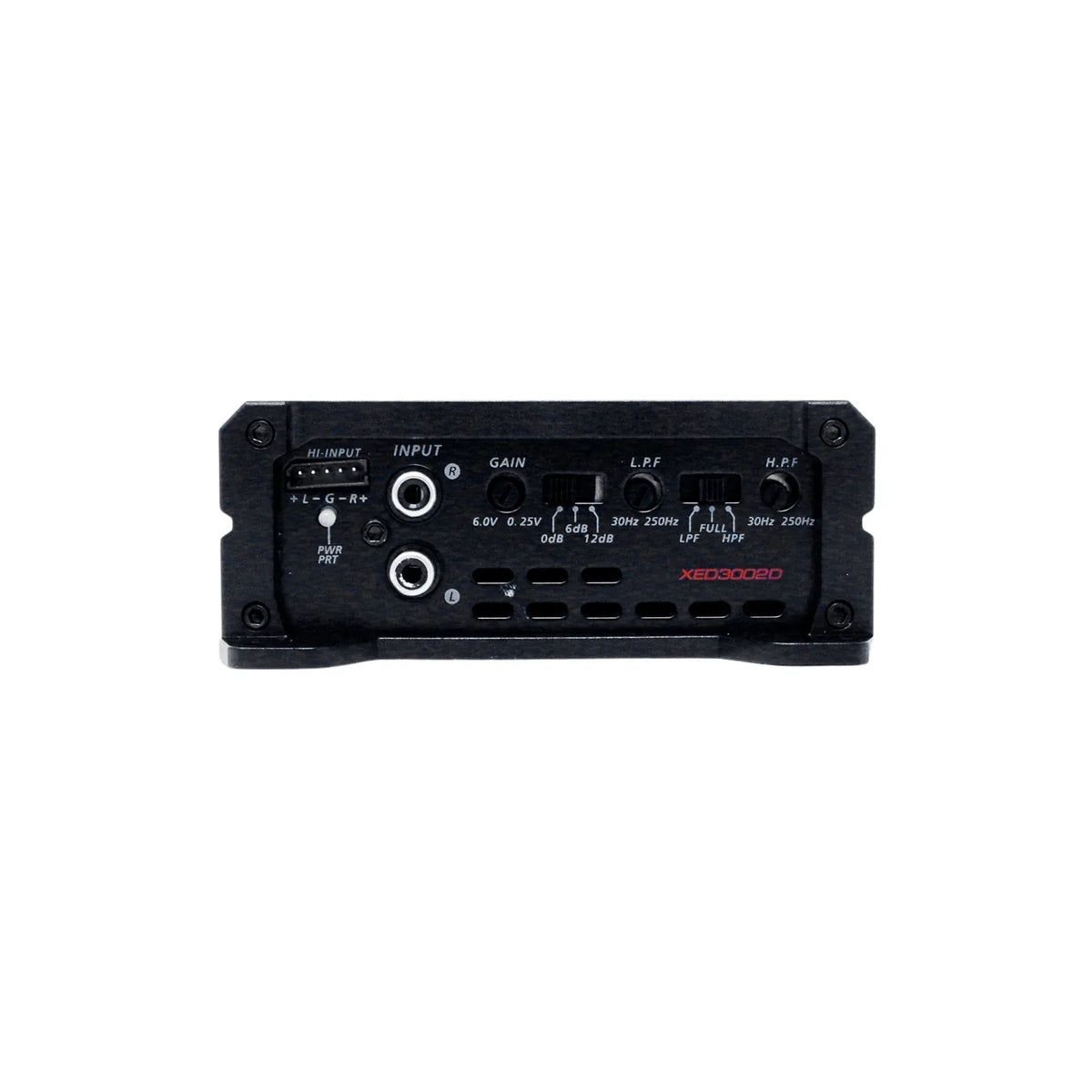

2-Channel XED Series Full Range Class-D Amplifier - XED3002D

$139.99 USD
$139.99 USD
Sale Sold out
Size: 2 Channel
  • Secure Checkout
  • 100% Authentic Products100% Authentic
  • Enjoy Free Shipping!Free Shipping
  • Live Chat SupportLive Support

2 Channel XED Series Class-D Amplifier

Upgrade your vehicle’s sound system with the Cerwin-Vega XED3002D XED Series 2-Channel Class-D Amplifier, a compact yet powerful amplifier engineered to deliver clean, dynamic sound with impressive efficiency. Built using Cerwin-Vega’s Xtreme Energy Design, the XED3002D provides the perfect balance of power, reliability, and performance for car audio enthusiasts looking to enhance their listening experience.

The XED3002D 2-channel amplifier is designed to power component speakers, coaxial speakers, or small subwoofer systems with precision and clarity. Its versatile configuration allows the amplifier to run in standard stereo mode for speakers or be bridged for increased power output, making it ideal for powering a single subwoofer for deeper bass performance. This flexibility makes the XED3002D a great solution for both entry-level upgrades and advanced aftermarket audio systems.

Utilizing high-efficiency Class-D amplifier technology, the XED3002D maximizes power output while minimizing heat generation and electrical consumption. This efficient design ensures consistent performance even during extended listening sessions, allowing your system to play louder and cleaner without overheating or losing sound quality.

The amplifier features a lightweight aluminum chassis, which not only provides a sleek, modern appearance but also acts as an effective heat sink to dissipate heat and maintain stable operating temperatures. Combined with high-quality internal components and precision engineering, this design ensures dependable performance and long-term reliability.

Designed to bring out the best in your music, the Cerwin-Vega XED Series amplifiers deliver crisp highs, detailed midrange frequencies, and tight bass response. Whether you’re upgrading a factory system or building a custom audio setup, the XED3002D provides the power and clarity needed to elevate your in-car sound.

Key Features:
2-channel Class-D car audio amplifier
High-efficiency digital amplifier design for powerful output
Bridgeable configuration for flexible system setups
Lightweight aluminum chassis for superior heat dissipation
Clean, distortion-free sound reproduction
Ideal for powering speakers or small subwoofer systems

The Cerwin-Vega XED3002D amplifier delivers reliable power, efficient performance, and the bold sound energy that defines the Cerwin-Vega audio legacy.

XED Series 2-Channel Full Range Class D Amplifier

POWER RATING

FREQUENCY RESPONSE (HZ): 35HZ - 350HZ
RMS POWER PER CHANNEL 4Ω 80W X 2
RMS POWER PER CHANNEL 2Ω 120W X 2

POWER SUPPLY

  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0V-16.0V (DC)
  • Idle Current: (0.5A)

DISTORTION

  • THD 4 (100Hz @4Ω): <0.1%
  • S/N Ratio (A weighted @1W): -85dBA
  • S/N Ratio (A weighted @FP): -101.1dBA

INPUT SENSITIVITY

Low Input Level: 250mV-12V

High Input Level: 1.3V~>20.0V

INPUT IMPEDANCE

Low Input Level: 20KΩ

High Input Level: 100Ω

OUTPUT STAGE

Output Impedance: 2Ω

Damping Factor (50Hz @ 4Ω): >70

Bandwidth (-3dB): 10Hz-30KHz

CROSSOVER (-12dB/Oct)

Variable High-Pass: 35Hz-250Hz

Variable Low-Pass: 35Hz-250Hz

Variable Sub-Sonic:

FUSE RATINGS

ATC (Inside): 20A

DIMENSIONS

L x W x H: 6.3”x 4.7”x 1.8” (160mm x 120mm x 46.5mm)

FEATURES

  • LED Power/Protect Light Indicator
  • Selectable X-Over: High Pass/Flat/Low Pass
  • Selectable Bass Boost: 0dB/6dB/12dB
  • MFR #: XED3002D

View Product Details

Xtreme Power, Ultimate Precision

The XED3002D 2-Channel Class-D Amplifier delivers high-efficiency power and clean sound. With advanced Class D technology and a lightweight aluminum chassis, it ensures reliable performance while driving subwoofers and speakers with ease.

Built for High-Performance Systems

Crafted with premium components and robust construction, the XED3002D handles demanding setups effortlessly. Experience deep bass, crisp highs, and seamless mids for an immersive car audio experience.
