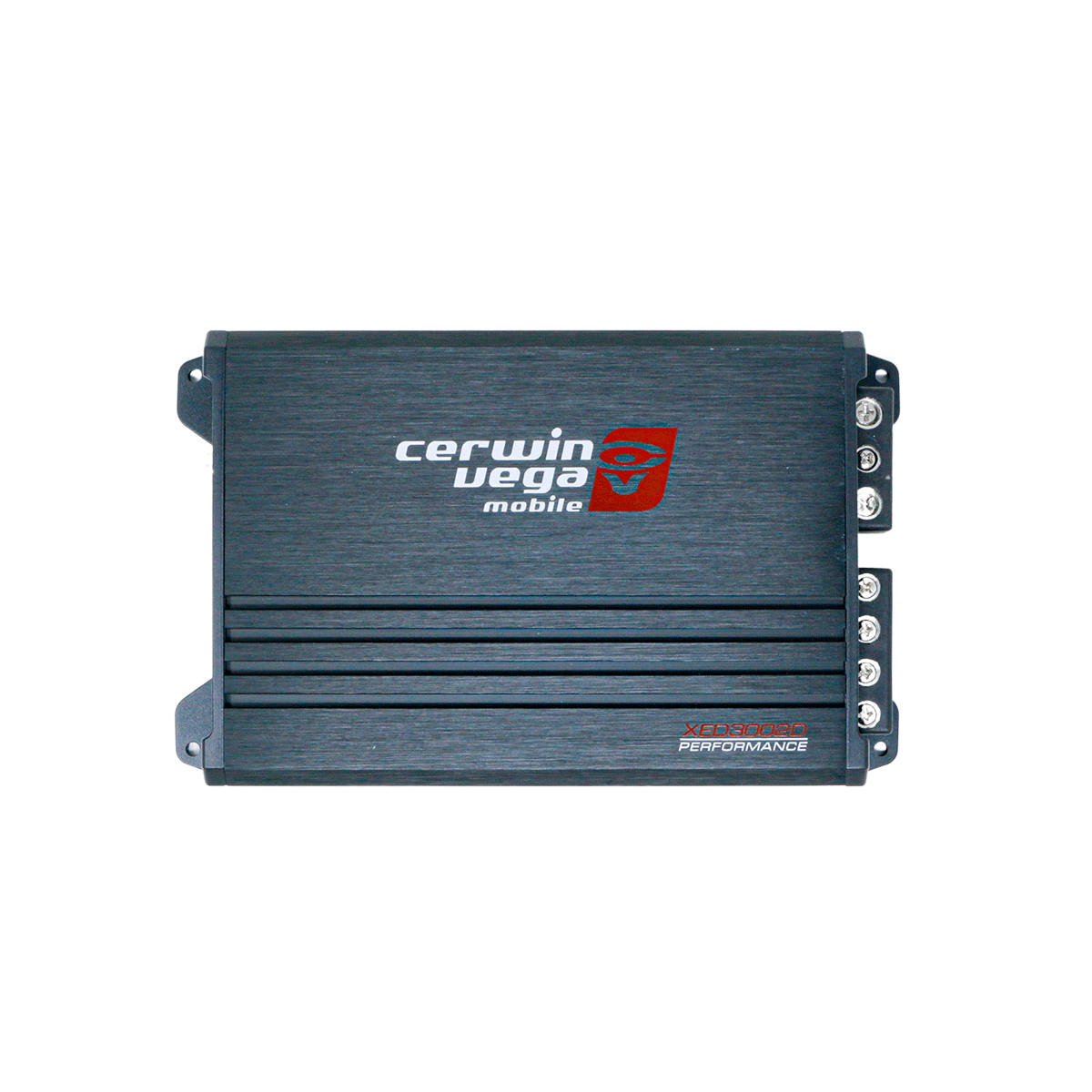

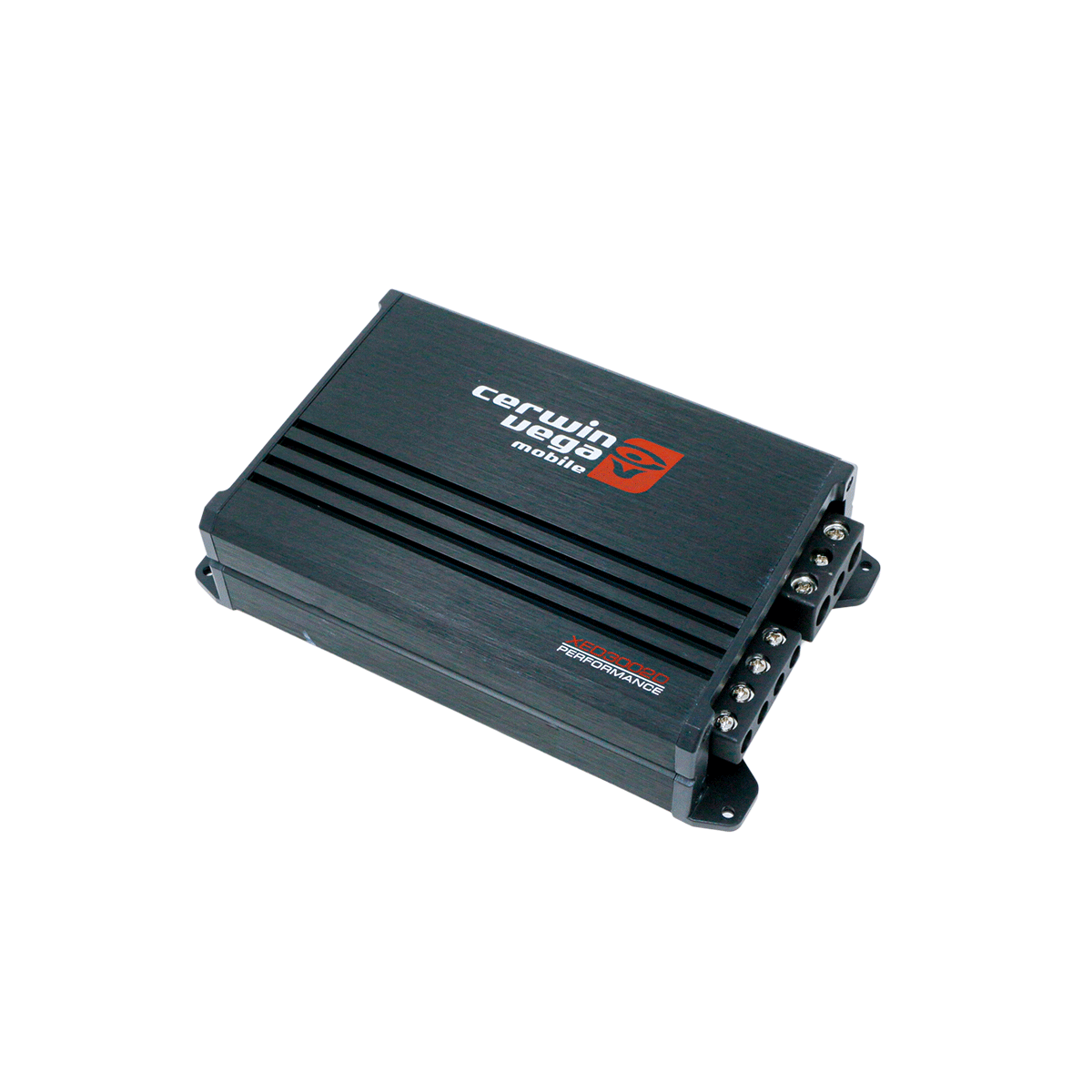

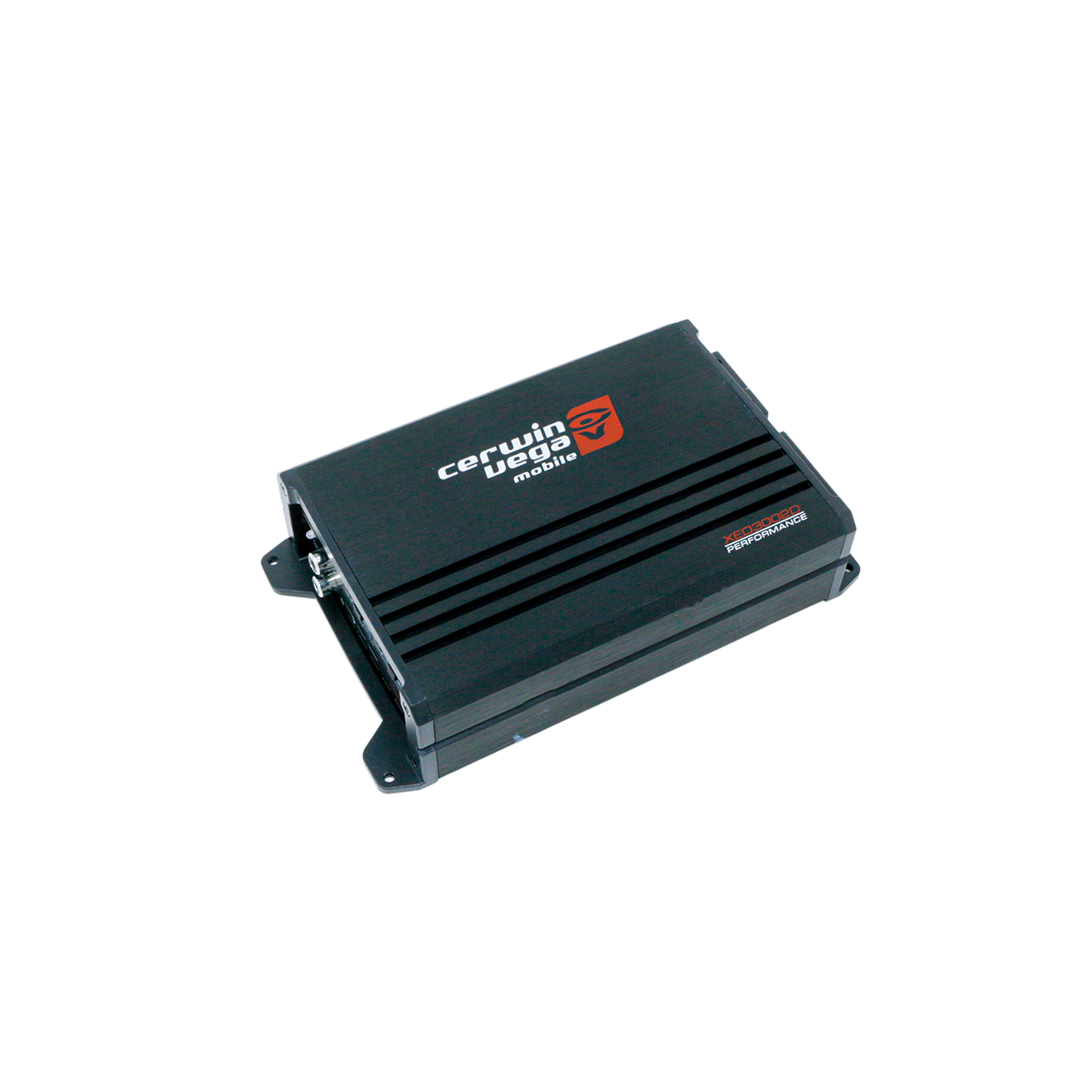

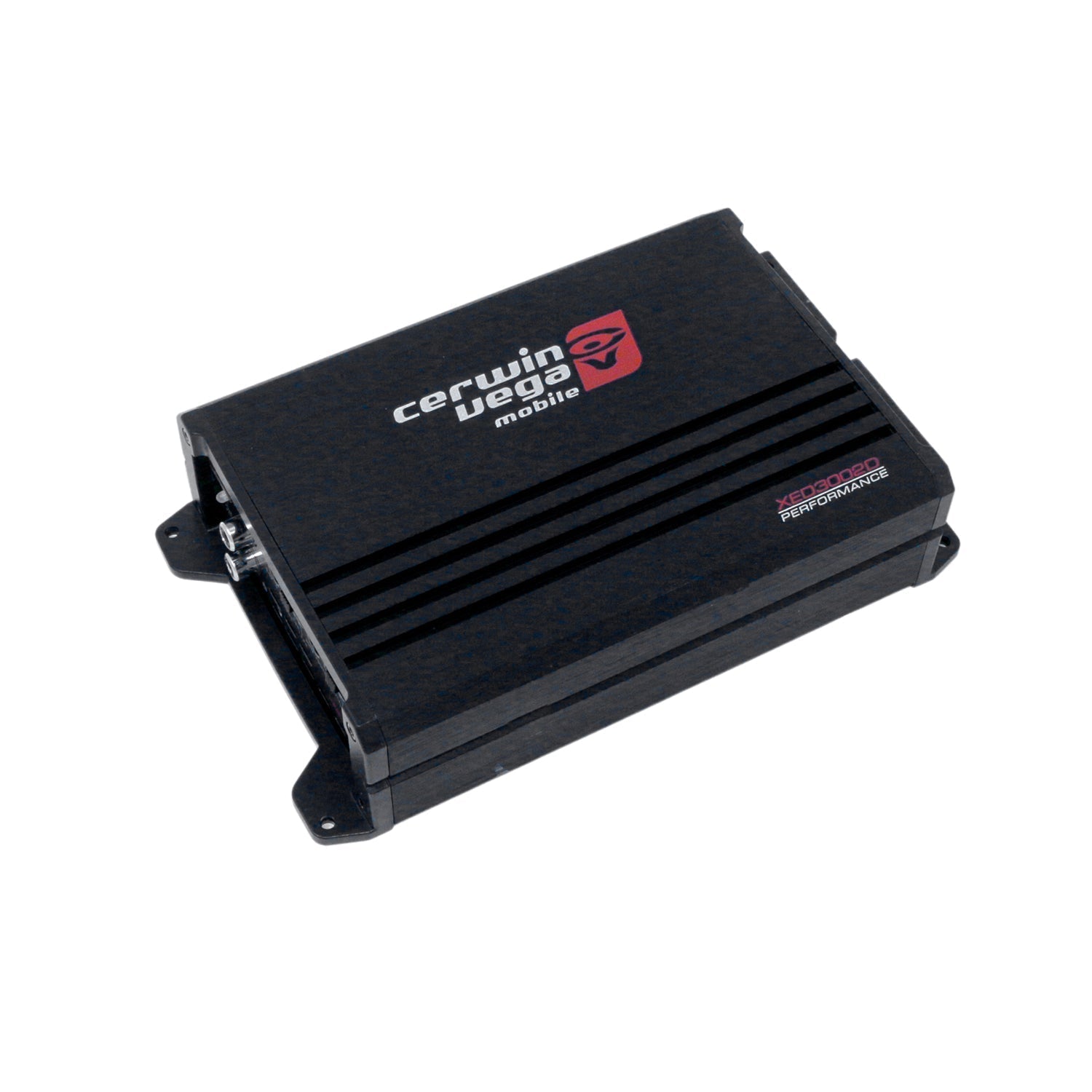

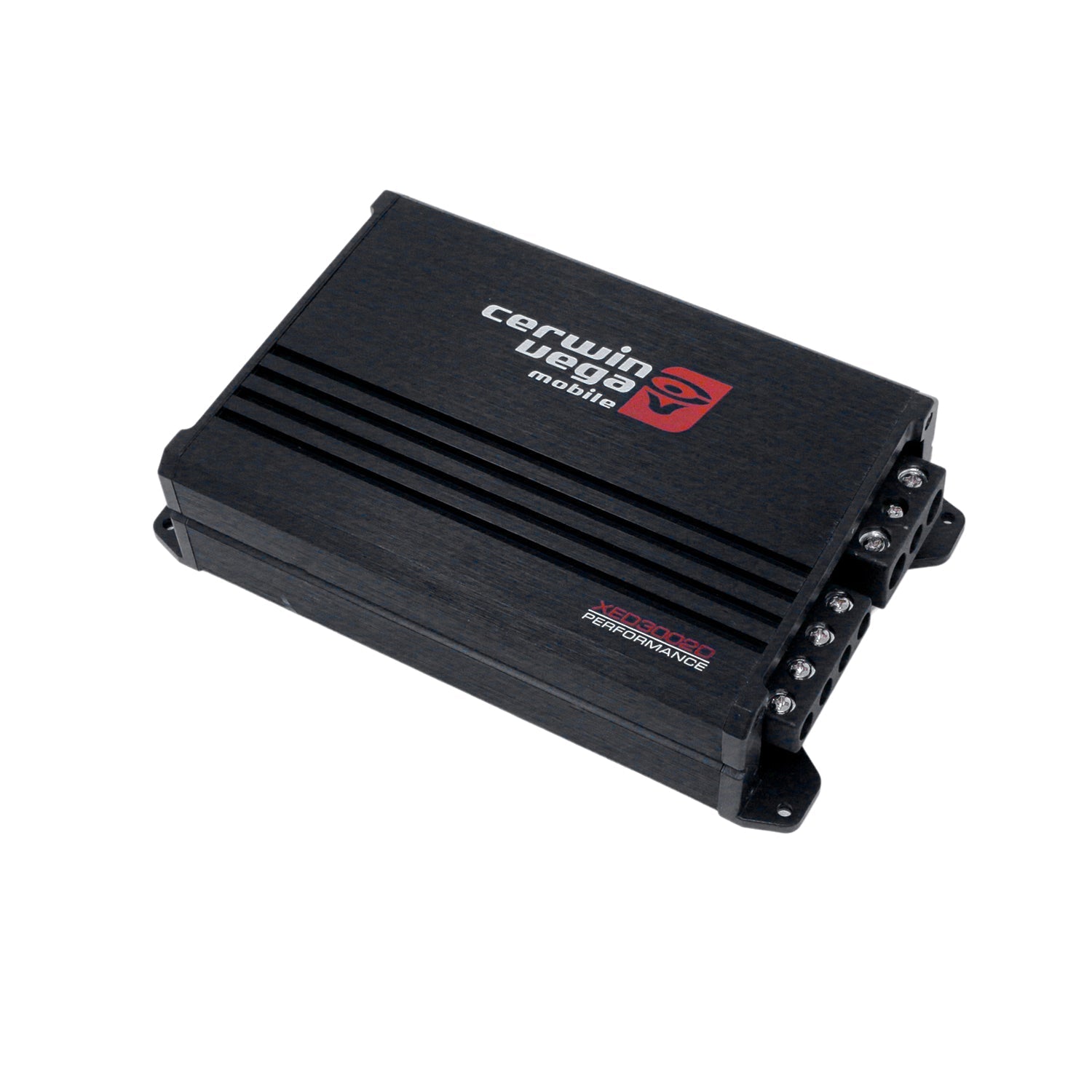

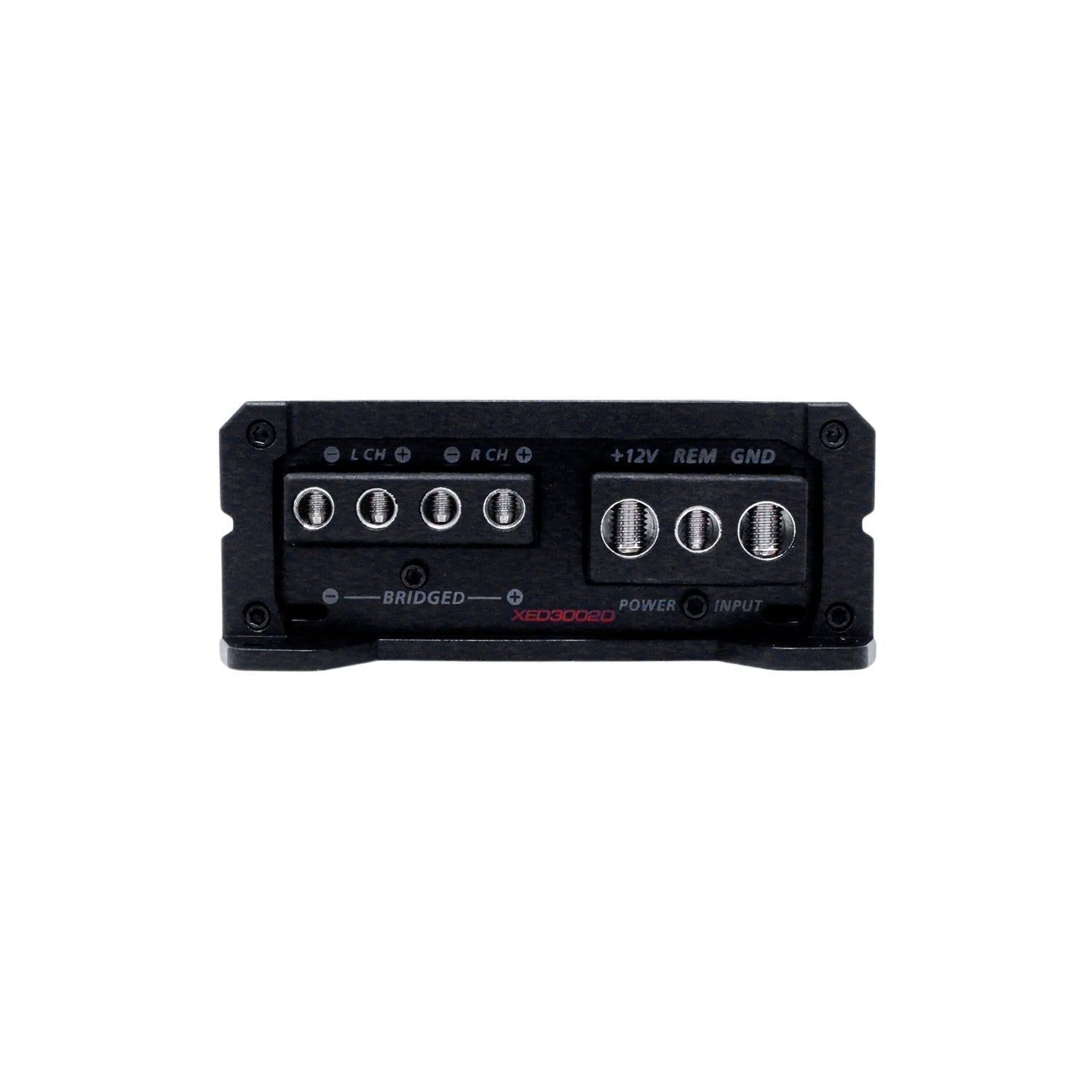

XED Series 2-Channel Full Range Class-D Amplifier - 250W Max - XED3002D
SKU:XED3002D
Couldn't load pickup availability
Overview
XED3002D - 2 Channel Class-D Amplifier

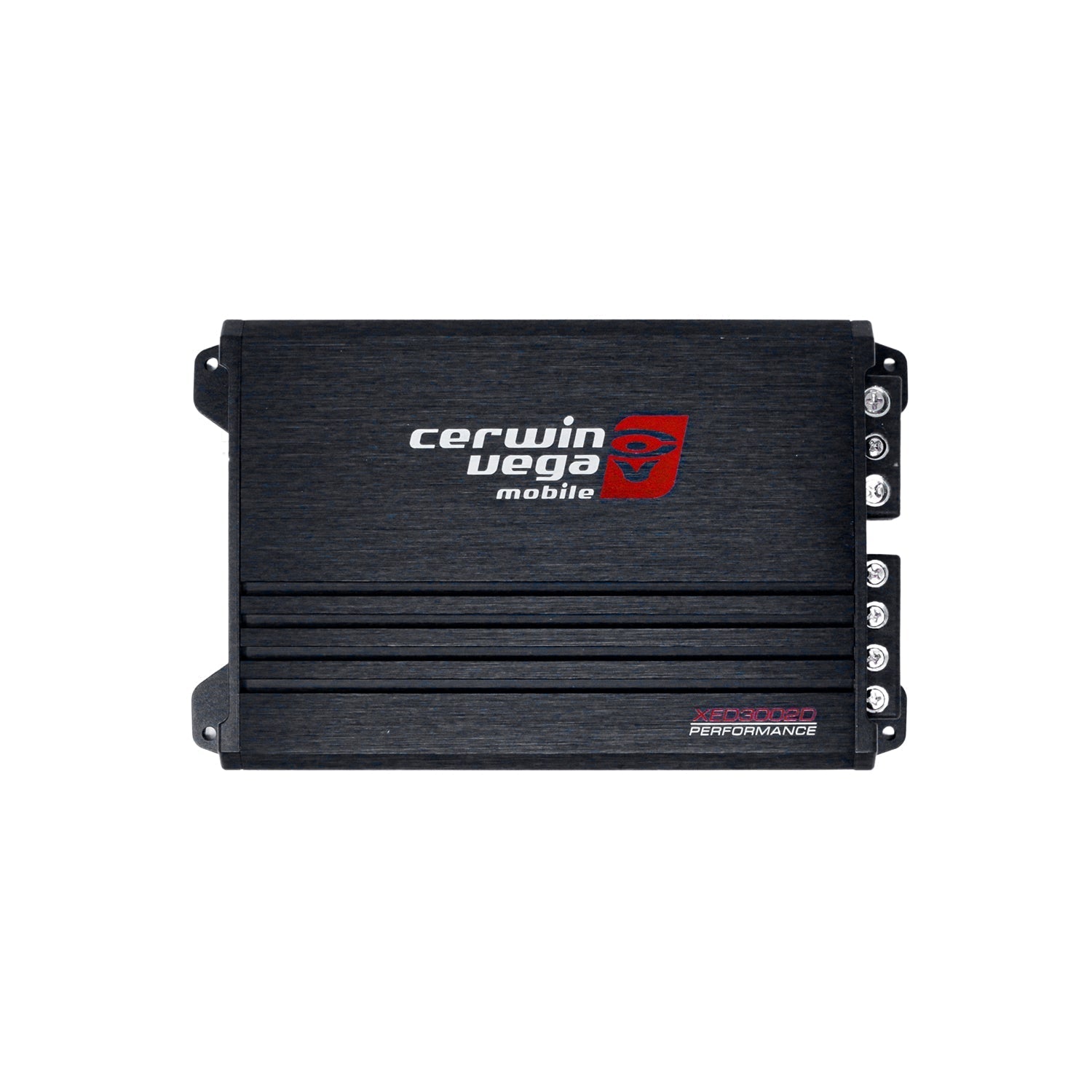

Cerwin-Vega XED Series Amplifiers – Xtreme Energy, Unleashed
The Cerwin-Vega XED Series Amplifiers are your ticket to high-performance car audio with power, precision, and reliability. Designed with Xtreme Energy Design, these amplifiers are engineered to take your sound system to the next level, delivering exceptional power and efficiency for every beat.
Precision Engineering for Superior Performance
- Class D Amplifier Technology: High-efficiency design ensures massive power output with minimal heat generation.
- Lightweight Aluminum Chassis: Enhances heat dissipation while reducing weight for efficient, long-lasting performance.
Durability Meets Power
- Robust Construction: Crafted with premium components for consistent, reliable operation.
- Built for Demanding Setups: Ideal for high-power audio systems, effortlessly driving subwoofers and speakers with clean, distortion-free sound.
- Performance that Thrills
The XED Series Amplifiers are built for those who crave deep bass, crisp highs, and seamless mids. With their cutting-edge technology and meticulous craftsmanship, they deliver the power and clarity needed to make every drive an immersive audio experience.
Why Choose the XED Series?
- Unrivaled Efficiency: Advanced Class D technology provides unmatched power-to-heat performance.
- Durable & Lightweight: Aluminum construction ensures cool operation and lasting reliability.
- High-Energy Output: Perfect for audiophiles seeking powerful and dynamic sound reproduction.
Unleash the full potential of your car audio system with Cerwin-Vega XED Series Amplifiers—where Xtreme Energy meets extreme performance.
Specifications
XED Series 2-Channel Full Range Class D Amplifier
- POWER RATING
- RMS Power @ 2Ω: 120W x 2
- RMS Power @ 4Ω): 80W x 2
POWER SUPPLY
- Power Supply: Full PWM
- Power Supply Threshold: 10.0V-16.0V (DC)
- Idle Current: (0.5A)
DISTORTION
- THD 4 (100Hz @4Ω): <0.1%
- S/N Ratio (A weighted @1W): -85dBA
- S/N Ratio (A weighted @FP): -101.1dBA
INPUT SENSITIVITY
Low Input Level: 250mV-12V
High Input Level: 1.3V~>20.0V
INPUT IMPEDANCE
Low Input Level: 20KΩ
High Input Level: 100Ω
OUTPUT STAGE
Output Impedance: 2Ω
Damping Factor (50Hz @ 4Ω): >70
Bandwidth (-3dB): 10Hz-30KHz
CROSSOVER (-12dB/Oct)
Variable High-Pass: 35Hz-250Hz
Variable Low-Pass: 35Hz-250Hz
Variable Sub-Sonic:
FUSE RATINGS
ATC (Inside): 20A
DIMENSIONS
L x W x H: 6.3”x 4.7”x 1.8” (160mm x 120mm x 46.5mm)

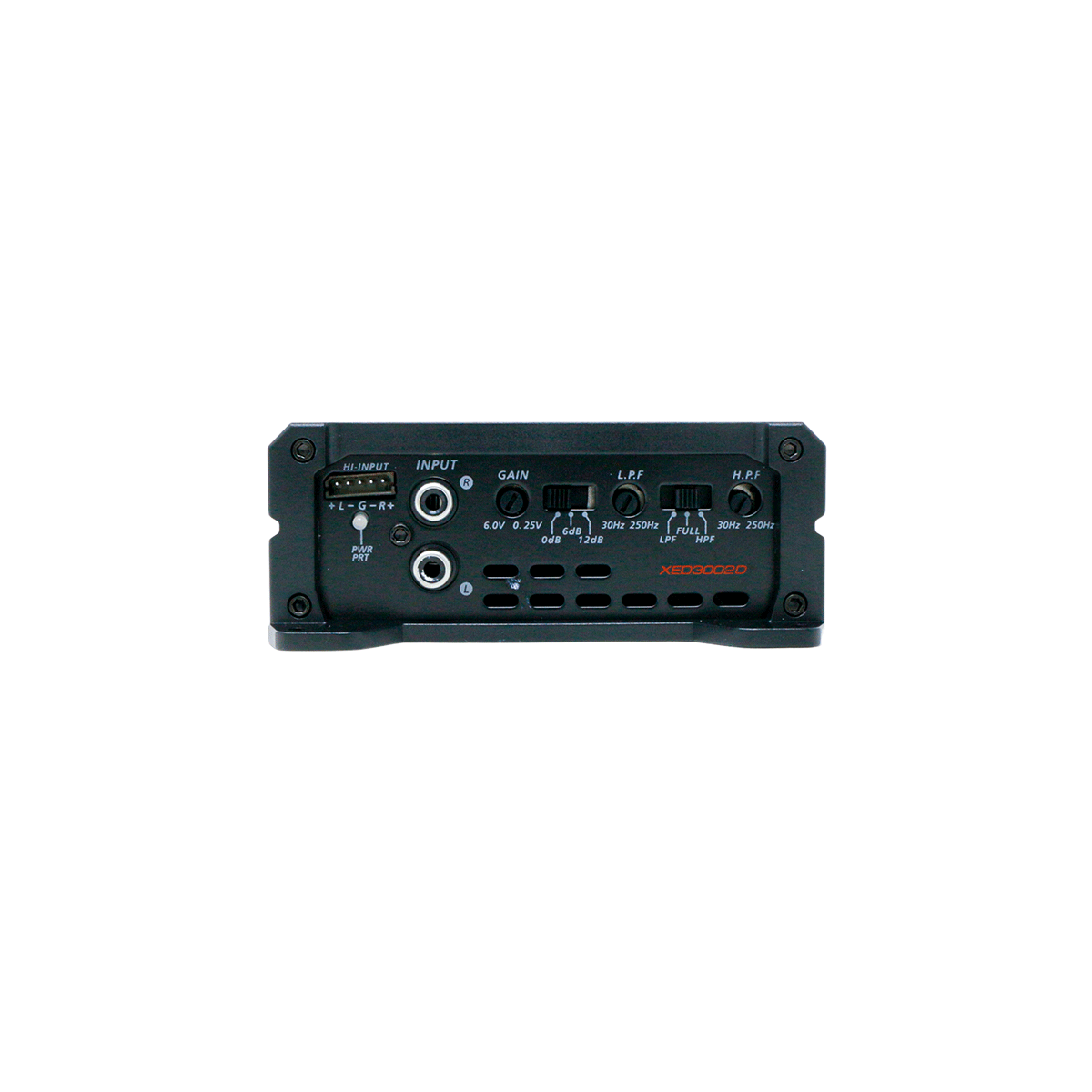

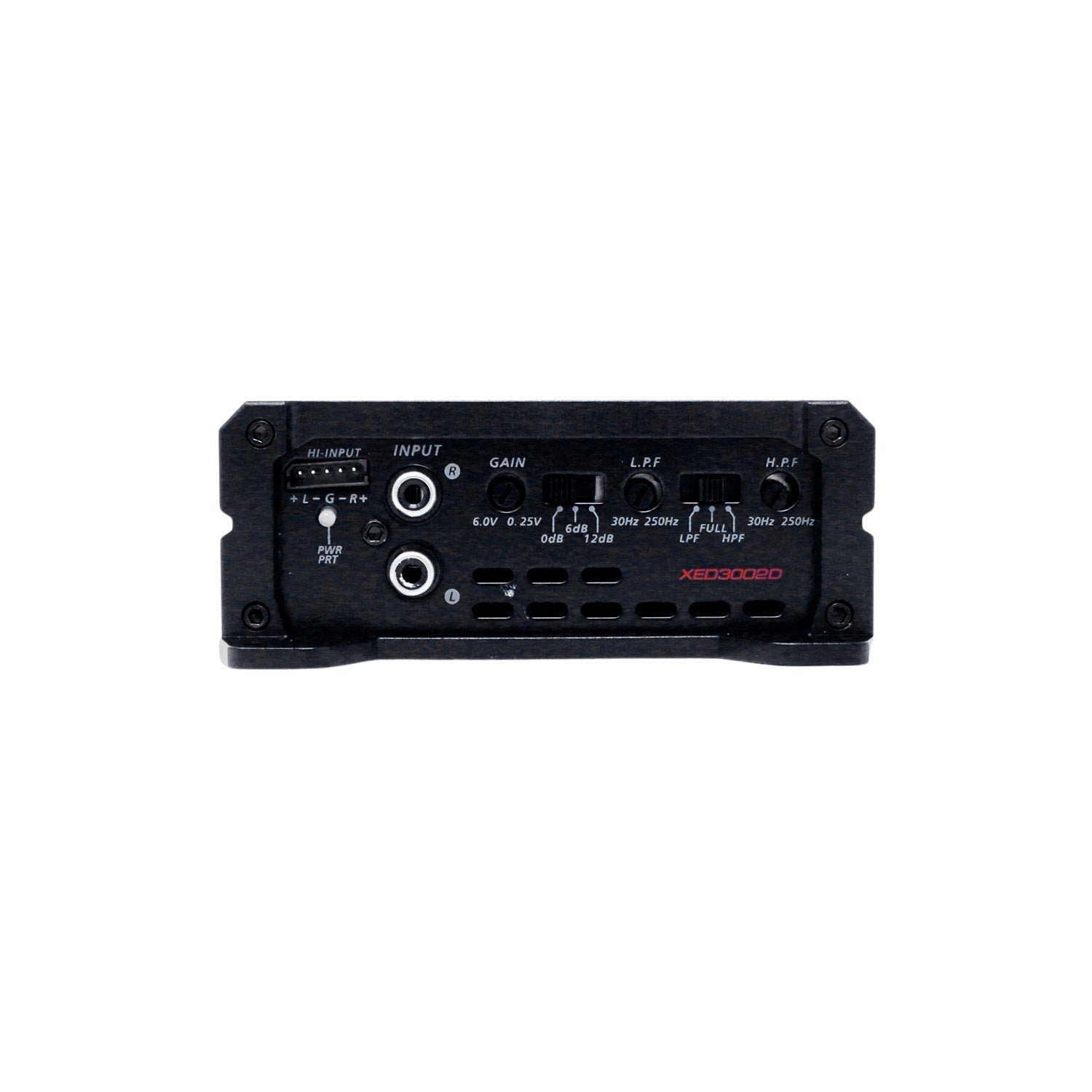

FEATURES
- LED Power/Protect Light Indicator
- Selectable X-Over: High Pass/Flat/Low Pass
- Selectable Bass Boost: 0dB/6dB/12dB
- MFR #: XED3002D
Measurements
Product Manuals







Xtreme Power, Ultimate Precision
The XED3002D 2-Channel Class-D Amplifier delivers high-efficiency power and clean sound. With advanced Class D technology and a lightweight aluminum chassis, it ensures reliable performance while driving subwoofers and speakers with ease.

Built for High-Performance Systems
Crafted with premium components and robust construction, the XED3002D handles demanding setups effortlessly. Experience deep bass, crisp highs, and seamless mids for an immersive car audio experience.
