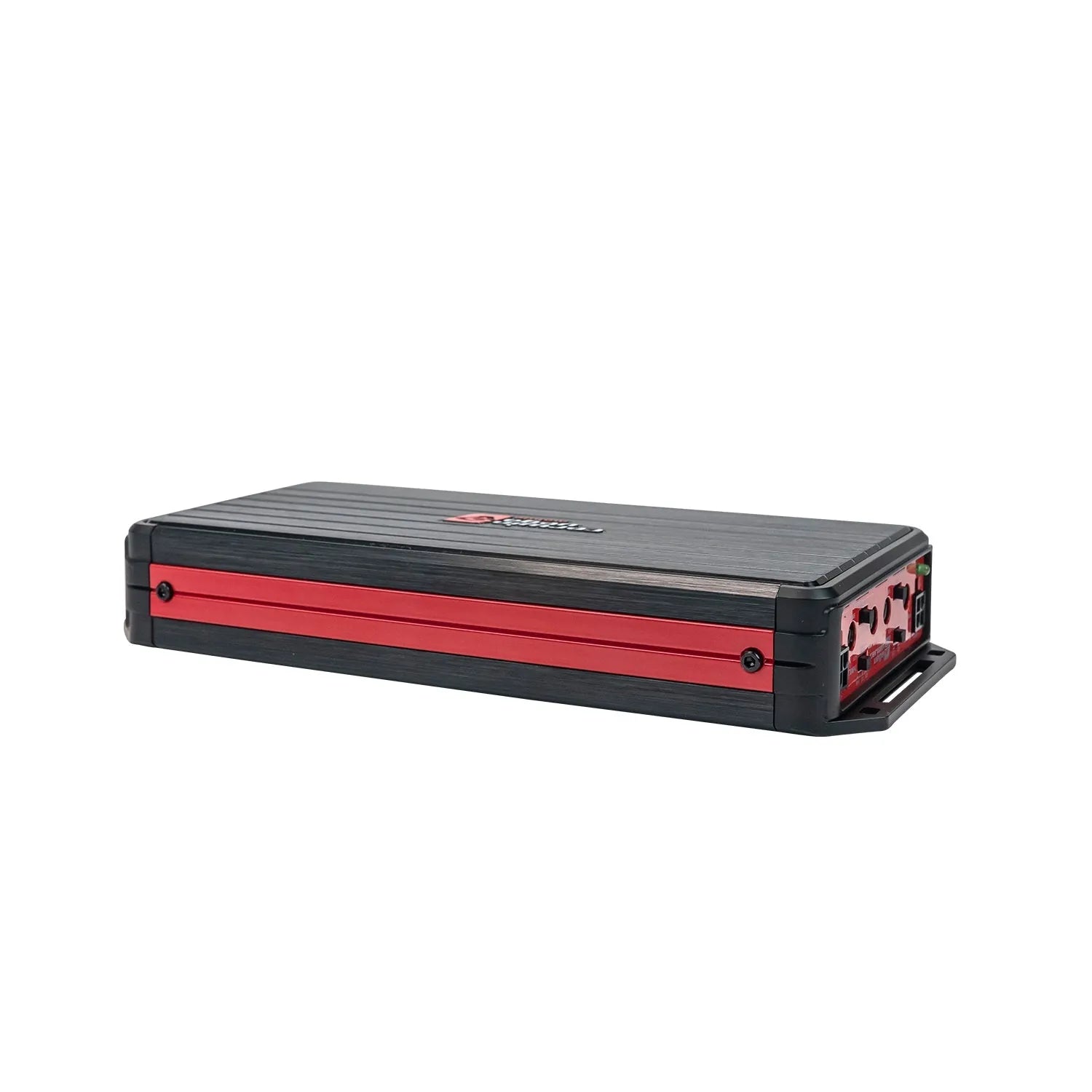

VEGA Series 4-Channel Full Range Class-D Amplifier - VCU84

Name: VEGA Series 4-Channel Full Range Class-D Amplifier - VCU84
Brand: Cerwin Vega
SKU: VCU84
Price: 419.99 USD
Availability: InStock

$419.99 USD

Sale Sold out

Size: 4 Channel

2 Channel 4 Channel 5 Channel 6 Channel 1 Channel

Quantity

Overview

VCU84 - VEGA Series 4-Channel Full Range Class-D Amplifier

Cerwin-Vega Vega Series Amplifiers – Compact Design, Monstrous Power

The Vega Series Amplifiers have solidified their place as the backbone of the Cerwin-Vega Mobile brand, delivering unrivaled performance in a sleek, compact package. Don’t be deceived by their streamlined design—these amplifiers pack a punch with monstrous power output to drive your system to its fullest potential.

Innovation Meets Power

Updated High-Efficiency Full Range Digital Topology: Experience exceptional sound clarity with maximum energy efficiency.
Enhanced Power IR Digital Chipset: Engineered for stability and precision, ensuring consistent performance under any condition.

Engineered for Durability

Conformal-Coated 4-Layer PCB: Protected against moisture and environmental wear for long-lasting reliability.
Water-Resistant Design: Built to withstand the rigors of the road, wherever your journey takes you.

Unmatched Versatility

Remote Turn-On Configurator (REM/DC/VOX): Simplifies integration with any audio system.
Accepts Hi and Lo-Level Inputs Up to 12V: Seamlessly connects to your existing setup, no matter the source.
Boosted RFI Rejection: Keeps your sound crystal-clear, free from interference.

Compact Design, Big Impact

The matching heatsink platform dimensions ensure a consistent, stylish look while optimizing thermal management for uninterrupted performance.

Why Choose Vega?

Whether you’re a seasoned audio enthusiast or just starting to elevate your system, the Vega Series Amplifiers offer a balance of design, durability, and performance that’s hard to beat. From pounding bass to crystal-clear highs, these amps are the powerhouse your system deserves.

The Vega Legacy

With Cerwin-Vega’s unmatched legacy of audio innovation and more than 65 years of expertise, the Vega Series Amplifiers continue to define what’s possible in mobile sound systems.

Compact. Powerful. Reliable. Elevate your audio experience with Vega Series Amplifiers.

Specifications

POWER RATING

FREQUENCY RESPONSE (HZ): 40HZ - 400HZ
RMS POWER PER CHANNEL 4Ω 80W X 4
RMS POWER PER CHANNEL 2Ω 150W X 4
RMS POWER PER 2 CHANNELS BRIDGED 4Ω 300W X 2

POWER SUPPLY

Power Supply: Full PWM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)

DISTORTION

THD 4 (1KHz @4Ω): 0.05%
S/N Ratio (A weighted @1W): -85 dBA
S/N Ratio (A weighted @FP): -101.1 dBA

INPUT SENSITIVITY

Low Input Level: 200mV-10.0V
High Input Level: 200mV-10.0V

INPUT IMPEDANCE

Low Input Level: 20 KΩ
High Input Level: 20 KΩ

OUTPUT STAGE

Output Impedance: 0.018Ω
Damping Factor (50Hz @ 4Ω): >70
Bandwidth (-3dB): 10Hz-35KHz

CROSSOVER (-12/-24 dB/Oct)

Variable High-Pass: 40Hz-400Hz
Variable Low-Pass: 40Hz-400Hz
Variable Sub-Sonic:

FUSE RATINGS

ATC: 40A

DIMENSIONS

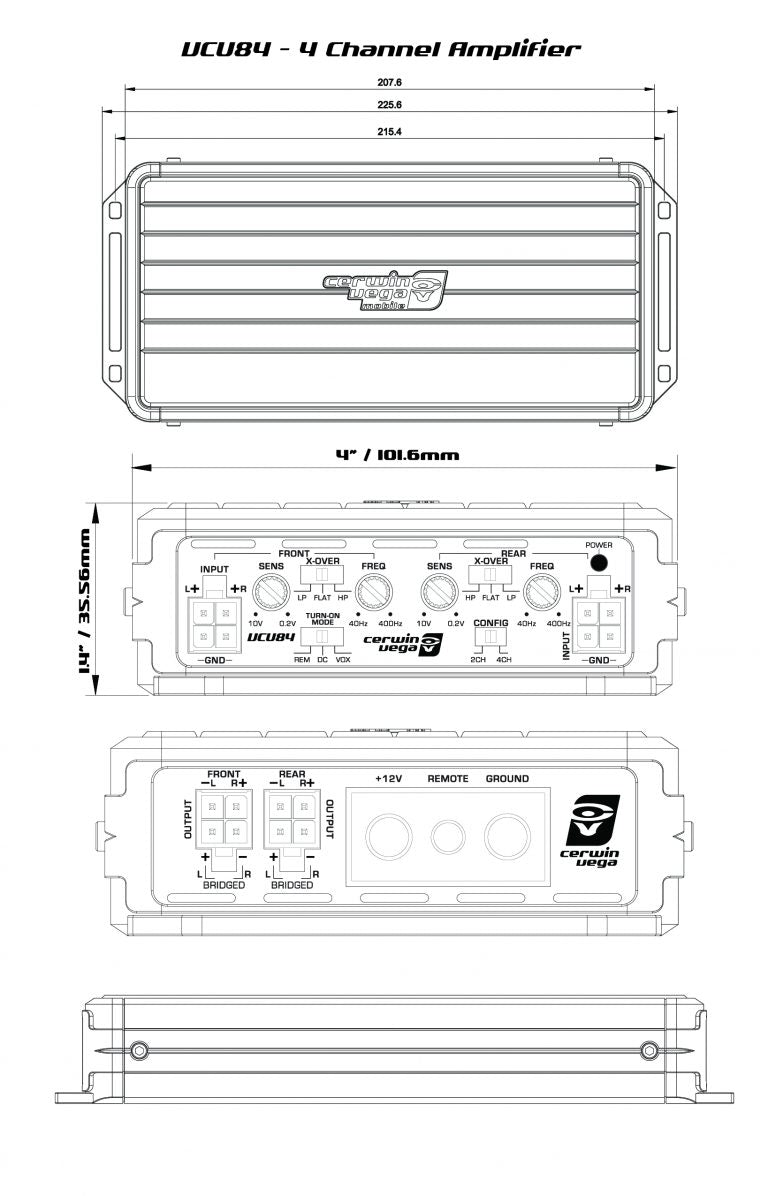

L x W x H: 8.8”x 4.02”x 1.4” (225.6mm x 102mm x 36mm)

FEATURES

Full Range Class D IR Chipset
DirectFET Power Mosfet Output Stage
SMD Technology on 4-Layer PCB Board
Water Resistant Conformal PCB Board Coating
1-year Manufacturer's Warranty
MFR #: VCU84

Product Manuals

View Product Details

Gallery
Review

Dominate Your Audio Landscape

Get Ultimate Control and Power with VEGA Class-D 4 Channel!

Elevate Every Beat

Experience Superior Sound.

Unleash Unmatched Audio Power

Amplify Excellence with VEGA Class-D 4 Channel Precision!

Not worth it

This is a great size for apowerful amp, but that's where the positives stop. The first amp I received was damaged out of the box but the original packaging was unblemished. When inserted, the plug would not release.The replacement amp sounded great at 1/4 volume. When turned up to half, one side blew.
