VEGA Class-D Digital 4 Channel Amplifier -VCU84

Name: VEGA Class-D Digital 4 Channel Amplifier -VCU84
Brand: Cerwin Vega
SKU: VCU84
Price: 379.99 USD
Availability: InStock

SKU:VCU84

$379.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Overview

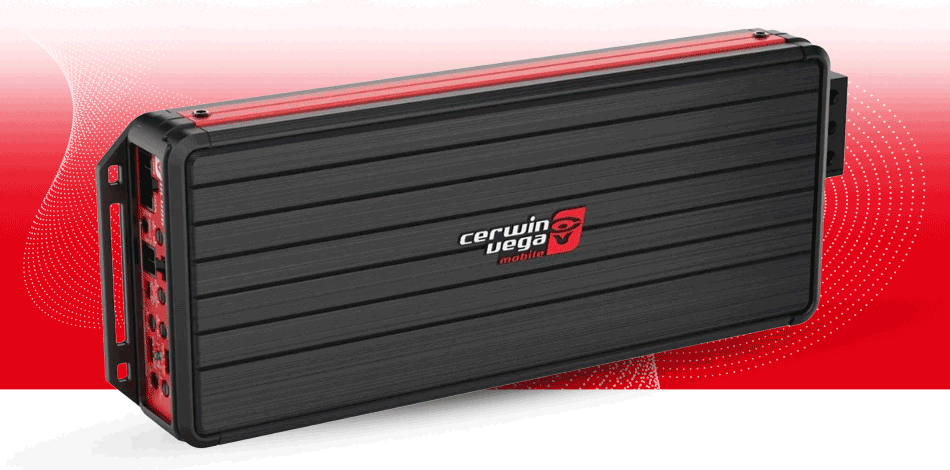

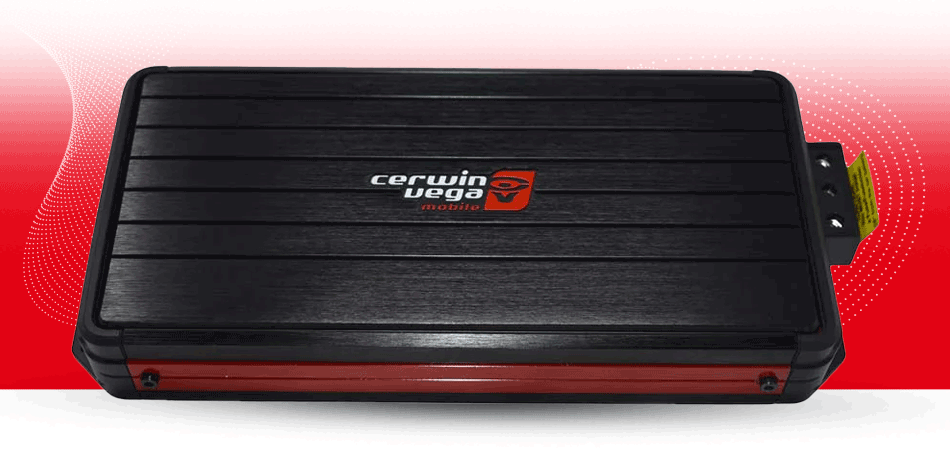

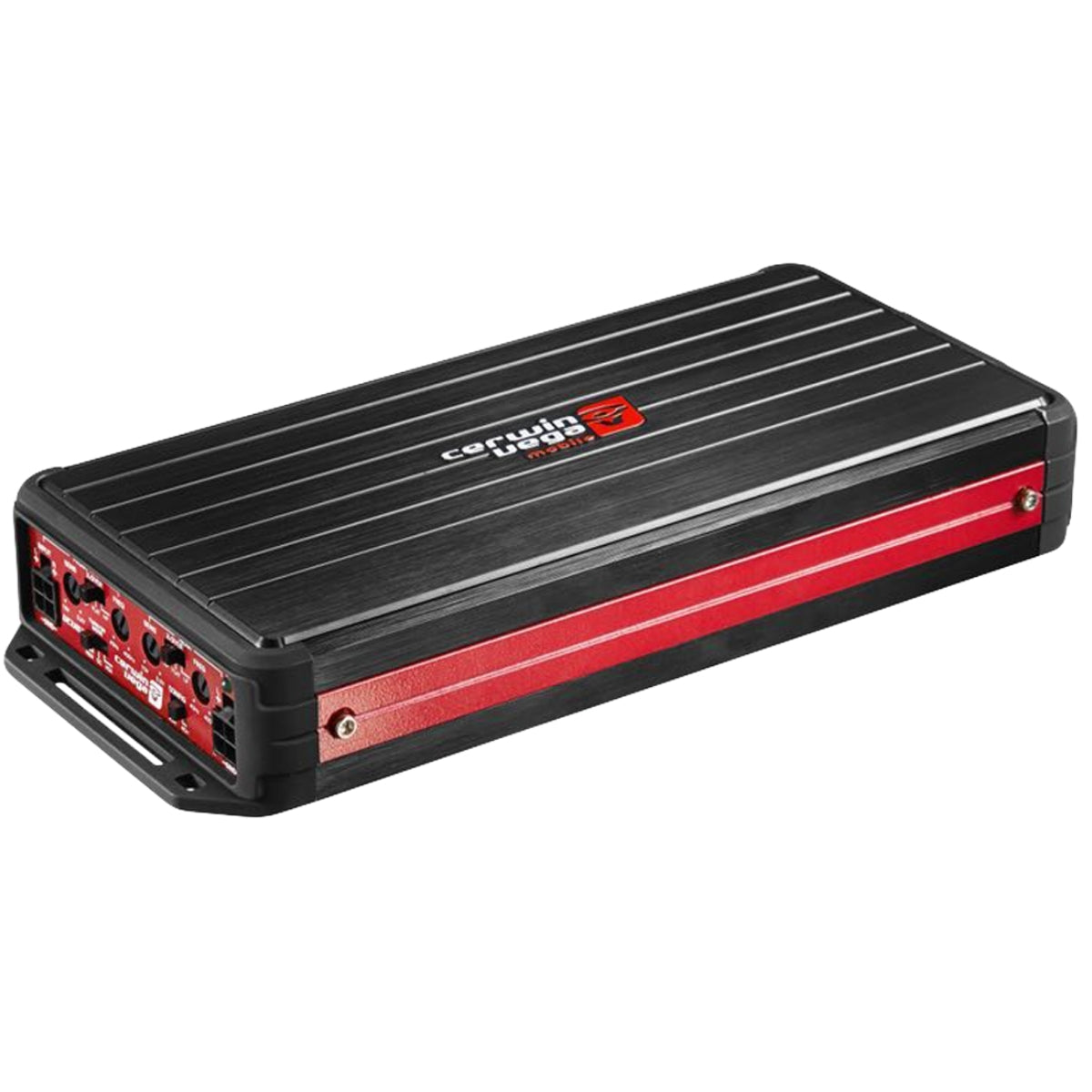

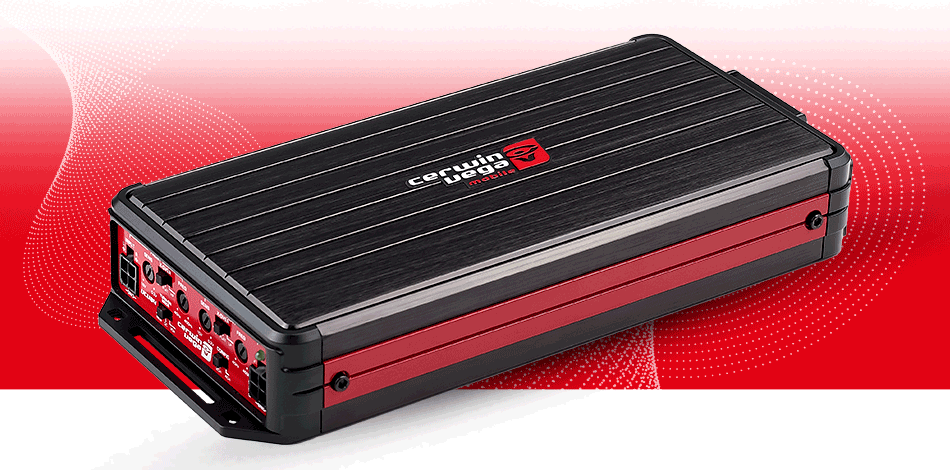

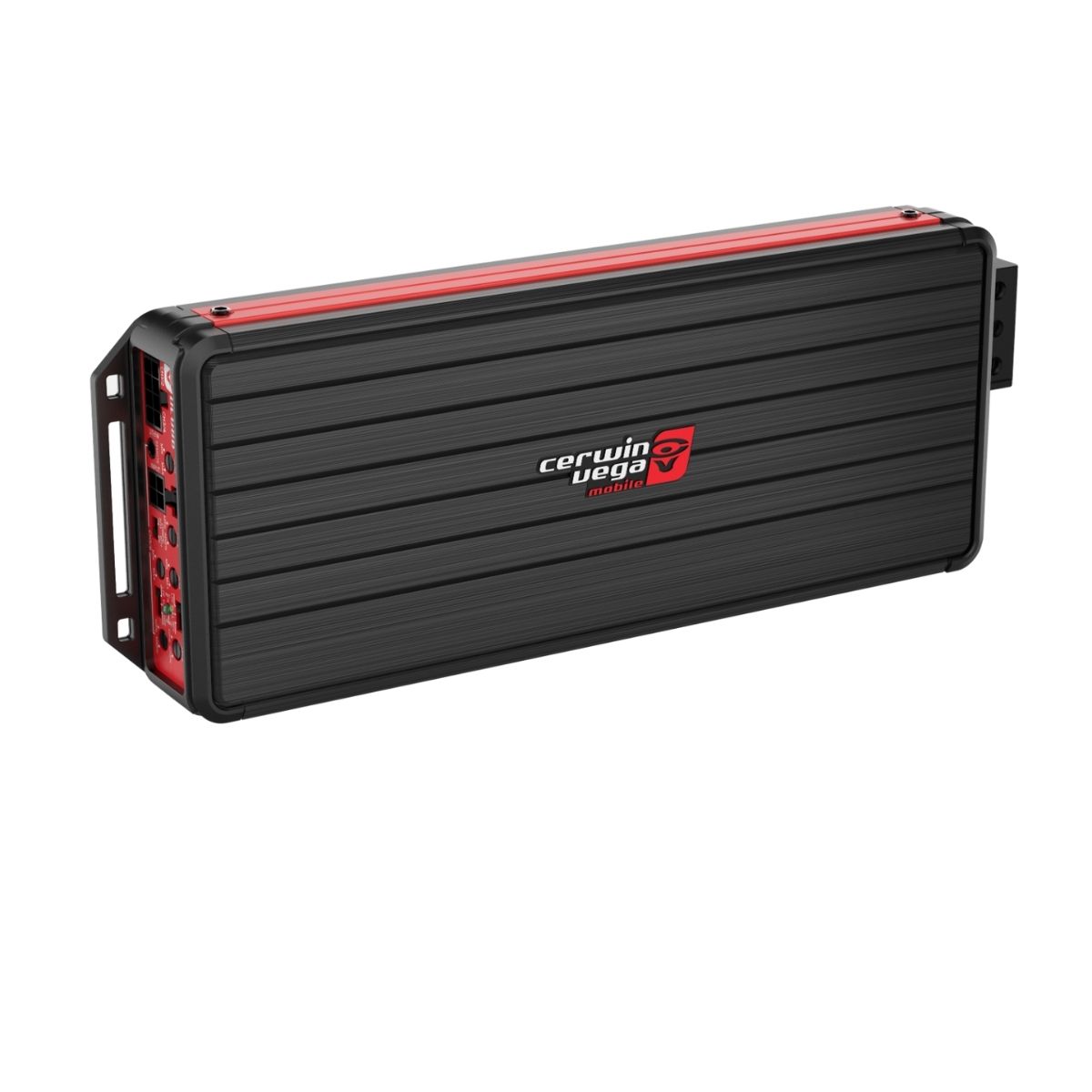

VCU84 - VEGA Class-D Digital 4 Channel Amplifier

Description:

VEGA series amplifiers have been the staple of the Cerwin-Vega Mobile brand. It’s sleek and compact design makes installation seamless but don’t let its dimensions fool you as VEGA series amplifiers generate monstrous power output. Updated High-Efficiency Full Range Digital Topology. Enhanced Power IR Digital Chipset. Conformal-Coated 4-layer PCB. Remote Turn On Configurator - REM/DC/VOX. Boosted RFI (Radio Frequency Interference) Rejection. Compact Matching Heatsink Platform Dimensions. Accepts HI and LO Level Input Up To 12V. Water Resistant.

Specifications

Cerwin Vega Micro Series VCU84
Class-D Full Range 4-Ohm Stable 4-Channel Amplifier
RMS Power Rating:
4 ohms: 80 watts x 4 chan
2 ohms: 150 watts x 4 chan.
1 ohm: ------------N/A------------
Bridged, 4 ohms: 300 watts x 2 chan.
Total power output: 550 watts
Compact Universal All-Weather Application
CEA-2006 Compliant Amplifier
Pulse Width Modulated MOSFET power supply
High-Power Digital Class D Advanced Technology IR Chipset
Wired remote bass level control included
LED power (green) and protect (red) indicators
Soft start turn-on
2/4 channel operation
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
Input sensitivity: 200mV-10V
Frequency Response: 10 - 30000 Hz
Total Harmonic Distortion (THD): 0.5%
Signal to Noise Ratio: >85 dB
Channel Separation: >55 dB
Variable high-pass filter: 40 - 400 Hz, 24 dB/octave
Variable low-pass filter: 40 - 400 Hz, 24 dB/octave
Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
Fuse Rating: 40 A x 2
8 gauge power and ground wiring is recommended for installation.

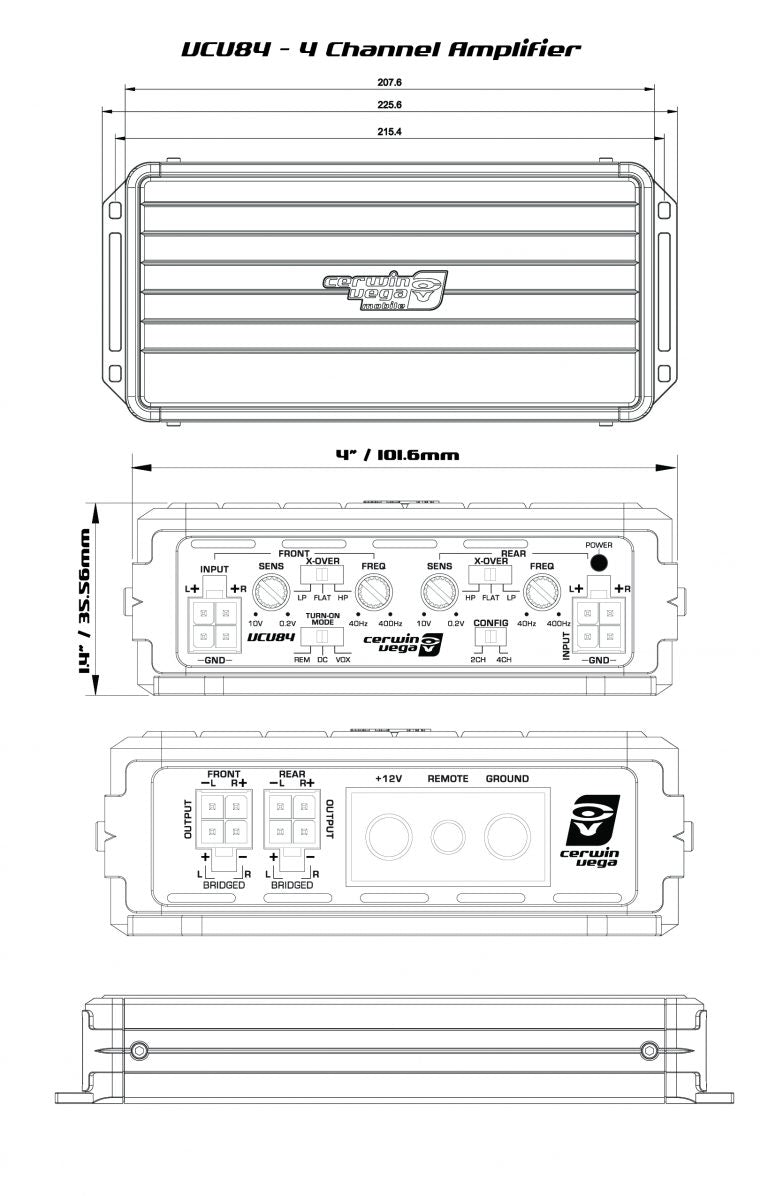

Dimensions: 4.02"W x 8.8"L x 1.4"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Product Manuals

View Product Details

Gallery
Features
Specs
Review
Support

Dominate Your Audio Landscape

Get Ultimate Control and Power with VEGA Class-D 4 Channel!

Elevate Every Beat

Experience Superior Sound.

Unleash Unmatched Audio Power

Amplify Excellence with VEGA Class-D 4 Channel Precision!

Features

Portable Design

Embrace the freedom of music on the move with our cutting-edge Portable Design. Perfect for every adventure, from impromptu beach parties to relaxing backyard gatherings, our speakers offer the ultimate in portability without compromising on sound quality. Lightweight yet robust, these speakers are crafted to go wherever the party takes you.

Water-Resistant

Never let a little water dampen your spirits with our Water-Resistant speakers. Designed to withstand splashes and light rain, these speakers are perfect for pool parties, beach outings, and more. Enjoy your music worry-free, knowing your speakers are protected against the elements.

RCA Input

Ensure high-quality audio connectivity with our RCA Input. Ideal for connecting traditional audio devices, this input guarantees a stable and clear audio signal, preserving the integrity of your sound. It's a perfect match for audiophiles who value classic audio connections.
