4-Channel CVPM Mini-Series Full Range Class-D Amplifier - CVPM400.4D

Name: 4-Channel CVPM Mini-Series Full Range Class-D Amplifier - CVPM400.4D
Brand: Cerwin Vega
Price: 139.99 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$139.99 USD

Sale Sold out

Weight: 2.2 lb

Size: 4 Channel

1 Channel 4 Channel

Quantity

Overview

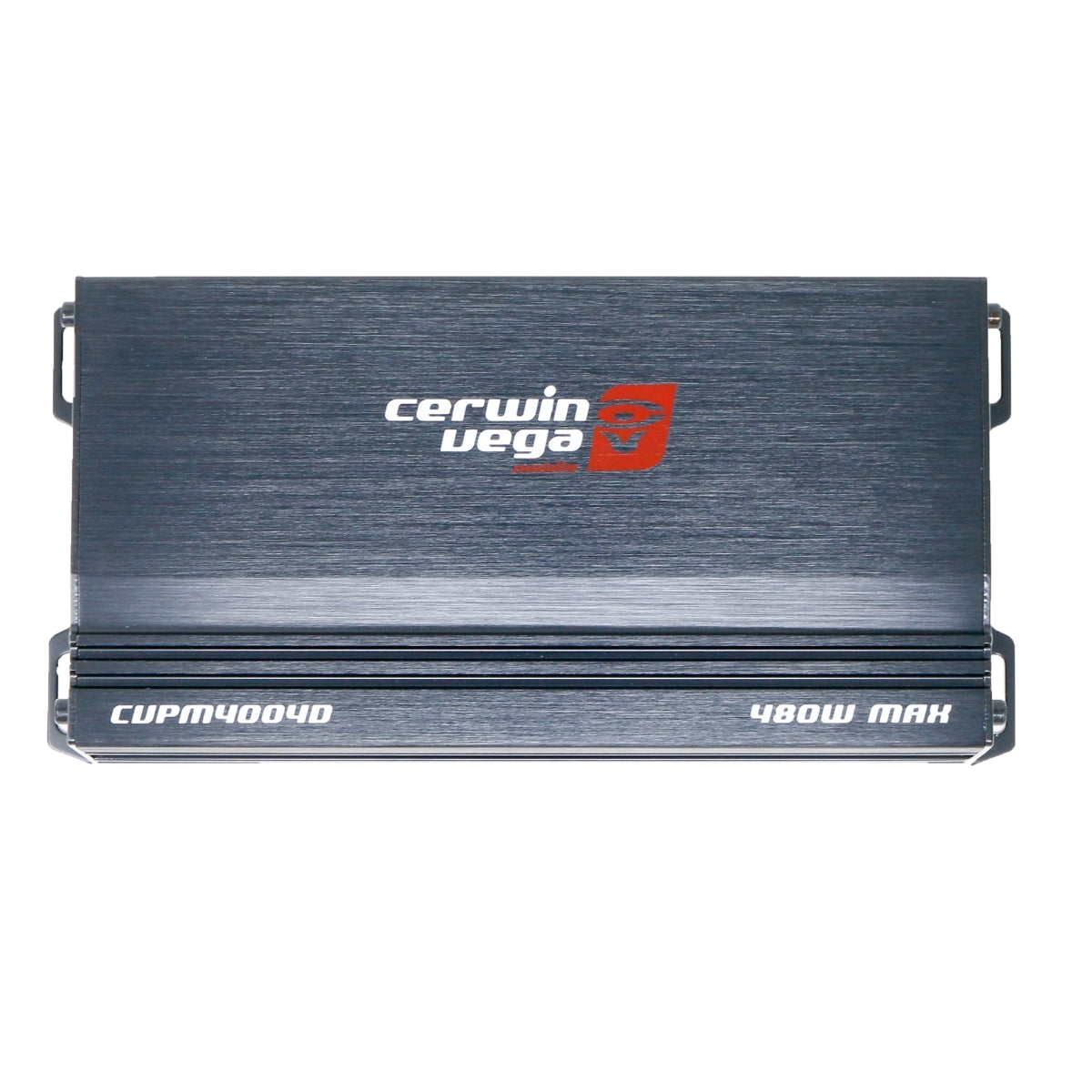

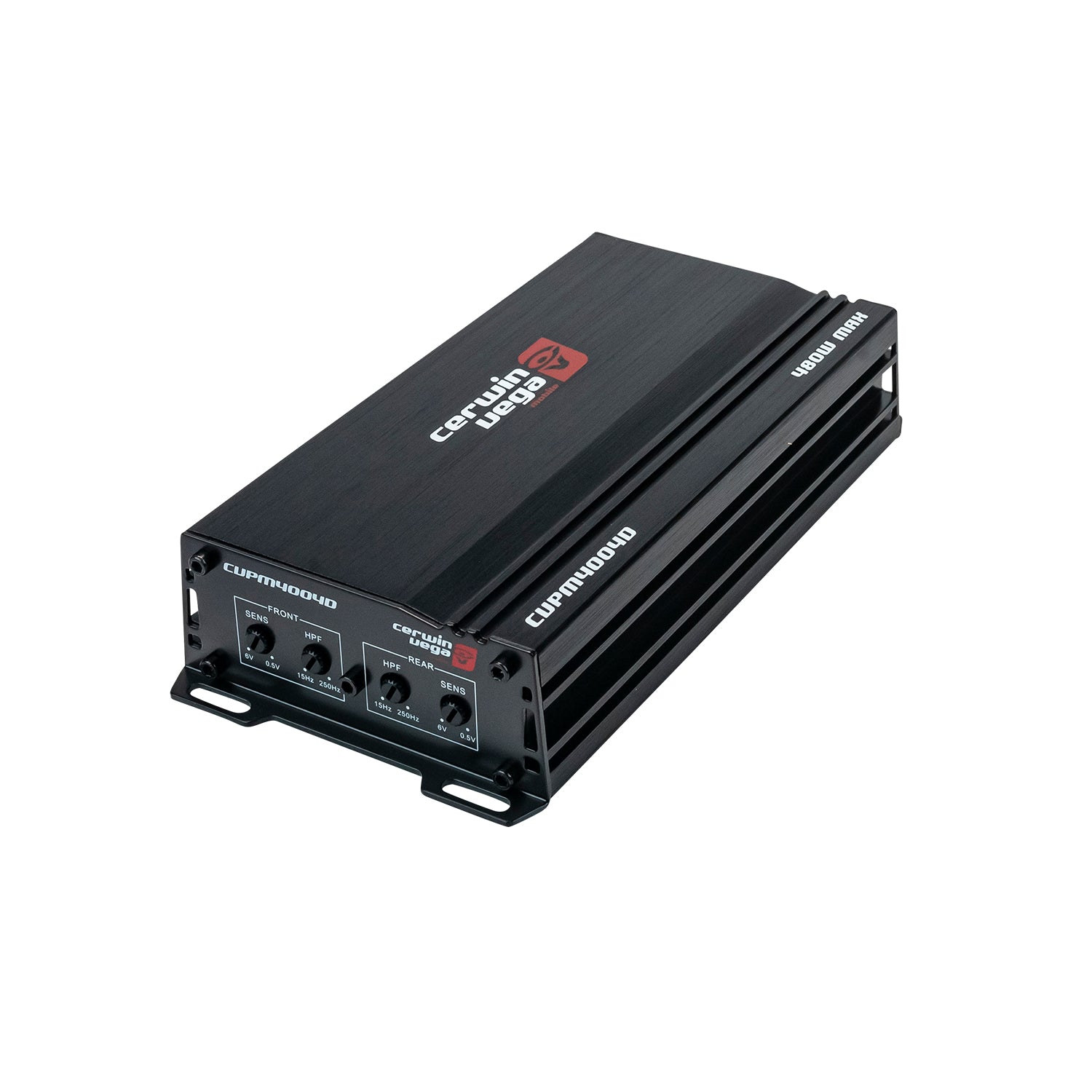

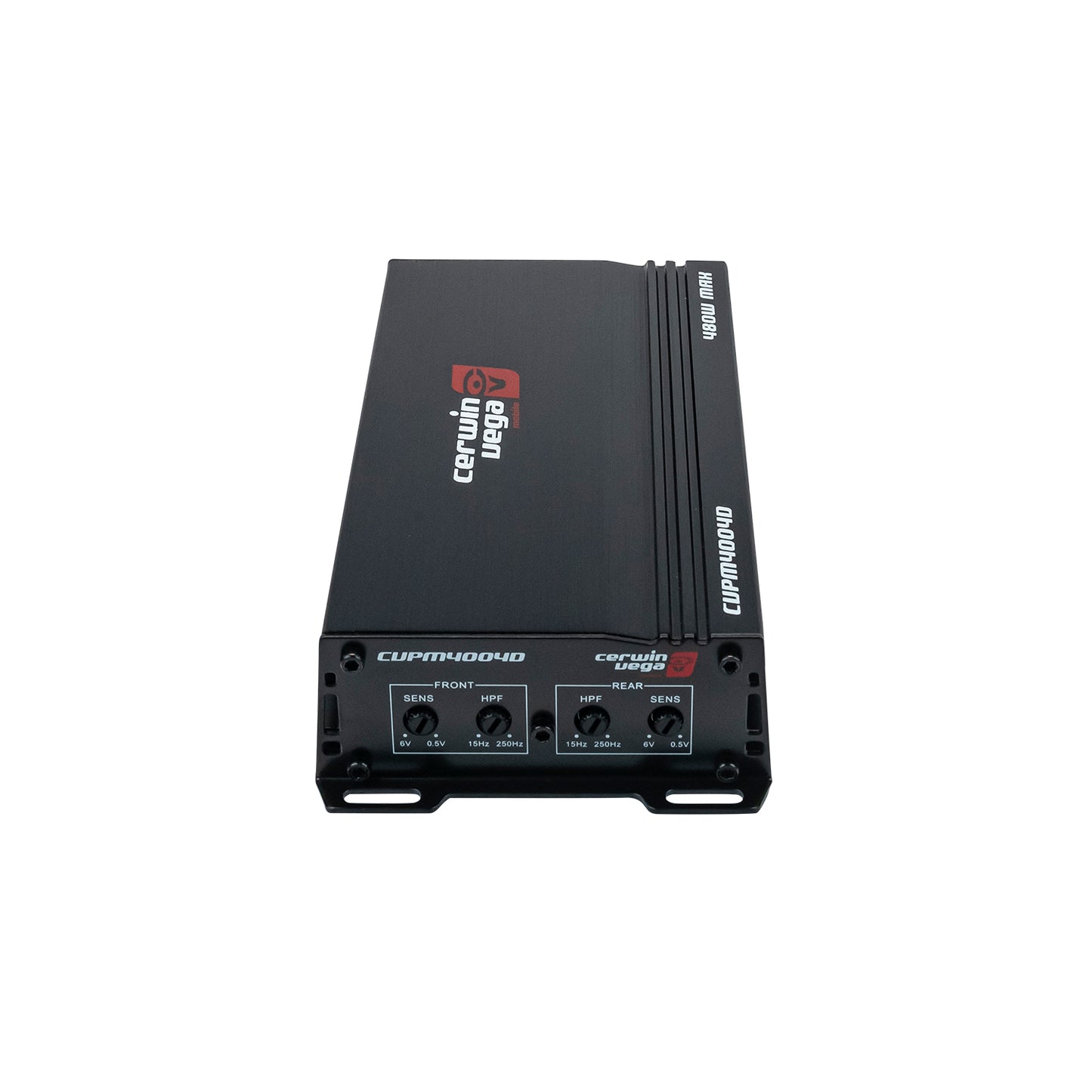

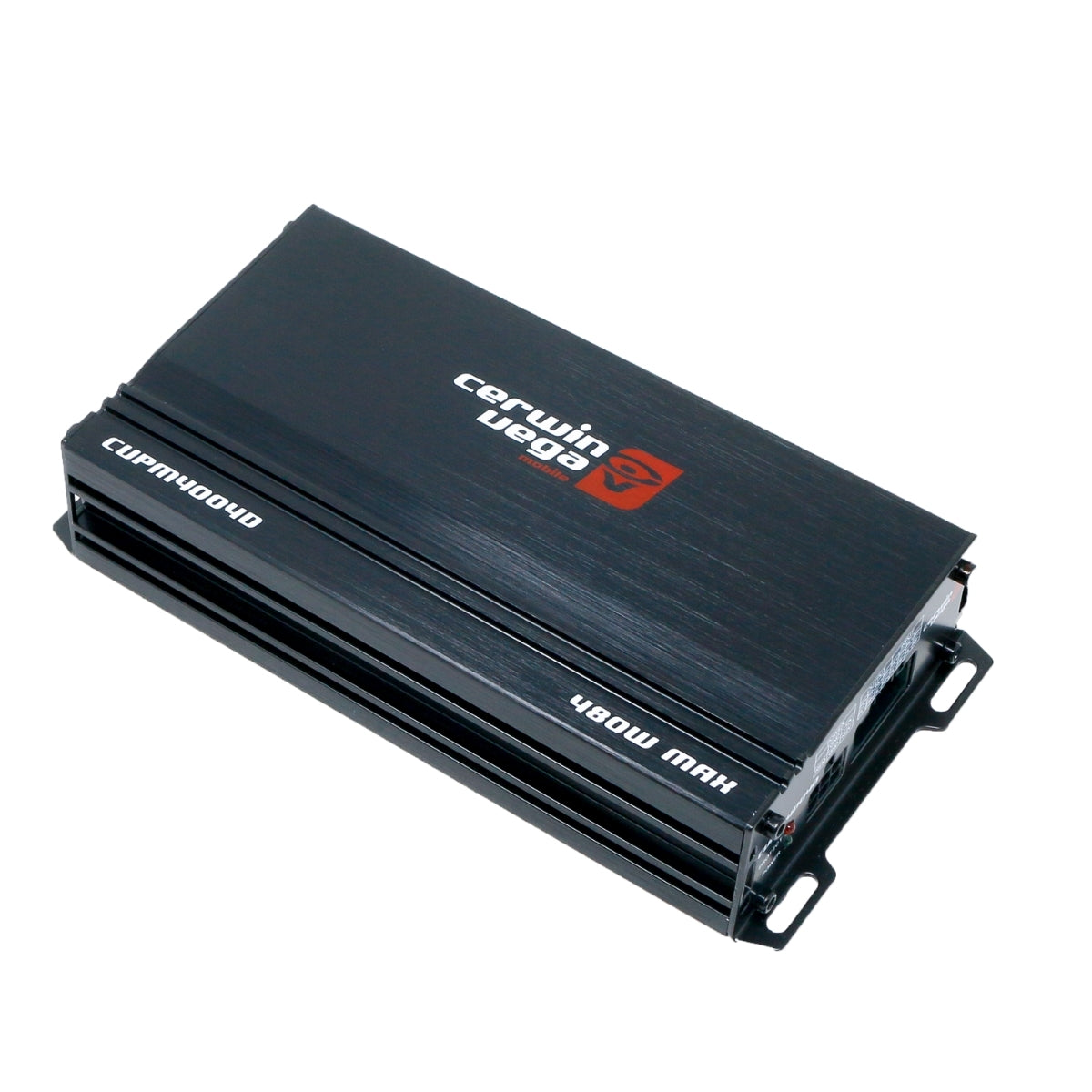

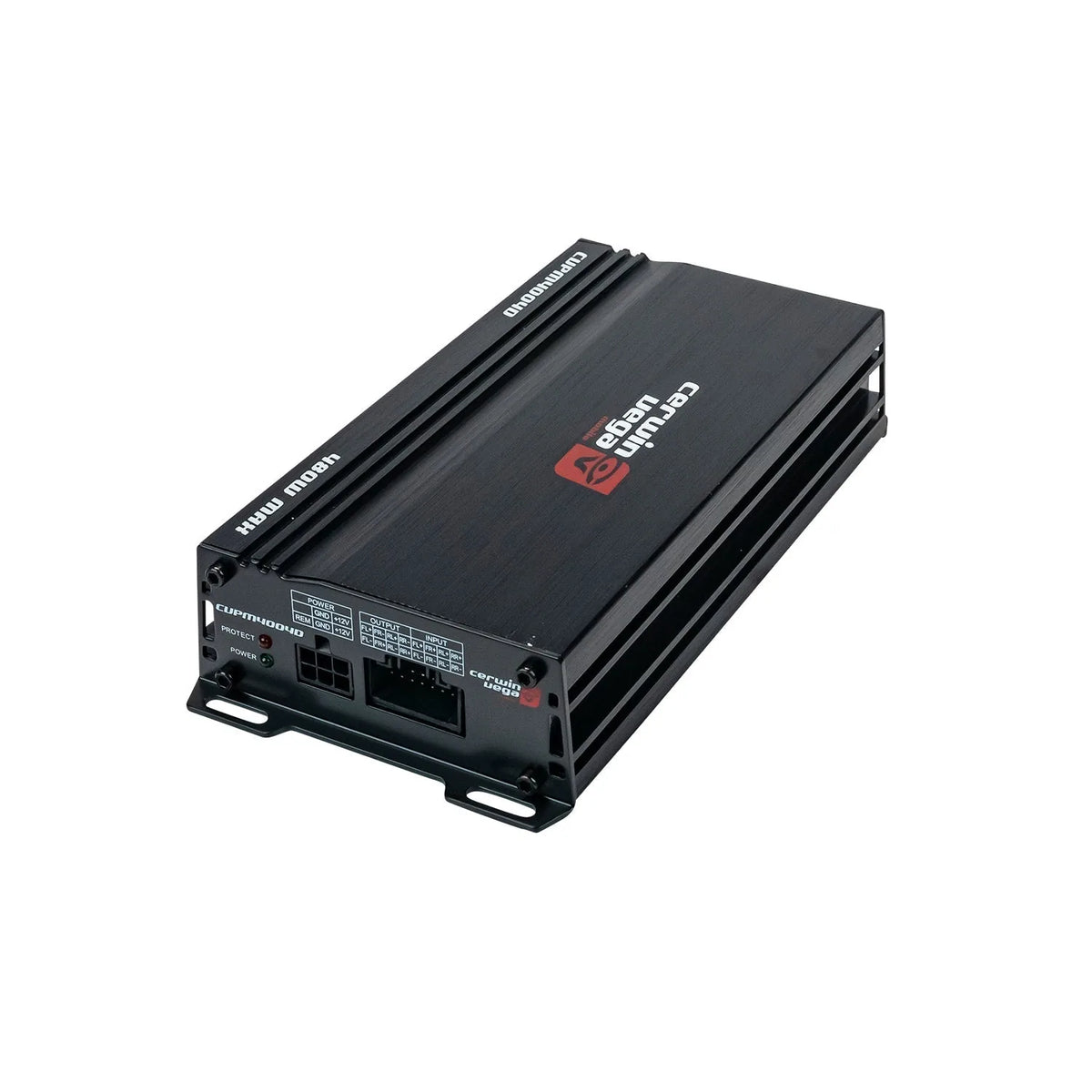

4-Channel CVPM Mini Series Full Range Class-D Amplifier

Upgrade your vehicle’s sound system with the Cerwin-Vega CVPM400.4D CVPM Mini-Series 4-Channel Full Range Class-D Amplifier, a compact and powerful amplifier designed to deliver clean, dynamic sound across your entire car audio system. Part of the Cerwin-Vega CVPM Performance Mini-Series, this amplifier offers the perfect balance of performance, efficiency, and affordability for enthusiasts looking to enhance their in-car listening experience.

The CVPM400.4D 4-channel amplifier is engineered to power both front and rear speakers with clarity and precision. Whether you’re upgrading factory speakers or building a complete aftermarket audio system, this amplifier delivers strong, distortion-free output that brings your music to life with crisp highs, detailed midrange, and controlled bass response.

Built using advanced Class-D amplifier technology, the CVPM400.4D provides high-efficiency power output while minimizing heat generation and electrical demand. This efficient design ensures reliable performance during long listening sessions while maintaining consistent sound quality at higher volume levels.

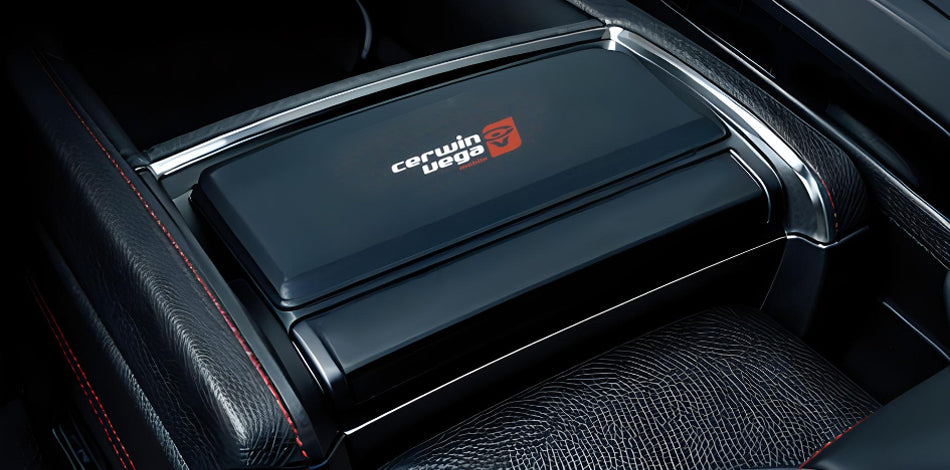

One of the standout features of the CVPM Mini-Series amplifier is its compact footprint. The space-saving chassis allows for flexible installation in tight vehicle interiors, making it ideal for cars, trucks, and custom audio builds where installation space is limited. Despite its small size, the amplifier delivers impressive output capable of driving multiple speakers with ease.

The durable construction and carefully engineered internal components ensure the Cerwin-Vega CVPM400.4D amplifier performs reliably even in demanding audio setups. Its lightweight yet rugged design also assists with heat dissipation, helping maintain stable performance during extended use.

Perfect for drivers seeking high-quality sound without overspending, the CVPM Series amplifiers provide exceptional value while delivering the powerful and energetic sound Cerwin-Vega is known for.

Key Features:
• 4-channel full-range Class-D car audio amplifier
• Compact CVPM Mini-Series design for flexible installation
• High-efficiency amplifier technology for clean, powerful sound
• Ideal for powering front and rear speaker systems
• Durable construction for long-lasting reliability
• Perfect for upgrading factory car audio systems

The Cerwin-Vega CVPM400.4D amplifier delivers powerful, balanced sound and legendary Cerwin-Vega LOUD performance, transforming every drive into an immersive music experience.

Specifications

CVP Mini-Series 4-Channel Class-D Car Amplifier

Power Rating (RMS)

RMS POWER PER CHANNEL 4Ω 60W X 4
RMS POWER PER CHANNEL 2Ω 90W X 4
RMS POWER PER 2 CHANNELS BRIDGED 4Ω 240W X 2
WATER RESISTANCE - YES
FREQUENCY RESPONSE (HZ): 15HZ-250HZ

Power Supply

Power Supply: Full WPM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)

Distortion

THD 4 (1KHZ @4Ω): 0.01%
S/N RATIO (A WEIGHTED @1W): -85dBA
S/N RATIO (A WEIGHTED @FP): -101.1dBA

Input Sensitivity

Hi/Low Level Input: 0.15mV-6.0V

Input Impedance

Low Level Input: 20KΩ

Output Stage

Output Impedance: 0.011Ω
Damping Factor (50Hz@4Ω): >70
Bandwidth (-3db): 10Hz-50KHz

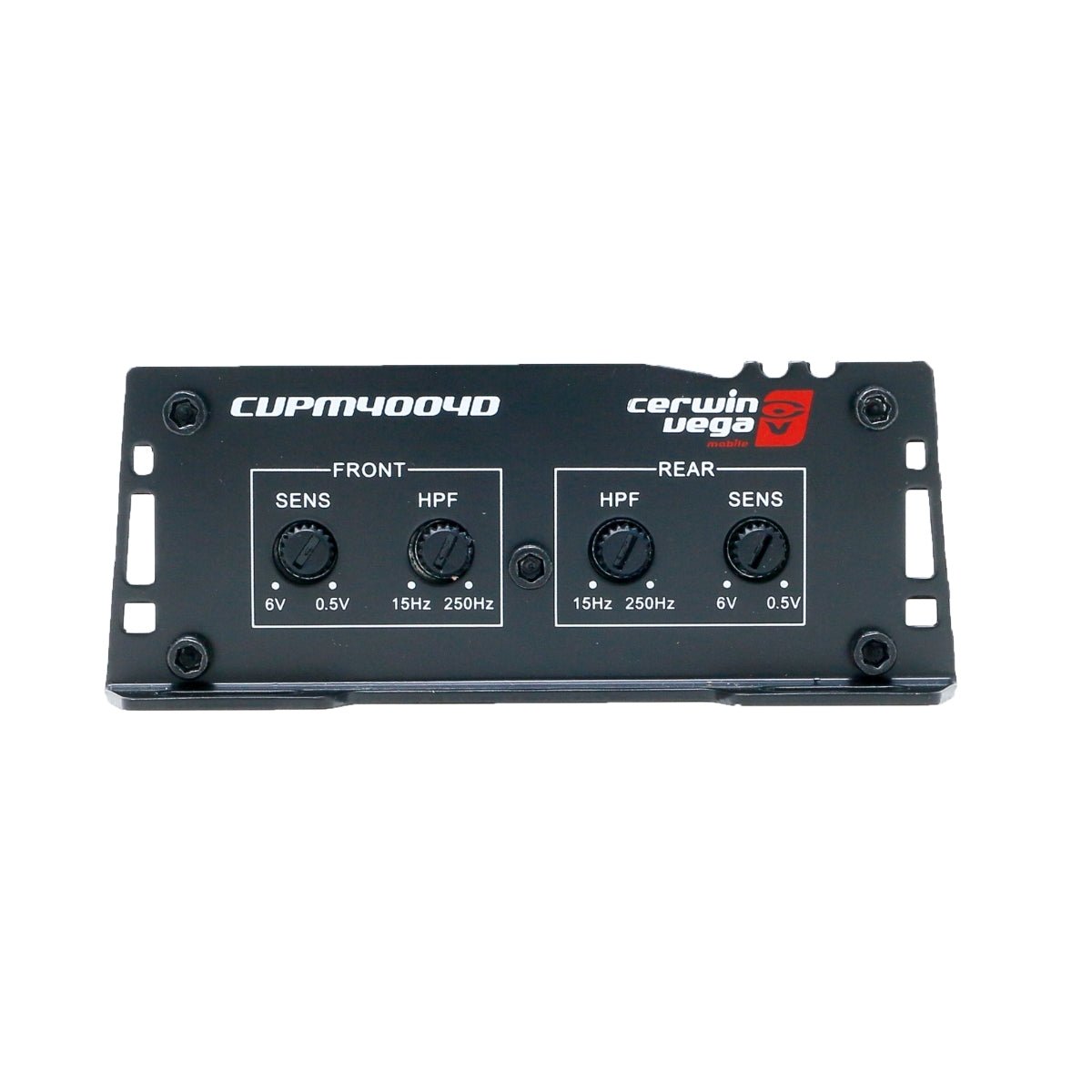

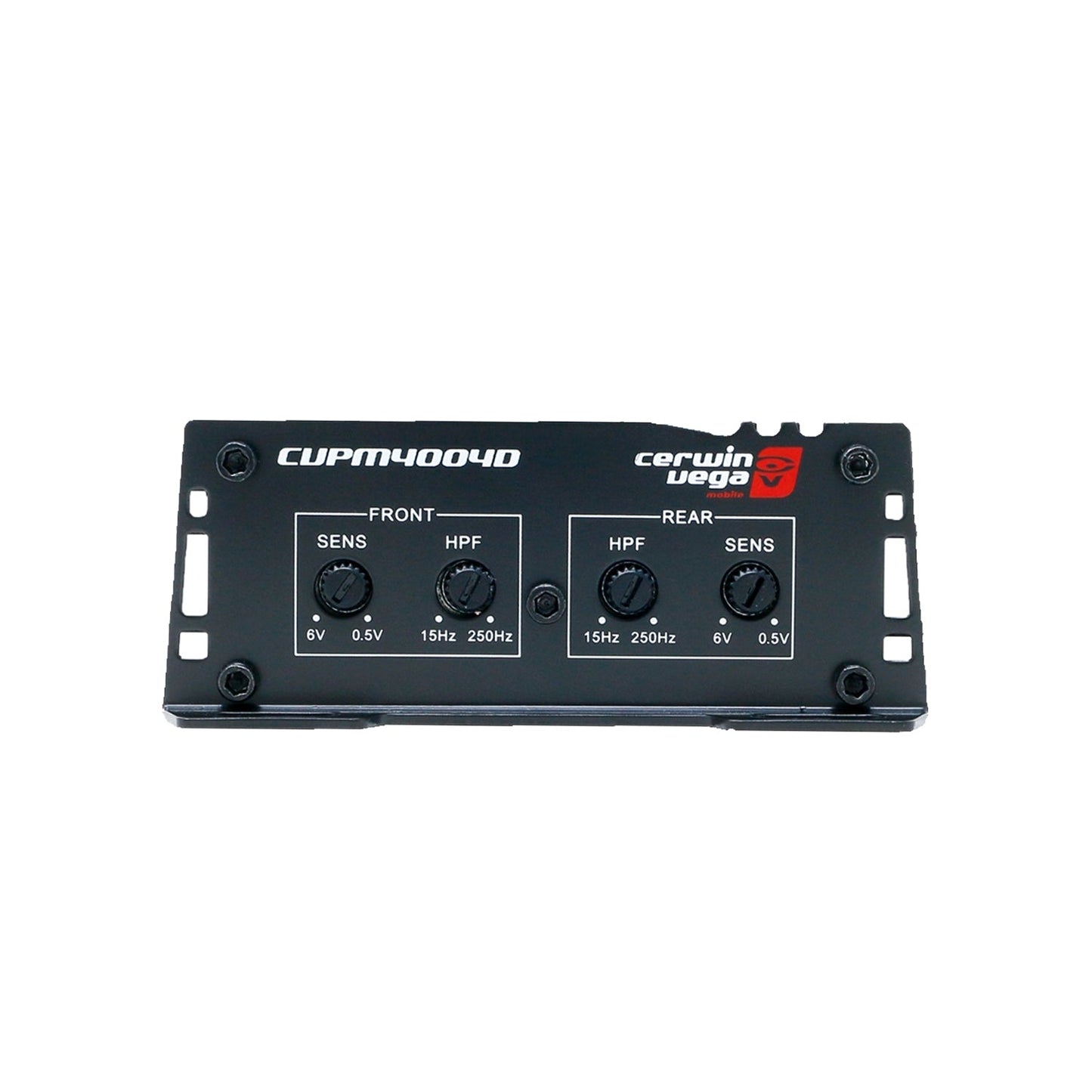

Crossover (1-12dB/Oct)

Variable High-Pass: 15Hz-250Hz
Variable low-Pass:

Fuse Rating

1x20A

Dimensions

Length x Width x Height: 7.64”x3.7”x1.47” (194mm x 95mm x 37.3mm)

FEATURES

Vega Bass Boost: This control adds 0 to +12dB of boost at 45Hz. Be cautious when adding boost to some subwoofer systems as they may not be able to handle the additional low frequency boost.

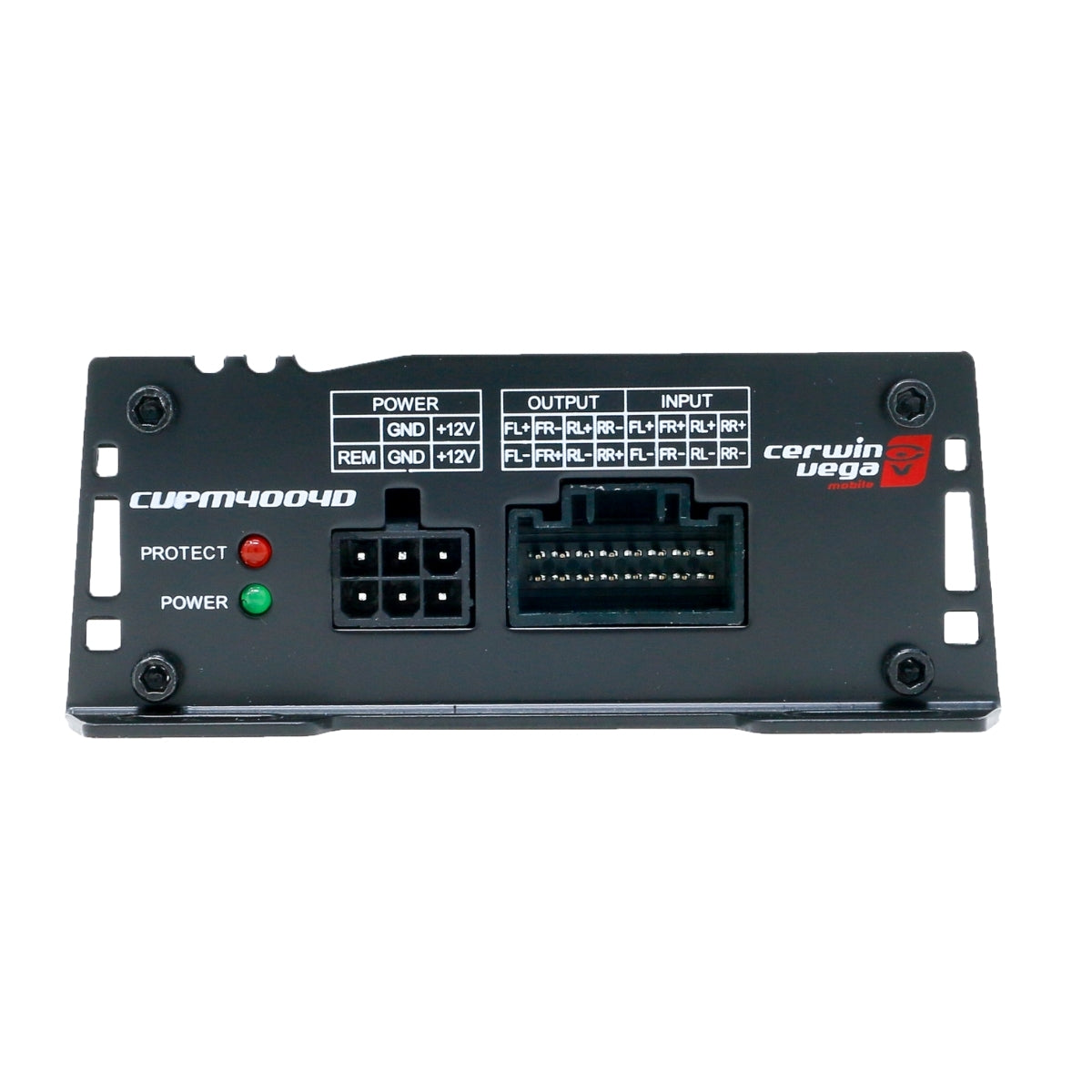

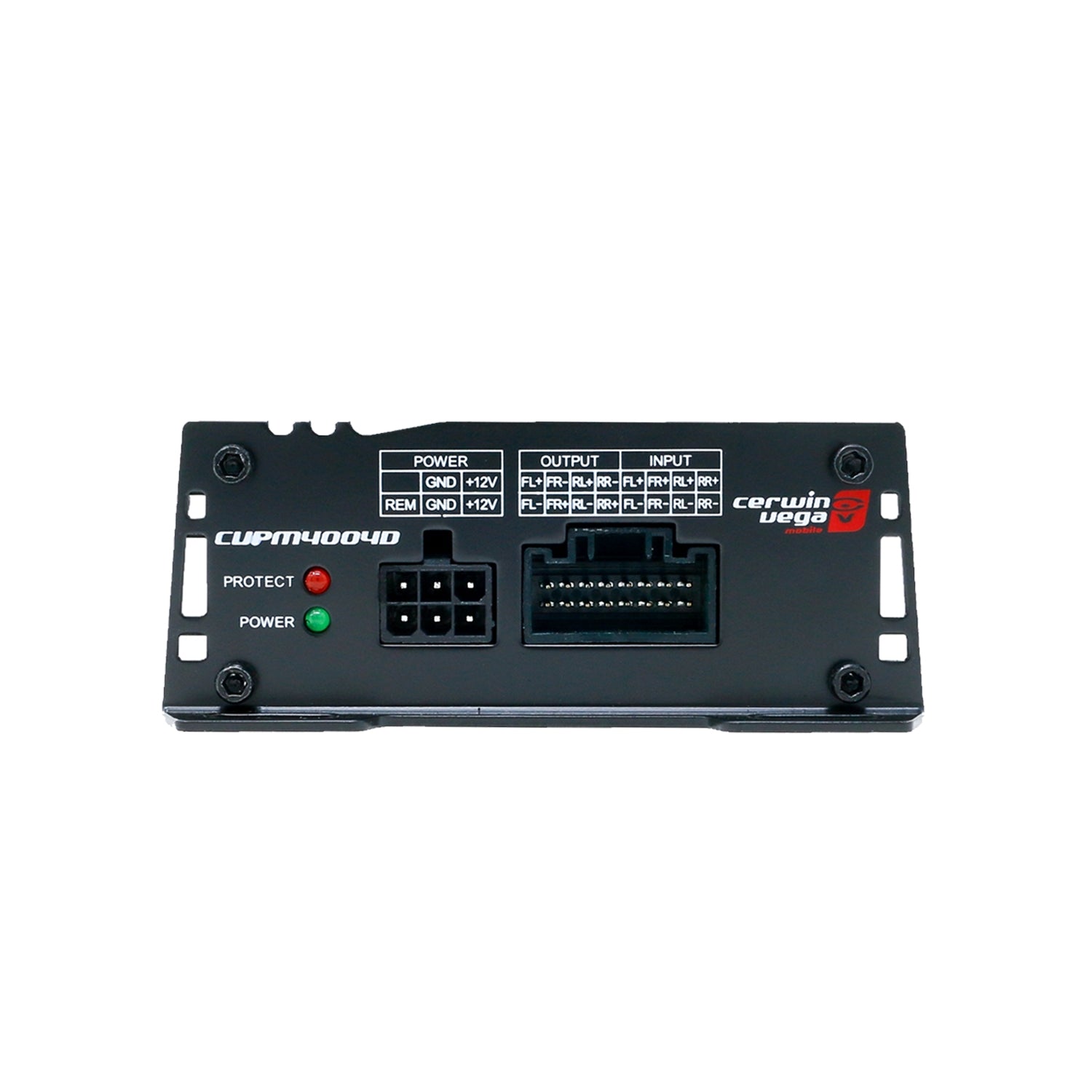

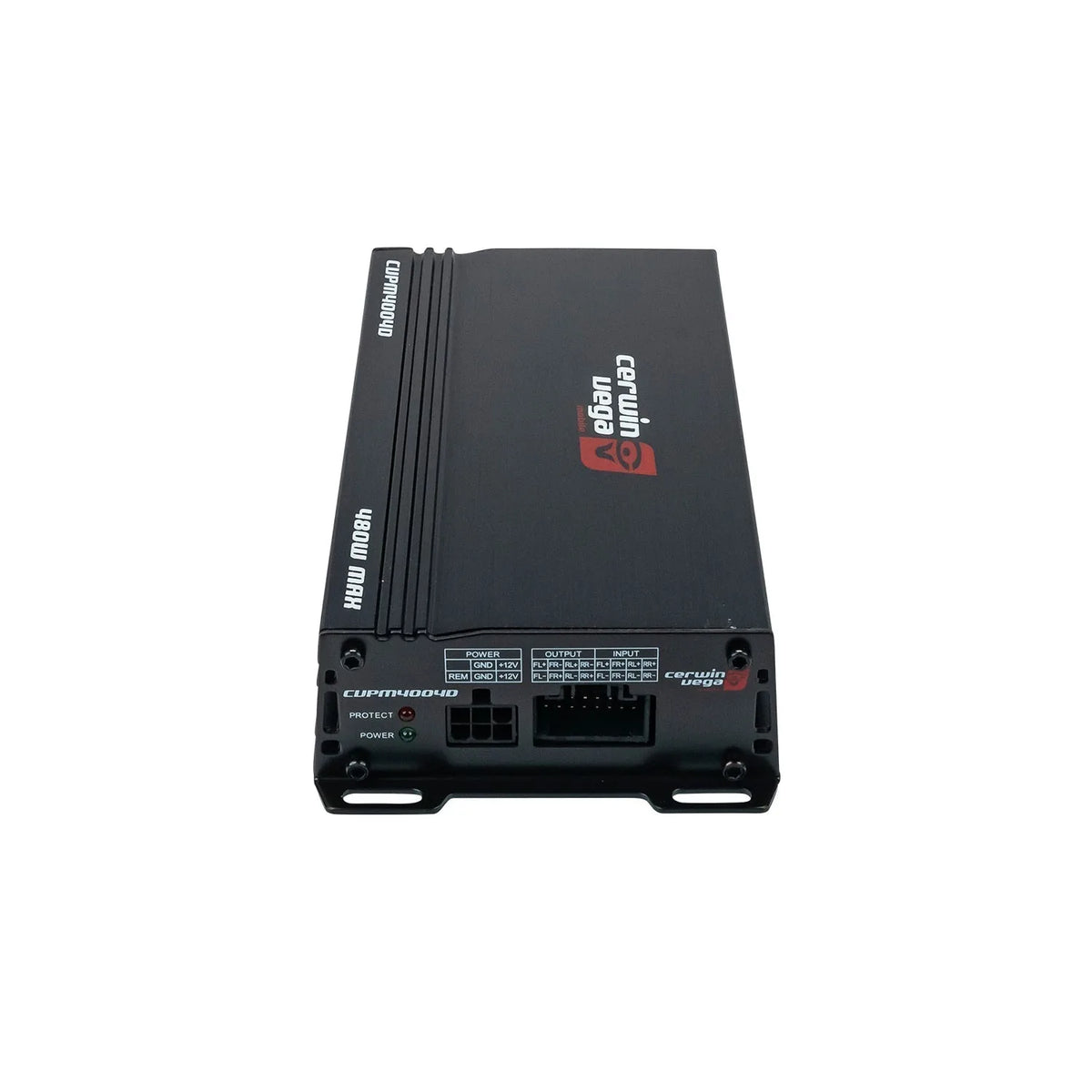

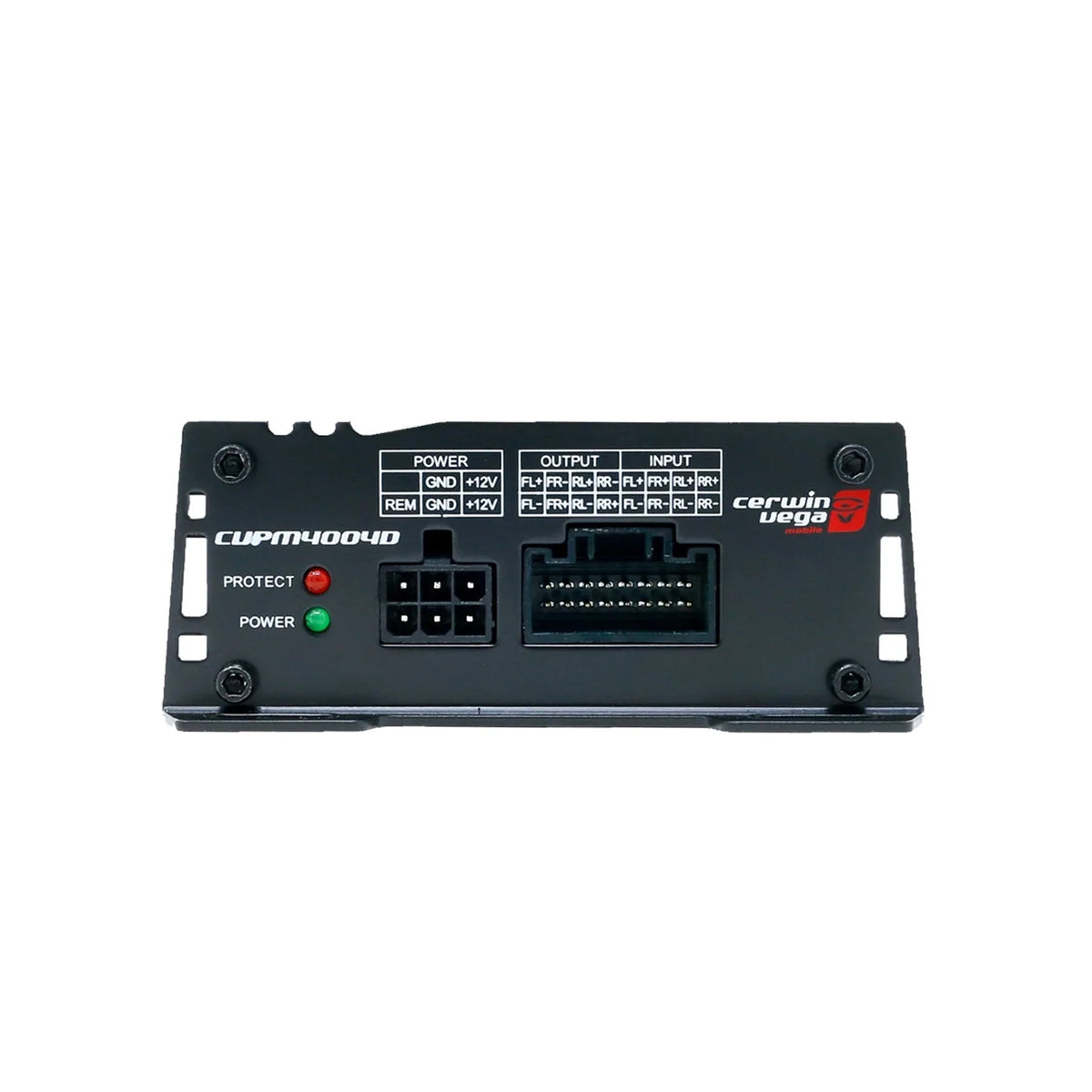

Power Input Connections: These connections are for input power, chassis ground, and remote turn-on. Use a minimum of 8 gauge wiring for power and ground connections, 18 gauge for remote turn-on. (4 Gauge is recommended for the mono blocks.) The terminals will handle up to 8 gauge wiring with no problem whatsoever. Be sure any wiring that passes through metal has a grommet!
1-year Manufacturer's Warranty

Product Manuals

View Product Details

Affordable Power, Unmatched Performance

Get the signature Cerwin-Vega Mobile sound without breaking the bank! The CVP Performance series offers a wide range of amplifiers, delivering the LOUD experience you crave at a price you’ll love.

Big Sound on a Budget

Experience powerful audio at an incredible value with CVP Performance series amplifiers. Designed for budget-conscious users, these amps deliver the power and performance Cerwin-Vega is known for.
