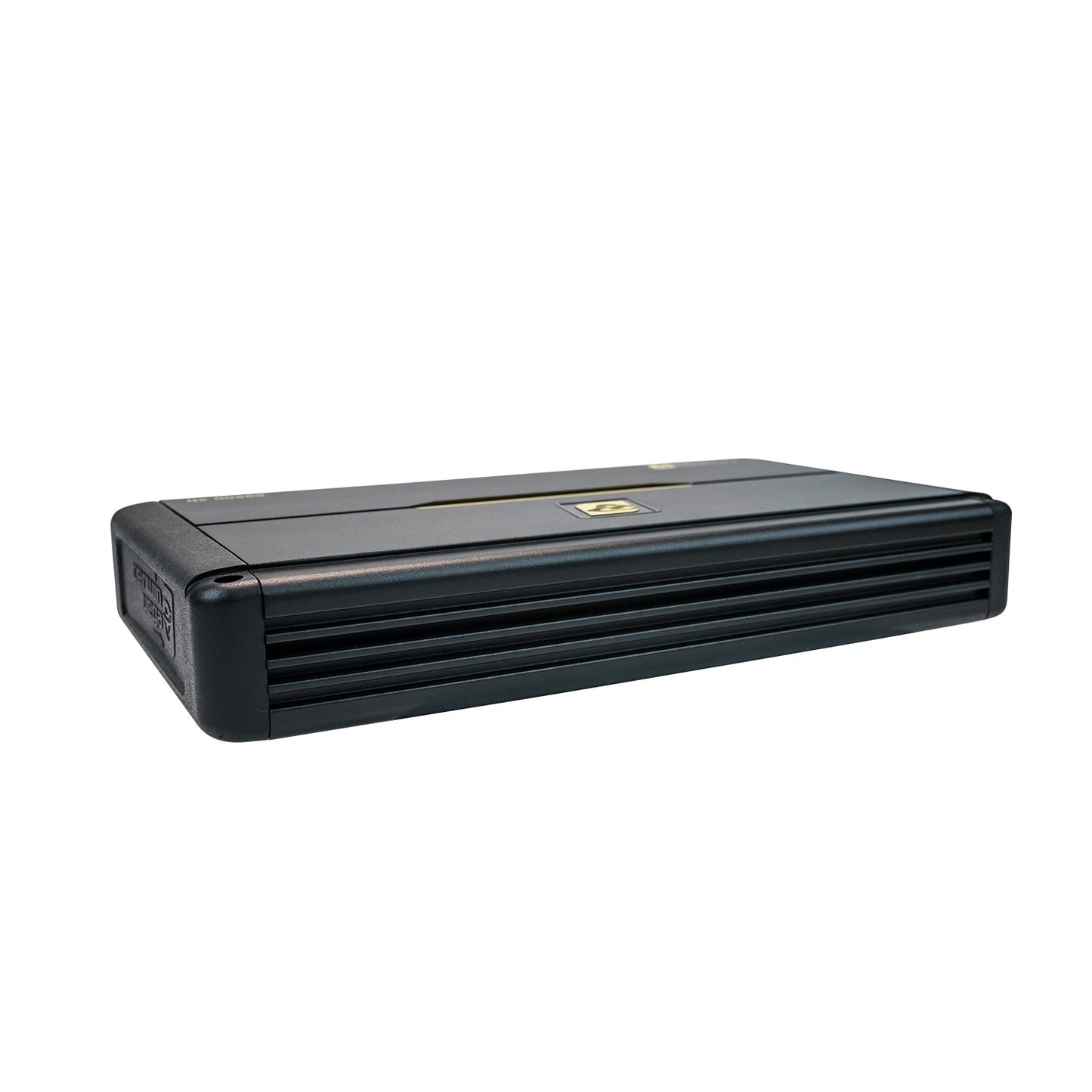

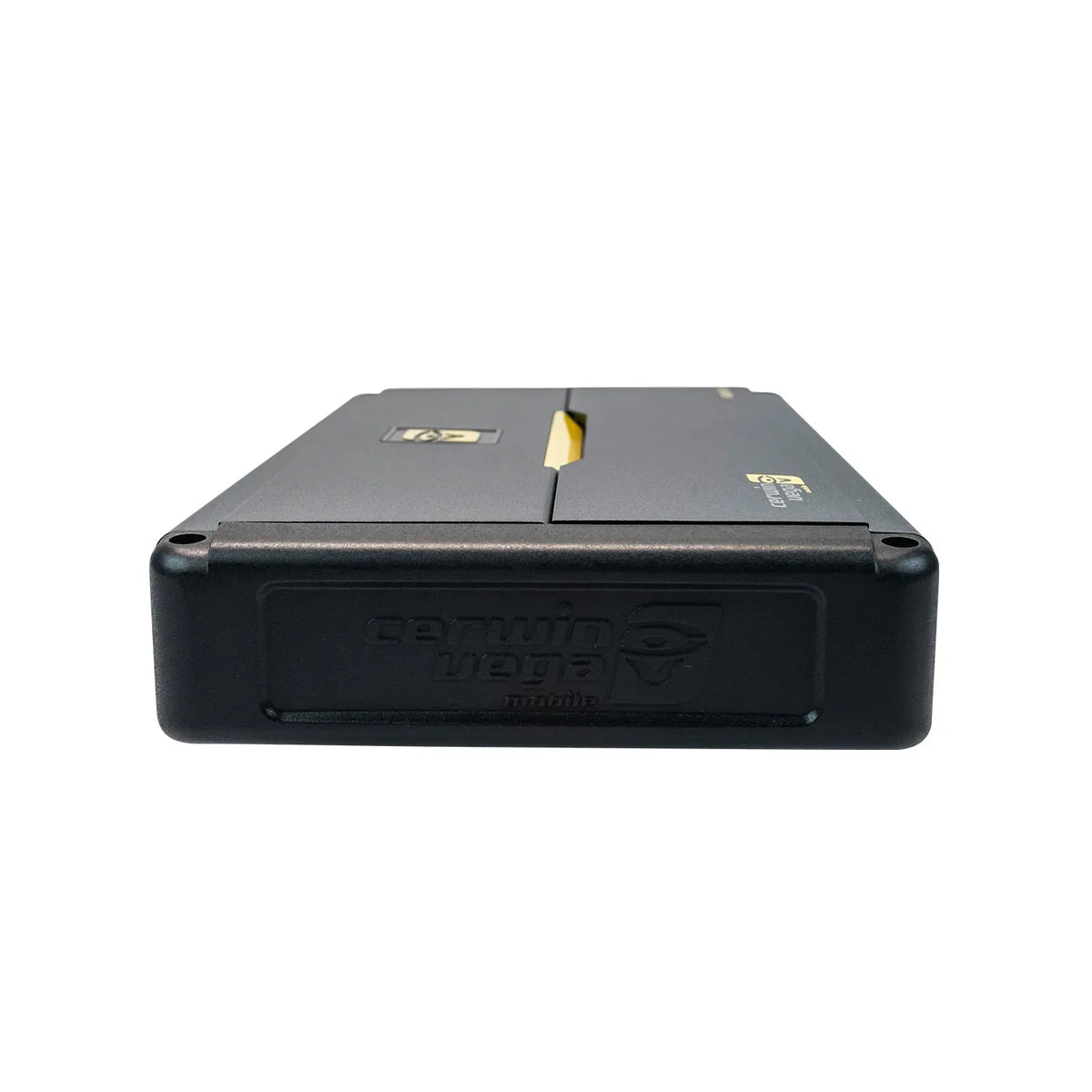

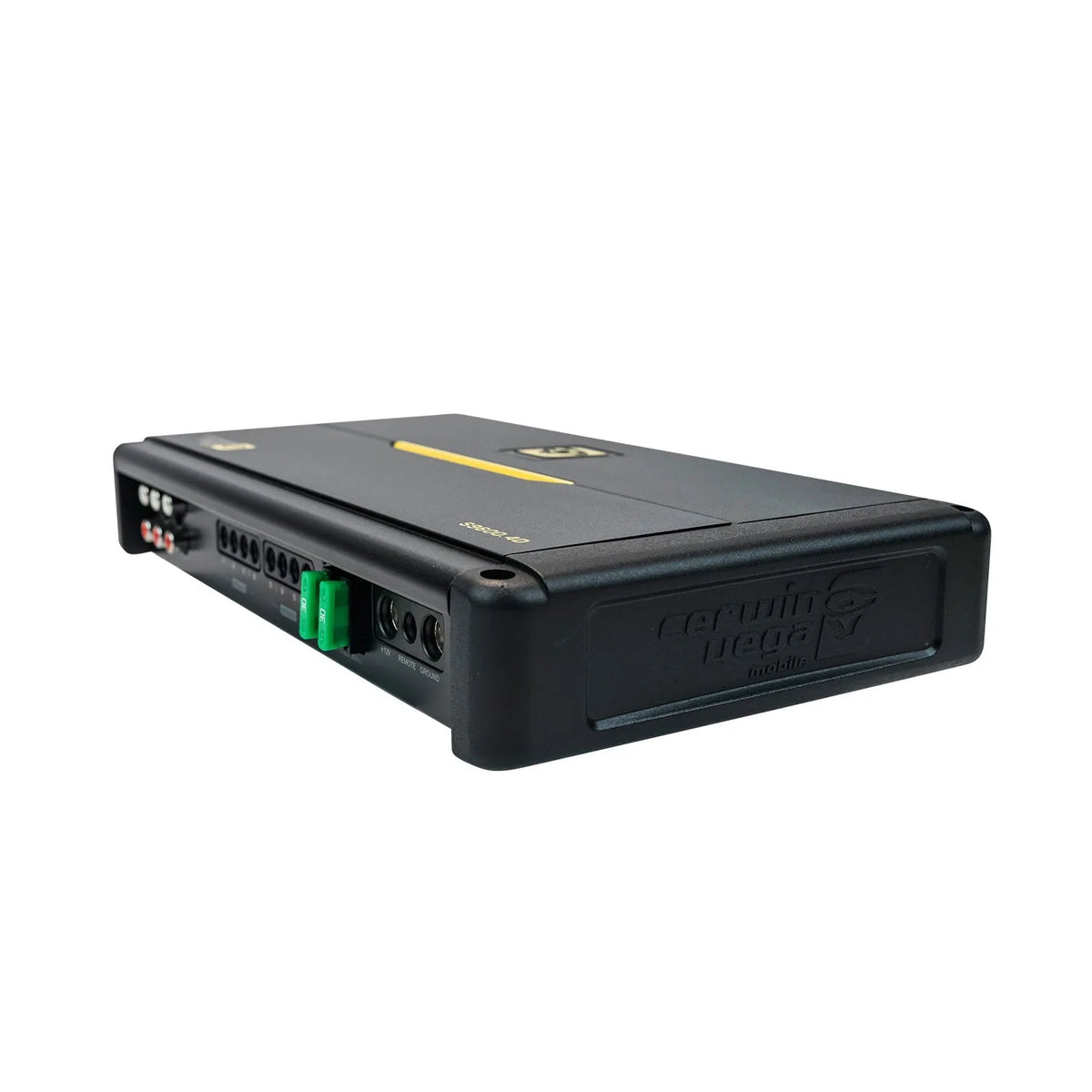

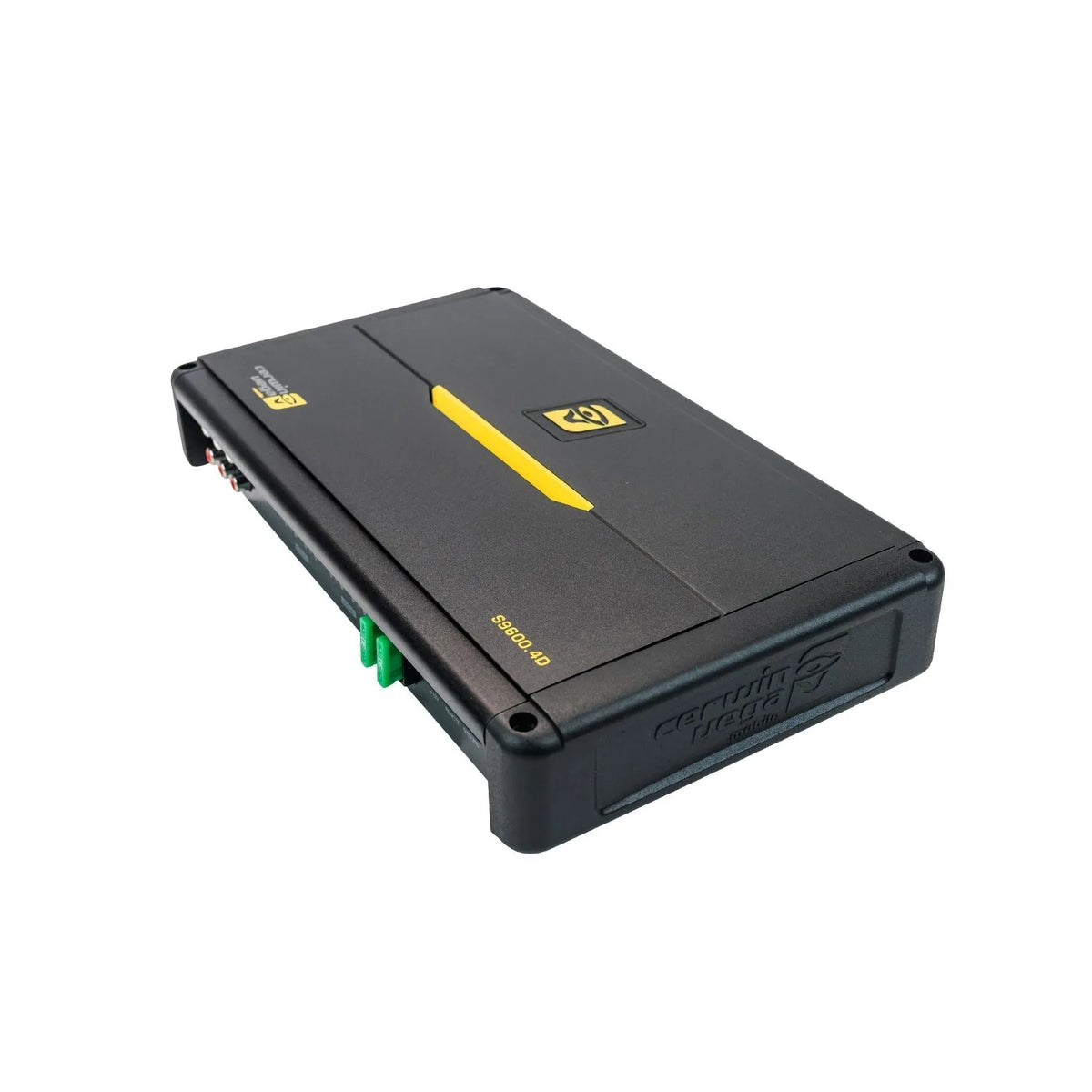

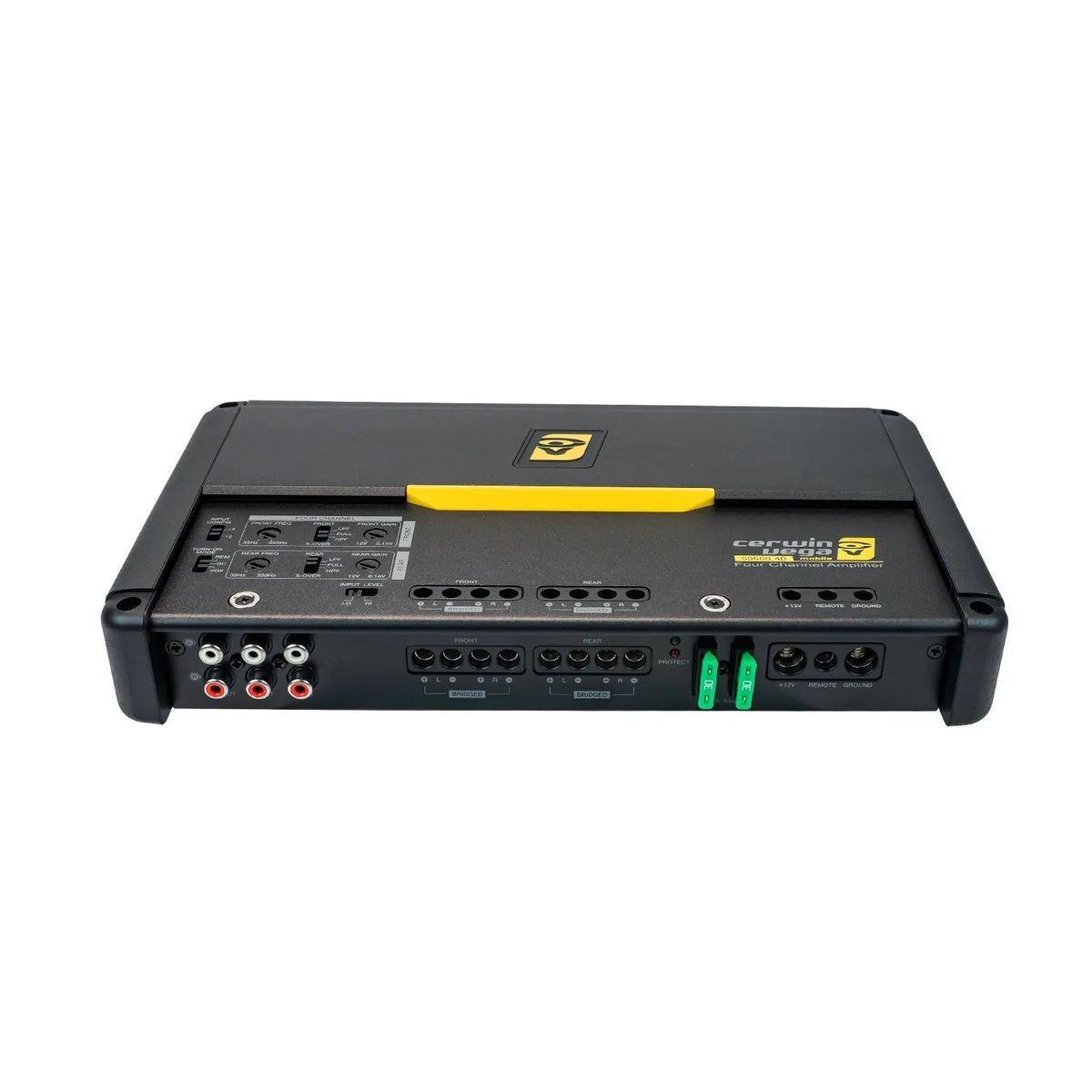

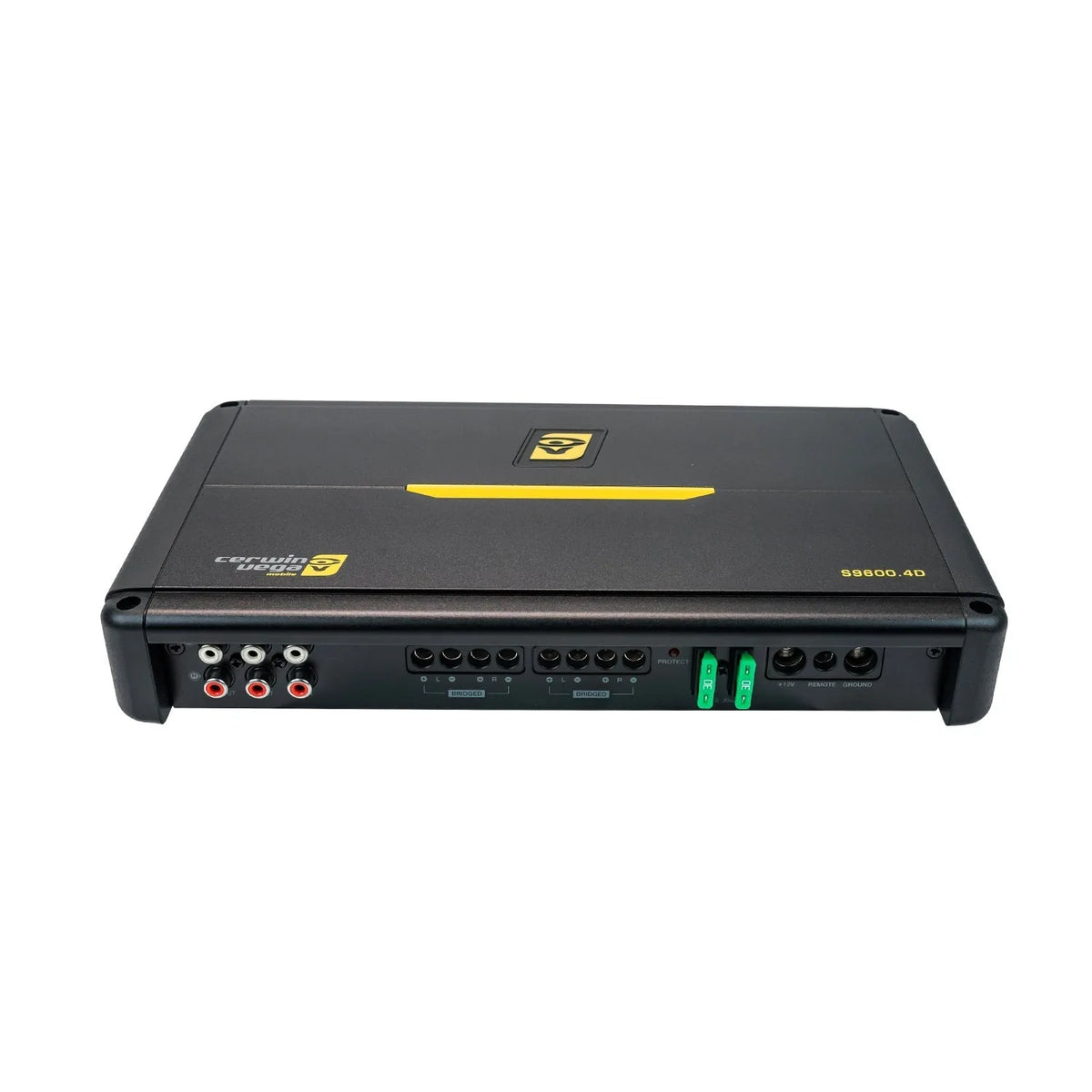

Stroker 800W RMS Full Range Class-D 4-Channel Amplifier - S9600.4D
Weight: 17.64 lb
Couldn't load pickup availability
Overview
S9600.4D - Stroker 800W Full Range Class-D 4 Channel Amplifier
Take your car audio system to the next level with the Cerwin-Vega S9600.4D Stroker 800W Full Range Class-D 4 Channel Amplifier, a high-performance amplifier engineered for serious audio enthusiasts who demand power, clarity, and reliability. Part of the legendary Cerwin-Vega Stroker Series, this amplifier delivers exceptional output and precision, making it ideal for powering speakers and components in high-performance car audio systems.
The Cerwin-Vega S9600.4D 4-channel amplifier utilizes advanced Class-D amplifier technology, providing powerful audio output with superior efficiency and minimal heat generation. This efficient design allows the amplifier to deliver clean, distortion-free sound while maintaining reliable performance during extended listening sessions at high volume levels.
With 800 watts of full-range power, the S9600.4D is capable of driving component speakers, coaxial speakers, and even small subwoofers with incredible clarity and control. Its multi-channel configuration allows you to power an entire audio system, making it perfect for front and rear speaker setups or active component systems.
Designed to handle demanding audio environments, the amplifier features a massive aluminum heatsink that provides superior thermal dissipation. This cooling system helps maintain stable operating temperatures, ensuring consistent performance even under extreme audio loads.
Built for high-current systems, the S9600.4D includes 1/0 gauge power and ground connections, allowing efficient power transfer and stable electrical performance. This heavy-duty design ensures your amplifier can support high-output systems while maintaining clean audio reproduction.
Whether you're building a competition-level system or upgrading your daily driver, the Stroker Series amplifier platform provides the durability and performance required for serious audio installations.
Key Features:
• 800W full-range Class-D 4-channel amplifier
• High-efficiency design for powerful, clean sound
• Massive aluminum heatsink for improved thermal performance
• 1/0 gauge power connections for high-current systems
• Ideal for powering component speakers and full-range audio systems
• Part of the legendary Cerwin-Vega Stroker Series
The Cerwin-Vega S9600.4D Stroker 4-Channel Amplifier delivers powerful output, precision audio performance, and extreme durability, making it the perfect solution for high-performance car audio systems that demand legendary Cerwin-Vega sound.
Specifications
Stroker Series 4-Channel Full Range Amplifier
Power Rating (RMS)
FREQUENCY RESPONSE (HZ): 35HZ - 350HZ
RMS POWER PER CHANNEL 4Ω 140W
RMS POWER PER CHANNEL 2Ω 170W
RMS POWER PER 2 CHANNELS BRIDGED 4Ω 400W X 2
Power Supply
- Power Supply: Full WPM
- Power Supply Threshold: 10.0V-17.0V (DC)
- Idle Current: (0.7A)
Distortion
- THD 4 (1KHZ @4Ω): 0.07%
- S/N Ratio (A Weighted @1W): -77.4 dBA
- S/N Ratio (A Weighted @FP): -97.4dBA
Input Sensitivity
- Low Level Input: 0.2mV-10.0V
- High Level Input: Up to 25W RMS
Input Impedance
- Low Level Input: 22KΩ
Output Stage
- Output Impedance: 0.047Ω
- Damping Factor (50Hz@4Ω): >250
- Bandwidth (-3db): 10Hz-35kHz
Crossover (1-12dB/Oct)
- Variable High-Pass: 35Hz-350Hz
- Variable low-Pass: 35Hz-350Hz
Fuse Rating
- 2x30A
Dimensions
- Length x Width x Height: 14.1”x7.25”x2.0” (358.14mm x 184.2mm x 50.8mm)
FEATURES
- Input configuration switch, 2-Channel or 4-Channel Mode
- Lighted LED logo
- Handles Hi and Low Level Input Up to 12V
- Switched Speaker Level Turn On Options (VOX/DC Offset/REM)
Product Manuals

Unleash the beast with STROKER series
Powering the most inefficient speakers and subwoofers to their peak performance, delivering high excursion, clean, and distortion-free sound!
STROKER amplifiers are engineered for extreme sound systems
Featuring massive aluminum heatsinks for superior thermal dissipation and robust 1/0 gauge power connections for efficient high current transfer. These amplifiers are the ideal power choice for SPL and performance-driven setups.
