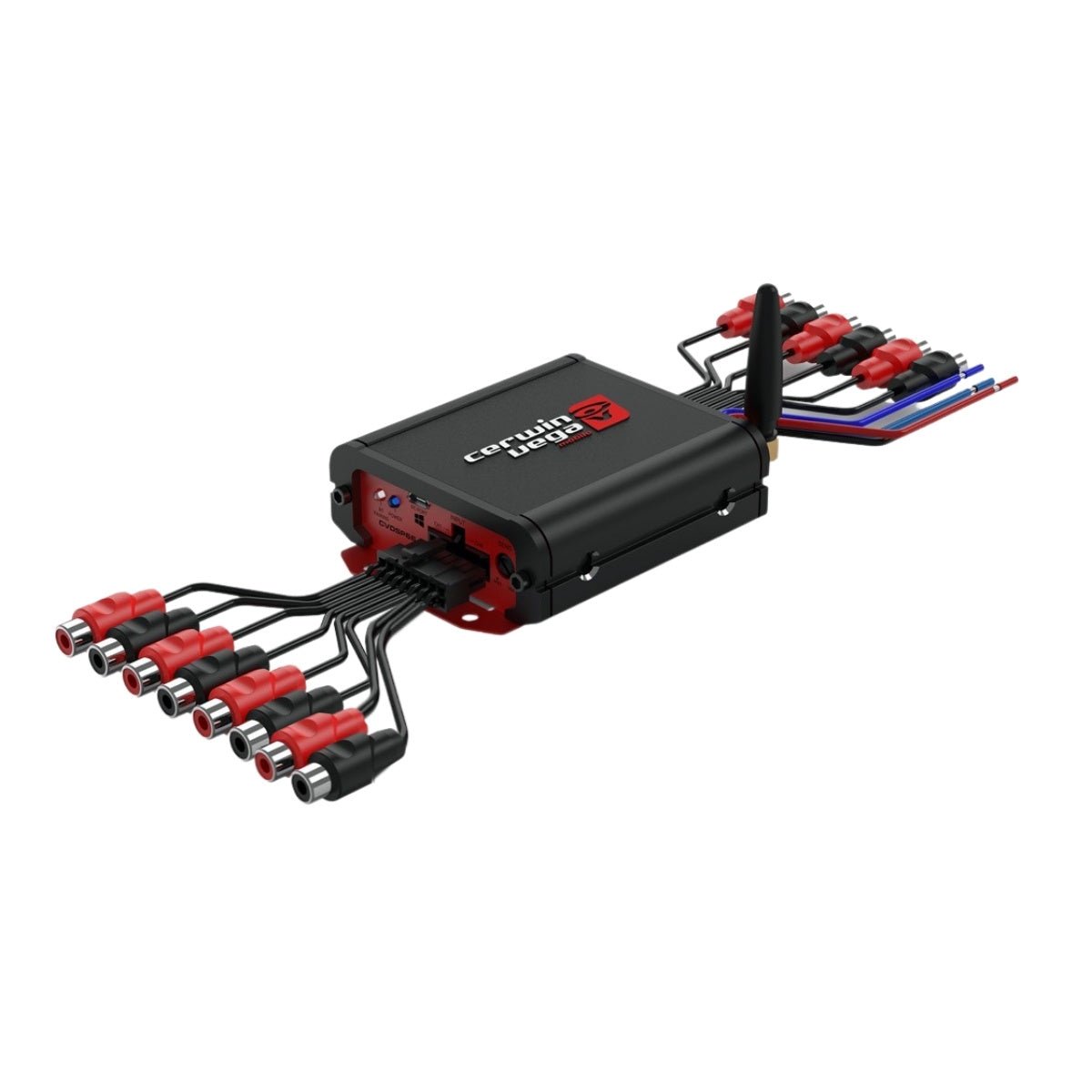

8 Channel Digital Signal Processor (DSP)
SKU:CVDSP88
Couldn't load pickup availability
Overview
2/4/6/8 IN 8 OUT DSP - CVDSP88
Description:
Cerwin-Vega Mobile expands its Digital Signal Processor category by adding the very practical and easy-to-use CVDSP66, CVDSP66LCD, and CVDSP88 models. With the ability to integrate into any auto, motorcycle, boat, or powersports vehicle, adjusting time delay, equalization, and optimizing the sound couldn't be more simple. The CVDSP66 and CVDSP66LCD feature six channels of input/output and 15 bands of equalization, while the CVDSP88 takes it up a notch and features 8 channels of input and 8 channels of output with 31 bands of equalization.
Specifications
8-Channel (2/4/6/8 IN / 8 OUT) Digital Signal Processor
31 Band Parametric EQ
Fully Adjustable Crossovers
Tuning Operating Software: Windows / Android / IOS
6.5 Volts Max RCA Pre-Out Voltage
Delay Timing Alignment
Signal to Noise Ratio: > 100dB
Frequency Response: 10-25KHz
Channel Separation: > -72dB
Advanced CSR 5.0 Bluetooth Module for Music Streaming and App Control on Mobile Phone
External Antenna For Enhanced Bluetooth Signal Reception
Conformal Coated 4-Layer Footprint Circuit PC Board
4.82” x 3.1” x 1.16” (122.5 x 77.9 x 29.5 mm)
