6.2” LCD Touch Screen Multimedia Receiver - CV62BM
Couldn't load pickup availability
Secure Checkout
100% Authentic
Free Shipping
Live Support
Overview

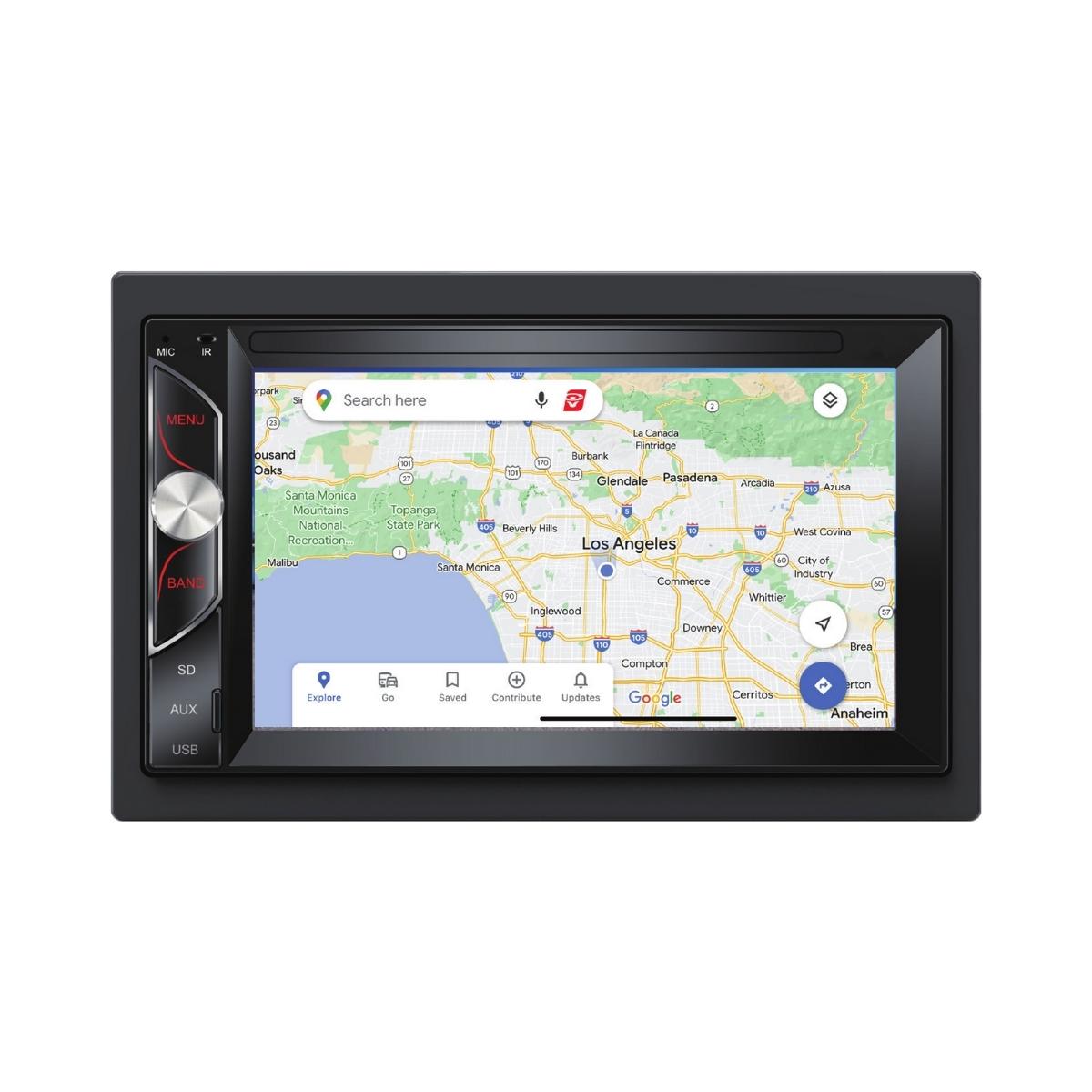

CV62BM - 6.2” LCD Touch Screen Multimedia Receiver
The Cerwin Vega CV62BM is an all-encompassing Double-DIN multimedia receiver that offers a wide array of features to enhance your in-car entertainment and connectivity. With a 6.2-inch touchscreen, extensive media playback options, seamless smartphone integration, powerful audio output, and built-in support for steering wheel controls, it provides both convenience and performance. The customizable illumination and inclusion of a wireless remote control add further to its appeal, making it a versatile and user-friendly choice for upgrading your car's audio and multimedia system. Here are the detailed features and specifications of the CV62BM:
Key Features:
6.2” LCD Touch Screen: Double-DIN Multimedia Receiver: Fits standard double-DIN dash openings and features a 6.2-inch LCD touchscreen for easy navigation and control. 800x480 Widescreen Resolution: Provides clear and vibrant visuals.
Connectivity: Multi-Region AM/FM Frequency Stepping: Allows for tuning into a wide range of AM/FM radio frequencies. Bluetooth V4.0: For hands-free calling and wireless music streaming (A2DP) from enabled devices.
Video Playback: 64GB SD/USB Devices: Supports video playback from SD cards or USB devices up to 64GB. Video Output for Auxiliary Devices: Connects to external video displays.
- Phone-Link: Complete Mobile Device Integration: Integrate your smartphone for seamless access to apps, navigation, and more.
- Audio Playback: Playback from 64GB SD/USB: Supports playback of MP3 and MP4 files. ID3 MP3 Tag Reading: Displays track and artist information.
- Inputs and Outputs: AUX A/V Input: For connecting personal media devices. Front Preamp Audio Output: For connecting external amplifiers. Rear View Camera Input w/Trigger: Compatible with backup cameras, providing automatic display when reversing.
- Built-In Steering Wheel Control Interface: Allows integration with your vehicle's existing steering wheel controls for easy access to audio functions.
- Audio Features: 50x4 W MOSFET Amplifier: Provides powerful and clear audio output.
- Additional Features: Changeable Illumination: Customize the display illumination to match your vehicle's interior.
- Wireless Remote Control: Included for convenient operation from anywhere in the vehicle.
Specifications
Product Manuals
All-In-One Audio Solution!
With extensive media playback options, seamless smartphone integration, powerful audio output, and built-in support for steering wheel controls, Cerwin-Vega's systems offer unmatched convenience and performance. Elevate your driving experience today!
Light Up Your Ride!
With customizable illumination and a wireless remote control, Cerwin-Vega's systems offer the ultimate in versatility and user-friendliness. Upgrade your car's audio and multimedia system effortlessly and enjoy a personalized experience like never before!
Double Din - FAQ
Q1: What models are in Cerwin‑Vega Double‑Din head‑unit series and vehicle fitment?
A: Two standard double‑DIN multimedia receivers: CV62BM (6.2") and CV7BM (7"). Fits industry‑standard double‑DIN dash cutout for 12V negative‑ground passenger vehicles. No built‑in GPS navigation. Supports phone mirror link and backup‑camera input. Both models are currently sold out.
Q2: Core hardware and functional differences between two units?
A: CV62BM:6.2" touch‑screen, 50W×4 built‑in amp, Bluetooth 4.0 hands‑free & A2DP streaming, 16‑band DSP EQ, USB/SD up to 64GB, front RCA pre‑outs, steering‑wheel control input, reverse‑camera trigger input.
CV7BM:7" large touch‑screen, Bluetooth, AM/FM tuner, USB/SD/AUX inputs, remote control included, RCA pre‑amp outputs for system expansion. Neither unit supports CD playback.
Q3: Audio expandability,can I add external amplifiers and subwoofers?
A: Equipped with RCA pre‑amp outputs to feed external amplifiers for speakers and subwoofers. The internal 4×50W amp is only for basic speaker driving. For loud SPL builds, disable internal amp and use RCA signal for aftermarket power amplifiers.
Q4: Installation and wiring precautions?
A: Only for 12V negative‑ground electrical systems. Disconnect battery negative terminal before installation. Follow color‑coded wiring diagram. Keep ventilation space for heat dissipation. Connect reverse trigger wire for backup‑camera function. Steering‑wheel button learning is supported.
Q5: Basic tuning and troubleshooting tips?
A: Adjust DSP EQ according to speaker characteristics; set LPF/HPF when using external amplifiers. For no‑power issue check constant and ACC power supply. Reset unit if Bluetooth cannot pair. Verify reverse trigger wire and camera wiring if backup image fails to pop‑up.
