CVI 12" 2-Way Full Range Stage Monitor - CVI-122M

CVI-122M

$489.00 USD
$489.00 USD
Sale Sold out
Shipping calculated at checkout.

Overview

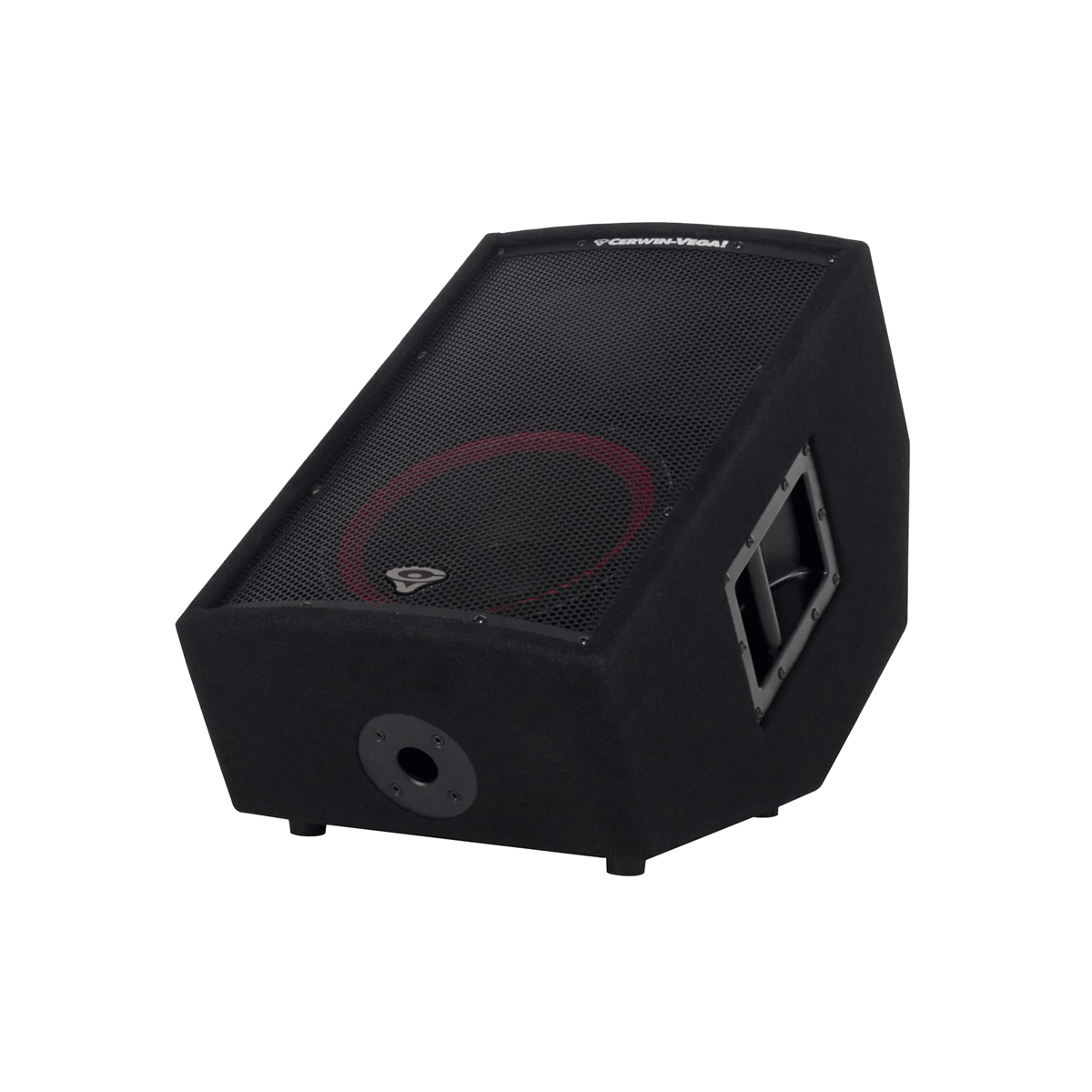

The CVi-122M is a portable, full range, twelve-inch 2-way stage monitor / main loudspeaker system designed for live music and playback applications. The CVi-122M features a high power, cast frame twelve inch transducer with a 2.5 inch voice coil to handle the low and low/midrange frequencies and a 34mm PETP (polyethylene terephthalate) diaphragm compression driver mounted to a 80° H x 50° V hemi conical horn for smooth, accurate on and off axis high frequency performance. Advanced crossover network designs are employed for coherent cross-band summation throughout the coverage pattern.

Featured Data:

  • Model - CVi-122M
  • System Configuration - 2-Way stage monitor
  • Connections - 2 ea.—¼" Phone Jack and Neutrik Speakon
  • Low Frequency System - Reflex loaded 12" transducer
  • High Frequency System - 1 inch exit 80° H x 50° V
  • Enclosure Type - Vented, wedge
  • Enclosure Structure - 18mm OSB, internal bracing
  • External Covering - Black polypropylene fiber
  • Grille Material - 18 gauge black powder coated steel

Performance Data:

  • Frequency Response - +/- 3 dB 69 Hz—16 kHz
  • Operating Range - -10 dB 53 Hz—20 kHz
  • Nominal Impedance (Ohms) - Full Range 8 Ohms
  • Axial Sensitivity (dB SPL, 1W / 1M) - Full Range 98 dB
  • Calculated Maximum Output (dB SPL, @ 1M) - Full Range 128 dB
  • Power Handling (Watts) - RMS 250 W / Program 500 W / Peak 1000 W
  • Nominal Directivity / -6dB points (Degrees) - Horizontal: 80° / Vertical: 50°

Weight: 47 Lbs.
Dimensions: 20.5" x 15.75" x 25.25"

 View Product Details

Take Command of the Stage!

The CVi Portable PA system offers unparalleled configurability and adaptability, ensuring you have complete control of your sound. Whether performing a lounge act, rocking a nightclub, or captivating a main auditorium, this system is designed to meet all your needs. Dominate every venue with crystal-clear audio and impressive versatility.

Command Attention!

Fully equipped to handle both live and recorded sources, the CVi Portable PA system is your ultimate sound solution for front of house and on stage. Whether in a lounge, nightclub, or main auditorium, CVi guarantees you won't be ignored. Elevate every performance with clarity and power.
