HED 12" DVC Subwoofer (2Ω) - H12DV2

$169.99 USD
$169.99 USD
Sale Sold out

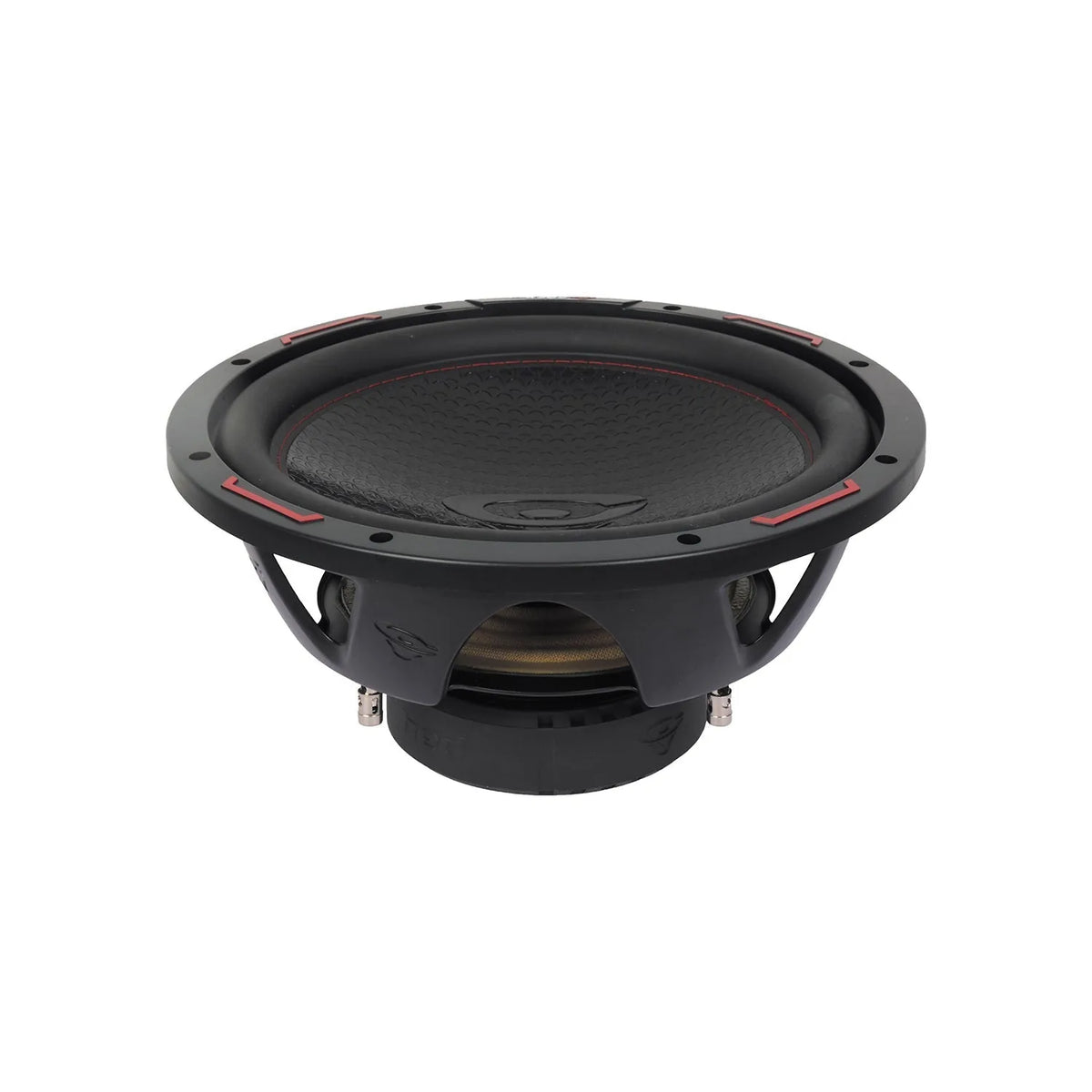

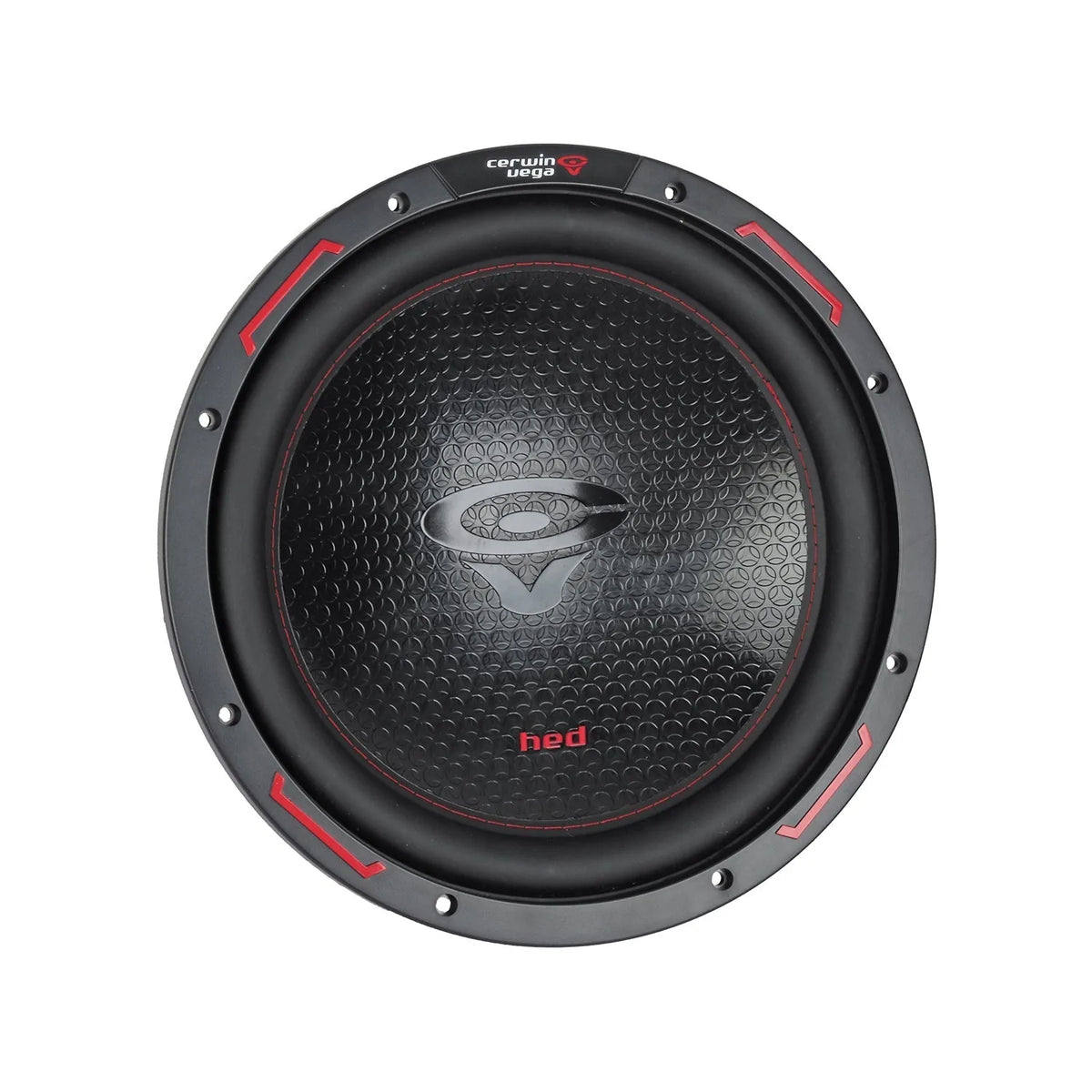

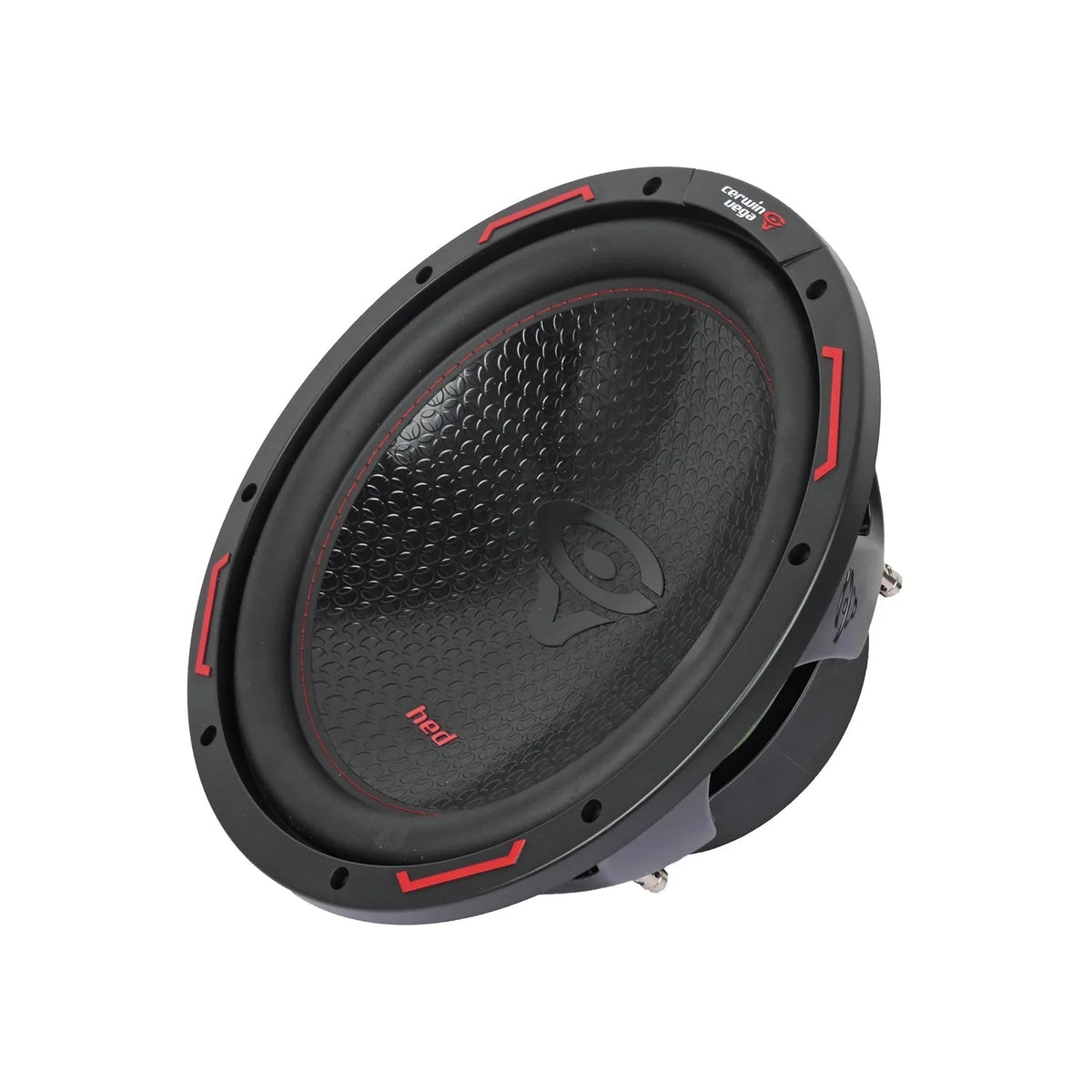

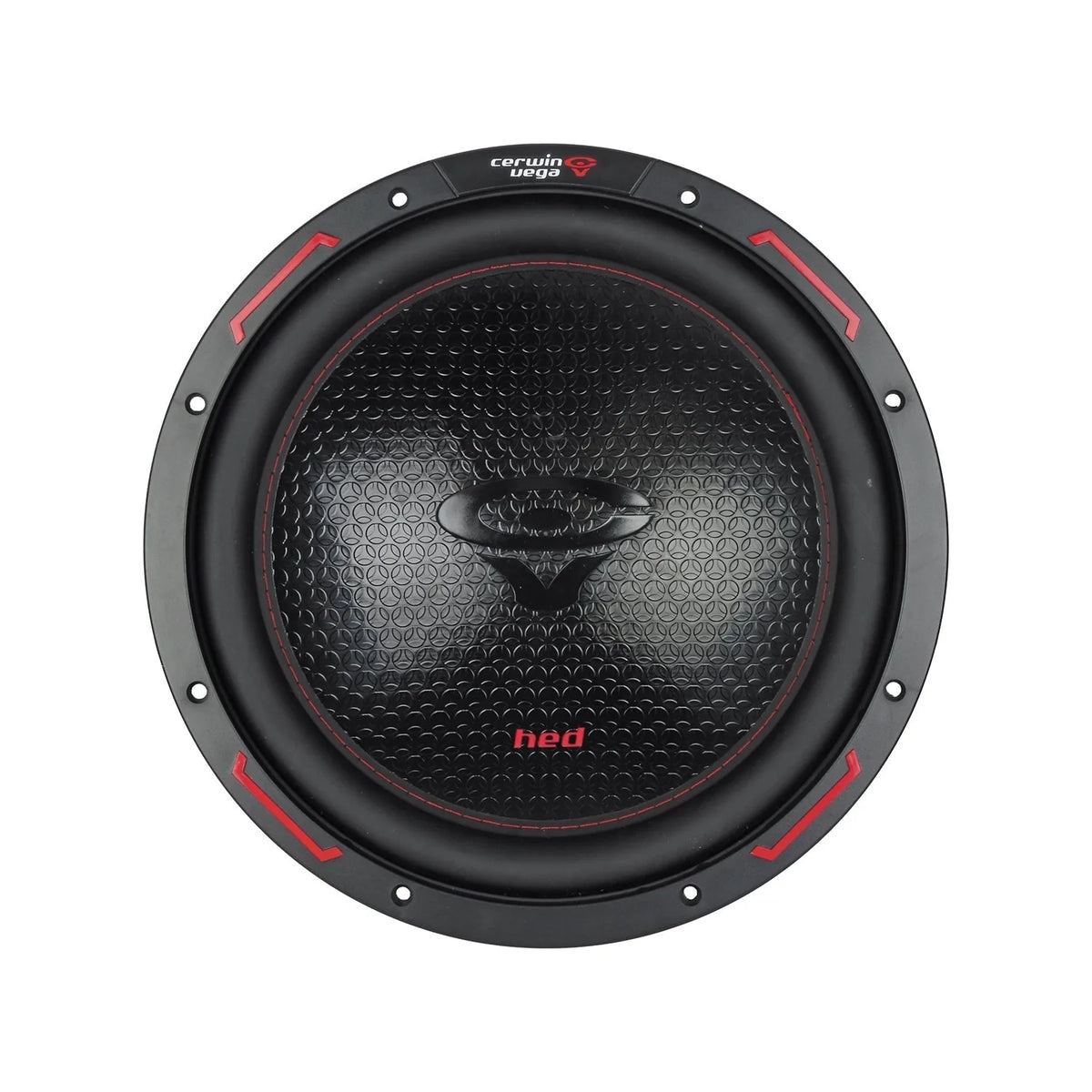

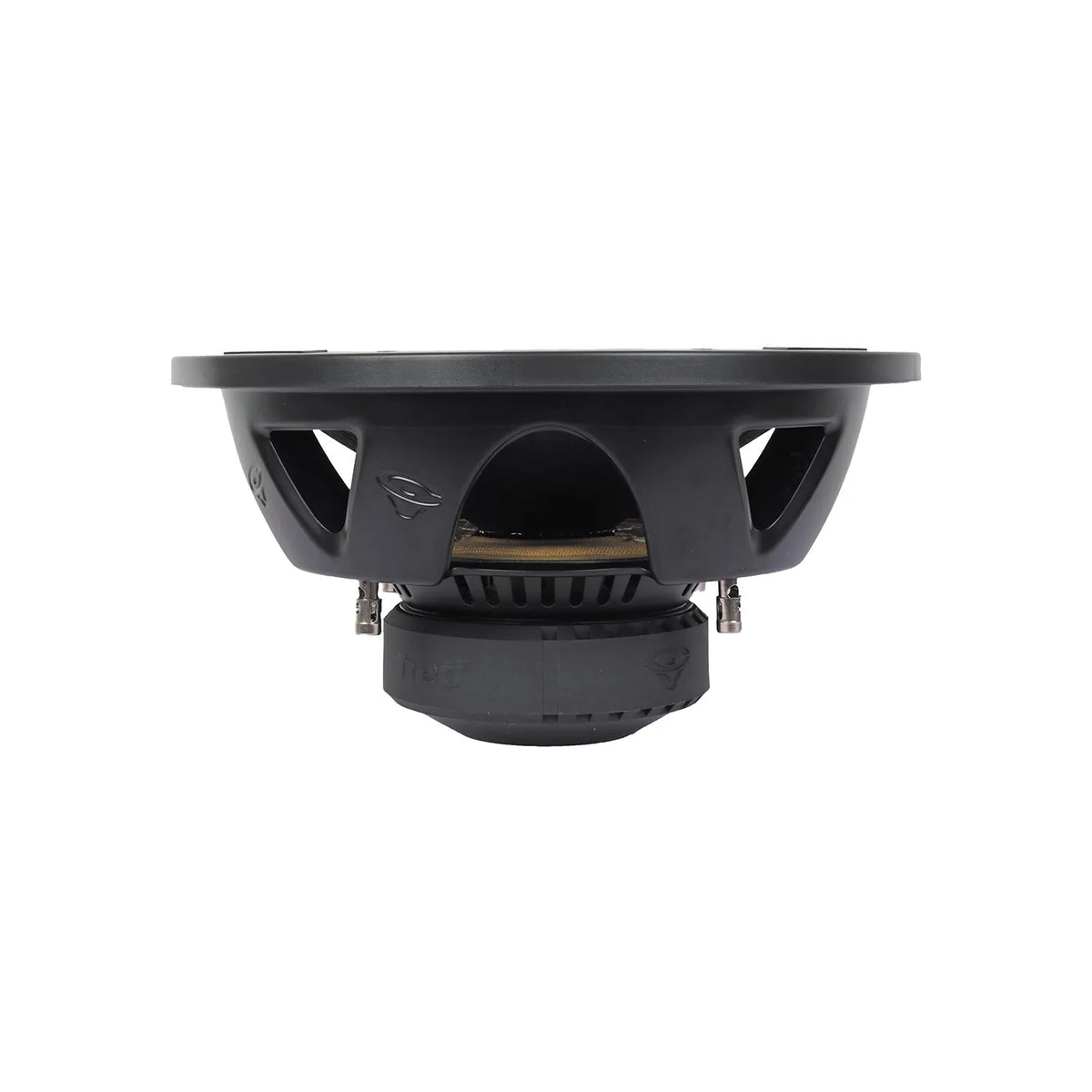

H12DV2 – HED 12" DVC Subwoofer (2Ω)

The Cerwin-Vega H12DV2 HED 12-inch Dual Voice Coil Subwoofer (2Ω) is engineered to deliver massive low-frequency impact with precision control and long-lasting durability. As part of the legendary HED Series, this 12-inch car subwoofer is designed for enthusiasts who demand deeper bass extension, higher output capability, and the unmistakable punch of Cerwin-Vega performance.

Featuring a Dual 2-ohm voice coil configuration, the H12DV2 provides flexible wiring options for optimized impedance matching with a wide range of mono amplifiers. Whether wired for maximum output or system efficiency, this dual voice coil subwoofer allows you to configure your setup for peak amplifier performance and clean power delivery.

Built with a rugged hybrid polypropylene and treated paper cone, the H12DV2 offers the ideal balance of stiffness and responsiveness. This construction ensures tight, controlled bass reproduction while maintaining clarity even under heavy load. The stitch-reinforced TPE foam surround supports increased excursion and durability, allowing the 12-inch subwoofer to move significant air for deeper, more authoritative bass response. A strong ferrite motor structure enhances control and power handling, delivering consistent performance at high volume levels.

Designed for both sealed and ported enclosures, the Cerwin-Vega H12DV2 adapts to a variety of system goals. Install in a sealed box for tight, accurate bass or choose a ported enclosure for louder, more aggressive low-end output.

Ideal for daily drivers, bass enthusiasts, and high-output car audio systems, the Cerwin-Vega H12DV2 12-inch DVC subwoofer delivers the signature Cerwin-Vega sound—deep, powerful, and distortion-free.

Greater cone area. Flexible wiring. Legendary Cerwin-Vega bass authority.

SPEAKER SIZE - 12”
SPEAKER TYPE - SUBWOOFER
BI-AMPABLE YES
OHMS (PER COIL) - 2
NUMBER OF VOICE COILS - DUAL
CONE MATERIAL - POLYPROPYLENE
BASKET MATERIAL - STAMPED STEEL
MAGNET TYPE - FERRITE (CERAMIC)
SURROUND MATERIAL - TREATED FOAM
VOICE COIL DIAMETER - INCH (MM) - 3”
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 84
RE (Ω) [SERIES]: 2+2
QMS: 7.64
QES: 0.89
QTS: 0.8
FS (HZ): 34
VAS (L): 41.48
CMS (MM/N): 0.096
MMS (G): 205.49
SD (M2): 551.55
BL (T*M): 13.68
XMAX (MM): 8
POWER HANDLING RMS: 650
POWER HANDLING MAX: 1950
MOUNTING DEPTH: IN.(MM):5.96"" (151.5MM)
CUT OUT DIAMETER IN.(MM):11.1"" (282MM)
OVER ALL DIAMETER IN.(MM):12.7"" (322.5MM)
OVER ALL HEIGHT IN.(MM):6.61"" (168MM)


View Product Details

Big Sound, Small Footprint

For those craving thunderous low-end performance, the HED Standard Subwoofers offer bold, hard-hitting bass. Built with strontium ferrite magnets and a high-excursion design, these subs are crafted to maximize output and efficiency. Whether you're looking for tight, controlled bass or window-rattling power, HED Subwoofers deliver an unbeatable combination of performance and durability.

Pure Power, Deep Impact

Unleash deep, thunderous bass with precision and power with HED Subwoofers. Built with hybrid carbon fiber-polypropylene cones, high-excursion Santoprene surrounds, and strontium ferrite magnets, they deliver relentless performance without distortion. Whether it’s tight, punchy lows or earth-shaking impact, HED Subwoofers redefine low-end excellence.
