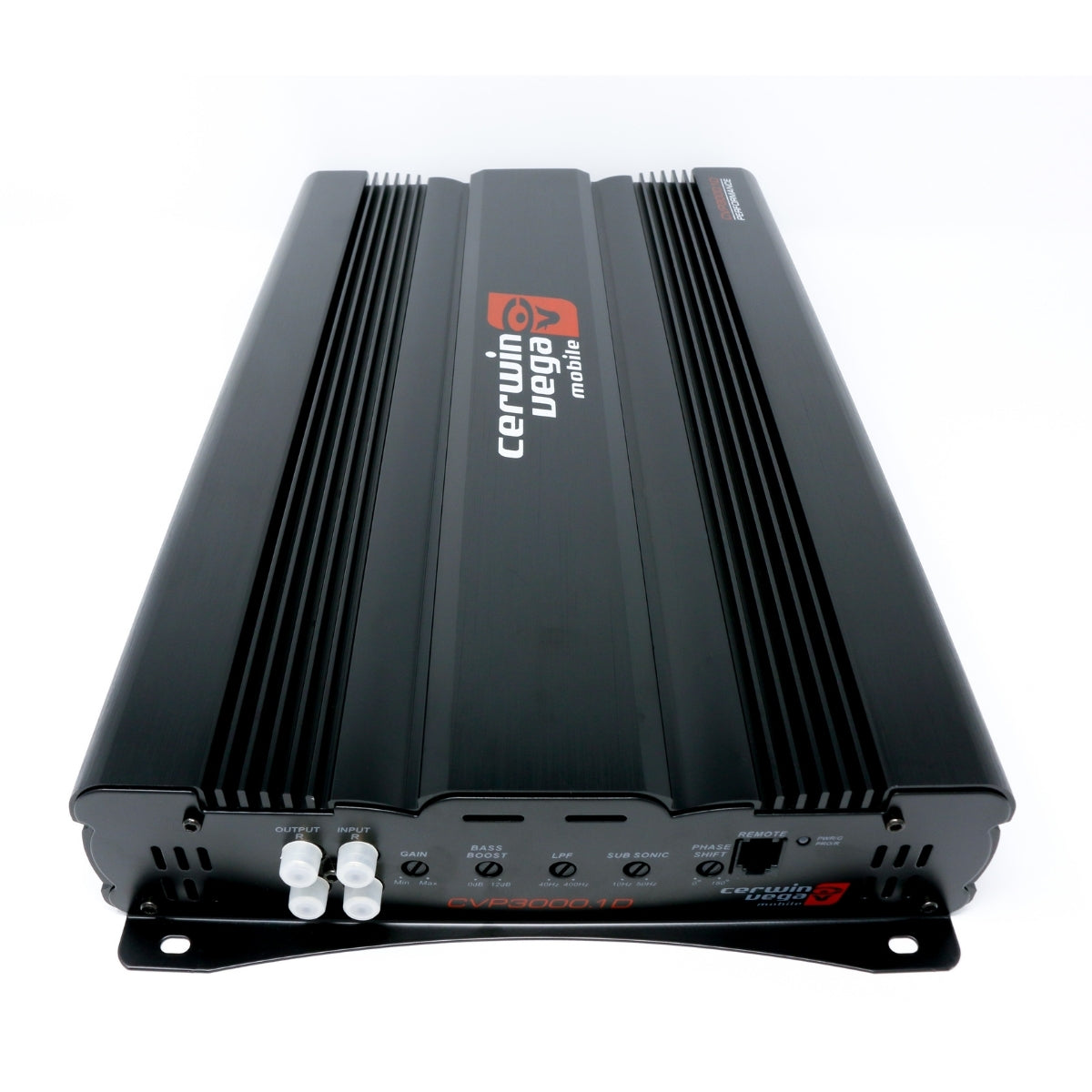

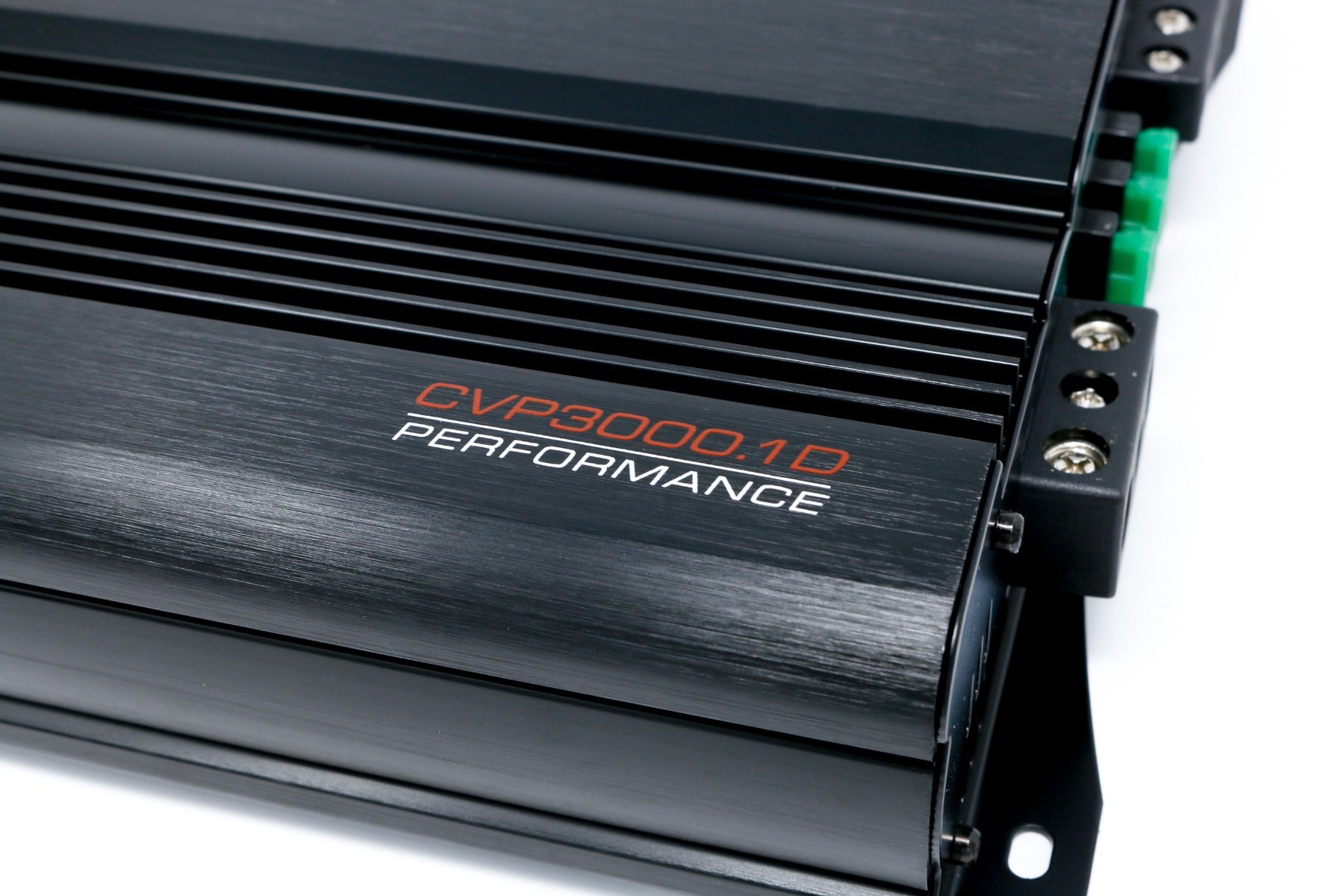

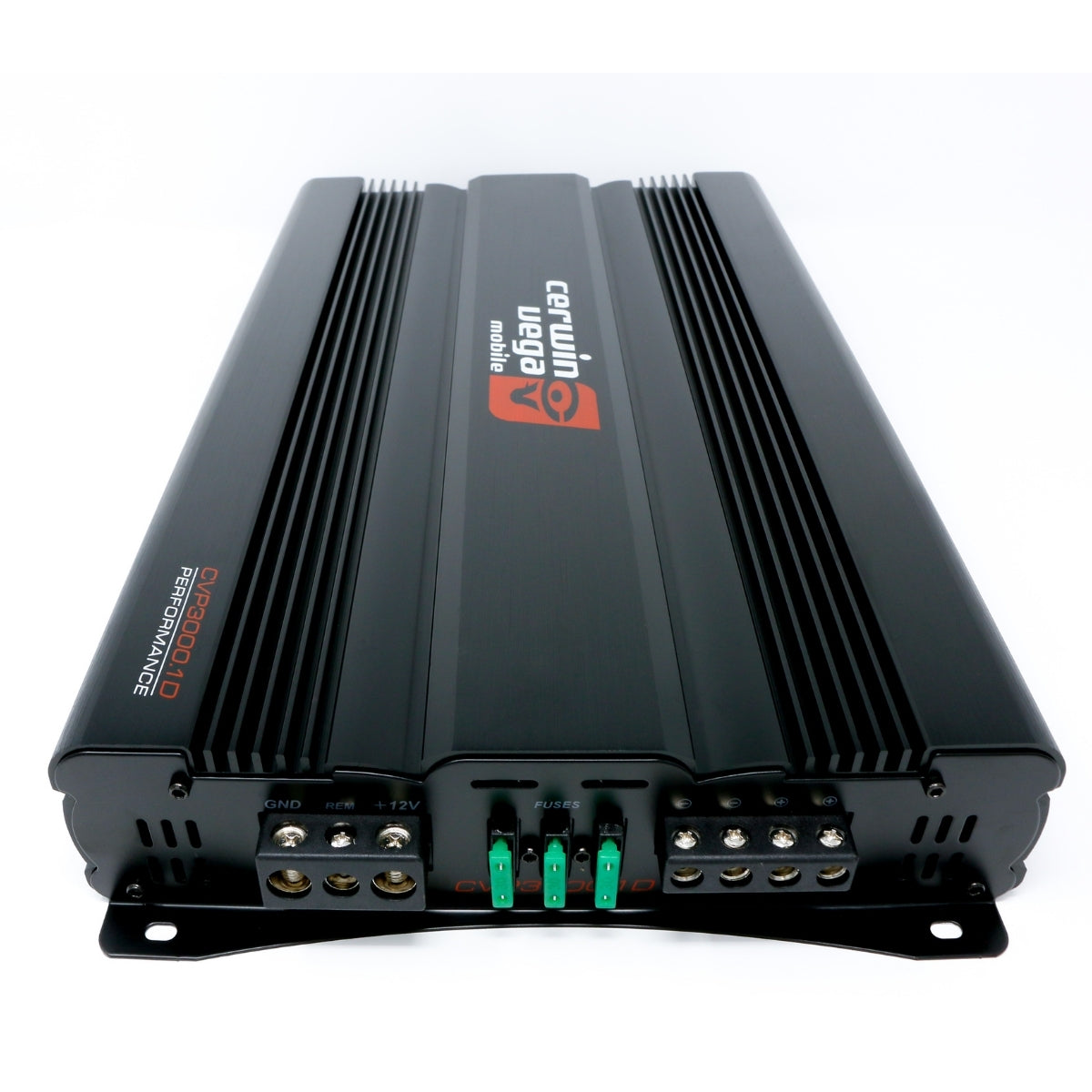

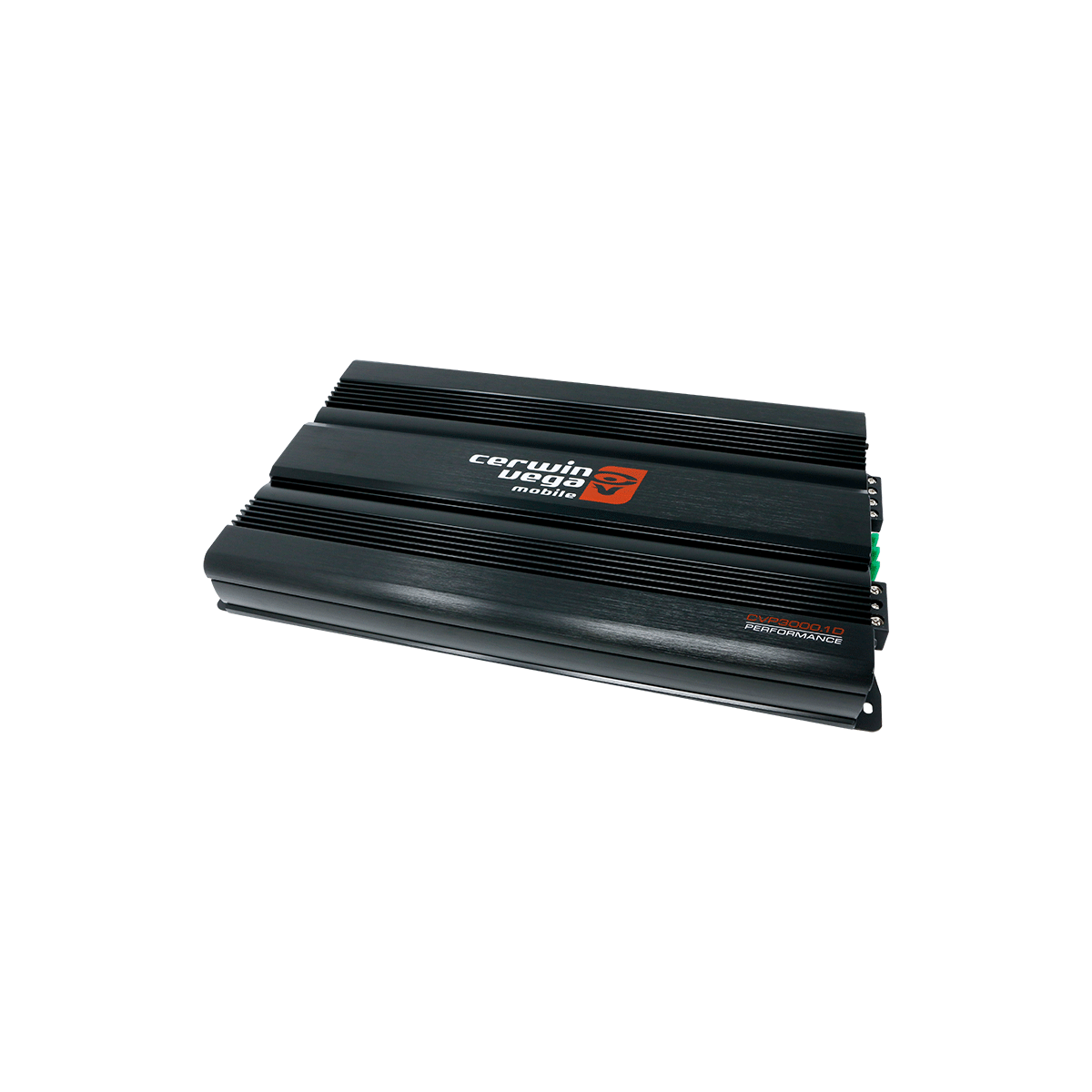

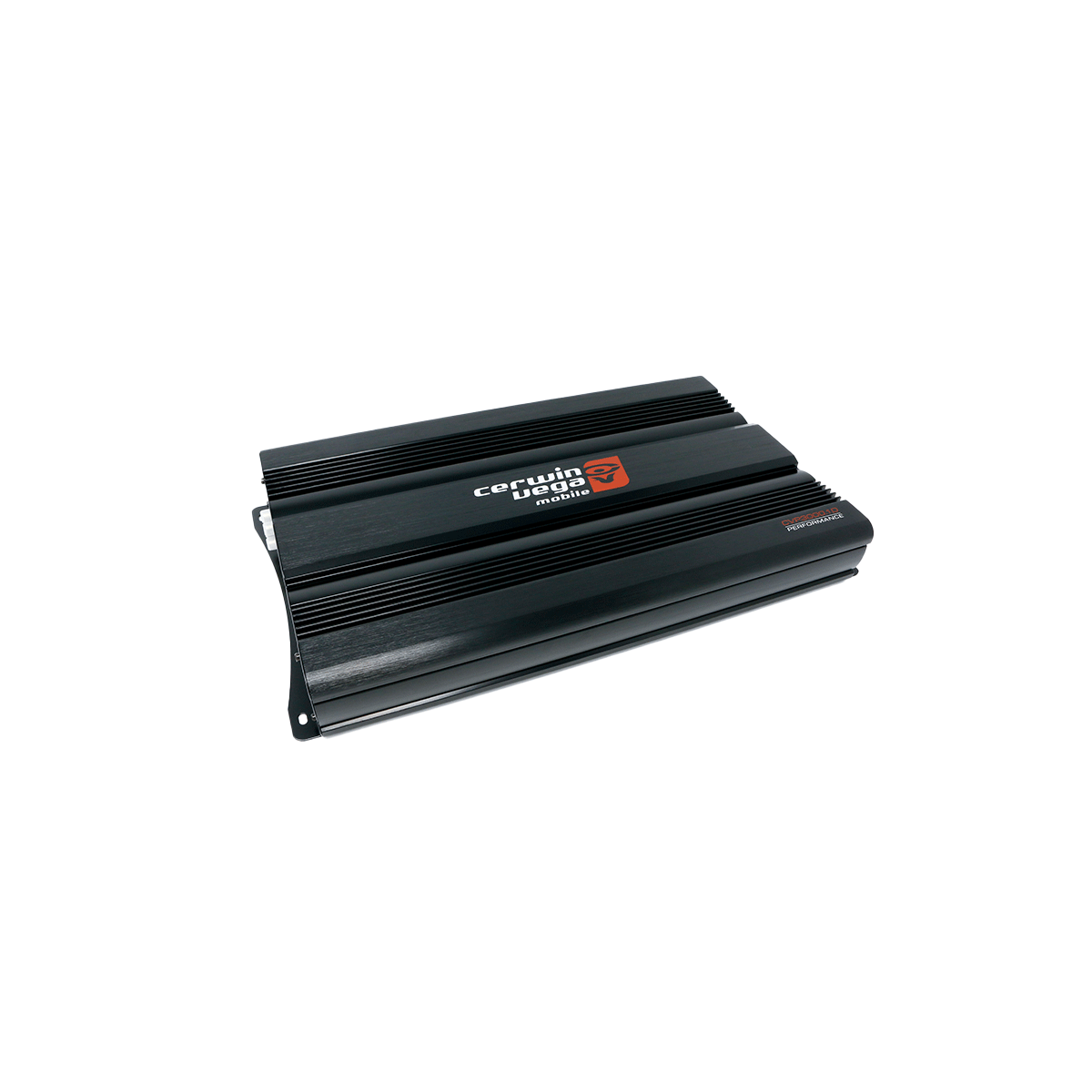

1-Channel CVP Series Class AB Monoblock Amplifier - CVP3000.1D
Weight: 10.07 lb
Couldn't load pickup availability
Overview
1-Channel CVP Series Class AB Monoblock Amplifier
Unleash powerful low-frequency performance with the Cerwin-Vega CVP3000.1D CVP Series Monoblock Amplifier, a high-output car audio amplifier engineered to deliver the deep, hard-hitting bass that Cerwin-Vega is known for. Designed for car audio enthusiasts who demand serious subwoofer performance at an exceptional value, the CVP3000.1D monoblock amplifier combines reliability, efficiency, and raw power to elevate your sound system.
Part of the Cerwin-Vega CVP Performance Series, this amplifier brings legendary Cerwin-Vega engineering to modern car audio systems. The CVP3000.1D Class D monoblock amplifier is specifically designed to power subwoofers with impressive force while maintaining clean, controlled bass reproduction. Its high-efficiency design allows it to produce massive power output while minimizing heat buildup and electrical strain on your vehicle’s system.
Built for bass enthusiasts, the CVP3000.1D amplifier delivers the dynamic low-frequency response needed to drive high-performance subwoofers with authority. Whether you are building a competition-level system or simply upgrading your daily driver, this amplifier provides the muscle required to achieve deep, impactful bass.
Engineered with durability in mind, the CVP Series features rugged construction and quality internal components designed to withstand the demands of high-energy car audio systems. Precision engineering ensures stable performance, consistent power delivery, and minimal distortion even when pushing your system to higher volume levels.
The monoblock configuration allows the amplifier to dedicate its full power output to subwoofer performance, making it ideal for powering single or multiple subwoofer setups. This focused design ensures maximum bass output and efficient power transfer to your subwoofer system.
Key Features:
• 1-channel monoblock Class D car audio amplifier
• Designed for powerful subwoofer performance
• High-efficiency design for strong output and reduced heat
• Clean, distortion-free bass reproduction
• Rugged construction for long-term reliability
• Ideal for high-output subwoofer systems
Experience the legendary Cerwin-Vega bass performance with the CVP3000.1D CVP Series Amplifier, built to deliver massive power, deep bass, and unbeatable value for serious car audio systems.
Specifications
POWER RATING
FREQUENCY RESPONSE (HZ): 40HZ - 400HZ
RMS POWER PER CHANNEL 4Ω 370W X 1
RMS POWER PER CHANNEL 2Ω 600W X 1
POWER SUPPLY
- Power Supply: Full PWM
- Power Supply Threshold: 10.0V-16.0V (DC)
- Idle Current: (0.8A)
DISTORTION
- THD (1KHz @4Ω): <1%
- S/N Ratio (A weighted @1W): >90dBA
- S/N Ratio (A weighted @FP): >105dBA
INPUT SENSITIVITY
- Low Input Level: 200mV-6V
- High Input Level: 200mV-6V
INPUT IMPEDANCE
- Low Input Level: 20 KΩ
- High Input Level:
OUTPUT STAGE
- Output Impedance: 2Ω/4Ω
- Damping Factor: 100
- Bandwidth (-3dB): 10Hz-32KHz
CROSSOVER (-12dB/Oct)
- Variable High-Pass:
- Variable Low-Pass: 40Hz-400Hz
- Variable Sub-Sonic: 10Hz-50Hz

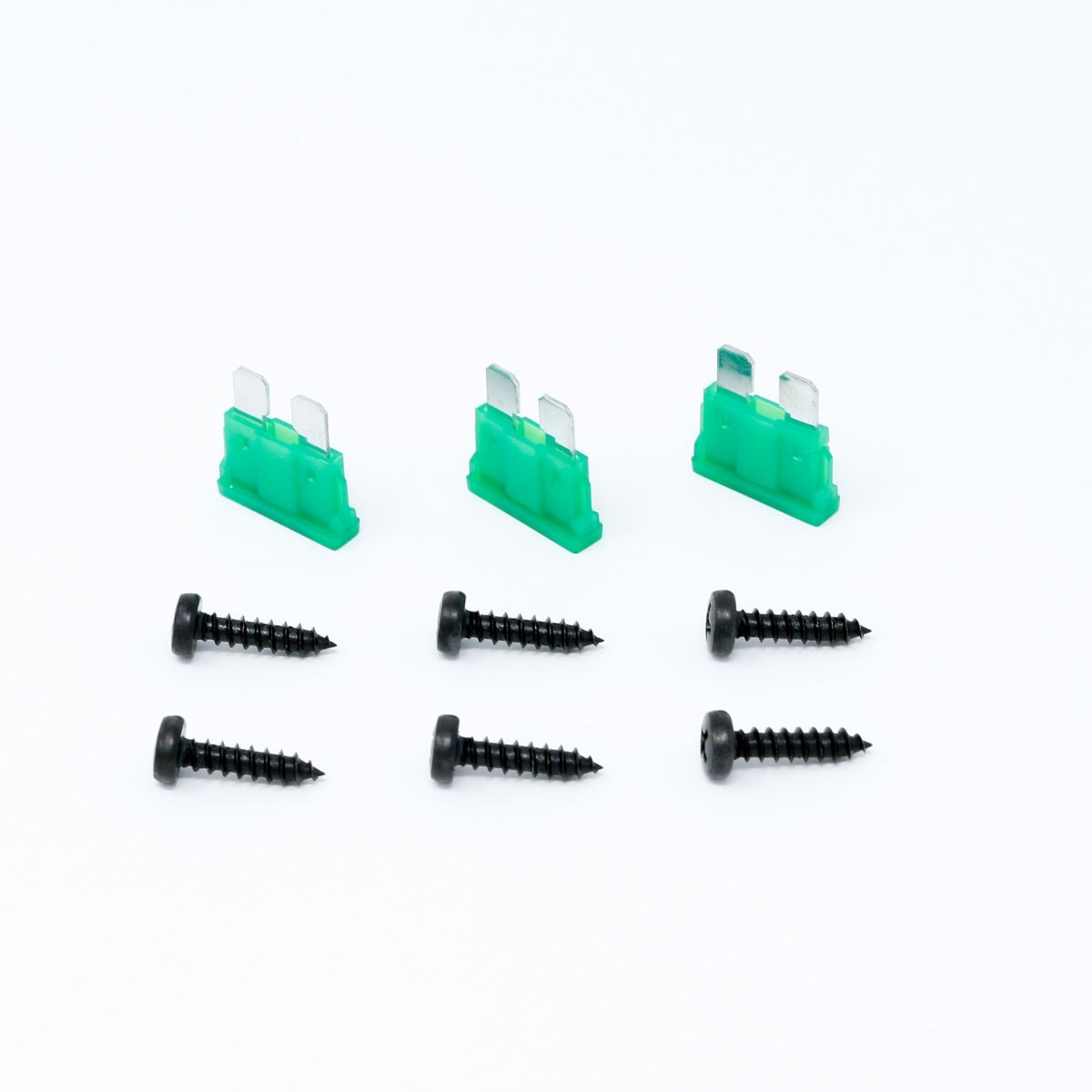

FUSE RATINGS
- ATC: 30A x 3

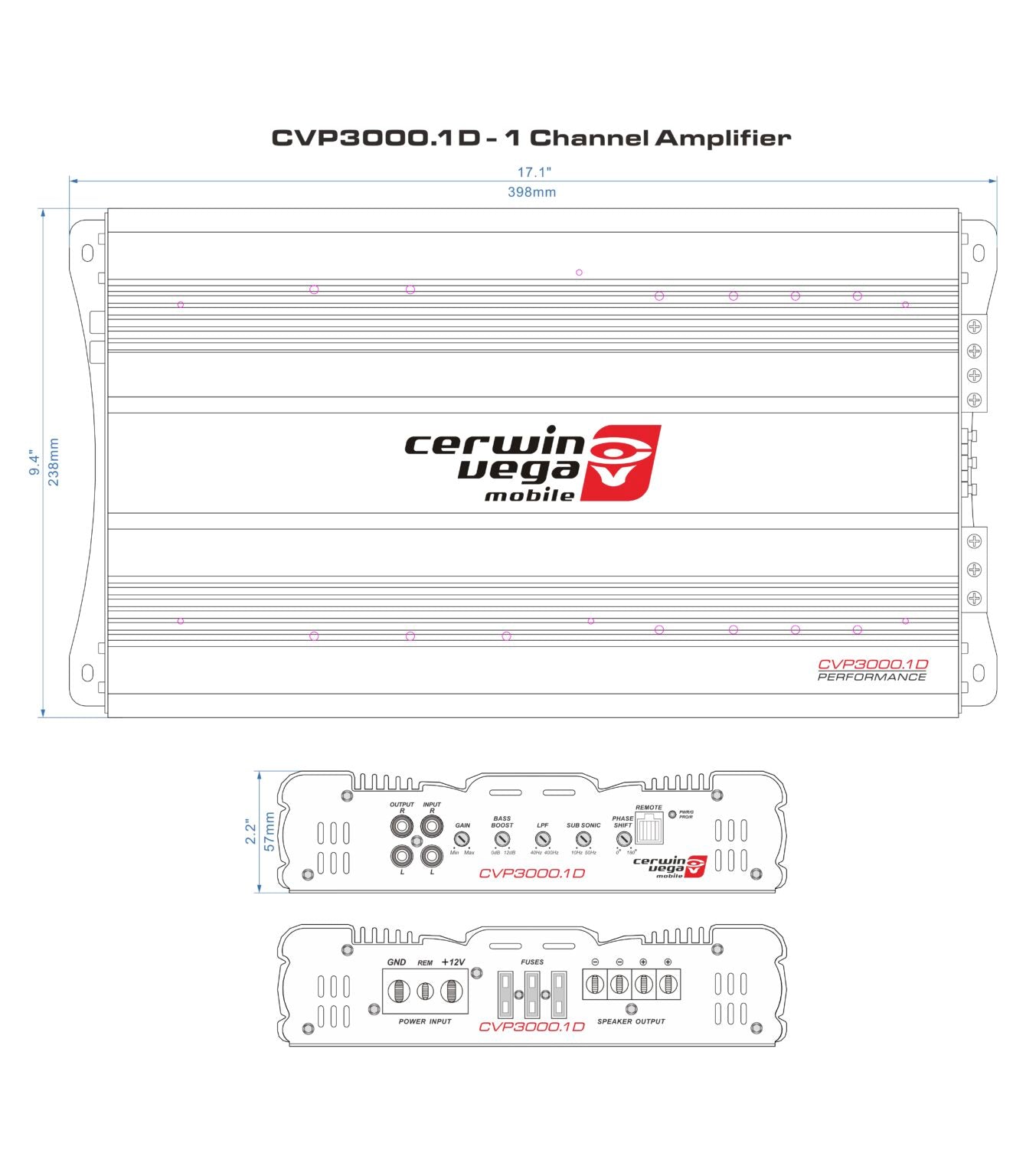

DIMENSIONS
- L x W x H: 15.76”x 9.3”x 2.25” (400mm x 238mm x 57mm)
FEATURES
- LED Power/Protection Indicator
- Bass Boost: 0dB-12dB

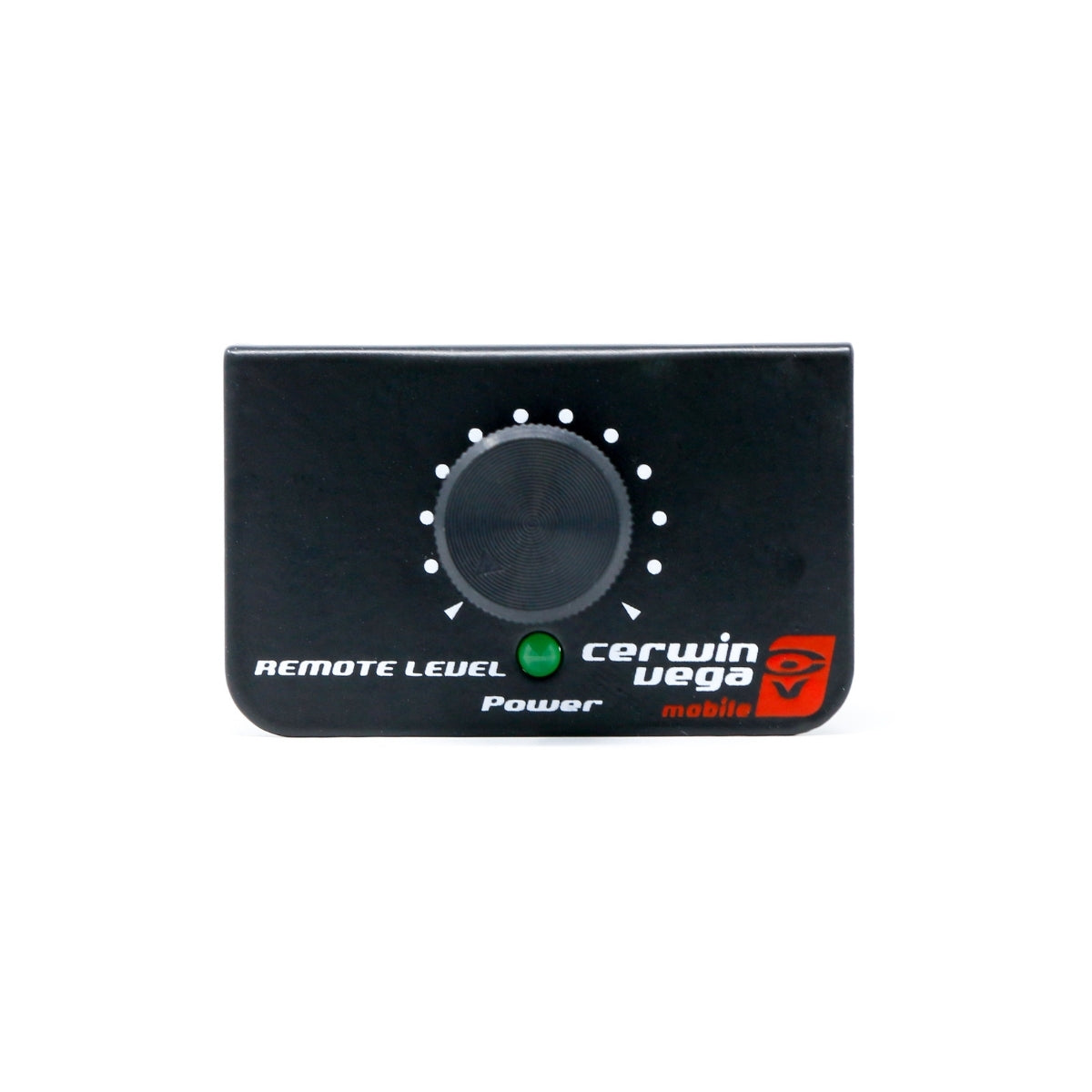

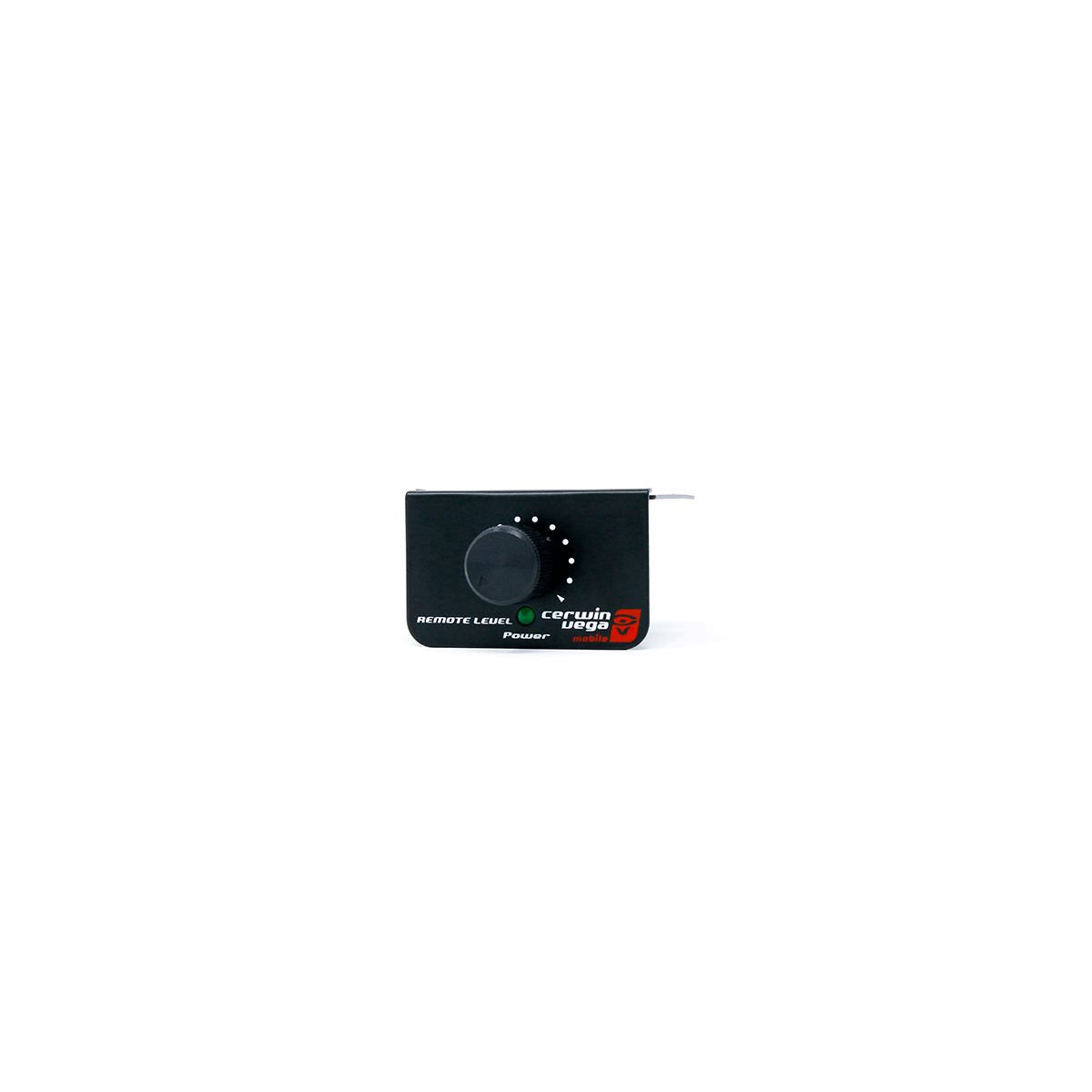

- Bass Volume Control Included
- MFR #: CVP3000.1D
