RPM Stroker Class-D Mono Digital Amplifier
SKU:SRPM1000.1D
Couldn't load pickup availability
Overview

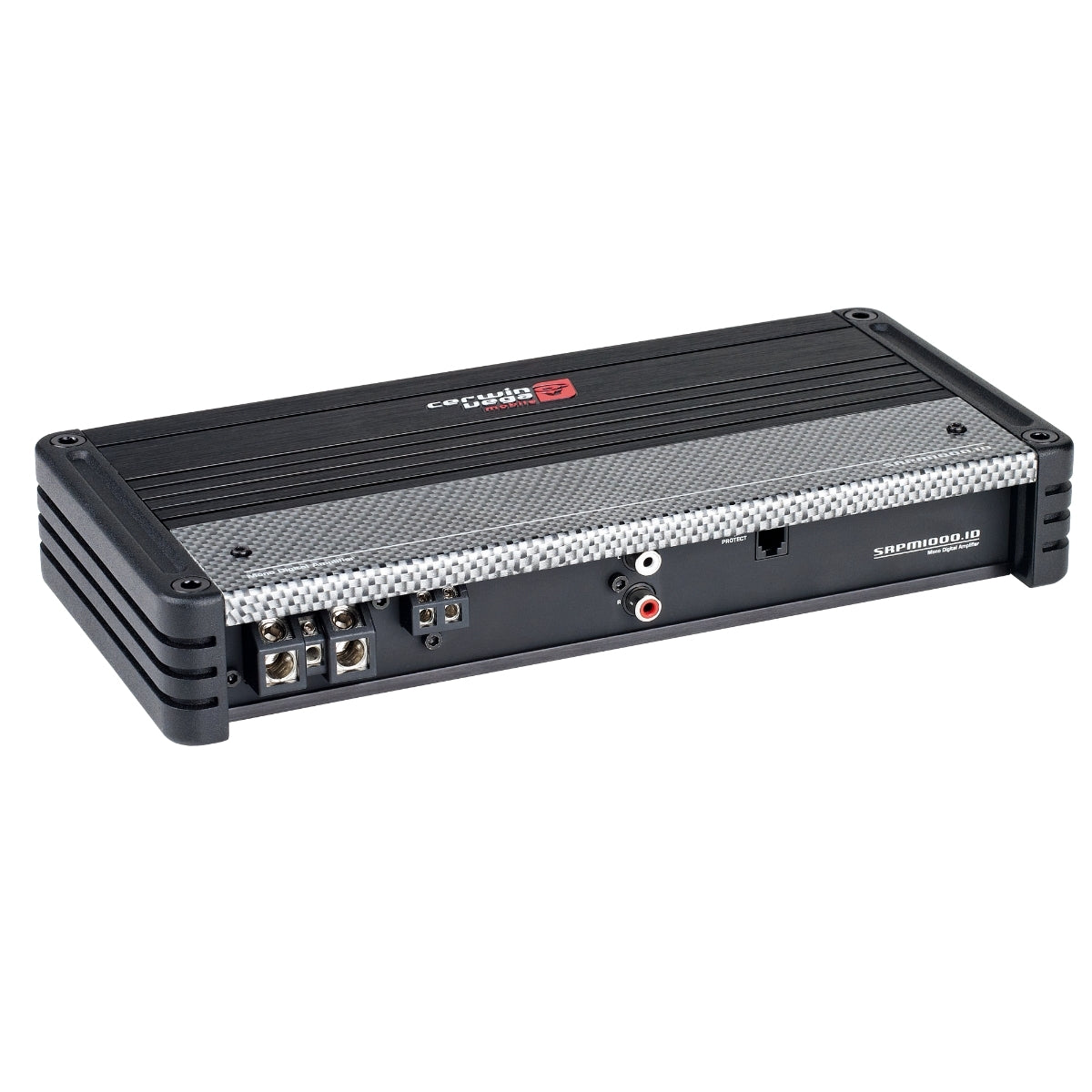

SRPM1000.1D - RPM Stroker Class-D Mono Digital Amplifier
Description:
RPM Stroker Series amplifiers have HUGE “dynamic” headroom capability and ALWAYS sound more powerful then rated. Latest High Efficiency Full Range Digital Topology. Surface Mount Component Technology with 4-Layer PCB. Common Compact Size with Single Sided Connections and Top Mount Controls. Handles HI and LO level input up to 12V. Switched Speaker Level Turn On Option (VOX/DC Offset/REM). Input configuration switch on 4 and 5 channel amplifiers. Fully Variable 35Hz - 350Hz 12dB per Octave Crossovers. Lighted LED logo. Bass remote can be disassembled and installed in-dash. Variable Phase adjustment on ALL RPM Stroker Series monoblocs.
Specifications
1 Channel Monobloc Digital Amplifier
400W x 1CH @ 4Ω RMS Power Output
800W x 1CH @ 2Ω RMS Power Output
1000W x 1CH @ 1Ω RMS Power Output
Input Sensitivity: 0.2-10 Volt
Crossover Filter : 30-300Hz (LPF), 24dB Per Octave Slope
Frequency Response: 10-350Hz
Selectable REM / VOX / DC Turn On Modes
Variable Phase Adjustment
Superior Full Range Class D Design
Conformal Coated PCB To Protect Against Moisture, Vibration/Mechanical Stress
Top Mount Controls For Quick Precise Adjustments
Remote Bass Level Adjustment Capability
Speaker Level Input With Auto Turn-On

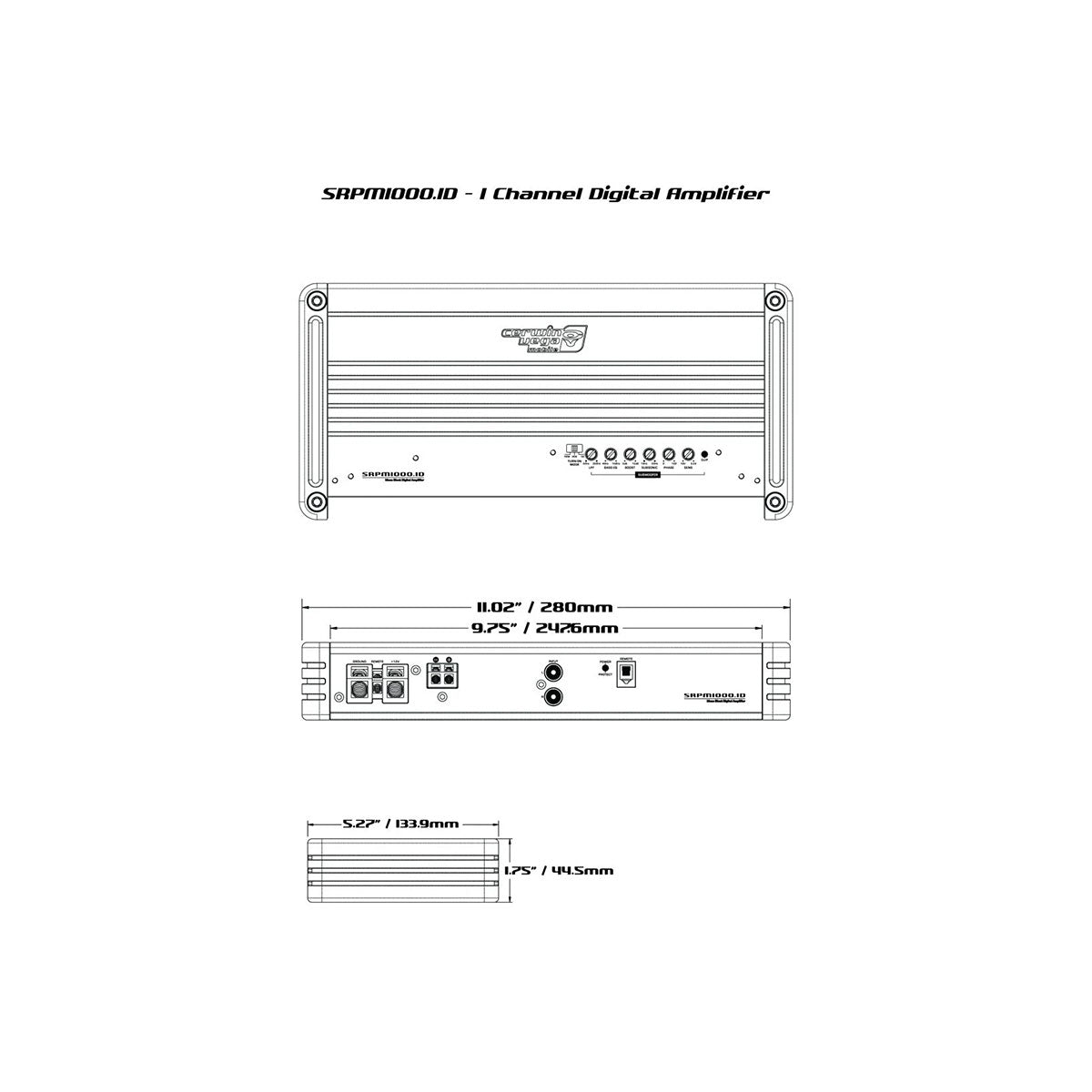

Dimensions: 10.25” x 5.28” x 1.75” (260 x 134 x 44.5 mm)
