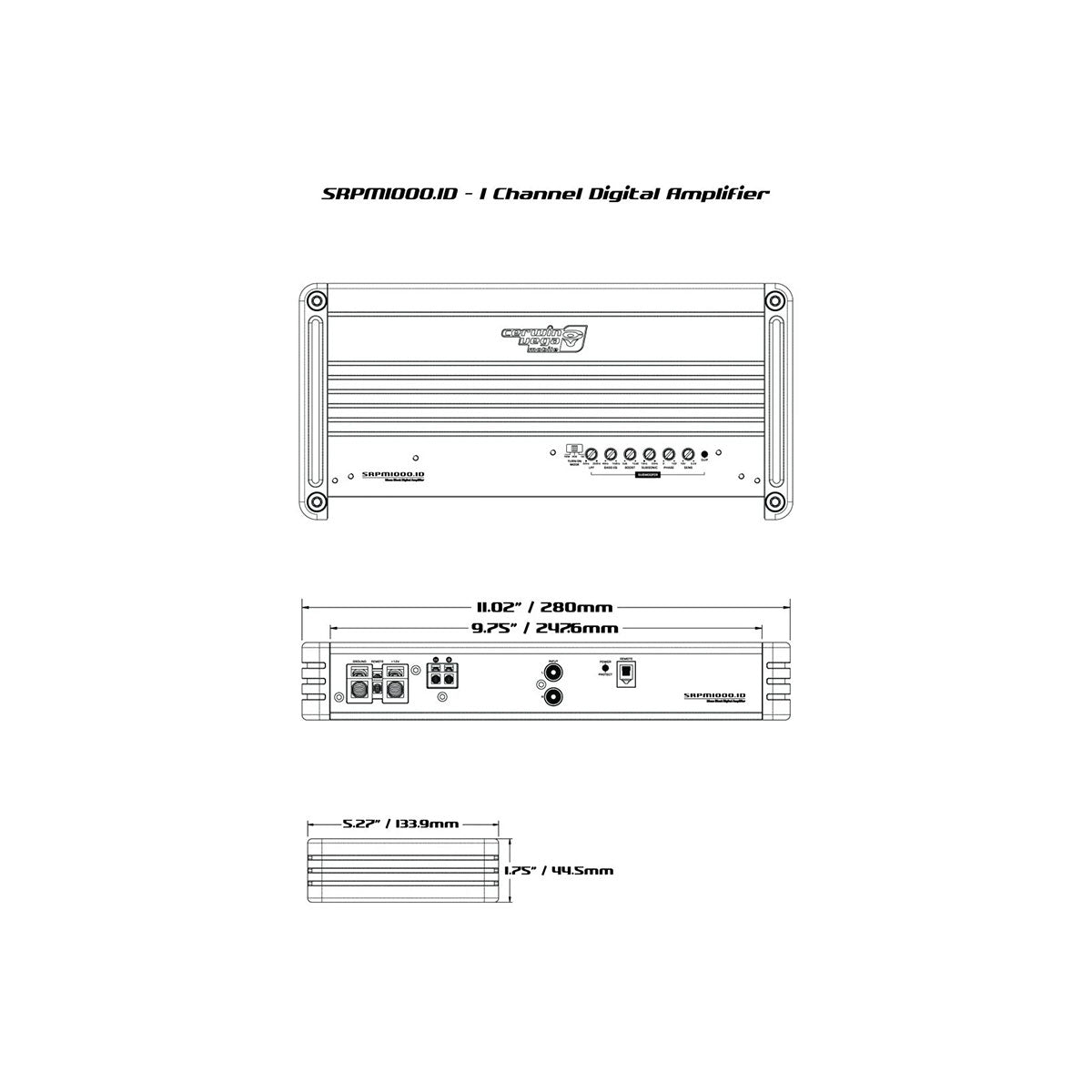

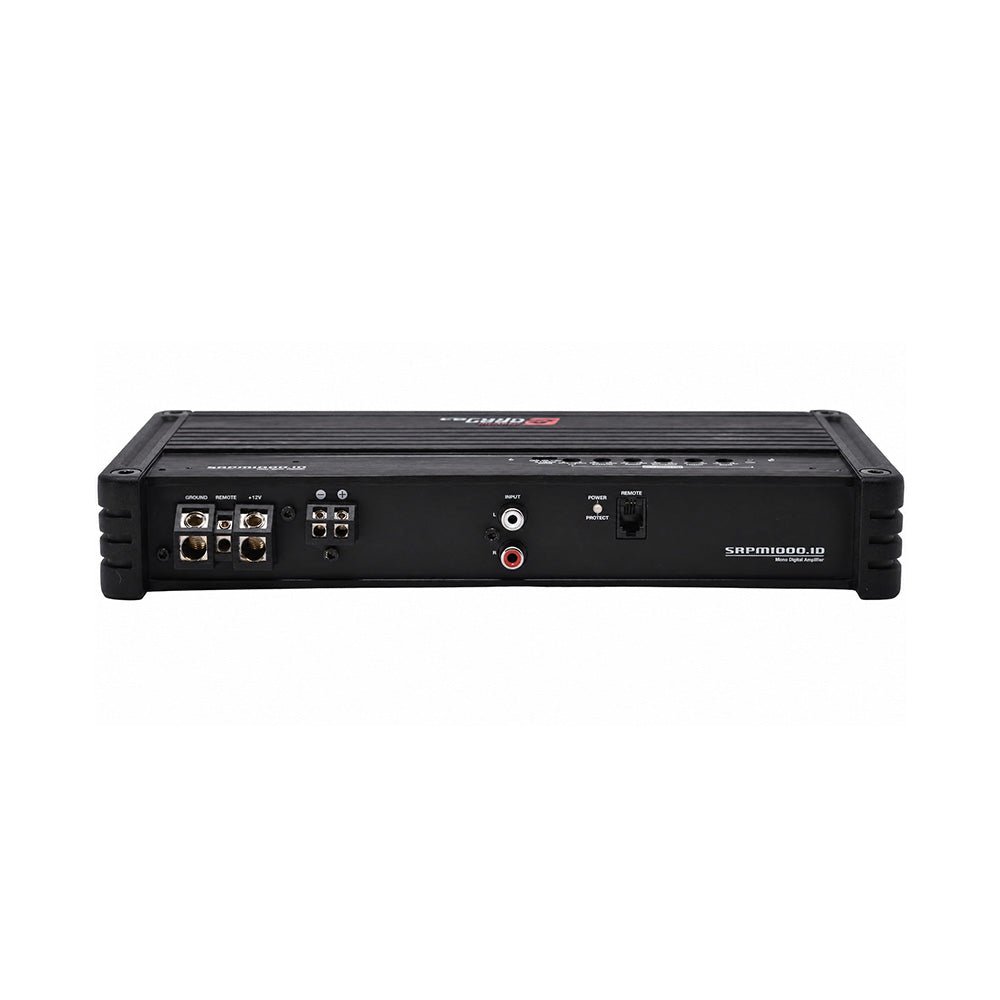

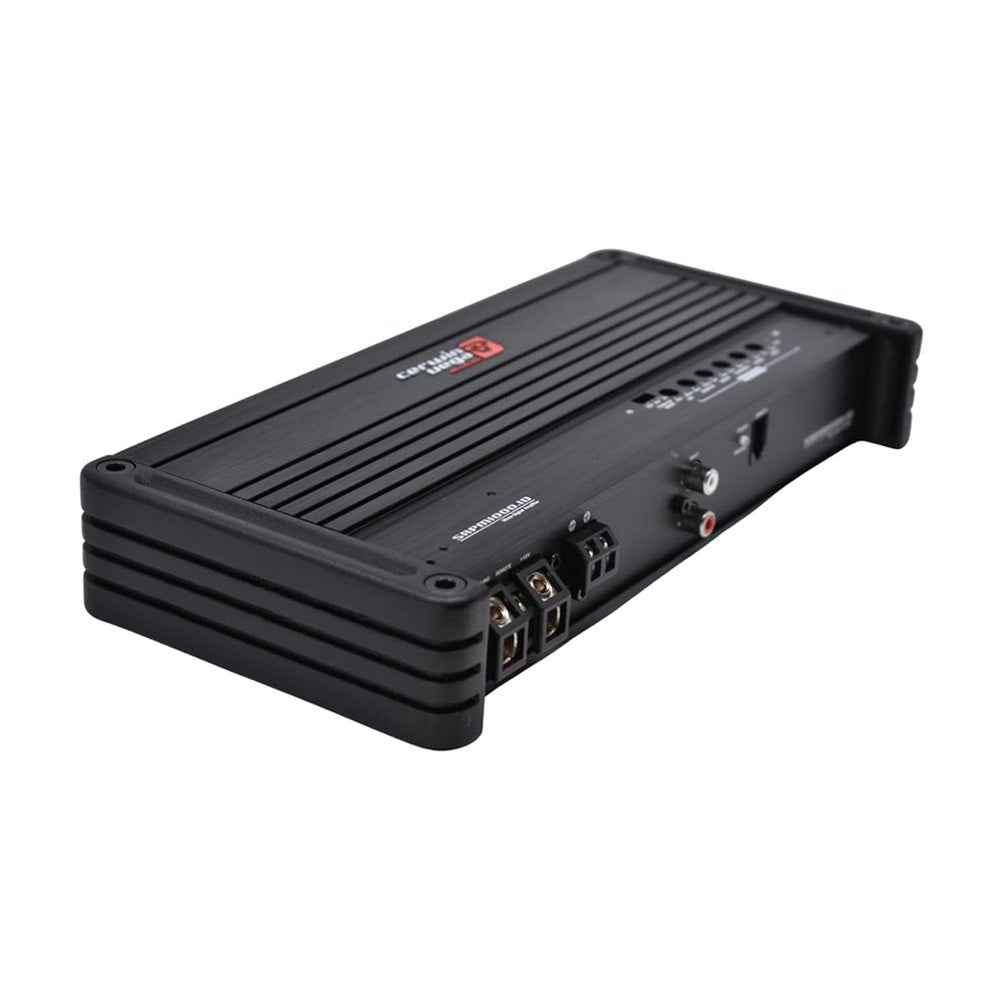

1-Channel SRPM Stroker Monoblock Class-D Amplifier - SRPM1000.1D

Q1: What models, colors and power options are available for the Cerwin-Vega RPM Stroker amplifier series, and what are their applications?
A: The RPM Stroker is an upgraded versatile Class-D amplifier lineup with 10 models in total, offered in classic black and stylish white finishes for customized audio builds. The full product range includes dedicated 1-channel mono subwoofer amplifiers (SRPM750.1D/750.1DW, SRPM1000.1D/1000.1DW), 2-channel full-range amplifiers (SRPM700.2D/700.2DW), 4-channel full-range amplifiers (SRPM700.4D/700.4DW), and all-in-one 5-channel amplifiers (SRPM1100.5D/1100.5DW). Power output ranges from 700W to 1100W. Mono models deliver powerful bass for subwoofers, multi-channel units power full-range door speakers, and 5-channel versions support a complete system with four speakers plus one subwoofer, ideal for daily car audio use and full vehicle upgrades.

Q2: Can RPM Stroker full-range amplifiers power vocal speakers? How do they differ from dedicated subwoofer amplifiers?
A: All multi-channel RPM Stroker amplifiers feature full-frequency response tuning, reproducing clear vocals, crisp treble and tight bass with ultra-low distortion. They work perfectly with car component speakers and coaxial full-range speakers for balanced sound quality. Only the 1-channel mono models are bass-specific and tuned exclusively for passive subwoofers, not recommended for vocal speakers. Unlike single-purpose subwoofer amplifiers, this multi-series lineup covers full audio spectrum, enabling one-unit plug-and-play system upgrades without extra amplifiers.

Q3: What impedance loads do RPM Stroker amplifiers support? Are they bridgeable or strapable?
A: The RPM Stroker series delivers stable performance across standard car audio impedance loads. Mono subwoofer amplifiers safely support 1Ω, 2Ω and 4Ω loads with consistent high-current output without power drop or protection trip. 2-channel, 4-channel and 5-channel full-range models support 2Ω/4Ω daily operation and 4Ω bridgeable mode for boosted power output, suitable for large enclosures and high-power speakers. Mixing different model specifications for bridging or strapping is prohibited to avoid circuit damage and load errors.

Q4: Is normal heat during operation acceptable? How to troubleshoot the protection light?
A: Adopting high-efficiency Class-D circuitry and optimized thermal design, RPM Stroker amplifiers generate minimal heat during regular use. Slight warming is normal, while temperature remains stable even during long high-volume playback. The red protection light activates when the multi-safety system detects faults: overheating from continuous high-load operation requires power-off cooling and improved ventilation; short circuits or loose wiring need terminal inspection and reconnection; incorrect impedance load requires rewiring to restore safe operating range.

Q5: What are the power requirements, included accessories and tuning tips for RPM Stroker amplifiers?
A: All RPM Stroker amplifiers operate stably at 10V–17V DC vehicle voltage. High-power models require heavy-gauge power/ground wires and matched fuses, with short ground cables connected to bare chassis to reduce resistance. Stock batteries work for daily use, while secondary batteries and capacitors are recommended for continuous high-power performance. Each unit includes a wired remote bass knob for in-dash bass adjustment. Built-in 0–12dB bass boost, adjustable low-pass, high-pass and subsonic filters deliver professional tuning. Start tuning with all gains at minimum, increase gradually without distortion, and apply corresponding filter settings for vocal speakers and subwoofers to achieve clean, tight and balanced sound quality.
