Vega 4" 2-Way Component Full Range Speaker System (4Ω) - V4C
Weight: 5.0 lb
Couldn't load pickup availability
Overview
Cerwin Vega V4C – 4" 2-Way Component Full Range Speaker System (4Ω)
Upgrade compact factory speaker locations with powerful, high-fidelity sound using the Cerwin-Vega V4C 4" 2-Way Component Full Range Speaker System (4Ω). Designed as part of the renowned Cerwin-Vega Vega Series, the V4C delivers exceptional clarity, detailed highs, and smooth midrange response in a compact speaker format. It’s the perfect solution for vehicles that require 4-inch speaker fitment but still demand premium car audio performance.

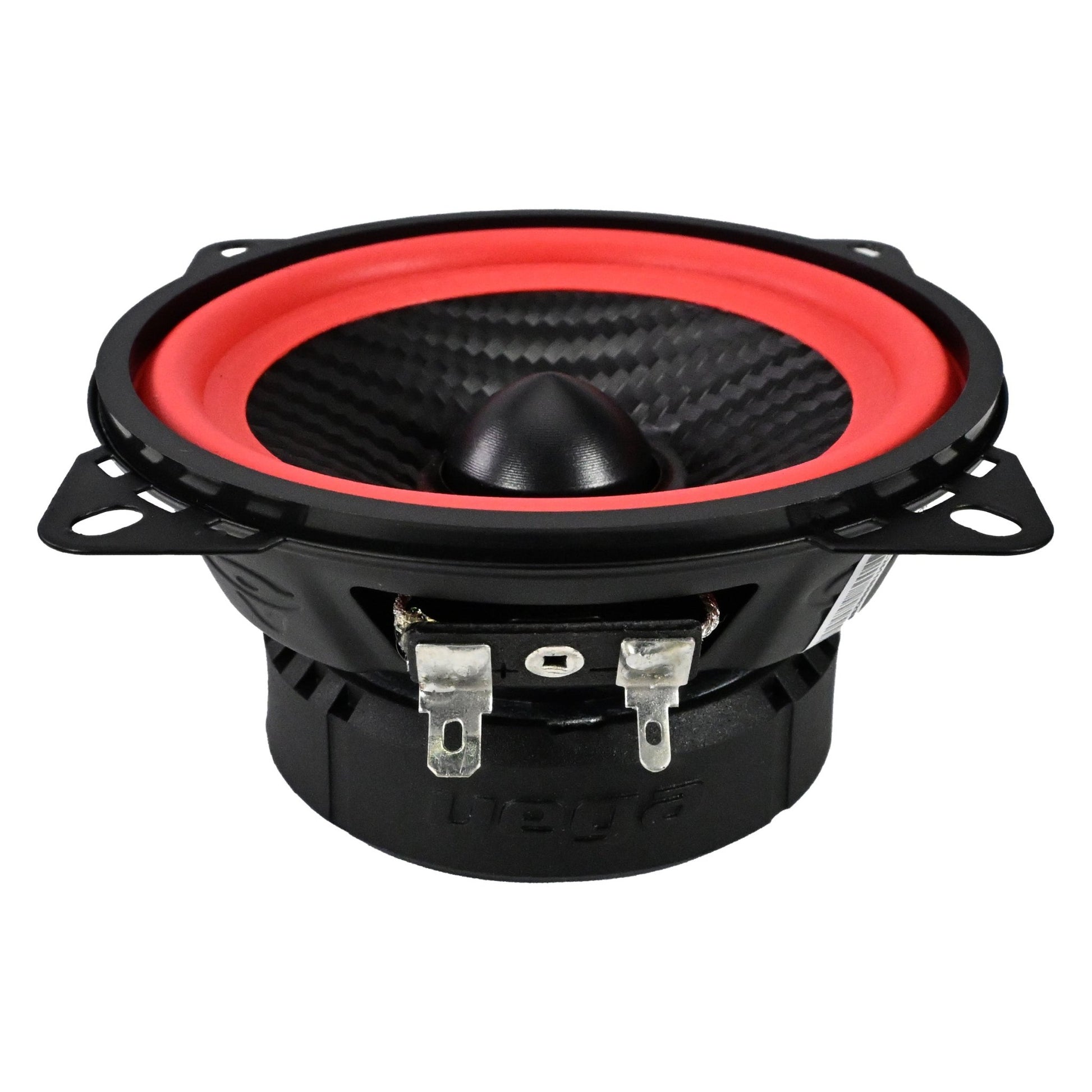

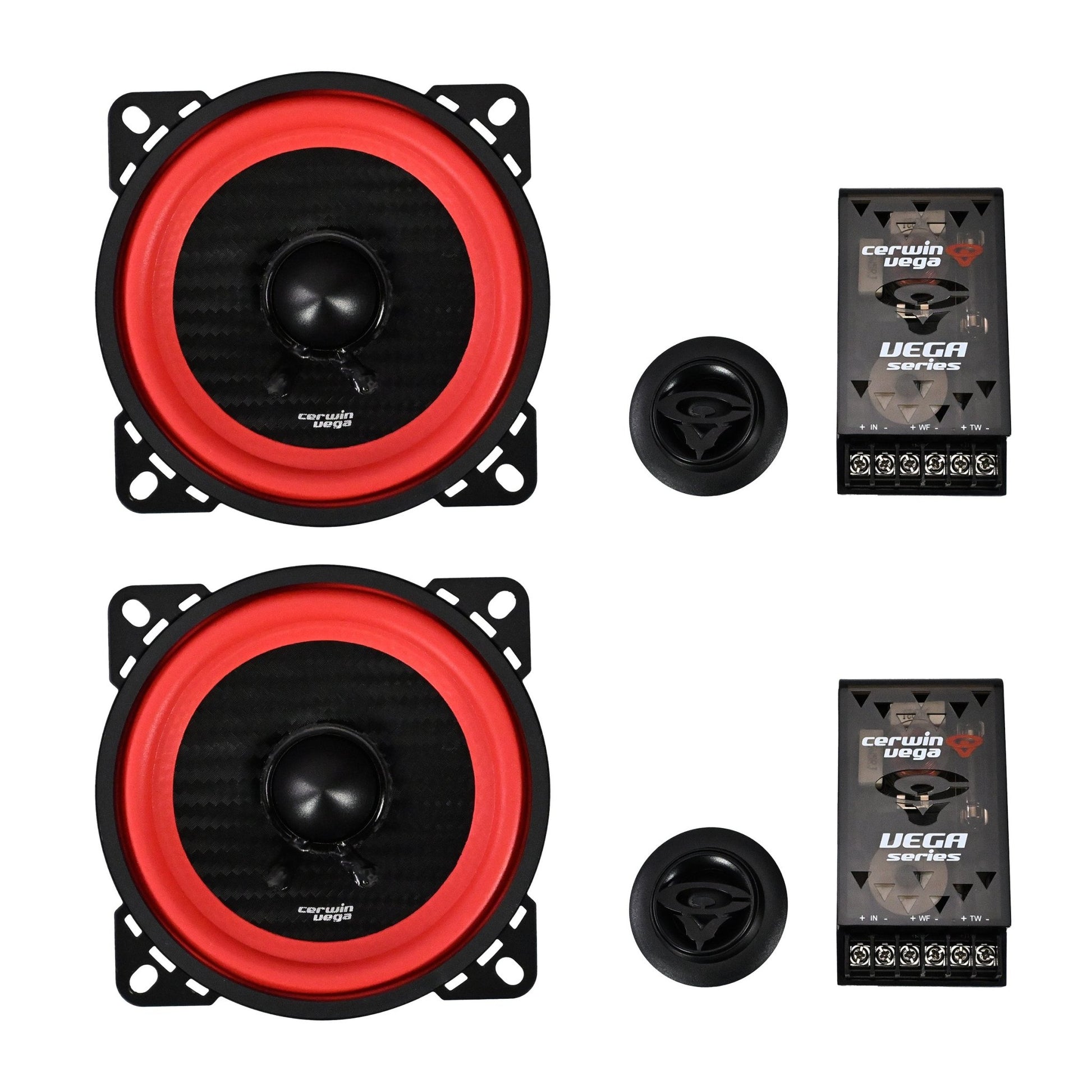

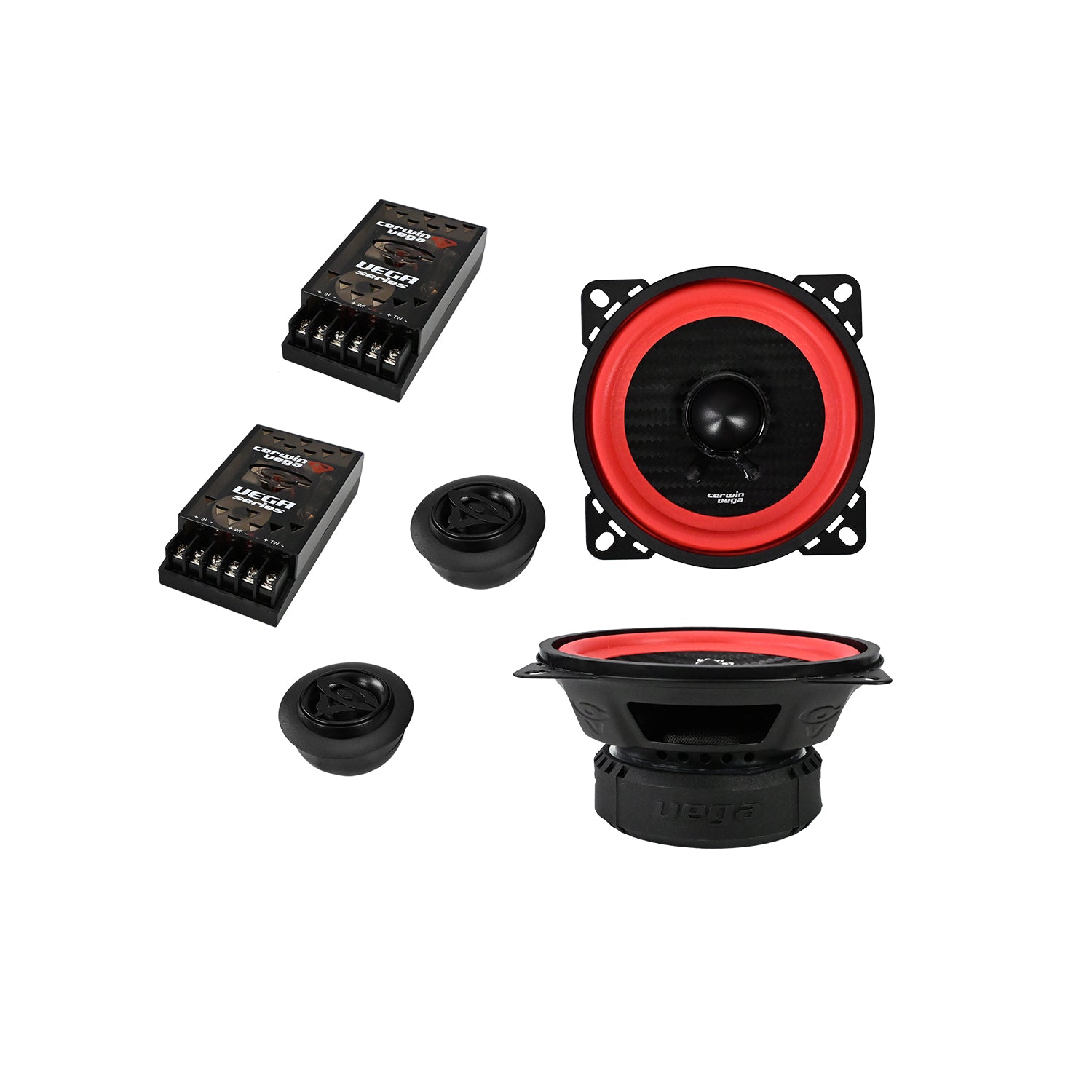

The Cerwin-Vega V4C component speaker system features a precision-engineered 4-inch woofer paired with a 1-inch silk dome tweeter, creating a true 2-way component speaker setup that separates high and low frequencies for improved sound staging and imaging. This design produces a more immersive listening experience with greater accuracy compared to standard coaxial speakers.

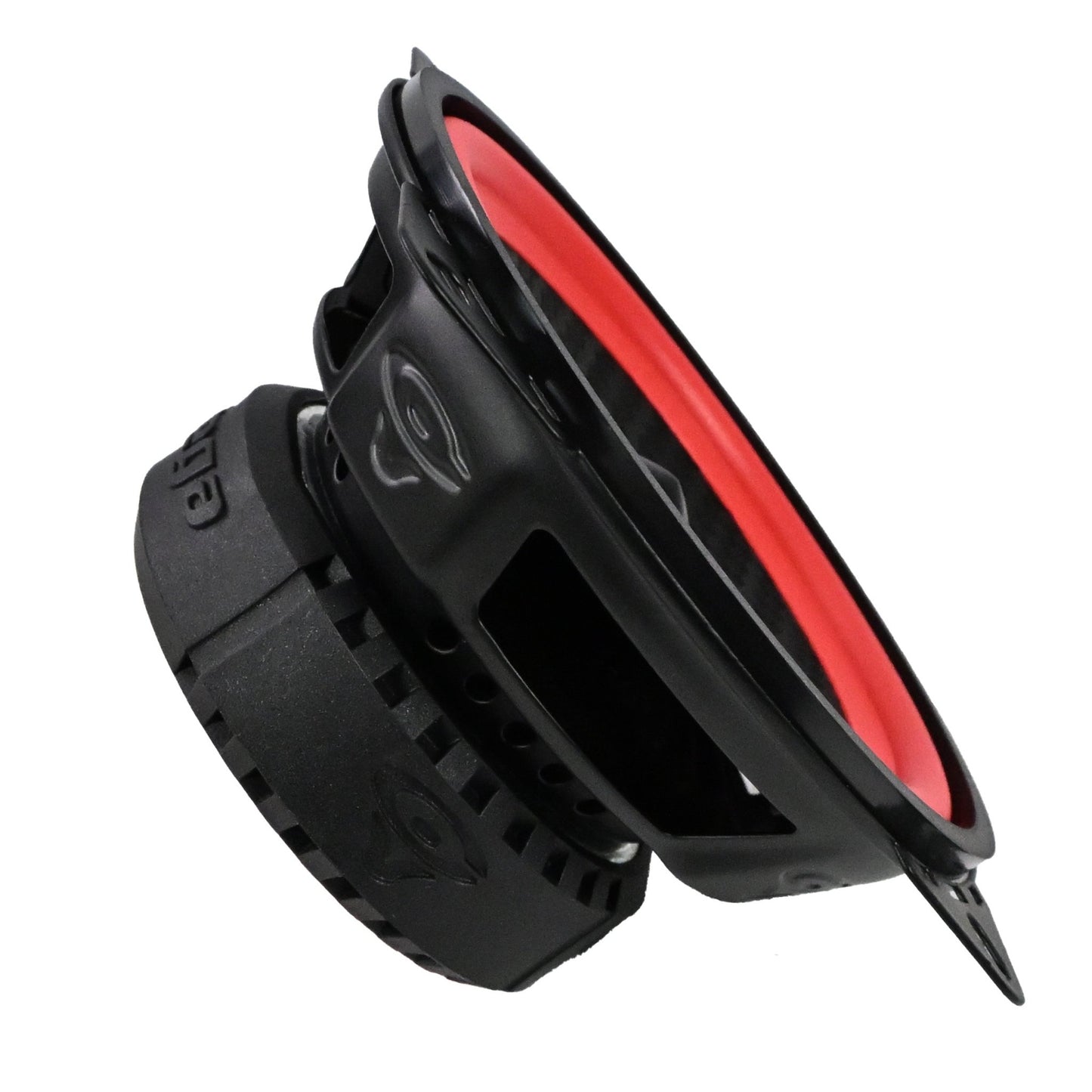

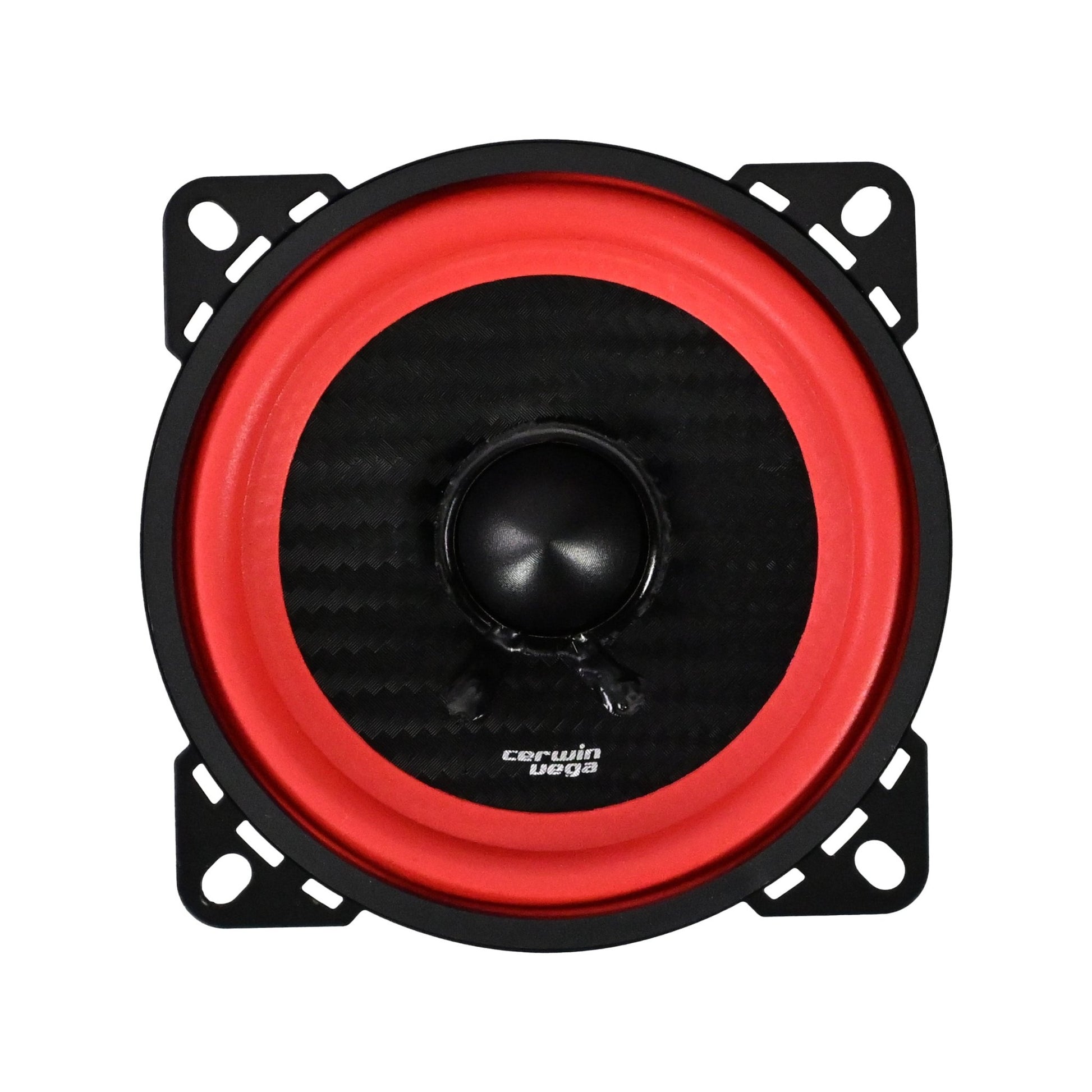

The woofer utilizes a hybrid carbon fiber and polypropylene cone, offering an ideal balance between lightweight responsiveness and structural strength. This advanced cone design ensures accurate midrange reproduction while maintaining durability for long-term performance. The Santoprene™ rubber surround allows for greater cone excursion, producing smoother sound and enhanced mid-bass response even at higher volume levels.

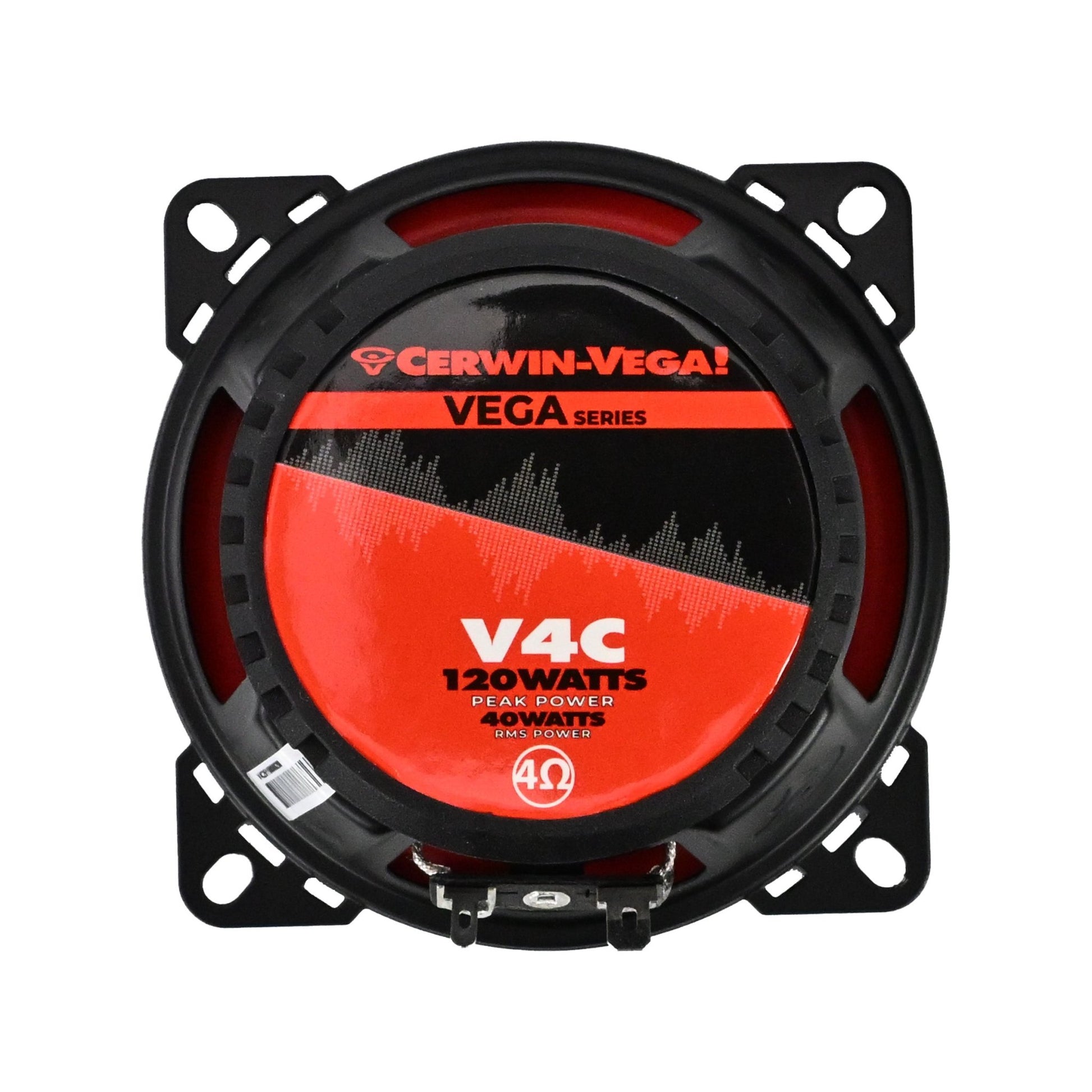

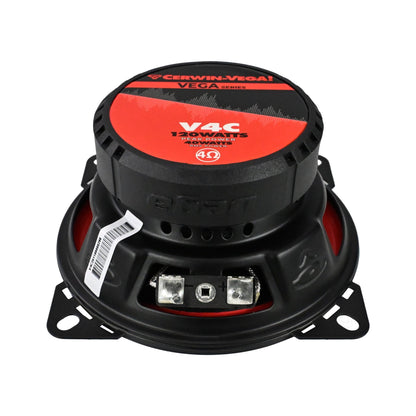

To further optimize sound dispersion, the V4C incorporates an integrated plastic phase plug, which improves time alignment and distributes sound more evenly throughout the vehicle cabin. The woofer is powered by a high-performance strontium ferrite magnet, providing strong magnetic control for improved efficiency and dynamic audio output.

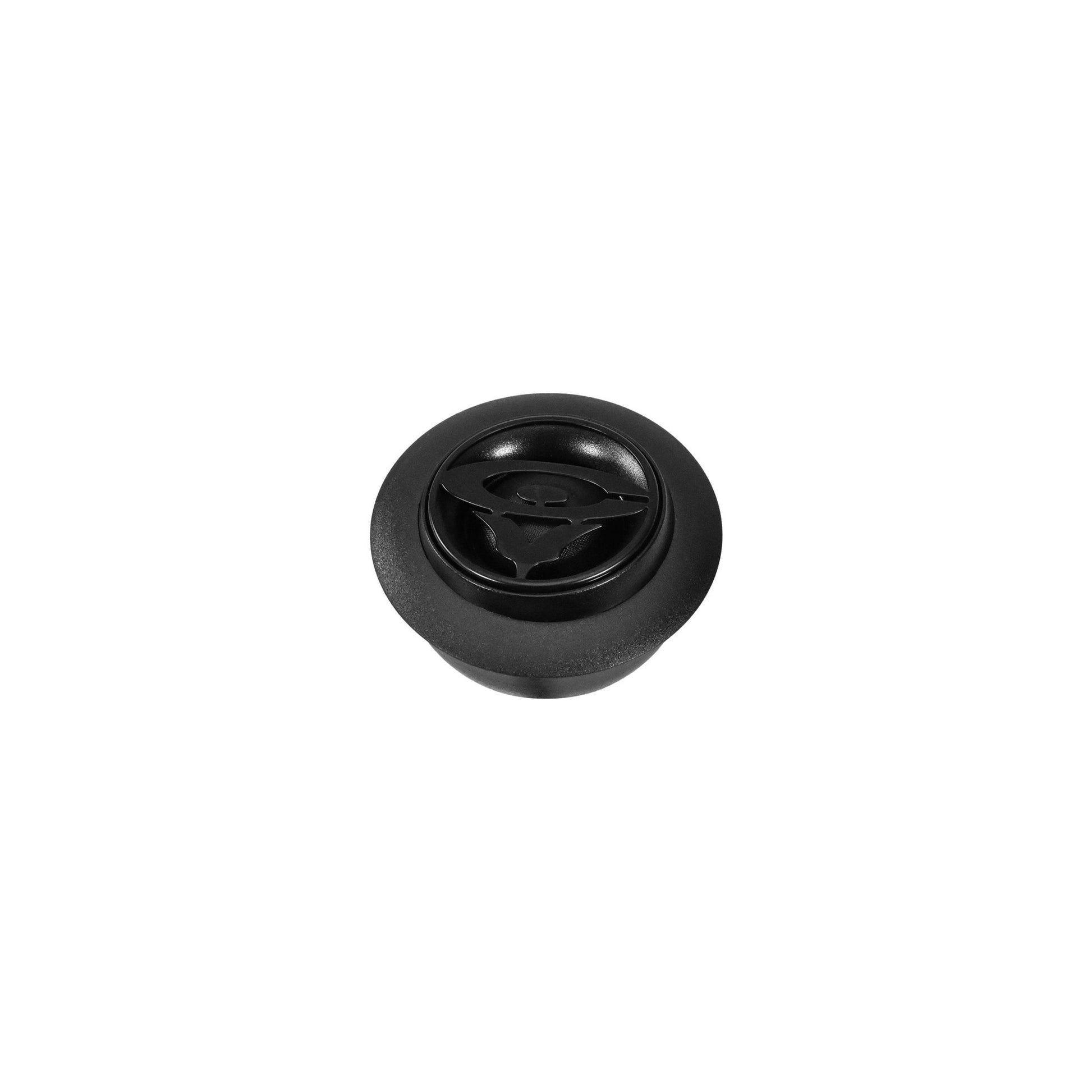

The dynamically balanced 1-inch silk dome tweeter delivers crisp, detailed high frequencies while maintaining smooth tonal balance. A neodymium magnet structure enhances tweeter efficiency, allowing the highs to cut through the mix with clarity and precision.

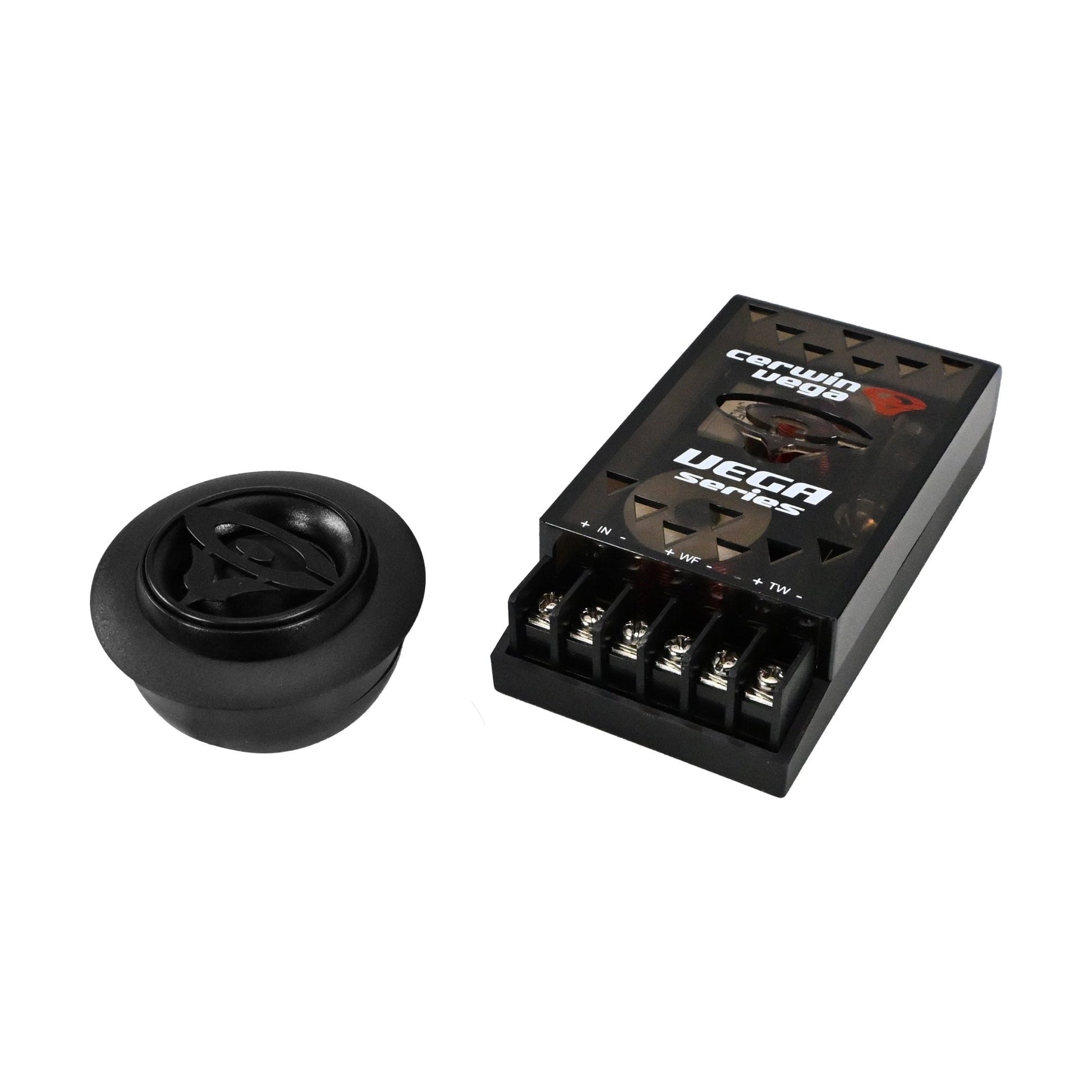

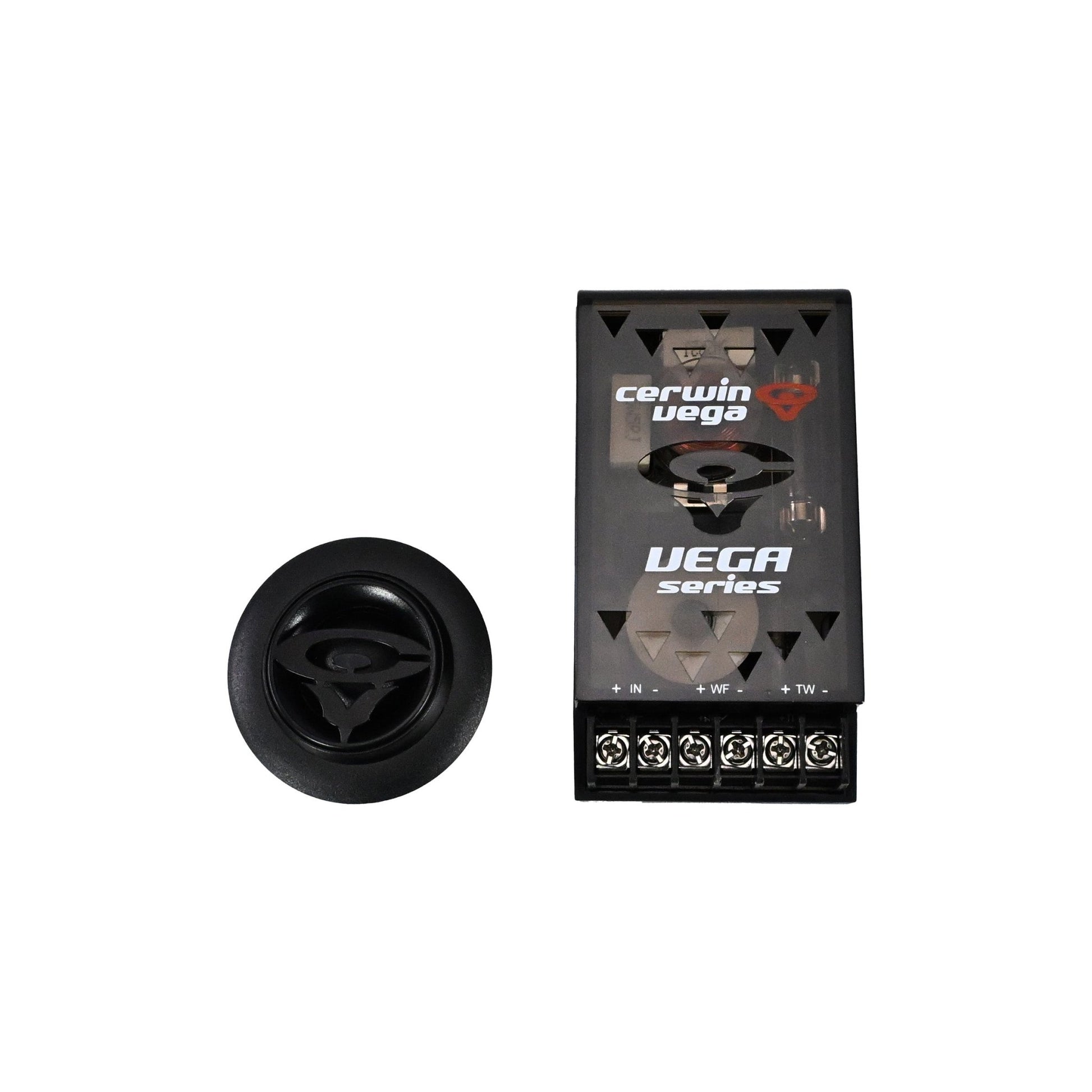

For optimal performance, the integrated crossover network with tweeter protection ensures seamless frequency transitions between the woofer and tweeter while preventing distortion at higher listening levels.

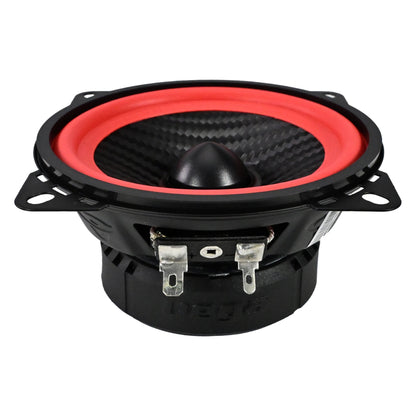

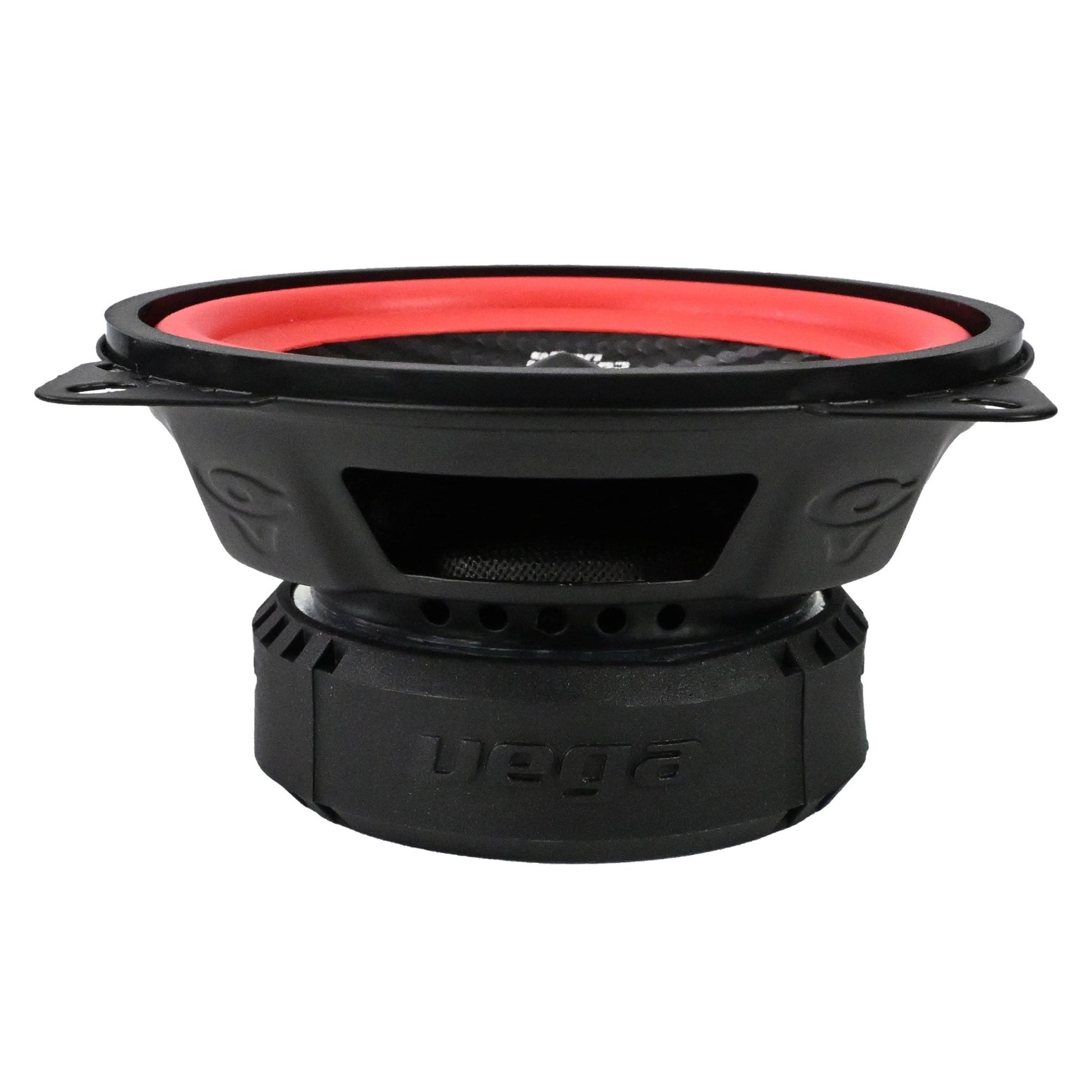

The speakers are built on a powder-coated rigid stamped steel basket, reducing unwanted vibrations and improving overall sound accuracy.
Key Features:
• 4" 2-way component speaker system (4Ω)
• Hybrid carbon fiber/polypropylene woofer cone
• 1" silk dome tweeter with neodymium magnet
• Santoprene™ rubber surround for enhanced excursion
• Integrated crossover with tweeter protection
• Strontium ferrite magnet for strong midrange response
• Rigid powder-coated stamped steel basket
The Cerwin-Vega V4C Vega Series speakers deliver premium full-range sound, compact installation flexibility, and legendary Cerwin-Vega performance, making them the perfect upgrade for vehicles with 4-inch speaker locations seeking high-quality audio performance.
Specifications
Power Rating: 40W RMS/ 120W MAX
Frequency Response: 65Hz-20kHz
Sensitivity (1W/1M): 88 dB
Nominal impedance: 4 Ω
Free-Air Resonance(F0): 69 Hz
Mounting Depth: 46.3mm/1.82 in
Cut out Diameter: 93mm/3.66in
Over All Diameter: 120mm/4.72in
Over All Height: 51.4mm/2.02in
SPEAKER SIZE - 4”
SPEAKER TYPE - COMPONENT SET
BI-AMPABLE YES
OHMS (PER COIL) - 4
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - POLYPROPYLENE
DIAPHRAGM MATERIAL - SILK
BASKET MATERIAL - STAMPED STEEL
MAGNET TYPE - WOOFER FERRITE / TWEETER NEODYMIUM
SURROUND MATERIAL - SANTOPRENE
CROSSOVER INCLUDED - YES - EXTERNAL
