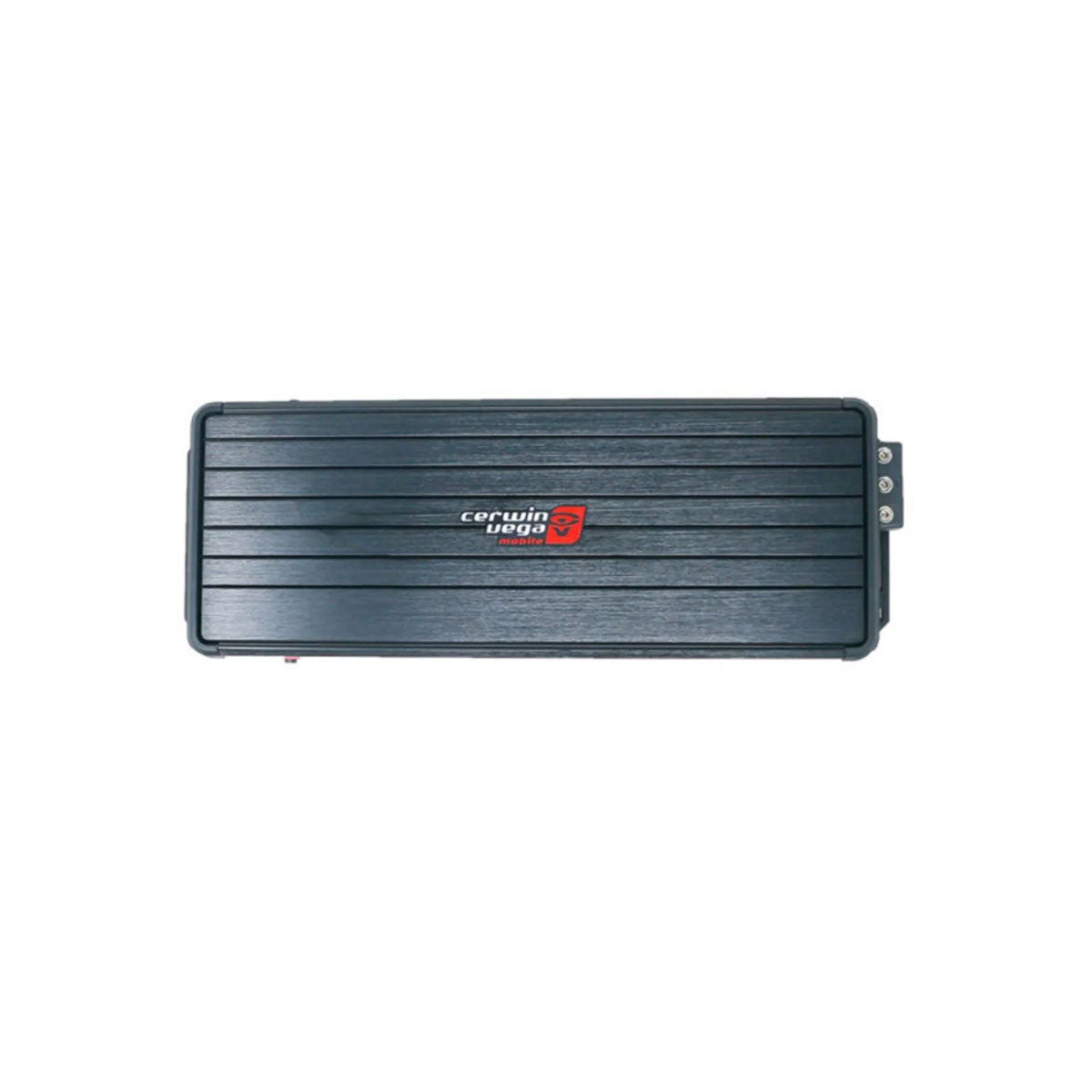

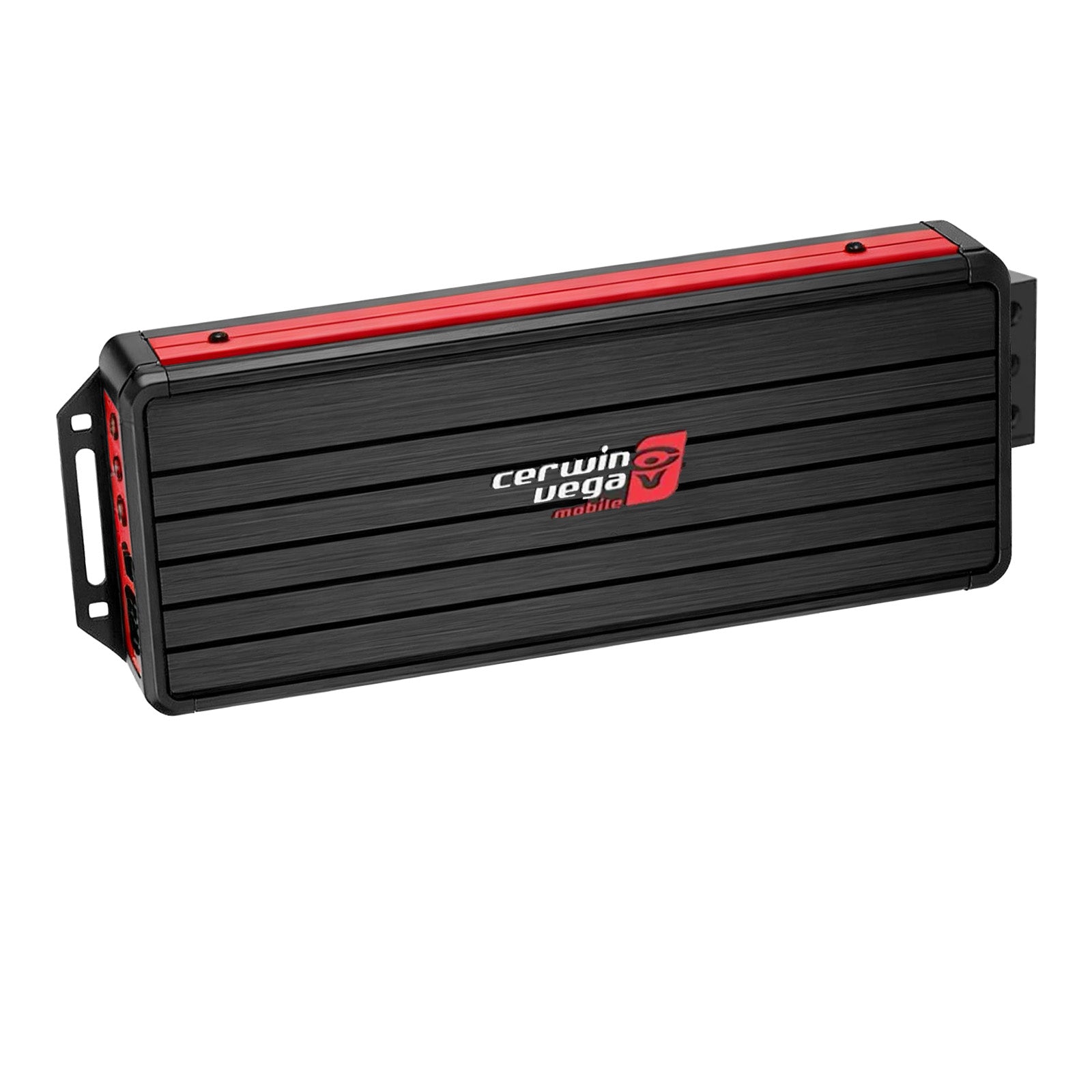

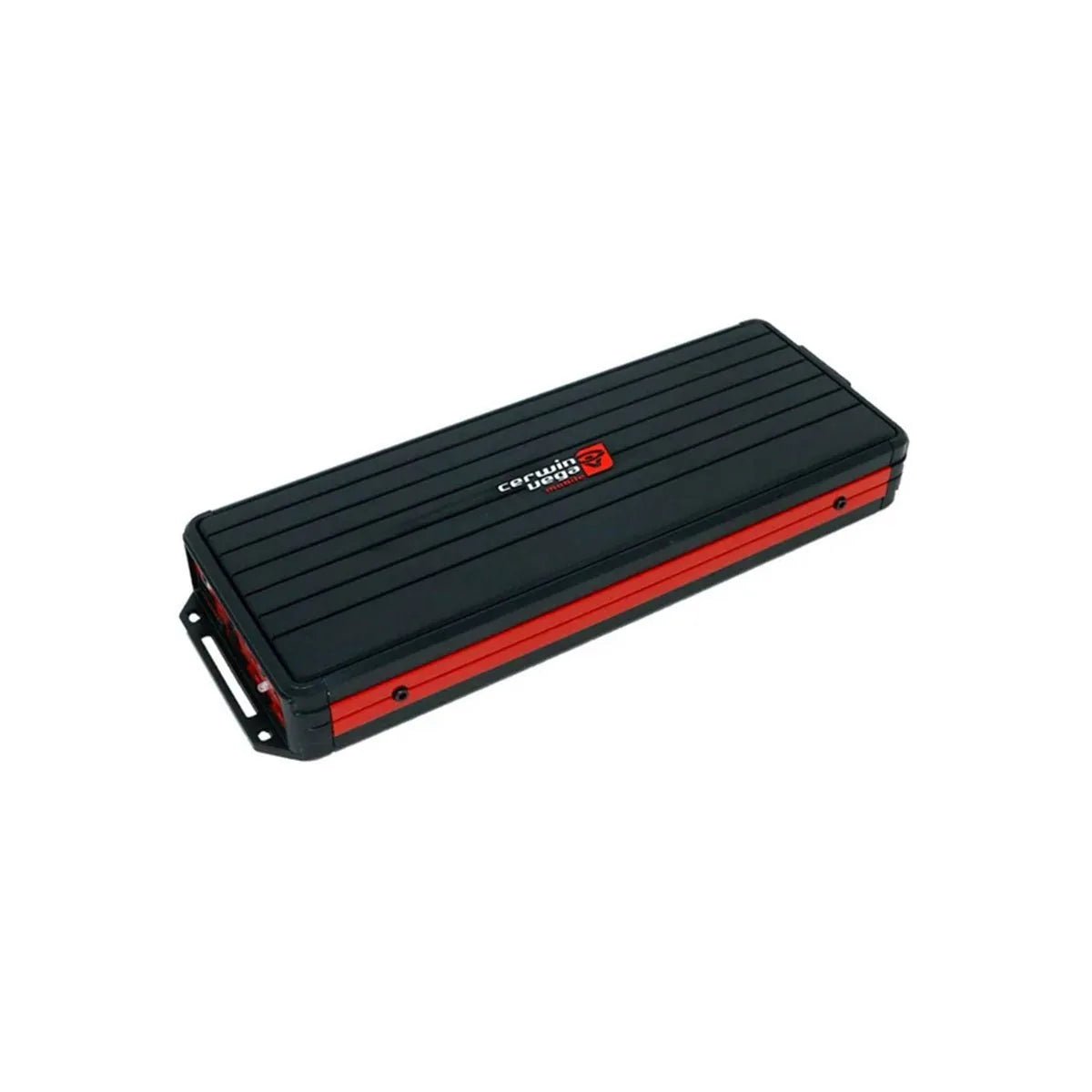

  • The Cerwin Vega VEGA Class-D Digital 6 Channel Amplifier (VCU86) is a rectangular black amplifier with high-efficiency digital topology, horizontal grooves, and a centered logo with red emblem. Featuring power and speaker connections on the right, it has a sleek and modern metallic finish.

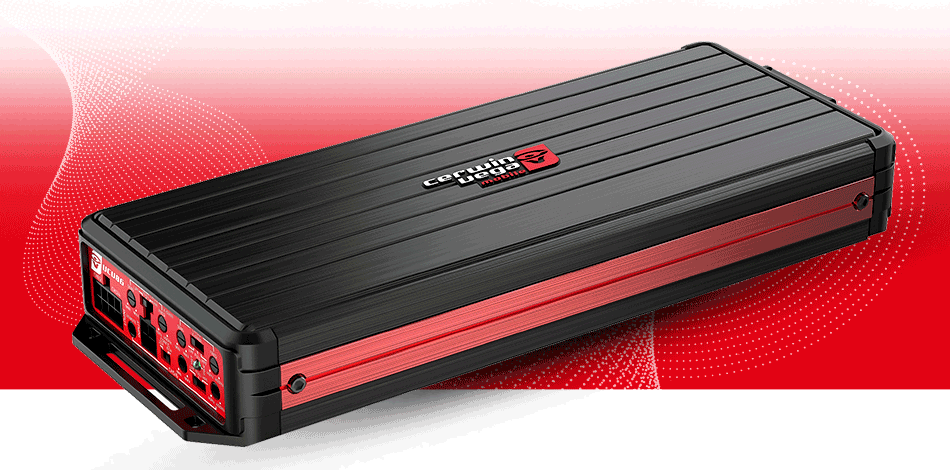

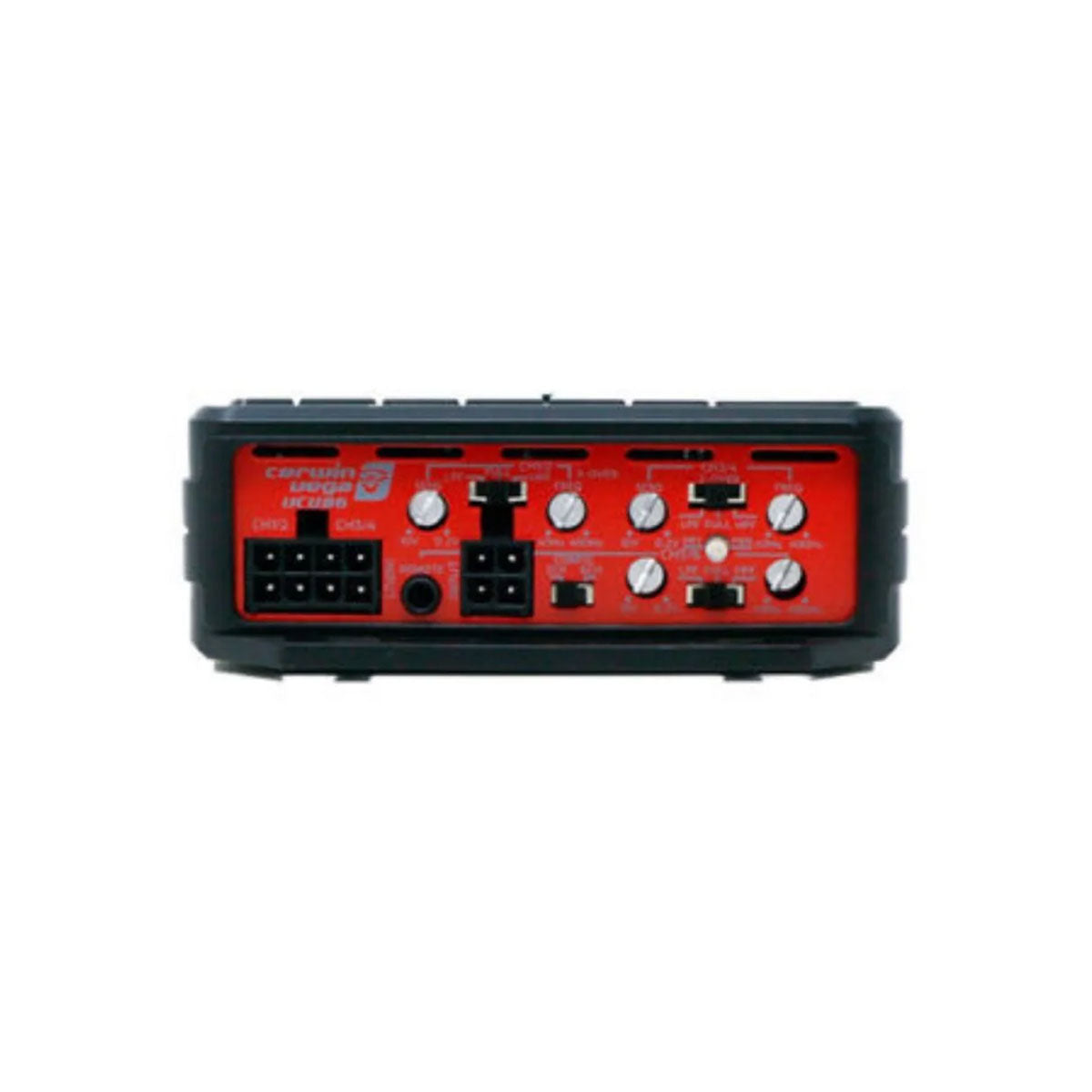

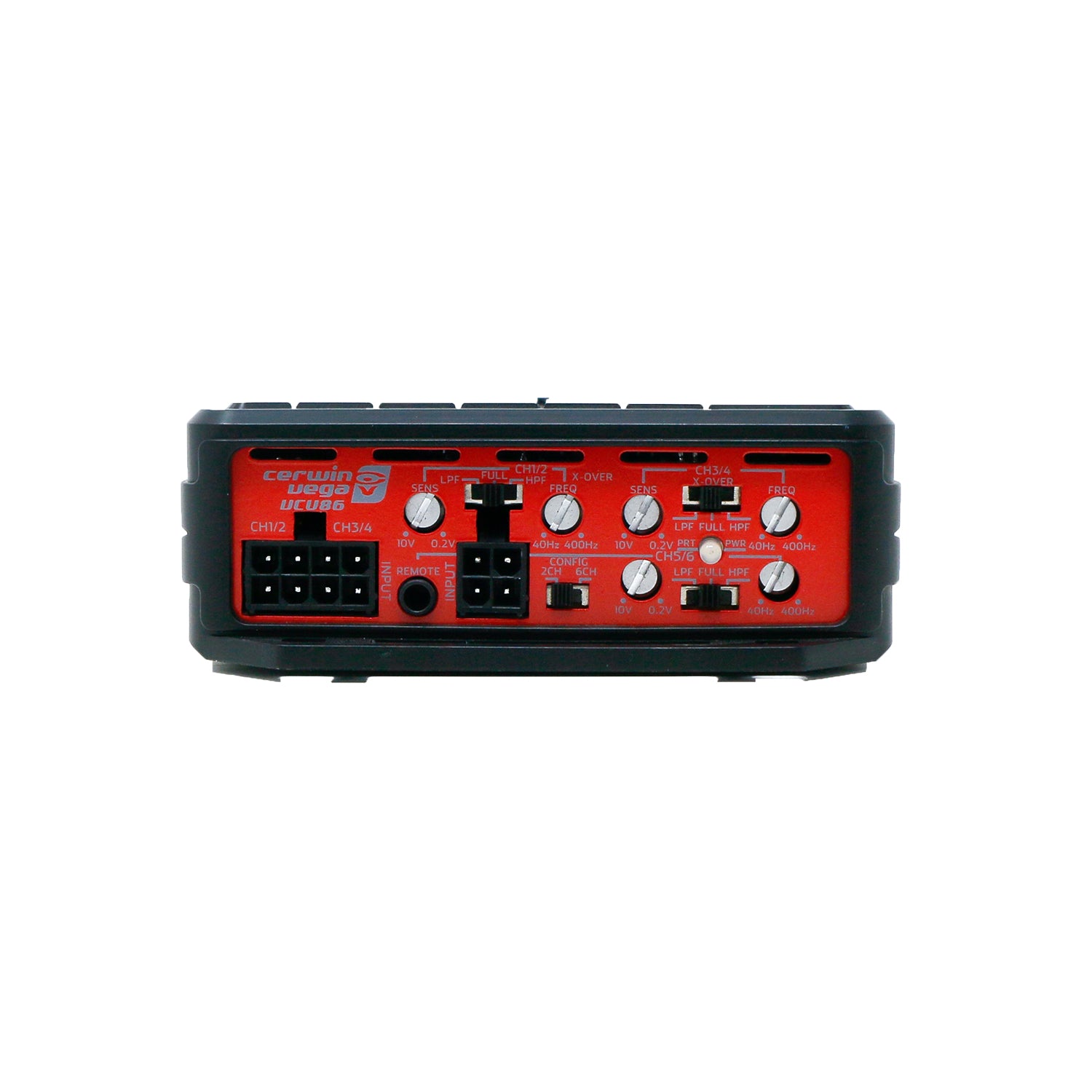

  • The rear view of the Cerwin Vega VEGA Class-D Digital 6 Channel Amplifier - VCU86 showcases a black casing with a red connector panel, featuring numerous knobs and switches for audio adjustments, and labeled ports for speaker and power connections.

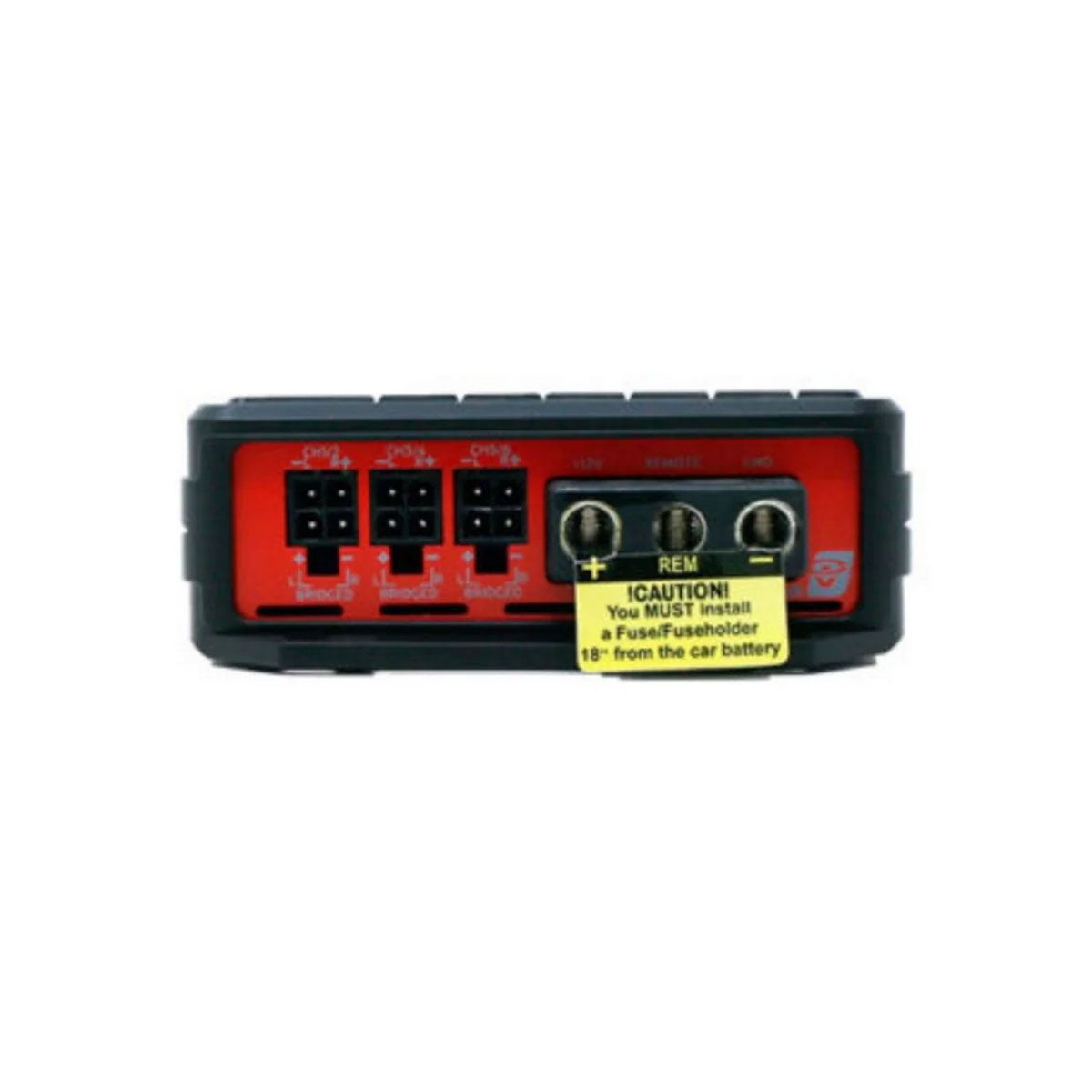

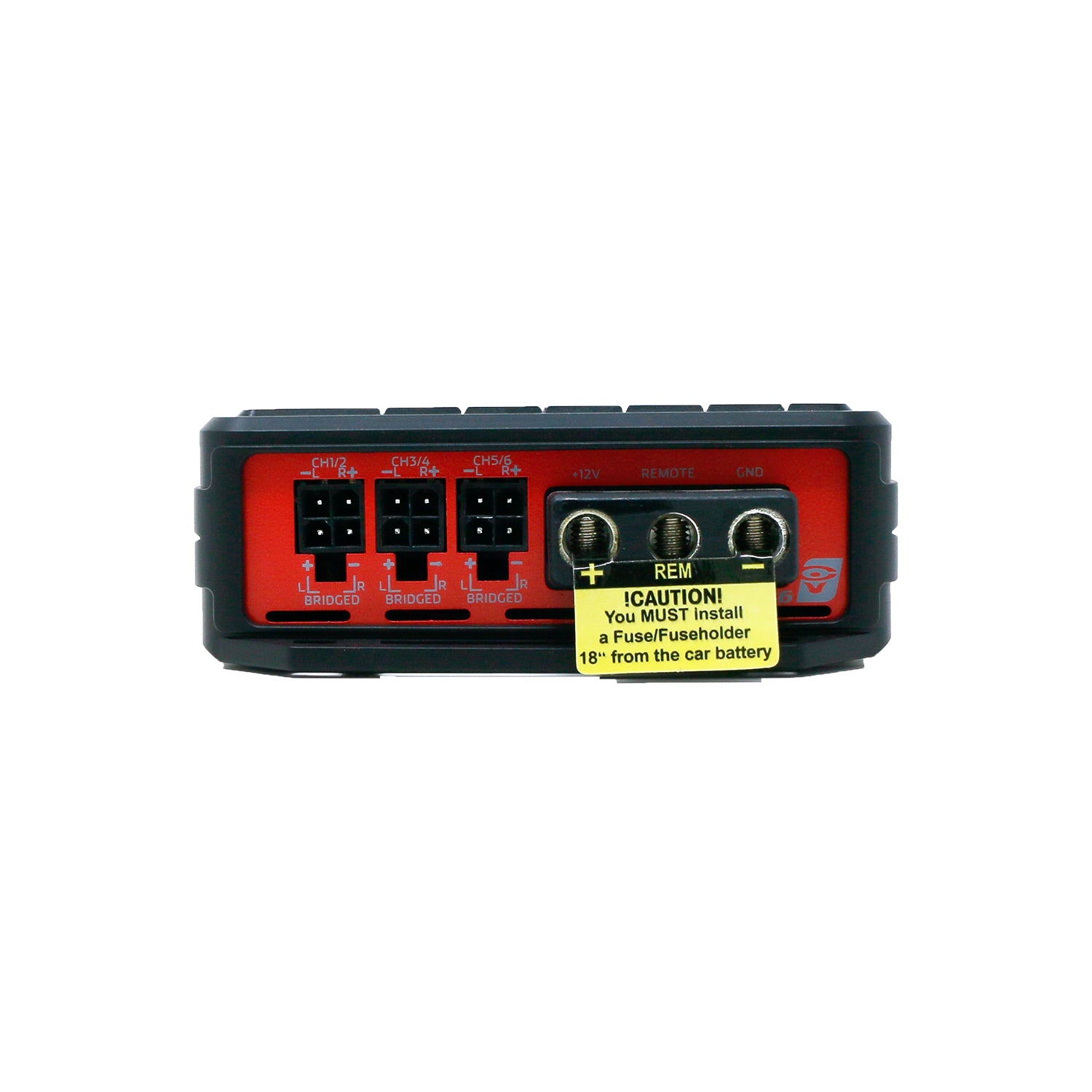

  • The Cerwin Vega VEGA Class-D Digital 6 Channel Amplifier - VCU86 has a sleek rectangular design with a black and red panel, four speaker outputs labeled CH1-CH4, three metal input terminals, and a yellow caution label advising fuseholder installation 18 inches from the car battery for safety.
  • The VEGA Class-D Digital 6 Channel Amplifier (VCU86) by Cerwin Vega features a sleek matte design with a ridged knob for precise control. It includes side flanges with screw holes for easy mounting and boasts a high-efficiency digital topology, perfect for managing lighting intensity in installations.

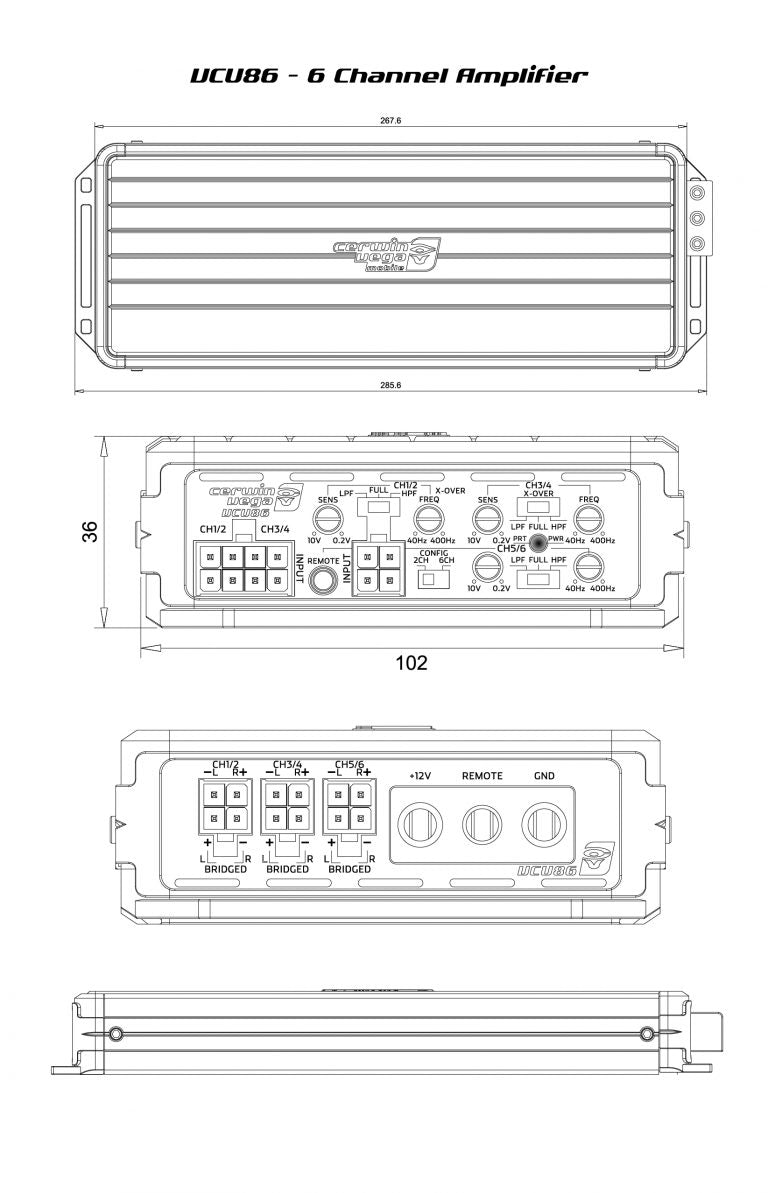

  • The technical diagram of the Cerwin Vega VEGA Class-D Digital 6 Channel Amplifier VCU86 displays front, top, and side views. It measures 295.5 mm in width and 102 mm in depth. The control panel features knobs and switches labeled for channels, input/output, and power with high-efficiency digital topology.
1 8

VEGA Series 6-Channel Full Range Class-D Amplifier - VCU86

$449.99 USD
$449.99 USD $529.99 USD
Sale Sold out
Size: 6 Channel

VCU86 - VEGA Class-D Digital 6 Channel Amplifier

Cerwin-Vega Vega Series Amplifiers – Compact Design, Monstrous Power

The Vega Series Amplifiers have solidified their place as the backbone of the Cerwin-Vega Mobile brand, delivering unrivaled performance in a sleek, compact package. Don’t be deceived by their streamlined design—these amplifiers pack a punch with monstrous power output to drive your system to its fullest potential.

Innovation Meets Power

  • Updated High-Efficiency Full Range Digital Topology: Experience exceptional sound clarity with maximum energy efficiency.
  • Enhanced Power IR Digital Chipset: Engineered for stability and precision, ensuring consistent performance under any condition.

Engineered for Durability

  • Conformal-Coated 4-Layer PCB: Protected against moisture and environmental wear for long-lasting reliability.
  • Water-Resistant Design: Built to withstand the rigors of the road, wherever your journey takes you.

Unmatched Versatility

  • Remote Turn-On Configurator (REM/DC/VOX): Simplifies integration with any audio system.
  • Accepts Hi and Lo-Level Inputs Up to 12V: Seamlessly connects to your existing setup, no matter the source.
  • Boosted RFI Rejection: Keeps your sound crystal-clear, free from interference.

Compact Design, Big Impact

The matching heatsink platform dimensions ensure a consistent, stylish look while optimizing thermal management for uninterrupted performance.

Why Choose Vega?

Whether you’re a seasoned audio enthusiast or just starting to elevate your system, the Vega Series Amplifiers offer a balance of design, durability, and performance that’s hard to beat. From pounding bass to crystal-clear highs, these amps are the powerhouse your system deserves.

The Vega Legacy

With Cerwin-Vega’s unmatched legacy of audio innovation and more than 65 years of expertise, the Vega Series Amplifiers continue to define what’s possible in mobile sound systems.

Compact. Powerful. Reliable. Elevate your audio experience with Vega Series Amplifiers.

POWER RATING

FREQUENCY RESPONSE (HZ): 40HZ - 400HZ
RMS POWER PER CHANNEL 4Ω 100W X 6
RMS POWER PER CHANNEL 2Ω 150W X 6
RMS POWER PER 2 CHANNELS BRIDGED 4Ω 300W X 3

POWER SUPPLY

  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0V-17.0V (DC)
  • Idle Current: (0.7A)

DISTORTION

  • THD 4 (1KHz @4Ω): 0.05%
  • S/N Ratio (A weighted @1W): -85 dBA
  • S/N Ratio (A weighted @FP): -101.1 dBA

INPUT SENSITIVITY

  • Low Input Level: 200mV-10.0V
  • High Input Level: 200mV-10.0V

INPUT IMPEDANCE

  • Low Input Level: 20 KΩ
  • High Input Level: 20 KΩ

OUTPUT STAGE

  • Output Impedance: 0.018Ω
  • Damping Factor (50Hz @ 4Ω): >250
  • Bandwidth (-3dB): 10Hz-35KHz

CROSSOVER (-12/-24 dB/Oct)

  • Variable High-Pass: Flat or Fixed 70Hz
  • Variable Low-Pass: 40Hz-400Hz
  • Variable Sub-Sonic:

FUSE RATINGS

  • ATC: 60A

DIMENSIONS

  • L x W x H: 11.24”x 4.02”x 1.4” (285.6mm x 102mm x 36mm)

FEATURES

  • Full Range Class D IR Chipset
  • DirectFET Power Mosfet Output Stage
  • SMD Technology on 4-Layer PCB Board
  • Water Resistant Conformal PCB Board Coating
  • 1-year Manufacturer's Warranty
