VEGA Class-D Digital 6 Channel Amplifier
SKU:VCU86
Couldn't load pickup availability
Overview
VCU86 - VEGA Class-D Digital 6 Channel Amplifier
Description:
VEGA series amplifiers have been the staple of the Cerwin-Vega Mobile brand. It’s sleek and compact design makes installation seamless but don’t let its dimensions fool you as VEGA series amplifiers generate monstrous power output. Updated High-Efficiency Full Range Digital Topology. Enhanced Power IR Digital Chipset. Conformal-Coated 4-layer PCB. Remote Turn On Configurator - REM/DC/VOX. Boosted RFI (Radio Frequency Interference) Rejection. Compact Matching Heatsink Platform Dimensions. Accepts HI and LO Level Input Up To 12V. Water Resistant.
Specifications
6 Channel Full Range Digital Amplifier
100W x 6CH @ 4Ω RMS Power Output
150W x 6CH @ 2Ω RMS Power Output
300W x 3CH @ 4Ω Bridged RMS Power Output
Input Sensitivity: 0.2-10 Volt
Crossover Filter : 40-400Hz, 12dB Per Octave Slope
Frequency Response: 10-33KHz
Selectable 2CH / 6CH Input Modes

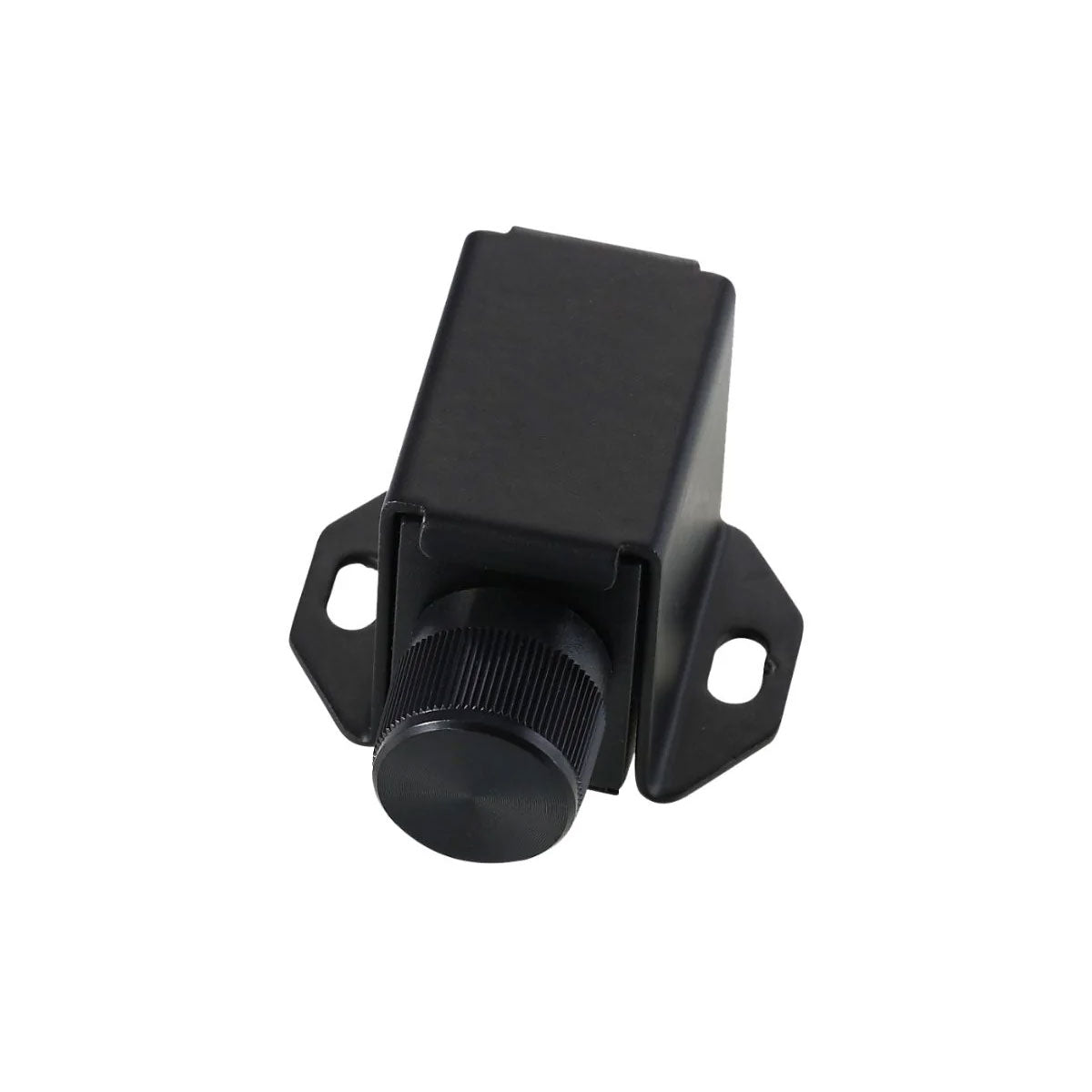

Remote Bass Knob Included
Disconnected RCA Input & Speaker Output Harness Kits Included

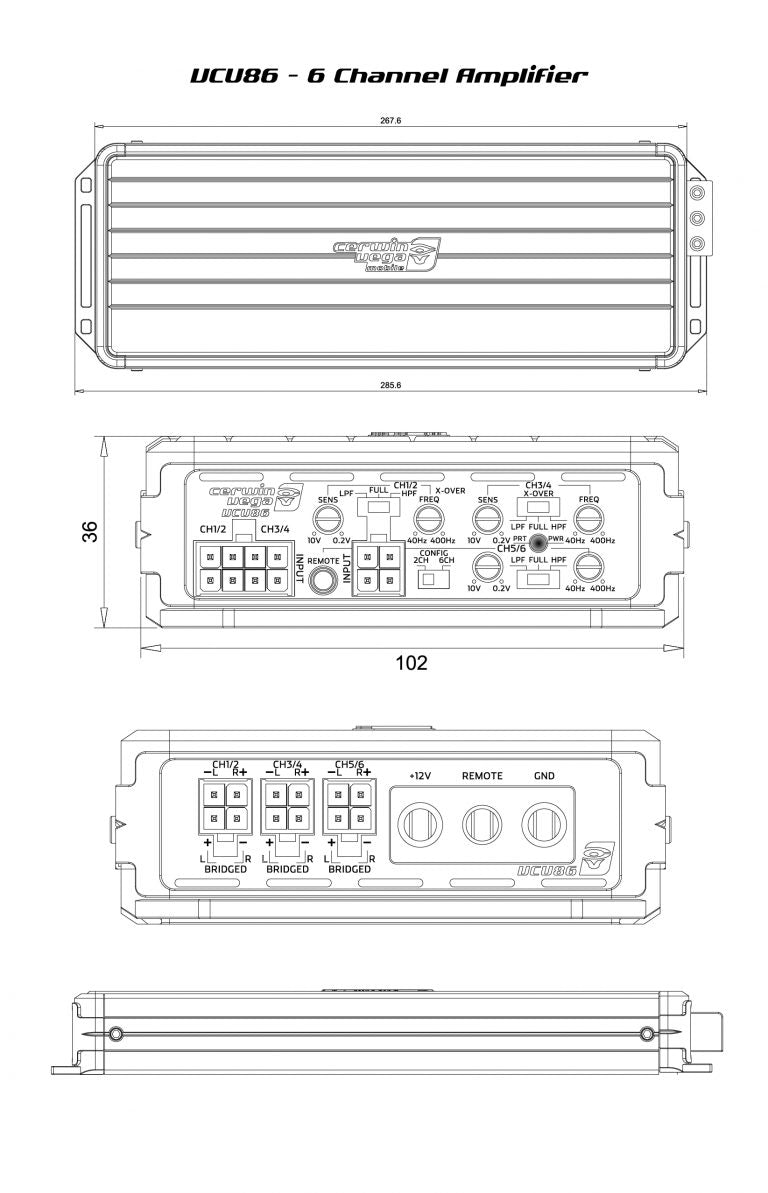

Dimensions: 11.24” x 4.02” x 1.4” (285.6 x 102 x 36 mm)
Product Manuals
