VEGA Class-D Digital 5 Channel Amplifier-VCU85

Name: VEGA Class-D Digital 5 Channel Amplifier-VCU85
Brand: Cerwin Vega
SKU: VCU85
Price: 479.99 USD
Availability: InStock

SKU:VCU85

$479.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Overview

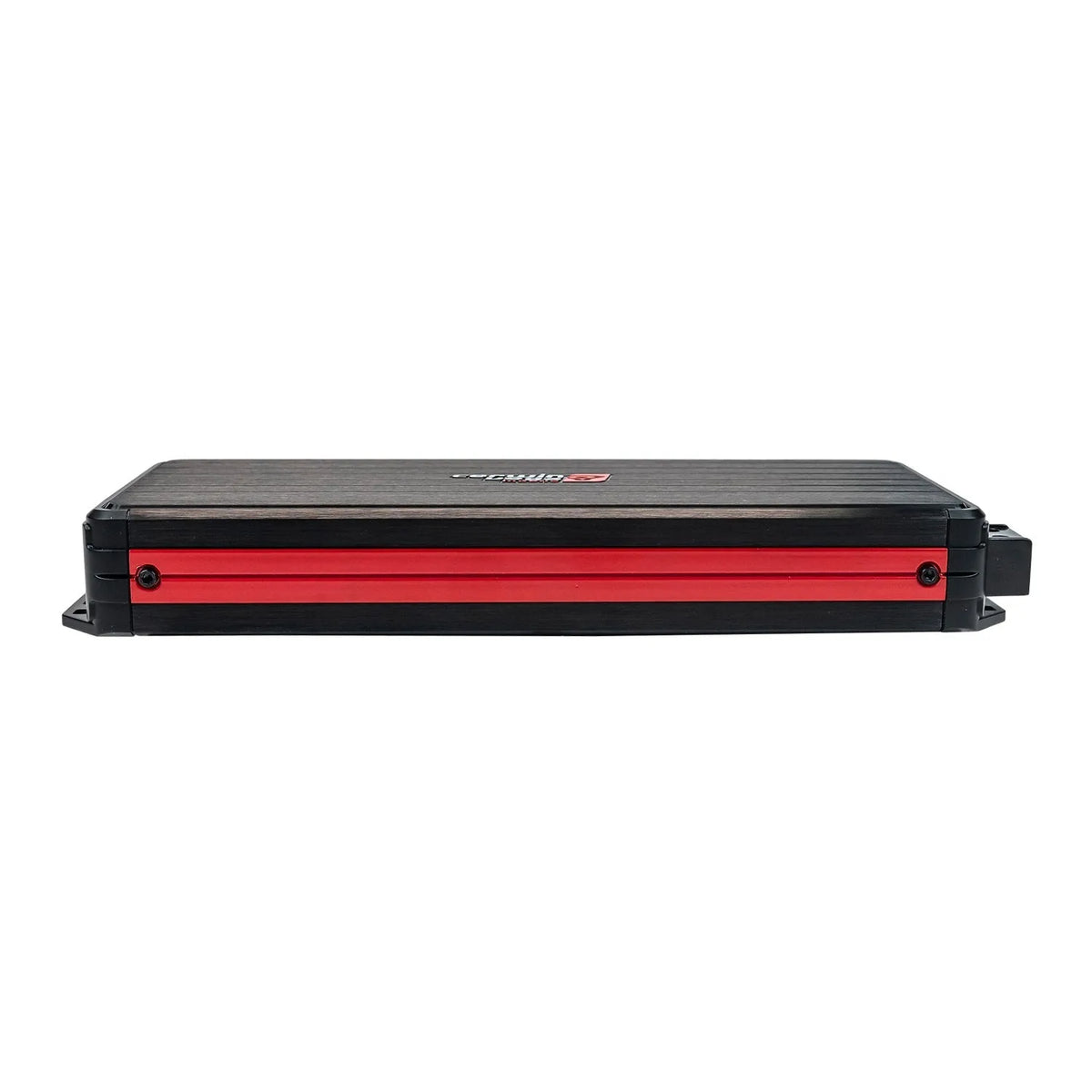

VCU85 - VEGA Class-D Digital 5 Channel Amplifier

Description

VEGA series amplifiers have been the staple of the Cerwin-Vega Mobile brand. It’s sleek and compact design makes installation seamless but don’t let its dimensions fool you as VEGA series amplifiers generate monstrous power output. Updated High-Efficiency Full Range Digital Topology. Enhanced Power IR Digital Chipset. Conformal-Coated 4-layer PCB. Remote Turn On Configurator - REM/DC/VOX. Boosted RFI (Radio Frequency Interference) Rejection. Compact Matching Heatsink Platform Dimensions. Accepts HI and LO Level Input Up To 12V. Water Resistant.

Specifications

VEGA Series Class D 2 ohms Stable 5-Channel Amplifier
RMS Power Rating:
4 ohms: 80 watts x 4 channel + 200 watts x 1 channel
2 ohms: 150 watts x 4 channel + 350 watts x 1 channel
Bridged: 300 watts x 2 channel @ 4 ohms + 350 watts x 1 channel @ 2 ohms
Total RMS power output: 950 watts
LED Power/Protect Light
Speaker-level (high-level) inputs
Signal sensing remote turn-on
3-way protection circuitry (thermal, overload, and speaker short protection)
Conformal-coated circuit boards
Sleek and compact design
Water resistant
Input sensitivity:
Low level: 200mV - 10.0 volts
High level: 200mV - 10.0 volts
Frequency Response: 10 - 33000 Hz
Total Harmonic Distortion (THD): 0.5%
Signal to Noise Ratio: -101.1 dB
Variable high-pass filter: 50 - 250 Hz
Variable low-pass filter: 50 - 250 Hz
Fuse Rating: 60A
4 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 10.45" L x 4.02" W x 1.4" H
Authorized Internet Dealer
1-year Manufacturer's Warranty
MFR #: VCU85
