XED Bass Package - XED Mono Amplifier W/ Single 12" Vented Enclosure - XEDBP12
SKU:XEDBP12
Couldn't load pickup availability
Overview

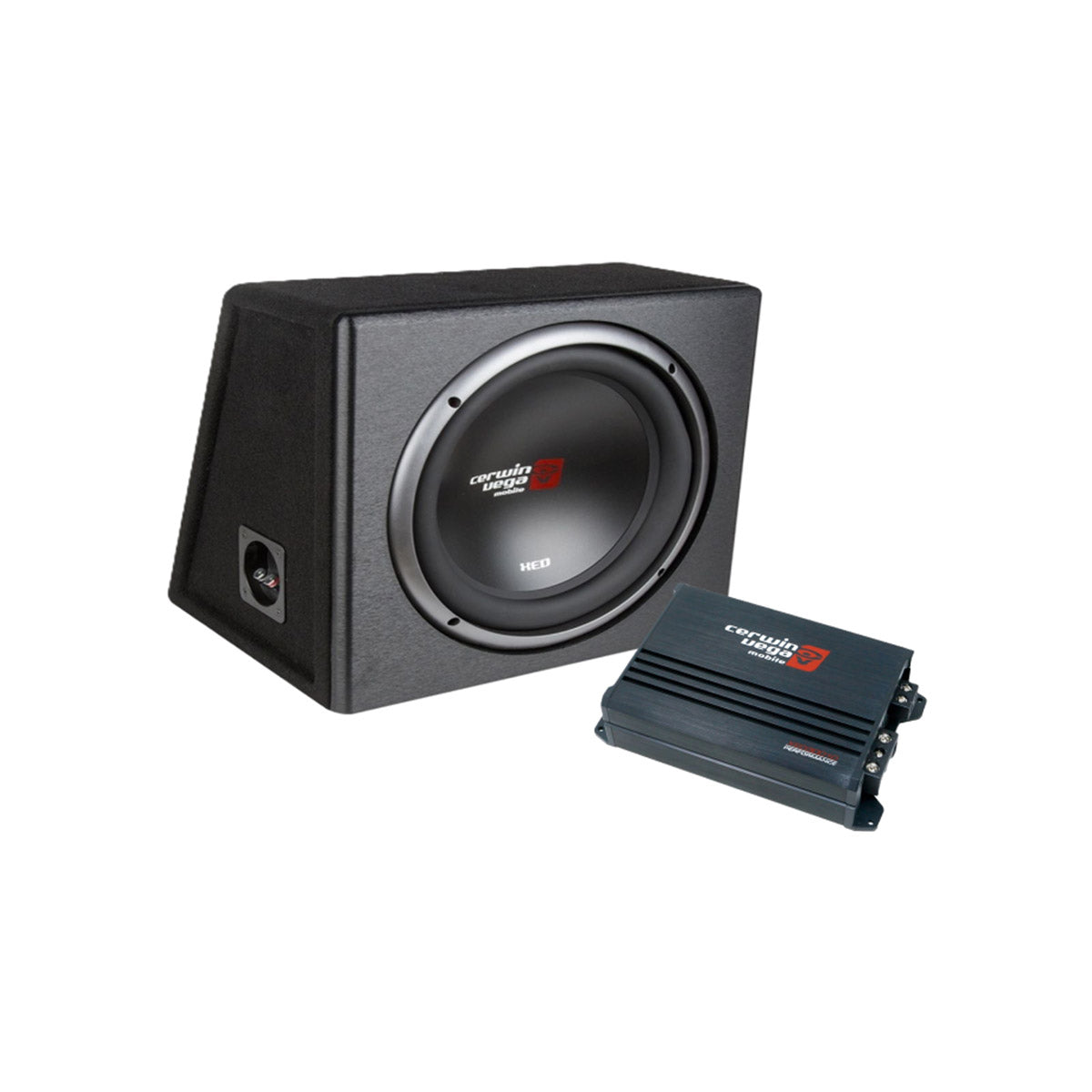

XEDBP12 - Bass Package W/ Mono Amplifier & Single 12" Subwoofer Loaded Vented Enclosure
Package Includes:
- XED3001D - 1 Channel XED Series Amplifier
- XE12SV - Single 12" Loaded Enclosure
Latest High-Efficiency Class D Topology. Compact Size with Ambient backlit logo. RCA “Pass Thru” output for easy system expansion. Fully Variable Crossovers (12dB per octave). Handles HI and LO level input to 12V. 2 Ω Stable. Proprietary Vega Bass Boost EQ Up To 12dB.
Specifications
XE12SV 12" Single Loaded Slot Vented Enclosure
Features:
Single 12” Subwoofers
225W RMS/800W MAX
3/4” MDF Vented Enclosure
Dimensions: 15.7” x 12.3” x 14.3” (L x W x H) 400 x 313 x 363 mm (L x W x H)
12" XED Subwoofers
Power Rating (RMS/PEAK): 225W/800W
Nominal Impedance: 2 ohm
Voice Coil: 2.0" (4-Layer)
Proprietary XED Basket Frame
Optimized High Power Single-Stacked Motor Structure
Polypropylene (PP) Cone
Vented Motor Structure for Optimal Thermal Heat Dissipation
Poly-Cotton Spider With Spaced Woven in Tinsel Wires
Uni-mount Gasket Surround
Proprietary Stamped Cast Vega Basket Design
Specifications:
400W MAX Power
1 Channel Amplifier
300W x 1 @ 2Ω RMS
200W X 1 @ 4Ω RMS
Crossover: 35Hz~250Hz (LP)
Sub-Sonic: 10Hz~30KHz
Dimensions: 6.3”x4.7”x1.8” ( 160.02mm x 119.38mm x 45.72mm )
