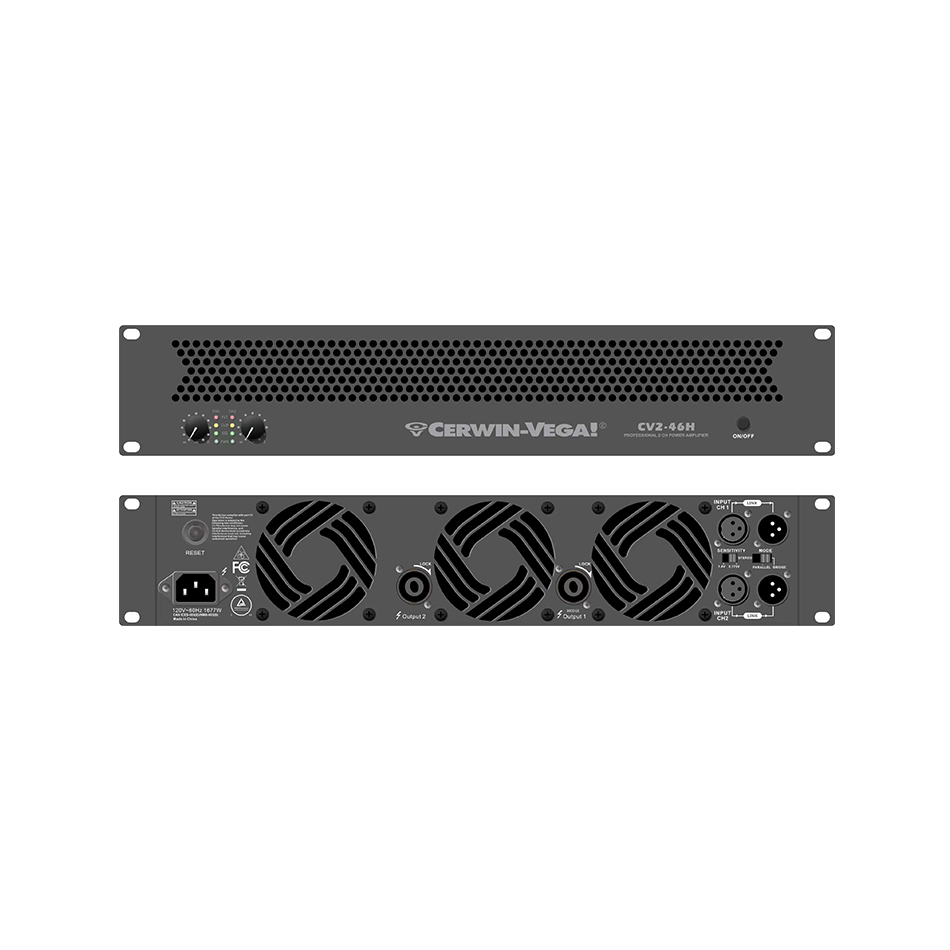

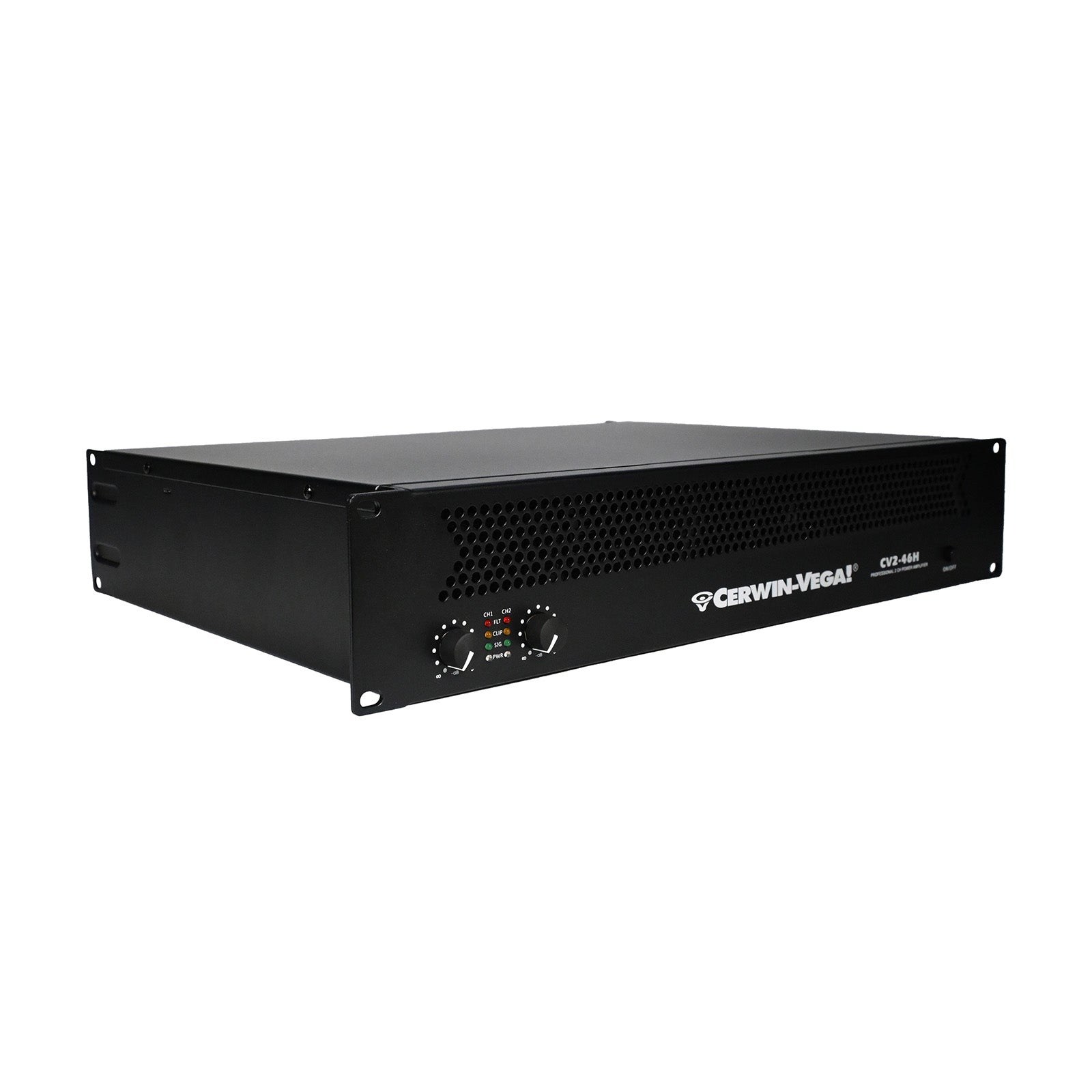

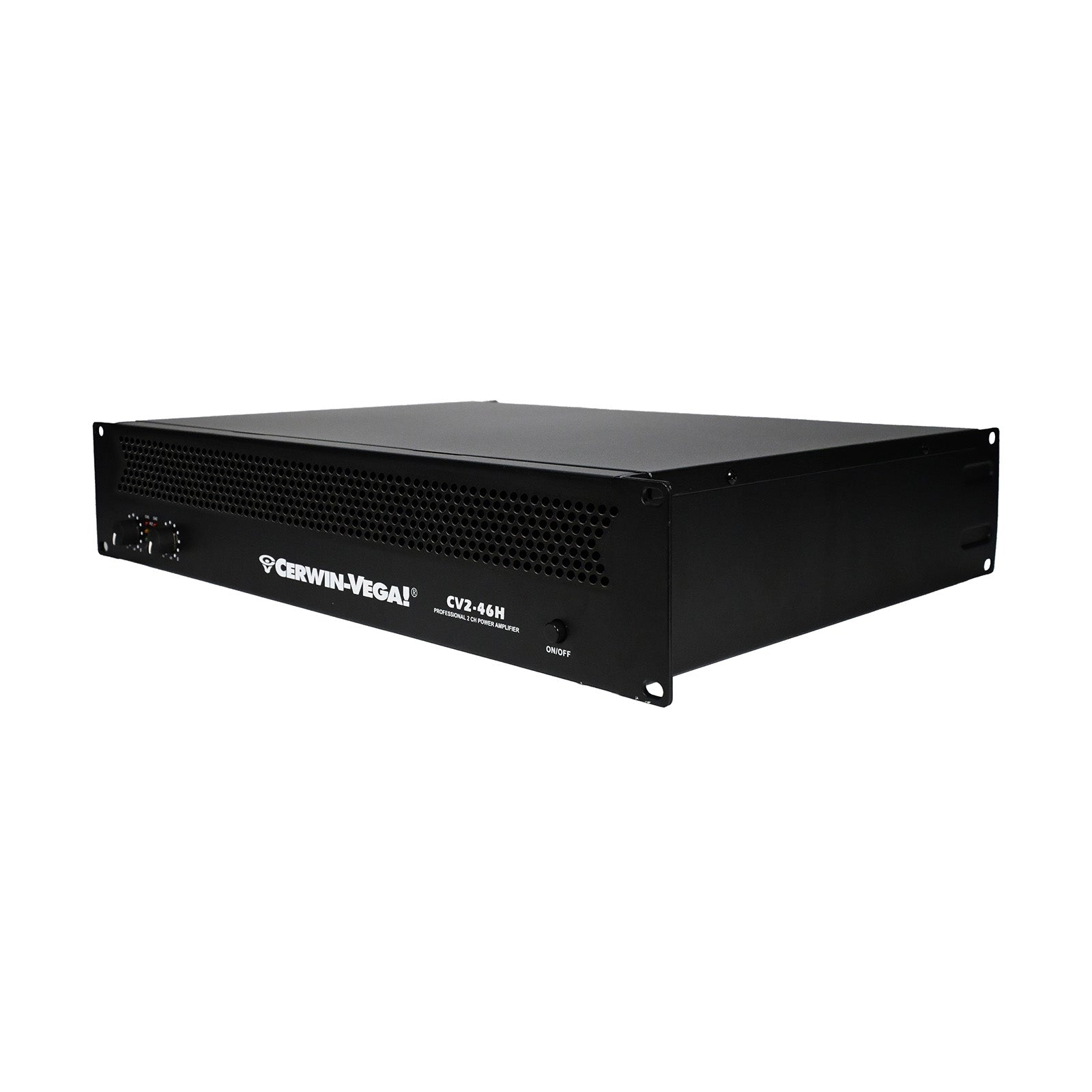

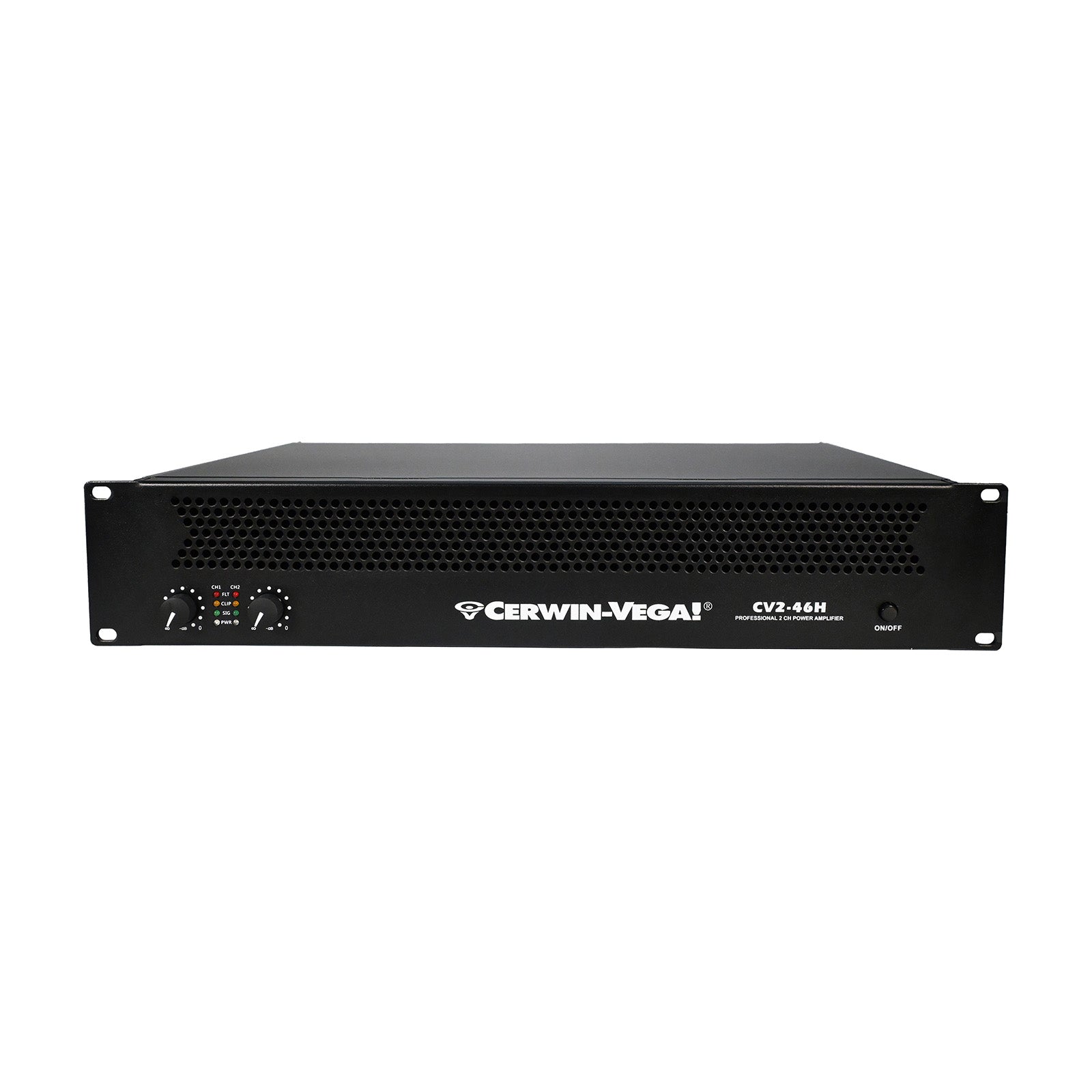

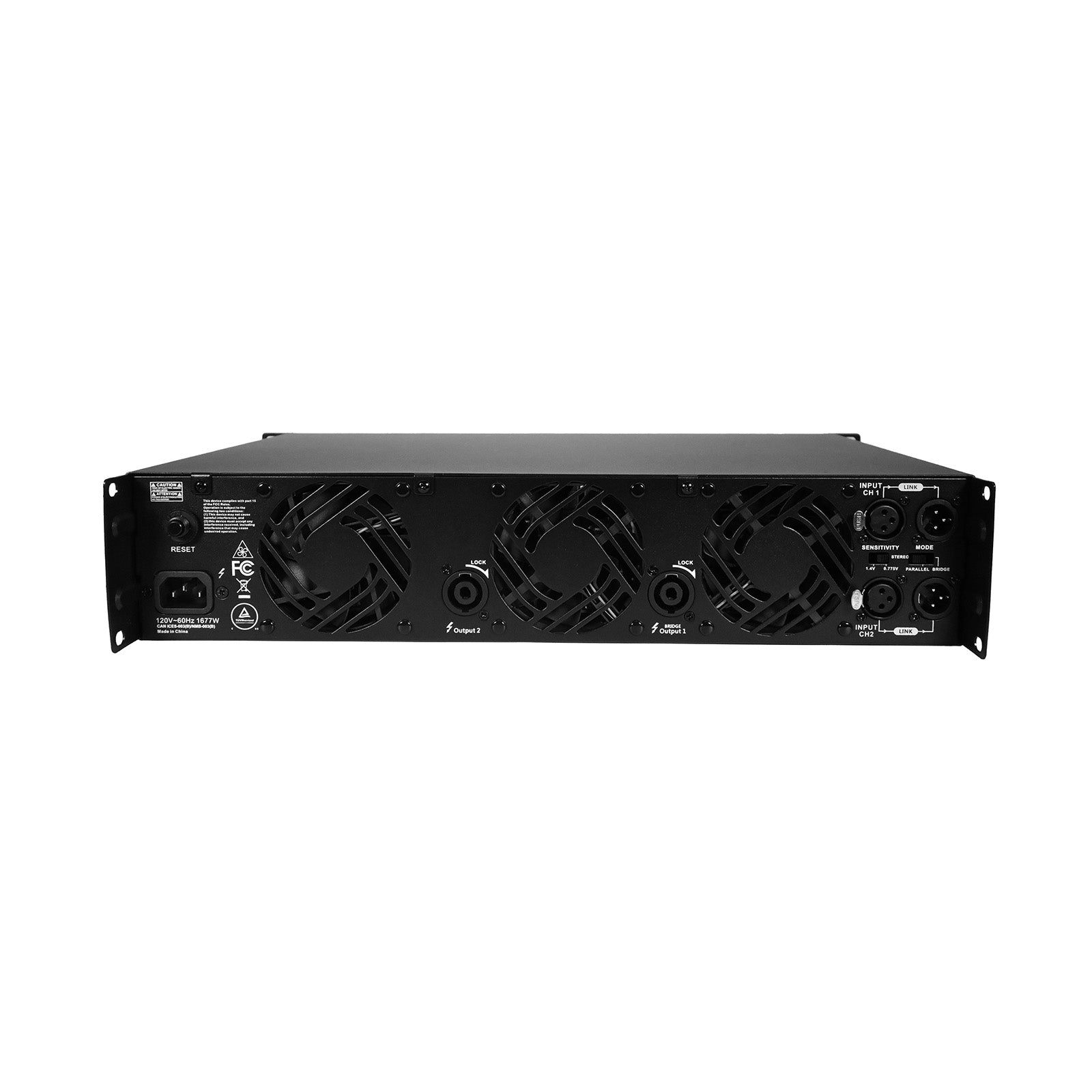

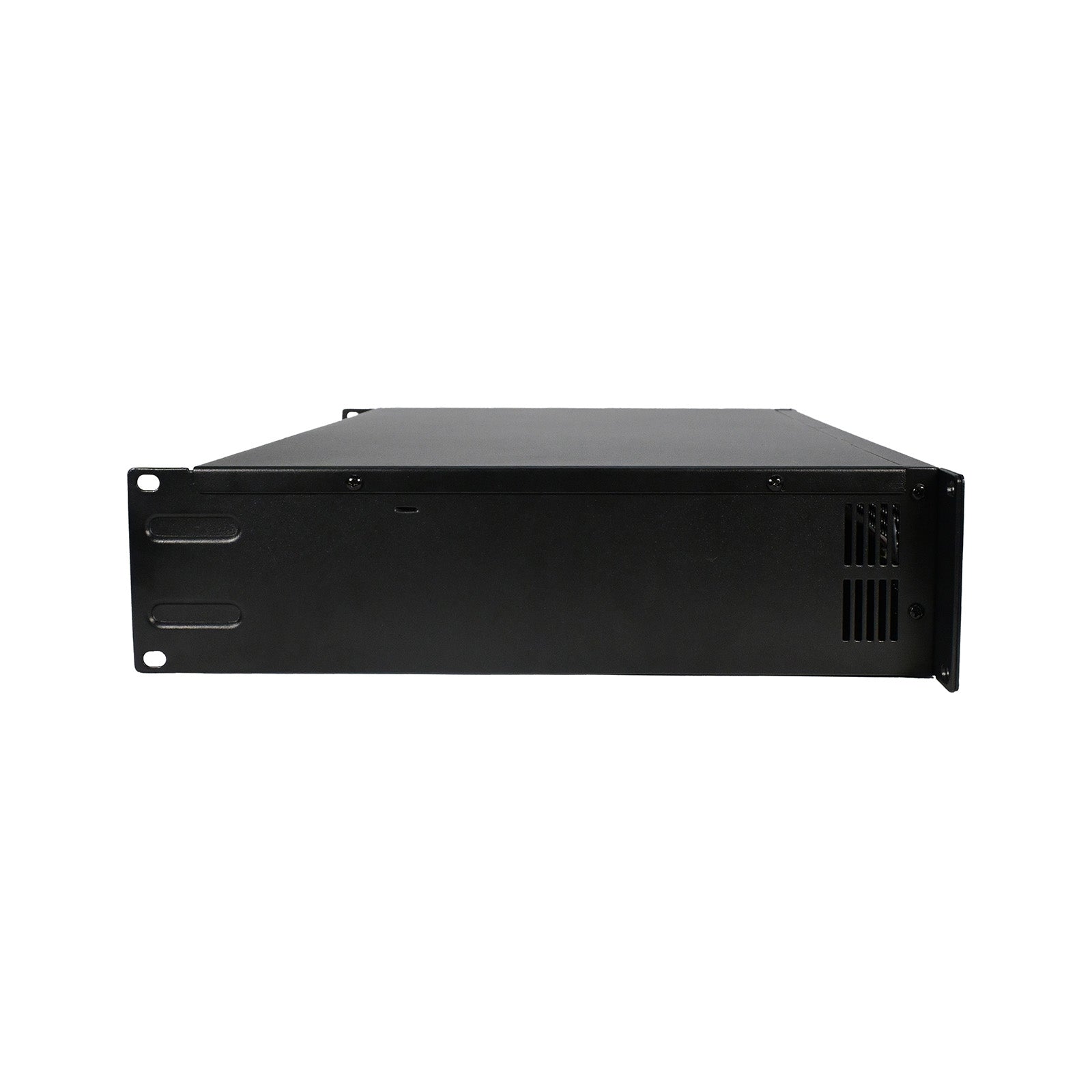

CV2-46H 2-CH Power Audio Amplifier, 3820W
Couldn't load pickup availability
Overview
2 Channel Power Amplifier, 3820 120V-bridging 8Ω
Command the stage with the Cerwin-Vega CV2 & CV4 Series, the professional power amplifiers engineered for the demands of any DJ set, live band, or large-scale event. These powerhouses deliver massive, clean wattage with breathtaking headroom, ensuring your sound remains crystal-clear and free of distortion, even when pushed to the limit. With exceptional audio fidelity and ultra-low distortion, the CV2 & CV4 Series reproduces every note with the stunning impact and clarity that your live performance deserves.
Built to withstand the rigors of the road, each amplifier features a rugged 2U rack-mountable chassis, advanced flow-through cooling, and comprehensive protection circuitry for tour-grade reliability. Choose the 2-channel CV2 Series to drive your main speakers or subs with authority, or select the versatile 4-channel CV4 Series to effortlessly power a complete stage setup of mains and monitors from a single, efficient unit. Power your passion with the unflinching performance of the Cerwin-Vega CV Series.
Specifications
Audio Performance:
Frequency Response: 20Hz - 20kHz, +0/-1dB (at 1 Watt)
Signal-to-Noise Ratio: >100dB (A-weighted)
Total Harmonic Distortion (THD): <0.5%, 20Hz - 20kHz
Intermodulation Distortion (IMD): <0.35% (60Hz & 7kHz at 4:1 from full output to -30dB)
Damping Factor: >200 (at 8Ω, 10Hz - 400Hz)
Crosstalk: -75dB at 1kHz, -58dB at 20kHz
Slew Rate: >20V/μs
Voltage Gain: 38.3dB
Power Output:
8Ω Stereo Power (per Ch.): 2 x 1240W
4Ω Stereo Power (per Ch.): 2 x 1810W
Bridge Mono Power: 3820W
Input / Output:
Input Sensitivity: 0.775V or 1.4V
Input Impedance: 20kΩ (Balanced), 10kΩ (Unbalanced)
Physical & Construction:
Chassis: Standard E.I.A International Standard, 2U Rack Mountable
Dimensions (H): 88 mm (3.5 inches)
Protection: Short circuit, no-load, on/off muting, RF interference
Cooling: Flow-through ventilation with forced air and thermal protection
Power Cord: Plug: 10A, 120VAC / Wire: 3x1.0mm²
Net Weight: 9.5 kg/ 20.94 lbs.
Chassis Dimensions: 482 x 227 x 88mm
