5 Channel Amplifier 2500W Bridgeable Class AB

CVP 660W RMS 5 Channel Bridgeable Class AB Amplifier with Bass Control Knob

Test Product

Test Product

CVP 660W RMS 5 Channel Bridgeable Class AB Amplifier with Bass Control Knob

CVP Performance series products make owning a Cerwin-Vega Mobile sound system very affordable for those that are budget-conscious. With a numerous amount of mono and multi-channel amplifiers to select from at a tremendous value for the performance, enjoy the LOUD sound experience with CVP Performance series products. The right price, the right power, the right products. Cerwin-Vega CVP series amplifiers are designed and engineered to reproduce extreme bass output in your vehicle!

$249.99
Availability: In stock
SKU
CVP2500.5D

Notify me when this product is in stock:

CVP2500.5D - 5 Channel Amplifier 2500W MAX Power

Description:

CVP Performance series products make owning a Cerwin-Vega Mobile sound system very affordable for those that are budget-conscious. With a numerous amount of mono and multi-channel amplifiers to select from at a tremendous value for the performance, enjoy the LOUD sound experience with CVP Performance series products. The right price, the right power, the right products. Cerwin-Vega CVP series amplifiers are designed and engineered to reproduce extreme bass output in your vehicle!

Features:

  • 2500W MAX Power
  • 5 Channel Amplifier
  • 85Wx4 + 300Wx1 @2Ω RMS
  • 65Wx4 + 185Wx1 @4Ω RMS
  • 180Wx2 @ 4Ω Bridged
  • 2-Ohm Stereo, 4-Ohm Bridged Full Range Operation
  • Direct Short, Thermal, & Overload Circuits Protect Amplifier
  • 200mV-6V High Level or Low Level RCA Input
  • Variable 12dB High, Low, & Subsonic Crossovers
  • Dimensions: 14.97” x 9.38” x 2.25”
More Information
Amplifier5 Channel
DescriptionCVP2500.5D 660W RMS 5 Channel Bridgeable Class AB Amplifier with Bass Control Knob
MAX Power Rating2500W
RMS Power(2Ω)85Wx4 + 300Wx1
RMS Power (4Ω)65Wx4 + 185Wx1
RMS Bridge (mono 4Ω)180Wx2
Types5-Channel
TopologyClass AB
Power SupplyFull PWM
Power Supply (Threshold)10.0VDC-16.0VDC
Idle Current(1.0A)
Distortion - THD (1KHz@4Ω)<1%
Distortion - S/N Ratio (A weight @ 1W)>90dB
Distortion - S/N Ratio (A weight @ FP)>105dB
Input Sensitivity 200mV-6V
Input Impedance - Low Input Level20KΩ
Output Impedance2Ω/4Ω
Damping Factor (50Hz@4Ω)100
Bandwidth (-3dB)10Hz-32KHz /10Hz-400Hz
Crossover (-12 dB/ Oct) Variable High-Pass40Hz-400Hz
Crossover (-12 dB/ Oct) Variable Low-Pass40Hz-400Hz
Crossover (-12 dB/ Oct) Variable Sub-SonicN/A
FUSE Ratings - ATC40Ax2

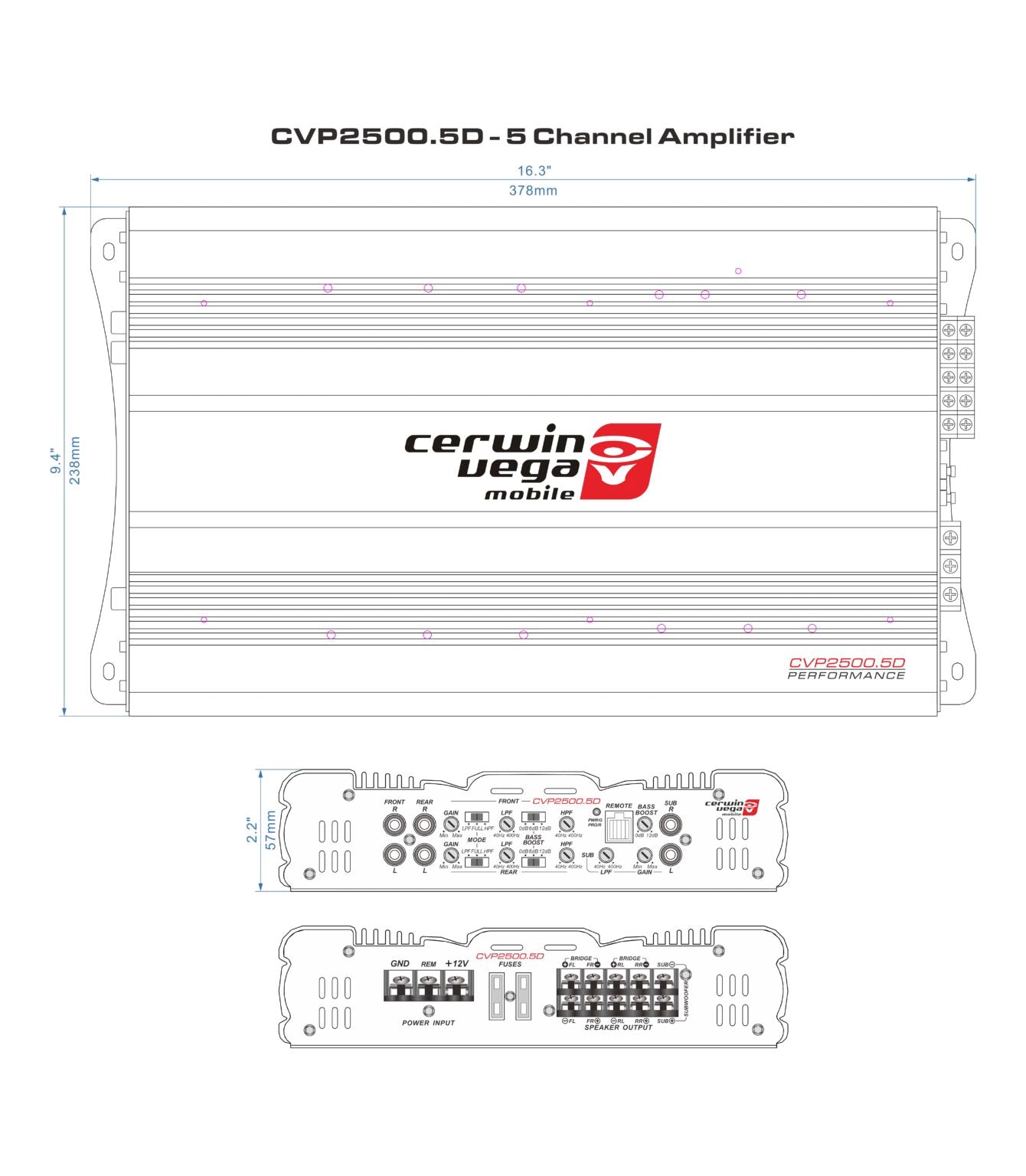

Dimension - Length x Width x Height - Inches(mm)14.97” x 9.38” x 2.25” (380 x 238 x 57mm)
CVP-Amp-Manual (10.63 MB)
