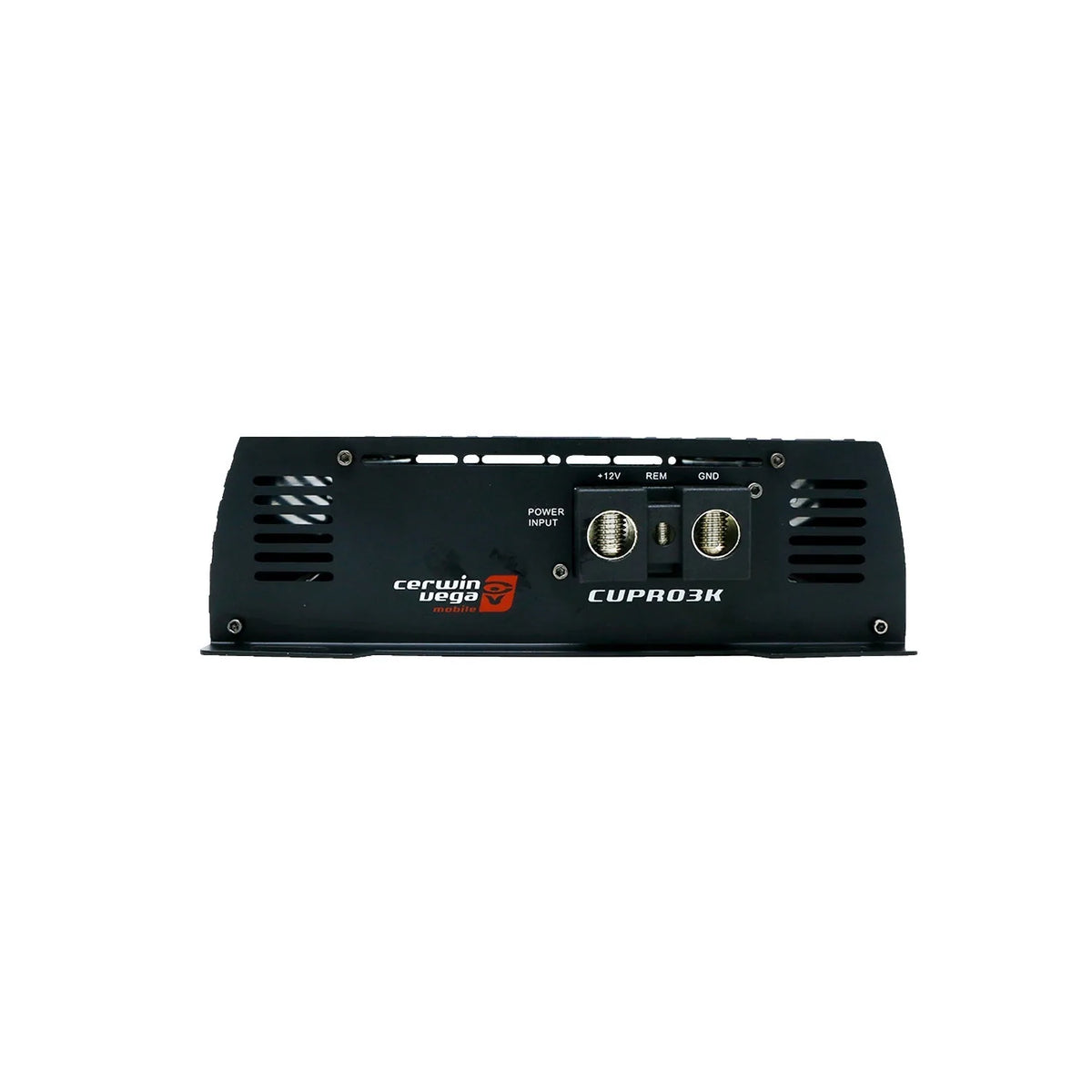

CVPRO3K - Full Range Class D Monoblock CVP PRO Amplifier

$359.99
Availability: In stock
SKU
CVPRO3K

CVPRO3K - Full Range Class D Monoblock CVP Pro Amplifier

Features:

  • Latest High-Efficiency Class A/B Topology
  • Compact Size with Ambient backlit logo
  • RCA “Pass Thru” output for easy system expansion
  • Fully Variable Crossovers (12dB per octave)
  • Handles HI and LO level input to 12V
  • 2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 CH mode
  • Proprietary Vega Bass Boost EQ Up To 12dB
More Information
MAX Power Rating 6000 W MAX
RMS Power(2Ω) 2050
RMS Power (4Ω) 1100
Types Full Range, Class D
Power Supply Full PWM
Power Supply (Threshold) 10.0DVC – 17.0DVC
Idle Current (2.6A)
Distortion - THD (1KHz@4Ω) 0.1%
Distortion - S/N Ratio (A weight @ 1W) -90dBA
Distortion - S/N Ratio (A weight @ FP) -105dBA
Input Sensitivity - Hi/Low Input Level 0.2V – 5.0V
Input Impedance - Low Input Level 20 KΩ
Output Impedance 0.0297 Ω
Damping Factor (50Hz@4Ω) >150
Bandwidth (-3dB) 15Hz-20KHz
Crossover (-12 dB/ Oct) Variable High-Pass 50Hz-20KHz
Crossover (-12 dB/ Oct) Variable Low-Pass 15Hz-1KHz
Crossover (-12 dB/ Oct) Variable Sub-Sonic 15Hz-1KHz
FUSE Ratings - ATC 150A
Dimension - Length x Width x Height - Inches(mm) 7.95 x 8.85 x 2.61( 202 x 225 x 66.5 )
