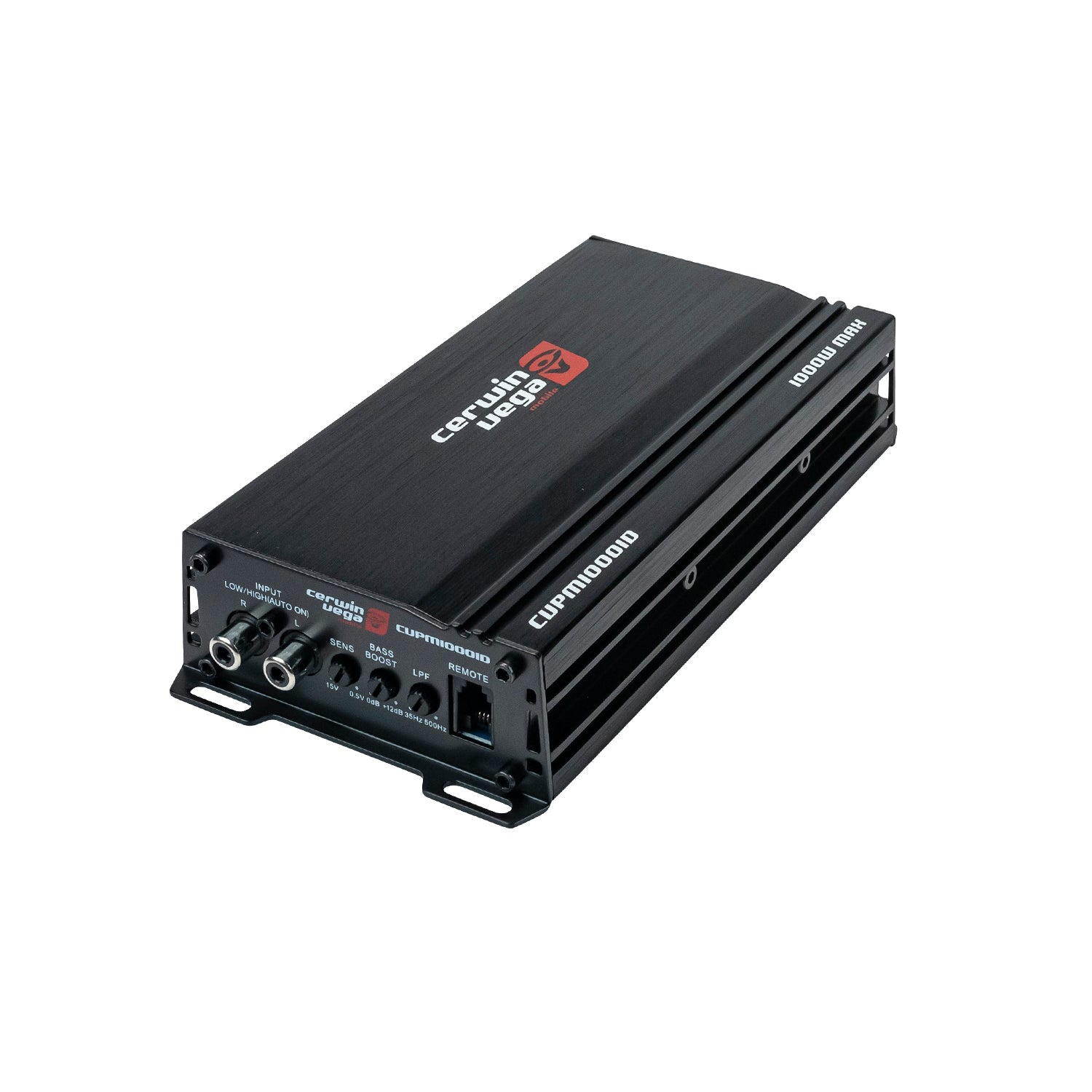

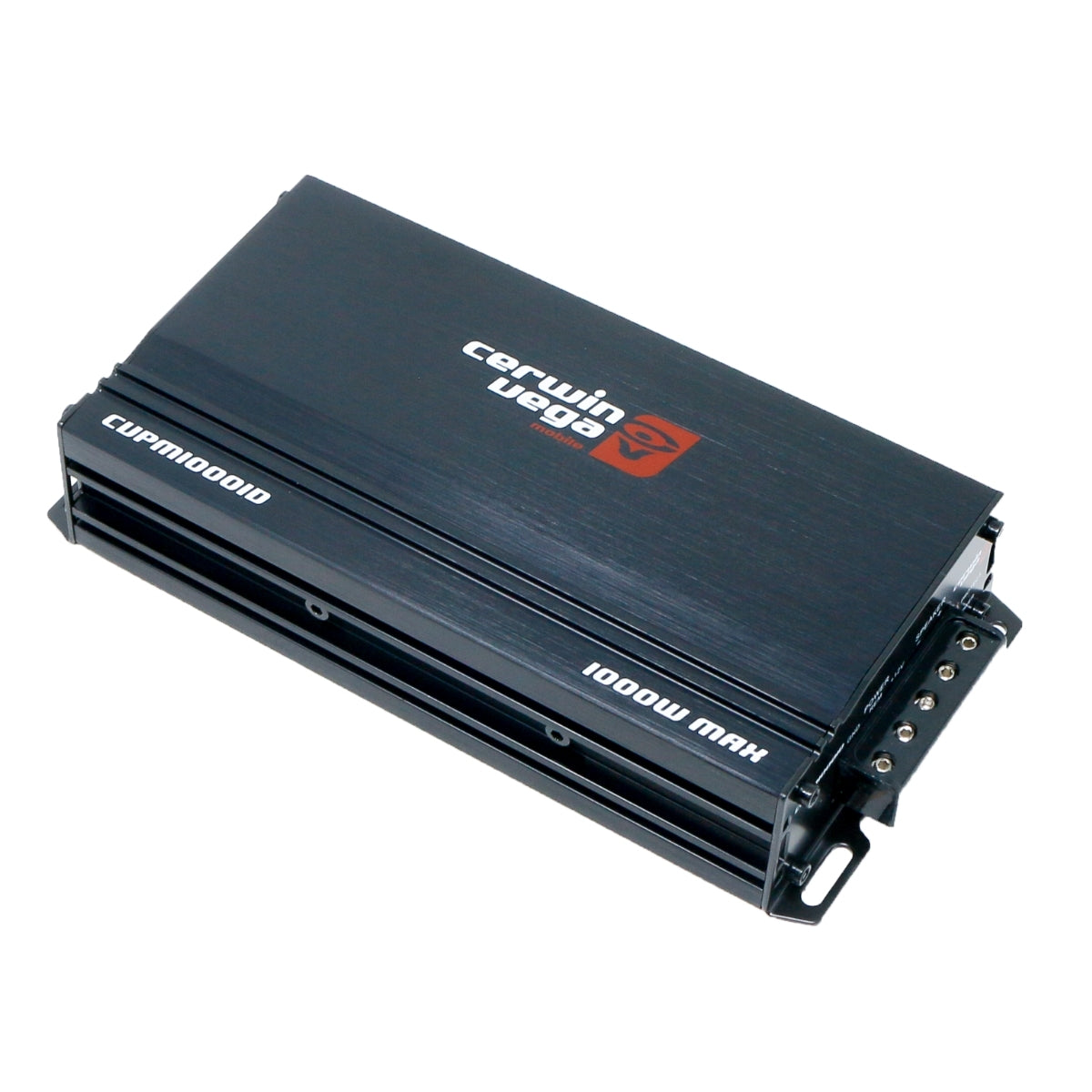

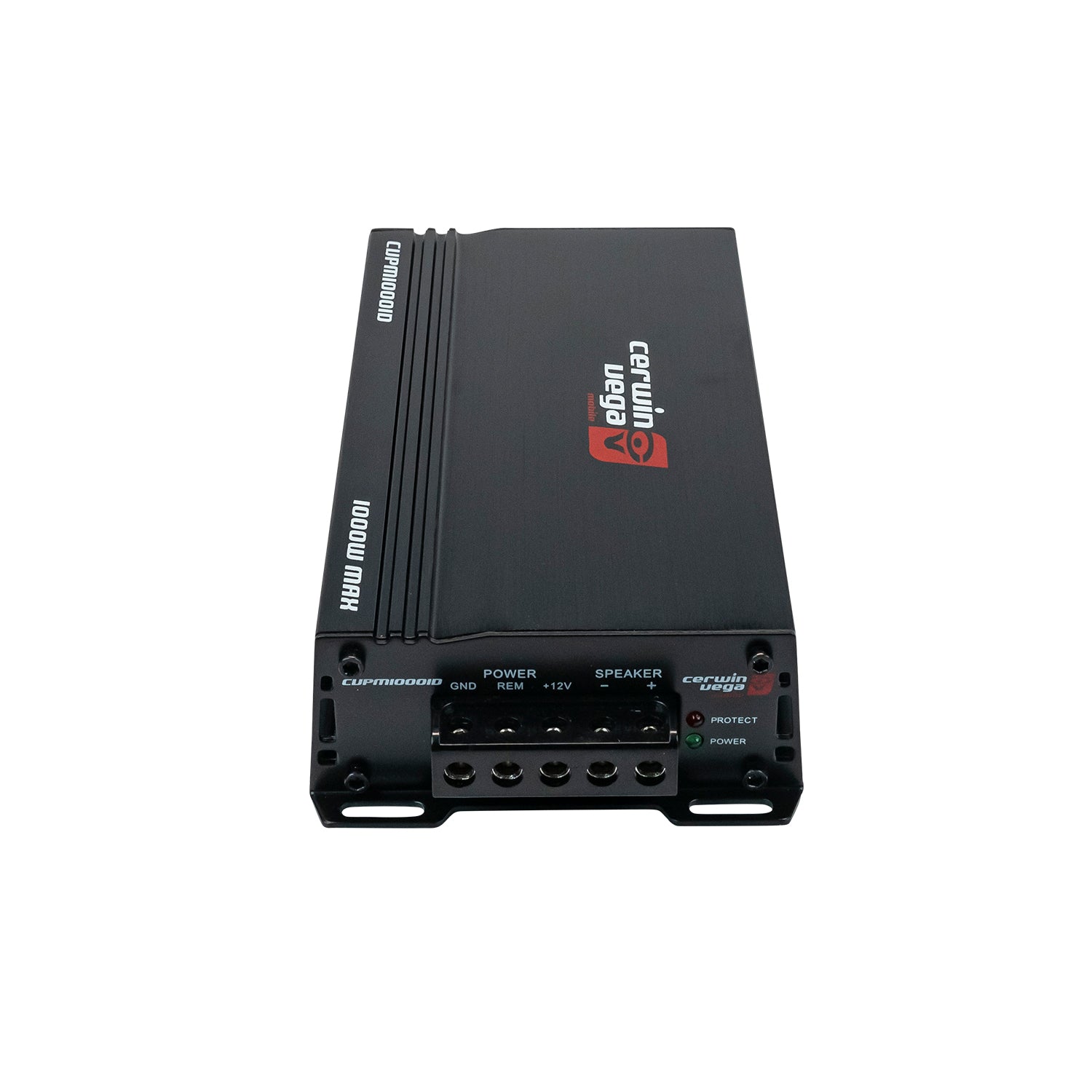

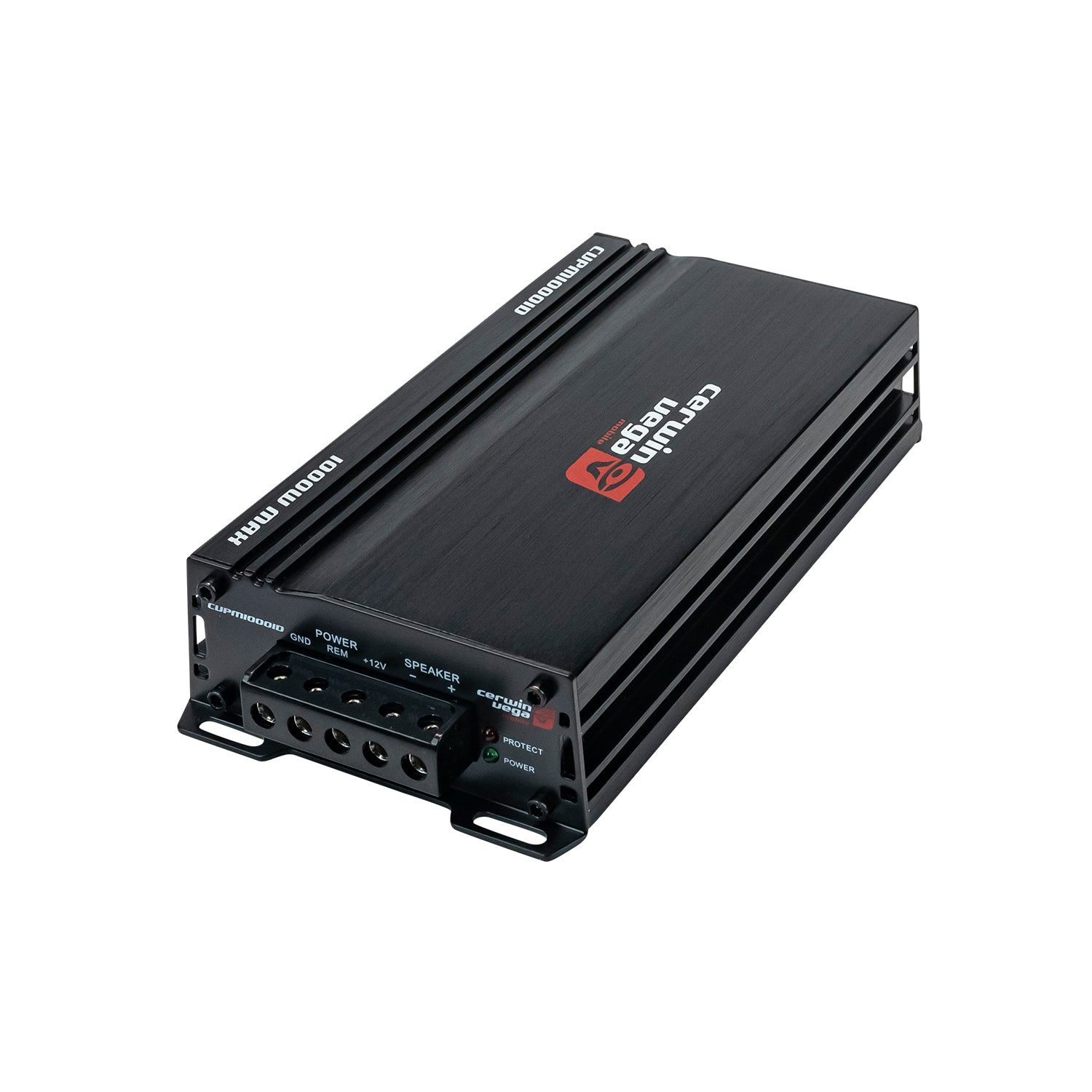

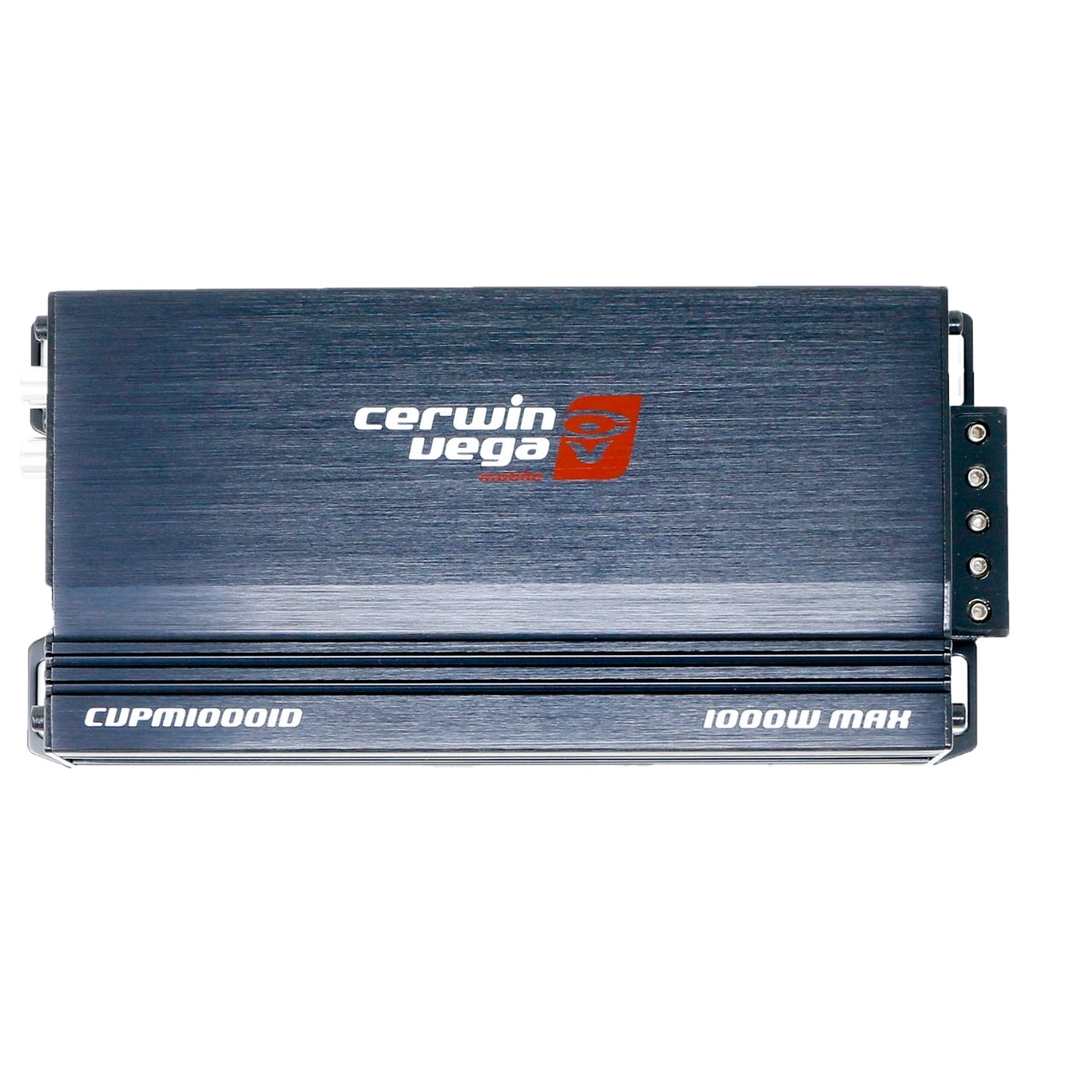

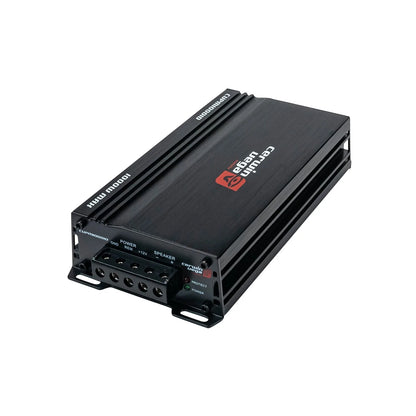

1-Channel CVPM Mini-Series Mono Block Class-D Amplifier - CVPM1000.1D

$159.99 USD
$159.99 USD
Sale Sold out

Weight: 2.5 lb

Size: 1 Channel

1-Channel CVPM Mini Series Mono Block Class-D Amplifier

Upgrade your car audio system with the Cerwin-Vega CVPM1000.1D CVPM Mini-Series 1-Channel Monoblock Class-D Amplifier, a compact yet powerful amplifier designed to deliver deep bass performance, high efficiency, and exceptional value. Part of the Cerwin-Vega CVPM Performance Mini-Series, this amplifier provides the legendary Cerwin-Vega sound in a space-saving design that fits easily into modern vehicle installations.

The CVPM1000.1D monoblock amplifier is engineered specifically for powering subwoofers, delivering strong low-frequency output that brings music to life with deep, impactful bass. Whether you're upgrading a factory sound system or building a custom car audio setup, this amplifier provides the power needed to maximize subwoofer performance while maintaining clean, distortion-free sound.

Utilizing advanced Class-D amplifier technology, the CVPM1000.1D delivers high-efficiency power output while minimizing heat generation and electrical demand. This allows the amplifier to produce strong bass performance while maintaining stable operation and energy efficiency, even during extended listening sessions.

Designed for versatility and easy installation, the CVPM Mini-Series amplifier features a compact footprint that allows it to fit into tight spaces without sacrificing performance. The durable chassis construction helps dissipate heat effectively, ensuring reliable operation and long-term durability.

Cerwin-Vega’s precision engineering ensures that the CVPM1000.1D amplifier delivers powerful bass response, excellent signal clarity, and dependable performance. From hip-hop and EDM to rock and electronic music, this amplifier provides the low-frequency impact needed to elevate your listening experience.

Perfect for enthusiasts seeking powerful bass at an affordable price, the CVPM Series amplifiers offer the ideal balance of performance, reliability, and value.

Key Features:
1-channel monoblock Class-D car audio amplifier
Compact CVPM Mini-Series design for easy installation
High-efficiency amplifier technology for powerful bass output
Designed specifically for subwoofer systems
Durable construction for long-lasting performance
Ideal for aftermarket car audio upgrades

The Cerwin-Vega CVPM1000.1D amplifier delivers powerful bass, compact efficiency, and the legendary Cerwin-Vega LOUD performance that transforms every drive into an unforgettable audio experience.

CVP Mini-Series 1-Channel Mono Block Class-D Car Amplifier

Power Rating (RMS)

RMS POWER PER CHANNEL 4Ω 310W X 1
RMS POWER PER CHANNEL 2Ω 500W X 1
WATER RESISTANCE - YES
FREQUENCY RESPONSE (HZ): 35HZ-500HZ

Power Supply

  • Power Supply: Full WPM
  • Power Supply Threshold: 10.0V-17.0V (DC)
  • Idle Current: (0.7A)

Distortion

  • THD 4 (1KHZ @4Ω): 0.01%
  • S/N RATIO (A WEIGHTED @1W): -85dBA
  • S/N RATIO (A WEIGHTED @FP): -101.1dBA

Input Sensitivity

  • Hi/Low Level Input: 0.15mV-6.0V

Input Impedance

  • Low Level Input: 20KΩ

Output Stage

  • Output Impedance: 0.0297Ω
  • Damping Factor (50Hz@4Ω): >70
  • Bandwidth (-3db): 10Hz-45KHz

Crossover (1-12dB/Oct)

  • Variable High-Pass:
  • Variable low-Pass: 35Hz-500Hz

Fuse Rating

  • 2x30A

Dimensions

  • Length x Width x Height: 7.64”x3.7”x1.47” (194mm x 95mm x 37.3mm)

FEATURES

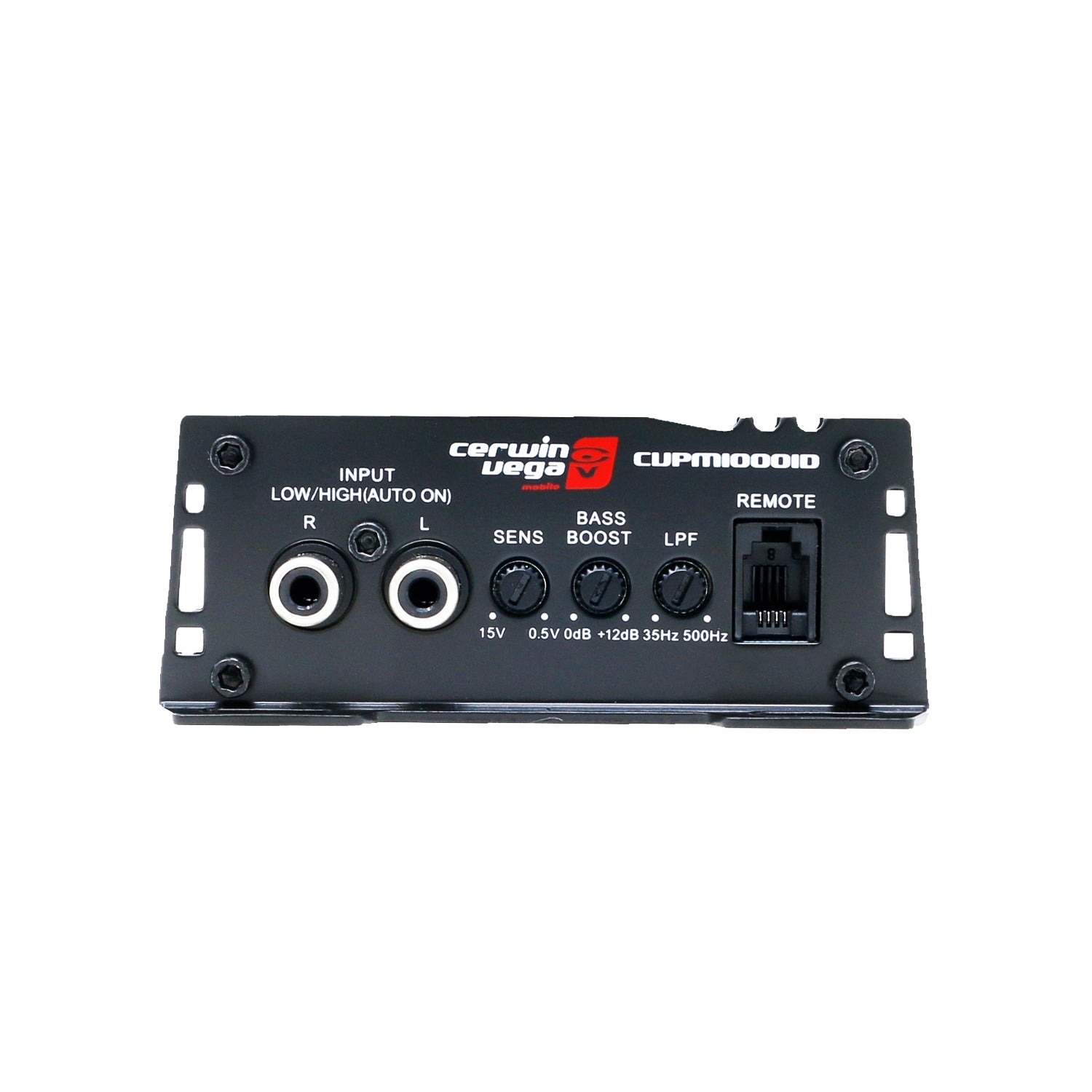

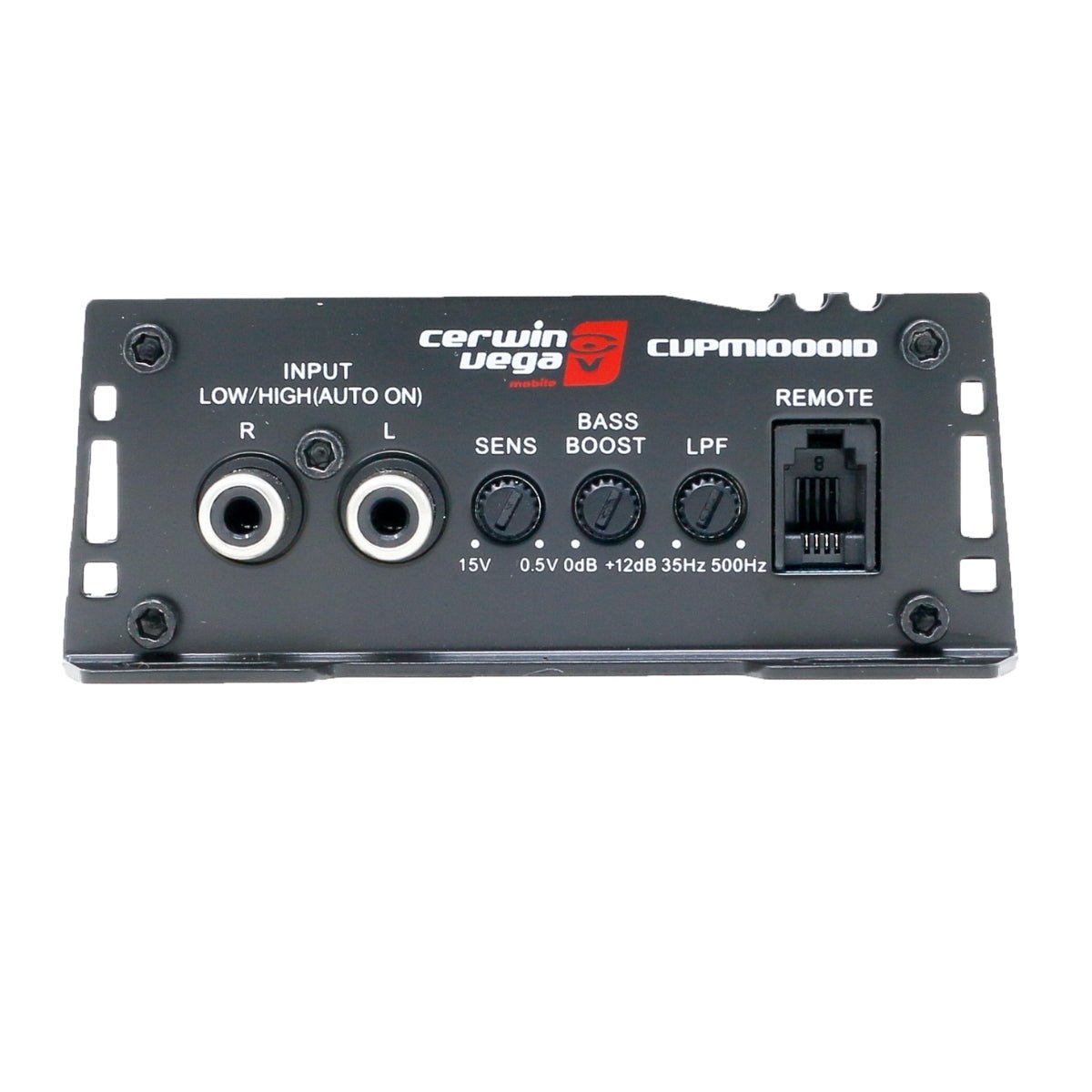

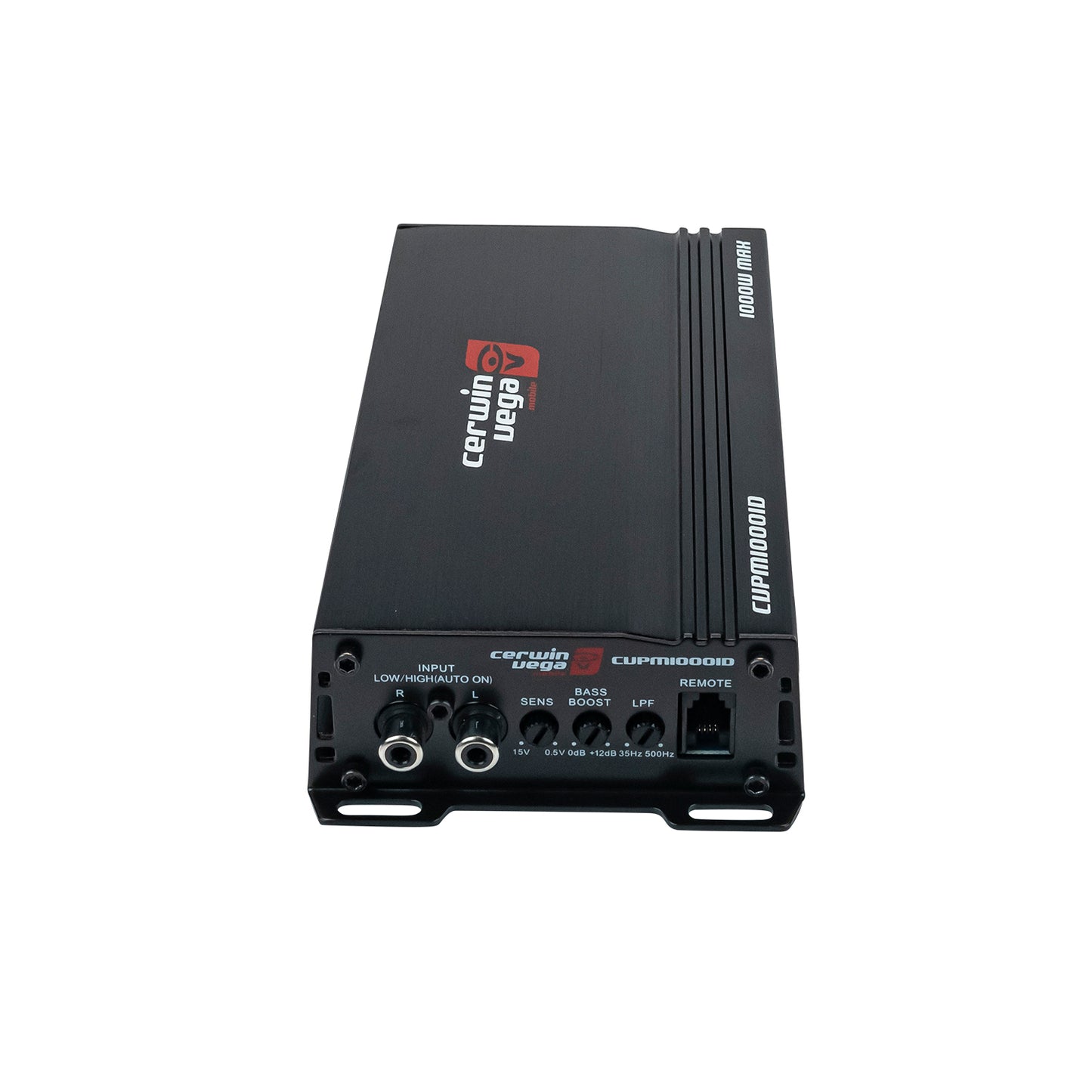

  • Vega Bass Boost: This control adds 0 to +12dB of boost at 45Hz. Be cautious when adding boost to some subwoofer systems as they may not be able to handle the additional low frequency boost.

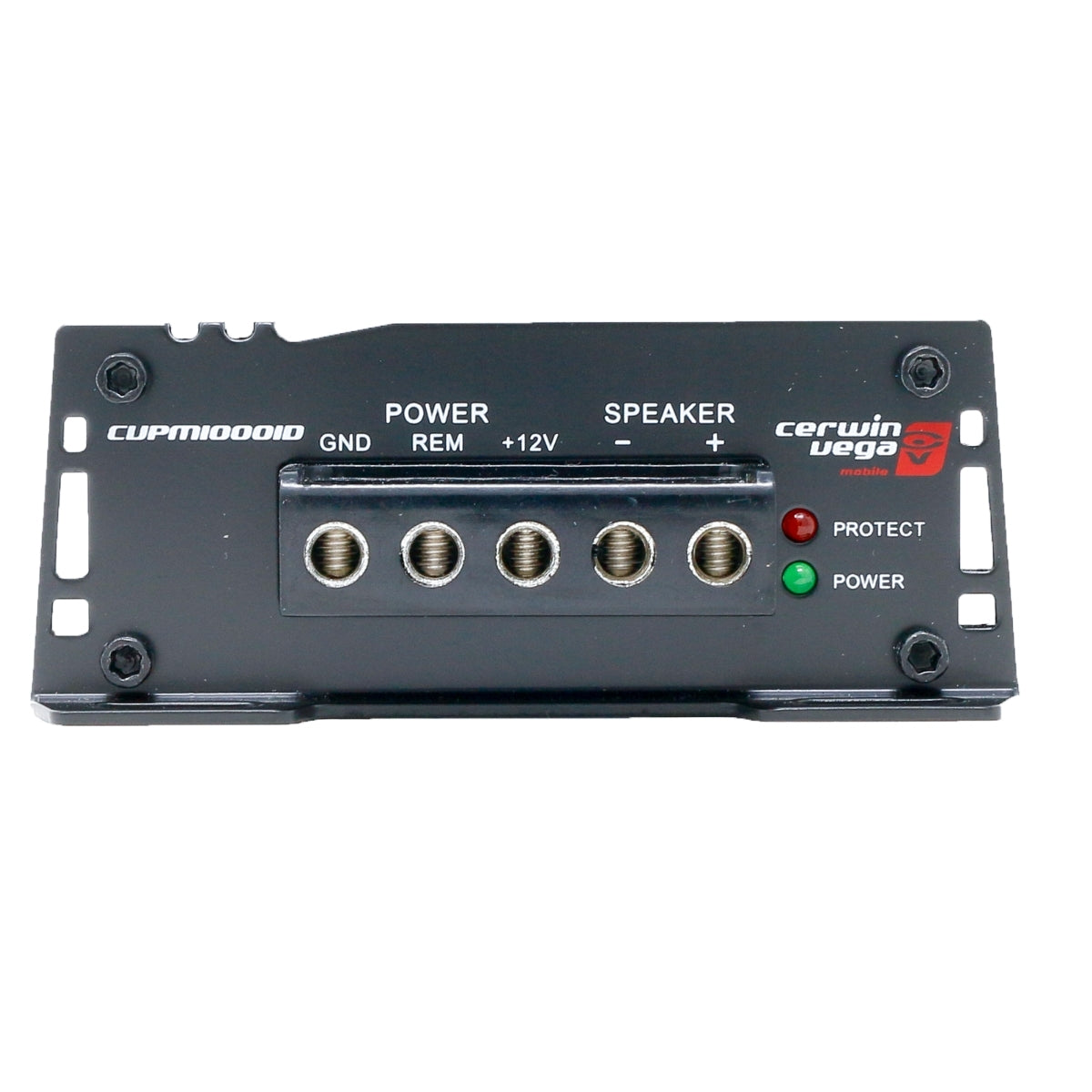

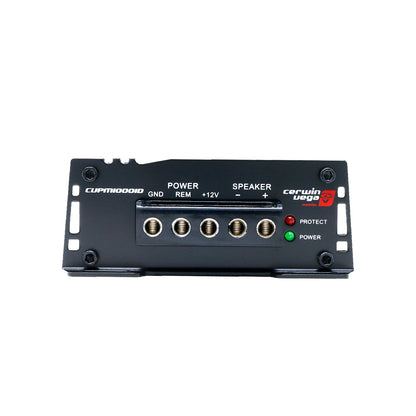

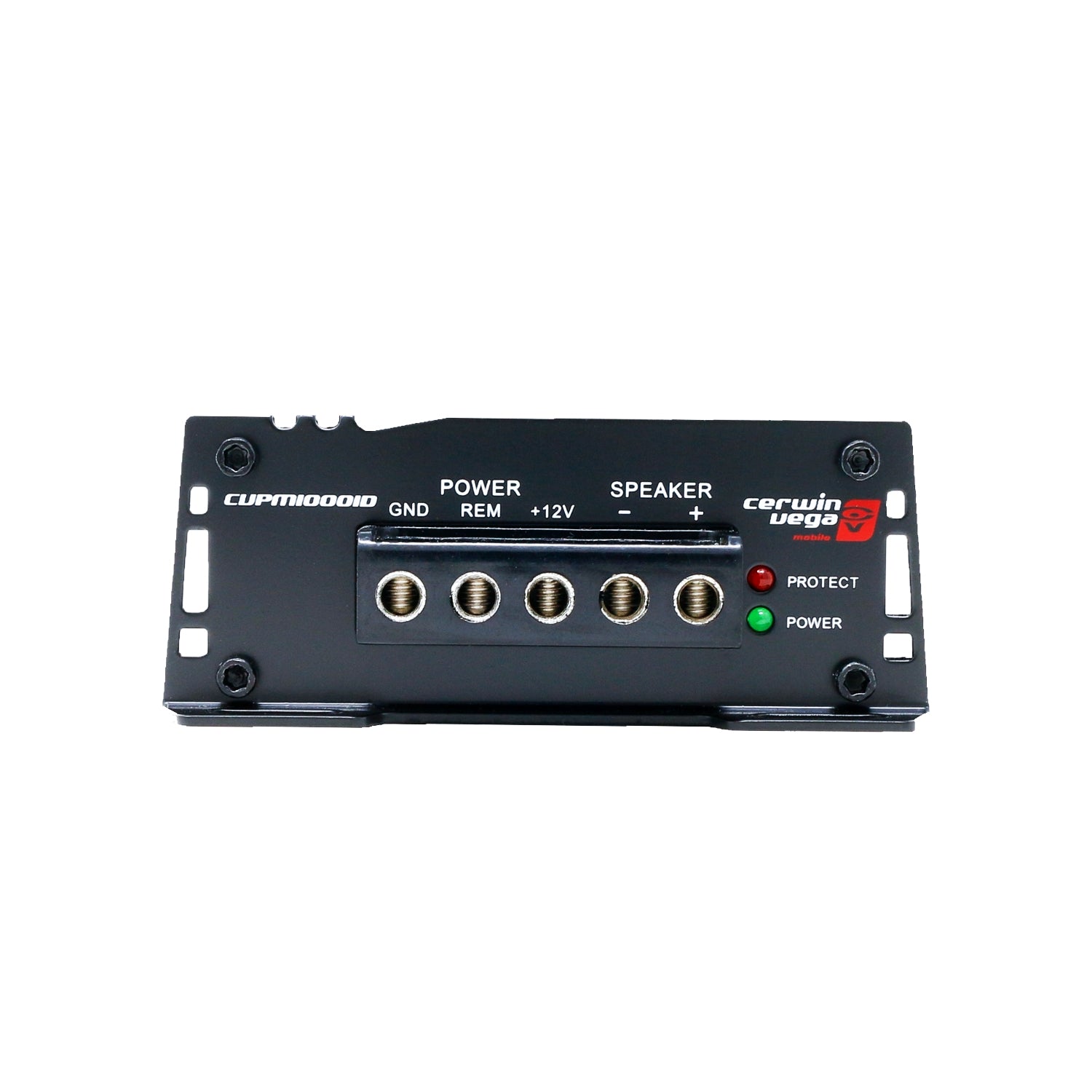

  • Power Input Connections: These connections are for input power, chassis ground, and remote turn-on. Use a minimum of 8 gauge wiring for power and ground connections, 18 gauge for remote turn-on. (4 Gauge is recommended for the mono blocks.) The terminals will handle up to 8 gauge wiring with no problem whatsoever. Be sure any wiring that passes through metal has a grommet!
  • 1-year Manufacturer's Warranty
