XED Series 1-Channel Mono Block Class-D Amplifier - XED11001D
Weight: 6.4 lb
Couldn't load pickup availability
Overview
XED11001D - 1 Channel Class-D Amplifier
Experience powerful bass performance with the Cerwin-Vega XED11001D XED Series 1-Channel Class-D Amplifier, a high-output monoblock amplifier designed to deliver deep, impactful bass with exceptional efficiency and reliability. Built using Cerwin-Vega’s advanced Xtreme Energy Design, this amplifier is engineered to drive subwoofers with authority while maintaining clean, distortion-free sound.
The XED11001D monoblock amplifier is specifically designed for subwoofer applications, delivering focused power to maximize low-frequency performance. Whether you're upgrading a factory audio system or building a custom high-output setup, this amplifier provides the muscle needed to bring out the full potential of your subwoofer system.
Utilizing high-efficiency Class-D amplifier technology, the XED11001D produces impressive power output while generating minimal heat. This efficient design allows the amplifier to deliver strong bass performance without placing excessive strain on your vehicle’s electrical system. The result is powerful, consistent bass that maintains clarity even at higher volume levels.

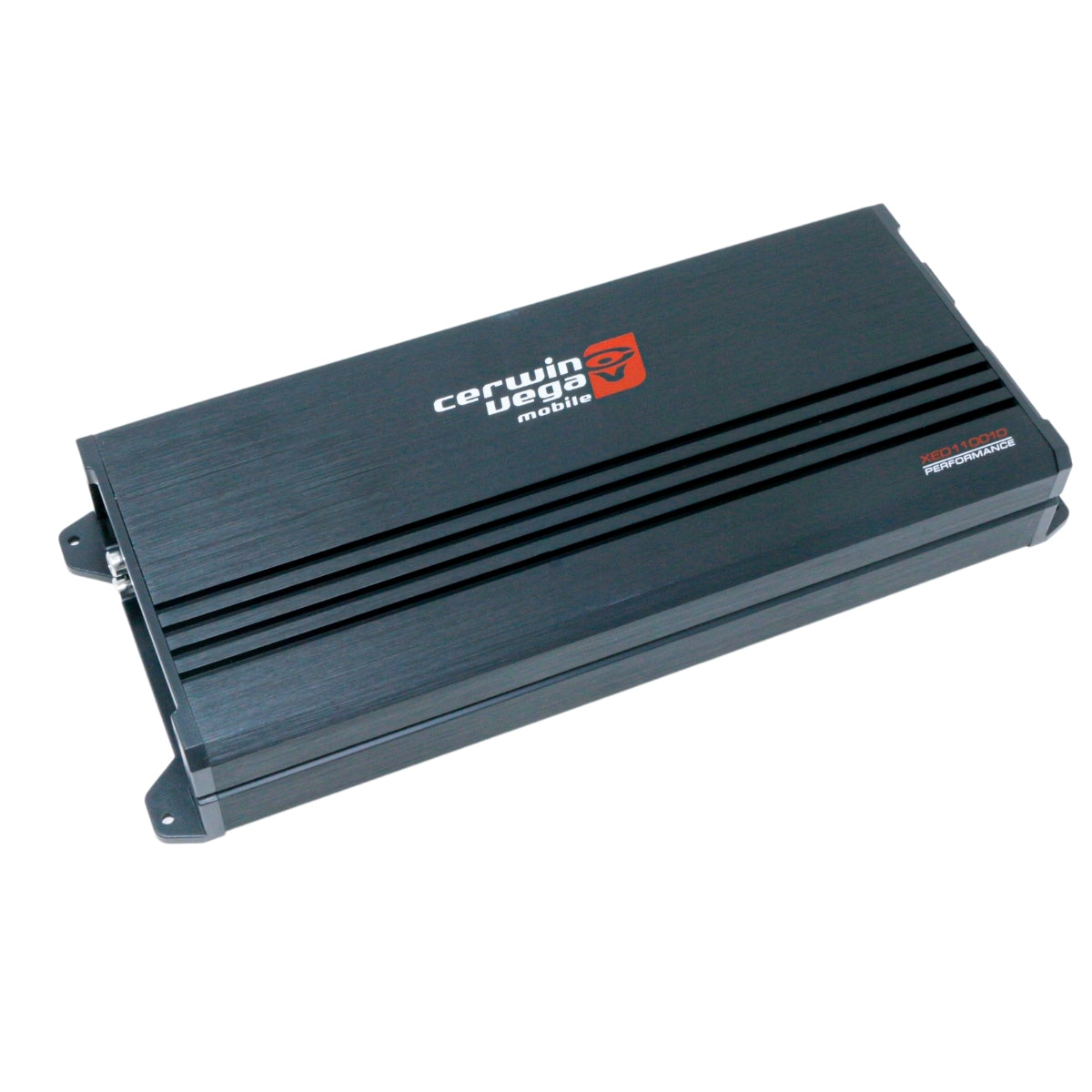

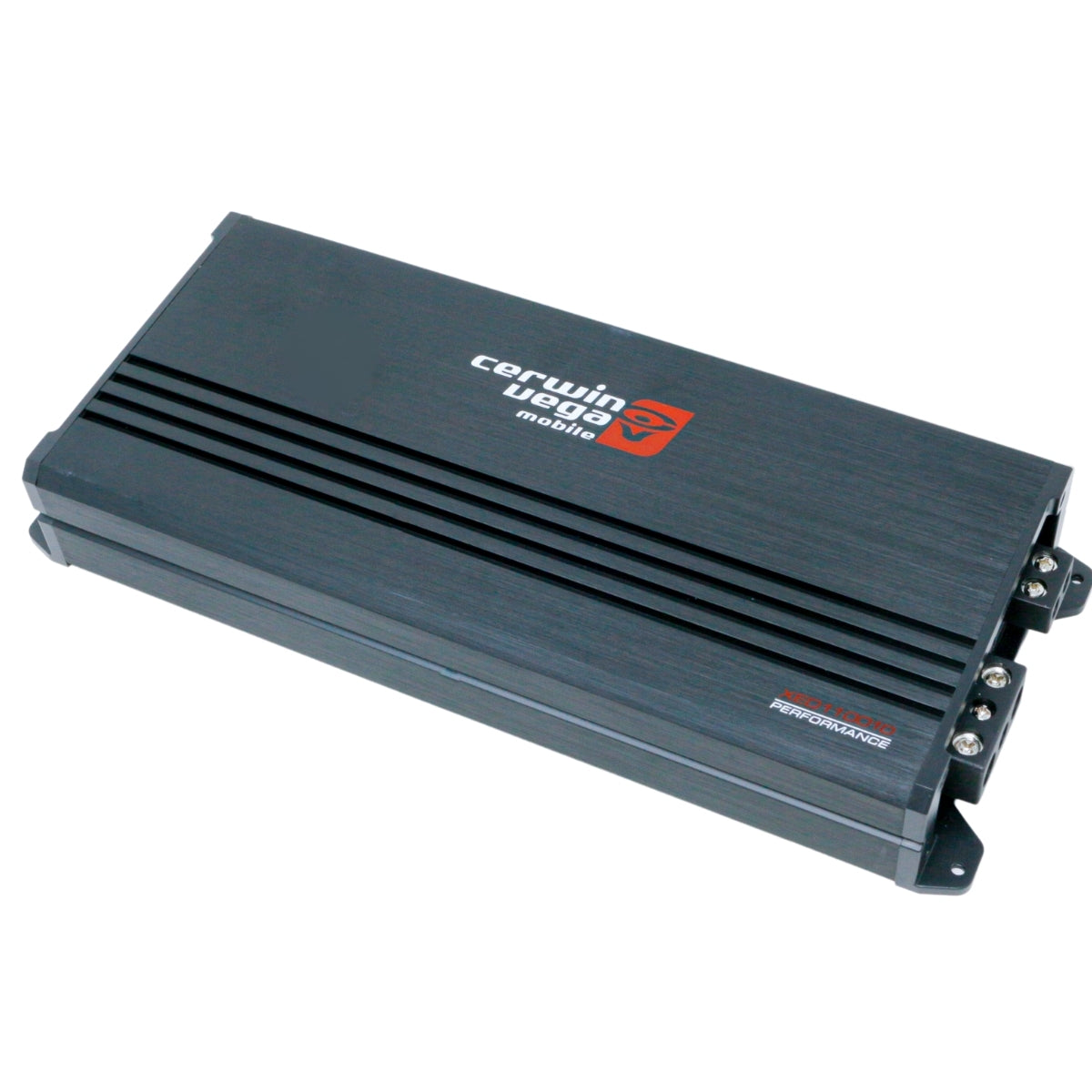

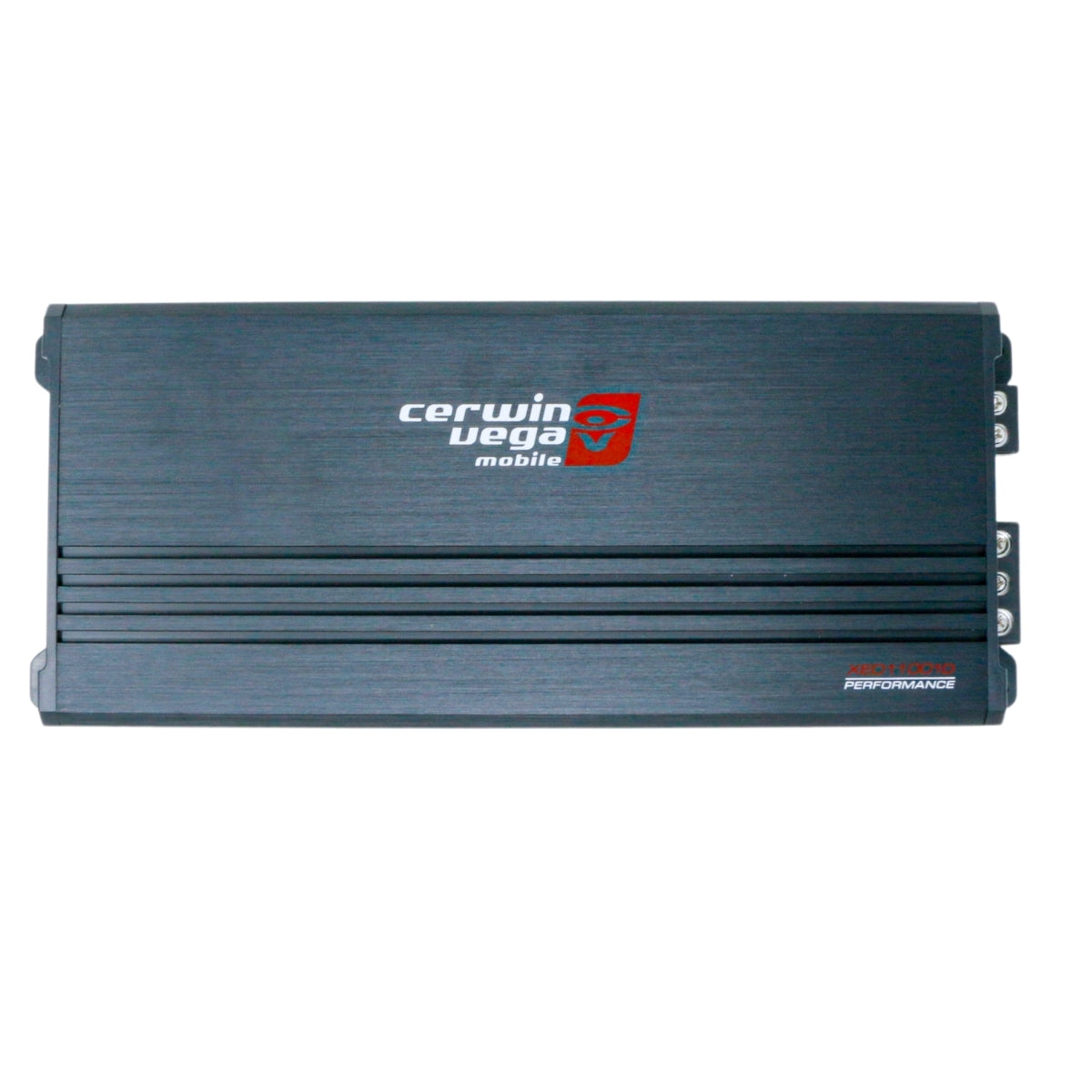

The amplifier is housed in a lightweight aluminum chassis, which serves as an effective heat sink to help dissipate heat and maintain stable operation. This rugged yet compact construction ensures long-lasting reliability while allowing flexible installation in a wide range of vehicle applications.
Designed for performance-driven car audio systems, the Cerwin-Vega XED Series amplifiers combine premium internal components with precision engineering to ensure dependable power delivery and consistent audio performance. The XED11001D provides the tight bass response and low-frequency impact needed to make your music come alive.
Whether you're listening to hip-hop, EDM, rock, or electronic music, this amplifier delivers the deep bass energy that Cerwin-Vega is famous for.
Key Features:
• 1-channel monoblock Class-D car audio amplifier
• Designed specifically for high-performance subwoofer systems
• High-efficiency amplifier technology for powerful output
• Lightweight aluminum chassis for superior heat dissipation
• Clean, distortion-free bass reproduction
• Ideal for aftermarket subwoofer upgrades
The Cerwin-Vega XED11001D amplifier unleashes extreme bass power, delivering the Xtreme Energy and legendary Cerwin-Vega performance that transforms every drive into an immersive audio experience.
Specifications
XED Series 1-Channel Mono Block Amplifier
POWER RATING
FREQUENCY RESPONSE (HZ): 35HZ - 350HZ
RMS POWER PER CHANNEL 4Ω 650W X 1
RMS POWER PER CHANNEL 2Ω 1100W X 1

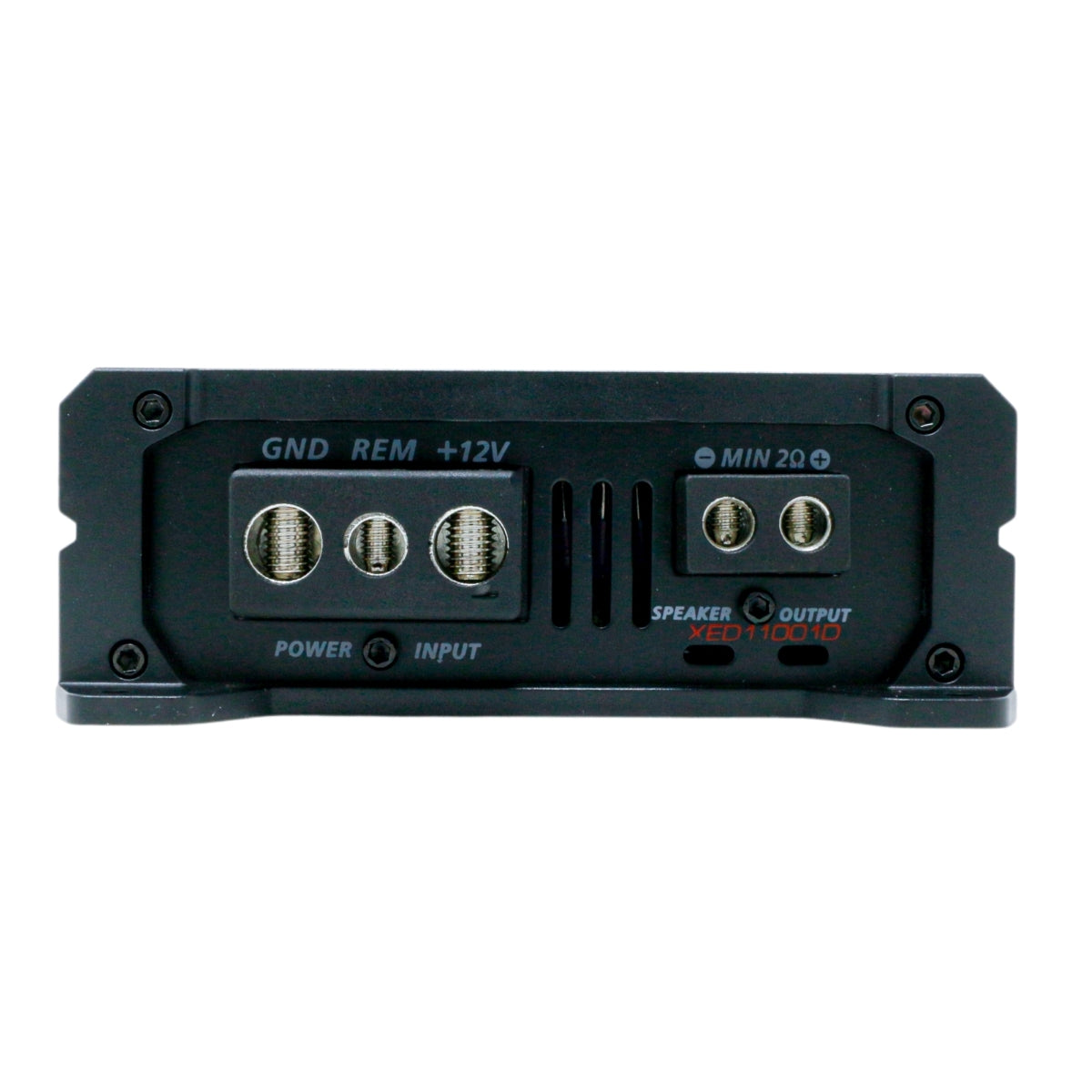

POWER SUPPLY
- Power Supply: Full PWM
- Power Supply Threshold: 10.0V-16.0V (DC)
- Idle Current: (0.7A)
DISTORTION
- THD 4 (100Hz @4Ω): <0.1%
- S/N Ratio (A weighted @1W): -85dBA
- S/N Ratio (A weighted @FP): -101.1dBA
INPUT SENSITIVITY
- Low Input Level: 250mV-6V
- High Input Level: 1.1V~>20.0V
INPUT IMPEDANCE
- Low Input Level: 20KΩ
- High Input Level: 100Ω
OUTPUT STAGE
- Output Impedance: 2Ω
- Damping Factor (50Hz @ 4Ω): >70
- Bandwidth (-3dB): 10Hz-250Hz

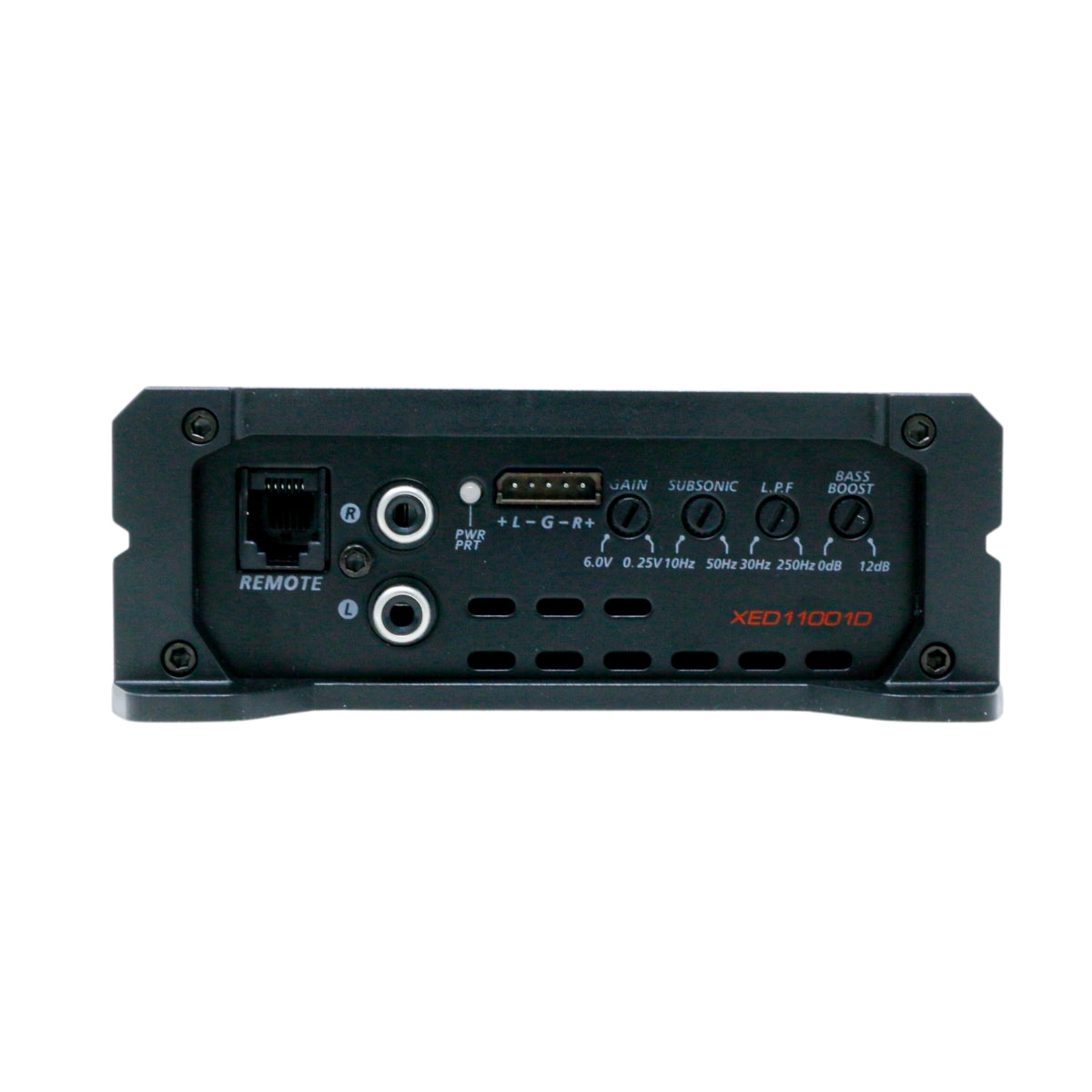

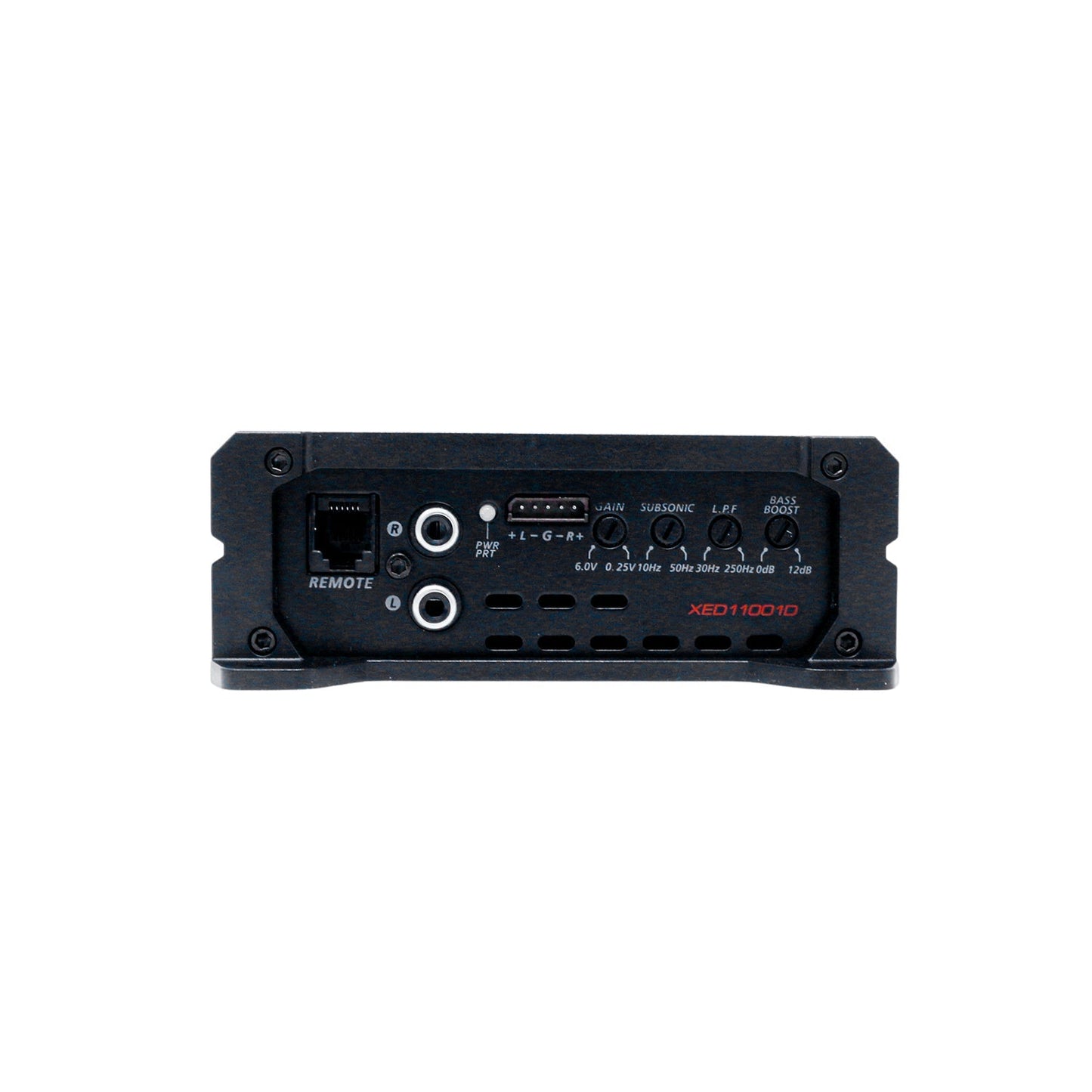

CROSSOVER (-12dB/Oct)
- Variable High-Pass:
- Variable Low-Pass: 35Hz-250Hz
- Variable Sub-Sonic: 10Hz-50Hz
FUSE RATINGS
- ATC: 35A x 3 (Inside)
DIMENSIONS
- L x W x H: 11”x 4.7”x 1.8” (280mm x 120mm x 46.5mm)
FEATURES
- Bass Boost: 0dB-12dB
- LED Power/Protect Light Indicator

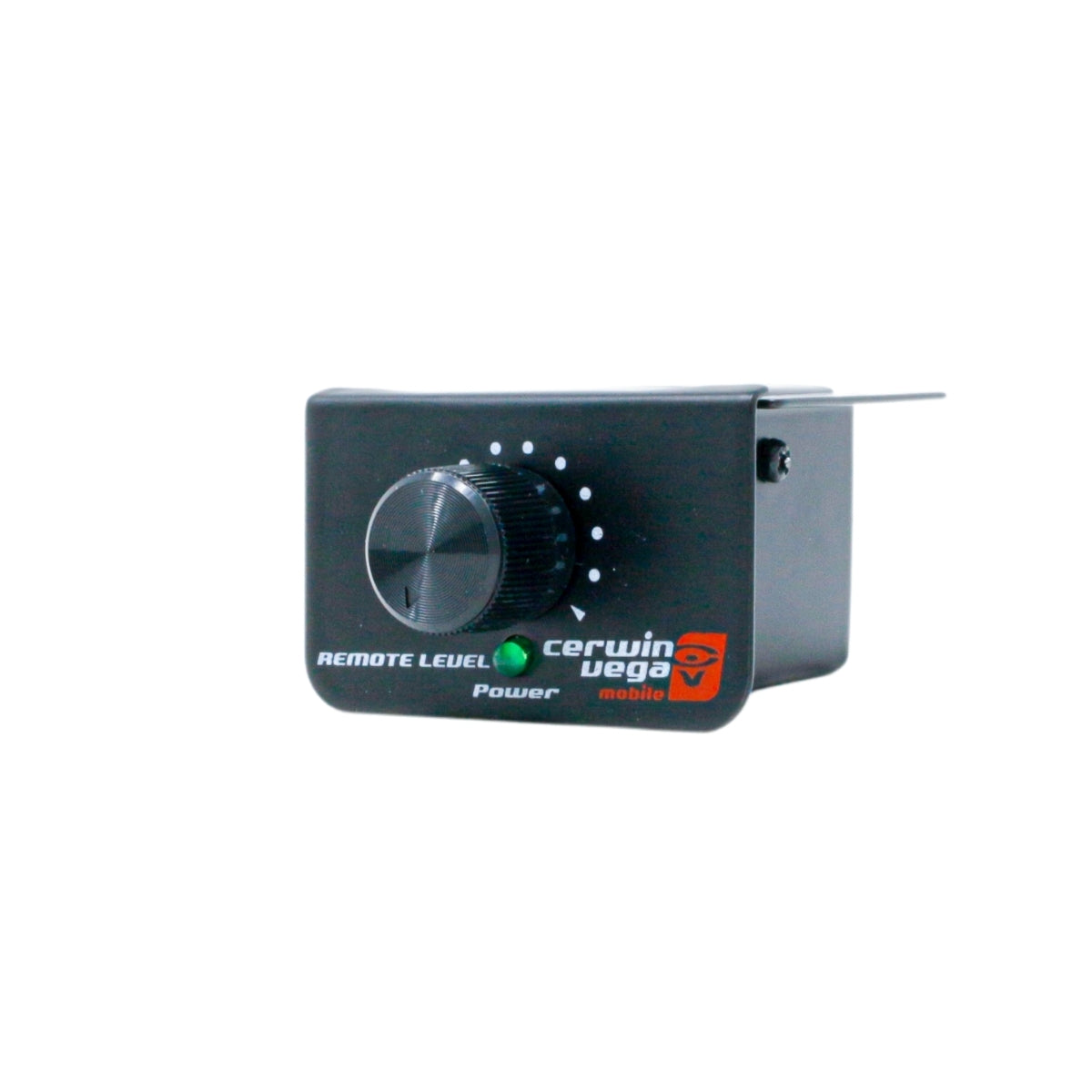

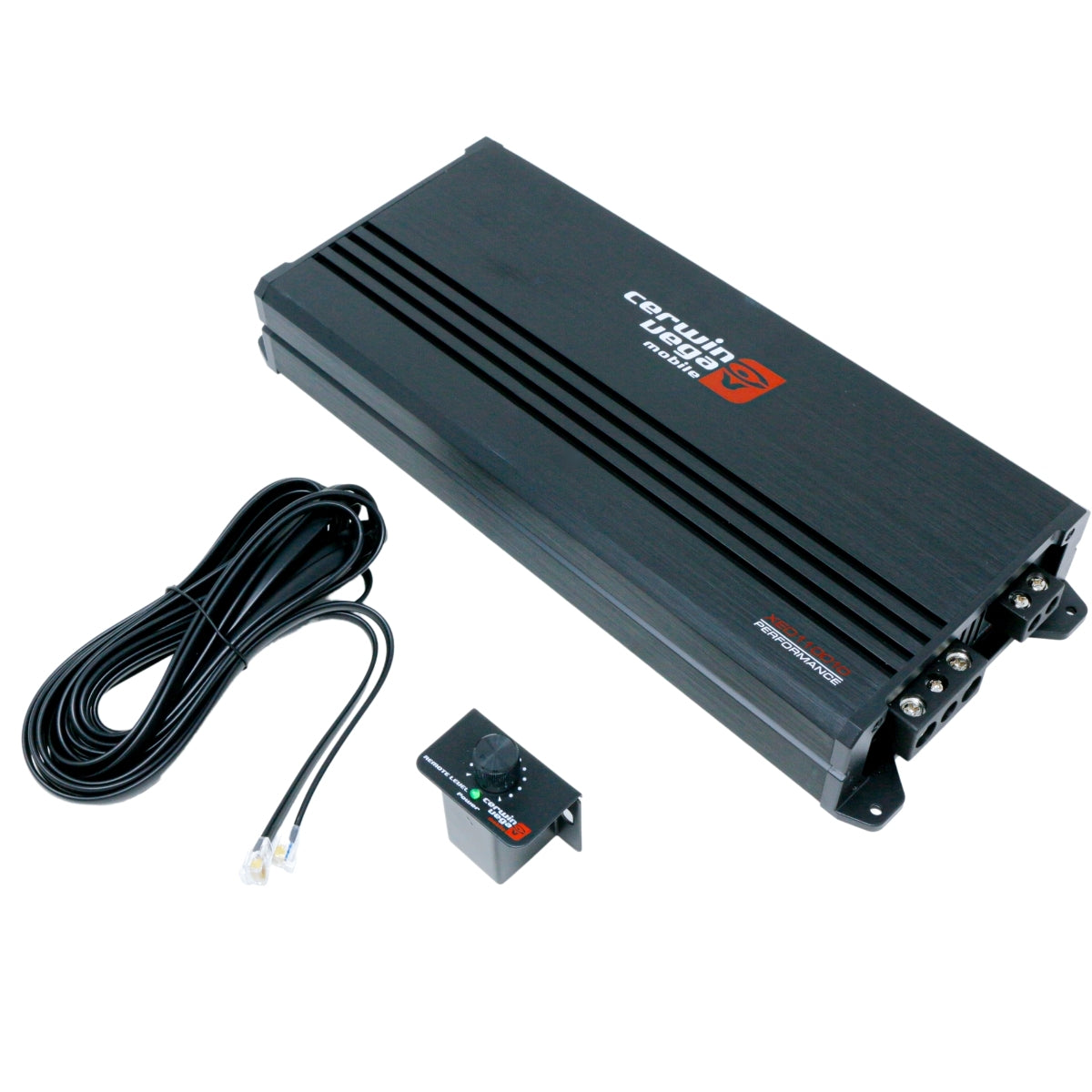

- Bass Control Included
- MFR #: XED11001D
Product Manuals

Xtreme Power, Ultimate Precision
The XED11001D 1-Channel Class-D Amplifier delivers high-efficiency power and clean sound. With advanced Class D technology and a lightweight aluminum chassis, it ensures reliable performance while driving subwoofers and speakers with ease.
Built for High-Performance Systems
Crafted with premium components and robust construction, the XED11001D handles demanding setups effortlessly. Experience deep bass, crisp highs, and seamless mids for an immersive car audio experience.
