SRPM Stroker 5-Channel Full Range Class-D Amplifier - SRPM1100.5D
SKU:SRPM1100.5D
Couldn't load pickup availability
Overview
SRPM1100.5D - SRPM Stroker 5-Channel Full Range Class-D Amplifier
Cerwin-Vega RPM Stroker Series Amplifiers – Power Unleashed
For those who crave precision, power, and innovation, the RPM Stroker Series Amplifiers deliver on all fronts. Engineered for superior performance, these amplifiers feature HUGE dynamic headroom to ensure they always sound more powerful than their rated specs, offering an audio experience that’s as bold as it is breathtaking.
State-of-the-Art Technology
- High Efficiency Full Range Digital Topology: Maximum output with minimal energy loss for unmatched performance.
- Advanced Surface Mount Components: Engineered with 4-layer PCB technology for reliability and precision.
Versatile and Compact Design
- Common Compact Size: Sleek, space-saving design with single-sided connections for a clean installation.
- Top-Mounted Controls: Easy access for fine-tuning your sound.
- Handles Hi and Lo-Level Input (up to 12V): Seamlessly integrates with any system.
Flexible Features for Every Setup
- Switched Speaker Level Turn-On Options: Choose between VOX, DC Offset, or REM for tailored installation.
- Input Configuration Switch (4 & 5-Channel Models): Versatility to meet your specific needs.
- Fully Variable Crossovers: Customize your sound with 35Hz - 350Hz, 12dB per octave filters.
Precision Bass Control
- Bass Remote with In-Dash Install Option: Take control of your bass right from the driver’s seat.
- Variable Phase Adjustment (Monobloc Models): Achieve perfect alignment and balance in your system.
Unrivaled Performance in Every Note
The RPM Stroker Series Amplifiers are the ultimate choice for enthusiasts who demand both innovation and intensity. Whether you’re pushing subwoofers to their limits or tuning for clarity and precision, these amplifiers deliver dynamic, distortion-free sound every time.
Why Choose RPM Stroker?
- Unmatched Power and Dynamic Range: Feel every beat and note with commanding presence.
- Cutting-Edge Technology: Designed for efficiency, flexibility, and superior sound quality.
- Cerwin-Vega Legacy: Over 65 years of expertise delivering audio excellence.
Amp Up Your Sound
Transform your audio system with the power and precision of the Cerwin-Vega RPM Stroker Series Amplifiers. Built for performance, designed for flexibility, and engineered for greatness—these amps are ready to take your sound to the next level.
Feel the power. Experience the clarity. Choose RPM Stroker.
Specifications
Stroker RPM Series 5-Channel Full Range Amplifier
Power Rating (RMS)
- Power @ 2Ω: 120W X 4/500W X 1
- Power @ 4Ω: 100W X 4/300W X 1
- Power Bridged @ 4Ω: 200W X 2/300W X 1
Power Supply
- Power Supply: Full WPM
- Power Supply Threshold: 10.0V-17.0V (DC)
- Idle Current: (0.7A)
Distortion
- THD 4 (1KHZ @4Ω): 0.03%
- S/N Ratio (A weighted @1W): 76.7dBA
- S/N Ratio (A weighted @FP): 96.7 dBA
Input Sensitivity
- Low Level Input: 0.2mV-10.0V
- High Level Input: Up to 25W RMS
Input Impedance
- Low Level Input: 22KΩ
Output Stage
- Output Impedance: 0.051Ω
- Damping Factor (50Hz@4Ω): >70
- Bandwidth (-3db): 10Hz-35Hz
Crossover (1-12dB/Oct)
- Variable High-Pass: 40Hz-400Hz
- Variable low-Pass: 30Hz-300Hz

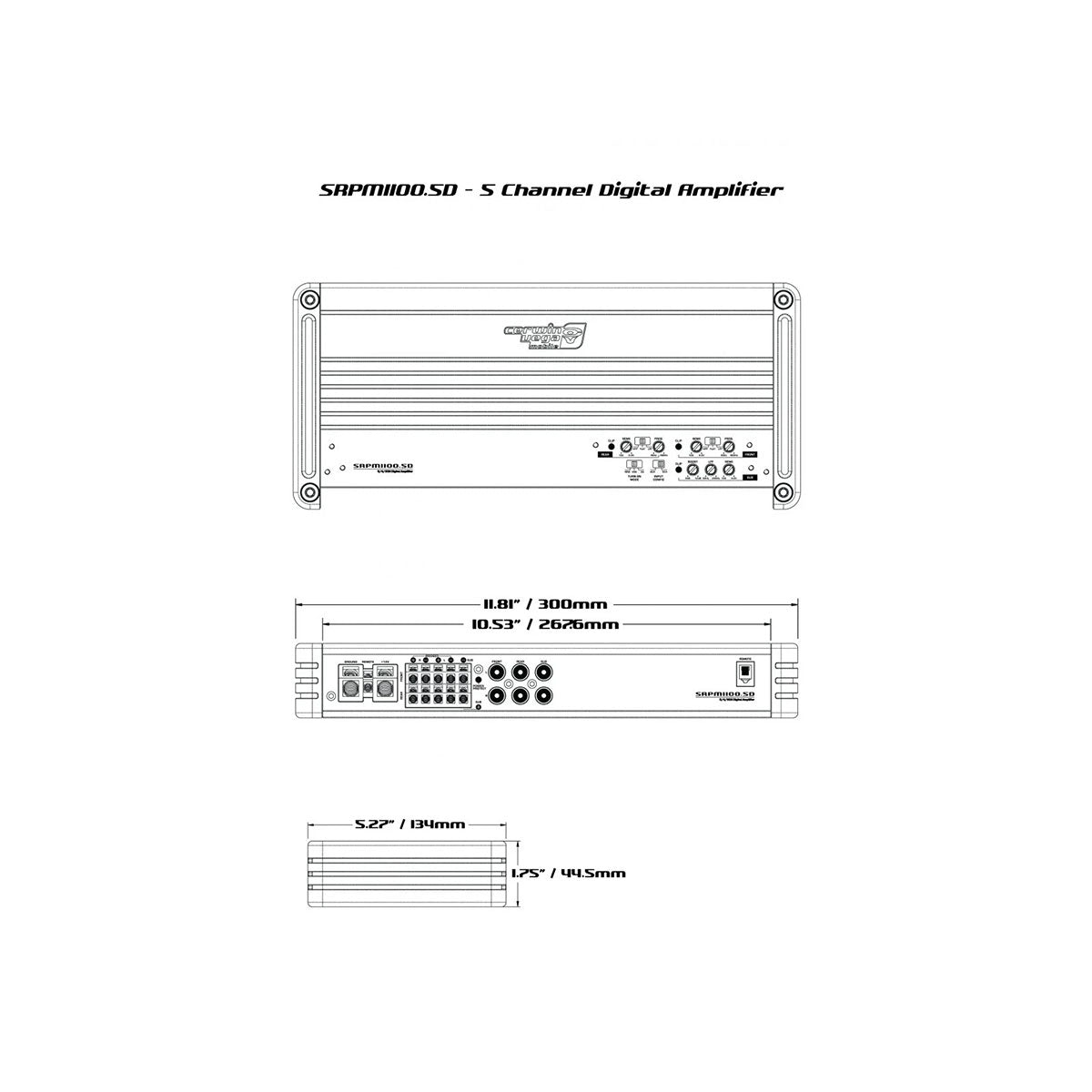

Dimensions
- Length x Width x Height: 10.25”x5.25”x1.75” (260mm x 134mm x 44.5 mm)
FEATURES
- Selectable X-over: Low Pass/Flat/High Pass
- Selectable Turn On Mode: REM/VOX/DC
- Selectable Input Configuration 4CH or 5CH Mode
- LED Power/Protect Light Indicator
- Output Clipping Indicator - Helps Set Gains
- MFR #: SRPM1100.5D
