RPM Stroker Class-D 5 Channel Digital Amplifier (White)-SRPM1100.5DW
SKU:SRPM1100.5DW
Couldn't load pickup availability
Overview

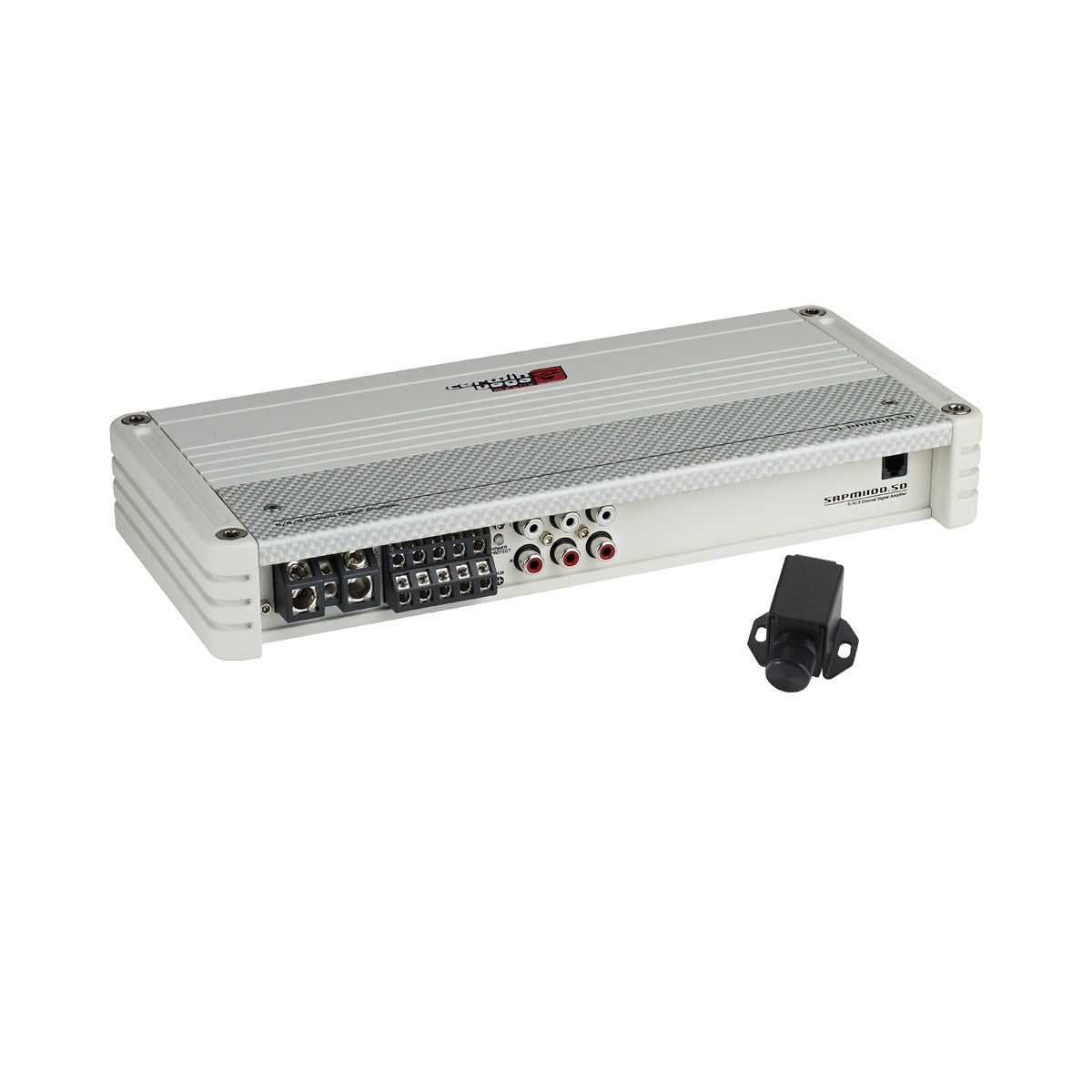

SRPM1100.5DW - RPM Stroker Class-D 5 Channel Digital Amplifier (White)
Description:
RPM Stroker Series amplifiers have HUGE “dynamic” headroom capability and ALWAYS sound more powerful then rated. Latest High Efficiency Full Range Digital Topology. Surface Mount Component Technology with 4-Layer PCB. Common Compact Size with Single Sided Connections and Top Mount Controls. Handles HI and LO level input up to 12V. Switched Speaker Level Turn On Option (VOX/DC Offset/REM). Input configuration switch on 4 and 5 channel amplifiers. Fully Variable 35Hz - 350Hz 12dB per Octave Crossovers. Bass remote can be disassembled and installed in-dash. Variable Phase adjustment on ALL RPM Stroker Series monoblocs.
Specifications
5 Channel Full Range Digital Amplifier
100W x 4CH + 300W @ 4Ω RMS Power Output
200W x 4CH + 500W @ 2Ω RMS Power Output
200W x 2CH + 300W @ 4Ω Bridged RMS Power Output
Input Sensitivity: 0.2-10 Volt
Frequency Response: 10-33KHz
Selectable REM / VOX / DC Turn On Modes

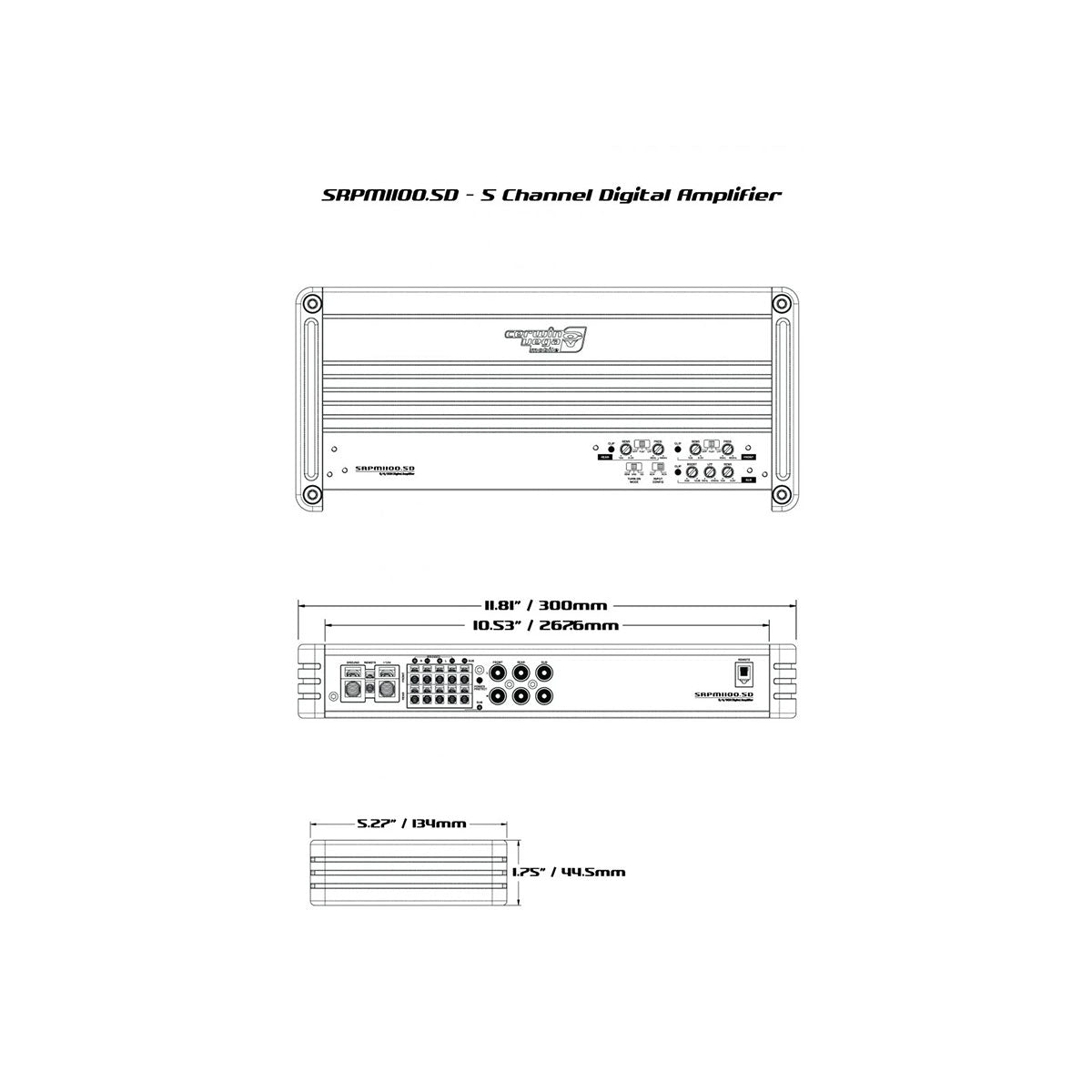

Dimensions: 10.25” x 5.28” x 1.75” (260 x 134 x 44.5 mm)
