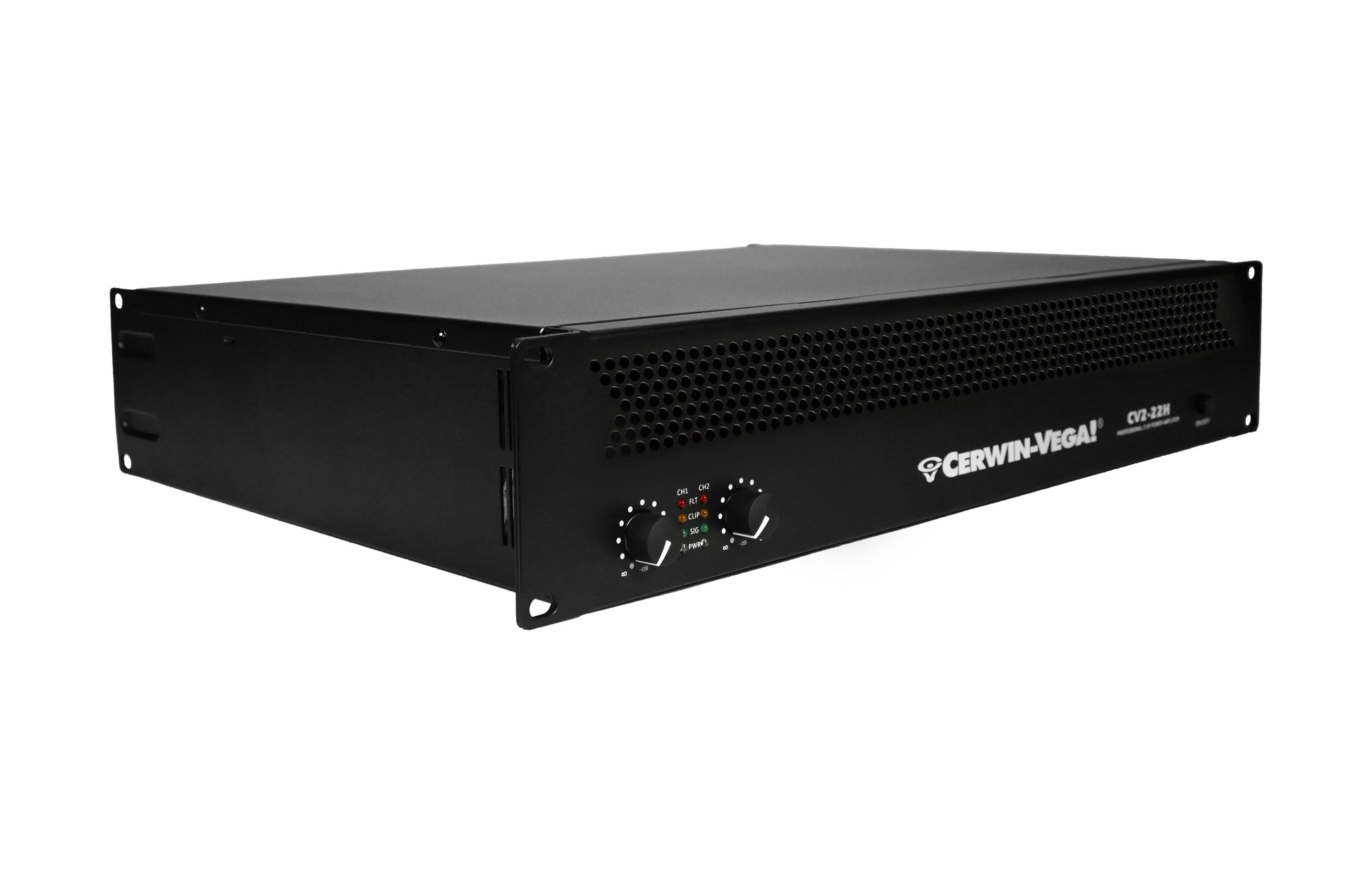

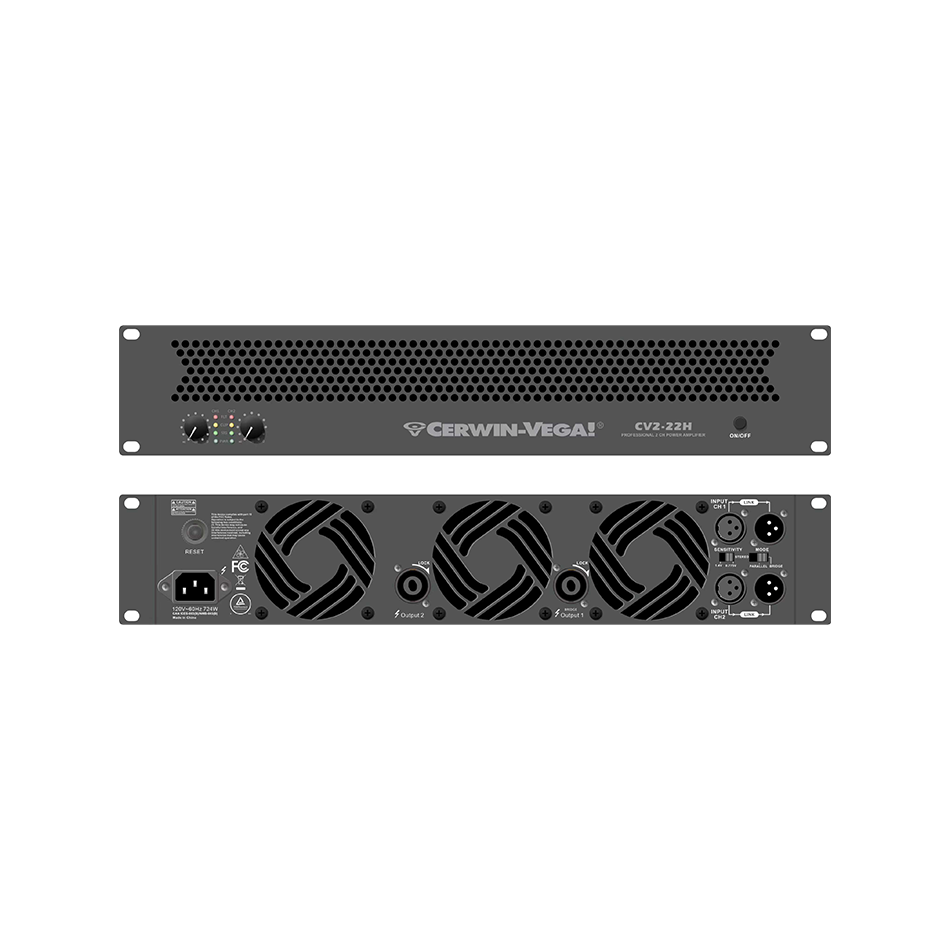

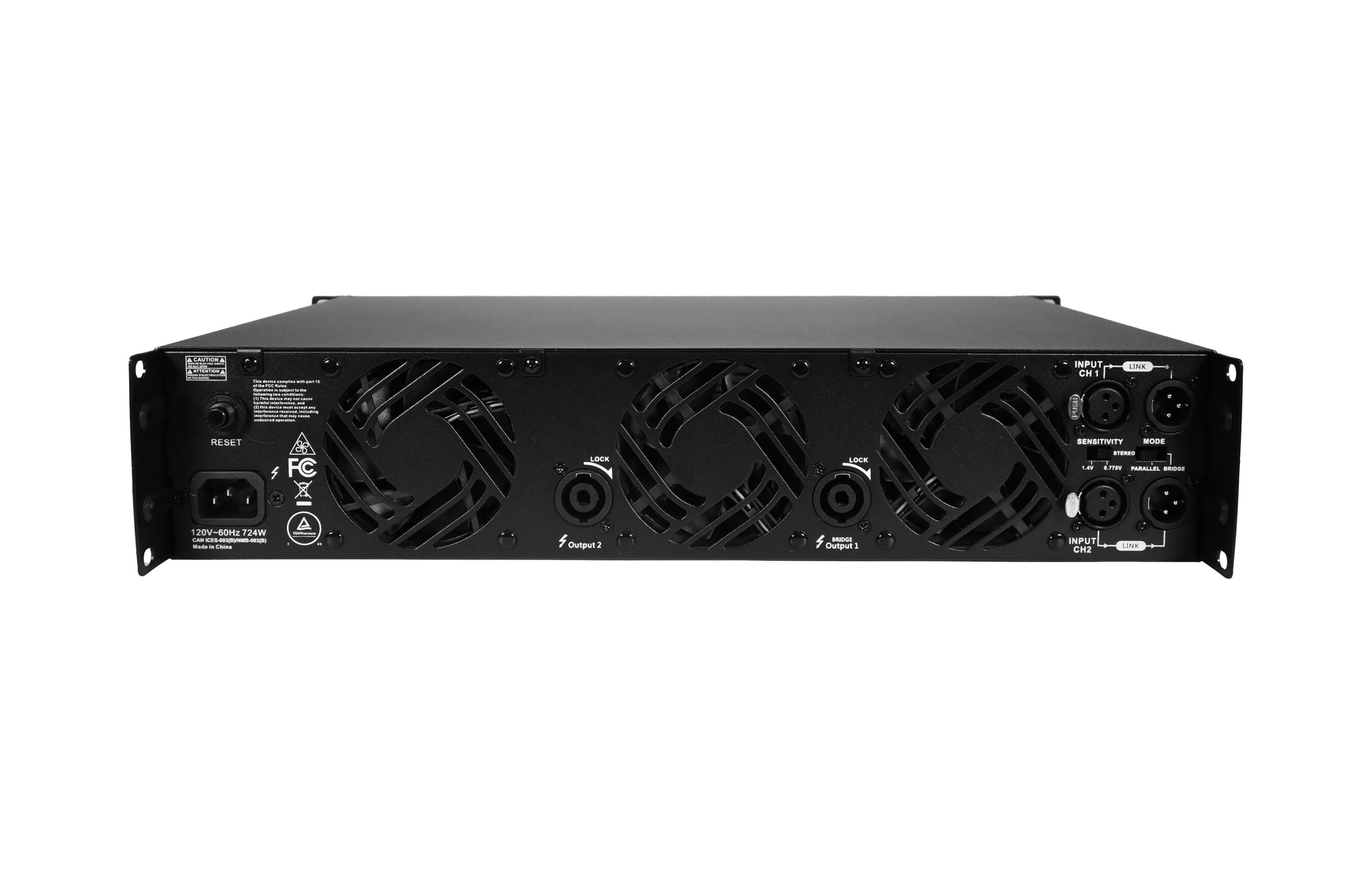

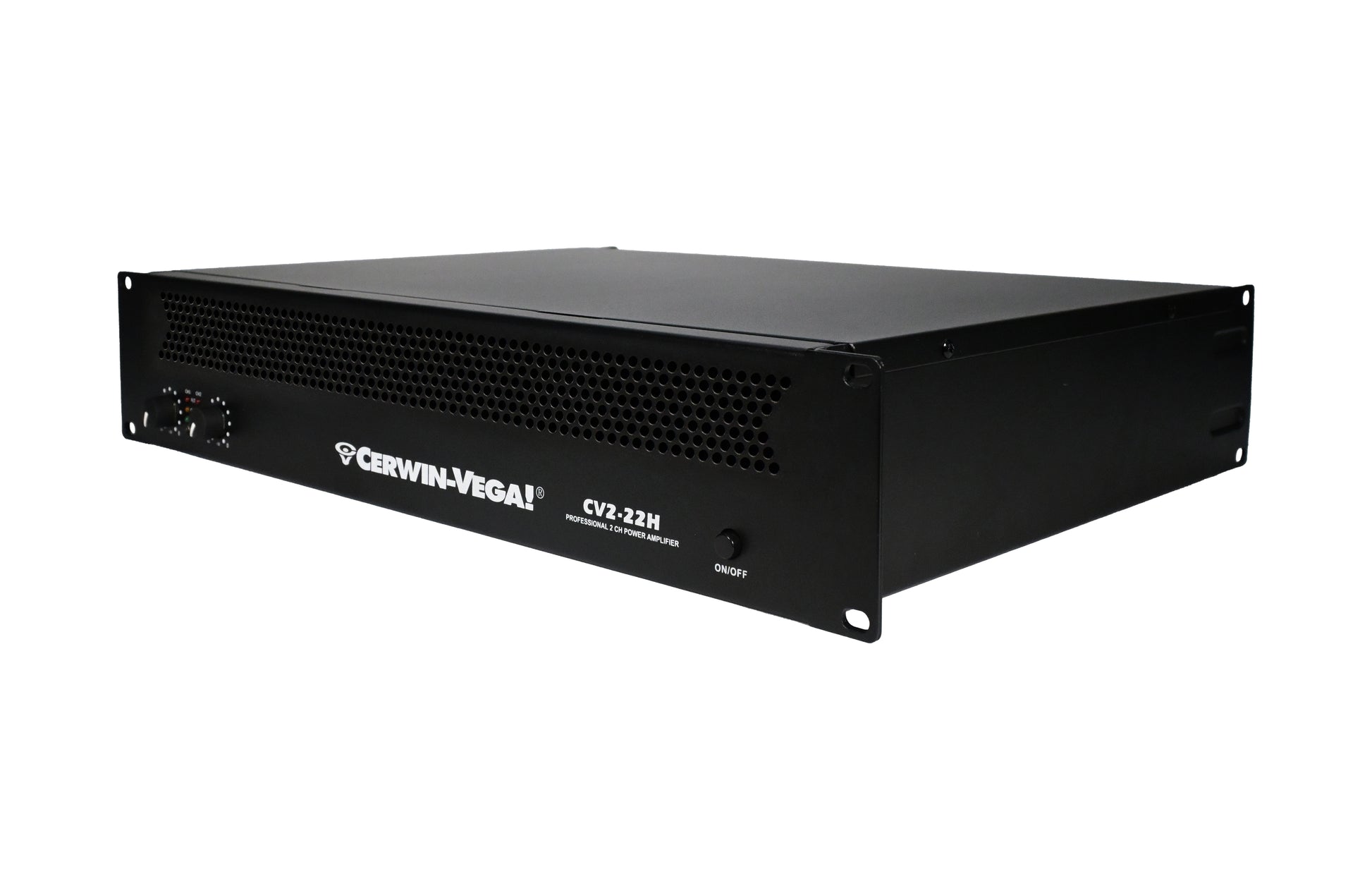

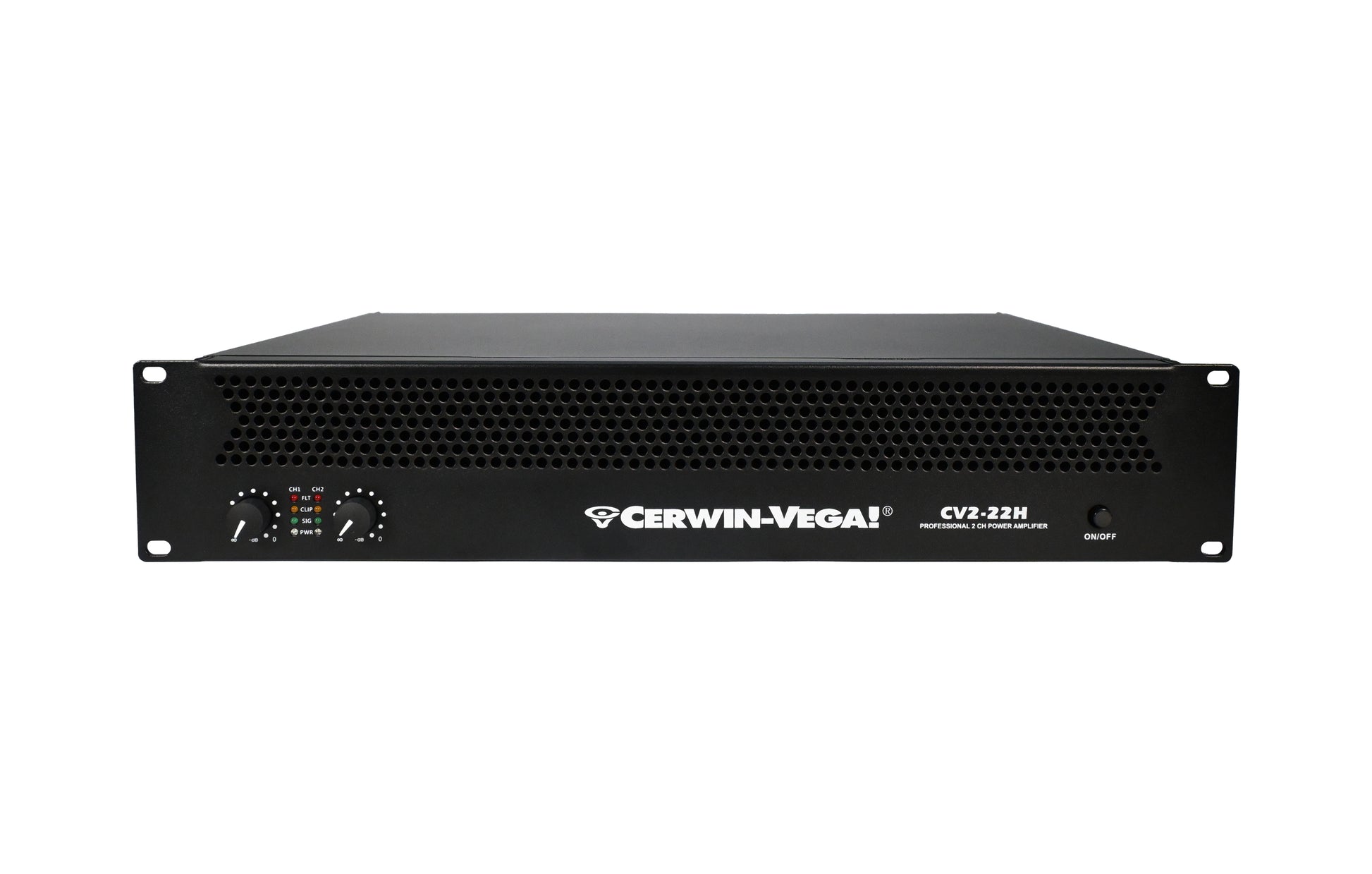

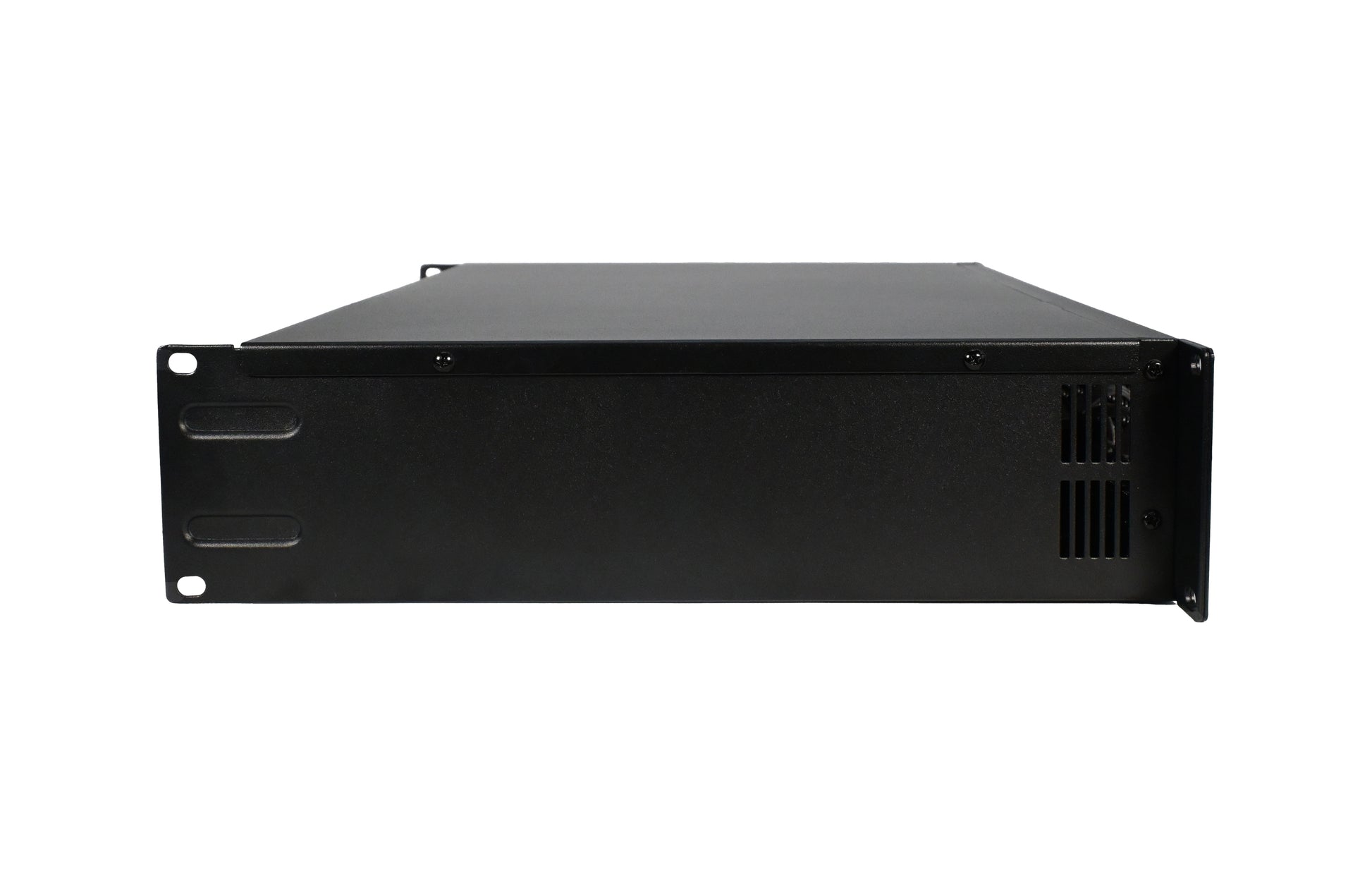

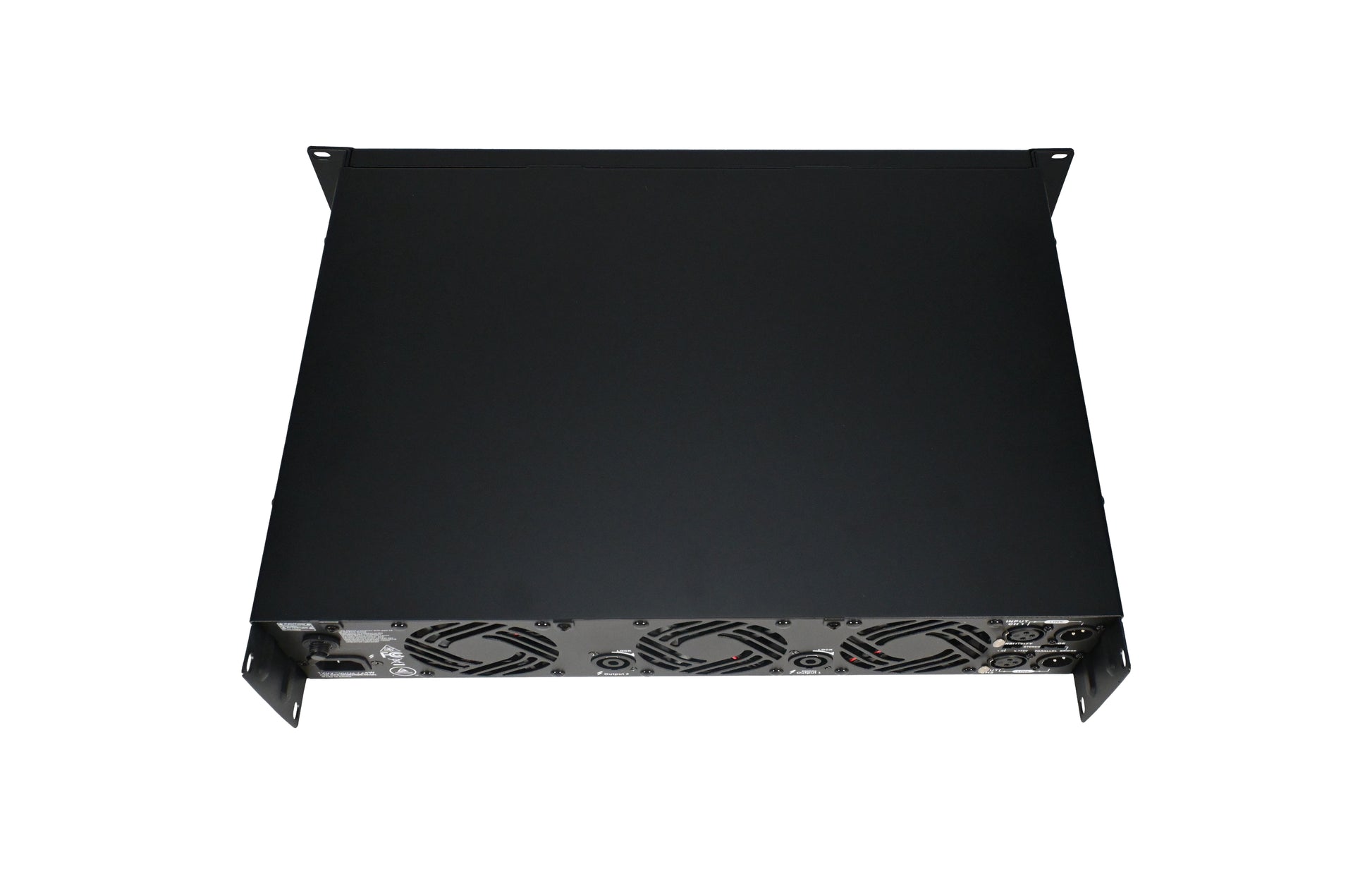

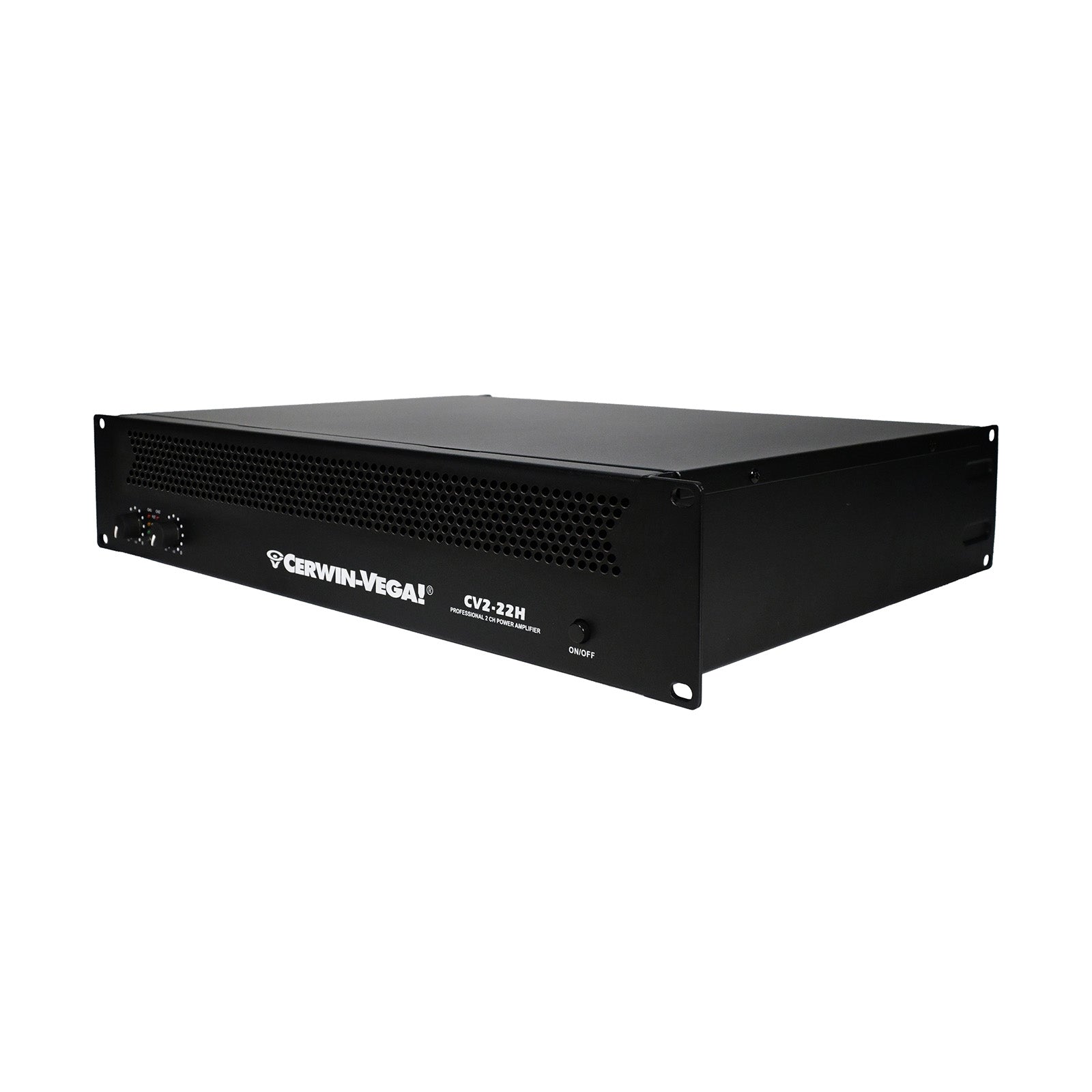

2-Channel Power Amplifier, 2260W 120V Briding 8Ω - CV2-22H

$999.99 USD

Sale Sold out

Secure Checkout
100% Authentic
Free Shipping
Live Support

Overview

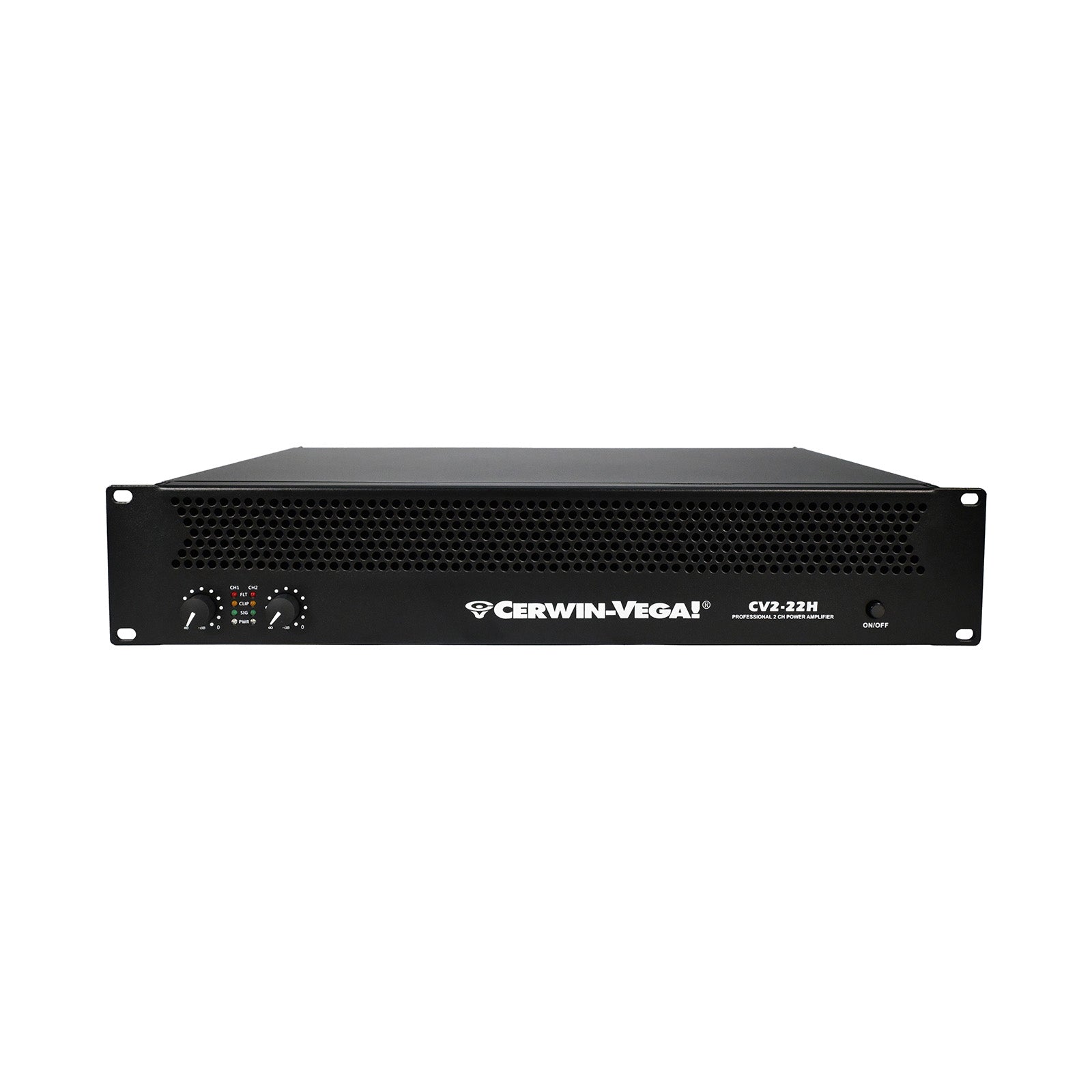

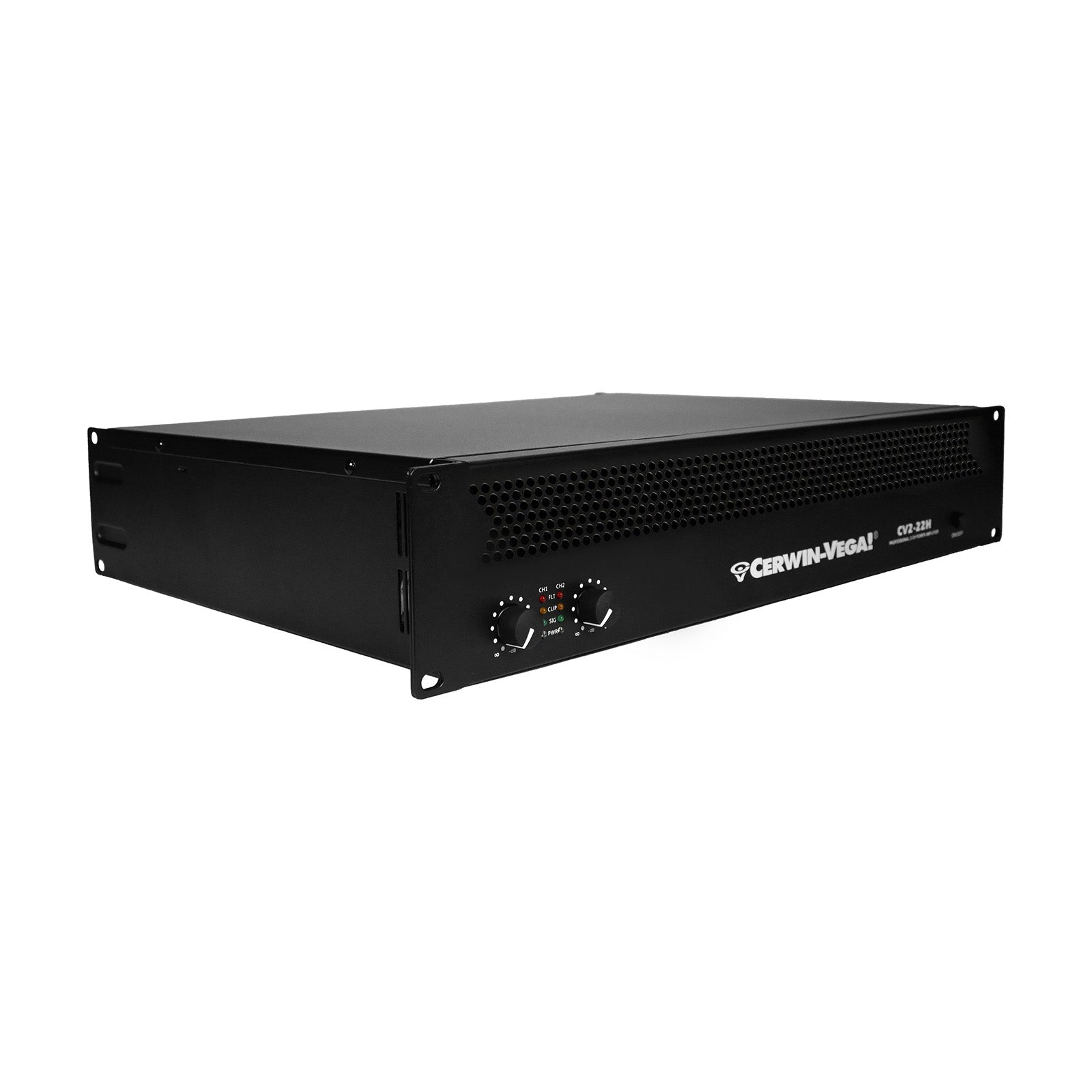

2 Channel Power Amplifier, 2260W 120V Briding 8Ω

Take control of the stage with the Cerwin-Vega CV2 Series professional power amplifier. It is designed for DJs, live bands, venues, and event sound systems.

The CV2 delivers strong, clean power with plenty of headroom. Your sound stays clear and distortion-free, even when the volume is high.

This amplifier is built for professional audio performance. It produces detailed sound with very low distortion. From deep bass to clear highs, your music remains balanced and powerful during every show.

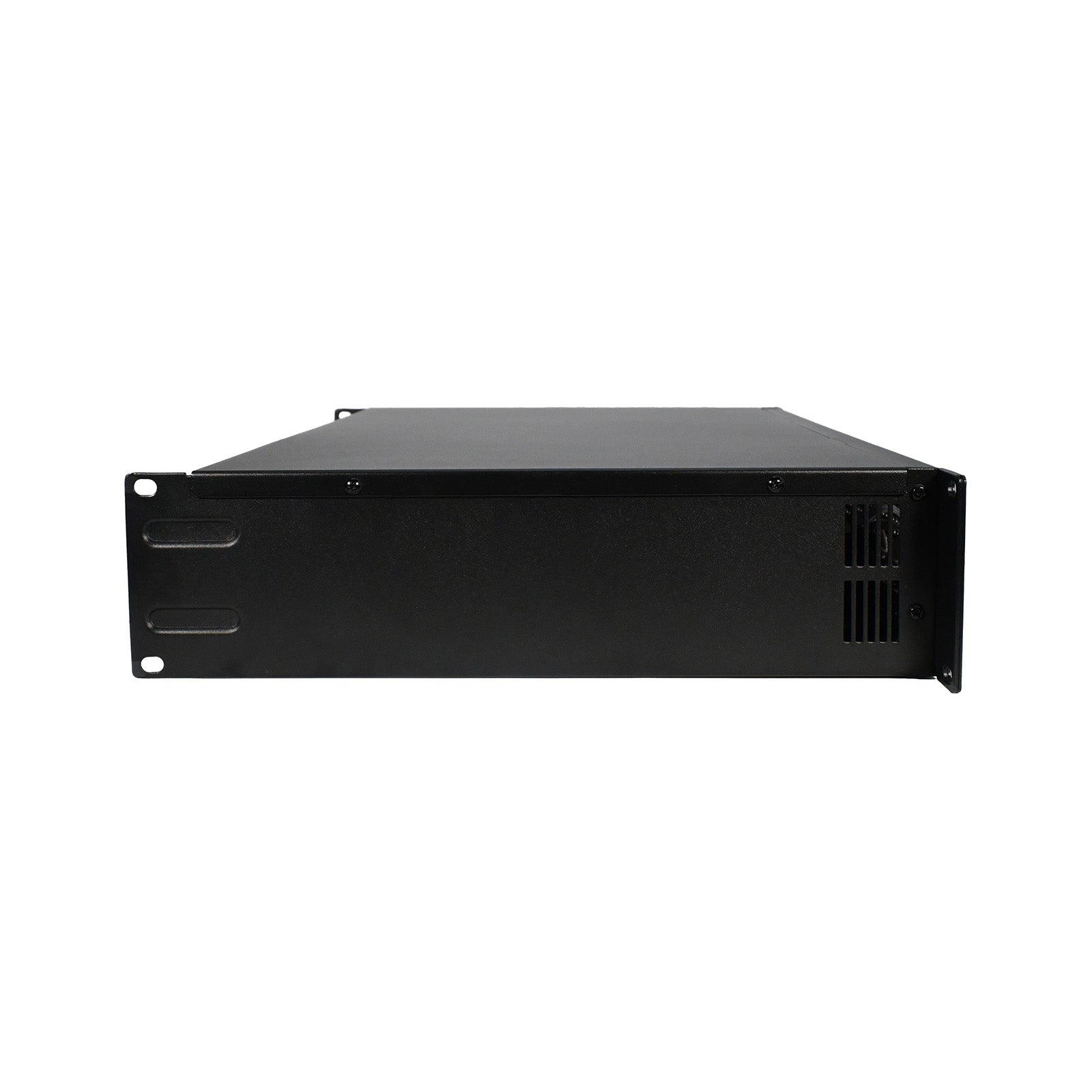

The CV2 Series is also built for reliability. Its rugged 2U rack-mount chassis fits standard audio racks used in professional systems.

Advanced flow-through cooling helps keep the amplifier running at safe temperatures. Built-in protection circuits help protect your speakers and system during demanding performances.

The 2-channel design is ideal for powering main speakers or subwoofers.

The Cerwin-Vega CV2 Series amplifier delivers dependable power and clear sound for live audio setups.

Specifications

Audio Performance:
Frequency Response: 20Hz - 20kHz, +0/-1dB (at 1 Watt)
Signal-to-Noise Ratio: >100dB (A-weighted)
Total Harmonic Distortion (THD): <0.5%, 20Hz - 20kHz
Intermodulation Distortion (IMD): <0.35% (60Hz & 7kHz at 4:1 from full output to -30dB)
Damping Factor: >200 (at 8Ω, 10Hz - 400Hz)
Crosstalk: -75dB at 1kHz, -58dB at 20kHz
Slew Rate: >20V/μs
Voltage Gain: 35dB

Power Output:
8Ω Stereo Power (per Ch.): 2 x 670W
4Ω Stereo Power (per Ch.): 2 x 1070W
Bridge Mono Power: 2260W

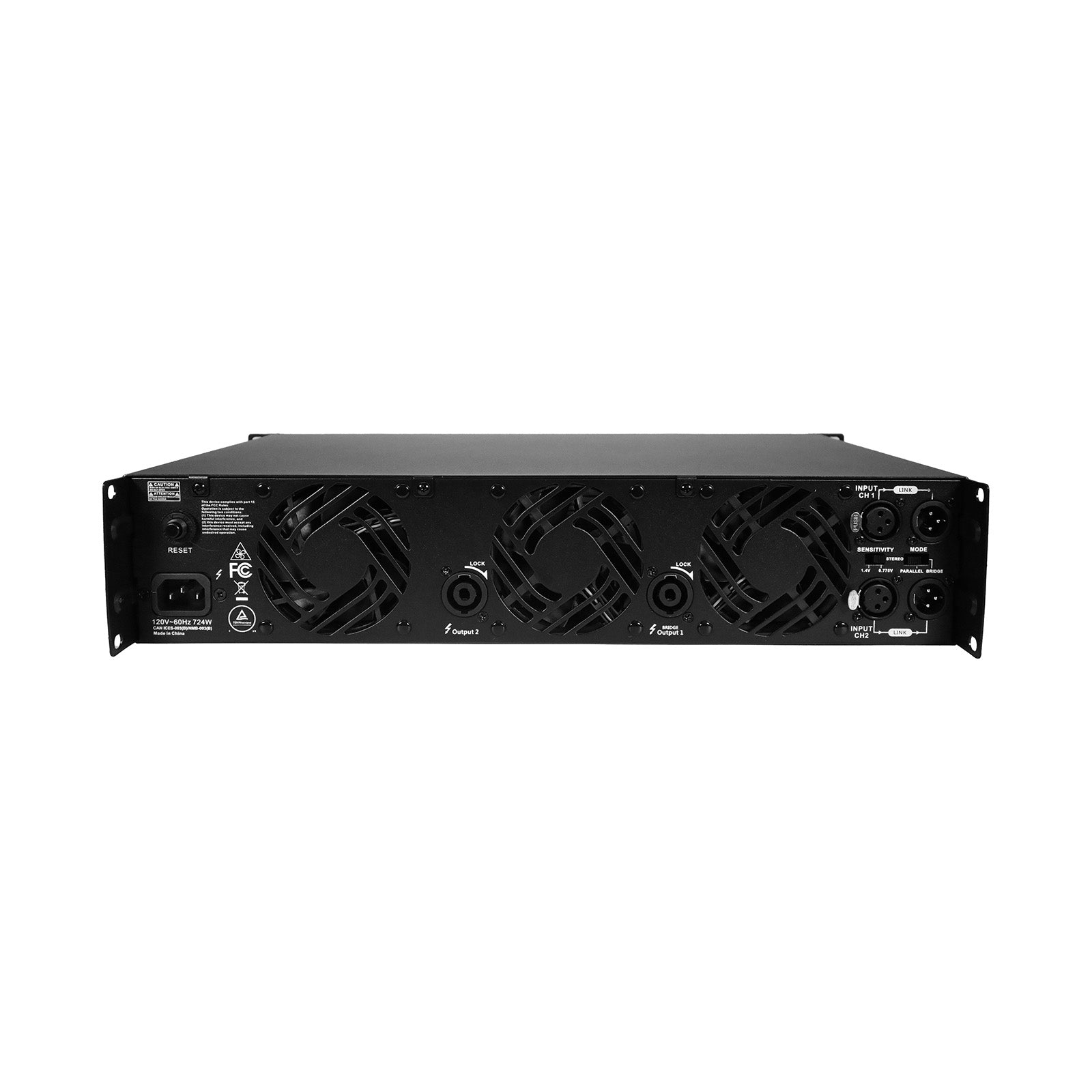

Input / Output:
Input Sensitivity: 0.775V or 1.4V
Input Impedance: 20kΩ (Balanced), 10kΩ (Unbalanced)

Physical & Construction:
Chassis: Standard E.I.A International Standard, 2U Rack Mountable
Protection: Short circuit, no-load, on/off muting, RF interference

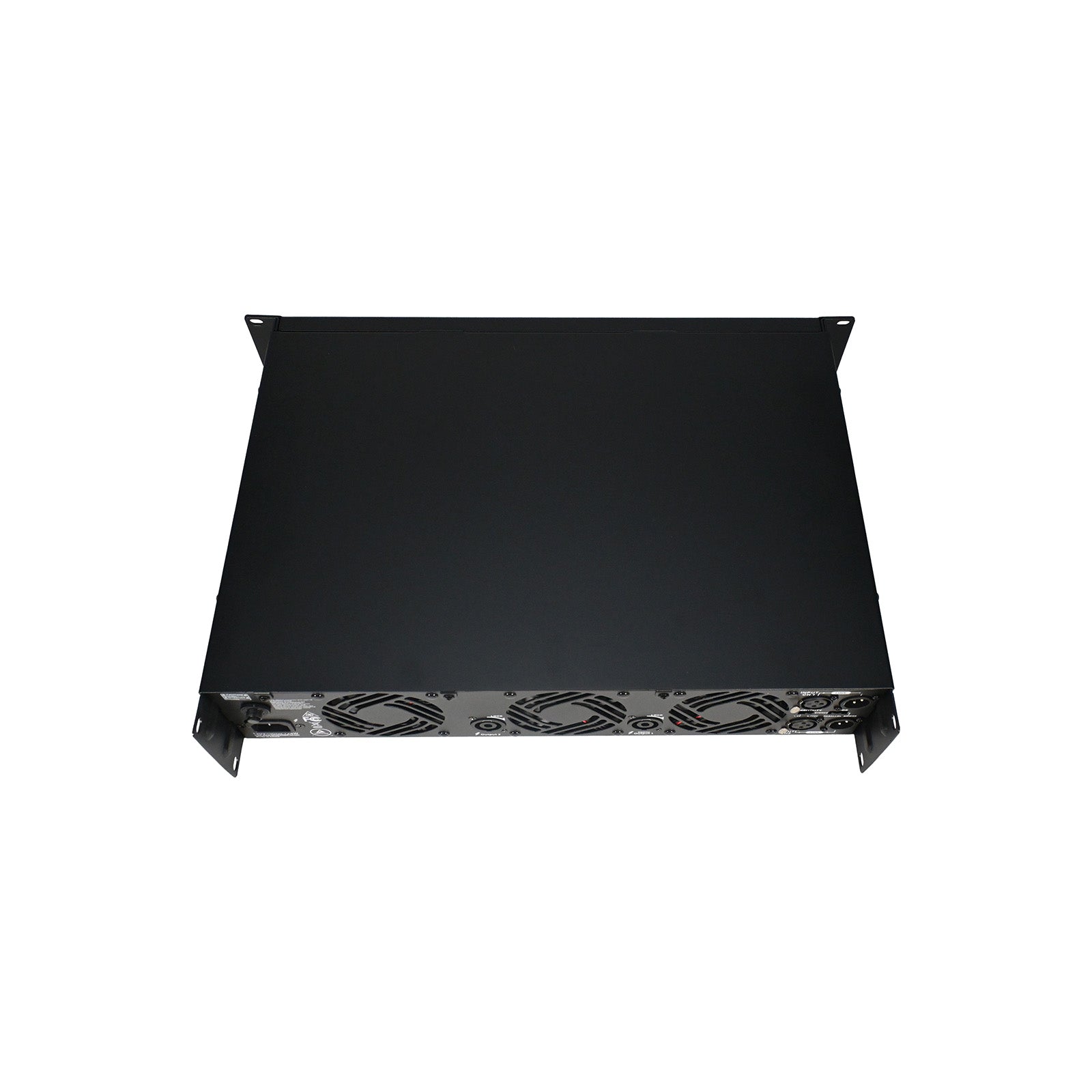

Cooling: Flow-through ventilation with forced air and thermal protection
Power Cord: Plug: 10A, 120VAC / Wire: 3x1.0mm²

Net Weight: 9.5 kg/ 20.94 lbs.
Chassis Dimensions: 482 x 227 x 88mm

Product Manuals

View Product Details

Gallery
Review

Command the Stage with Unmatched Power

Cerwin-Vega power amplifiers deliver massive, clean output with incredible headroom. Experience balanced, distortion-free sound from deep, signature bass to crisp highs, even when pushing volumes to the absolute limit.

Tour-Grade Reliability & Advanced Protection

Built for demanding venues, these rugged amplifiers feature advanced flow-through cooling and intelligent protection circuitry. Safeguard your speakers and enjoy dependable, high-performance audio that outlasts the longest gigs.
