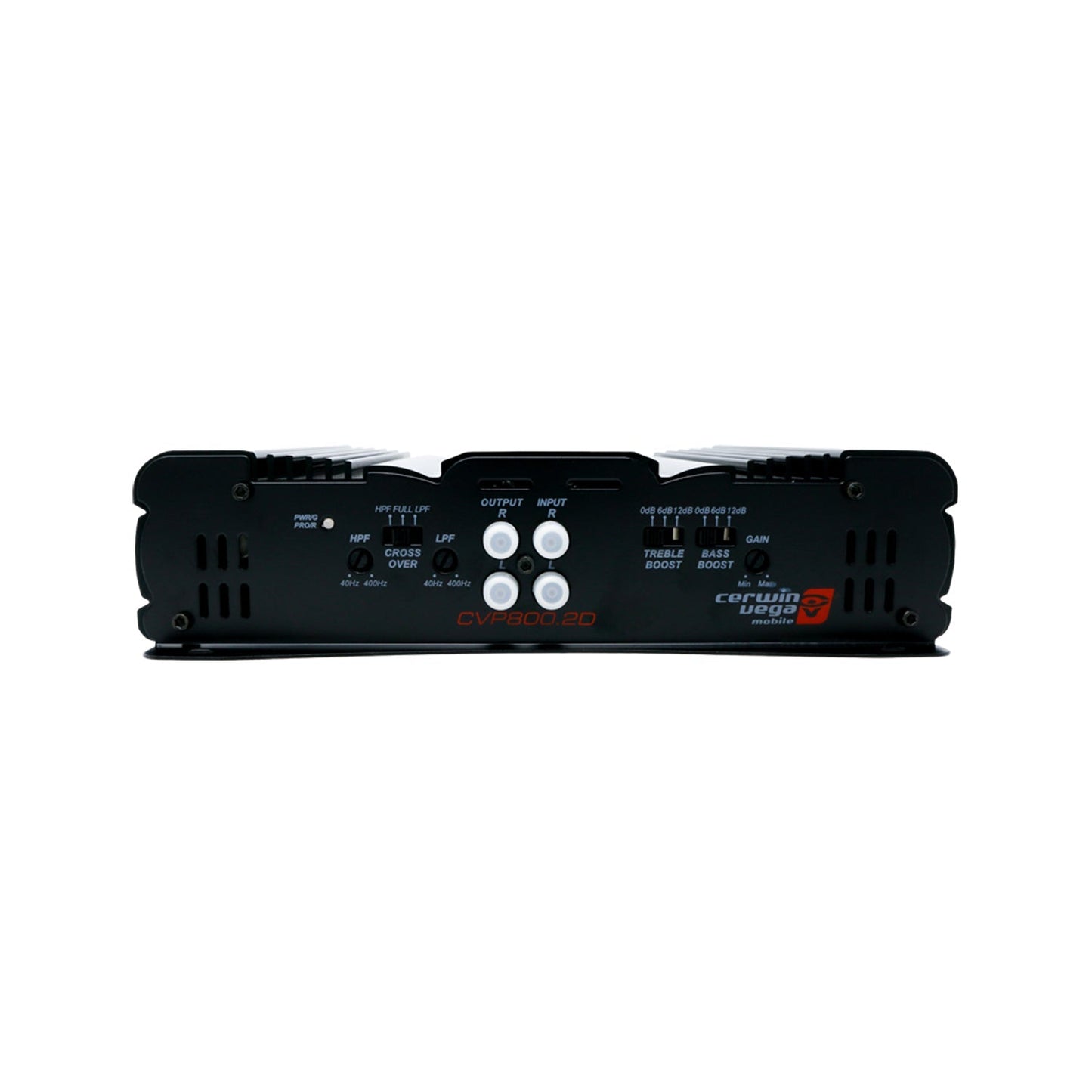

CVP 2 Channel Bridgeable Class AB Amplifier with Bass Control Knob
SKU:CVP800.2D
Couldn't load pickup availability
Overview
CVP800.2D- 2 Channel Class AB Amplifier
Description:
CVP Performance series products make owning a Cerwin-Vega Mobile sound system very affordable for those that are budget-conscious. With a numerous amount of mono and multi-channel amplifiers to select from at a tremendous value for the performance, enjoy the LOUD sound experience with CVP Performance series products. The right price, the right power, the right products. Cerwin-Vega CVP series amplifiers are designed and engineered to reproduce extreme bass output in your vehicle!
Specifications
2 Channel Class AB Amplifier
60W x 2 @ 4Ω RMS Power Output
85W x 2 @ 2Ω RMS Power Output
180W x 1 @ 4Ω Bridged RMS Power Output
2-Ohm Stereo, 4-Ohm Bridged Full Range Operation
Direct Short, Thermal, & Overload Circuits Protect Amplifier
200mV-6V High Level or Low Level RCA Input
Variable 12dB High, Low, & Subsonic Crossovers
LED Power and Protection Indicator
HPF / LPF control
Input Mode
Input and Output Selected
Treble Boost control u Bass Boost control u Gain control
Power Input
Fuse
speaker Output
Dimensions: 7.88” x 9.38” x 2.25”
