VEGA Class-D Digital 2 channel Amplifier - VCU82
SKU:VCU82
Couldn't load pickup availability
Overview

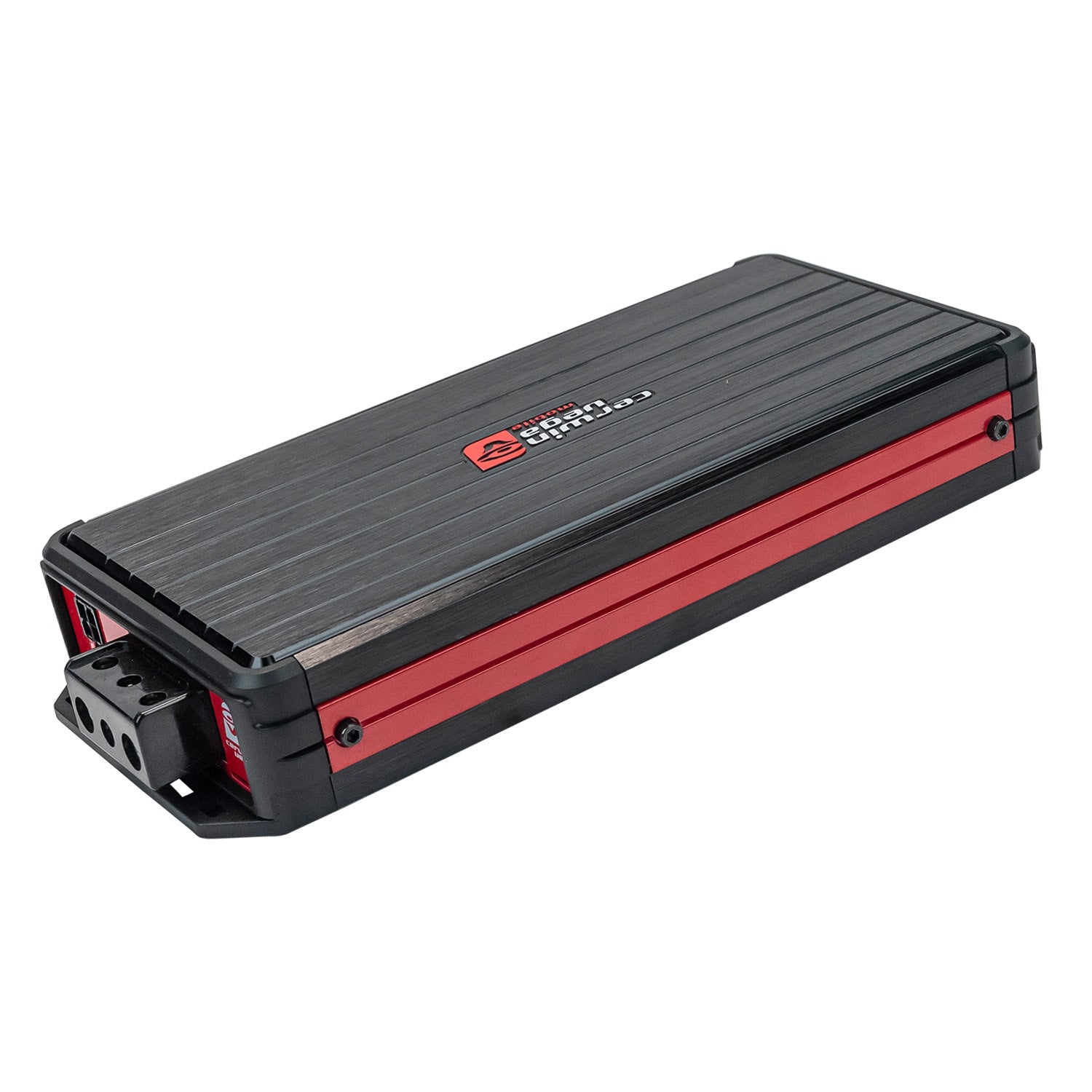

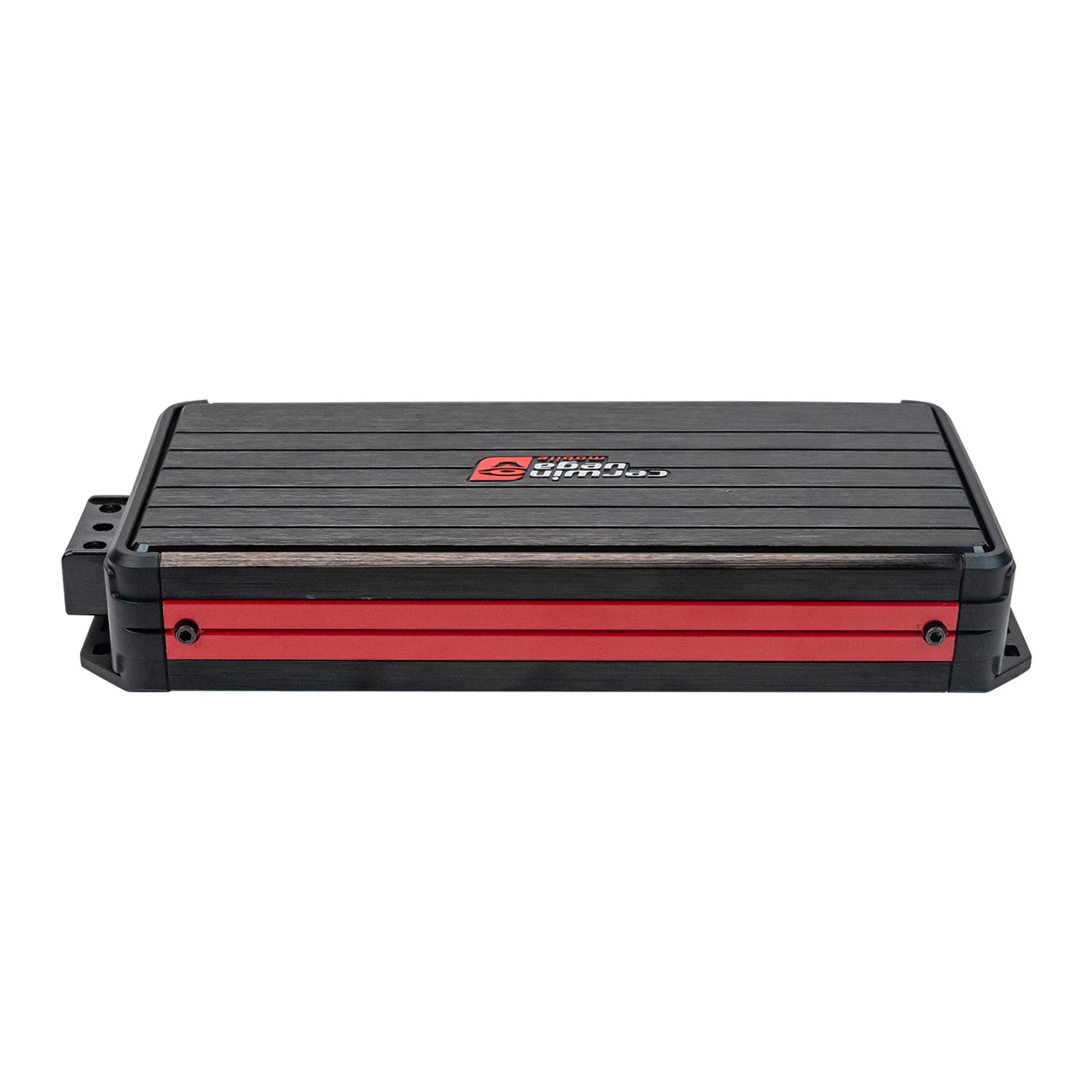

VCU82 - VEGA Class-D Digital 2 channel Amplifier
Description:
VEGA series amplifiers have been the staple of the Cerwin-Vega Mobile brand. It’s sleek and compact design makes installation seamless but don’t let its dimensions fool you as VEGA series amplifiers generate monstrous power output. Updated High-Efficiency Full Range Digital Topology. Enhanced Power IR Digital Chipset. Conformal-Coated 4-layer PCB. Remote Turn On Configurator - REM/DC/VOX. Boosted RFI (Radio Frequency Interference) Rejection. Compact Matching Heatsink Platform Dimensions. Accepts HI and LO Level Input Up To 12V. Water Resistant.
Specifications
2 Channel Full Range Digital Amplifier
150W x 2CH @ 4Ω RMS Power Output
250W x 2CH @ 2Ω RMS Power Output
500W x 1CH @ 4Ω Bridged RMS Power Output
Input Sensitivity: 0.2-10 Volt
Crossover Filter : 40-400Hz, 12dB Per Octave Slope
Frequency Response: 10-33KHz
Selectable REM / VOX / DC Turn On Modes
Remote Bass Knob Included
Disconnected RCA Input & Speaker Output Harness Kits Included
Dimensions: 7.7” x 4.02” x 1.4” (195.6 x 102.1 x 35.5 mm)
