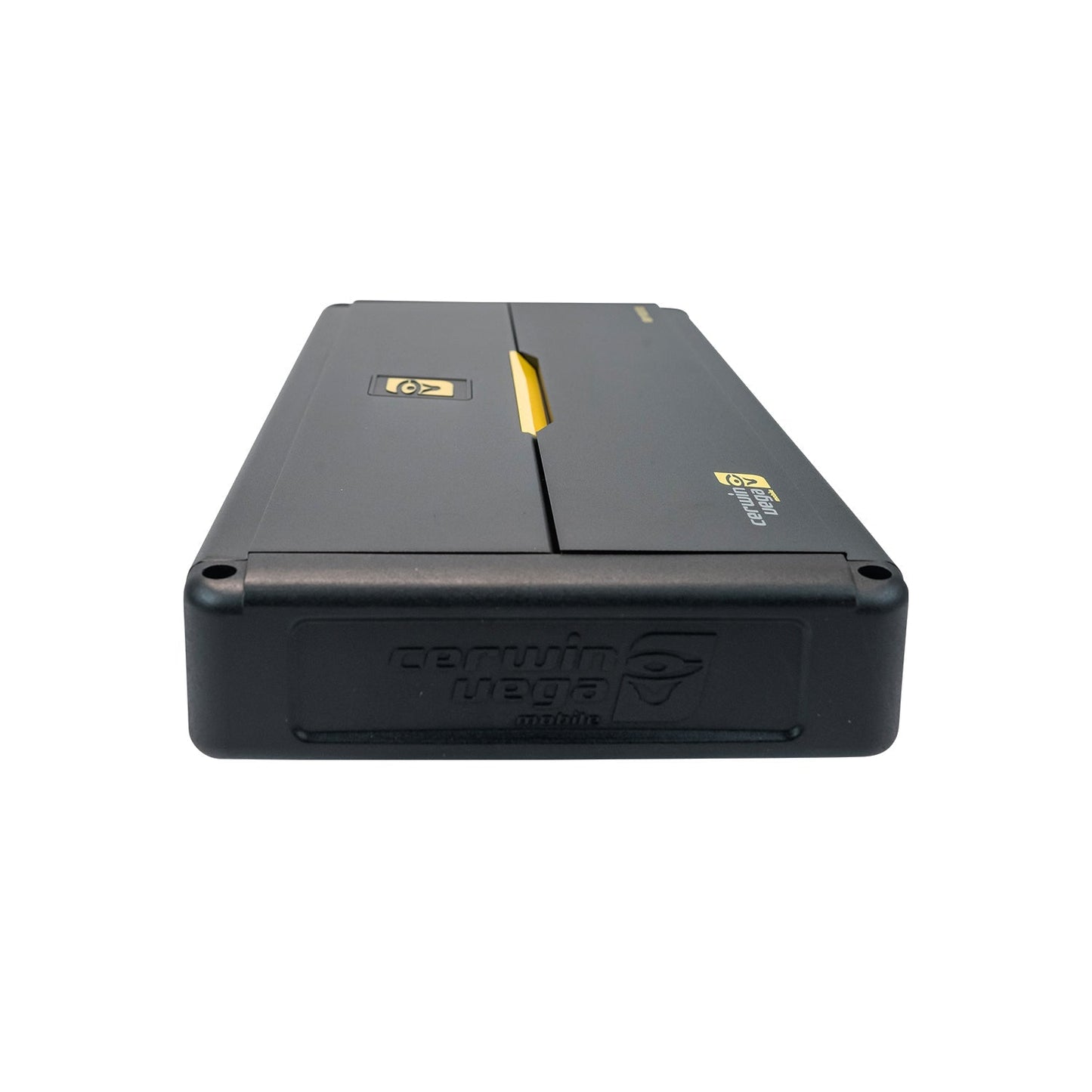

Stroker 5-Channel 1100W RMS Full Range Class-D Amplifier - S91100.5D

Name: Stroker 5-Channel 1100W RMS Full Range Class-D Amplifier - S91100.5D
Brand: Cerwin Vega
Price: 599.99 USD
Availability: InStock

$599.99 USD

Sale Sold out

Size: 5 Channel

1 Channel (1000W) 5 Channel 2 Channel 1 Channel (750W) 4 Channel

Quantity

Overview

S91100.5D - Stroker 5 Channel 1000W Full Range Class-D Amplifier

Experience massive power and uncompromising performance with the Cerwin-Vega S91100.5D Stroker 5-Channel 1000W Full Range Class-D Amplifier, a high-performance amplifier designed for serious car audio enthusiasts and SPL competitors who demand extreme output and precision sound. Part of the legendary Cerwin-Vega Stroker Pro amplifier series, this powerhouse delivers the muscle needed to drive an entire audio system from a single amplifier.

The S91100.5D 5-channel amplifier is engineered to power front speakers, rear speakers, and a subwoofer simultaneously, making it the ideal centerpiece for high-performance car audio systems. With 1000 watts of total system power, this amplifier provides the dynamic output required to drive demanding speakers and subwoofers with authority, clarity, and precision.

Built using advanced full-range Class-D amplifier technology, the S91100.5D delivers high efficiency, powerful output, and reduced heat generation. This design ensures maximum performance while maintaining excellent energy efficiency, allowing your system to produce louder sound with less strain on your vehicle’s electrical system.

To maintain reliable operation during extreme audio performance, the amplifier features massive aluminum heatsinks that efficiently dissipate heat during high-output playback. Combined with heavy-duty 1/0 gauge power connections, the amplifier is capable of handling high current loads required by powerful sound systems.

The 5-channel configuration allows installers to build a complete audio system with one amplifier, simplifying installation while maximizing system performance. Whether powering a full speaker setup and subwoofer or building a competition-ready audio system, the S91100.5D provides exceptional flexibility and output.

Key Features:
• Stroker Pro Series 5-channel Class-D amplifier
• 1000 watts total system power output
• Full-range Class-D design for high efficiency and performance
• Powers front speakers, rear speakers, and subwoofer from one amplifier
• Massive aluminum heatsink for superior heat dissipation
• Heavy-duty 1/0 gauge power connections for high current flow
• Designed for high-performance car audio and SPL systems

The Cerwin-Vega S91100.5D Stroker 5-Channel Amplifier delivers legendary Cerwin-Vega power, extreme durability, and precision sound, making it the ultimate solution for anyone ready to unleash massive audio performance in their vehicle.

Specifications

Stroker Series 5-Channel Full Range Amplifier

Power Rating (RMS)

FREQUENCY RESPONSE (HZ): 35HZ - 350HZ
RMS POWER PER CHANNEL 4Ω 90W X 4 & 250W X 1
RMS POWER PER CHANNEL 2Ω 150W X 4 & 250W X 1
RMS POWER PER 2 CHANNELS BRIDGED 4Ω 300W X 2 & 500W X 1

Power Supply

Power Supply: Full WPM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)

Distortion

THD 4 (1KHZ @4Ω): 0.03%
S/N Ratio (A Weighted @1W): -76.7 dBA
S/N Ratio (A Weighted @FP): -96.7dBA

Input Sensitivity

Low Level Input: 0.2mV-10.0V
High Level Input: Up to 25W RMS

Input Impedance

Low Level Input: 22KΩ

Output Stage

Output Impedance: 0.051Ω
Damping Factor (50Hz@4Ω): >70
Bandwidth (-3db): 10Hz-350Hz

Crossover (1-12dB/Oct)

Variable High-Pass: 35Hz-350Hz
Variable low-Pass: 35Hz-350Hz

Fuse Rating

3x30A

Dimensions

Length x Width x Height: 14.1”x7.25”x2.0” (358.14mm x 184.2mm x 50.8mm)

FEATURES

Remote Bass Knob Included
Input configuration switch on 4 and 5 channel amplifiers
Lighted LED logo
Bass remote can be disassembled and installed in-dash
Variable Phase adjustment
Handles Hi and Low Level Input Up to 12V
Switched Speaker Level Turn On Options (VOX/DC Offset/REM)

Product Manuals

View Product Details

Unleash the beast with STROKER series

Powering the most inefficient speakers and subwoofers to their peak performance, delivering high excursion, clean, and distortion-free sound!

STROKER amplifiers are engineered for extreme sound systems

Featuring massive aluminum heatsinks for superior thermal dissipation and robust 1/0 gauge power connections for efficient high current transfer. These amplifiers are the ideal power choice for SPL and performance-driven setups.
