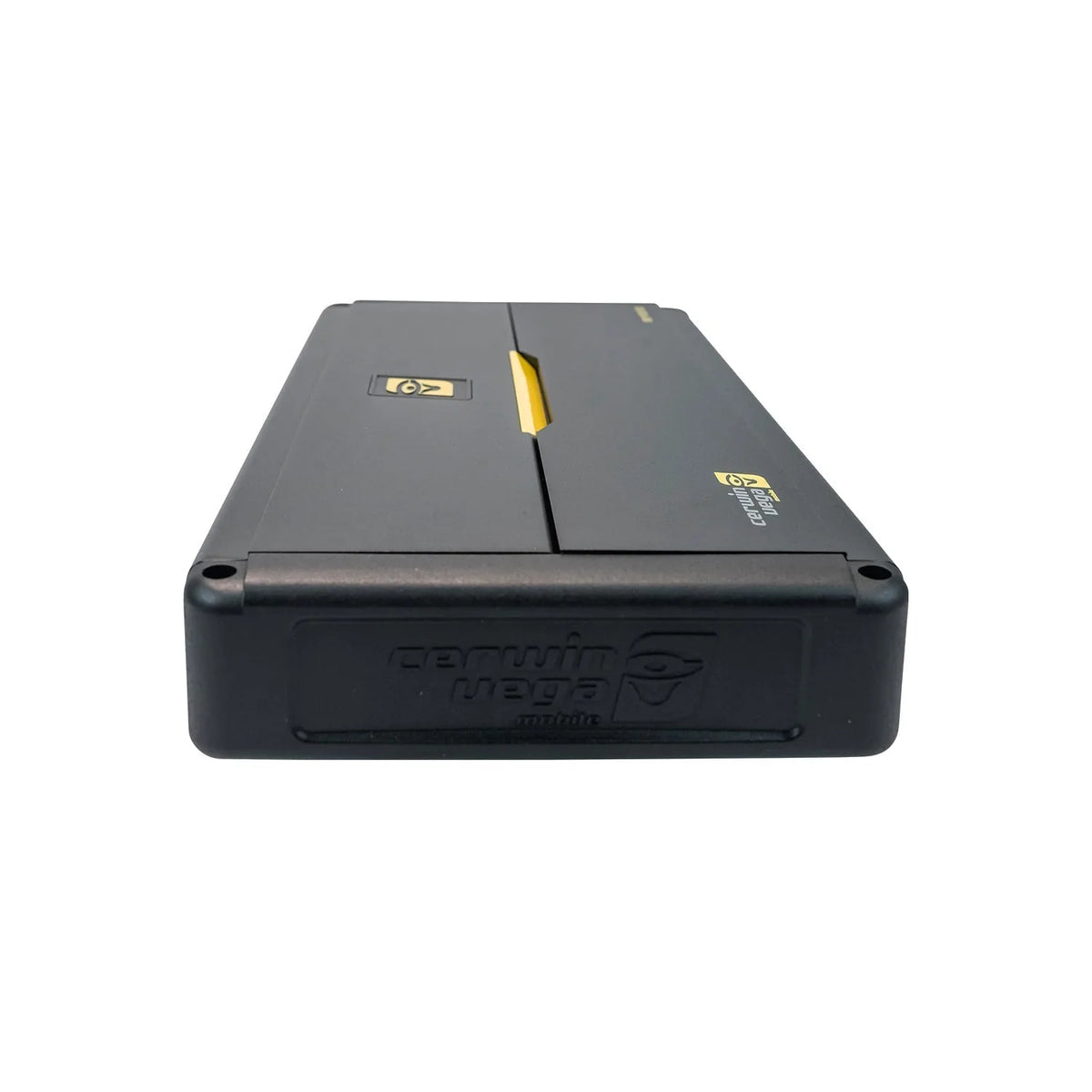

5-Channel Stroker Full Range Class-D Amplifier - S91100.5D

Q1: What models are included in the Cerwin-Vega Stroker amplifier series, and what audio systems do they fit?
A: The Stroker series features 5 mainstream Class-D full-range amplifiers to meet all car audio upgrade needs. The 1-channel S9750.1D and S91000.1D are dedicated mono subwoofer amplifiers that deliver high-power, clean low frequencies for passive subwoofer systems. The 2-channel S9500.2D is ideal for front door component speakers and mid-bass upgrades. The 4-channel S9600.4D powers front and rear door speakers for full vehicle sound upgrades. The 5-channel S91100.5D is an all-in-one solution for four-door speakers plus a subwoofer, perfect for simple plug-and-play builds and complete system upgrades. All models adopt high-efficiency Class-D topology with compact size, low heat generation and sufficient dynamic headroom.

Q2: What is the ifference between Stroker full-range amplifiers and dedicated subwoofer amplifiers? Can they power vocal speakers?
A: The Stroker series is designed for full-range audio playback with a wide frequency response of 10Hz-35KHz, different from dedicated mono subwoofer amplifiers. It reproduces clear vocals, treble, midrange and deep bass with extremely low distortion. All multi-channel models can directly power door full-range vocal speakers with excellent sound performance. Only single-channel models are bass-specific and exclusively for subwoofers, and are not recommended for full-range speaker applications.

Q3: What impedance range do Stroker amplifiers support, and are they bridgeable?
A: All Stroker amplifiers support standard safe car audio impedance loads. Mono bass models operate stably at 1Ω, 2Ω and 4Ω loads without protection tripping under low-impedance conditions. 2-channel, 4-channel and 5-channel full-range models support 4Ω bridgeable operation to boost single-channel power for large subwoofers and high-power speakers. Mono block models cannot be strapped or bridged. Mixing different amplifier models or power specifications for bridging is strictly prohibited to prevent equipment damage.

Q4: Is amplifier heat normal during operation? How to troubleshoot the protection light?
A: Stroker amplifiers are equipped with large aluminum heat sinks and high-efficiency thermal management systems. Slight heat generation during operation is normal, with stable temperature control even under full-power operation. A solid red protection light indicates activated safety protection modes: overheating caused by long-term high-load operation requires powering off and cooling down with sufficient ventilation during installation; short circuits or loose wiring need terminal inspection and reconnection; abnormal low load impedance requires rewiring to restore a safe impedance range.

Q5: What are the power supply requirements for installation? What are the practical tuning tips?
A: All Stroker amplifiers work stably within 10V-17V DC voltage. High-power models require 4AWG to 1/0AWG power cables and matching fuses, with short ground wires connected directly to bare chassis metal to minimize resistance. Stock batteries work for daily use, while secondary batteries and stiffening capacitors are recommended for continuous high-power and competition use. Each unit comes with a wired remote bass knob and adjustable high-pass, low-pass and subsonic filters. For tuning, start with head unit volume and amp gain at zero, then increase gain slowly until distortion-free sound is achieved. Apply high-pass filtering for vocal speakers and low-pass filtering for subwoofers to eliminate noise and deliver crisp, clean audio performance.
