6"× 9" HED 3-Way Coaxial Speakers - H7693

$79.99 USD
$79.99 USD
Sale Sold out
  • Secure Checkout
  • 100% Authentic Products100% Authentic
  • Enjoy Free Shipping!Free Shipping
  • Live Chat SupportLive Support

6"× 9" 3-Way Coaxial Speakers

Upgrade your vehicle’s sound system with the Cerwin-Vega H7693 6” x 9” HED Series 3-Way Coaxial Speakers, engineered to deliver powerful sound, exceptional clarity, and reliable performance. Designed as a direct upgrade from factory-installed speakers, these high-performance coaxial speakers provide the perfect combination of loud output, detailed highs, and strong midrange response for an immersive listening experience.

The H7693 6x9-inch speakers feature a 3-way coaxial design that combines a large woofer, midrange driver, and high-frequency tweeter to reproduce a wide spectrum of sound frequencies. This design allows the speakers to produce deep bass, clear vocals, and crisp high frequencies, ensuring your music sounds balanced and dynamic across all genres.

With 70 watts RMS and up to 420 watts maximum power handling, the H7693 speakers are built to handle high-output audio systems while maintaining excellent clarity. Whether powered by a factory head unit or an aftermarket amplifier, these speakers deliver the volume and performance needed for modern car audio upgrades.

Built with durability in mind, the HED Series speakers feature a stamped steel frame for structural strength and stability. The reinforced cone design helps improve sound accuracy while ensuring long-lasting performance under demanding conditions. A PEI black polypropylene dome tweeter enhances high-frequency detail, delivering crisp and defined highs that bring your music to life.

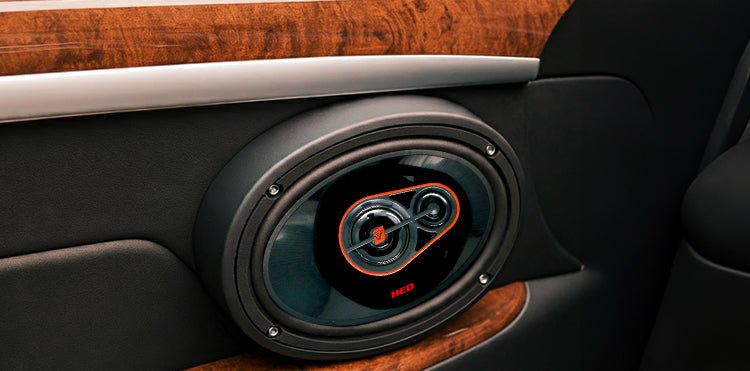

These 6x9 coaxial speakers are ideal for installations in rear decks, doors, or custom panels, making them a versatile solution for upgrading a wide range of vehicles.

Key Features:
6” x 9” HED Series 3-way coaxial speakers (pair)
70W RMS / 420W MAX power handling
3-way design for full-range sound reproduction
PEI black polypropylene dome tweeter for crisp highs
Stamped steel frame for durability and stability
• Reinforced cone for improved sound performance
• Ideal upgrade for factory car audio systems

The Cerwin-Vega H7693 HED Series 6x9 Speakers deliver loud, clear, and dynamic sound performance, making them an excellent choice for drivers who want to upgrade their vehicle’s audio system with powerful and reliable speakers.

SPEAKER SIZE - 6X9”
SPEAKER TYPE - TRI AXIAL, SPEAKER TYPE - CO AXIAL
OHMS (PER COIL) - 4
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - POLYPROPYLENE
DIAPHRAGM MATERIAL - MYLAR
BASKET MATERIAL - STAMPED STEEL
MAGNET TYPE - FERRITE (CERAMIC)
SURROUND MATERIAL - TREATED FOAM
CROSSOVER INCLUDED - YES - INTERNAL
FREQUENCY RESPONSE (HZ): 50HZ-20KHZ
""VOICE COIL DIAMETER - INCH (MM) - 1""""""
THIELE/SMALL PARAMETERS
SENSITIVTY (1W/1M): 86.5DB
QTS: 53.5HZ
FREE AIR RESPONSE FS (HZ): 53.5HZ
VAS (L): 24.4
XMAX (MM): 2.625(MM)
POWER HANDLING RMS: 70W
POWER HANDLING MAX: 420W

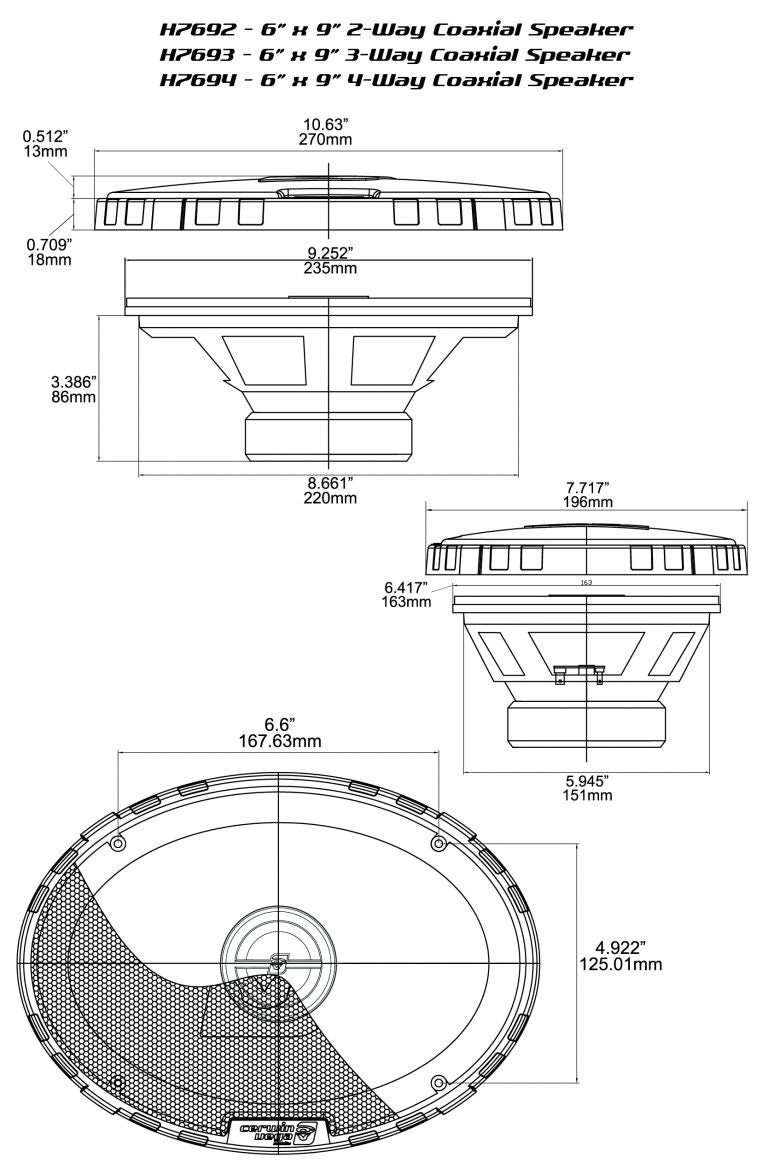

MOUNTING DEPTH: 3.3” (86MM)
MOUNTING DIAMETER : 7.71”X6.4” (196MMX163MM)
