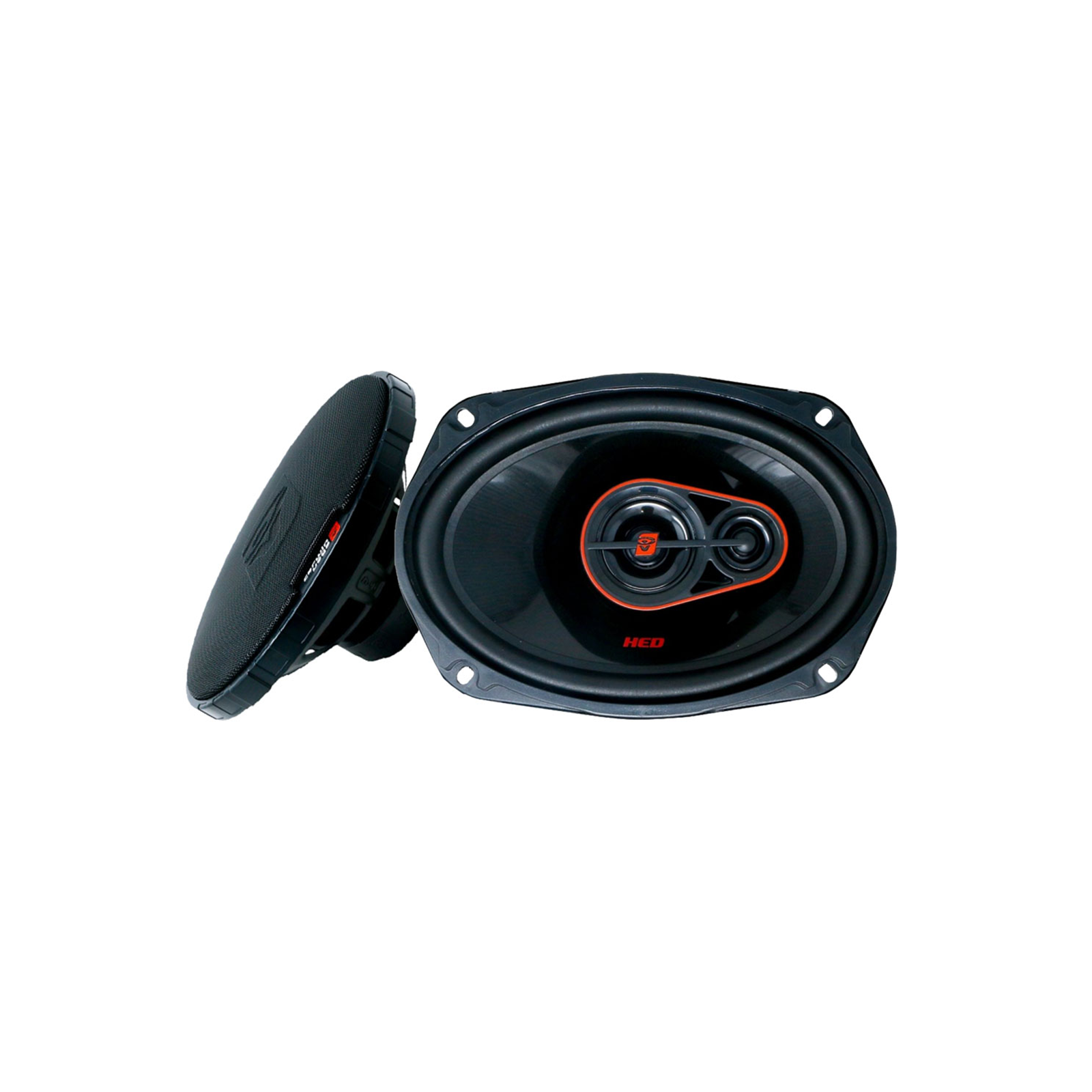

6"× 9" HED 3-Way Coaxial Speakers - H7693
Couldn't load pickup availability
Secure Checkout
100% Authentic
Free Shipping
Live Support
Overview
6"× 9" 3-Way Coaxial Speakers
Upgrade your vehicle’s sound system with the Cerwin-Vega H7693 6” x 9” HED Series 3-Way Coaxial Speakers, engineered to deliver powerful sound, exceptional clarity, and reliable performance. Designed as a direct upgrade from factory-installed speakers, these high-performance coaxial speakers provide the perfect combination of loud output, detailed highs, and strong midrange response for an immersive listening experience.
The H7693 6x9-inch speakers feature a 3-way coaxial design that combines a large woofer, midrange driver, and high-frequency tweeter to reproduce a wide spectrum of sound frequencies. This design allows the speakers to produce deep bass, clear vocals, and crisp high frequencies, ensuring your music sounds balanced and dynamic across all genres.
With 70 watts RMS and up to 420 watts maximum power handling, the H7693 speakers are built to handle high-output audio systems while maintaining excellent clarity. Whether powered by a factory head unit or an aftermarket amplifier, these speakers deliver the volume and performance needed for modern car audio upgrades.
Built with durability in mind, the HED Series speakers feature a stamped steel frame for structural strength and stability. The reinforced cone design helps improve sound accuracy while ensuring long-lasting performance under demanding conditions. A PEI black polypropylene dome tweeter enhances high-frequency detail, delivering crisp and defined highs that bring your music to life.
These 6x9 coaxial speakers are ideal for installations in rear decks, doors, or custom panels, making them a versatile solution for upgrading a wide range of vehicles.
Key Features:
• 6” x 9” HED Series 3-way coaxial speakers (pair)
• 70W RMS / 420W MAX power handling
• 3-way design for full-range sound reproduction
• PEI black polypropylene dome tweeter for crisp highs
• Stamped steel frame for durability and stability
• Reinforced cone for improved sound performance
• Ideal upgrade for factory car audio systems
The Cerwin-Vega H7693 HED Series 6x9 Speakers deliver loud, clear, and dynamic sound performance, making them an excellent choice for drivers who want to upgrade their vehicle’s audio system with powerful and reliable speakers.
Specifications
SPEAKER SIZE - 6X9”
SPEAKER TYPE - TRI AXIAL, SPEAKER TYPE - CO AXIAL
OHMS (PER COIL) - 4
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - POLYPROPYLENE
DIAPHRAGM MATERIAL - MYLAR
BASKET MATERIAL - STAMPED STEEL
MAGNET TYPE - FERRITE (CERAMIC)
SURROUND MATERIAL - TREATED FOAM
CROSSOVER INCLUDED - YES - INTERNAL
FREQUENCY RESPONSE (HZ): 50HZ-20KHZ
""VOICE COIL DIAMETER - INCH (MM) - 1""""""
THIELE/SMALL PARAMETERS
SENSITIVTY (1W/1M): 86.5DB
QTS: 53.5HZ
FREE AIR RESPONSE FS (HZ): 53.5HZ
VAS (L): 24.4
XMAX (MM): 2.625(MM)
POWER HANDLING RMS: 70W
POWER HANDLING MAX: 420W
MOUNTING DEPTH: 3.3” (86MM)
MOUNTING DIAMETER : 7.71”X6.4” (196MMX163MM)
Product Manuals

Upgrade Your Sound!
HED Series Speakers by CERWIN-VEGA are the perfect choice for those looking to move beyond factory speakers. With superior audio quality and enhanced performance, transform your listening experience with these exceptional speakers.
Versatility Meets Superior Sound!
The HED Series by CERWIN-VEGA offers a wide range of sizes and exceptional sound quality, making it the perfect solution to enhance your audio experience. Enjoy both loudness and clarity with reliable performance.
I have building and designing speaker systems and audio systems for close to 50 years. Cerwin Vega has always produced great sound and most people UNDER RATE THEM! That is due to the fact they don't know what their doing!
Great 6x9s Recommended
ive got a fleet commercial delivery vehicle that has zero thrills and the same head unit they've been using for the past 20+ years. so nothing fancy, great sounding or powerful. these are an ENORMOUS improvement over stock, and even over other aftermarket speakers ive gotten trying to make this thing sound better. I'm not trying to put a whole fancy expensive sound system in this vehicle so finding cheap decent speakers that sound good on this lame headunit was a challenge and out of the numerous pairs ive tried these are above and beyond the best. that being said ive tried the 6.5" componets of these and the 6.5" normal ones and they did not sound great (again crappy stock head unit, they might sound better on something else) but these 6x9s are killer. tons of bass, loud and clean. highly reccomened these. (i listen to every type of music as well, mostly hip hop/rap but everything and these sound great across the board)
Better then i was expecting...This my first pair of Vegas....they sound good in my jeep improved sound from old factory speakers.. Would buy again..
Installed them in 6x9 boxes on an older Alpine 75x2 amp. Amps at 25%. They sound good for the price. Bass is a little better then expected.
