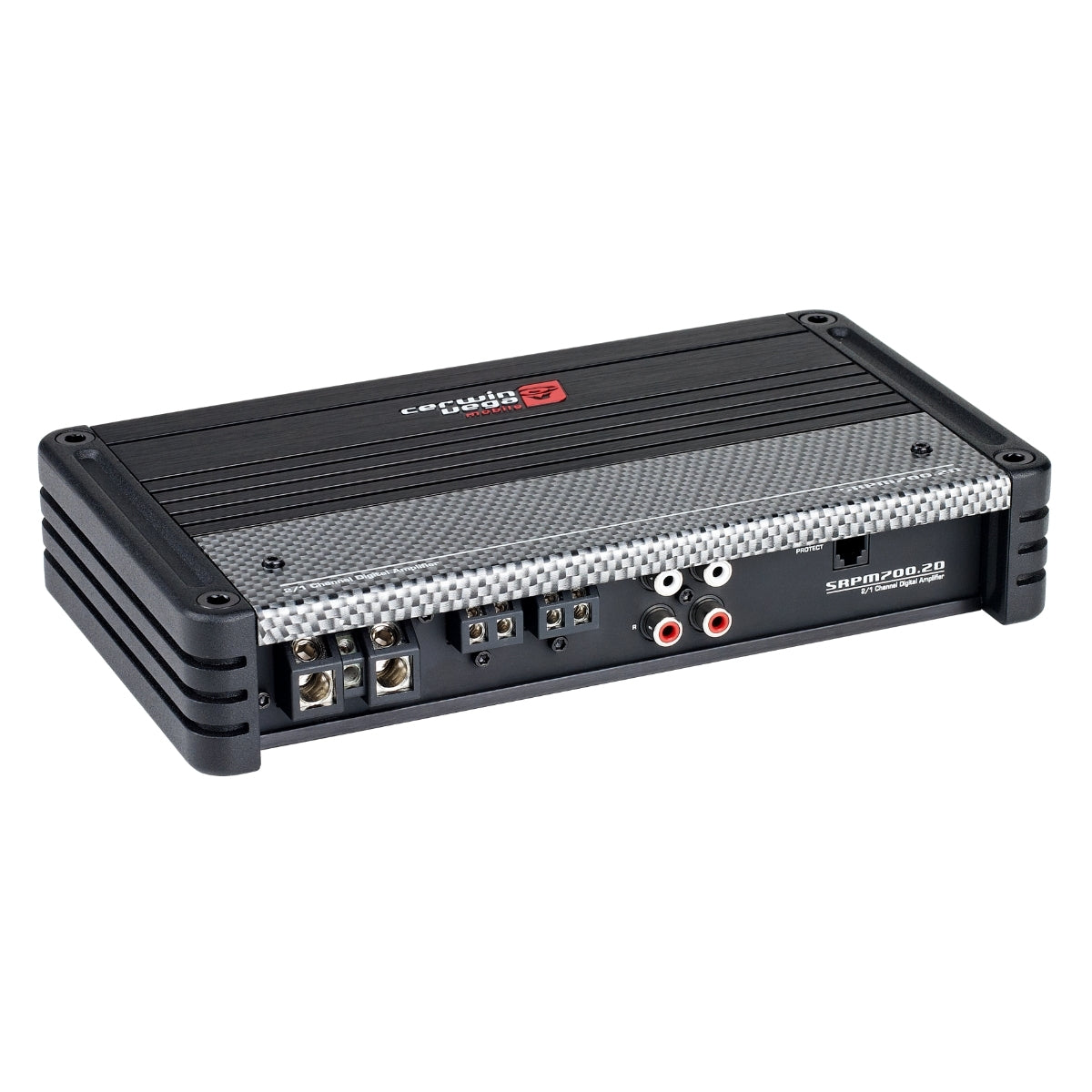

RPM Stroker 2 Channel Class-D Digital Amplifier-SRPM700.2D
SKU:SRPM700.2D
Couldn't load pickup availability
Overview
SRPM700.2D - 2-Channel STROKER Marine Series Digital Amplifier
Description:
S9 Series amplifiers have HUGE “dynamic” headroom capability and ALWAYS sound more powerful than rated power suggests. Latest High-Efficiency Full Range Digital Topology. Surface Mount Component Technology with 4-Layer PCB. Common Compact Size with Single-Sided Connections and Top Mount Controls. Handles HI and LO level input up to 12V. Switched Speaker Level Turn On Option (VOX/DC Offset/REM). Input configuration switch on 4 and 5 channel amplifiers. Fully Variable 35Hz - 350Hz 12dB per Octave Crossovers. Lighted LED logo. Bass remote can be disassembled and installed in-dash. Variable Phase adjustment on ALL S9 series Monoblock to get the correct phase. Moves bass from the trunk to the front.
Specifications
- Stroker RPM Series Class D 2 ohms Stable 2-Channel Amplifier
- RMS Power Rating:
- 4 ohms: 200 watts x 2 channel
- 2 ohms: 350 watts x 2 channel
- Bridged: 700 watts x 1 channel @ 4 ohms
- Total power output: 700 watts
- Total power output: 700 watts
- LED Power/Protect Light
- Lighted LED logo
- Wired bass level remote control included
- Speaker-level (high-level) inputs
- 1 pair of pre-amp outputs
- Signal sensing remote turn-on
- Bass remote can be disassembled and installed in-dash
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Selectable REM / VOX / DC Turn On Modes
- HUGE “dynamic” headroom capability
- Surface Mount Component Technology with 4-Layer PCB
- Compact Size with Single Sided Connections
- Handles HI and LO level input up to 12V
- Input configuration switch on 4 and 5 channel amps
- Input sensitivity:
- Low level: 0.2mV - 10.0 volts
- Frequency Response: 10 - 33000 Hz
- Total Harmonic Distortion (THD): 0.05%
- Signal to Noise Ratio: -98.9 dB
- Variable high-pass filter: 40 - 400 Hz
- Variable low-pass filter: 40 - 400 Hz
- Fuse Rating: 40A
- 8 AWG gauge amplifier wiring kit is recommended for installation

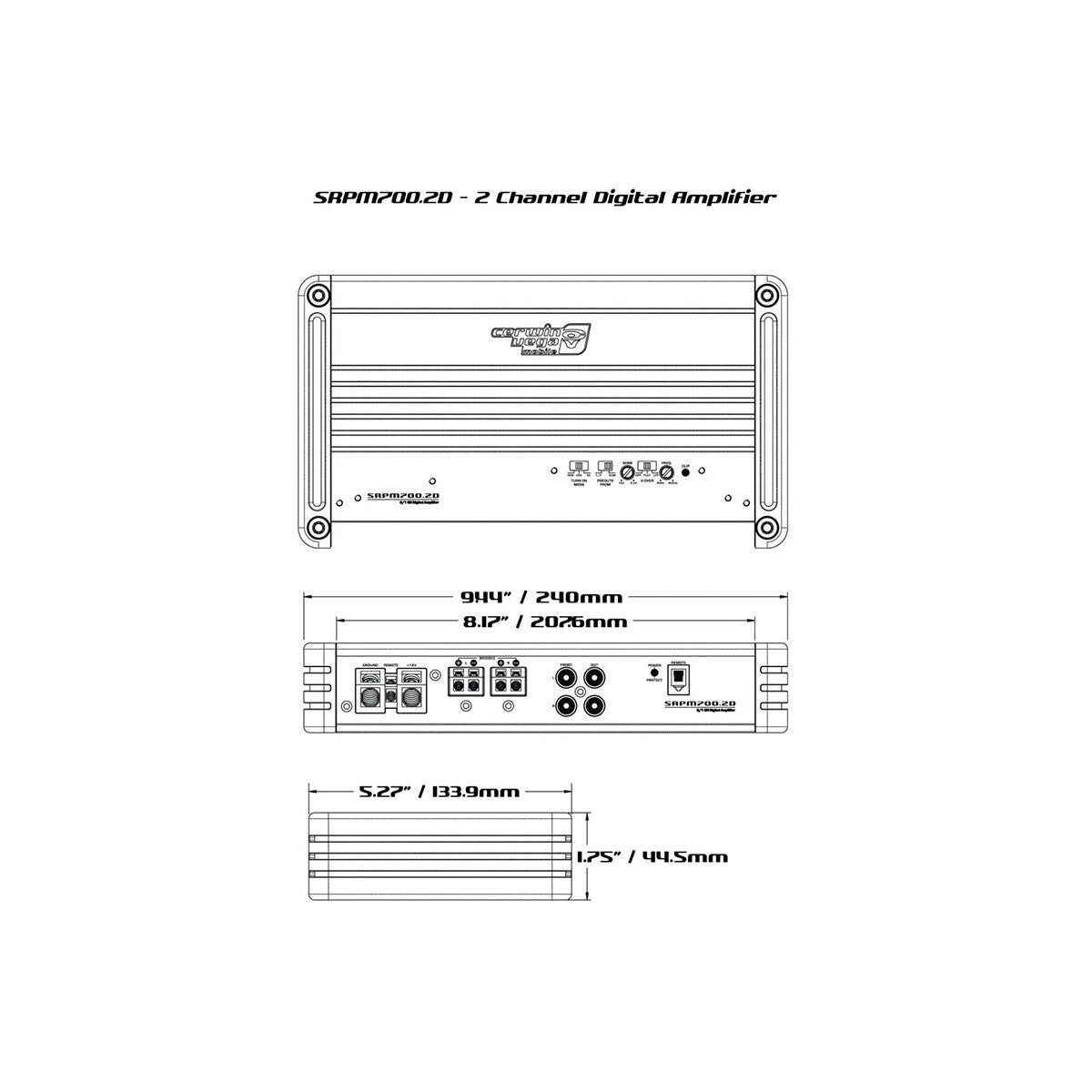

- Dimensions: 8.66" L x 5.28" W x 1.75" H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
- MFR #: SRPM700.2D
Product Manuals
