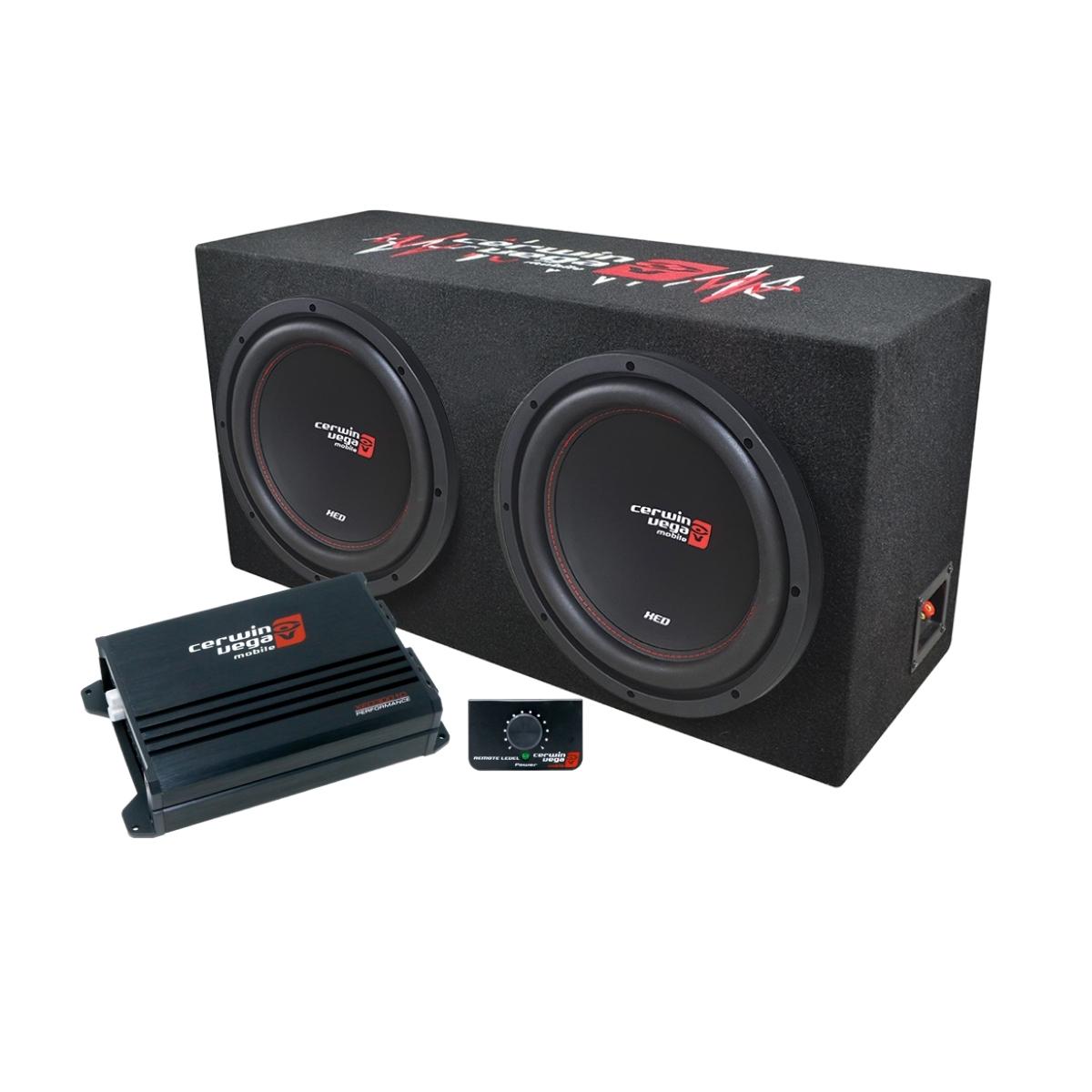

XED Series Dual 12" Sealed Enclosure & Amplifier Bass Package - BKX212S

• Cerwin-Vega XE10DV

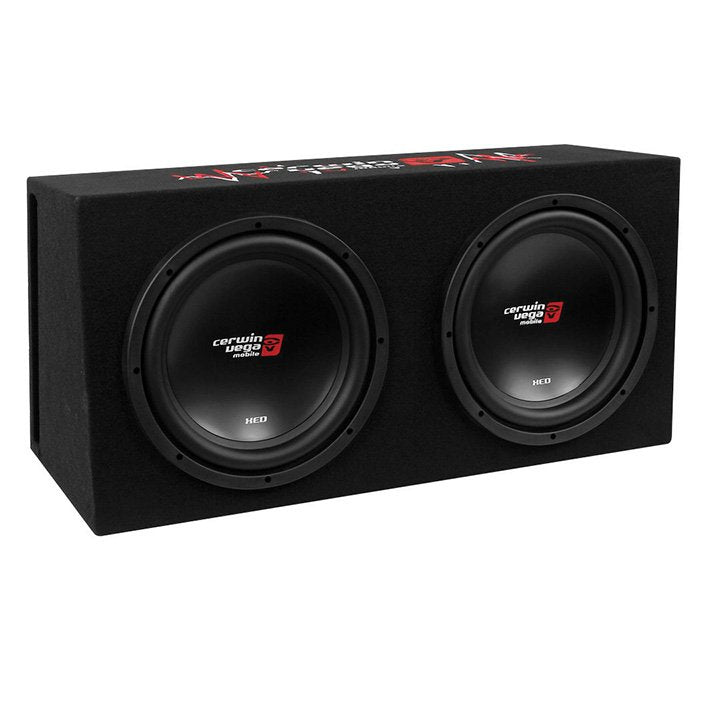

• XED Series Dual 10” Subwoofer in Factory-Tuned Vented Enclosure
• Power Handling:
• Peak: 1600W
• RMS: 450W
• Nominal Impedance: 2 ohm
• Voice Coil: 2.0” (4-Layer)
• 3/4” MDF Vented Enclosure
• Proprietary XED Basket Frame
• Optimized High Power Single-Stacked Motor Structure
• Polypropylene (PP) Cone
• Vented Motor Structure for Optimal Thermal Heat Dissipation
• Poly-Cotton Spider With Spaced Woven in Tinsel Wires
• Unimount Gasket Surround
• Proprietary Stamped Cast Vega Basket Design
• Dimensions: 25.9"W x 11.8"H x 10"D (bottom) / 5.7"D (top)
• Mounting Depth: 5″
• Cut-out Diameter: 9.17”
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

_____________________________________________________

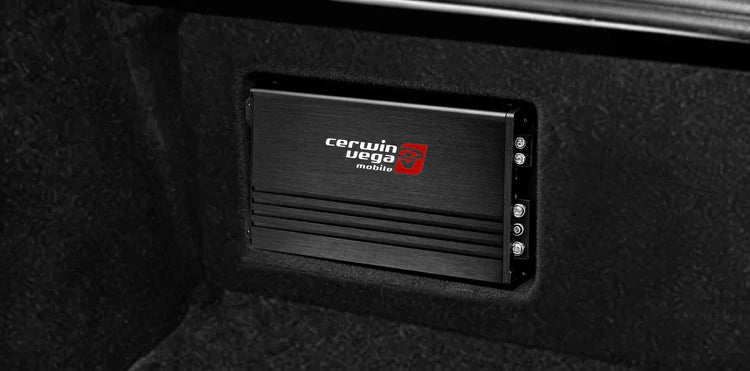

• XED Series Class D 2 ohms Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 200 watts x 1 channel
• 2 ohms: 300 watts x 1 channel
• Total RMS power output: 300 watts
• LED Power/Protect Light
• Speaker-level (high-level) inputs
• Signal sensing remote turn-on
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Aluminum chassis
• Compact size with Ambient backlit logo
• Input sensitivity:
• Low level: 250mV - 6.0 volts
• High level: 1.1 - 20.0 volts
• Frequency Response: 10 - 30000 Hz
• Total Harmonic Distortion (THD): <0.1%
• Signal to Noise Ratio: -101.1 dB
• Variable low-pass filter: 35 - 250 Hz
• Subsonic filter: 10 - 50 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 40A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 6.3" L x 4.7" W x 1.8" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: XED3001D
